CN217939566U

CN217939566U - Self-ash-cleaning filter drum dust remover

Info

Publication number: CN217939566U
Application number: CN202222270123.XU
Authority: CN
Inventors: 刘莹
Original assignee: Dalian Fengshijie Environmental Technology Co ltd
Current assignee: Dalian Fengshijie Environmental Technology Co ltd
Priority date: 2022-08-26
Filing date: 2022-08-26
Publication date: 2022-12-02
Anticipated expiration: 2032-08-26

Abstract

The utility model discloses a dust collector is strained from ash cleaning relates to a dust collector is strained, including the organism of straining a dust collector and establishing dust absorption pipe, the air hose on the organism and strain a section of thick bamboo, strain and be equipped with dust collecting device on the section of thick bamboo, dust collecting device is used for collecting the dust of straining a section of thick bamboo under the filtration, dust collecting device is including establishing the collection seat of straining a section of thick bamboo below, be equipped with on the collection seat and be used for removing the sealed piece that laminating contact strained a section of thick bamboo bottom, collect the seat and install in the backup pad for can clear up fast and strain a section of thick bamboo dust, avoid needing to dismantle and strain a section of thick bamboo and clear up, the dust when preventing to clear up simultaneously drifts down everywhere, makes and can be applicable to multiple condition, makes can clear up the deposition box fast, reduces the step of dismantling, the utility model is simple in operation, and the practicality is strong, convenient to popularize and use.

Description

Self-ash-cleaning filter drum dust remover

Technical Field

The utility model relates to a strain a dust remover equipment technical field, specifically be a strain a dust remover from deashing.

Background

The filter cartridge dust remover is a device for filtering gas dust, dust-containing gas enters the dust remover under the action of negative pressure, when airflow penetrates through the filter cartridge, dust is blocked by the filter cartridge and is adsorbed on the outer surface of the filter cartridge, and filtered clean gas penetrates through the filter cartridge, enters a box body and is discharged through a fan. The existing filter drum dust remover needs to disassemble a machine body cover plate when a filter drum is cleaned, then the filter drum is disassembled, dust is removed through compressed air, dust scatters around, the dust removal effect is influenced, the disassembly steps of different models of machines are different, and the filter drum cannot be directly disassembled after the machine body cover plate is disassembled in most models.

In the prior art, a filter cylinder needs to be disassembled for cleaning, dust on the filter cylinder cannot be cleaned quickly, and the dust easily drifts around when the filter cylinder is cleaned simultaneously and cannot be suitable for various conditions.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a strain a dust remover from deashing to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above purpose, the utility model provides a following technical scheme: the utility model provides a from deashing deduster of a filter cylinder, includes deduster's of a filter cylinder organism and establishes dust absorption pipe, air hose and a section of thick bamboo on the organism, it is equipped with dust collecting device on the section of thick bamboo to strain, dust collecting device is used for collecting and strains a filterable dust of section of thick bamboo, dust collecting device is including establishing the collection seat of straining a section of thick bamboo below, be equipped with on the collection seat and be used for removing the laminating and contact the sealed piece of straining a section of thick bamboo bottom, it installs in the backup pad to collect the seat, stay cord one end is connected to the backup pad bottom, the stay cord free end is removed and is run through spring and organism bottom and connect on the rolling wheel, the rolling wheel is used for the roll-up stay cord.

Preferably, a sealing device is arranged on the machine body on one side of the spring and used for moving the collecting seat to the outer side of the machine body.

Preferably, the sealing device comprises a through hole formed in the side wall of the machine body, a partition plate used for moving the through hole is connected to the through hole in a sliding and clamping mode, and a handle used for enabling the partition plate to vertically move is arranged on the outer side of the partition plate.

Preferably, the outer wall of the collecting seat is provided with a sealing gasket, the outer wall of the collecting seat is attached to and contacts with the inner wall of the machine body, and the outer wall of the collecting seat is smooth.

Preferably, the sealing block is arranged at the center of the collecting seat, and the size of the supporting plate is smaller than that of the collecting seat.

Preferably, the spring is used for pushing the support plate to move upwards, the upper end of the spring is connected with the support plate, and the upper end of the spring is connected with the inner bottom of the machine body.

Preferably, the winding wheel rotates and is arranged at the lower end of the machine body, and the winding wheel driving device is arranged at the lower end of the machine body.

Preferably, the through hole is of a cross structure, the height of the through hole is more than or equal to twice the height of the partition plate, and the height of the partition plate is more than that of the collecting seat.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the dust-containing gas is sucked into the machine body through the dust collection pipe, when the air flow penetrates through the filter cylinder, the dust is blocked by the filter cylinder, the dust is adsorbed on the outer surface of the filter cylinder, the filtered clean gas penetrates through the filter cylinder to enter the upper end of the machine body and is discharged through a fan on the machine body, after the filter cylinder is contacted, the dust collection pipe stops working, the dust on the outer wall of the filter cylinder loses adsorption force, the dust drops to a collection seat for collection, meanwhile, the air pipe is opened to input compressed air into the filter cylinder, the gas penetrates through the outer wall inside the filter cylinder, the dust adhered to the outer wall of the filter cylinder is pushed to be separated from the filter cylinder, then the air pipe is closed, the fallen dust falls to the collection seat for collection, the dust on the filter cylinder can be quickly cleaned, the filter cylinder is prevented from being detached to be cleaned, meanwhile, the dust is prevented from falling everywhere when being cleaned, and the dust collection device is suitable for various conditions.

2. After the dust of cleaing away fell to collecting the seat, the drive rolling wheel, rolling wheel rolling stay cord makes the backup pad downstream through the stay cord, and the backup pad downstream pulling is collected the seat and is followed the removal, and compression spring simultaneously when collecting the seat and can follow the through hole and locate the organism outside, stops the drive rolling wheel, then promotes the handle, makes baffle rebound, makes the through hole be in opening device, then will collect the seat and pull out from the backup pad, moves to the organism outside through the through hole, then clears up the dust on collecting the seat for can clear up the deposition box fast, reduce the step of dismantling, the utility model is simple in operation, the practicality is strong, convenient to popularize and use.

Drawings

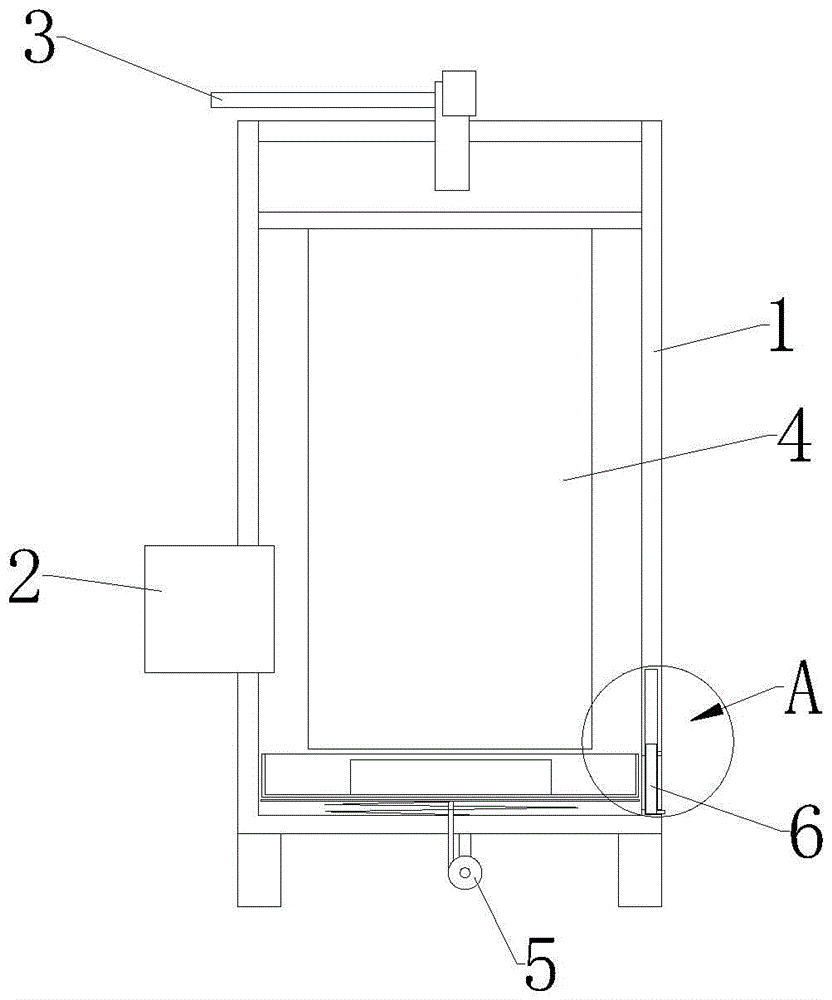

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the dust collecting device of the present invention;

fig. 3 is an enlarged view of a portion a in fig. 1 according to the present invention.

In the figure: 1. a body; 2. a dust collection pipe; 3. an air tube; 4. a filter cartridge; 5. a dust collecting device; 51. a collecting base; 52. a sealing block; 53. a support plate; 54. pulling a rope; 55. a spring; 56. a winding wheel 6 and a sealing device; 61. a through hole; 62. a partition plate; 63. a handle.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: a self-cleaning dust filter cartridge comprises a filter cartridge body 1, a dust collection pipe 2, an air pipe 3 and a filter cartridge 4 which are arranged on the filter cartridge body 1, wherein a fan is arranged at the top end of the filter cartridge body 1, an exhaust fan used for pumping dust into the filter cartridge body 1 is arranged on the dust collection pipe 2, the air pipe 3 is arranged at the top end of the filter cartridge body 1 and used for inputting compressed air into the filter cartridge 4 when cleaning dust, the filter cartridge 4 is arranged on the filter cartridge body 1, a dust collection device 5 is arranged on the filter cartridge 4 and used for collecting the dust filtered by the filter cartridge 4, the dust collection device 5 comprises a collection seat 51 arranged below the filter cartridge 4, a sealing block 52 which is arranged on the collection seat 51 and used for moving, attaching and contacting the bottom end of the filter cartridge 4 is arranged on a support plate 53, and the installation mode is a quick-release fixing mode (such as a snap-in mode), stay cord 54 one end is connected to backup pad 53 bottom, stay cord 54 free end removes runs through spring 55 and organism 1 bottom and connects on winding wheel 56, winding wheel 56 is used for the roll-up stay cord 54, it is equipped with sealed the pad to collect seat 51 outer wall, collect seat 51 outer wall laminating contact organism 1 inner wall, it is smooth to collect seat 51 outer wall, it is equipped with the isolation grid to collect between seat 51 and the sealing block 52, prevent turning over grey, sealing block 52 is established in collection seat 51 center department, backup pad 53 size is less than the size of collecting seat 51, spring 55 is used for promoting backup pad 53 rebound, spring 55 upper end connection backup pad 53, the organism 1 insole is connected to the spring 55 upper end, winding wheel 56 rotates and establishes at organism 1 lower extreme, winding wheel 56 drive equipment establishes on organism 1 lower extreme.

The dust-containing gas is sucked into the machine body 1 through the dust suction pipe 2, when the air flow penetrates through the filter cylinder 4, the dust is blocked by the filter cylinder 4 and is adsorbed on the outer surface of the filter cylinder 4, the filtered clean gas penetrates through the filter cylinder 4 to enter the upper end of the machine body 1 and is discharged through a fan on the machine body 1, after filtration contact, the dust suction pipe 2 stops working, the dust on the outer wall of the filter cylinder 4 loses adsorption force and falls onto the collecting seat 51 to be collected, meanwhile, the air pipe 3 is opened to input compressed air into the filter cylinder 4, the gas penetrates through the outer wall inside the filter cylinder 4, the dust adhered to the outer wall of the filter cylinder 4 is pushed to be separated from the filter cylinder 4, then the air pipe 3 is closed, the fallen dust falls into the collecting seat 51 to be collected, the dust on the filter cylinder can be quickly cleaned, the filter cylinder is prevented from being detached to be cleaned, meanwhile, the dust is prevented from falling around during cleaning, and the dust cleaning device can be suitable for various conditions.

Be equipped with sealing device 6 on the organism 1 of spring 55 one side, sealing device 6 is used for collecting seat 51 and removes to the organism 1 outside, sealing device 6 includes the through hole 61 of seting up on the organism 1 lateral wall, it has the baffle 62 that is used for removing sealed through hole 61 to slide the joint on through hole 61, the baffle 62 outside is equipped with and is used for the handle 63 of the vertical removal of baffle 62, through hole 61 is the cruciform structure, through hole 61 maximum height is more than or equal to the twice of baffle 62 height, through hole 61 minimum height is greater than the height of collecting seat 51, baffle 62 height is greater than the height of collecting seat 51.

After the removed dust falls to the collecting seat 51, the winding wheel 56 is driven, the winding wheel 56 winds the pull rope 54, the supporting plate 53 is moved downwards through the pull rope 54, the supporting plate 53 is moved downwards to pull the collecting seat 51 to move along with the collecting seat, meanwhile, the compression spring 55 (reversely drives the winding wheel 56, the pull rope 54 is loosened, the spring 55 is restored to the original state to push the supporting plate 53 to move upwards, the collecting seat 51 is moved along with the collecting seat, the sealing block 52 is pushed to move to be attached to and contact with the lower end of the filter cartridge 4), when the collecting seat 51 can transversely move to the outer side of the machine body 1 from the through hole 61, the winding wheel 56 is stopped to be driven, then the handle 63 is pushed, the partition plate 62 is moved upwards, the through hole 61 is made to be in an opening device, then the collecting seat 51 is pulled out of the supporting plate 53 and is moved to the outer side of the machine body 1 through the through hole 61, then the dust on the collecting seat 51 is cleaned, so that the dust box can be quickly cleaned, and the disassembly steps are reduced.

The working principle is as follows: the utility model sucks dust-containing gas into a machine body 1 through a dust suction pipe 2, when the air flow penetrates through a filter cylinder 4, dust is blocked by the filter cylinder 4 and is adsorbed on the outer surface of the filter cylinder 4, the filtered clean gas penetrates through the filter cylinder 4 to enter the upper end of the machine body 1 and is discharged through a fan on the machine body 1, after filtration and contact, the dust suction pipe 2 stops working, the dust on the outer wall of the filter cylinder 4 loses adsorption force and falls onto a collecting seat 51 to be collected, meanwhile, an air pipe 3 is opened to input compressed air into the filter cylinder 4, the gas passes through the inner part of the filter cylinder 4 to the outer wall, the dust adhered on the outer wall of the filter cylinder 4 is pushed to be separated from the filter cylinder 4, then the air pipe 3 is closed, the fallen dust falls into the collecting seat 51 to be collected, the dust on the filter cylinder can be quickly cleaned, the filter cylinder is prevented from being detached to be cleaned, meanwhile, the dust is prevented from falling all around when being cleaned, and the dust can be suitable for various conditions, when the removed dust falls to the collecting seat 51, the winding wheel 56 is driven, the winding wheel 56 winds the pulling rope 54, the supporting plate 53 moves downwards through the pulling rope 54, the supporting plate 53 moves downwards to pull the collecting seat 51 to move along with the downward movement, meanwhile, the spring 55 is compressed (reversely driven on the winding wheel 56, the pulling rope 54 is loosened, the spring 55 returns to the original state to push the supporting plate 53 to move upwards, the collecting seat 51 moves along with the movement, the sealing block 52 is pushed to move to be attached to and contacted with the lower end of the filter cartridge 4), when the collecting seat 51 can transversely move to the outer side of the machine body 1 from the through hole 61, the winding wheel 56 is stopped being driven, then the handle 63 is pushed, the partition plate 62 moves upwards to enable the through hole 61 to be positioned in an opening device, then the collecting seat 51 is pulled out of the supporting plate 53 to move to the outer side of the machine body 1 through the through hole 61, then the dust on the collecting seat 51 is cleaned, so that the dust box can be quickly cleaned, reduce the step of dismantling, the utility model is simple in operation, the practicality is strong, convenient to popularize and use.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a from deashing filter cartridge dust remover, includes filter cartridge dust remover's organism (1) and establishes dust absorption pipe (2), air hose (3) and strain a section of thick bamboo (4) on organism (1), its characterized in that: the dust collecting device is characterized in that the dust collecting device (5) is arranged on the filter cylinder (4), the dust collecting device (5) is used for collecting dust filtered by the filter cylinder (4), the dust collecting device (5) comprises a collecting seat (51) arranged below the filter cylinder (4), a sealing block (52) which is arranged on the collecting seat (51) and used for moving, fitting and contacting the bottom end of the filter cylinder (4) is arranged on the collecting seat (51), the collecting seat (51) is arranged on a supporting plate (53), one end of a pull rope (54) is connected to the bottom end of the supporting plate (53), the free end of the pull rope (54) is moved to penetrate through the bottoms of a spring (55) and a machine body (1) and is connected to a winding wheel (56), and the winding wheel (56) is used for winding the pull rope (54).

2. A self-cleaning ash cartridge collector as defined in claim 1 wherein: and a sealing device (6) is arranged on the machine body (1) on one side of the spring (55), and the sealing device (6) is used for moving the collecting seat (51) to the outer side of the machine body (1).

3. A self-cleaning ash cartridge collector as defined in claim 2 wherein: sealing device (6) include through hole (61) of seting up on organism (1) lateral wall, sliding clamping has baffle (62) that are used for removing sealed through hole (61) on through hole (61), baffle (62) outside is equipped with and is used for handle (63) of baffle (62) vertical removal.

4. A self-cleaning ash cartridge collector as defined in claim 1 wherein: the outer wall of the collecting seat (51) is provided with a sealing gasket, the outer wall of the collecting seat (51) is attached to and contacted with the inner wall of the machine body (1), and the outer wall of the collecting seat (51) is smooth.

5. A self-cleaning ash cartridge collector as defined in claim 1 wherein: the sealing block (52) is arranged at the center of the collecting seat (51), and the size of the supporting plate (53) is smaller than that of the collecting seat (51).

6. The self-cleaning ash cartridge collector of claim 1, wherein: the spring (55) is used for pushing the supporting plate (53) to move upwards, the upper end of the spring (55) is connected with the supporting plate (53), and the upper end of the spring (55) is connected with the inner bottom of the machine body (1).

7. A self-cleaning ash cartridge collector as defined in claim 1 wherein: the winding wheel (56) is rotatably arranged at the lower end of the machine body (1), and the winding wheel (56) driving equipment is arranged at the lower end of the machine body (1).

8. A self-cleaning ash cartridge collector as defined in claim 3 wherein: through hole (61) are the cross structure, through hole (61) height more than or equal to the twice of baffle (62) height, baffle (62) height is greater than the height of collecting seat (51).
