High-efficient dust pelletizing system in building field

Technical Field

The utility model belongs to the technical field of the building removes dust, specifically is a high-efficient dust pelletizing system in building field.

Background

Along with the development of society, the house and land industry in China develops relatively quickly, and when the house and land industry develops, a large amount of suspended dust exists in a construction process of a construction site, and a construction worker works in a dust-containing environment for a long time, so that the damage to air pipes and lungs is large.

Although the existing building dust removal device can effectively remove dust, a large amount of cleaning water is consumed in the dust removal process, so that the waste of water resources is caused, and part of the dust removal devices need to frequently replace dust removal assemblies such as filter elements, so that great trouble is brought to the dust removal work.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

In order to overcome the above defect of prior art, the utility model provides a high-efficient dust pelletizing system in building field has solved current dust collector and need extravagant a large amount of clear water just can effectual dust removal, and subassembly such as part dust collector needs frequent renew cartridge, has brought troublesome problem for dust removal work.

(II) technical scheme

In order to achieve the above object, the utility model provides a following technical scheme: a high-efficiency dust removal system in the building field comprises a box body, wherein two fixed plates are fixedly connected to the left side of the upper surface of the box body, bearings are clamped above opposite surfaces of the two fixed plates, rotating shafts are sleeved in the two bearings, opposite ends of the two rotating shafts are fixedly connected to the front surface and the back surface of a cylinder respectively, a suction nozzle is arranged at the left end of the cylinder, a pulley is lapped on the right side of the lower surface of the cylinder, the bottom end of the pulley is fixedly connected with the left side of the upper surface of the box body through an electric push rod, the lower surface of the cylinder is fixedly connected with the upper surface of the box body through a spring, the spring is positioned on the right side of the electric push rod, the right end of the cylinder is communicated with one end of an organ hose, the other end of the organ hose is communicated with the right side of the upper surface of the box body, the bottom of first pipeline passes the convulsions end of baffle and fan and links to each other, baffle fixed connection is in the inside below of box, the lower fixed surface of fan fuselage connects on the right side of box inner wall lower surface, the end of airing exhaust of fan is linked together with the one end of second pipeline, the other end of second pipeline passes the lower surface of baffle and extends to in the clear water.

As a further aspect of the present invention: and a one-way valve is arranged in the second pipeline and is positioned below the partition plate.

As a further aspect of the present invention: the top of box inner wall left surface has seted up the ventilation hole, the joint has the filter in the ventilation hole.

As a further aspect of the present invention: the right side of box upper surface is provided with the water inlet, the left surface of box is provided with tap, tap is located the top of baffle.

As a further aspect of the present invention: the four corners department of the lower surface of box all fixedly connected with universal wheel, be provided with the brake block on the universal wheel.

As a further aspect of the present invention: the handle is fixedly connected with the upper portion of the right side face of the box body and comprises a U-shaped rod, the left end of the U-shaped rod is fixedly connected with the upper portion of the right side face of the box body, and a rubber sleeve is sleeved on the surface of the U-shaped rod.

(III) advantageous effects

Compared with the prior art, the beneficial effects of the utility model reside in that:

1. this high-efficient dust pelletizing system in building field, through setting up the fan, under fan work, make the suction nozzle inhale the dust that produces on the building site, the dust is through the drum, the fan is carried to organ hose and first pipeline, clear water is carried to the gas that has the dust to the rethread second pipeline, gas filters through the clear water, detach the dust that contains in the gas, discharge from vent hole department again, can avoid the tradition to consume the dust fall mode of a large amount of water resources and frequently change the dust removal mode of filter element group spare like this, it is convenient to have brought for the use.

2. This high-efficient dust pelletizing system in building field through setting up pulley, electric putter and spring, when the angle of tuyere needs to be adjusted, control electric putter extension or shorten, when electric putter extension, under the effect of bearing and pivot for the tuyere downward sloping, when electric putter shortens, the pulling force of spring drives the tuyere upward slope that induced drafts, thereby makes things convenient for the workman to adjust the inclination of tuyere, has enlarged its scope of extracting the dust.

3. This high-efficient dust pelletizing system in building field through setting up handle and universal wheel, controls the handle and can make things convenient for the workman to adjust the direction of box motion, and the universal wheel can be convenient for remove the box, through above-mentioned two each structures to it is convenient to control this device for the workman.

Drawings

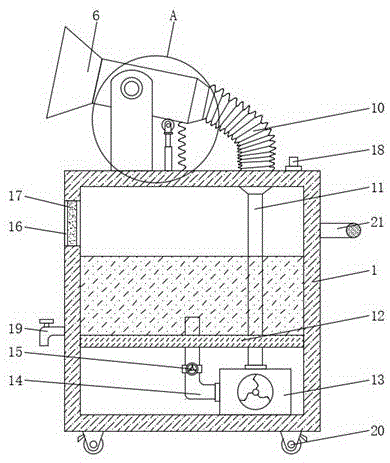

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;

FIG. 2 is an enlarged schematic view of part A of the present invention;

fig. 3 is a schematic structural view of the handle of the present invention from above;

in the figure: the device comprises a box body 1, a fixing plate 2, a bearing 3, a rotating shaft 4, a cylinder 5, an air suction nozzle 6, a pulley 7, an electric push rod 8, a spring 9, an organ hose 10, a first pipeline 11, a partition plate 12, a fan 13, a second pipeline 14, a check valve 15, a vent hole 16, a filter plate 17, a water inlet 18, a faucet 19, a universal wheel 20, a handle 21, a U-shaped rod 211 and a rubber sleeve 212.

Detailed Description

The technical solution of the present patent will be described in further detail with reference to the following embodiments.

As shown in fig. 1-3, the utility model provides a technical solution: a high-efficiency dust removal system in the building field comprises a box body 1, a vent hole 16 is formed above the left side surface of the inner wall of the box body 1, a filter plate 17 is clamped in the vent hole 16, gas filtered by clear water is discharged from the vent hole 16 through the vent hole 16 and the filter plate 17, meanwhile, the filter plate 17 can filter the gas again, the dust removal effect is improved, a water inlet 18 is formed in the right side of the upper surface of the box body 1, a water tap 19 is arranged on the left side surface of the box body 1, the water tap 19 is positioned above a partition plate 12, water in a water tank is convenient for workers to replace through the arrangement of the water inlet 18 and the water tap 19, universal wheels 20 are fixedly connected at four corners of the lower surface of the box body 1, brake pads are arranged on the universal wheels 20, the box body 1 is convenient to move through the arrangement of the universal wheels 20, convenience is brought to a worker moving position device, the bearings 3 are clamped above the opposite surfaces of the two fixing plates 2, the rotating shafts 4 are sleeved in the two bearings 3, the opposite ends of the two rotating shafts 4 are fixedly connected to the front surface and the back surface of the cylinder 5 respectively, the air suction nozzle 6 is arranged at the left end of the cylinder 5, the pulley 7 is lapped on the right side of the lower surface of the cylinder 5, the bottom end of the pulley 7 is fixedly connected with the left side of the upper surface of the box body 1 through the electric push rod 8, the lower surface of the cylinder 5 is fixedly connected with the upper surface of the box body 1 through the spring 9, the spring 9 is positioned on the right side of the electric push rod 8, through the arrangement of the pulley 7, the electric push rod 8 and the spring 9, when the angle of the air suction nozzle 6 needs to be adjusted, the electric push rod 8 is controlled to extend or shorten, under the action of the bearings 3 and the rotating shafts 4 when the electric push rod 8 extends, the air suction nozzle 6 is, therefore, workers can conveniently adjust the inclination angle of the air suction nozzle 6, the dust extraction range of the air suction nozzle is expanded, the right end of the cylinder 5 is communicated with one end of the organ hose 9, the other end of the organ hose 9 is communicated with the right side of the upper surface of the box body 1, a first pipeline 10 is arranged on the upper surface of the inner wall of the box body 1 corresponding to the organ hose 9, the bottom end of the first pipeline 10 penetrates through the partition plate 12 to be communicated with the air suction end of the fan 13, the partition plate 12 is fixedly connected to the lower portion of the inside of the box body 1, the lower surface of the body of the fan 13 is fixedly connected to the right side of the lower surface of the inner wall of the box body 1, the air exhaust end of the fan 13 is communicated with one end of the second pipeline 14, the other end of the second pipeline 14 penetrates through the lower surface of the partition plate 12 and extends into clear water, and the fan 13 is, Fan 13 is carried to organ hose 9 and first pipeline 10, rethread second pipeline 14 carries the clear water to the gas that has the dust, gas filters through the clear water, detach the dust that contains in the gas, discharge from ventilation hole 16 again, can avoid the dust fall mode that the tradition consumes a large amount of water resources and the dust removal mode of frequent change filter element group spare like this, it is convenient to have brought for the use, be provided with check valve 15 in the second pipeline 14, check valve 15 is located the below of baffle 12, through setting up check valve 15, prevent that the clear water from second pipeline 14 entering into fan 13 in, guarantee simultaneously that gas enters into the clear water through second pipeline 14.

Specifically, as shown in fig. 3, the upper fixedly connected with handle 21 of the right side of the box body 1, the handle 21 comprises a U-shaped rod 211, the left end of the U-shaped rod 211 is fixedly connected above the right side of the box body 1, a rubber sleeve 212 is sleeved on the surface of the U-shaped rod 211, the handle 21 is arranged, a worker can conveniently use the handle 21 to control the box body 1, and meanwhile, the rubber sleeve 212 can enable the worker to hold the U-shaped rod 211 tightly.

The utility model discloses a theory of operation does:

s1, when the box is used, a worker adds clean water into the box body 1 through the water inlet 18, then the electric push rod 8 and the fan 13 are controlled to be started simultaneously through an external switch according to the range of dust on a construction site, when the electric push rod 8 extends, the pulley 7 drives the right end of the cylinder 5 to incline upwards, the air suction nozzle 6 is enabled to incline downwards under the action of the bearing 3 and the rotating shaft 4, when the electric push rod 8 shortens, the tension of the spring 9 drives the right end of the cylinder 5 to incline downwards, the left end of the air suction nozzle 6 is enabled to incline upwards, and the adjustment of the angle of the air suction nozzle 6 is completed;

s2, sucking dust by the suction nozzle 6 under the action of the fan 13, conveying the dust to the fan 13 through the cylinder 5, the organ hose 9 and the first pipeline 10, sending the air into clean water from the air exhaust end of the fan 13 and the second pipeline 14, filtering the dust in the air by the clean water, and then exhausting the dust out of the box body 1 from the air vent 16;

and S3, finally, the worker moves the box body 1 by using the handle 21 so that the air suction nozzle 6 is in a dust-dense position, and after finishing the dust removal work, opens the water tap 19 to discharge the sewage and washes the inner wall of the box body 1.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.

Although the preferred embodiments of the present patent have been described in detail, the present patent is not limited to the above embodiments, and various changes can be made without departing from the spirit of the present patent within the knowledge of those skilled in the art.

Claims

1. A high-efficiency dust removal system in the field of construction, comprising a box body (1), characterized in that: two fixing plates (2) are fixedly connected to the left side of the upper surface of the box body (1), and the two fixed Bearings (3) are clamped above the opposite surfaces of the plate (2), a rotating shaft (4) is sleeved in the two bearings (3), and the opposite ends of the two rotating shafts (4) are respectively fixedly connected to the shafts (4). The front and back of the cylinder (5), the left end of the cylinder (5) is provided with a suction nozzle (6), and the right side of the lower surface of the cylinder (5) is overlapped with a pulley (7), so The bottom end of the pulley (7) is fixedly connected to the left side of the upper surface of the box body (1) through the electric push rod (8), and the lower surface of the cylinder (5) is connected to the box body (1) through the spring (9). The upper surface is fixedly connected, the spring (9) is located on the right side of the electric push rod (8), the right end of the cylinder (5) is communicated with one end of the organ hose (10), the organ hose ( The other end of 10) is communicated with the right side of the upper surface of the box body (1). A first pipe (11) is provided on the upper surface of the inner wall of the box body (1) corresponding to the position of the organ hose (10). The bottom end of a pipe (11) is communicated with the suction end of the fan (13) through the partition plate (12), the partition plate (12) is fixedly connected under the interior of the box (1), and the fan (13) ) The lower surface of the fuselage is fixedly connected to the right side of the lower surface of the inner wall of the box (1), the exhaust end of the fan (13) is communicated with one end of the second duct (14), the second duct (14) ) passes through the lower surface of the partition (12) and extends into the clean water.

2. A high-efficiency dust removal system in the construction field according to claim 1, characterized in that: a check valve (15) is provided in the second pipe (14), and the check valve (15) is located at a distance below the plate (12).

3. A high-efficiency dust removal system in the construction field according to claim 1, characterized in that: a ventilation hole (16) is opened above the left side of the inner wall of the box body (1), and the ventilation hole (16) A filter plate (17) is clamped inside.

4. A high-efficiency dust removal system in the construction field according to claim 1, characterized in that: a water inlet (18) is provided on the right side of the upper surface of the box (1), and a water inlet (18) is provided on the right side of the upper surface of the box (1). A faucet (19) is provided on the left side, and the faucet (19) is located above the partition plate (12).

5. A high-efficiency dust removal system in the construction field according to claim 1, characterized in that: universal wheels (20) are fixedly connected to the four corners of the lower surface of the box body (1), and the universal The wheel (20) is provided with a brake pad.

The high-efficiency dust removal system in the construction field according to claim 1, characterized in that: a handle (21) is fixedly connected to the upper side of the right side of the box body (1), and the handle (21) includes a U A shaped rod (211), the left end of the U-shaped rod (211) is fixedly connected above the right side of the box body (1), and a rubber sleeve (212) is sleeved on the surface of the U-shaped rod (211).
