The utility model discloses a portable electric pressure test pump, which comprises a water storage tank, a diaphragm pump, a water absorption filter, a valve and a pressure gauge, wherein a tank inner cavity is arranged in the water storage tank, the top end of the water storage tank is provided with the fixedly connected diaphragm pump, the diaphragm pump is provided with a water inlet and a water outlet, the water inlet is in threaded connection with one end of a water inlet pipeline through a first elbow, the other end of the water inlet pipeline is connected with one end of a hose through a first joint, the two are fixed through a hose hoop, and the other end of the hose is connected with the water absorption filter; the delivery port is through elbow and outlet pipe line one end threaded connection, the outlet pipe line other end is provided with the pressure testing pipe joint, valve and manometer have set gradually according to the rivers direction on the outlet pipe line, the manometer passes through three way connection and outlet pipe line connection.
Description
Technical Field
The utility model relates to a pipeline detects pressure testing technical field, specifically indicates a lightweight electric pressure testing pump.
Background
The pressure test pump is a detection pressure test device for carrying out a hydrostatic test on a pipeline system (comprising a tap water supply system, a heating system and the like), a valve, a pressure container and the like, the pipeline system is essential for modern life, and the hydrostatic test is a key necessary acceptance link in the work of installing the pipeline system and is related to the installation quality, the safety and the service life of the pipeline system;
at present, a manual pressure test pump is basically used for detection and pressure test of a pipeline system, the manual pressure test pump needs manual pressurization, the pressurization efficiency is low, and the labor-consuming operation speed is slow; the manual pressure test pump has a large volume and is inconvenient to carry.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to overcome the defect of above-mentioned technique, provide a lightweight electric pressure testing pump.
In order to solve the technical problem, the technical scheme provided by the utility model is a portable electric pressure test pump, which comprises a water storage tank, a diaphragm pump, a water absorption filter, a valve and a pressure gauge, wherein a tank inner cavity is arranged in the water storage tank, the diaphragm pump is fixedly connected with the top end of the water storage tank, the diaphragm pump is provided with a water inlet and a water outlet, the water inlet is in threaded connection with one end of a water inlet pipeline through a first elbow, the other end of the water inlet pipeline is connected with one end of a hose through a first joint, the two are fixed through a hose hoop, and the other end of the hose is connected with the water absorption filter;
the delivery port is connected with outlet pipe line one end threaded connection through an elbow, the outlet pipe line other end is provided with the pressure testing pipe joint, valve and manometer have set gradually according to the water flow direction on the outlet pipe line, the manometer passes through three way connection and outlet pipe line connection.
Furthermore, the diaphragm pump is connected with a power supply through a power supply connecting wire and a power supply adapter.
Further, the pressure gauge is used for detecting the pressure of the water outlet pipeline and displaying the pressure.
Further, the valve is any one of a ball valve, a stop valve and a regulating valve.
Furthermore, the water absorption filter is positioned in the inner cavity of the box body and is of a cylindrical structure.
Further, the diaphragm pump is a 12V, 60W diaphragm pump.
Furthermore, the first elbow is an inner and outer wire elbow.
Further, the first connector is an internal thread-to-pagoda connector.
Furthermore, the three-way joint is an outer loose joint tee joint and an inner loose joint tee joint.
Compared with the prior art, the utility model the advantage lie in: the device has reasonable structural design and convenient use, the used diaphragm pump is a 12V or 60W diaphragm pump, the device is portable and easy to carry, and the diaphragm pump is arranged at the top end of the water storage tank, so that the device is convenient to absorb water and prevent electric shock; the valve arranged on the water outlet pipeline can effectively prevent pressure release; the water absorption filter is of a cylindrical structure, can be transversely placed in the inner cavity of the box body, and can still meet the water absorption requirement when the water level is low.
Drawings

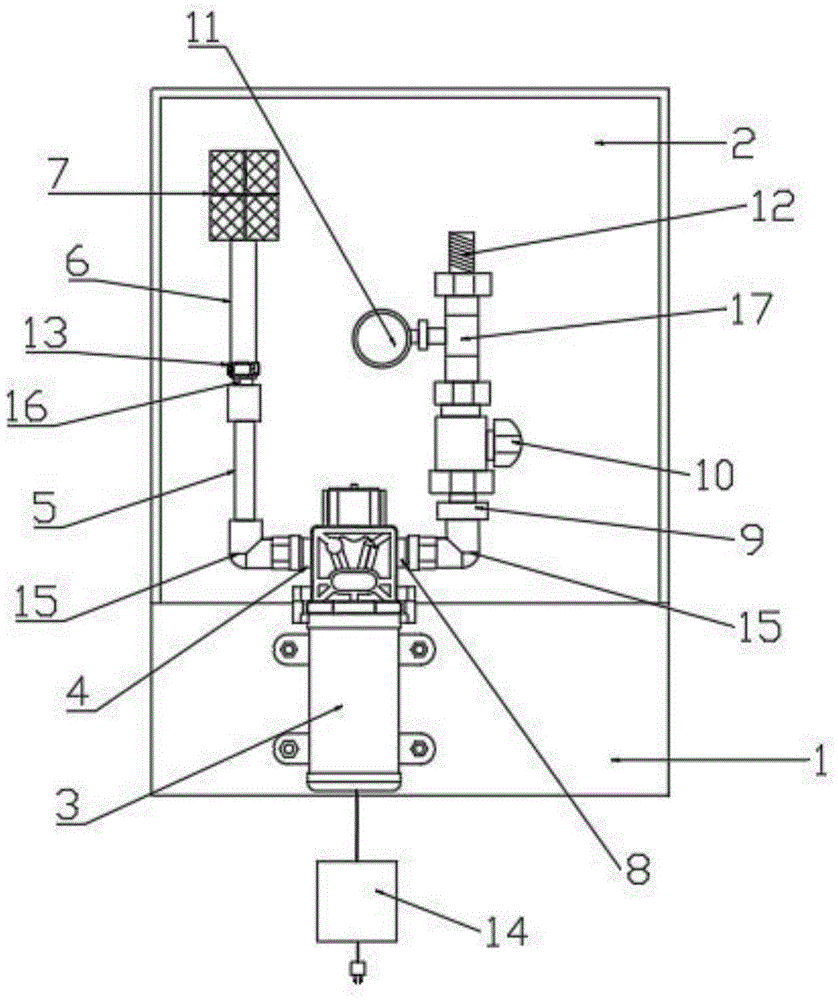

Fig. 1 is the structural schematic diagram of the portable electric pressure test pump of the present invention.
As shown in the figure: 1. the water storage tank comprises a water storage tank body, 2 parts of a tank body inner cavity, 3 parts of a diaphragm pump, 4 parts of a water inlet, 5 parts of a water inlet pipeline, 6 parts of a hose, 7 parts of a water absorption filter, 8 parts of a water outlet, 9 parts of a water outlet pipeline, 10 parts of a valve, 11 parts of a pressure gauge, 12 parts of a pressure test pipeline joint, 13 parts of a throat hoop, 14 parts of a power adapter, 15 parts of a first elbow, 16 parts of a first joint, 17 parts of a tee joint.
Detailed Description
The following will explain the portable electric pressure test pump in further detail with reference to the attached drawings.
With reference to the attached drawings, the portable electric pressure test pump comprises a water storage tank 1, a diaphragm pump 3, a water absorption filter 7, a valve 10 and a pressure gauge 11, wherein a tank inner cavity 2 is arranged in the water storage tank 1, the diaphragm pump 3 is fixedly connected to the top end of the water storage tank 1, the diaphragm pump 3 is provided with a water inlet 4 and a water outlet 8, the water inlet 4 is in threaded connection with one end of a water inlet pipeline 5 through a first elbow 15, the other end of the water inlet pipeline 5 is connected with one end of a hose 6 through a first connector 16, the hose 6 and the hose 6 are fixed through a hose hoop 13, and the other end of the hose 6 is connected with the water absorption filter 7;
As a preferred embodiment of this embodiment, the diaphragm pump 3 is connected to the power supply through a power connection line and a power adapter 14.
As a preferred embodiment of this embodiment, the pressure gauge 11 is used to detect the pressure of the water line 9 and display the pressure.
As a preferred embodiment of the present embodiment, the valve 10 is any one of a ball valve, a stop valve and a regulating valve.
As a preferred embodiment of this embodiment, the water absorption filter 7 is located in the inner cavity 2 of the box body, and the water absorption filter 7 has a cylindrical structure.
As a preferred embodiment of this embodiment, the diaphragm pump 3 is a 12V, 60W diaphragm pump.
As a preferred embodiment of this embodiment, the first elbow 15 is an inner and outer wire elbow.
As a preferred embodiment of this embodiment, the first connector 16 is an internal thread-to-pagoda connector.
As the preferred embodiment of the embodiment, the three-way joint 17 is an external-internal loose joint three-way joint.
When the device is used, firstly, water is filled in the inner cavity 2 of the box body of the water storage tank 1, then the water absorption filter 7 is transversely placed in the inner cavity 2 of the box body so as to meet the water absorption requirement at a low water level, the pressure test pipeline connector 12 is communicated with a pipeline to be tested, the diaphragm pump 3 is connected with a power supply through a power supply connecting wire and a power supply adapter 14, a valve on the water outlet pipeline 9 is opened, at the moment, the water source continuously pressurizes the pipeline to be tested under the action of the diaphragm pump 3, the pressure of the water outlet pipeline 9 can be detected and displayed by the pressure gauge 11, and the whole operation is simple and convenient; meanwhile, the diaphragm pump 3 is a 12V and 60W diaphragm pump, the whole body is portable and easy to carry, and the diaphragm pump 3 is arranged at the top end of the water storage tank 1, so that water absorption is facilitated and electric shock is prevented; the valve 10 arranged on the water outlet pipeline 9 can effectively prevent pressure release; in addition, the water inlet 4 is in threaded connection with one end of the water inlet pipeline 5 through the inner and outer screw loose joint elbows, the water outlet 8 is in threaded connection with one end of the water outlet pipeline 9 through the inner and outer screw loose joint elbows, the pressure gauge 11 is connected with the water outlet pipeline 9 through the three-way joint 17, the three-way joint 17 is an outer and inner loose joint tee joint, and the disassembly, the installation and the maintenance are convenient.
The present invention and the embodiments thereof have been described above, but the description is not limited thereto, and the embodiment shown in the drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. In summary, it should be understood that those skilled in the art should also understand the scope of the present invention without inventively designing the similar structure and embodiments of the present invention without departing from the spirit of the present invention.
Claims (9)
1. The portable electric pressure test pump is characterized by comprising a water storage tank (1), a diaphragm pump (3), a water absorption filter (7), a valve (10) and a pressure gauge (11), wherein a tank inner cavity (2) is arranged in the water storage tank (1), the diaphragm pump (3) fixedly connected is arranged at the top end of the water storage tank (1), the diaphragm pump (3) is provided with a water inlet (4) and a water outlet (8), the water inlet (4) is in threaded connection with one end of a water inlet pipeline (5) through a first elbow (15), the other end of the water inlet pipeline (5) is connected with one end of a hose (6) through a first connector (16), the water inlet pipeline and the water inlet pipeline are fixed through a hose hoop (13), and the other end of the hose (6) is connected with the water absorption filter (7);
delivery port (8) are through elbow (15) and outlet line (9) one end threaded connection, outlet line (9) other end is provided with pressure testing pipe joint (12), outlet line (9) are gone up and have been set gradually valve (10) and manometer (11) according to the rivers direction, manometer (11) are connected with outlet line (9) through three way connection (17).
2. The portable electric pressure test pump according to claim 1, wherein the diaphragm pump (3) is connected to a power supply through a power connection line and a power adapter (14).
3. Portable electric pressure test pump according to claim 1, characterized in that the pressure gauge (11) is used to detect the pressure in the water line (9) and to display it.
4. The portable electric pressure test pump according to claim 1, wherein the valve (10) is any one of a ball valve, a stop valve and a regulating valve.
5. The portable electric pressure test pump according to claim 1, characterized in that the water absorption filter (7) is located in the inner cavity (2) of the box body, and the water absorption filter (7) is of a cylindrical structure.
6. A portable pump for electric pressure testing according to claim 1, characterized in that the membrane pump (3) is a 12V, 60W membrane pump.
7. The portable electric pressure test pump as claimed in claim 1, wherein the first elbow (15) is an inner and outer wire elbow.
8. The portable electric pressure test pump according to claim 1, wherein the first connector (16) is an internal thread-to-pagoda connector.
9. The portable electric pressure test pump according to claim 1, wherein the three-way joint (17) is an external-internal loose joint three-way.
