Abstract
The utility model relates to a sponge concora crush technical field specifically is a concora crush device is used in sponge production, including the base station, install on the base station and put the thing frame, put and install in the thing frame and lift the board, lifting board bottom is connected with the lifting subassembly, lifting board top is provided with the centre gripping subassembly, base station top both sides all are fixed with two end plates, homonymy it is connected with the guide bar to rotate between the end plate, equal slidable mounting has a slider, one of them on the guide bar be equipped with the external screw thread on the circumference outer wall of guide bar, the guide bar passes through the external screw thread with slider threaded connection, wherein be equipped with the external screw thread guide bar one end transmission is connected with driving motor, two be fixed with the blade between the slider, back of a knife thickness is greater than cutting edge thickness, the utility model discloses can carry out concora crush work to outstanding sponge piece top at base station top, utilize the reciprocating motion of blade to realize the concora crush and the ejection of compact work of sponge, convenient and fast.
Description
Technical Field
The utility model relates to a sponge concora crush technical field specifically is a sponge production is with concora crush device.
Background
The sponge is a porous material, has good water absorption, can be used for cleaning articles, is made of wood cellulose fibers or foamed plastic polymers, and is cut into different sizes by a sponge cutting machine according to requirements after being made, and then is applied to production or life.
The sponge is in the course of working, need use the truncation machine to carry out cutting work to the sponge, and current truncation machine carries out ejection of compact work to the sponge after the truncation not be convenient for in the use, and the sponge after the cutting still covers in the sponge top that does not the truncation, needs take away the sponge after the cutting, just can carry out cutting work, influences cutting efficiency.
Disclosure of Invention
An object of the utility model is to provide a sponge production is with concora crush device to solve the problem that proposes among the above-mentioned background art.
The technical scheme of the utility model is that: the utility model provides a sponge production is with concora crush device, includes the base station, install on the base station and put the thing frame, it installs the lifting plate in the thing frame to put, lifting plate bottom is connected with the lifting subassembly, lifting plate top is provided with the centre gripping subassembly, base station top both sides all are fixed with two end plates, homonymy it is connected with the guide bar to rotate between the end plate, equal slidable mounting has a slider on the guide bar, one of them be equipped with the external screw thread on the circumference outer wall of guide bar, the guide bar pass through the external screw thread with slider threaded connection, wherein be equipped with the external screw thread guide bar one end transmission is connected with driving motor, two be fixed with the blade between the slider, the blade is equipped with cutting edge and back of a knife blade, back of a knife blade thickness is greater than cutting edge thickness.
Preferably, the clamping assembly comprises a fixed strip and a clamping strip which are arranged at the top of the lifting plate, and the bottom of the clamping strip is connected with a moving assembly.
Preferably, the moving assembly comprises a moving block fixedly connected with the bottom of the clamping bar, a sliding groove in sliding fit with the moving block is formed in the lifting plate, an electric telescopic rod is fixed on one side of the moving block, and an extending plate fixedly connected with the bottom of the lifting plate is fixed at one end, far away from the moving block, of the electric telescopic rod.
Preferably, the lifting subassembly is including setting up put the bottom plate of thing frame bottom, it installs the screw rod to rotate on the bottom plate, the screw thread cover is equipped with the thread bush on the screw rod, thread bush's top and lifting board bottom fixed connection, the screw rod bottom mounting has the gear, gear one side transmission is connected with actuating mechanism.
Preferably, the driving mechanism comprises a servo motor installed on the base plate, and a toothed disc meshed with the gear is fixed to an output shaft of the servo motor.
Preferably, the blade is provided with a blade edge and a blade back, and the thickness of the blade back is larger than that of the blade edge.
Preferably, the two sides of the moving block are provided with sliding openings which form sliding fit with the sliding grooves.
The utility model discloses an improve and provide a sponge production is with concora crush device here, compare with prior art, have following improvement and advantage:
at first place the sponge piece of waiting to cut on putting the lifting plate in the thing frame, the centre gripping subassembly carries out the centre gripping work of both sides to the sponge piece, the sponge piece on the lifting plate of lifting subassembly makes progress behind the lifting ration height, driving motor drives the guide bar that is equipped with the external screw thread and rotates, the guide effect of another guide bar of cooperation, make the blade between two sliders move to driving motor direction, to outstanding sponge piece top in base station top carry out the concora crush work, after the concora crush work, driving motor back drive drives the blade and resets, utilize the back of a knife blade to release the base station with the sponge layer after the concora crush, utilize the reciprocating motion of blade to realize the concora crush and the ejection of compact work of sponge, and convenient and fast.
Drawings
The invention is further explained below with reference to the figures and examples:

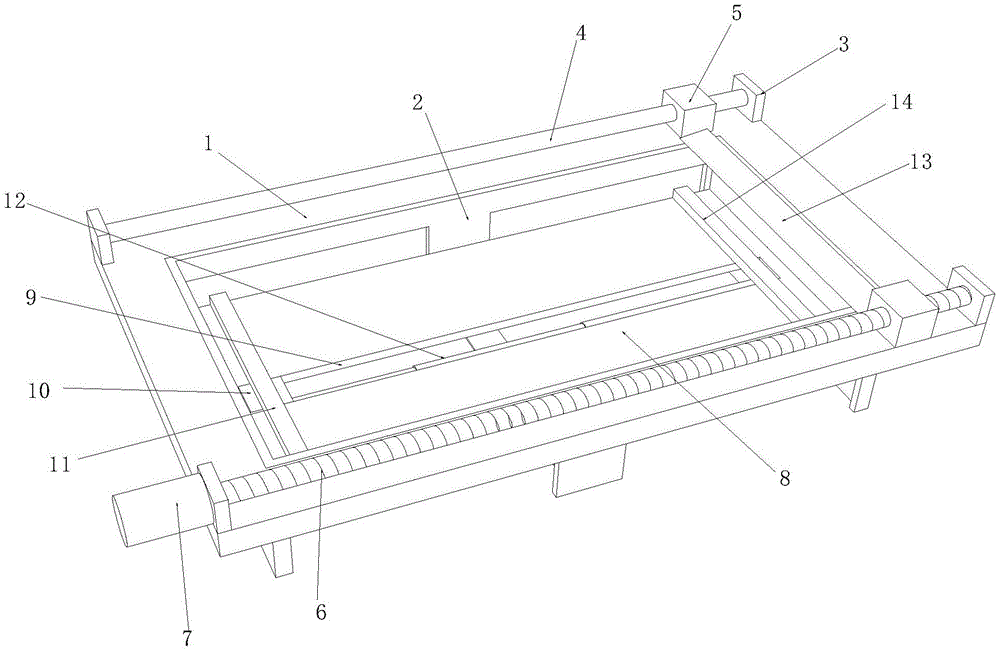

fig. 1 is a schematic perspective view of a first viewing angle of the present invention;
fig. 2 is a schematic perspective view of the second viewing angle of the present invention;
figure 3 is a schematic perspective view of the lifting assembly of the present invention in an operational state;
fig. 4 is a schematic view of the three-dimensional structure of the working state of the clamping assembly of the present invention.
Description of reference numerals:
1. a base station; 2. a storage frame; 3. an end plate; 4. a guide bar; 5. a slider; 6. an external thread; 7. a drive motor; 8. lifting the plate; 9. a chute; 10. a moving block; 11. a clamping bar; 12. an electric telescopic rod; 13. a blade; 14. a fixing strip; 15. a threaded bushing; 16. a screw; 17. a servo motor; 18. an extension plate.
Detailed Description
The present invention will be described in detail below, and it is apparent that the technical solutions in the embodiments of the present invention are described clearly and completely. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model discloses an improve and provide a sponge production is with concora crush device here, the technical scheme of the utility model is:
as shown in fig. 1-4, a truncation device is used in sponge production, including base station 1, install on base station 1 and put thing frame 2, it lifts board 8 to install in putting thing frame 2, it is connected with the lifting subassembly to lift board 8 bottom, it is provided with the centre gripping subassembly to lift board 8 top, base station 1 top both sides all are fixed with two end plates 3, it is connected with guide bar 4 to rotate between the homonymy end plate 3, equal slidable mounting has slider 5 on the guide bar 4, be equipped with external screw thread 6 on the circumference outer wall of one of them guide bar 4, guide bar 4 is through external screw thread 6 and slider 5 threaded connection, 4 one end transmissions of guide bar that wherein are equipped with external screw thread 6 are connected with driving motor 7, be fixed with blade 13 between two sliders 5, blade 13 is equipped with cutting edge and back of a knife blade, back of a knife thickness is greater than cutting edge thickness.
Borrow by above-mentioned structure, at first will wait the sponge piece of cutting to place on the lifting board 8 of putting in thing frame 2, the centre gripping subassembly carries out the centre gripping work of both sides to the sponge piece, the lifting subassembly will lift the sponge piece on the board 8 and upwards lift quantitative height after, driving motor 7 drives guide bar 4 that is equipped with external screw thread 6 and rotates, the guide effect of another guide bar 4 of cooperation, make blade 13 between two sliders 5 to the motion of driving motor 7 direction, to salient carrying out the concora crush work in the sponge piece top at base station 1 top, after the concora crush work, driving motor 7 back drive drives and drives blade 13 and resets, the sponge layer after utilizing blade 13's back of a knife to push out base station 1, utilize the reciprocating motion of blade 13 to realize the concora crush and the ejection of compact work of sponge, high convenience and high speed.
Further, the clamping assembly comprises a fixing strip 14 and a clamping strip 11 which are arranged at the top of the lifting plate 8, and the bottom of the clamping strip 11 is connected with a moving assembly.
By means of the structure, the clamping strip 11 can be driven by the moving assembly to be matched with the fixing strip 14 to clamp the sponge block on two sides.
Further, the moving assembly comprises a moving block 10 fixedly connected with the bottom of the clamping strip 11, a sliding groove 9 in sliding fit with the moving block 10 is formed in the lifting plate 8, an electric telescopic rod 12 is fixed on one side of the moving block 10, and an extending plate 18 fixedly connected with the bottom of the lifting plate 8 is fixed at one end, away from the moving block 10, of the electric telescopic rod 12.
By means of the structure, the electric telescopic rod 12 can drive the clamping strip 11 on the moving block 10 to move along the sliding groove 9, and clamping work on two sides of the sponge blocks with different sizes can be conducted.
Further, the lifting subassembly rotates including setting up at the bottom plate of putting 2 bottoms of thing frame and installs screw rod 16 on the bottom plate, and threaded sleeve is equipped with threaded sleeve 15 on the screw rod 16, and threaded sleeve 15's top and 8 bottom fixed connections of lifting board have a gear, and the transmission of gear one side is connected with actuating mechanism.
By means of the structure, the driving mechanism can drive the screw rod 16 on the gear to rotate, the lifting plate 8 can be driven to carry out quantitative height adjustment work by matching with the thread transmission of the thread sleeve 15, and adjustment work of the sponge block flat cutting thickness is facilitated.
Further, the driving mechanism comprises a servo motor 17 mounted on the base plate, and a fluted disc meshed with the gear is fixed on an output shaft of the servo motor 17.
By means of the structure, the servo motor 17 is matched with the fluted disc and the gear to achieve the purpose of driving the screw 16 to rotate.
Further, the blade 13 is provided with a blade edge and a blade back, and the thickness of the blade back is larger than that of the blade edge.
By means of the structure, the sponge pushing and cutting work purposes are achieved by utilizing the thickness difference of the knife back and the knife edge of the blade 13.
Furthermore, sliding openings which are in sliding fit with the sliding grooves 9 are formed in two sides of the moving block 10.
By means of the structure, the sliding opening can increase the connection strength between the moving block 10 and the sliding groove 9, so that the moving block 10 moves more stably.
The working principle is as follows: firstly place the sponge piece that waits to cut on putting the lifting board 8 in the thing frame 2, electric telescopic handle 12 can drive the centre gripping strip 11 on the movable block 10 and move along spout 9, can carry out both sides centre gripping work to the sponge piece of equidimension not, actuating mechanism can drive the screw rod 16 rotation on the gear, the screw drive cooperation of cooperation screw thread sleeve 15, can drive lifting board 8 and carry out quantitative height control work, be convenient for to the regulation work of sponge piece concora crush cut thickness, driving motor 7 drives guide bar 4 that is equipped with external screw thread 6 and rotates, the guide effect of another guide bar 4 of cooperation, make blade 13 between two sliders 5 to the motion of driving motor 7 direction, to salient carrying out concora crush cut work in the sponge piece top at base station 1 top, after concora cut work, driving motor 7 back drive and drive blade 13 reset, utilize the back of a knife of blade 13 to realize the concora cut of sponge layer 1 after the concora cut, utilize the reciprocating motion of blade 13 to realize the concora cut and ejection of compact work of sponge, convenient and swift release.
Claims (7)
1. The utility model provides a truncation device is used in sponge production, includes base station (1), install on base station (1) and put thing frame (2), its characterized in that: install in putting thing frame (2) and lift board (8), it is connected with the lifting subassembly to lift board (8) bottom, it is provided with the centre gripping subassembly to lift board (8) top, base station (1) top both sides all are fixed with two end plates (3), homonymy rotate between end plate (3) and be connected with guide bar (4), equal slidable mounting has slider (5) on guide bar (4), one of them be equipped with external screw thread (6) on the circumference outer wall of guide bar (4), guide bar (4) pass through external screw thread (6) with slider (5) threaded connection, wherein be equipped with external screw thread (6) guide bar (4) one end transmission is connected with driving motor (7), two be fixed with blade (13) between slider (5).
2. The flat cutting device for sponge production as claimed in claim 1, wherein: the clamping assembly comprises a fixing strip (14) and a clamping strip (11) which are arranged at the top of the lifting plate (8), and the bottom of the clamping strip (11) is connected with a moving assembly.
3. The flat cutting device for sponge production as claimed in claim 2, wherein: the moving assembly comprises a moving block (10) fixedly connected with the bottom of the clamping strip (11), a sliding groove (9) in sliding fit with the moving block (10) is formed in the lifting plate (8), an electric telescopic rod (12) is fixed on one side of the moving block (10), and an extending plate (18) fixedly connected with the bottom of the lifting plate (8) is fixed at one end, far away from the moving block (10), of the electric telescopic rod (12).
4. The flat cutting device for sponge production as claimed in claim 1, wherein: the lifting subassembly is in including setting up put the bottom plate of thing frame (2) bottom, rotate on the bottom plate and install screw rod (16), the threaded sleeve is equipped with threaded sleeve pipe (15) on screw rod (16), the top and lifting board (8) bottom fixed connection of threaded sleeve pipe (15), screw rod (16) bottom mounting has the gear, gear one side transmission is connected with actuating mechanism.
5. The flat cutting device for sponge production as claimed in claim 4, wherein: the driving mechanism comprises a servo motor (17) installed on the bottom plate, and a fluted disc meshed with the gear is fixed to an output shaft of the servo motor (17).
6. The flat cutting device for sponge production as claimed in claim 1, wherein: the blade (13) is provided with a blade edge and a blade back, and the thickness of the blade back is larger than that of the blade edge.
7. The flat cutting device for sponge production as claimed in claim 3, wherein: and sliding openings which are in sliding fit with the sliding grooves (9) are formed in two sides of the moving block (10).
