Abstract

The utility model belongs to the technical field of the stainless steel plate production technique and specifically relates to a production device of stainless steel plate, to the problem of the inconvenient fixed steel sheet of stainless steel plate production among the prior art in the punching process, the following scheme is put forward now, and it includes the processing platform and installs the drilling equipment at processing bench top, the processing groove has been seted up at the top of processing platform, the inside slidable mounting of processing groove has anchor clamps, anchor clamps include the push pedal and are located two splint of push pedal one side, the push pedal is close to one side of splint and has seted up two spouts, two the one end of splint all is fixed with the connecting block. The utility model is simple in operation, can be very convenient clip the stainless steel sheet, then punch in the different positions department of stainless steel sheet, great make things convenient for operation staff's operation, help production efficiency's improvement.

Description

Production device for stainless steel plate

Technical Field

The utility model relates to a stainless steel plate production field especially relates to a stainless steel plate's apparatus for producing.

Background

Stainless steel plates are common building materials at present, and have wide application in many fields. The stainless steel plates used at present are fixed by welding or by bolts and screws in a common fixing mode. The stainless steel plate fixed by the bolts and the screws needs to be punched on the stainless steel plate in advance, and a punching device is needed when the stainless steel plate is punched in the prior art.

A perforating device that is arranged in stainless steel plate production process at present has some defects when punching, just is inconvenient fixes the steel sheet to the efficiency that influences processing is for this reason, and this scheme has proposed a stainless steel plate's apparatus for producing.

SUMMERY OF THE UTILITY MODEL

The utility model provides a pair of stainless steel plate's apparatus for producing has solved the problem of the inconvenient fixed steel sheet of stainless steel plate production among the prior art punching process.

In order to realize the purpose, the utility model adopts the following technical scheme:

a stainless steel plate comprises a stainless steel plate body, and a plurality of fixing holes are formed in the top of the stainless steel plate body.

The utility model provides a production device of stainless steel sheet, includes the processing platform and installs the drilling equipment at processing bench top, the processing groove has been seted up at the top of processing platform, the inside slidable mounting of processing groove has anchor clamps, anchor clamps include the push pedal and are located two splint of push pedal one side, two spouts, two have been seted up to one side that the push pedal is close to splint the one end of splint all is fixed with the connecting block, and one end of two connecting blocks runs through two spouts respectively and extends to one side outer wall that the splint were kept away from to the push pedal, install two hydro-cylinders on the one side outer wall that splint were kept away from to the push pedal, the extension end of two hydro-cylinders respectively with one side fixed connection of two connecting blocks, all install the first transmission who is used for driving anchor clamps to remove on the both sides outer wall of processing platform, install the PLC controller on one side outer wall of processing platform.

Preferably, the inner walls of the two sides of the processing groove are provided with connecting grooves, the first transmission device comprises a first motor fixed on the outer wall of the processing table and a first threaded column in transmission connection with one end of an output shaft of the first motor, the outer part of the first threaded column is in threaded connection with a moving block, one end of the moving block penetrates through the connecting grooves and is fixedly connected with the outer wall of one side of the push plate, the first transmission device further comprises a fixed block rotatably connected to the other end of the first threaded column, and one side of the fixed block is fixedly connected with the outer wall of the processing table.

Preferably, drilling equipment is including fixing the mounting bracket at processing bench top portion, installing the second transmission on the mounting bracket top and installing the mounting panel on the second transmission, the bottom surface of mounting panel is fixed with electric telescopic handle, and electric telescopic handle's extension end is down, drilling equipment is still including installing the drilling machine at electric telescopic handle extension end.

Preferably, the mounting groove has been seted up to the top bottom surface of mounting bracket, second transmission installs at the inside second screw thread post of mounting groove and installs the second motor on mounting bracket one side outer wall including rotating, the one end of the output shaft of second motor is connected with the one end transmission of second screw thread post, second transmission still includes the outside installation piece of threaded connection at second screw thread post, the bottom of installation piece extends to the outside of mounting groove, just the top of mounting panel and the bottom fixed connection of installation piece.

Preferably, a scrap hole is formed in the bottom of the processing tank, and the scrap hole is located right below the drilling device.

Preferably, the limiting plate is sleeved outside the connecting block, the limiting plate is located on one side, away from the clamping plate, of the push plate, and the limiting plate abuts against the outer wall of the push plate.

Preferably, the width of the moving block is the same as that of the sliding groove, and the width of the mounting block is the same as that of the mounting groove.

The utility model has the advantages that:

1. through the setting of fixed orifices, conveniently utilize screw or bolt fastening on other objects with stainless steel plate.

2. The stainless steel plate to be processed is conveniently clamped through the arrangement of the clamp, and the clamped steel plate can be conveniently moved to the punching device to be punched under the punching device through the arrangement of the first transmission device.

3. Through the cooperation between second transmission, drilling machine and the electric telescopic handle, can punch in the different positions department of stainless steel plate.

The utility model discloses rational in infrastructure, easy operation, can be very convenient clip the stainless steel sheet, then punch in the different positions department of stainless steel sheet, great convenient operating personnel's operation helps production efficiency's improvement.

Drawings

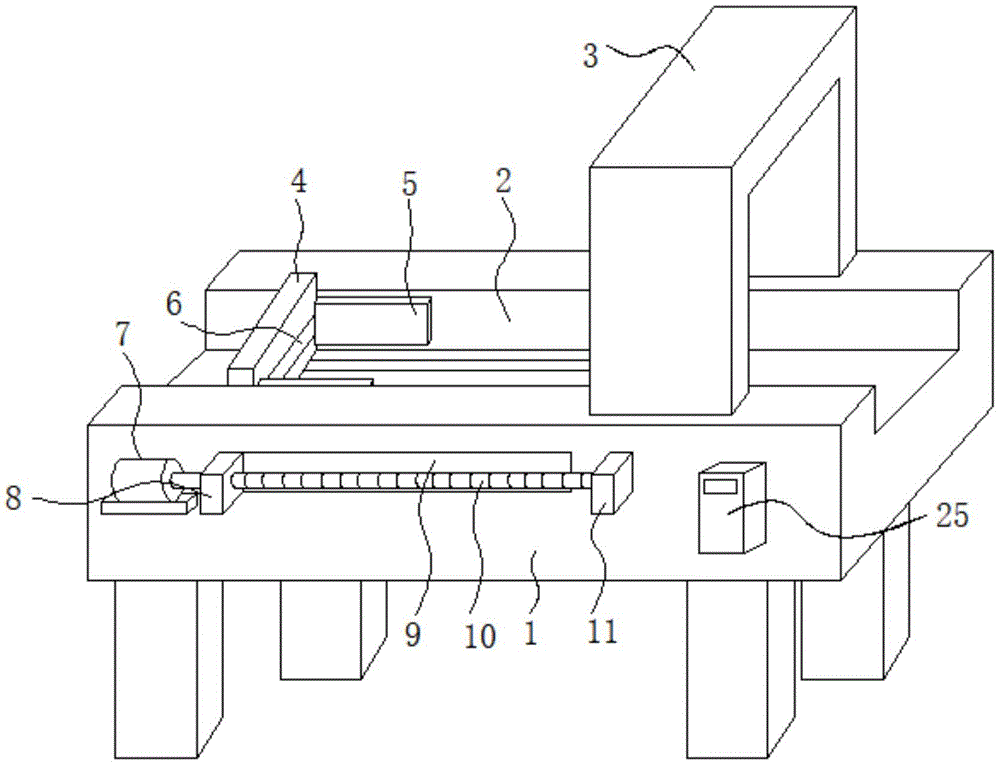

Fig. 1 is a perspective view of the processing apparatus of the present invention.

Fig. 2 is a schematic structural diagram of the stainless steel plate of the present invention.

Fig. 3 is a top sectional view of the processing table of the present invention.

Fig. 4 is a left side sectional view of the processing apparatus of the present invention.

The reference numbers in the figures: the automatic drilling machine comprises a processing table 1, a processing groove 2, a mounting frame 3, a push plate 4, a clamping plate 5, a sliding groove 6, a first motor 7, a moving block 8, a connecting groove 9, a first threaded column 10, a fixed block 11, a stainless steel plate 12, a fixed hole 13, a connecting block 14, a cylinder 15, a limiting plate 16, a second motor 17, an installation block 18, an installation groove 19, a second threaded column 20, an electric telescopic rod 21, an installation plate 22, a drilling machine 23, a scrap hole 24 and a PLC (programmable logic controller) 25.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-4, a stainless steel plate comprises a stainless steel plate 12, wherein a plurality of fixing holes 13 are formed in the top of the stainless steel plate 12, and the fixing holes 13 are convenient for fixing the stainless steel plate 12 on other objects.

A production device for stainless steel plates comprises a processing table 1 and a drilling device arranged at the top of the processing table 1, wherein a processing groove 2 is formed in the top of the processing table 1, a clamp is slidably arranged in the processing groove 2 and comprises a push plate 4 and two clamping plates 5 positioned on one side of the push plate 4, two sliding grooves 6 are formed in one side, close to the clamping plates 5, of the push plate 4, connecting blocks 14 are fixed to one ends of the two clamping plates 5, one ends of the two connecting blocks 14 extend to the outer wall, away from the clamping plates 5, of one side of the push plate 4 through the two sliding grooves 6 respectively, two oil cylinders 15 are arranged on the outer wall, away from the clamping plates 5, of the push plate 4, the extending ends of the two oil cylinders 15 are fixedly connected with one sides of the two connecting blocks 14 respectively, when a stainless steel plate 12 is processed, the stainless steel plate 12 is clamped and fixed by the clamp, and the stainless steel plate 12 can be prevented from moving when the stainless steel plate 12 is processed;

a limiting plate 16 is sleeved outside the connecting block 14, the limiting plate 16 is positioned on one side of the push plate 4 far away from the clamping plate 5, the limiting plate 16 abuts against the outer wall of the push plate 4, and the arrangement of the limiting plate 15 can further enhance the stability of the clamping plate 15 during movement and avoid the connecting block 14 from swinging inside the sliding groove 6;

the outer walls of two sides of the processing table 1 are respectively provided with a first transmission device for driving the clamp to move, the inner walls of two sides of the processing groove 2 are respectively provided with a connecting groove 9, each first transmission device comprises a first motor 7 fixed on the outer wall of the processing table 1 and a first threaded column 10 in transmission connection with one end of an output shaft of the first motor 7, the outer part of each first threaded column 10 is in threaded connection with a moving block 8, one end of each moving block 8 penetrates through the connecting groove 9 and is fixedly connected with the outer wall of one side of the push plate 4, each first transmission device further comprises a fixed block 11 rotatably connected to the other end of the corresponding first threaded column 10, one side of each fixed block 11 is fixedly connected with the outer wall of the processing table 1, each first motor 7 is a brake motor, the clamp can be conveniently driven to move through the arrangement of the first transmission device, and therefore the clamp can be moved below the drilling device to be drilled;

the drilling device comprises a mounting frame 3 fixed at the top of the machining table 1, a second transmission device installed at the top of the mounting frame 3 and a mounting plate 22 installed on the second transmission device, an electric telescopic rod 21 is fixed on the bottom surface of the mounting plate 22, the extending end of the electric telescopic rod 21 faces downwards, the drilling device further comprises a drilling machine 23 installed at the extending end of the electric telescopic rod 21, a mounting groove 19 is formed in the bottom surface of the top of the mounting frame 3, the second transmission device comprises a second threaded column 20 rotatably installed inside the mounting groove 19 and a second motor 17 installed on the outer wall of one side of the mounting frame 3, one end of an output shaft of the second motor 17 is in transmission connection with one end of the second threaded column 20, the second transmission device further comprises a mounting block 18 in threaded connection with the outside of the second threaded column 20, the bottom of the mounting block 18 extends to the outside of the mounting groove 19, the top of the mounting plate 22 is fixedly connected with the bottom of the mounting block 18, the drilling machine 23 can be driven to move through the arrangement of the second transmission mechanism, and therefore the drilling position of the drilling machine 23 on the stainless steel plate 12 can be adjusted;

the bottom of the processing tank 2 is provided with a scrap hole 24, the scrap hole 24 is positioned right below the drilling device, and the scrap hole 24 is convenient for punching to discharge scraps;

the outer wall of one side of the processing table 1 is provided with a PLC (programmable logic controller) 25, and the clamp, the first transmission device, the second transmission device and the punching device can be conveniently punched through the PLC 25;

the width of the moving block 8 is the same as that of the connecting groove 9, so that the moving block 8 can be prevented from rotating along with the rotation of the first threaded column 10, the width of the mounting block 18 is the same as that of the mounting groove 19, and the mounting block 18 can be prevented from rotating along with the rotation of the second threaded column 20.

The working principle is as follows: when the stainless steel rigid plate 12 is produced, the stainless steel plate is firstly placed between the two clamping plates 5, one end of the stainless steel plate 12 is abutted to the outer wall of the push plate 4, then the two oil cylinders 15 are started to contract through the PLC, so that the two clamping plates 5 are driven to mutually approach to clamp the stainless steel plate 12, after the stainless steel plate 12 is clamped, the PLC 25 controls the first transmission device to start, the two first motors 7 rotate positively to drive the two first threaded columns 10 to rotate, the two first threaded columns 10 move and the two moving blocks 8 move, so that the clamp moves to one side close to the drilling device, the stainless steel plate 12 is moved to the position under the drilling machine 23, then the second transmission mechanism starts under the control of the PLC to adjust the position of the drilling machine 23, after the position adjustment of the drilling machine 23 is completed, the second transmission mechanism stops working, the electric telescopic rod 21 extends, the drilling control machine 23 is started simultaneously, so that the stainless steel plate 12 is drilled, and scraps generated by drilling fall from the interior of the scrap hole 24.

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and to simplify the description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or to implicitly indicate the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a production device of stainless steel sheet, its characterized in that, includes processing platform (1) and installs the drilling equipment at processing platform (1) top, processing groove (2) have been seted up at the top of processing platform (1), the inside slidable mounting of processing groove (2) has anchor clamps, anchor clamps include push pedal (4) and two splint (5) that are located push pedal (4) one side, push pedal (4) are close to one side of splint (5) and have seted up two spout (6), two the one end of splint (5) all is fixed with connecting block (14), and the one end of two connecting block (14) runs through two spout (6) respectively and extends to push pedal (4) and keeps away from one side outer wall of splint (5), install two hydro-cylinders (15) on push pedal (4) keep away from one side outer wall of splint (5), the extension end of two hydro-cylinders (15) respectively with one side fixed connection of two connecting blocks (14), all install the first transmission who is used for driving anchor clamps to move on the both sides outer wall of processing platform (1), install controller (25) on one side outer wall of processing platform (1).

2. The production device of a stainless steel plate according to claim 1, wherein the processing groove (2) has connecting grooves (9) formed on both inner walls thereof, the first transmission device comprises a first motor (7) fixed on the outer wall of the processing table (1) and a first threaded post (10) connected to one end of an output shaft of the first motor (7) in a transmission manner, a moving block (8) is connected to the outer portion of the first threaded post (10) in a threaded manner, one end of the moving block (8) penetrates through the connecting grooves (9) and is fixedly connected to the outer wall of one side of the push plate (4), the first transmission device further comprises a fixing block (11) rotatably connected to the other end of the first threaded post (10), and one side of the fixing block (11) is fixedly connected to the outer wall of the processing table (1).

3. The production device of a stainless steel plate according to claim 2, wherein the drilling device comprises a mounting frame (3) fixed on the top of the processing table (1), a second transmission device installed on the top of the mounting frame (3), and a mounting plate (22) installed on the second transmission device, the bottom surface of the mounting plate (22) is fixed with an electric telescopic rod (21), the extension end of the electric telescopic rod (21) faces downwards, and the drilling device further comprises a drilling machine (23) installed at the extension end of the electric telescopic rod (21).

4. The production device of a stainless steel plate according to claim 3, wherein a mounting groove (19) is formed in the bottom surface of the top of the mounting frame (3), the second transmission device comprises a second threaded column (20) rotatably mounted inside the mounting groove (19) and a second motor (17) mounted on the outer wall of one side of the mounting frame (3), one end of an output shaft of the second motor (17) is in transmission connection with one end of the second threaded column (20), the second transmission device further comprises a mounting block (18) in threaded connection with the outside of the second threaded column (20), the bottom of the mounting block (18) extends to the outside of the mounting groove (19), and the top of the mounting block (22) is fixedly connected with the bottom of the mounting block (18).

5. The production device of the stainless steel plate according to claim 1, wherein the bottom of the processing tank (2) is provided with a scrap hole (24), and the scrap hole (24) is located right below the drilling device.

6. The production device of the stainless steel plate according to claim 1, wherein a limiting plate (16) is sleeved outside the connecting block (14), the limiting plate (16) is positioned on one side of the push plate (4) far away from the clamping plate (5), and the limiting plate (16) abuts against the outer wall of the push plate (4).

7. A stainless steel plate production apparatus according to claim 4, wherein the width of the moving block (8) is the same as the width of the connecting groove (9), and the width of the mounting block (18) is the same as the width of the mounting groove (19).
