CN217831988U

CN217831988U - Radial drill protection device

Info

Publication number: CN217831988U
Application number: CN202222112600.XU
Authority: CN
Inventors: 郝建伟
Original assignee: Tianjin Sairuishengwen Technology Co ltd
Current assignee: Tianjin Sairuishengwen Technology Co ltd
Priority date: 2022-08-11
Filing date: 2022-08-11
Publication date: 2022-11-18
Anticipated expiration: 2032-08-11

Abstract

The utility model discloses a radial drill protection device, including the centre gripping base, the centre gripping groove has been seted up in centre gripping base left side, the centre gripping base is located centre gripping groove upper end threaded connection and has two screws, the first mounting panel of centre gripping base right side bottom fixedly connected with, centre gripping base right side central point puts and has seted up the shifting chute, rotate on the first mounting panel and be connected with two threaded rods of evenly distributed, threaded connection has L shape baffle on the threaded rod. The utility model discloses in, through the screw with centre gripping base centre gripping on the radial drill, open the moving motor, the synchronizing wheel drives the threaded rod and rotates, the threaded rod drives L shape baffle rebound again, iron fillings and the coolant liquid to the splash-out carry out the check and keep off, prevent that it from hurting operating personnel, secondly, be provided with air pump and waste material case, the air pump blows in the waste material case through rubber hose with the iron fillings and the coolant liquid of splash-out, be provided with the filter in the waste material case, can separate iron fillings and coolant liquid, so that follow-up clearance.

Description

Radial drill protection device

Technical Field

The utility model relates to a radial drill technical field especially relates to a radial drill protection device.

Background

The radial drilling machine is a hole processing device and can be used for processing various forms such as drilling, reaming, tapping, end face scraping and the like. Among various drilling machines, the radial drilling machine is convenient and flexible to operate, has a wide application range, is particularly suitable for hole machining of single-piece or batch production parts with large porous parts, and is commonly used in a machining workshop.

When the existing Z3080 type radial drilling machine carries out hole machining, due to the rotation of a drill bit, scrap iron generated in the machining and cooling liquid used in the machining can splash outwards, so that the safety of operators can be threatened, and the operation and the use are inconvenient.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing a radial drilling machine protection device.

In order to achieve the above purpose, the utility model adopts the following technical scheme: a radial drilling machine protection device comprises a clamping base, wherein a clamping groove is formed in the left side of the clamping base, two screws are in threaded connection with the upper end of the clamping base, a first mounting plate is fixedly connected to the bottom of the right side of the clamping base, two threaded rods are rotatably connected to the first mounting plate, an L-shaped baffle is in threaded connection with the threaded rods, two synchronizing wheels which are uniformly distributed are rotatably connected to the lower end of the first mounting plate, the synchronizing wheels correspond to the threaded rods one to one, the synchronizing wheels are fixedly connected with the threaded rods, and the synchronizing wheels are connected through a synchronizing belt;

the utility model discloses a portable electric telescopic handle, including centre gripping base, support base, filter, support base, centre gripping base front side bottom fixedly connected with second mounting panel, second mounting panel upper end fixedly connected with air pump, the delivery outlet fixedly connected with flexible rubber hose of air pump, centre gripping base rear side fixedly connected with dump bin, dump bin rear side upper end fixedly connected with L shape mounting panel, sliding connection has the filter in the dump bin, set up evenly distributed's circular port on the filter, L shape mounting panel horizontal segment fixedly connected with is the electric telescopic handle that bilateral symmetry distributes, electric telescopic handle's flexible end runs through the filter, electric telescopic handle's flexible end terminal surface fixedly connected with gag lever post, the filter is located electric telescopic handle's flexible part right side and has seted up the rectangular hole.

As a further description of the above technical solution:

the upper surface of the clamping base is an inclined plane, and the lower end of the inclined plane of the clamping base and the upper end of the waste bin are located on the same horizontal plane.

As a further description of the above technical solution:

the clamp base lower extreme fixed mounting has the mounting bracket, fixed mounting has the moving motor on the mounting bracket, the output and the synchronizing wheel fixed connection of moving motor.

As a further description of the above technical solution:

the limiting rod extends leftwards to pass through the rectangular hole to hook the filter plate.

As a further description of the above technical solution:

the rectangular hole that the filter plate corresponds is located the rear side of round hole.

The utility model discloses following beneficial effect has:

1. compared with the prior art, this radial drill protection device through the screw with the centre gripping base centre gripping on radial drill, opens the moving motor again, and the moving motor passes through the hold-in range and drives the synchronizing wheel and rotate, and the synchronizing wheel drives the threaded rod and rotates, and the threaded rod drives L shape baffle rebound again, carries out the check to the iron fillings and the coolant liquid of flying over and keeps off, prevents that it from hurting operating personnel.

2. Compared with the prior art, this radial drill protection device through being provided with air pump and dump bin, and the air pump passes through flexible rubber hose and blows into the dump bin with the iron fillings and the coolant liquid of splash, is provided with the filter in the dump bin, can be further with iron fillings and coolant liquid separation to follow-up clearance.

Drawings

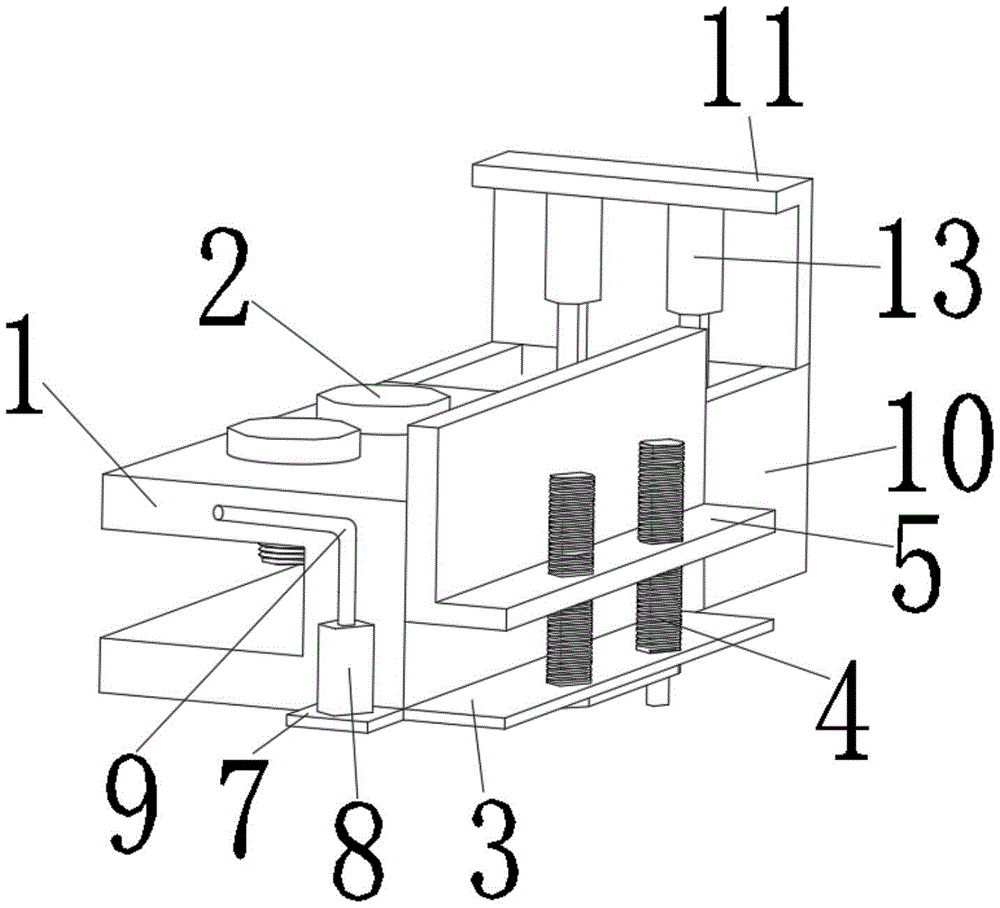

Fig. 1 is a schematic perspective view of a radial drill protection device according to the present invention;

fig. 2 is a bottom view of the three-dimensional structure of the radial drill protection device provided by the present invention;

fig. 3 is a top view of a three-dimensional structure of a radial drilling machine protection device provided by the present invention;

fig. 4 is a rear side sectional view of a waste bin of the protection device of the radial drilling machine provided by the utility model.

Illustration of the drawings:

1. a clamping base; 2. a screw; 3. a first mounting plate; 4. a threaded rod; 5. an L-shaped baffle; 6. a synchronizing wheel; 7. a second mounting plate; 8. an air pump; 9. a rubber hose; 10. a waste bin; 11. an L-shaped mounting plate; 12. a filter plate; 13. an electric telescopic rod; 14. a limiting rod; 15. a synchronous belt; 16. a mounting frame; 17. the motor is moved.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Referring to fig. 1-4, the present invention provides an embodiment: a radial drilling machine protection device comprises a clamping base 1, wherein a clamping groove is formed in the left side of the clamping base 1, two screws 2 are in threaded connection with the upper end of the clamping groove of the clamping base 1, when a Z3080 type radial drilling machine is used for hole machining, the clamping base 1 is clamped on a workbench of the radial drilling machine and then is fixed by the screws 2, a first mounting plate 3 is fixedly connected to the bottom of the right side of the clamping base 1, two threaded rods 4 are rotatably connected to the first mounting plate 3, L-shaped baffles 5 are in threaded connection to the threaded rods 4, two synchronizing wheels 6 are rotatably connected to the lower end of the first mounting plate 3, the synchronizing wheels 6 are in one-to-one correspondence with the threaded rods 4, the synchronizing wheels 6 are fixedly connected with the threaded rods 4, and the synchronizing wheels 6 are connected through synchronizing belts 15; the upper surface of the clamping base 1 is an inclined plane, the lower end of the inclined plane of the clamping base 1 and the upper end of the waste bin 10 are located on the same horizontal plane, the lower end of the clamping base 1 is fixedly provided with an installation frame 16, a mobile motor 17 is fixedly installed on the installation frame 16, and the output end of the mobile motor 17 is fixedly connected with the synchronizing wheel 6.

Centre gripping base 1 front side bottom fixedly connected with second mounting panel 7, 7 upper end fixedly connected with air pumps 8 of second mounting panel, 8's delivery outlet fixedly connected with rubber hose 9, 1 rear side fixedly connected with waste bin 10 of centre gripping base, 10 rear side upper ends fixedly connected with L shape mounting panel 11 of waste bin, sliding connection has filter 12 in the waste bin 10, set up evenly distributed's circular port on the

filter

12, 11 horizontal part fixedly connected with of L shape mounting panel is bilateral symmetry's electric telescopic handle 13, electric telescopic handle 13's flexible end runs through filter plate 12, electric telescopic handle 13's flexible end face fixedly connected with gag lever post 14, gag lever post 14 stretches past the rectangular hole left and hooks filter 12, the rectangular hole has been seted up on the flexible part right side that filter 12 is located electric telescopic handle 13.

The working principle is as follows: the clamping base 1 is clamped on a rocker arm drilling machine through a screw 2, a moving motor 17 is turned on again, the moving motor 17 drives an upper end synchronizing wheel 6 to rotate, another synchronizing wheel 15 is driven to rotate through a synchronous belt 15, the synchronizing wheel 15 drives an upper side threaded rod 4 to rotate, the threaded rod 4 drives an L-shaped baffle 5 to move upwards, splashed iron chips and cooling liquid are blocked to prevent the splashed iron chips and the cooling liquid from injuring operators, the upper surface of the clamping base 1 is an inclined surface, the splashed cooling liquid can flow to a waste bin 10, after processing is finished, an air pump 8 is turned on, the air pump 8 blows the splashed iron chips and the cooling liquid into the waste bin 10 through a rubber hose 9, a filter plate 12 is arranged in the waste bin 10, the filter plate can be further separated from the cooling liquid to facilitate subsequent cleaning, when the waste bin 10 needs to be cleaned, an electric telescopic rod 13 can be retracted upwards, the bottom surface of a limiting rod 14 is higher than the upper end surface of the waste bin 10, the filter plate 12 is pushed towards a rectangular hole direction, the filter plate is taken down from the limiting rod 14 to be cleaned, and each component is reset after the cleaning is finished.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.

Claims

1. The utility model provides a radial drill protection device, includes centre gripping base (1), its characterized in that: a clamping groove is formed in the left side of the clamping base (1), two screws (2) are in threaded connection with the upper end of the clamping base (1) positioned on the clamping groove, a first mounting plate (3) is fixedly connected to the bottom of the right side of the clamping base (1), two threaded rods (4) are rotatably connected to the first mounting plate (3), an L-shaped baffle (5) is in threaded connection with the threaded rods (4), two synchronizing wheels (6) which are uniformly distributed are rotatably connected to the lower end of the first mounting plate (3), the synchronizing wheels (6) correspond to the threaded rods (4) one by one, the synchronizing wheels (6) are fixedly connected with the threaded rods (4), and the synchronizing wheels (6) are connected through a synchronizing belt (15);

centre gripping base (1) front side bottom fixedly connected with second mounting panel (7), fixedly connected with air pump (8) in second mounting panel (7) upper end, delivery outlet fixedly connected with rubber hose (9) of air pump (8), centre gripping base (1) rear side fixedly connected with waste bin (10), waste bin (10) rear side upper end fixedly connected with L shape mounting panel (11), sliding connection has filter (12) in waste bin (10), set up evenly distributed's circular port on filter (12), L shape mounting panel (11) horizontal part fixedly connected with is bilateral symmetry's electric telescopic handle (13), the flexible end of electric telescopic handle (13) runs through filter (12), the flexible end face fixedly connected with gag lever post (14) of electric telescopic handle (13), the rectangular hole has been seted up on the flexible part right side that filter (12) are located electric telescopic handle (13).

2. The radial drill protection device of claim 1, wherein: the upper surface of the clamping base (1) is an inclined plane, and the lower end of the inclined plane of the clamping base (1) and the upper end of the waste box (10) are located on the same horizontal plane.

3. The radial drill protection device of claim 1, wherein: centre gripping base (1) lower extreme fixed mounting has mounting bracket (16), fixed mounting has moving motor (17) on mounting bracket (16), the output and synchronizing wheel (6) fixed connection of moving motor (17).

4. The radial drill protection device of claim 1, wherein: the limiting rod (14) extends leftwards to pass through the rectangular hole to hook the filter plate (12).

5. The radial drill protection device of claim 1, wherein: the rectangular hole that filter (12) correspond is located the rear side of round hole.
