Abstract

The utility model discloses an automobile hinge lug processing equipment which is convenient for perforation and grinding, relates to the technical field of automobile hinge lug processing, and comprises a mounting frame, an adjusting motor is installed inside the mounting frame, and an output shaft of the adjusting motor is connected with a wire rod, the outer wall of the screw rod is connected with a movable part, and two guide rods are symmetrically arranged inside the movable part, and a clamping cylinder is installed on the upper end of the movable part, and a clamping cylinder is connected to the output end of the clamping cylinder. Hold the block, the inner wall of the installation frame is fixed with a first cylinder, and the output end of the first cylinder is provided with a punching motor. The automobile hinge lug processing equipment that is convenient for perforation and grinding can drive the screw rod to rotate through the adjusting motor set in the mounting frame. With the cooperation of the guide rod, the movable part can move horizontally, so as to transfer the clamped workpiece, which is convenient. The grinding operation of the workpiece after drilling does not require manual transfer, which reduces the labor level of the staff.

Description

An automobile hinge lug processing equipment convenient for perforation and grinding

technical field

The utility model relates to the technical field of automobile hinge lug processing, in particular to a kind of automobile hinge lug processing equipment which is convenient for perforating and grinding.

Background technique

With the development of the domestic economy, the automobile industry has been greatly developed. Among them, the automobile hinge lug is a small part of a general automobile accessory. According to incomplete statistics, one-fifth of the automobile hinge lugs produced in my country are exported to the world every year. In various countries, automobile hinges are the most common accessories for automobile assembly, such as interior decoration fixing and mechanical pipeline fixing, which are more or less used in automobile hinges.

When the existing automobile hinge lug processing equipment is in use, the workpiece needs to be clamped and fixed, and then the workpiece is punched. After the hole is punched, the workpiece needs to be manually transported for grinding, resulting in a strong degree of manual labor. For the above According to the situation, technological innovation is carried out on the basis of the existing automobile hinge lug processing equipment.

Utility model content

The purpose of this utility model is to provide an automobile hinge ear processing equipment that is convenient for perforation and grinding, so as to solve the problem that the existing automobile hinge ear processing equipment proposed in the above background technology needs to clamp and fix the workpiece, and then perform Drilling, after drilling, the workpiece needs to be manually transferred for grinding, resulting in a strong degree of manual labor.

In order to achieve the above purpose, the utility model provides the following technical solutions: an automobile hinge lug processing equipment that is convenient for perforation and grinding, including:

Mounting frame, the interior of the mounting frame is equipped with an adjusting motor, the output shaft of the adjusting motor is connected with a screw rod, the outer wall of the screw rod is connected with a movable part, and the inside of the movable part is symmetrically provided with two guide rods , the upper end of the movable part is equipped with a clamping cylinder, the output end of the clamping cylinder is connected with a clamping block, the inner wall of the mounting frame is fixed with a first cylinder, and the output end of the first cylinder is provided with a punch Hole motor, the output shaft of the punching motor is connected with a drilling bit, the right side of the first cylinder is provided with a second cylinder, the output end of the second cylinder is connected with a grinding motor, and the output of the grinding motor The shaft is connected with a grinding disc.

Preferably, the adjusting motor and the mounting frame are connected by screws, and a rotating structure is formed between the screw rod and the adjusting motor, and the screw rod penetrates to the inside of the movable part, and the guide rod and the mounting frame are fixedly connected .

Preferably, a telescopic structure is formed between the drilling motor and the first cylinder, a rotating structure is formed between the drilling bit and the drilling motor, and a telescopic structure is formed between the grinding motor and the second cylinder.

Preferably, the movable part is also provided with:

A through hole is arranged on the upper surface of the movable part, and a dust suction cavity is arranged under the through hole.

Preferably, the through holes are equidistantly and evenly distributed along the upper surface of the movable member, and the dust suction chamber and the through holes communicate with each other.

Preferably, the mounting frame is also provided with:

The installation box is installed on one side of the installation frame. A vacuum cleaner is installed inside the installation box. The input end of the vacuum cleaner is connected to a conveying pipe. The lower surface of the dust collecting box is symmetrically provided with two connecting blocks.

Preferably, the dust collector and the installation box are connected by screws, and the dust collector forms a communication structure with the dust collection chamber through the delivery pipe, and the dust collection box forms a detachable connection with the installation box through the connection block. .

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. The automotive hinge lug processing equipment that is convenient for drilling and grinding can drive the screw rod to rotate through the adjusting motor set in the mounting frame. With the cooperation of the guide rod, the movable parts can move horizontally, so as to transfer the clamped workpiece , to facilitate the grinding operation of the workpiece after drilling, without manual transfer, and reduce the labor level of the staff;

2. The automobile hinge lug processing equipment that is convenient for drilling and grinding can drive the drilling bit to rotate through the set drilling motor, so as to drill the workpiece. The first cylinder can adjust the height of the drilling bit, which is convenient to use, and The second air cylinder provided can adjust the height of the grinding sheet, further facilitating the grinding of the workpiece;

3. The automobile hinge lug processing equipment that is convenient for perforation and grinding allows the dust generated during the processing of the workpiece to enter the dust suction chamber through the through holes set on the movable parts, so as to facilitate the collection of these dusts; through the set vacuum cleaner , with the cooperation of the dust suction chamber, the dust generated during workpiece processing can be extracted, and discharged into the dust collection box through the dust discharge port on the vacuum cleaner for collection. Under the action of the connecting block, the dust collection box can be moved from Take it out of the installation box to facilitate the unified treatment of the collected dust.

Description of drawings

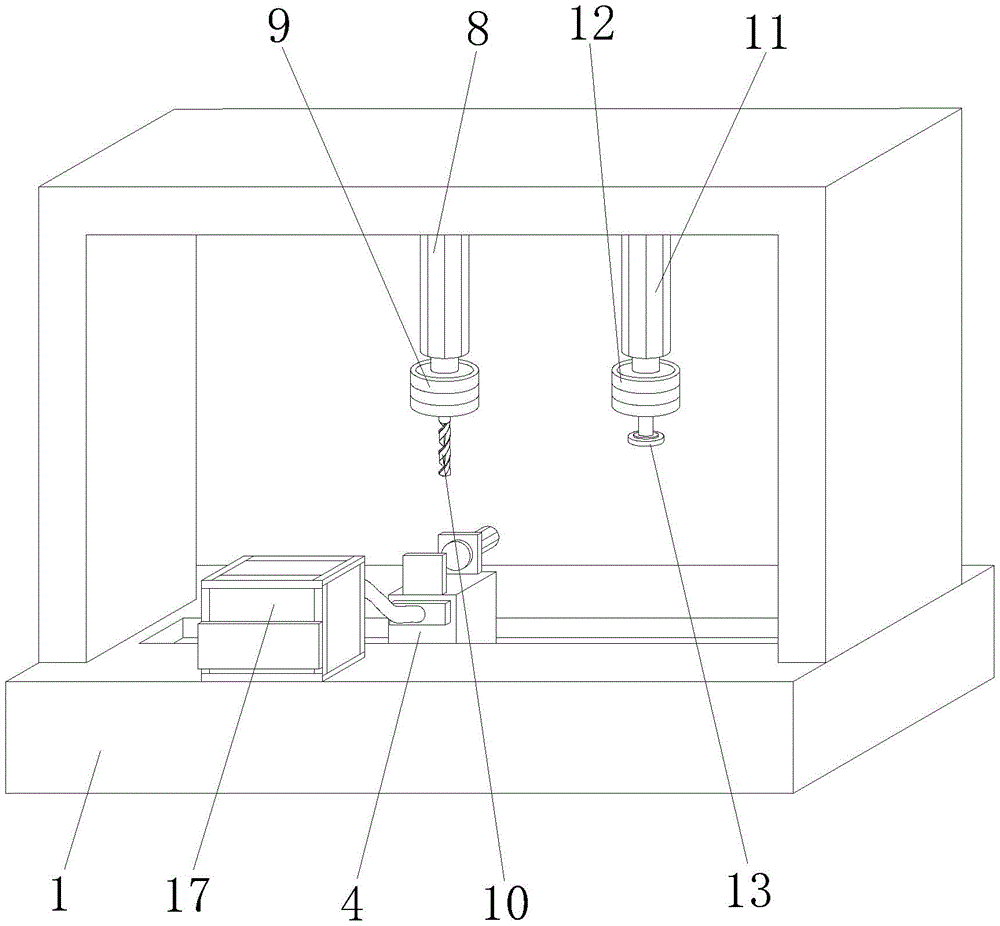

Fig. 1 is a schematic diagram of the three-dimensional structure of the utility model;

Fig. 2 is the schematic diagram of the sectional structure of the mounting frame of the present invention;

Fig. 3 is a schematic diagram of the cross-sectional structure of the movable part of the utility model;

Fig. 4 is a schematic diagram of the cross-sectional structure of the installation box of the present invention.

In the figure: 1. Mounting frame; 2. Regulating motor; 3. Screw rod; 4. Moving parts; 5. Guide rod; 6. Clamping cylinder; 7. Clamping block; 8. First cylinder; 9. Punching Motor; 10, drilling bit; 11, second cylinder; 12, grinding motor; 13, grinding sheet; 14, through hole; 15, vacuum chamber; 16, conveying pipe; 17, installation box; 18, vacuum cleaner ; 19, dust box; 20, connecting block.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

The utility model provides a car hinge lug processing equipment that is convenient for perforation and grinding through improvement, as shown in Figures 1-3, including: a mounting frame 1, an adjusting motor 2 is installed inside the mounting frame 1, and the adjusting motor 2 and The mounting frame 1 is connected by screws, the output shaft of the adjusting motor 2 is connected with the screw rod 3, and the rotating structure is formed between the screw rod 3 and the adjusting motor 2, the outer wall of the screw rod 3 is connected with the movable part 4, and the screw rod 3 penetrates to the Inside the movable part 4, two guide rods 5 are arranged symmetrically inside the movable part 4, and the guide rod 5 is fixedly connected with the mounting frame 1, and the adjusting motor 2 provided in the mounting frame 1 can drive the screw rod 3 to rotate , with the cooperation of the guide rod 5, the movable part 4 can move horizontally, so as to transfer the clamped workpiece, facilitate the grinding operation of the workpiece after drilling, without manual transfer, and reduce the labor level of the staff The upper end of the movable part 4 is equipped with a clamping cylinder 6, the output end of the clamping cylinder 6 is connected with a clamping block 7, the inwall of the mounting frame 1 is fixed with a first cylinder 8, and the output end of the first cylinder 8 is provided with a punching hole Motor 9, form telescopic structure between drilling motor 9 and the first cylinder 8, the output shaft of drilling motor 9 is connected with drilling bit 10, and forms rotating structure between drilling bit 10 and drilling motor 9, the first The right side of the cylinder 8 is provided with a second cylinder 11, the output end of the second cylinder 11 is connected with a grinding motor 12, a telescopic structure is formed between the grinding motor 12 and the second cylinder 11, and the output shaft of the grinding motor 12 is connected with a grinding sheet 13 , the drilling motor 9 provided can drive the drilling bit 10 to rotate, thereby drilling the workpiece, the first cylinder 8 can adjust the height of the drilling bit 10, which is convenient to use, and the second air cylinder 11 provided can The height of the grinding sheet 13 is adjusted to further facilitate the grinding of the workpiece.

The utility model provides a kind of automobile hinge lug processing equipment that is convenient for perforation and grinding through improvement, as shown in Figure 1 and Figure 3-4, including: a through hole 14, which is arranged on the upper surface of the movable part 4, the through hole 14 are equidistantly evenly distributed along the upper surface of the movable part 4, and the bottom of the through hole 14 is provided with a dust suction chamber 15, which communicates with each other between the dust suction chamber 15 and the through hole 14, and passes through the through hole 14 provided on the movable part 4, so that The dust that workpiece produces when processing can enter in the dust suction cavity 15, conveniently these dust are collected; The dust collector 18 and the installation box 17 are connected by screws, and the input end of the dust collector 18 is connected with a conveying pipe 16, and the dust collector 18 forms a communication structure through the conveying pipe 16 and the dust suction chamber 15, and the inside of the installation box 17 The lower end is equipped with a dust collection box 19, and the lower surface of the dust collection box 19 is symmetrically provided with two connection blocks 20. The dust collection box 19 forms a detachable connection between the connection blocks 20 and the installation box 17, and the dust collector 18 provided , with the cooperation of the dust suction chamber 15, the dust generated during workpiece processing can be extracted, discharged into the dust collection box 19 through the dust discharge port on the vacuum cleaner 18 for collection, and under the action of the connecting block 20, it can The dust collection box 19 is taken out from the installation box 17, so that the collected dust is conveniently processed in a unified manner.

The working principle of the automobile hinge lug processing equipment that is convenient for perforation and grinding: before using the automobile hinge lug processing equipment that is convenient for perforation and grinding, first place the installation frame 1 in a suitable position, and there are two fixed plates on the movable part 4 , when the workpiece needs to be processed, the workpiece is placed between the two fixed plates, and the clamping block 7 is driven by the clamping cylinder 6 to move horizontally, thereby clamping and fixing the workpiece, and then through the adjustment set in the mounting frame 1 The motor 2 drives the screw rod 3 to rotate. With the cooperation of the guide rod 5, the movable part 4 can move horizontally, so that the clamped workpiece moves to the bottom of the drilling bit 10, and the first cylinder 8 is set to drive the drilling. The motor 9 moves vertically, and the drilling motor 9 drives the drilling bit 10 to rotate simultaneously, so that the workpiece is drilled. After the drilling is completed, the first cylinder 8 drives the drilling motor 9 to reset. At the same time, the motor 2 is adjusted to drive the wire The rod 3 rotates so that the movable part 4 continues to move horizontally, and when the drilled workpiece is transferred under the grinding sheet 13, the second cylinder 11 is set to drive the grinding motor 12 to move vertically, so that the grinding sheet 13 is in contact with the outer wall of the workpiece. The grinding motor 12 drives the grinding piece 13 to rotate, thereby grinding the workpiece, so that the automobile hinge lug processing equipment does not need to manually punch the hinge lugs completed by manual drilling during the hinge lug processing, which can effectively reduce the labor level of the staff. To improve practicability, the movable part 4 is provided with a through hole 14, through the dust collector 18 provided in the installation box 17, under the cooperation of the dust suction chamber 15 and the conveying pipe 16, the dust collector 18 is started, so that the workpiece is in the process of The dust produced during drilling or grinding can be sucked by the dust suction chamber 15, then discharged into the dust collector 18, and discharged into the dust collection box 19 through the dust discharge port of the dust collector 18, and then in the connection block 20 With cooperation, the dust collecting box 19 can be taken out from the installation box 17, so that the collected dust can be processed in a unified manner.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides an automobile hinge ear processing equipment convenient to perforation is polished which characterized in that includes:

mounting bracket (1), the internally mounted of mounting bracket (1) has adjusting motor (2), the output shaft of adjusting motor (2) has lead screw (3), the outer wall connection of lead screw (3) has moving part (4), the inside symmetry of moving part (4) is provided with two guide bars (5), centre gripping cylinder (6) are installed to the upper end of moving part (4), the output of centre gripping cylinder (6) is connected with grip block (7), the inner wall of mounting bracket (1) is fixed with first cylinder (8), the output of first cylinder (8) is provided with punching motor (9), the output shaft of punching motor (9) has drill bit (10), the right side of first cylinder (8) is provided with second cylinder (11), the output of second cylinder (11) is connected with grinding machine (12), the output shaft of grinding motor (12) has grinding piece (13).

2. The automotive hinge lug machining apparatus facilitating piercing and grinding as claimed in claim 1, wherein: adjust for the screw connection between motor (2) and mounting bracket (1), and constitute revolution mechanic between lead screw (3) and the regulation motor (2) to lead screw (3) run through to the inside of moving part (4), be fixed connection between guide bar (5) and mounting bracket (1).

3. The automotive hinge lug machining apparatus facilitating piercing and grinding as claimed in claim 1, wherein: constitute extending structure between motor (9) and the first cylinder (8) of punching, and constitute revolution mechanic between drill bit (10) and the motor (9) of punching, constitute extending structure between grinding motor (12) and second cylinder (11).

4. The automobile hinge lug machining device facilitating perforation grinding as claimed in claim 1, wherein: the moving part (4) is also provided with:

the through hole (14) is arranged on the upper surface of the movable piece (4), and a dust suction cavity (15) is arranged below the through hole (14).

5. The automobile hinge lug machining device facilitating perforation grinding as claimed in claim 4, wherein: through-hole (14) are along the upper surface equidistance evenly distributed of moving part (4), and communicate each other between dust absorption chamber (15) and through-hole (14).

6. The automotive hinge lug machining apparatus facilitating piercing and grinding as claimed in claim 1, wherein: the mounting bracket (1) is also provided with:

the mounting box (17) is installed on one side of the mounting frame (1), a dust collector (18) is installed inside the mounting box (17), the input end of the dust collector (18) is connected with a conveying pipe (16), a dust collection box (19) is installed at the lower end inside the mounting box (17), and two connecting blocks (20) are symmetrically arranged on the lower surface of the dust collection box (19).

7. The automotive hinge lug machining apparatus facilitating piercing and grinding as set forth in claim 6, wherein: the dust collector (18) is connected with the mounting box (17) through screws, the dust collector (18) forms a communicating structure with the dust collection cavity (15) through the conveying pipe (16), and the dust collection box (19) forms detachable connection with the mounting box (17) through the connecting block (20).
