CN217797696U - Glassware manufacturing all-in-one - Google Patents

Abstract

The utility model discloses a glassware manufacturing and processing all-in-one, including wasing the case, four corners of wasing the bottom half are fixed with the landing leg respectively, the both sides at mount pad top both ends and intermediate position department are fixed with the fixing base respectively. This all-in-one is made in glassware processing is through the in-process of wasing the processing to glass, can be according to glass's thickness, respectively in the both sides on conveyer belt top, the actuating lever rotates, threaded connection between the inside of actuating lever and swivel nut, the actuating lever rotates and can drive mount and conveying roller and inwards remove, mount and conveying roller through using both sides, can be at the in-process that glass carried, carry out supplementary fixed to glass and prevent crooked, can be at the in-process that the conveyer belt top was carried simultaneously, lead to and spacing glass, the problem of being not convenient for carry out supplementary direction spacing to glass in transportation process has been solved.

Description

Glassware manufacturing all-in-one

Technical Field

The utility model relates to a glass processing technology field specifically is a glassware manufacturing all-in-one machine.

Background

The glass is a non-metallic material with the main components of silicon dioxide and other oxides, is generally transparent and fragile, and after the glass product is processed and manufactured, an integrated machine for processing and manufacturing the glass product is required to be used for cleaning and processing the outside.

According to patent No. 201920870300.3, application No. 2019.06.11, a cleaning and drying all-in-one machine for glass products is disclosed, by arranging an annular brush and a squeezing roller, the annular brush can wipe off dust on glass, and can squeeze sewage away through the squeezing roller, and then remove residual water on the cleaned glass, but in the actual use process, in the process of cleaning and processing the outside of the glass, the cleaning only can be performed on one side of the glass, the operation is complicated, the cleaning time is long, meanwhile, the cleaning effect of flushing water alone during cleaning is poor, and some adhered impurity dust particles and the like outside the glass cannot be cleaned in a hanging and sweeping manner, so that the defects can be solved by a structure which can simultaneously perform double-side cleaning on the glass and perform deep cleaning on the outside of the glass, and the efficiency and the effect of cleaning and processing the glass are improved.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a glassware manufacturing all-in-one to it is not convenient for carry out two-sided washing to glass and carry out the problem of deep clearance to the glass outside to provide in solving above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the integrated machine comprises a cleaning box, wherein four corners of the bottom of the cleaning box are respectively fixed with supporting legs, two sides of the bottom inside the cleaning box are respectively fixed with a mounting seat, two sides of two ends of the top of the mounting seat and a middle position are respectively fixed with a fixing seat, four groups of water guide pipes are vertically arranged at the front end inside the cleaning box, a spray head is fixed at one side of each water guide pipe, a U-shaped water collecting pipe is fixed at the front end of the top of the cleaning box, a water storage tank is fixed at the front end of the top of the cleaning box, a water pipe penetrates through the right side of the water storage tank, a water pump is arranged on the water pipe, a fixing frame is arranged at one side of each fixing seat, a water collecting box is fixed at the bottom of the cleaning box, vertical frames are respectively fixed at two sides of the front end inside the cleaning box, a rotating roller is vertically movably connected to the inside of one side of each vertical frame, a hairbrush is fixed to the outside of each rotating roller, a case is fixed at the rear end of the top of the cleaning box, the top of each water guide pipe penetrates through the top of the cleaning box and is fixedly connected with the bottom of the U-shaped water collecting pipe, the U-shaped water collecting pipe is communicated with the inside of the water guide pipe, and a conveying belt is arranged between the mounting seats.

Preferably, driving motors are respectively fixed on two sides of the front end of the top of the cleaning box, an output shaft of each driving motor is fixedly connected with the top end of each rotating roller, and a plurality of groups of brushes are fixed outside the rotating rollers at equal intervals.

Preferably, two groups of fans are fixed at the top end inside the case, an electric heating assembly is arranged at the bottom end inside the case, a connector is fixed at the bottom end of the case, air guide pipes are fixed on two sides of the rear end of the top inside the cleaning box respectively, the top ends of the air guide pipes penetrate through the top end of the cleaning box and are fixedly connected with the bottom end of the connector, a plurality of groups of air blowing openings are fixed on one side of each air guide pipe at equal intervals, and the case is communicated with the inside of the connector.

Preferably, the connector is communicated with the inside of the air guide pipe, and the air guide pipe is communicated with the inside of the air blowing opening.

Preferably, the inside of fixing base is run through and is provided with the swivel nut, the inside of swivel nut runs through and is provided with the actuating lever, the vertical swing joint in inside of mount one side has five groups of conveying rollers, the bottom mounting of mount one side has the gag lever post, and one side of gag lever post runs through the inside of fixing base, swing joint between one side of actuating lever and one side of mount.

Preferably, the fixing frame and the fixing seat are respectively provided with six groups symmetrically about the vertical center line of the conveyor belt.

Preferably, the outside of actuating lever is provided with the external screw thread, the inside of swivel nut is provided with the internal thread with external screw thread matched with.

Compared with the prior art, the beneficial effects of the utility model are that: the integrated machine for processing and manufacturing the glass products not only realizes the convenience of carrying out double-sided cleaning on the glass and carrying out deep cleaning on the outside of the glass, realizes the convenience of carrying out quick drying treatment on the two sides of the cleaned glass, but also realizes the convenience of carrying out auxiliary guiding and limiting on the glass in the conveying process;

(1) The glass cleaning device is provided with the U-shaped water collecting pipe, the water storage tank, the water pump, the water conveying pipe, the spray heads, the water guide pipes, the driving motor, the vertical frame, the rotating rollers and the brushes, in the process of cleaning and processing glass, the glass is vertically placed at the top end of the conveying belt and is fixed by the two groups of fixing frames in an auxiliary mode, the conveying belt drives the glass to convey backwards, water in the water storage tank can be pumped out and conveyed into the U-shaped water collecting pipes by the aid of the water conveying pipe under the control of the water pump, then the water is respectively guided into the four groups of water guide pipes by the U-shaped water collecting pipes, the multiple groups of spray heads which are fixed at equal intervals on one sides of the water guide pipes are sprayed out of the glass to clean the outside of the glass, meanwhile, the driving motor can be controlled to be started, the rotating rollers which are vertically arranged in the vertical frame are driven to rotate, the rotating rollers can clean the two sides deeply by scraping while conveying the glass by the aid of the multiple groups of the brushes which are fixed outside, granular impurities which cannot be washed are removed, and the water guide pipes and the brushes are matched with the washing of the spray heads, so that the outside of the glass can be better cleaned and the glass can be cleaned, and the outside;

(2) By arranging the case, the air guide pipes, the blowing ports, the connectors, the electric heating assemblies and the fans, after the front end of the glass inside the cleaning box is cleaned, the glass is driven by the conveyor belt to be conveyed backwards, meanwhile, the fans can be controlled to be started to suck external air into the glass and perform auxiliary heating through the electric heating assemblies, then the glass is guided into the connectors, the heated air is respectively guided into the two groups of air guide pipes through the connectors, the heated air is sprayed out of two sides of the glass through the multiple groups of blowing ports fixed on one sides of the air guide pipes, and auxiliary rapid drying treatment is performed on two sides of the cleaned glass;

(3) Through being provided with the mount, the actuating lever, the conveying roller, swivel nut and gag lever post, at the in-process that washs processing to glass, can be according to glass's thickness, respectively in the both sides on conveyer belt top, the actuating lever rotates, threaded connection between the inside of actuating lever and swivel nut, the actuating lever rotates and can drive mount and conveying roller and inwards remove, mount and conveying roller through using both sides, can be at the in-process that glass carried, carry out supplementary fixed to glass and prevent crooked, can be at the in-process that the conveyer belt top was carried simultaneously, lead to and spacing glass.

Drawings

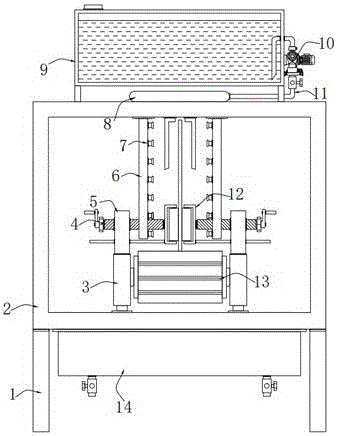

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;

FIG. 2 is a schematic view of the overlooking partial section enlarged structure of the U-shaped water collecting pipe of the present invention;

FIG. 3 is an enlarged schematic side view of a partial cross-section of the roller according to the present invention;

fig. 4 is an enlarged schematic view of a front view partial section of the air guide duct of the present invention;

fig. 5 is an enlarged schematic view of the front view partial section of the conveying roller of the present invention.

In the figure: 1. a support leg; 2. a cleaning tank; 3. a mounting seat; 4. a drive rod; 5. a fixed seat; 6. a water conduit; 7. a spray head; 8. a U-shaped water collection pipe; 9. a water storage tank; 10. a water pump; 11. a water delivery pipe; 12. a fixed mount; 13. a conveyor belt; 14. a water collection tank; 15. a drive motor; 16. erecting a frame; 17. rotating the roller; 18. a brush; 19. a chassis; 20. an air guide pipe; 21. an air blowing port; 22. a connector; 23. an electrical heating assembly; 24. a fan; 25. a conveying roller; 26. a threaded sleeve; 27. a limiting rod.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.

Example 1: referring to fig. 1-4, an integrated machine for processing and manufacturing glass products comprises a cleaning tank 2, four corners at the bottom end of the cleaning tank 2 are respectively fixed with a support leg 1, two sides at the bottom end inside the cleaning tank 2 are respectively fixed with a mounting seat 3, two sides at two ends of the top of the mounting seat 3 and a middle position are respectively fixed with a fixing seat 5, four groups of water guide pipes 6 are vertically arranged at the front end inside the cleaning tank 2, a spray head 7 is fixed at one side of each water guide pipe 6, a U-shaped water collecting pipe 8 is fixed at the front end of the top of the cleaning tank 2, a water storage tank 9 is fixed at the front end of the top of the cleaning tank 2, a water pipe 11 is arranged on the right side of the water storage tank 9 in a penetrating manner, a water pump 10 is arranged on the water pipe 11, a fixing frame 12 is arranged on one side of each fixing seat 5, a water collecting tank 14 is fixed at the bottom end of the cleaning tank 2, a vertical frame 16 is respectively fixed at two sides at the front end inside the inside of the cleaning tank 2, a rotating roller 17 is vertically movably connected with the rotating roller 18, a rear end of the top end of the rotating roller 17 is fixed with a rotating roller 13, a chassis fixed with the water collecting pipe 8, and a U-shaped chassis 13 is arranged between the water guide pipes 6;

two sides of the front end of the top of the cleaning box 2 are respectively fixed with a driving motor 15, an output shaft of the driving motor 15 is fixedly connected with the top end of a rotating roller 17, and a plurality of groups of brushes 18 are fixed outside the rotating roller 17 at equal intervals;

specifically, as shown in fig. 1, fig. 2 and fig. 3, in the process of cleaning glass, the glass is vertically placed on the top end of a conveyor belt 13 and is fixed by two sets of fixing frames 12 in an auxiliary manner, and in the process of conveying the glass backwards under the driving of the conveyor belt 13, water inside a water storage tank 9 is pumped out by using a water pipe 11 and conveyed into a U-shaped water collecting pipe 8 through controlling the starting of a water pump 10, then the water is respectively guided into four sets of water guide pipes 6 through the U-shaped water collecting pipe 8, and is sprayed out of two sides of the glass by a plurality of groups of nozzles 7 fixed at equal intervals at one side of the water guide pipe 6, so as to clean the outside of the glass, and meanwhile, a driving motor 15 can be controlled to start, so as to drive a vertically arranged rotating roller 17 inside a vertical stand 16 to rotate, the rotating roller 17 can use a plurality of externally fixed brushes 18, so as to clean two sides at the same time of the conveying of the glass at the deep sweeping level, so as to remove particulate impurities which cannot be washed away, and the water is matched with the washing of the water guide pipes 6 and the nozzles 7, so as to perform better cleaning treatment on the outside of the glass, thereby improving the efficiency and the quality of the glass cleaning treatment.

Example 2: two groups of fans 24 are fixed at the top end inside the case 19, an electric heating assembly 23 is arranged at the bottom end inside the case 19, a connector 22 is fixed at the bottom end of the case 19, air guide pipes 20 are respectively fixed at two sides of the rear end of the top inside the cleaning box 2, the top ends of the air guide pipes 20 penetrate through the top end of the cleaning box 2 and are fixedly connected with the bottom end of the connector 22, a plurality of groups of air blowing openings 21 are fixed at equal intervals on one side of each air guide pipe 20, the case 19 is communicated with the inside of the connector 22, the connector 22 is communicated with the inside of the air guide pipe 20, and the air guide pipes 20 are communicated with the inside of the air blowing openings 21;

specifically, as shown in fig. 1, 3 and 4, after the front end of the glass inside the cleaning box 2 is cleaned, the glass is conveyed backwards by being driven by the conveyor belt 13, and simultaneously, the blower 24 can be controlled to start to suck in external air and conduct auxiliary heating through the electric heating assembly 23, and then the heated air is guided into the connector 22, and then the heated air is respectively guided into the two sets of air guide pipes 20 through the connector 22, and is sprayed out of the two sides of the glass through the multiple sets of air blowing ports 21 fixed on one side of the air guide pipes 20, so as to perform auxiliary rapid drying processing on the two sides of the cleaned glass.

Example 3: a threaded sleeve 26 penetrates through the inside of the fixed seat 5, a driving rod 4 penetrates through the inside of the threaded sleeve 26, five groups of conveying rollers 25 are vertically and movably connected inside one side of the fixed seat 12, a limiting rod 27 is fixed at the bottom end of one side of the fixed seat 12, one side of the limiting rod 27 penetrates through the inside of the fixed seat 5, one side of the driving rod 4 is movably connected with one side of the fixed seat 12, six groups of conveying rollers are symmetrically arranged on the fixed seat 12 and the fixed seat 5 respectively relative to the vertical center line of the conveying belt 13, external threads are arranged outside the driving rod 4, and internal threads matched with the external threads are arranged inside the threaded sleeve 26;

specifically, as shown in fig. 1 and 5, in the process of cleaning and processing glass, the driving rod 4 can be rotated according to the thickness of the glass, the driving rod 4 is connected with the inside of the threaded sleeve 26 through threads, the driving rod 4 can be rotated to drive the fixing frame 12 and the conveying roller 25 to move inwards, the fixing frame 12 and the conveying roller 25 on the two sides can be used for fixing the glass in an auxiliary manner to prevent the glass from being inclined in the process of conveying the glass, and meanwhile, the glass can be guided and limited in the process of conveying the top end of the conveying belt 13.

The working principle is as follows: when the utility model is used, in the process of cleaning and processing glass, the drive rod 4 can be rotated according to the thickness of the glass and the drive rod 4 is in threaded connection with the inside of the screw sleeve 26, the drive rod 4 can be rotated to drive the fixing frame 12 and the conveying roller 25 to move inwards, the fixing frame 12 and the conveying roller 25 on the two sides can be used for fixing the glass in an auxiliary manner to prevent the glass from being inclined in the process of conveying the glass, meanwhile, the glass can be guided and limited in the process of conveying the top end of the conveyor belt 13, in the process of cleaning and processing the glass, the glass is vertically placed at the top end of the conveyor belt 13 and is fixed in an auxiliary manner by the two groups of fixing frames 12, in the process of conveying the glass in a backward manner driven by the conveyor belt 13, the water in the water storage tank 9 can be pumped out and conveyed to the U-shaped water collecting pipe 8 by controlling the water pump 10 to start and utilizing the water conveying pipe 11, then water is respectively guided into the four groups of water guide pipes 6 by the U-shaped water collecting pipes 8, and is sprayed out of two sides of the glass by a plurality of groups of spray heads 7 which are fixed on one side of the water guide pipes 6 at equal intervals, the outside of the glass is cleaned by flushing, meanwhile, a driving motor 15 can be controlled to be started to drive a rotating roller 17 which is vertically arranged in a vertical frame 16 to rotate, the rotating roller 17 can utilize a plurality of groups of hairbrushes 18 which are fixed outside to scrape and clean two sides deeply while the glass is conveyed, so as to remove particle impurities which cannot be washed by water, and the glass can be better cleaned by matching with the flushing of the water guide pipes 6 and the spray heads 7, so that the efficiency and the quality of the glass cleaning treatment are improved, meanwhile, after the cleaning of the front end of the glass in the cleaning box 2 is finished, the glass is driven by a conveyor belt 13 to be conveyed backwards, meanwhile, the fan 24 can be controlled to start to suck external air into the glass, the external air is heated in the electric heating assembly 23 in an auxiliary mode and then guided into the connector 22, the heated air is guided into the two air guide pipes 20 through the connector 22, the air is sprayed out of two sides of the glass through the multiple groups of air blowing ports 21 fixed on one side of each air guide pipe 20, and auxiliary rapid drying processing is conducted on two sides of the cleaned glass.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims (7)

1. The utility model provides a glassware manufacturing all-in-one, is including wasing case (2), its characterized in that: the washing machine is characterized in that supporting legs (1) are respectively fixed at four corners of the bottom end of the washing tank (2), mounting seats (3) are respectively fixed at two sides of the bottom end inside the washing tank (2), fixing seats (5) are respectively fixed at two sides of two ends of the top of the mounting seats (3) and at the middle position, four groups of water guide pipes (6) are vertically arranged at the front end inside the washing tank (2), a spray head (7) is fixed at one side of each water guide pipe (6), a U-shaped water collecting pipe (8) is fixed at the front end of the top of the washing tank (2), a water storage tank (9) is fixed at the front end of the top of the washing tank (2), a water conveying pipe (11) is arranged on the right side of the water storage tank (9) in a penetrating mode, a water pump (10) is arranged on each water conveying pipe (11), a fixing frame (12) is arranged at one side of each fixing seat (5), a water collecting tank (14) is fixed at the bottom end of the washing tank (2), vertical frames (16) are respectively fixed at two sides of the front end inside the front end of the washing tank (2), a rotating roller (17) is vertically fixed with a rotating frame (18), a brush (18) is connected with the top end of a washing tank (6) and a brush (8) connected with the top end of the washing tank (2), the U-shaped water collecting pipe (8) is communicated with the inside of the water guide pipe (6), and a conveying belt (13) is arranged between the mounting seats (3).

2. The glassware manufacturing and processing integrated machine of claim 1, wherein: the cleaning device is characterized in that driving motors (15) are respectively fixed on two sides of the front end of the top of the cleaning box (2), an output shaft of each driving motor (15) is fixedly connected with the top end of each rotating roller (17), and multiple groups of brushes (18) are fixed outside the rotating rollers (17) at equal intervals.

3. The glassware manufacturing machine of claim 1, wherein: the improved cleaning device is characterized in that two groups of fans (24) are fixed to the top end inside the case (19), an electric heating assembly (23) is arranged at the bottom end inside the case (19), a connector (22) is fixed to the bottom end of the case (19), air guide pipes (20) are fixed to two sides of the rear end of the top inside the cleaning box (2) respectively, the top ends of the air guide pipes (20) penetrate through the top end of the cleaning box (2) and are fixedly connected with the bottom end of the connector (22), multiple groups of air blowing openings (21) are fixed to one side of each air guide pipe (20) at equal intervals, and the case (19) is communicated with the inside of the connector (22).

4. The glassware manufacturing cluster machine of claim 3, wherein: the connector (22) is communicated with the inside of the air guide pipe (20), and the air guide pipe (20) is communicated with the inside of the air blowing opening (21).

5. The glassware manufacturing machine of claim 1, wherein: the utility model discloses a fixing base, including fixing base (5), the inside of fixing base (5) is run through and is provided with swivel nut (26), the inside of swivel nut (26) is run through and is provided with actuating lever (4), the vertical swing joint in inside of mount (12) one side has five groups of conveying roller (25), the bottom mounting of mount (12) one side has gag lever post (27), and one side of gag lever post (27) runs through the inside of fixing base (5), swing joint between one side of actuating lever (4) and one side of mount (12).

6. The glassware manufacturing machine of claim 1, wherein: the fixed frame (12) and the fixed seat (5) are respectively and symmetrically provided with six groups about the vertical center line of the conveyor belt (13).

7. The glassware manufacturing and processing integrated machine of claim 5, wherein: the outside of actuating lever (4) is provided with the external screw thread, the inside of swivel nut (26) is provided with the internal thread with external screw thread matched with.
