Abstract
The utility model relates to a waste gas treatment technical field, and an energy and waste gas treatment device for power engineering are disclosed, comprises a workbench, square material groove has been seted up at the middle part of workstation upper surface one end, fixedly connected with rose box in the square groove at workstation upper surface one end middle part, the bar groove has been seted up at the middle part that rose box one end was kept away from to the workstation upper surface, the bar inslot fixedly connected with water tank at rose box one end middle part is kept away from to the workstation upper surface, the round hole has been seted up at the middle part that water tank one side was kept away from to the rose box, the downthehole fixedly connected with second air duct of round hole at water tank one side middle part is kept away from to the rose box, the utility model discloses a water pump of the inside bottom of water tank can take the treatment water out the inside of rose box, the inside filter sponge of rose box can filter waste water, then go out the bottom of spraying the water tank after filtering from the filter sponge through the drain pipe to realize water recycling, be favorable to reduce the consumption of the energy.
Description
Technical Field
The utility model relates to a waste gas treatment technical field, more specifically relate to an energy and waste gas treatment device for power engineering.
Background
The waste gas treatment device for energy and power engineering is a device for treating dust particles, smoke dust, peculiar smell gas and toxic and harmful gas in waste gas generated in the energy and power engineering.
Current exhaust treatment device is carrying out the processing procedure to waste gas, and the connection gas tightness between each coupling assembling is not very good, appears the flue gas and leaks in the air to lead to exhaust-gas treatment not thorough, the polluted environment, current device is when exhaust-gas treatment in addition, and exhaust treatment device is difficult for dismantling, leads to taking out filter equipment and need wasting a large amount of time, thereby influences the maintenance and the maintenance of device, slows down work efficiency.
Disclosure of Invention
In order to overcome the above-mentioned defect of prior art, the utility model provides an energy and for power engineering exhaust treatment device to solve the problem that exists among the above-mentioned background art.
The utility model provides a following technical scheme: a waste gas treatment device for energy and power engineering comprises a workbench, wherein a square material groove is formed in the middle of one end of the upper surface of the workbench, a filter box is fixedly connected in the square groove in the middle of one end of the upper surface of the workbench, a strip-shaped groove is formed in the middle of one end, far away from the filter box, of the upper surface of the workbench, a water tank is fixedly connected in the strip-shaped groove in the middle of one end, far away from the filter box, of the upper surface of the workbench, a circular hole is formed in the middle of one side, far away from the water tank, of the filter box, a second air guide pipe is fixedly connected in the circular hole in the middle of one side, far away from the second air guide pipe, of the filter box, a conveying pipe is fixedly connected in the circular groove in the middle of one side, far away from the second air guide pipe, strip-shaped grooves are formed in both ends and the middle of the inner wall of the filter box, a first adsorption sponge is fixedly connected in the strip-shaped groove in the end, close to the conveying pipe, of the inner wall of the filter box, a second adsorption sponge is fixedly connected in the strip-shaped groove in the middle of the inner wall of the filter box;
further, the first limiting plate of one end fixedly connected with of rose box is kept away from to first absorption sponge, the circular recess has all been seted up at the both ends that first absorption sponge one side was kept away from to first limiting plate, the first in-circular recess fixedly connected with first in-command at first absorption sponge one side both ends is kept away from to first limiting plate, the one end fixedly connected with second limiting plate of rose box is kept away from to the filter screen, the circular recess has all been seted up at the both ends that filter screen one side was kept away from to the second limiting plate, the in-circular recess fixedly connected with second in-command at filter screen one side both ends is kept away from to the second limiting plate, the one end fixedly connected with third limiting plate of rose box is kept away from to the second absorption sponge, the circular recess has all been seted up at the both ends that second absorption sponge one side was kept away from to the third limiting plate, the in-circular recess fixedly connected with third in-command at second absorption sponge one side both ends is kept away from to the third limiting plate.
Further, the one end fixedly connected with pipe of rose box is kept away from to the second air duct, and the first air duct of one end fixedly connected with of second air duct is kept away from to the pipe, and the middle part swing joint of pipe inner wall has rotatory piece, and the circular port has been seted up at the middle part of pipe side, is equipped with the transfer line in the circular port at pipe side middle part, the top fixedly connected with bar pole of transfer line, the bottom fixed connection of transfer line is on the top of rotatory piece.
Further, the circular port has all been seted up at the both ends that the water tank is close to rose box one side, the one end that the rose box was kept away from at the conveyer pipe to the circular port fixed connection that the water tank is close to rose box one side bottom, the circular port fixedly connected with inlet tube in the circular port on rose box one side top is close to the water tank, the one end fixedly connected with stagnant water valve of water tank is kept away from to the inlet tube, the one end fixedly connected with delivery pipe of inlet tube is kept away from to the stagnant water valve, the circular port has all been seted up at the both ends that rose box one side was kept away from to the water tank, the circular port fixedly connected with blast pipe on rose box one side top is kept away from to the water tank, the water tank is kept away from and is equipped with the outlet pipe in the circular port of rose box one side bottom.
Furthermore, the lower surface of the inner wall of the water tank is close to one end of the water outlet pipe, the water outlet end of the water pump is fixedly connected with one end of the water outlet pipe close to the water tank, the water outlet pipe is far away from one end of a filter box fixedly connected with the water pump, the two ends and the middle part of the inner wall of the filter box are respectively provided with a strip-shaped groove, the two ends and the middle part of the inner wall of the filter box are respectively and fixedly connected with a filter sponge, the filter box is far away from a middle part fixedly connected with drain pipe at one end of the water outlet pipe, and the drain pipe is far away from one end fixedly connected with a spray head of the filter box.
Further, the bar groove has been seted up on the top of water tank inner wall, the bar inslot fixedly connected with filter on water tank inner wall top, the one end fixedly connected with fourth limiting plate of water tank is kept away from to the filter, the circular recess has all been seted up at the both ends that filter one side was kept away from to the fourth limiting plate, the fourth limiting plate is kept away from the circular recess fixedly connected with fourth handle at filter one side both ends, the bar groove has been seted up to the bottom that water tank inner wall is close to conveyer pipe one side, the bar inslot fixedly connected with baffle that water tank inner wall is close to conveyer pipe one side bottom.
The utility model discloses a technological effect and advantage:
1. the utility model discloses a be equipped with rotatory piece, when using the device, twist and move the bar pole, the bar pole can be rotatory piece drive wall portion in the pipe through the transfer line rotatory to make waste gas enter into the inside of rose box through first air duct and pipe and second air duct, when waste gas is arranged inside the rose box completely, close rotatory piece can, be favorable to preventing the waste gas backward flow, thereby influence the processing of waste gas.
2. The utility model discloses a be equipped with the baffle, when using this energy and for the exhaust treatment device of power engineering, the baffle of water tank inner wall bottom can stop a period with waste gas, increases the time that waste gas flows in aqueous, is favorable to increasing the filter effect.
3. The utility model discloses a be equipped with the water pump, the inside of filter cartridge can be taken the processing water out to the water pump of the inside bottom of water tank, and the inside filtration sponge of filter cartridge can filter waste water, then goes out the bottom that sprays the water tank with the water after filtering from filtering the sponge through the drain pipe to realize water cycle and use, be favorable to reducing the consumption of the energy.
Drawings

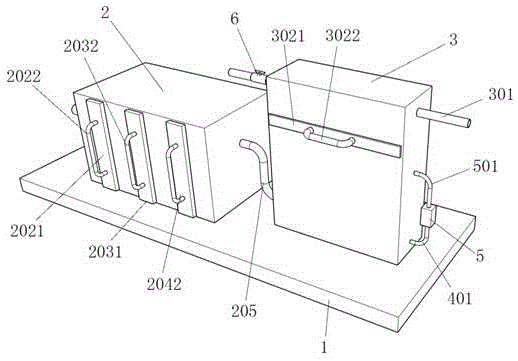

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a schematic cross-sectional view of the overall structure of the present invention.
Fig. 3 is a schematic front view of the overall structure of the present invention.
Fig. 4 is a schematic view of the air stop valve of the present invention.
Fig. 5 is a schematic view of the filter cartridge mechanism of the present invention.
The reference signs are: 1. a work table; 2. a filter box; 201. a second airway tube; 202. a first absorbent sponge; 2021. a first limit plate; 2022. a first handle; 203. a filter screen; 2031. a second limiting plate; 2032. a second handle; 204. a second adsorption sponge; 2041. a third limiting plate; 2042. a third handle; 205. a delivery pipe; 3. a water tank; 301. an exhaust pipe; 302. a filter plate; 3021. a fourth limiting plate; 3022. a fourth handle; 303. a water inlet pipe; 304. a baffle plate; 4. a water pump; 401. a water outlet pipe; 5. a filter cartridge; 501. a drain pipe; 502. filtering the sponge; 503. a spray head; 6. a water stop valve; 601. a water supply pipe; 7. a circular tube; 701. a first air duct; 702. rotating the block; 703. a transmission rod; 704. a bar-shaped rod.
Detailed Description
The technical solution of the present invention will be described clearly and completely with reference to the accompanying drawings in the present invention, and the forms of the structures described in the following embodiments are merely examples, and the energy and power engineering exhaust gas treatment device according to the present invention is not limited to the structures described in the following embodiments, and all other embodiments obtained by a person of ordinary skill in the art without creative work belong to the scope of the present invention.
Referring to fig. 1-5, the utility model provides a waste gas treatment device for energy and power engineering, comprising a workbench 1, a square material groove is arranged in the middle of one end of the upper surface of the workbench 1, a filter box 2 is fixedly connected in the square groove in the middle of one end of the upper surface of the workbench 1, a strip groove is arranged in the middle of one end of the upper surface of the workbench 1, which is far away from the filter box 2, a water tank 3 is fixedly connected in the strip groove in the middle of one end of the upper surface of the workbench 1, a circular hole is arranged in the middle of one side of the filter box 2, which is far away from the water tank 3, a second air duct 201 is fixedly connected in the circular hole in the middle of one side of the filter box 2, which is far away from the second air duct 201, a circular groove is arranged in the middle of one side of the filter box 2, a conveying pipe 205 is fixedly connected in the circular groove in the middle of one side of the filter box 2, strip grooves are both ends and the middle of the inner wall of the filter box 2, a first adsorption sponge 202 is fixedly connected in the strip groove near one end of the second air duct 201, a second adsorption screen 204 is fixedly connected in the inner wall of the filter box 2, a sponge 203;
referring to fig. 3, the first limiting plate 2021 of one end fixedly connected with that the first adsorption sponge 202 is far away from the filter box 2, circular grooves have all been seted up at the both ends that first adsorption sponge 202 is kept away from one side of first adsorption sponge 202 by first limiting plate 2021, the first in-circular groove fixedly connected with first in-handle 2022 at both ends of one side of first adsorption sponge 202 is kept away from by first limiting plate 2021, the one end fixedly connected with second limiting plate 2031 of filter box 2 is kept away from by filter screen 203, circular grooves have all been seted up at the both ends that filter screen 203 one side is kept away from by second limiting plate 2031, the one end fixedly connected with third limiting plate 2041 of filter box 2 is kept away from by second adsorption sponge 204, circular grooves have all been seted up at the both ends that second adsorption sponge 204 one side is kept away from by third limiting plate 2041, the in-circular groove fixedly connected with third in-handle 2042 at both ends of one side of second adsorption sponge 204 is kept away from by third limiting plate 2041.
Referring to fig. 4, one end of the second air duct 201 far away from the filter box 2 is fixedly connected with a round tube 7, one end of the round tube 7 far away from the second air duct 201 is fixedly connected with a first air duct 701, the middle part of the inner wall of the round tube 7 is movably connected with a rotating block 702, a round hole is formed in the middle part of the side surface of the round tube 7, a transmission rod 703 is arranged in the round hole in the middle part of the side surface of the round tube 7, a strip-shaped rod 704 is fixedly connected to the top end of the transmission rod 703, and the bottom end of the transmission rod 703 is fixedly connected to the top end of the rotating block 702.
Referring to fig. 1-2, the circular port has all been seted up at the both ends that water tank 3 is close to rose box 2 one side, the circular port fixed connection that water tank 3 is close to rose box 2 one side bottom is in the one end that rose box 2 was kept away from to conveyer pipe 205, the circular port fixedly connected with inlet tube 303 that water tank 3 is close to rose box 2 one side top, the one end fixedly connected with stagnant water valve 6 that water tank 3 was kept away from to inlet tube 303, the one end fixedly connected with delivery pipe 601 of inlet tube 303 is kept away from to stagnant water valve 6, the circular port has all been seted up at the both ends that rose box 2 one side was kept away from to water tank 3, the circular port fixedly connected with blast pipe 301 in the circular port on rose box 2 one side top is kept away from to water tank 3, be equipped with outlet pipe 401 in the circular port of rose box 2 one side bottom is kept away from to water tank 3.
Referring to fig. 5, the one end fixedly connected with water pump 4 that the lower surface of the inner wall of water tank 3 is close to outlet pipe 401, the one end fixedly connected with filter cartridge 5 that water pump 4 was kept away from to outlet pipe 401, the bar groove has all been seted up at the both ends and the middle part of the 5 inner walls of filter cartridge, the equal fixedly connected with filter sponge 502 in the bar inslot at 5 inner wall both ends of filter cartridge and middle part, the middle part fixedly connected with drain pipe 501 of outlet pipe 401 one end is kept away from to filter cartridge 5, the one end fixedly connected with shower nozzle 503 of filter cartridge 5 is kept away from to drain pipe 501.
Referring to fig. 2, the bar groove has been seted up on the top of 3 inner walls of water tank, the bar inslot fixedly connected with filter 302 on 3 inner wall tops of water tank, the one end fixedly connected with fourth limiting plate 3021 of water tank 3 is kept away from to filter 302, the circular recess has all been seted up at the both ends that filter 302 one side was kept away from to fourth limiting plate 3021, the circular recess fixedly connected with fourth handle 3022 at filter 302 one side both ends are kept away from to fourth limiting plate 3021, the bar groove has been seted up to the bottom that 3 inner walls of water tank are close to conveyer pipe 205 one side, the bar inslot fixedly connected with baffle 304 that the inner wall of water tank 3 is close to conveyer pipe 205 one side bottom.
The utility model discloses a theory of operation: when the waste gas treatment device for energy and power engineering is used, firstly, the water stop valve 6 is opened, the water stop valve 6 can fill water into the water tank 3 through the water feeding pipe 601 and the water inlet pipe 303, then the strip-shaped rod 704 is screwed, the strip-shaped rod 704 can drive the rotating block 702 to rotate on the inner wall of the circular pipe 7 through the transmission rod 703, so that waste gas enters the inside of the filter box 2 through the first air guide pipe 701, the circular pipe 7 and the second air guide pipe 201, the first adsorption sponge 202 in the inside of the filter box 2 can carry out first treatment on the waste gas, then the filter screen 203 and the second adsorption sponge 204 can carry out second treatment on the waste gas, so that solid harmful substances in the waste gas are removed, then the waste gas can enter the inside of the water tank 3 from the transmission pipe 205, the water in the water tank 3 can absorb harmful substances in the gas, so as to completely treat the waste gas, the treated gas passes through the filter plate 302, the filter plate 302 absorbs the water vapor in the gas, so that the water vapor in the gas is reduced, then the gas is discharged into the air through the exhaust pipe 301, the water pump 4 at the bottom end inside the water tank 3 pumps the treatment water to the inside of the filter box 5, the filter sponge 502 inside the filter box 5 filters the wastewater, then the filtered water is sprayed to the bottom end of the water tank 3 from the filter sponge 502 through the drain pipe 501, so that the water is recycled, the energy consumption is reduced, the first limiting plate 2021, the second limiting plate 2031 and the third limiting plate 2041 are connected to the outer sides of the first adsorption sponge 202, the filter screen 203 and the second adsorption sponge 204, when the first adsorption sponge 202 needs to be cleaned, only the first handle 2022 needs to be pulled, so that the first adsorption sponge 202 is taken out from the inner wall of the filter box 2, the cleaning can be carried out simply and quickly, insert first absorption sponge 202 again along the inside bar groove of rose box 2 after the clearance can, with the same reason, filter screen 203, second absorption sponge 204 and filter 302 all are the same operation, and the baffle 304 of 3 inner walls bottom of water tank can stop waste gas for a period of time, increase the time that waste gas flows in aqueous to increase the filter effect.
The points to be finally explained are: first, in the description of the present application, it should be noted that, unless otherwise specified and limited, the terms "mounted," "connected," "connecting," and "connecting" should be understood broadly, and may be a mechanical connection or an electrical connection, or a communication between two elements, and may be directly connected, and "upper," "lower," "left," and "right" are only used to indicate relative positional relationships, and when the absolute position of the object to be described is changed, the relative positional relationships may be changed;
secondly, the method comprises the following steps: in the drawings of the disclosed embodiments of the present invention, only the structures related to the disclosed embodiments are referred to, and other structures can refer to common designs, and under the condition of no conflict, the same embodiment and different embodiments of the present invention can be combined with each other;
and finally: the above description is only for the preferred embodiment of the present invention and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. The utility model provides an energy and for power engineering exhaust treatment device, includes workstation (1), its characterized in that: the utility model discloses a sponge adsorption filter, including workstation (1), workstation (1) upper surface one end, square material groove has been seted up at the middle part of workstation (1) upper surface one end, workstation (1) upper surface keeps away from the middle part of rose box (2) one end and has seted up the bar groove, the bar inslot fixedly connected with water tank (3) at rose box (2) one end middle part are kept away from to workstation (1) upper surface, the middle part of water tank (3) one side is kept away from in rose box (2) has seted up the circular port, the downthehole fixedly connected with second air duct (201) of circular port at water tank (3) one side middle part is kept away from in rose box (2), round groove has been seted up at the middle part that second air duct (201) one side was kept away from in rose box (2), the both ends and the middle part of rose box (2) inner wall have all seted up the bar groove, the bar inslot fixedly connected with first adsorption filter 202 that adsorbs of fixedly connected with of second air duct (201) one side inner wall (2), the bar inslot fixedly connected with bar groove (204) that the filter box (2) inner wall is close to the sponge adsorption filter screen (203), filter box (2) inner wall is connected with bar groove (204).
2. The exhaust gas treatment device for energy and power engineering according to claim 1, wherein: the filter box is characterized in that the first limiting plate (2021) is fixedly connected to one end of the first adsorption sponge (202) far away from the filter box (2), circular grooves are formed in two ends of the first limiting plate (2021) far away from one side of the first adsorption sponge (202), first handles (2022) are fixedly connected to two ends of one side of the first adsorption sponge (202) far away from the first limiting plate (2021), second handles (2031) are fixedly connected to one end of the filter box (2) far away from the filter box (203), circular grooves are formed in two ends of one side of the second limiting plate (2031) far away from one side of the filter box (203), second handles (2032) are fixedly connected to two ends of one side of the second adsorption sponge (203) far away from the second limiting plate (2031), third limiting plate (2041) is fixedly connected to one end of one side of the second adsorption sponge (204) far away from the third sponge (2042), and circular grooves are formed in two ends of one side of the second adsorption sponge (204) far away from the third limiting plate (2041).
3. The exhaust gas treatment device for energy and power engineering according to claim 1, wherein: one end fixedly connected with pipe (7) of rose box (2) is kept away from in second air duct (201), the first air duct of one end fixedly connected with (701) of second air duct (201) is kept away from in pipe (7), the middle part swing joint of pipe (7) inner wall has rotatory piece (702), the circular port has been seted up at the middle part of pipe (7) side, be equipped with transfer line (703) in the circular port at pipe (7) side middle part, the top fixedly connected with bar pole (704) of transfer line (703), the bottom fixed connection of transfer line (703) is on the top of rotatory piece (702).
4. The exhaust gas treatment device for energy and power engineering according to claim 1, wherein: the round hole has all been seted up at the both ends that water tank (3) are close to rose box (2) one side, the one end of rose box (2) is kept away from at conveyer pipe (205) to the circular port fixed connection that water tank (3) are close to rose box (2) one side bottom, the circular hole fixedly connected with inlet tube (303) on the circular hole that water tank (2) one side top is close to water tank (3), the one end fixedly connected with stagnant water valve (6) of water tank (3) are kept away from in inlet tube (303), the one end fixedly connected with delivery pipe (601) of inlet tube (303) are kept away from in stagnant water valve (6), the circular hole has all been seted up at the both ends that rose box (2) one side was kept away from in water tank (3), the circular hole fixedly connected with blast pipe (301) on rose box (2) one side top is kept away from in water tank (3), be equipped with outlet pipe (401) in the circular hole that rose box (2) one side bottom is kept away from in water tank (3).
5. The exhaust gas treatment device for energy and power engineering according to claim 4, wherein: the utility model discloses a water tank, including water tank (3), inner wall lower surface, outlet pipe (401), water outlet end fixedly connected with filter box (5), the bar groove has all been seted up at the both ends of filter box (5) inner wall and middle part, the equal fixedly connected with of bar inslot at filter box (5) inner wall both ends and middle part filters sponge (502) to the one end fixedly connected with water pump (4) that water tank (3) lower surface is close to outlet pipe (401), the one end fixedly connected with water pump (4) of water pump (4) are kept away from in outlet pipe (401), the one end fixedly connected with shower nozzle (503) of filter box (5) are kept away from in filter box (5).
6. The exhaust gas treatment device for energy and power engineering according to claim 1, wherein: the strip-shaped groove has been seted up on the top of water tank (3) inner wall, the strip-shaped inslot fixedly connected with filter (302) on water tank (3) inner wall top, the one end fixedly connected with fourth limiting plate (3021) of water tank (3) are kept away from in filter (302), the circular recess has all been seted up at the both ends that filter (302) one side was kept away from in fourth limiting plate (3021), the circular recess fixedly connected with fourth handle (3022) at filter (302) one side both ends are kept away from in fourth limiting plate (3021), the strip-shaped groove has been seted up to the bottom that water tank (3) inner wall is close to conveyer pipe (205) one side, water tank (3) inner wall is close to strip-shaped inslot fixedly connected with baffle (304) of conveyer pipe (205) one side bottom.
