CN217694156U - Automatic control device for diaphragm pump house - Google Patents
Automatic control device for diaphragm pump house Download PDFInfo
- Publication number
- CN217694156U CN217694156U CN202221548741.XU CN202221548741U CN217694156U CN 217694156 U CN217694156 U CN 217694156U CN 202221548741 U CN202221548741 U CN 202221548741U CN 217694156 U CN217694156 U CN 217694156U
- Authority
- CN
- China
- Prior art keywords
- control box
- fixed frame
- diaphragm pump
- control device
- automatic control
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Structures Of Non-Positive Displacement Pumps (AREA)
Abstract
The utility model discloses a diaphragm pump room automatic control device relates to diaphragm pump room technical field, including the control box, the inside of control box cooperatees and is provided with inside hollow fixed frame, is the matrix on the inner wall of fixed frame and has seted up the air vent, and the fixed stopper that is T shape that is provided with in middle part on fixed frame top, stopper cooperate to set up the spacing inslot of seting up on the control box, and the top of control box is provided with and supports tight bolt to the position of stopper, and the both sides of control box all are provided with the heat extraction fan. The utility model discloses a setting of fixed frame can make the inside production negative pressure of fixed frame when heat extraction fan during operation, can be with the all-round suction of steam to fixed frame in the control box through the air vent at this moment, then discharge is fanned out to rethread heat extraction, can improve the inside radiating even effect of control box, makes a round trip to drive the brush up-and-down motion through electric putter, can realize clearing up the dust on filter screen surface.
Description
Technical Field
The utility model relates to a diaphragm pump room technical field especially relates to a diaphragm pump room automatic control device.
Background
The diaphragm pump room is a factory building provided with a diaphragm pump, a power machine and auxiliary equipment thereof, and the diaphragm pump separates the infused liquid from the plunger and the pump cylinder by means of a film, so that the plunger and the pump cylinder are protected. The left side of the diaphragm, which is in contact with the liquid, is made of corrosion-resistant materials or coated with a layer of corrosion-resistant substances; the right side of the diaphragm is filled with water or oil.
In a diaphragm pump room, automatic control of a diaphragm pump, a power machine and auxiliary equipment thereof is usually realized through a control box, a heat extraction fan is arranged on the control box in order to improve the heat dissipation effect of the control box in the prior art, and then a filter screen is arranged outside the heat extraction fan for dust prevention.
However, the control box still has certain disadvantages in practical use, and because there are many electrical components in the control box, the simple heat dissipation through the heat dissipation fan easily causes uneven local heat dissipation, which may affect the normal operation of the local electrical components, and if there is more dust accumulated on the dust screen, the heat dissipation effect inside the control box is also easily reduced.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing an automatic control device for a diaphragm pump house. Its advantage lies in can improving the radiating effect to the control box inside.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a diaphragm pump room automatic control device, includes the control box, the inside of control box cooperatees and is provided with inside hollow fixed frame, it has seted up the air vent to be the matrix on the inner wall of fixed frame, the fixed stopper that is T shape that is provided with in middle part on fixed frame top, the stopper cooperatees the spacing inslot that sets up on the control box, just the top of control box is provided with and supports tight bolt to the position of stopper, the both sides of control box all are provided with the heat extraction fan, the air intake of heat extraction fan passes the control box and is linked together with the inside of fixed frame, just the outside of heat extraction fan is provided with the casing, the front of casing is provided with the filter screen, the outside that lies in the filter screen on the control box is provided with clearance mechanism, the bottom of control box is provided with collection mechanism.
Through the technical scheme: through the setting of fixed frame, can make the inside production negative pressure of fixed frame when the during operation of heat extraction fan, at this moment can be with the omnidirectional of steam in the control box in inhaling to fixed frame through the air vent, then discharge is fanned out to rethread heat extraction, can improve the radiating even effect of control box inside, make a round trip to drive the brush up-and-down motion through electric putter, can realize clearing up the dust on filter screen surface, and can concentrate the collection through the collection box that is equipped with to the dust after the clearance and handle.
The utility model discloses further set up to, clearance mechanism includes two slide rails, two the slide rail is located the both sides of casing respectively, and two the outside homogeneous phase cooperation of slide rail is slided and is provided with slider, two the positive fixed same base plate that is provided with of slider.
Through the technical scheme: the base plate can be driven to move up and down along the sliding rail by the up-and-down movement of the sliding block on the sliding rail.
The utility model discloses further set up to, lie in on the control box and be provided with electric putter between two slide rails, electric putter is through connecting block and the control box fixed connection that the outside was equipped with, just electric putter's output and base plate fixed connection.
Through the technical scheme: the electric push rod can push the base plate to move along the sliding rail.
The utility model discloses further set up to, the spout has been seted up to the inboard of base plate, the cooperation is slided and is provided with the brush holder in the spout, the front of brush holder is provided with the brush, just the dorsal part of brush holder is rotated and is provided with adjusting screw, adjusting screw's a terminal thread passes the outside that the base plate was arranged in to the base plate.
Through the technical scheme: the base plate up-and-down motion can realize driving the brush up-and-down motion, can clear up the accumulational dust in filter screen surface through the brush, twists and moves adjusting screw and drive the brush seat and remove, and the brush seat removes and drives the brush and take place the motion, realizes adjusting the brush to inconsistent with the filter screen.
The utility model discloses further set up to, collect the mechanism and include two collection boxes, two collection box homogeneous phase cooperations slide to set up in the control box, and two relative terminal surfaces of collecting the box are fixed all to be provided with the fly leaf.
Through the technical scheme: through two collection boxes that are equipped with, when clearing up the dust on filter screen surface, remove two collection boxes to the outside of control box, concentrate the collection to the dust of clearance.
The utility model discloses further set up to, two the one end of fly leaf matches respectively and slides the sliding tray that sets up on two collection boxes in, and two the relative terminal surface of fly leaf all is provided with the rack.
Through the technical scheme: when the two racks move relatively or oppositely, the two movable plates can be driven to move, the movable plates move to drive the collecting boxes to move, and the two collecting boxes are moved out of or into the control box.
The utility model discloses it is further set up to, two mesh mutually between the rack and be provided with same gear, one side of gear is provided with carries out driven servo motor to the gear, servo motor is fixed to be set up in the control box.
Through the technical scheme: the servo motor works to drive the gear to rotate, the gear can drive the two racks to move, and the two racks can be driven to move relatively or oppositely through forward rotation or reverse rotation of the servo motor.
The utility model has the advantages that:
1. this diaphragm pump room automatic control device, through the setting of fixed frame, can make the inside production negative pressure of fixed frame when heat extraction fan during operation, at this moment can make a round trip to drive the brush up-and-down motion through electric putter with the omnidirectional suction of the steam in the control box to fixed frame in, then the discharge of rethread heat extraction fan, can improve the radiating even effect in control box inside, make a round trip to drive the brush up-and-down motion, can realize clearing up the dust on filter screen surface, and can concentrate the collection through the collection box that is equipped with and handle the dust after the clearance.
2. This diaphragm pump room automatic control device, electric putter work can promote the base plate and take place the motion along the slide rail, and base plate up-and-down motion can realize driving the brush up-and-down motion, twists and moves adjusting screw and drive the brush seat and remove, and the brush seat removes and drives the brush emergence motion, realizes adjusting the brush to inconsistent with the filter screen.
3. This diaphragm pump room automatic control device, servo motor work drive gear revolve, and gear revolve can realize driving two racks and take place the motion, through servo motor corotation or reversal, can realize driving two racks and take place relative or motion in opposite directions, can drive two fly leafs and take place the motion when two racks are relative or move in opposite directions, and the fly leaf removes to drive and collects the box and takes place the motion, realizes shifting out two collection boxes or in the immigration control box.
Drawings

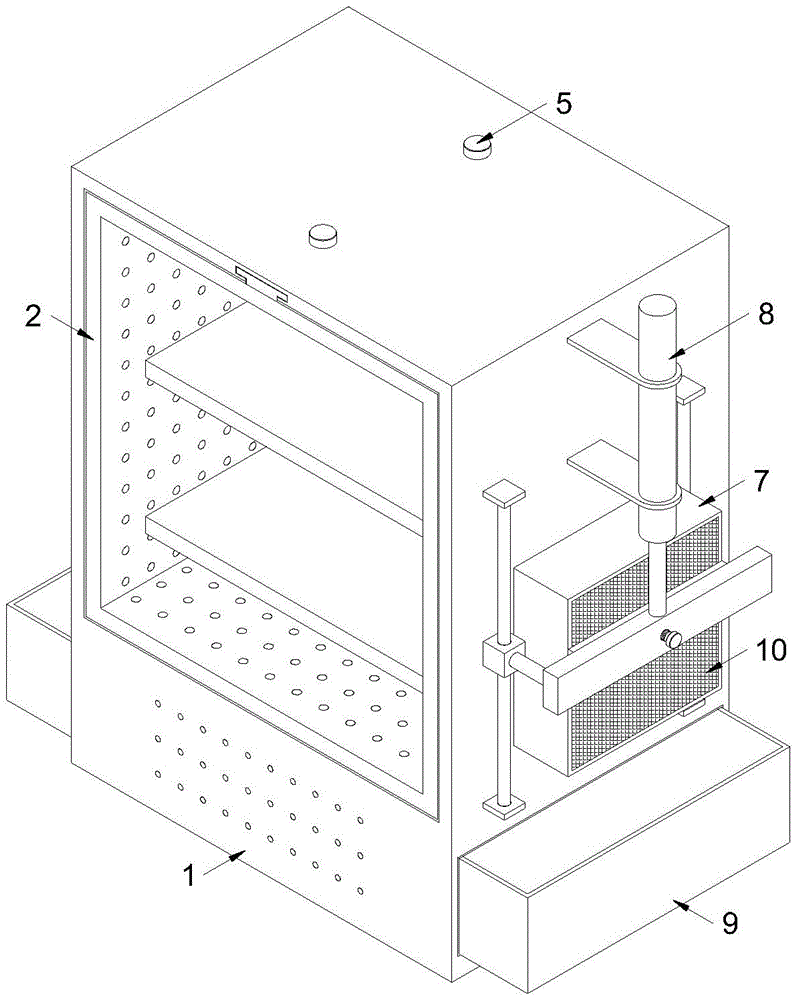

Fig. 1 is a front perspective view of a control box of an automatic control device for a diaphragm pump room provided by the present invention;
fig. 2 is a schematic view of a connection structure between a fixing frame and a heat extraction fan and a housing of an automatic control device for a diaphragm pump room provided by the present invention;
fig. 3 is a schematic structural view of a cleaning mechanism of an automatic control device for a diaphragm pump room provided by the present invention;
fig. 4 is a schematic diagram of the inner side structure of the base plate of the automatic control device for the diaphragm pump room provided by the present invention;
fig. 5 is a schematic structural view of a collecting mechanism of the automatic control device of the diaphragm pump room provided by the present invention.
In the figure: 1. a control box; 2. a fixing frame; 3. a vent hole; 4. a limiting block; 5. tightly abutting against the bolt; 6. a heat exhaust fan; 7. a housing; 8. a cleaning mechanism; 801. a slide rail; 802. a slider; 803. a substrate; 804. an electric push rod; 805. a brush holder; 806. a brush; 807. adjusting the screw rod; 9. a collection mechanism; 901. a collection box; 902. a movable plate; 903. a rack; 904. a gear; 905. a servo motor; 10. and (5) filtering by using a filter screen.
Detailed Description
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
Reference will now be made in detail to embodiments of the present patent, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present patent and are not to be construed as limiting the present patent.
In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.
In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by one of ordinary skill in the art as appropriate.
Example 1
Referring to fig. 1-5, an automatic control device for a diaphragm pump house, including control box 1, the inside of control box 1 is matched with and is provided with inside hollow fixed frame 2, it has seted up air vent 3 to be the matrix on the inner wall of fixed frame 2, the fixed stopper 4 that is the T shape that is provided with in middle part on fixed frame 2 top, stopper 4 cooperatees and sets up the spacing inslot of seting up on control box 1, and the top of control box 1 is provided with supports tight bolt 5 to the position of stopper 4, the both sides of control box 1 all are provided with heat extraction fan 6, the air intake of heat extraction fan 6 passes control box 1 and is linked together with the inside of fixed frame 2, and the outside of heat extraction fan 6 is provided with casing 7, the front of casing 7 is provided with filter screen 10, the outside that lies in filter screen 10 on control box 1 is provided with clearance mechanism 8, the bottom of control box 1 is provided with collection mechanism 9.
Example 2
Referring to fig. 3 and 4, the cleaning mechanism 8 includes two sliding rails 801, the two sliding rails 801 are respectively located at two sides of the housing 7, and the outer portions of the two sliding rails 801 are respectively provided with sliding blocks 802 in a sliding manner, the front surfaces of the two sliding blocks 802 are fixedly provided with the same substrate 803, and the substrate 803 can be driven to move up and down along the sliding rails 801 by the up-and-down movement of the sliding blocks 802 on the sliding rails 801; an electric push rod 804 is arranged between the two sliding rails 801 on the control box 1, the electric push rod 804 is fixedly connected with the control box 1 through a connecting block arranged outside, the output end of the electric push rod 804 is fixedly connected with the base plate 803, and the electric push rod 804 can push the base plate 803 to move along the sliding rails 801 when working; the inner side of the base plate 803 is provided with a sliding groove, a brush seat 805 is arranged in the sliding groove in a matched sliding manner, the front side of the brush seat 805 is provided with a brush 806, the back side of the brush seat 805 is rotatably provided with an adjusting screw 807, one end thread of the adjusting screw 807 penetrates through the base plate 803 to be arranged on the outer side of the base plate 803, the base plate 803 can move up and down to drive the brush 806 to move up and down, dust accumulated on the surface of the filter screen 10 can be cleaned through the brush 806, the adjusting screw 807 is screwed to drive the brush seat 805 to move, the brush seat 805 moves to drive the brush 806 to move, and the brush 806 is adjusted to be in contact with the filter screen 10.
Example 3
Referring to fig. 5, the collecting mechanism 9 includes two collecting boxes 901, the two collecting boxes 901 are both slidably disposed in the control box 1 in a matching manner, and the opposite end surfaces of the two collecting boxes 901 are both fixedly provided with a movable plate 902, and through the two collecting boxes 901, when cleaning dust on the surface of the filter screen 10, the two collecting boxes 901 are moved to the outside of the control box 1, so as to perform centralized collection on the cleaned dust; one end of each of the two movable plates 902 is respectively matched and slidably arranged in a sliding groove formed in each of the two collection boxes 901, and the opposite end surfaces of each of the two movable plates 902 are provided with racks 903, the two racks 903 can drive the two movable plates 902 to move when moving oppositely or oppositely, the movable plates 902 move to drive the collection boxes 901 to move, and the two collection boxes 901 are moved out of or into the control box 1; the meshing mutually between two racks 903 is provided with same gear 904, one side of gear 904 is provided with the servo motor 905 that carries out the drive to gear 904, servo motor 905 is fixed to be set up in control box 1, servo motor 905 work drives gear 904 and rotates, gear 904 rotates and can realize driving two racks 903 and take place the motion, through servo motor 905 corotation or reversal, can realize driving two racks 903 and take place relative or motion in opposite directions.
The working principle is as follows: through the setting of fixed frame 2, 6 during operations of heat extraction fan can make the inside production negative pressure of fixed frame 2, at this moment can be with the omnidirectional of steam in the control box 1 in inhaling fixed frame 2 through air vent 3, then 6 discharges of rethread heat extraction fan, can improve the even effect to the inside heat dissipation of control box 1, make a round trip to drive brush 806 up-and-down motion through electric putter 804 work, can realize clearing up the dust on filter screen 10 surface, and can concentrate the collection through the collection box 901 that is equipped with to the dust after the clearance and handle.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (7)
1. The utility model provides a diaphragm pump room automatic control device, includes control box (1), its characterized in that, the inside of control box (1) cooperatees and is provided with inside for hollow fixed frame (2), it has seted up air vent (3) to be the matrix on the inner wall of fixed frame (2), the fixed stopper (4) that are T shape that are provided with in middle part on fixed frame (2) top, stopper (4) cooperate and set up the spacing inslot of seting up on control box (1), just the top of control box (1) is provided with supports tight bolt (5) to the position of stopper (4), the both sides of control box (1) all are provided with heat extraction fan (6), the air intake of heat extraction fan (6) passes the inside of control box (1) and fixed frame (2) and is linked together, just the outside of heat extraction fan (6) is provided with casing (7), the front of casing (7) is provided with filter screen (10), the outside that lies in filter screen (10) on control box (1) is provided with clearance mechanism (8), the bottom of control box (1) is provided with collection mechanism (9).
2. The automatic control device for the diaphragm pump house according to claim 1, characterized in that the cleaning mechanism (8) comprises two slide rails (801), the two slide rails (801) are respectively located at two sides of the housing (7), the outer portions of the two slide rails (801) are respectively provided with a sliding block (802) in a matching and sliding manner, and the front surfaces of the two sliding blocks (802) are fixedly provided with the same base plate (803).
3. The automatic control device of a diaphragm pump house according to claim 2, characterized in that an electric push rod (804) is arranged on the control box (1) between the two slide rails (801), the electric push rod (804) is fixedly connected with the control box (1) through a connecting block arranged outside, and the output end of the electric push rod (804) is fixedly connected with the base plate (803).
4. The automatic control device for the diaphragm pump house according to claim 3, wherein a sliding groove is formed on the inner side of the base plate (803), a brush seat (805) is slidably arranged in the sliding groove in a matching manner, a brush (806) is arranged on the front surface of the brush seat (805), an adjusting screw (807) is rotatably arranged on the back side of the brush seat (805), and one end of the adjusting screw (807) penetrates through the base plate (803) and is arranged on the outer side of the base plate (803).
5. The automatic control device for the diaphragm pump house according to claim 1, characterized in that the collecting mechanism (9) comprises two collecting boxes (901), the two collecting boxes (901) are both slidably disposed in the control box (1) in a matching manner, and the opposite end surfaces of the two collecting boxes (901) are both fixedly disposed with movable plates (902).
6. The automatic control device for the diaphragm pump house according to claim 5, characterized in that one end of each of the two movable plates (902) is slidably disposed in a sliding groove formed in each of the two collecting boxes (901), and a rack (903) is disposed on an opposite end surface of each of the two movable plates (902).
7. An automatic control device for a diaphragm pump house according to claim 6, characterized in that the same gear (904) is engaged between the two racks (903), a servo motor (905) for driving the gear (904) is arranged on one side of the gear (904), and the servo motor (905) is fixedly arranged in the control box (1).
