CN217662629U

CN217662629U - A high-efficient mixing of fodder forage grass prepares device for livestock-raising

Info

Publication number: CN217662629U
Application number: CN202221248834.0U
Authority: CN
Inventors: 朱希杰
Original assignee: Individual
Current assignee: Individual
Priority date: 2022-05-24
Filing date: 2022-05-24
Publication date: 2022-10-28
Anticipated expiration: 2032-05-24

Abstract

The utility model discloses a high-efficiency mixing and preparing device for feed and forage for animal husbandry, comprising a mixing box for animal husbandry, and the side walls on both sides of the mixing box for animal husbandry are rotatably connected by sealed bearings There is a horizontal stirring shaft. The outer ring of the stirring shaft located inside the mixing box for animal husbandry is fixed with a plurality of evenly distributed stirring blades. The lower rotating motor, the side end of the stirring shaft is fixed on the output end of the lower rotating motor, the middle section of the bottom wall of the mixing box used for animal husbandry is provided with a lower discharge hole, and the outer part of the mixing box used for animal husbandry is opened. A lower electric valve is installed in the middle section of the bottom wall, and a vertical bottom pipe is connected to the discharge end of the lower electric valve. The utility model has a reasonable design, can fully crush the forage, and can fully mix the forage with the forage, and the work quality is high, the discharge efficiency is high, and the work efficiency is high.

Description

A high-efficient mixing of fodder forage grass prepares device for livestock-raising

Technical Field

The utility model relates to a fodder and forage grass mixing facilities technical field especially relates to a high-efficient mixing of fodder and forage grass prepares device for livestock-raising.

Background

Animal husbandry refers to the production process of animal products such as meat, eggs, milk, wool, cashmere, leather, silk and medicinal materials by adopting the physiological functions of animals such as livestock and poultry which are artificially fed and domesticated by human beings or wild animals such as deer, musk, fox, mink, otter, quail and the like, and converting pasture, feed and other plant energy into animal energy through artificial feeding and breeding. Is a very important link for exchanging substances between human beings and the nature. Animal husbandry is an important part of agriculture and is a big pillar for agricultural production in parallel with the planting industry. Feed primarily refers to food for animals raised in agriculture or animal husbandry. Forage grass refers to herbaceous plants whose stems and leaves can be used as forage for herbivores.

In the process of livestock breeding, in order to ensure the nutrition balance of the food of the raised animals, the mixture of the feed and the forage grass is generally used as the food of the raised animals, and the feed and the forage grass are generally mixed by a feed and forage grass mixing and preparing device. The conventional feed and forage grass mixing and preparing device is difficult to fully crush forage grass, so that the feed and the forage grass are difficult to fully mix, and the working quality is poor; and the discharge efficiency of the existing feed and forage grass mixing and preparing device is low, so that the working efficiency of the feed and forage grass mixing and preparing device is low, and therefore the feed and forage grass high-efficiency mixing and preparing device for livestock breeding is provided.

SUMMERY OF THE UTILITY MODEL

In order to improve the problems that the conventional feed and forage grass mixing and preparing device is difficult to fully crush forage grass, so that the feed and the forage grass are difficult to fully mix, and the working quality is poor; and the row's of current fodder forage grass mixture preparation device expects efficiency lower, causes the lower problem of work efficiency of fodder forage grass mixture preparation device, the utility model provides a high-efficient mixture preparation device of fodder forage grass for livestock-raising.

In order to achieve the above object, the utility model provides a following technical scheme: a feed and forage grass efficient mixing and preparing device for livestock-raising comprises a mixing box for livestock-raising, wherein horizontal stirring shafts are rotatably connected to the side walls of two sides of the mixing box for livestock-raising through sealing bearings, a plurality of stirring blades which are uniformly distributed are fixed to the outer ring of the stirring shaft positioned inside the mixing box for livestock-raising, a horizontal lower motor is installed on the outer side wall of the mixing box for livestock-raising through a motor frame, the side end of the stirring shaft is fixed to the output end of the lower motor, a lower discharge hole is formed in the middle section of the bottom wall of the mixing box for livestock-raising, a lower electric valve is installed in the middle section of the outer bottom wall of the mixing box for livestock-raising, the discharge end of the lower electric valve is connected with a vertical bottom pipe, vertical support pipes are fixed to two sides of the outer top wall of the mixing box for livestock-raising, the inner ring at the top of the supporting tube is movably provided with a vertical column, the top end of the vertical column extends to the upper side of the supporting tube and is fixed with a fixed block, the bottom end of the fixed block and the top end of the supporting tube are connected with a vertical spring, the top ends of the two fixed blocks are fixed with a top box, the outer side walls of the two sides of the top box are both provided with a vibrating motor, the middle section of the bottom wall of the top box is provided with an upper discharge hole, the middle section of the outer bottom wall of the top box is provided with an upper electric valve, the discharge end of the upper electric valve is connected with a conduit, the middle section of the top wall of the mixing box for livestock-raising is connected with a vertical through pipe, the bottom end of the conduit is connected with the bottom end of the through pipe, the two sides of the front end side wall of the top box are both rotatably connected with a horizontal crushing shaft through a sealed bearing, the outer ring of the crushing shaft is fixedly sleeved with a horizontal round crushing roller inside the top box, a horizontal flat plate is fixed on the outer side wall of the front end of the top box, rotating motors are installed on two sides of the top wall of the flat plate, and the front side ends of the crushing shafts are fixed at the output ends of the rotating motors respectively.

As an optimized technical scheme of the utility model, the interlude of the roof of overhead tank is connected with the loading hopper.

As a preferred technical scheme of the utility model, be connected with the side pipe that is the slope setting on the lateral wall at the top of the compounding case for livestock-raising.

As a preferred technical scheme of the utility model, the four corners of an outer diapire for livestock-raising's compounding case all is fixed with the support frame, the bottom of bottom tube is higher than the bottom of support frame, the bottom mounting of support frame has the horizontally backup pad, the fixed orifices has been seted up to one side of backup pad, the inside activity of fixed orifices is equipped with rag bolt.

As a preferred technical scheme of the utility model, two broken axle is the symmetry and sets up, two the crushing roller is the symmetry and sets up, the outer lane of crushing roller is fixed with a plurality of evenly distributed's broken tooth.

As an optimized technical proposal of the utility model, the conduit is made of rubber telescopic tubes.

As an optimal technical scheme of the utility model, the size of the inner circle of stay tube with the size looks adaptation of the outer lane of upstand, the spring movable sleeve is located the outer lane of upstand.

Compared with the prior art, the beneficial effects of the utility model are that:

(1) When needs mix fodder and forage grass, at first add the inside that is used for livestock-raising's mixing box with the fodder through the side tube, then through the work of rotating the motor on two, can make two crushing rollers rotate towards the direction that is close to each other, after that, add the inside of topbox with the forage grass through the loading hopper, can make forage grass and broken tooth fully contact, can carry out abundant breakage through crushing roller and broken tooth to the forage grass, make fodder forage grass mix and prepare the device and can carry out abundant breakage to the forage grass, make fodder and forage grass can the intensive mixing, the operating mass is higher.

(2) The fodder grass after the breakage is located the inside of the bottom of top case, electric valve on opening, the work through two vibrating motor simultaneously, the spring action through the spring, can be so that the fodder grass vibration after the inside breakage of top case, can make the fodder grass after the inside breakage of top case fall supreme electric valve fast, can make the inside of fodder grass after the breakage fall to the compounding case that is used for poultry to breed fast, then through the work of rotating the motor down, can stir the mixture through stirring leaf to fodder and the fodder grass after the breakage, can make fodder and fodder grass intensive mixing, electric valve under reopening, can discharge the mixture of fodder and fodder grass through electric valve and bottom tube down, make fodder grass mixture preparation device's row material efficiency higher, make fodder grass mixture preparation device's work efficiency higher.

Drawings

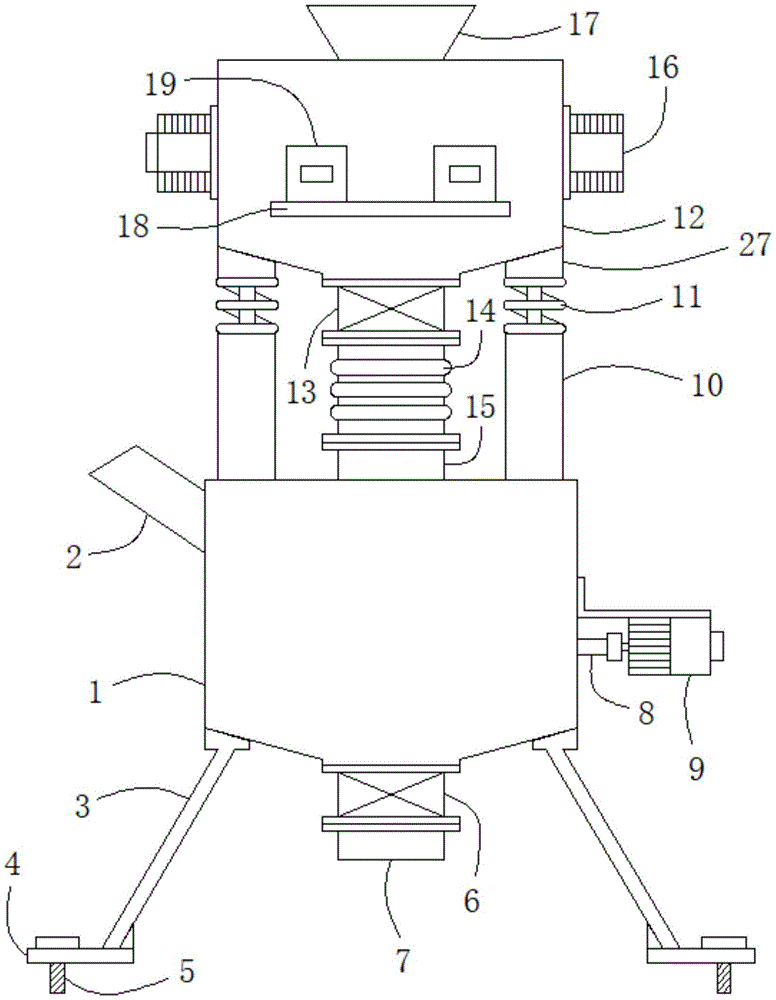

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic sectional view of the present invention;

FIG. 3 is a top plan view of the top box of the present invention;

fig. 4 is an enlarged schematic view of a portion a in fig. 2 according to the present invention.

Description of reference numerals:

1. a mixing box for livestock breeding; 2. a side tube; 3. a support frame; 4. a support plate; 5. anchor bolts; 6. a lower electrically operated valve; 7. a bottom tube; 8. a stirring shaft; 9. a lower rotating motor; 10. supporting a pipe; 11. a spring; 12. a top box; 13. an electric valve is arranged; 14. a conduit; 15. pipe passing; 16. a vibration motor; 17. a hopper; 18. a flat plate; 19. an upper rotating motor; 20. a lower discharge hole; 21. stirring blades; 22. a vertical post; 23. an upper discharge hole; 24. a crushing shaft; 25. a crushing roller; 26. crushing teeth; 27. a fixed block; 28. and (7) fixing holes.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, a feed and forage grass efficient mixing and preparing device for livestock-raising comprises a mixing box 1 for livestock-raising, wherein the side walls of the two sides of the mixing box 1 for livestock-raising are rotatably connected with a horizontal stirring shaft 8 through a sealed bearing, the outer ring of the stirring shaft 8 positioned inside the mixing box 1 for livestock-raising is fixed with a plurality of uniformly distributed stirring blades 21, the outer side wall of the mixing box 1 for livestock-raising is provided with a horizontal lower rotating motor 9 through a motor frame, the side end of the stirring shaft 8 is fixed at the output end of the lower rotating motor 9, the middle section of the bottom wall of the mixing box 1 for livestock-raising is provided with a lower discharge hole 20, the middle section of the outer bottom wall of the mixing box 1 for livestock-raising is provided with a lower electric valve 6 through a flange, the feed end of the lower electric valve 6 is communicated with the lower discharge hole 20, the discharge end of the lower electric valve 6 is connected with a vertical bottom pipe 7 through a flange, both sides of the outer top wall of the mixing box 1 for livestock breeding are fixed with vertical supporting tubes 10, the inner ring at the top of the supporting tubes 10 is movably provided with vertical columns 22, the top ends of the vertical columns 22 extend to the upper side of the supporting tubes 10 and are fixed with fixed blocks 27, the bottom ends of the fixed blocks 27 and the top ends of the supporting tubes 10 are connected with vertical springs 11, top ends of the two fixed blocks 27 are fixed with top boxes 12, the outer side walls of both sides of the top boxes 12 are respectively provided with a vibration motor 16, the middle section of the bottom wall of the top box 12 is provided with an upper discharge hole 23, the middle section of the outer bottom wall of the top box 12 is provided with an upper electric valve 13 through a flange, the feeding end of the upper electric valve 13 is communicated with the upper discharge hole 23, the discharge end of the upper electric valve 13 is connected with a guide pipe 14 through a flange, the middle section of the top wall of the mixing box 1 for livestock breeding is connected with a vertical through pipe 15, the bottom of pipe 14 is connected in the bottom of siphunculus 15, and the both sides of the front end lateral wall of top case 12 all rotate through sealed bearing and are connected with horizontally broken axle 24, and the outer lane fixed cover that is located the inside broken axle 24 of top case 12 is equipped with the circular shape crushing roller 25 of horizontally, is fixed with the dull and stereotyped 18 of horizontally on the front end lateral wall of top case 12, and rotation motor 19 is all installed to the both sides of the roof of dull and stereotyped 18, and the front side end of two broken axles 24 is fixed in the output that rotates motor 19 on two respectively.

The middle section of the top wall of the top box 12 is connected with a feeding hopper 17, the feeding hopper 17 is communicated with the top box 12, and forage grass can be added into the top box 12 through the feeding hopper 17.

Be connected with the side pipe 2 that is the slope and sets up on the lateral wall at the top of mixing box 1 for livestock-raising, side pipe 2 and the 1 intercommunication of mixing box for livestock-raising can add the inside that is used for livestock-raising's mixing box 1 with the fodder through side pipe 2.

A four corners of the outer diapire of mixing box 1 for livestock-raising all is fixed with support frame 3, the bottom of bottom tube 7 is higher than the bottom of support frame 3, the bottom mounting of support frame 3 has horizontally backup pad 4, fixed orifices 28 has been seted up to one side of backup pad 4, the inside activity of fixed orifices 28 is equipped with rag bolt 5, support in subaerial through four backup pad 4, through rag bolt 5 with backup pad 4 firm being fixed in subaerial, can realize firm fixed to support frame 3 and mixing box 1 that is used for livestock-raising.

Two broken axles 24 are the symmetry and set up, and two crushing rollers 25 are the symmetry and set up, and the outer lane of crushing roller 25 is fixed with a plurality of evenly distributed's broken tooth 26 for forage grass can fully contact with broken tooth 26, makes crushing roller 25 and broken tooth 26 can carry out abundant breakage to forage grass.

The guide tube 14 is made of a rubber telescopic tube, so that the top end of the guide tube 14 can vibrate along the vertical direction along with the upper electric valve 13.

The size of the inner ring of the support tube 10 is matched with the size of the outer ring of the vertical column 22, and the spring 11 is movably sleeved on the outer ring of the vertical column 22, so that the top box 12, the fixing block 27 and the vertical column 22 can stably vibrate in the vertical direction.

The working principle is as follows: when the feed and the forage grass are required to be mixed, the feed is firstly added into the mixing box 1 for livestock breeding through the side pipe 2, then the two upper rotating motors 19 work to drive the two crushing shafts 24 to rotate towards the mutually approaching directions, so that the two crushing rollers 25 can rotate towards the mutually approaching directions, the forage grass is added into the top box 12 through the feeding hopper 17, so that the forage grass can be fully contacted with the crushing teeth 26, the forage grass can be fully crushed through the crushing rollers 25 and the crushing teeth 26, the feed and forage grass mixing and preparing device can fully crush the forage grass, the feed and the forage grass can be fully mixed, and the working quality is high; the fodder grass after the breakage is located the inside of the bottom of top case 12, open last electric valve 13, can make the fodder grass after the breakage pass through last electric valve 13, pipe 14 and siphunculus 15 fall to the inside of the mixing box 1 that is used for livestock-raising, simultaneously through the work of two vibrating motor 16, through the spring action of spring 11, can make vibrating motor 16 drive top case 12 and last electric valve 13 vibrate along vertical direction, can make the fodder grass after the inside breakage of top case 12 vibrate, can make the fodder grass after the inside breakage of top case 12 fall to supreme electric valve 13 fast, can make the fodder grass after the breakage fall to the inside of the mixing box 1 that is used for livestock-raising fast, then through the work of lower rotation motor 9, can drive (mixing) shaft 8 and stirring leaf 21 and rotate, can stir the mixture to fodder and the fodder grass after the breakage through stirring leaf 21, can make fodder and fodder grass intensive mixing, open lower electric valve 6 again, can discharge the mixture of fodder and fodder grass through lower electric valve 6 and bottom tube 7, make the fodder grass mixing efficiency of preparing device higher the fodder mixing efficiency of fodder grass, make the fodder grass prepare the fodder grass higher mixing efficiency.

Finally, it should be noted that: in the description of the present invention, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention.

In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.

Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. A high-efficiency mixing preparation device for feed forage grass for animal husbandry, comprising a mixing box (1) for animal husbandry, characterized in that: both sides of the mixing box (1) for animal husbandry A horizontal stirring shaft (8) is rotatably connected to the side wall of the shaft through a sealed bearing, and the outer ring of the stirring shaft (8) inside the mixing box (1) for animal husbandry is fixed with a plurality of evenly distributed stirring shafts. Leaves (21), the outer wall of the mixing box (1) for animal husbandry is equipped with a horizontal lower rotating motor (9) through a motor frame, and the side end of the stirring shaft (8) is fixed on the The output end of the lower rotating motor (9), the middle section of the bottom wall of the mixing box (1) for animal husbandry is provided with a lower discharge hole (20), and the mixing box for animal husbandry ( 1) The middle section of the outer bottom wall is equipped with a lower electric valve (6), the discharge end of the lower electric valve (6) is connected with a vertical bottom pipe (7), and the mixing material for animal husbandry Both sides of the outer top wall of the box (1) are fixed with vertical support pipes (10), and the inner circle of the top of the support pipe (10) is movable to be provided with a vertical column (22). The top of the column (22) extends to the upper side of the support tube (10) and is fixed with a fixed block (27), and the bottom end of the fixed block (27) is connected with the top of the support tube (10) with a vertical Spring (11), top box (12) is fixed on the top of two described fixed blocks (27), and vibrating motor (16) is all installed on the outside wall of the both sides of described top box (12), and described top box The middle section of the bottom wall of the box (12) is provided with an upper discharge hole (23), and the middle section of the outer bottom wall of the top box (12) is equipped with an upper electric valve (13). ) is connected with a conduit (14), the middle section of the top wall of the mixing box (1) used for animal husbandry is connected with a vertical through pipe (15), and the bottom of the conduit (14) The end is connected to the bottom end of the through pipe (15), and both sides of the front side wall of the top box (12) are rotatably connected with a horizontal crushing shaft (24) through sealed bearings, located inside the top box (12). The outer ring fixing sleeve of the crushing shaft (24) is provided with a horizontal circular crushing roller (25), and a horizontal flat plate (18) is fixed on the front end outer wall of the top box (12), and the flat plate Both sides of the top wall of (18) are equipped with upper rotating motor (19), and the front side ends of two described crushing shafts (24) are respectively fixed on the output ends of two described upper rotating motors (19).

2. A high-efficiency mixing and preparing device for feed, forage and grass for animal husbandry according to claim 1, characterized in that: a middle section of the top wall of the top box (12) is connected with a hopper (17).

3. A kind of feed forage grass efficient mixing and preparation device for animal husbandry according to claim 1, characterized in that: the side wall of the top of the mixing box (1) for animal husbandry is connected with a Side pipes (2) arranged obliquely.

4. A kind of high-efficiency mixing preparation device for feed forage grass for animal husbandry according to claim 1, characterized in that: the four corners of the outer bottom wall of the mixing box (1) for animal husbandry are fixed with The support frame (3), the bottom end of the bottom pipe (7) is higher than the bottom end of the support frame (3), and the bottom end of the support frame (3) is fixed with a horizontal support plate (4), so One side of the support plate (4) is provided with a fixing hole (28), and the inside of the fixing hole (28) is provided with anchor bolts (5).

5. A high-efficiency mixing and preparation device for forage and grass for animal husbandry according to claim 1, characterized in that: the two crushing shafts (24) are symmetrically arranged, and the two crushing rollers (25) It is arranged symmetrically, and the outer ring of the crushing roller (25) is fixed with a plurality of evenly distributed crushing teeth (26).

6. A high-efficiency mixing and preparation device for feed and grass for animal husbandry according to claim 1, characterized in that: the conduit (14) is made of rubber telescopic tube.

7. A high-efficiency mixing and preparation device for forage and grass for animal husbandry according to claim 1, characterized in that: the size of the inner ring of the support pipe (10) is the same as that of the vertical column (22 ), the size of the outer ring of the spring (11) is movably sleeved on the outer ring of the vertical post (22).
