CN217657263U - Planting groove with irrigation function - Google Patents

Planting groove with irrigation function Download PDF

Info

Publication number
CN217657263U
CN217657263U CN202221412486.6U CN202221412486U CN217657263U CN 217657263 U CN217657263 U CN 217657263U CN 202221412486 U CN202221412486 U CN 202221412486U CN 217657263 U CN217657263 U CN 217657263U
Authority
CN
China
Prior art keywords
planting
water
vegetables
irrigate
backup pad
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Active
Application number
CN202221412486.6U
Other languages
Chinese (zh)
Inventor
兰增明
兰先樟
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Jinqiufang Xiamen Furniture Co ltd
Original Assignee
Jinqiufang Xiamen Furniture Co ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Jinqiufang Xiamen Furniture Co ltd filed Critical Jinqiufang Xiamen Furniture Co ltd
Priority to CN202221412486.6U priority Critical patent/CN217657263U/en
Application granted granted Critical
Publication of CN217657263U publication Critical patent/CN217657263U/en
Active legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Images

Landscapes

  • Cultivation Receptacles Or Flower-Pots, Or Pots For Seedlings (AREA)

Abstract

The utility model belongs to the technical field of plant, especially, for a plant groove with irrigate function, comprising a base plate, the top of bottom plate is provided with the sleeve, telescopic inside sliding connection has rotor plate and slide bar respectively, one side of slide bar is provided with plants the case. This planting groove with irrigate function, surface through at first backup pad sets up the second water jet, can irrigate the leaf of vegetables, and the height of first backup pad can be adjusted, be convenient for irrigate not co-altitude vegetables, improve device's suitability, first water jet through planting incasement wall surface can irrigate the root of vegetables, two water jets irrigate the leaf and the root of vegetables respectively, improve the survival rate of irrigation efficiency and vegetables, increase income, the LED lamp that utilizes the second water jet can carry out photosynthesis to vegetables, make vegetables thrive, the problem that the planting groove in the past was difficult to realize the irrigation function has been solved, use manpower sparingly.

Description

Planting groove with irrigation function
Technical Field
The utility model belongs to the technical field of plant, concretely relates to plant groove with irrigate function.
Background
Planting, namely plant cultivation, comprises cultivation of various crops, woods, fruit trees, flowers and plants, medicinal and ornamental plants and the like, and comprises grain crops, economic crops, vegetable crops, green manure crops, feed crops, pastures and the like, the purpose of ecological vegetable planting is to utilize resources to the maximum extent, reduce waste and reduce cost, and utilize pollution-free land, water areas and natural environment or apply ecological technical measures to improve planting water quality and ecological environment, planting is carried out according to a specific planting mode of Yiyi planting, chemical fertilizers, pesticides, other harmful substances and the like are not used, and the aims of producing pollution-free green food and organic food and realizing that components for ecological planting comprise probiotic stock solution and the like are achieved.
Vegetables need plant the cultivation, need place it before some vegetable planting and cultivate then transplant in planting the groove, are difficult to realize the irrigation to vegetables when present most planting groove planting vegetables, all through artifical irrigation usually.
SUMMERY OF THE UTILITY MODEL
To solve the problems raised in the background art described above. The utility model provides a plant groove with irrigate function has solved and has mostly been planted the irrigation that is difficult to realize vegetables when groove planting vegetables now, all is the problem through artifical irrigation usually.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a plant groove with irrigate function, includes the bottom plate, the top of bottom plate is provided with the sleeve, telescopic inside sliding connection has rotor plate and slide bar respectively, one side of slide bar is provided with plants the case, plant the bottom fixedly connected with water tank of case, one side of planting the case is provided with the second backup pad, the first backup pad of second backup pad fixedly connected with is passed to the one end of slide bar, the surface of first backup pad evenly is provided with the second water jet, one side of second water jet is provided with evenly is provided with the LED light, the surface winding of slide bar has the spring, the inside of planting the case evenly is provided with plants the groove, the surface of planting incasement wall evenly is provided with first water jet.
Preferably, one end of the spring is fixedly connected with the second supporting plate, and the other end of the spring is fixedly connected with the first supporting plate.
Preferably, the one end of rotor plate is connected with the rotation post, the fixed surface who rotates the post installs the worm wheel, one side of worm wheel is provided with the worm, the one end of worm is provided with the motor.
Preferably, the number of the planting grooves is three, water leakage holes are formed in the bottoms of the planting grooves, and conical water outlets are formed below the planting grooves.
Preferably, a filter screen is arranged in the water tank, a water pump is arranged below the filter screen, and one end of the water pump is connected with the first water spray nozzle and the second water spray nozzle through water pipes respectively.
Preferably, the number of the rotating plates is two, and two ends of the rotating column penetrate through the circle center of the worm wheel to be connected with the rotating plates.
Compared with the prior art, the beneficial effects of the utility model are that:
this plant groove with irrigate function, set up the second water jet through the surface at first backup pad, can irrigate the leaf of vegetables, and the height of first backup pad can be adjusted, be convenient for irrigate not co-altitude vegetables, improve the suitability of device, first water jet through planting incasement wall surface can irrigate the root of vegetables, two water jets irrigate the leaf and the root of vegetables respectively, improve the survival rate of irrigation efficiency and vegetables, increase income, the LED lamp that utilizes the second water jet can carry out photosynthesis to vegetables, make vegetables grow vigorously, the problem that the groove is difficult to realize the irrigation function of planting in the past has been solved, use manpower sparingly.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

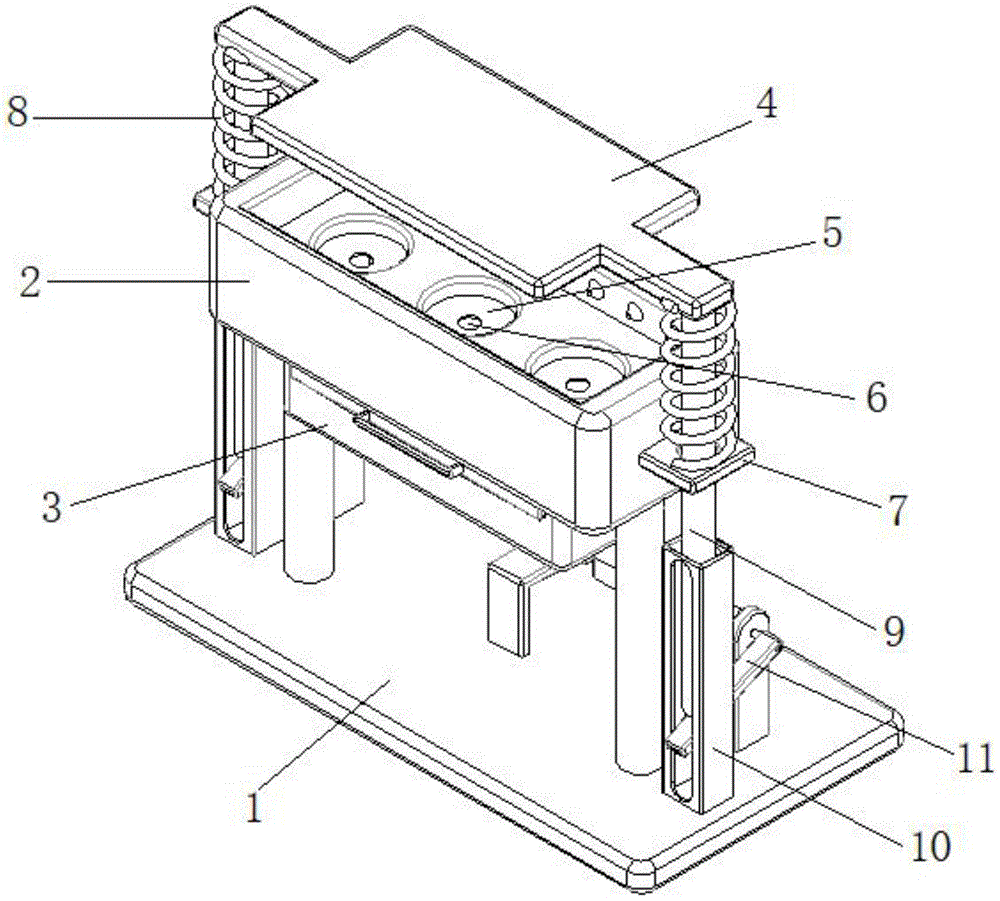

FIG. 1 is a perspective view of the present invention;
fig. 2 is a side view of the present invention;
fig. 3 is a front sectional view of the present invention;
fig. 4 is a cross-sectional view of the water tank of the present invention.
In the figure: 1. a base plate; 2. planting boxes; 3. a water tank; 4. a first support plate; 5. planting grooves; 6. a water leakage hole; 7. a second support plate; 8. a spring; 9. a slide bar; 10. a sleeve; 11. a rotating plate; 12. a worm; 13. a motor; 14. a worm gear; 15. rotating the column; 16. a conical water outlet; 17. a first water jet; 18. a second water jet; 19. an LED lighting lamp; 20. a filter screen; 21. and (4) a water pump.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides the following technical solutions: the utility model provides a plant groove with irrigate function, comprising a base plate 1, the top of bottom plate 1 is provided with sleeve 10, there are rotor plate 11 and slide bar 9 in the inside of sleeve 10 sliding connection respectively, one side of slide bar 9 is provided with plants case 2, the bottom fixedly connected with water tank 3 of planting case 2, one side of planting case 2 is provided with second backup pad 7, the first backup pad 4 of 7 fixedly connected with of second backup pad is passed to the one end of slide bar 9, the surface of first backup pad 4 evenly is provided with second water jet 18, one side of second water jet 18 is provided with evenly is provided with LED light 19, the surface winding of slide bar 9 has spring 8, the inside of planting case 2 evenly is provided with plants groove 5, the surface of planting case 2 inner wall evenly is provided with first water jet 17.
Firstly, the device is placed at a proper position, then vegetables are planted in the planting groove 5, then a proper amount of clear water is injected into the water tank 3, then clear water is sprayed to the root of the vegetables through the first water jet 17 for irrigation, then the worm 12 is driven to rotate through the motor 13, the worm 12 is meshed with the worm wheel 14, the worm wheel 14 rotates to drive the rotating plate 11 at one end of the rotating column 15 to slide in the sleeve 10, the sliding rod 9 can be pushed to ascend, the first supporting plate 4 can be driven to ascend to a proper height when the sliding rod ascends, the spring 8 can play a role in the ascending process of the first supporting plate 4 in buffering, then water is supplied to the second water jet 18 through the water pump 21 for irrigating the leaves of the vegetables, photosynthesis is carried out on the vegetables through the LED illuminating lamp 19, redundant water in the planting groove 5 can enter the water tank 3 through the conical water outlet 16 and is filtered through the filter screen 20 and then used again, and the filter screen 20 can be pulled out for cleaning.
In an aspect of this embodiment, through set up second water jet 18 on the surface of first backup pad 4, can irrigate the leaf of vegetables, and first backup pad 4's height can be adjusted, is convenient for irrigate the not vegetables of co-altitude, improves the suitability of device.
In an aspect of this embodiment, can irrigate the root of vegetables through planting 2 inner wall surfaces of case 17 first water jet, and two water jets irrigate the leaf and the root of vegetables respectively, improve the survival rate of irrigating efficiency and vegetables, increase income.
In one aspect of the present embodiment, the LED lamp 19 of the second water jet 18 can be used to photosynthesize and thrive vegetables, thereby solving the problem that the conventional planting tank is difficult to implement an irrigation function and saving manpower.
In one aspect of this embodiment, the spring 8 can not only support the first support plate 4 during its ascending process, but also buffer the first support plate 4, thereby improving the stability of the first support plate 4.
In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described above, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims (6)

1. The utility model provides a plant groove with irrigate function, includes bottom plate (1), its characterized in that: the top of bottom plate (1) is provided with sleeve (10), the inside difference sliding connection of sleeve (10) has rotor plate (11) and slide bar (9), one side of slide bar (9) is provided with plants case (2), the bottom fixedly connected with water tank (3) of planting case (2), one side of planting case (2) is provided with second backup pad (7), the first backup pad (4) of second backup pad (7) fixedly connected with is passed to the one end of slide bar (9), the surface of first backup pad (4) evenly is provided with second water jet (18), one side of second water jet (18) is provided with evenly and is provided with LED light (19), the surface winding of slide bar (9) has spring (8), the inside of planting case (2) evenly is provided with plants groove (5), the surface of planting case (2) inner wall evenly is provided with first water jet (17).
2. The planting trough with the irrigation function as claimed in claim 1, wherein: one end of the spring (8) is fixedly connected with the second supporting plate (7), and the other end of the spring (8) is fixedly connected with the first supporting plate (4).
3. The planting trough with the irrigation function as claimed in claim 1, wherein: the one end of rotor plate (11) is connected with rotates post (15), the fixed surface of rotating post (15) installs worm wheel (14), one side of worm wheel (14) is provided with worm (12), the one end of worm (12) is provided with motor (13).
4. The planting pot with irrigation function as claimed in claim 1, wherein: the planting device is characterized in that the number of the planting grooves (5) is three, water leakage holes (6) are formed in the bottom of the planting grooves (5), and conical water outlets (16) are formed in the lower portions of the planting grooves (5).
5. The planting trough with the irrigation function as claimed in claim 1, wherein: the water tank is characterized in that a filter screen (20) is arranged inside the water tank (3), a water pump (21) is arranged below the filter screen (20), and one end of the water pump (21) is connected with the first water spray opening (17) and the second water spray opening (18) through water pipes respectively.
6. The planting trough with the irrigation function as claimed in claim 3, wherein: the number of the rotating plates (11) is two, and two ends of the rotating column (15) penetrate through the circle center of the worm wheel (14) and are connected with the rotating plates (11).
