Abstract
The utility model relates to a heat preservation cabinet technical field just discloses a damper of heat preservation cabinet convenient to get material, including device body, fixed establishment, protection machanism and shockproof mechanism, fixed establishment is located the below of device body, protection machanism is located the left and right sides of fixed establishment below, shockproof mechanism is located fixed establishment's upper end, protection machanism is including preventing kickplate, spring one, damping one and stopper. This damper of heat preservation cabinet convenient to get material prevents the kickboard through the setting, when promoting the device or standing when the device outer end, avoid the tiptoe to play the device, will prevent the kickboard simultaneously and set up to U type structure, then can the omnidirectional protect the lower extreme of device, make the device have more the protectiveness, the internally mounted spring one of kickboard is being prevented simultaneously, when preventing that the kickboard receives external force, be used for the buffering atress, and the internally mounted damping of spring one is one, then avoid the vibrations repeatedly after a spring atress, thereby increase the stationarity of preventing the kickboard use.
Description
Technical Field
The utility model relates to a heat preservation cabinet technical field specifically is a damper of heat preservation cabinet convenient to get material.
Background
The heat preservation cabinet divides into high temperature, low temperature and constant temperature, and mainly used places the article that has special requirement to the temperature, and the heat preservation cabinet commonly used is promoting or in the use, and the user makes the tiptoe mention the below of heat preservation cabinet easily, and this kind of touching can lead to the fact vibrations to the heat preservation cabinet to if frequent touching, still can lead to the fact the damage to the outer end of heat preservation cabinet.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
An object of the utility model is to provide a damper of heat preservation cabinet convenient to get material to propose the heat preservation cabinet commonly used in solving above-mentioned background art in promotion or use, the user makes the tiptoe mention the below of heat preservation cabinet easily, and this kind of touching can cause vibrations to the heat preservation cabinet, and if frequent touching, still can cause the problem of damage to the outer end of heat preservation cabinet.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a damper of heat preservation cabinet convenient to get material, includes device body, fixed establishment, protection machanism and shockproof mechanism, fixed establishment is located the below of device body, protection machanism is located the left and right sides of fixed establishment below, shockproof mechanism is located fixed establishment's upper end, protection machanism is including preventing kickboard, spring one, damping one and stopper, a spring fixed mounting is in the inner of preventing the kickboard, a damping fixed mounting is in the inside of spring one, the stopper is fixed to be set up at the avris of preventing the kickboard upper end.
Preferably, fixed establishment is including unable adjustment base, protection piece, movable groove, spout, assembly plate and pulley, the fixed left and right sides that sets up in unable adjustment base upper end of protection piece, the fixed middle part that sets up in protection piece inner in movable groove, the fixed inside that sets up at unable adjustment base lower extreme middle part avris of spout, the fixed middle part that sets up at the unable adjustment base lower extreme of assembly plate, pulley fixed mounting is at the lower extreme of assembly plate, through setting up the pulley, increases the convenience that the device removed.
Preferably, shockproof mechanism is including mounting panel, limiting plate, two springs, two damping and thermal cabinet body, the fixed both ends of controlling that set up at the mounting panel of limiting plate, two fixed mounting of spring are at the lower extreme of mounting panel, two fixed mounting of damping are in the inboard of two springs, thermal cabinet body fixed mounting is in the upper end of mounting panel, through setting up the limiting plate, can with the mounting panel card in the inside of activity groove, the limitation is in specific space when making the mounting panel activity, and the scope of fluctuation is great when avoiding the mounting panel activity, influences the stability of thermal cabinet body.
Preferably, prevent that the kickplate is U type structure, prevent that the kickplate is the left and right sides of symmetric distribution in unable adjustment base below, the spring is the equidistance and distributes in the inner of preventing the kickplate and with assembly plate fixed connection, the stopper is the avris of equidistance distribution in preventing the kickplate upper end, the stopper is T type structure, stopper and spout looks adaptation prevent the kickplate through setting up, when promoting the device or when founding in the device outer end, avoid the tiptoe to play the device, will prevent simultaneously that the kickplate sets up to U type structure, then the lower extreme that can omnidirectional protects the device makes the device have more the protectiveness.
Preferably, the outer end of protection piece is slope type structure, the protection piece is the left and right sides of symmetric distribution in unable adjustment base upper end, the spout is the inside of symmetric distribution in unable adjustment base lower extreme middle part avris, the pulley is the lower extreme of symmetric distribution in the assembly plate, sets up the outer end through with the protection piece to slope type structure, makes the device be difficult for adhering the dust in daily to increase the convenience that the device cleared up.
Preferably, mounting panel movable mounting is in unable adjustment base's upper end and is located the inboard of protective block, the limiting plate is symmetric distribution in both ends about the mounting panel, limiting plate and activity groove looks adaptation, spring two is array distribution in the lower extreme of mounting panel, through being array distribution in the lower extreme of mounting panel with spring two, when the device removes or receives gravity and pushes down, accessible spring two avoids the device directly to receive gravity and pushes down the damage.
Compared with the prior art, the beneficial effects of the utility model are that:
1. according to the damping mechanism of the heat preservation cabinet convenient for taking materials, through the arrangement of the kick-proof plate, when the device is pushed or stands at the outer end of the device, the kick-proof plate is prevented from being kicked by the toes, meanwhile, the kick-proof plate is set to be in a U-shaped structure, the lower end of the device can be protected in an all-around manner, the device is enabled to be more protective, meanwhile, the first spring is arranged inside the kick-proof plate and used for buffering stress when the kick-proof plate is subjected to external force, and the first damping arranged inside the first spring prevents the first spring from vibrating repeatedly after stress, so that the use stability of the kick-proof plate is improved;
2. according to the damping mechanism of the heat preservation cabinet convenient for taking materials, the outer end of the protection block is arranged to be of a slope structure, so that dust is not easy to adhere to the device in daily life, and therefore the convenience of cleaning the device is improved;
3. this damper of heat preservation cabinet convenient to get material through being array distribution in the lower extreme of mounting panel with spring two, when the device is removing or when receiving gravity and push down, accessible spring two avoids the device directly to receive gravity and pushes down the damage, and spring two still can be used to alleviate the vibrations power that the device received simultaneously to make the device have better cushioning effect.
Drawings

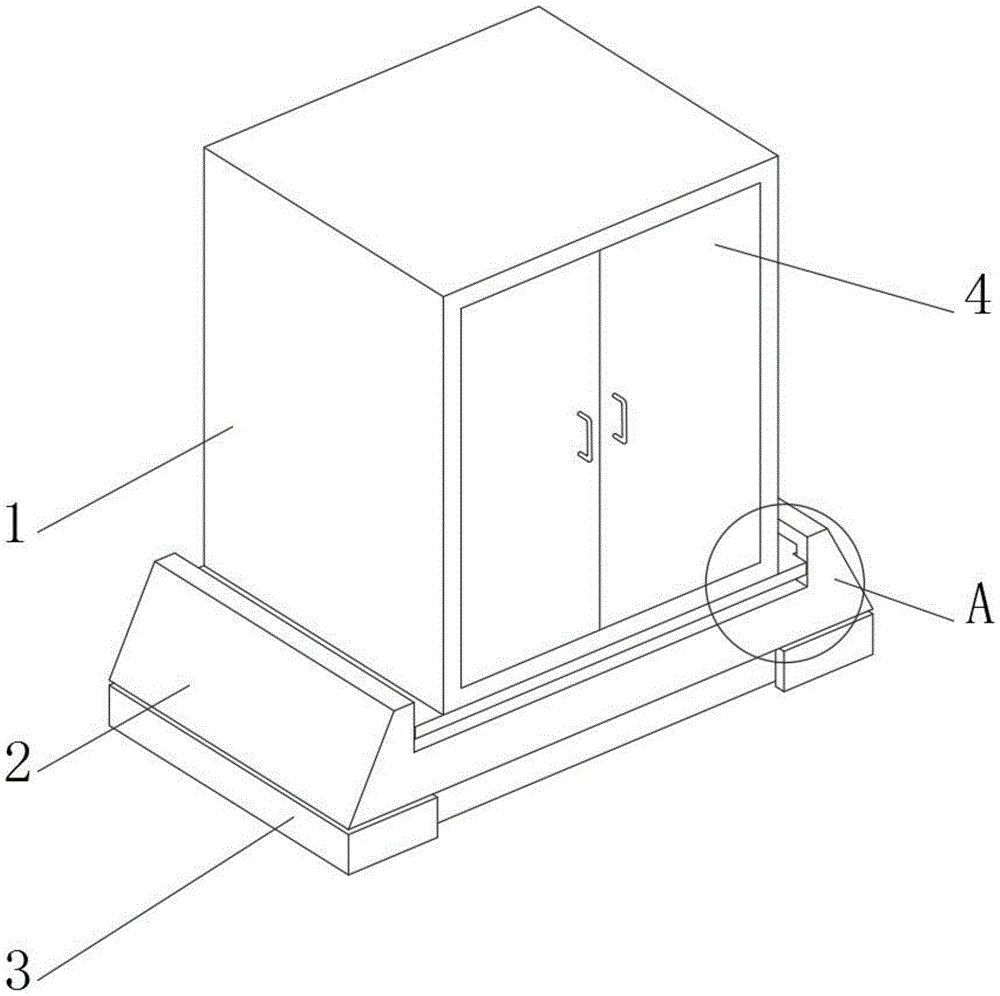

FIG. 1 is a schematic perspective view of the present invention;
FIG. 2 is a schematic view of the three-dimensional structure of the anti-vibration mechanism of the present invention;
FIG. 3 is a schematic bottom plan view of the fixing mechanism of the present invention;
FIG. 4 is a schematic view of the three-dimensional structure of the protection mechanism of the present invention;
fig. 5 is an enlarged structural schematic diagram of a in fig. 1 of the present invention.
In the figure: 1. a device body; 2. a fixing mechanism; 201. a fixed base; 202. a protection block; 203. a movable groove; 204. a chute; 205. assembling a plate; 206. a pulley; 3. a protection mechanism; 301. a kick-proof plate; 302. a first spring; 303. damping I; 304. a limiting block; 4. a shock-proof mechanism; 401. mounting a plate; 402. a limiting plate; 403. a second spring; 404. damping II; 405. a heat preservation cabinet body.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a damping mechanism of a heat preservation cabinet convenient for material taking comprises a device body 1, a fixing mechanism 2, a protection mechanism 3 and a shockproof mechanism 4, wherein the fixing mechanism 2 is located below the device body 1, the protection mechanism 3 is located on the left side and the right side below the fixing mechanism 2, the shockproof mechanism 4 is located at the upper end of the fixing mechanism 2, the protection mechanism 3 comprises a kicking prevention plate 301, a first spring 302, a first damper 303 and a limiting block 304, the first spring 302 is fixedly installed at the inner end of the kicking prevention plate 301, the first damper 303 is fixedly installed inside the first spring 302, and the limiting block 304 is fixedly arranged on the side edge of the upper end of the kicking prevention plate 301;
the fixing mechanism 2 comprises a fixing base 201, a protection block 202, a movable groove 203, a sliding groove 204, an assembly plate 205 and pulleys 206, wherein the protection block 202 is fixedly arranged at the left side and the right side of the upper end of the fixing base 201, the movable groove 203 is fixedly arranged in the middle of the inner end of the protection block 202, the sliding groove 204 is fixedly arranged in the inner side of the middle side of the lower end of the fixing base 201, the assembly plate 205 is fixedly arranged in the middle of the lower end of the fixing base 201, the pulleys 206 are fixedly arranged at the lower end of the assembly plate 205, the moving convenience of the device is improved by arranging the pulleys 206, the protection block 202 is arranged at the upper end of the fixing base 201, and the lower part of the outer end of the heat preservation cabinet body 405 can be protected from being damaged by external force; the shockproof mechanism 4 comprises a mounting plate 401, a limiting plate 402, a second spring 403, a second damper 404 and a heat preservation cabinet body 405, wherein the limiting plate 402 is fixedly arranged at the left end and the right end of the mounting plate 401, the second spring 403 is fixedly arranged at the lower end of the mounting plate 401, the second damper 404 is fixedly arranged at the inner side of the second spring 403, the heat preservation cabinet body 405 is fixedly arranged at the upper end of the mounting plate 401, and the mounting plate 401 can be clamped inside the movable groove 203 by arranging the limiting plate 402, so that the mounting plate 401 is limited in a specific space when moving, and the phenomenon that the stability of the heat preservation cabinet body 405 is influenced due to the large swing range of the mounting plate 401 when moving is avoided;
the kick-proof plate 301 is of a U-shaped structure, the kick-proof plate 301 is symmetrically distributed on the left side and the right side below the fixed base 201, the first springs 302 are equidistantly distributed at the inner end of the kick-proof plate 301 and fixedly connected with the assembling plate 205, the limiting blocks 304 are equidistantly distributed on the side of the upper end of the kick-proof plate 301, the limiting blocks 304 are of a T-shaped structure and are matched with the sliding grooves 204, through the arrangement of the kick-proof plate 301, when the device is pushed or erected at the outer end of the device, the tiptoe is prevented from kicking the device, meanwhile, the kick-proof plate 301 is arranged into the U-shaped structure, the lower end of the device can be protected in an all-around mode, the device is enabled to be more protective, meanwhile, the first springs 302 are arranged inside the kick-proof plate 301 and are used for buffering stress when the kick-proof plate 301 is subjected to external force, and the first damping devices 303 arranged inside the first springs 302 prevent the first springs 302 from repeatedly vibrating after being subjected to the stress, so that the use stability of the kick-proof plate 301 is improved; the outer end of the protection block 202 is of a slope structure, the protection block 202 is symmetrically distributed on the left side and the right side of the upper end of the fixing base 201, the sliding groove 204 is symmetrically distributed inside the middle edge side of the lower end of the fixing base 201, the pulley 206 is symmetrically distributed on the lower end of the assembling plate 205, dust is not easily adhered to the device in daily life by setting the outer end of the protection block 202 to be of the slope structure, and therefore cleaning convenience of the device is improved, meanwhile, the limiting block 304 moves in the sliding groove 204 by setting the sliding groove 204, the moving range of the kicking prevention plate 301 is limited, and using convenience of the kicking prevention plate 301 is further improved; mounting panel 401 movable mounting is in unable adjustment base 201's upper end and is located the inboard of protection piece 202, limiting plate 402 is symmetric distribution in both ends about mounting panel 401, limiting plate 402 and activity groove 203 looks adaptation, two springs 403 are array distribution in mounting panel 401's lower extreme, through being two springs 403 array distribution in mounting panel 401's lower extreme, when the device is pushing down in removal or receipt gravity, accessible two springs 403 avoid the device directly to receive gravity and push down the damage, two springs 403 still can be used to alleviate the shaking force that the device received simultaneously, thereby make the device have better cushioning effect.
The working principle is as follows: the technical scheme of the utility model for a be convenient for get thermal cabinet's damper who expects, at first the lower extreme at thermal cabinet body 405 sets up mounting panel 401, both ends set up limiting plate 402 about mounting panel 401, block limiting plate 402 in the inside of activity groove 203 during the installation, the limitation is in specific space when making mounting panel 401 activity, the scope of oscillation is great when avoiding mounting panel 401 activity, influence thermal cabinet body 405's stability, then link together mounting panel 401 and unable adjustment base 201 by two springs 403, setting through two springs 403, when the device is removing or when receiving gravity and pushing down, two accessible springs 403 avoid the device directly to receive gravity and push down the damage, two springs 403 still can be used to alleviate the vibrations power that the device received simultaneously, thereby make the device have better cushioning effect, each part of the device is assisted mutually, still in the left and right sides movable mounting of unable adjustment base 201 lower extreme has prevented kickplate 301 simultaneously, when promoting the device or standing when the device is in the device outer end, avoid kicking the device to kick point to the device, the lower extreme that this kickplate 301 can set up to be the structure is then, the all-round protection device 301 that this protection device 302 that prevents the shock and the shock resistance is used for the shock after the installation, and the protection device is equipped with a protection device 302 after the installation of this internal damping protection spring 302, the stability is installed repeatedly, thereby the internal damping protection device is used for the internal damping protection device 302, the use has been more.
It should be finally noted that the above only serves to illustrate the technical solution of the present invention, and not to limit the scope of the present invention, and that simple modifications or equivalent replacements performed by those skilled in the art to the technical solution of the present invention do not depart from the spirit and scope of the technical solution of the present invention.
Claims (6)
1. The utility model provides a damper of thermal cabinet convenient to get material, includes device body (1), fixed establishment (2), protection machanism (3) and shockproof mechanism (4), its characterized in that: fixed establishment (2) are located the below of device body (1), protection machanism (3) are located the left and right sides of fixed establishment (2) below, shockproof mechanism (4) are located the upper end of fixed establishment (2), protection machanism (3) are including preventing kickplate (301), spring (302), damping (303) and stopper (304), spring (302) fixed mounting is in preventing the inner of kickplate (301), damping (303) fixed mounting is in the inside of spring (302), stopper (304) are fixed to be set up at the avris of preventing kickplate (301) upper end.
2. The thermal insulation cabinet damping mechanism convenient for material taking as defined in claim 1, which is characterized in that: fixed establishment (2) are including unable adjustment base (201), protection piece (202), activity groove (203), spout (204), assembly plate (205) and pulley (206), the left and right sides of protection piece (202) fixed setting in unable adjustment base (201) upper end, the fixed middle part that sets up in protection piece (202) in activity groove (203), spout (204) are fixed to be set up in the inside of unable adjustment base (201) lower extreme middle part avris, assembly plate (205) are fixed to be set up at the middle part of unable adjustment base (201) lower extreme, pulley (206) fixed mounting is at the lower extreme of assembly plate (205).
3. The thermal cabinet damping mechanism convenient to get material of claim 2, characterized in that: shockproof mechanism (4) is including mounting panel (401), limiting plate (402), two (403) springs, damping two (404) and heat preservation cabinet body (405), limiting plate (402) is fixed to be set up both ends about mounting panel (401), two (403) fixed mounting of spring are at the lower extreme of mounting panel (401), two (404) fixed mounting of damping are in the inboard of two (403) springs, heat preservation cabinet body (405) fixed mounting is in the upper end of mounting panel (401).
4. The thermal cabinet damping mechanism convenient to get material of claim 3, characterized in that: prevent that kickplate (301) is U type structure, prevent that kickplate (301) is the symmetric distribution in the left and right sides of unable adjustment base (201) below, spring (302) are the equidistance and distribute in the inner of preventing kickplate (301) and with assembly plate (205) fixed connection, stopper (304) are the equidistance and distribute in the avris of preventing kickplate (301) upper end, stopper (304) are T type structure, stopper (304) and spout (204) looks adaptation.
5. The thermal cabinet damping mechanism convenient to get material of claim 4, characterized in that: the outer end of protection piece (202) is slope type structure, protection piece (202) are the left and right sides of symmetric distribution in unable adjustment base (201) upper end, spout (204) are the inside of symmetric distribution in unable adjustment base (201) lower extreme middle part avris, pulley (206) are the lower extreme of symmetric distribution in assembly plate (205).
6. The thermal cabinet damping mechanism convenient to get material of claim 5, characterized in that: mounting panel (401) movable mounting is in the upper end of unable adjustment base (201) and is located the inboard of protection piece (202), limiting plate (402) are symmetric distribution in both ends about mounting panel (401), limiting plate (402) and activity groove (203) looks adaptation, two (403) of spring are array distribution in the lower extreme of mounting panel (401).
