Abstract
本实用新型公开了一种使用方便的防污染雾化吸入装置，包括雾化杯，所述雾化杯上端连接有杯盖，所述杯盖上端一体化设置有吸雾接口，所述吸雾接口一侧设置有塑料环，所述塑料环一体化连接有药液进口，所述药液进口外表面套装有橡胶套，所述橡胶套一体化连接有弹性带一端，所述弹性带另一端连接有塑料板，所述塑料板下端固定连接有硅胶塞，所述硅胶塞塞装在药液进口内。本实用新型结构简单，构造清晰易懂，为现有的雾化杯的改进，将转动式的药液注入口改为塞合式，具有防污染防菌效果，泵入药液时，泵入药液的管道与药液进口的连接更加方便，连接紧密，避免松脱造成的药液浪费，实用性强，值得推广使用。
The utility model discloses an anti-pollution atomization inhalation device that is convenient to use, comprising an atomization cup, the upper end of the atomization cup is connected with a cup cover, and the upper end of the cup cover is integrally provided with a mist suction interface. One side of the interface is provided with a plastic ring, the plastic ring is integrally connected with the liquid medicine inlet, the outer surface of the liquid medicine inlet is sheathed with a rubber sleeve, the rubber sleeve is integrally connected with one end of the elastic band, and the other end of the elastic band A plastic plate is connected, the lower end of the plastic plate is fixedly connected with a silica gel plug, and the silica gel plug is installed in the liquid medicine inlet. The utility model has the advantages of simple structure and clear and easy-to-understand structure, which is an improvement of the existing atomizing cup. The connection between the liquid pipeline and the liquid medicine inlet is more convenient, the connection is tight, the waste of the liquid medicine caused by loosening is avoided, and the practicability is strong, and it is worth popularizing and using.
Description
Technical Field
The utility model relates to the technical field of medical treatment, especially, relate to an anti-pollution aerosol inhalation device of convenient to use.
Background
The medical atomizer is mainly used for treating various upper and lower respiratory system diseases, such as common cold, fever, cough, asthma, sore throat, pharyngitis, rhinitis, bronchitis, pneumoconiosis and other diseases in trachea, bronchus, alveolus and thoracic cavity. The atomized inhalation therapy is an important and effective therapy method in the respiratory system disease therapy, the atomized inhalator is adopted to atomize the liquid medicine into tiny particles, and the medicine enters the respiratory tract and the lung for deposition in a respiratory inhalation mode, thereby achieving the aim of painless, rapid and effective therapy. The water filling port of present atomizer is pivoted round lid, and when carrying out the air flue humidifying, the extension pipe of pump income humidifying liquid is connected inseparably with atomizing device, and the easy pine takes off to cause easily and receive the pollution in the atomizing cup, cause secondary infection even, consequently, need a convenient to use's anti-pollution atomizing inhalation device.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing an anti-pollution atomization and suction device which is convenient to use.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a convenient to use's anti-pollution atomizing inhalation device, includes the atomizing cup, the atomizing cup upper end is connected with the bowl cover, bowl cover upper end integration is provided with inhales the fog interface, it is provided with the plastics ring to inhale fog interface one side, plastics ring integration is connected with the liquid medicine import, liquid medicine import surface cover is equipped with the rubber sleeve, rubber sleeve integration is connected with elastic webbing one end, the elastic webbing other end is connected with the plastic slab, plastic slab lower extreme fixedly connected with silica gel stopper, silica gel stopper dress is in the liquid medicine inlet.
Furthermore, a silica gel sleeve is arranged on the bottom end face of the plastic plate, the silica gel sleeve is arranged on the periphery of the silica gel plug, a coating cavity is arranged between the silica gel sleeve and the silica gel plug, the silica gel sleeve is sleeved on the outer surface of the liquid medicine inlet, and the liquid medicine inlet is arranged in the coating cavity.
Furthermore, the atomizing cup, the cup cover, the mist suction port, the plastic ring, the liquid medicine inlet and the plastic plate are all made of polypropylene plastics.
Furthermore, the rubber sleeve and the elastic belt are made of polyvinyl chloride rubber.
Furthermore, the lower end of the cup cover is integrally connected with a cover ring, and the cover ring is sleeved on the outer surface of the atomizing cup and is rotatably connected through threads.
Compared with the prior art, the beneficial effects of the utility model reside in that:
1. the utility model relates to an improved atomizing cup, including atomizing cup, its upper end is connected with the bowl cover, the integration of bowl cover upper end is provided with inhales the fog interface, it is used for inhaling the connection of fog pipe to inhale the fog interface, atomizing cup bottom portion is the air inlet, the bowl cover upper end is provided with the liquid medicine import, the stopper is equipped with the silica gel stopper on the liquid medicine import, when injecting the liquid medicine, extract the silica gel stopper can go into the liquid medicine import and inject the liquid medicine into, when not injecting the liquid medicine, fill in the liquid medicine import with the silica gel stopper can, compare traditional rotary type liquid medicine import use more convenient, connect more closely, anti-pollution effect is better, avoid inhaling bacterium entering atomizing cup in the fog process, and when pumping the liquid medicine, the pipeline of pump income liquid medicine is more convenient with the connection of liquid medicine import 9, connect closely, avoid taking off the waste of liquid medicine that causes, therefore, the clothes hanger is strong in practicability;
2. the periphery of the silica gel plug is also provided with the silica gel sleeve, when the silica gel plug is plugged into the liquid medicine inlet, the silica gel sleeve is coated outside the liquid medicine inlet, so that the liquid medicine inlet has better sealing property, better anti-pollution and anti-bacteria effects and strong practicability;
3. the utility model discloses easy dismounting, the clearance of being convenient for, the material source is extensive, and the price is low, and the preparation cost is low, and the practicality is strong.
To sum up, the utility model discloses simple structure, the structure is clearly understandable, for the improvement of current atomizing cup, changes the liquid medicine filling opening of rotary type into the plug-in type, convenient to use, sealed effect is splendid, has anti-pollution fungi-proofing effect, and it is more convenient to use, when the pump goes into the liquid medicine, and the pipeline of pump income liquid medicine is more convenient with being connected of liquid medicine import, connects closely, avoids the pine to take off the liquid medicine waste that causes, and the practicality is strong to easy dismounting, the clearance of being convenient for, the material source is extensive, and the price is low, and the cost of manufacture is low, and the practicality is strong, is worth using widely.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.

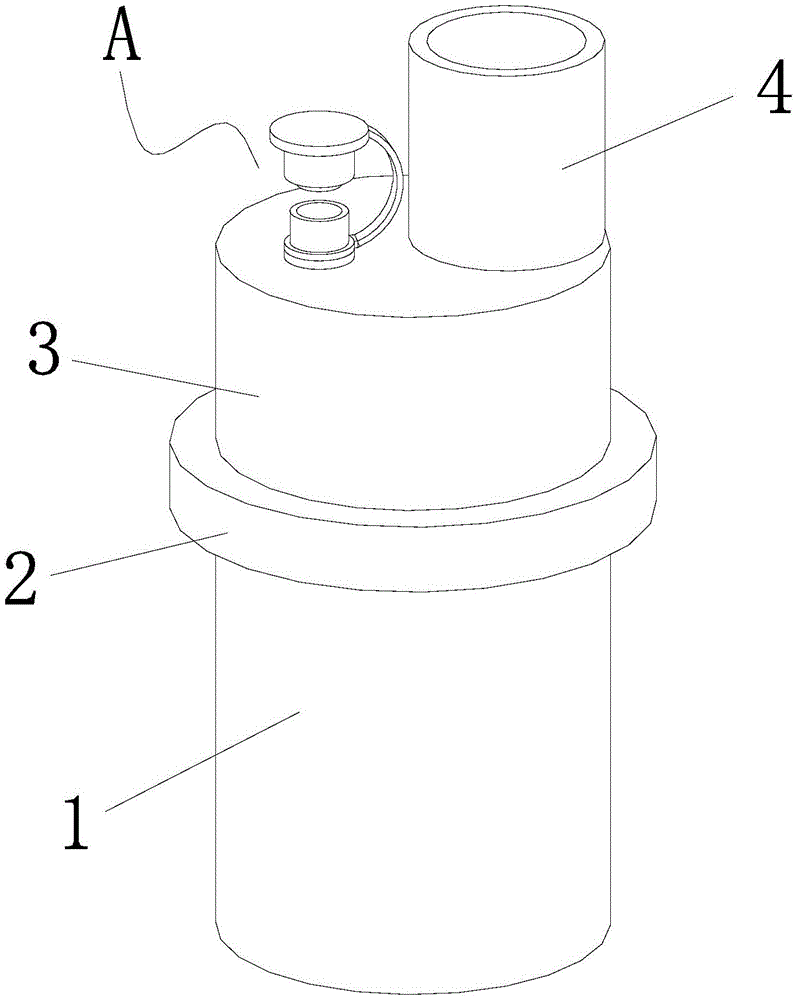

Fig. 1 is a schematic three-dimensional structure diagram of an anti-pollution aerosol inhalation device of the utility model;
FIG. 2 is an enlarged schematic view of the anti-pollution aerosol inhalation device at A point, which is provided by the present invention;
FIG. 3 is a schematic structural view of an anti-pollution aerosol inhalation device with convenient use according to the present invention;
fig. 4 is a schematic view of a front view, partial cross-sectional structure of an anti-pollution aerosol inhalation device of the present invention.
In the figure: 1-atomizing cup, 2-cover ring, 3-cup cover, 4-fog-absorbing interface, 5-plastic plate, 6-silica gel sleeve, 7-cladding cavity, 8-silica gel plug, 9-liquid medicine inlet, 10-rubber sleeve, 11-plastic ring and 12-elastic band.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Referring to fig. 1-4, a convenient to use's anti-pollution atomizing inhalation device, including atomizing cup 1, atomizing cup 1 upper end is connected with bowl cover 3, 3 upper ends of bowl cover integration is provided with inhales fog interface 4, it is provided with plastic ring 11 to inhale fog interface 4 one side, plastic ring 11 integration is connected with liquid medicine import 9, the surface cover is equipped with rubber sleeve 10 in the liquid medicine import 9, rubber sleeve 10 integration is connected with 12 one end of elastic webbing, the elastic webbing 12 other end is connected with plastic slab 5, 5 lower extreme fixedly connected with silica gel plugs 8 of plastic slab, 8 the dress of silica gel plugs are in liquid medicine import 9.
The utility model discloses a modified atomizing cup, including atomizing cup 1, its upper end is connected with bowl cover 3, 3 upper end integrations of bowl cover are provided with inhales fog interface 4, inhale the connection that fog interface 4 is used for inhaling the fog pipe, atomizing cup 1 bottom is the air inlet, 3 upper ends of bowl cover are provided with liquid medicine import 9, the stopper is equipped with silica gel plug 8 on the liquid medicine import 9, when pouring into the liquid medicine into, extract silica gel plug 8 and can pour into the liquid medicine into liquid medicine import 9 into, when not pouring into the liquid medicine into, plug in silica gel plug 8 can liquid medicine import 9, compare in the liquid medicine import of traditional rotary type and use convenience more, connect inseparabler, anti-pollution effect is better, avoid inhaling fog in-process bacterium entering atomizing cup 1, and when the liquid medicine is gone into to the pump, it is more convenient to go into the pipeline of liquid medicine and the connection of liquid medicine import 9, connect inseparably, avoid the pine to take off the waste of causing, therefore, the practicality is strong.
The bottom end face of the plastic plate 5 is provided with a silica gel sleeve 6, the silica gel sleeve 6 is arranged on the periphery of a silica gel plug 8, a coating cavity 7 is arranged between the silica gel sleeve 6 and the silica gel plug 8, the silica gel sleeve 6 is sleeved on the outer surface of a liquid medicine inlet 9, and the liquid medicine inlet 9 is arranged in the coating cavity 7.
The utility model provides a silica gel plug 8 periphery still is provided with silica gel cover 6, and when silica gel plug 8 was plugged in liquid medicine import 9, 6 cladding of silica gel cover was outside liquid medicine import 9 for the leakproofness of liquid medicine import is better, and anti-pollution fungi-proofing effect is better, and the practicality is strong.
The atomizing cup 1, the cup cover 3, the mist suction port 4, the plastic ring 11, the liquid medicine inlet and the plastic plate 5 are all made of polypropylene plastics, and the polypropylene plastics are colorless, odorless and nontoxic, are commonly used for medical appliances, are wide in source and low in price, and reduce cost.
The rubber sleeve 10 and the elastic belt 12 are both made of polyvinyl chloride rubber which is commonly used rubber, the source is wide, the price is low, and the cost of the atomizing cup is reduced.
The lower end of the cup cover 3 is integrally connected with a cover ring 2, and the cover ring 2 is sleeved on the outer surface of the atomizing cup 1 and is rotatably connected through threads.
The utility model provides a 3 integration of bowl cover are connected with cover ring 2, and cover ring 2 and atomizing cup 1 rotate through the screw thread to be connected, easy dismounting, and convenient cleanness, the practicality is strong.
The utility model discloses a theory of operation and use flow: the utility model relates to an improved atomizing cup, including atomizing cup 1, its upper end is connected with bowl cover 3, bowl cover 3 upper end integration is provided with inhales fog interface 4, inhale fog interface 4 and be used for inhaling the connection of fog pipe, atomizing cup 1 bottom is the air inlet, bowl cover 3 upper end is provided with liquid medicine import 9, liquid medicine import 9 is filled with the silica gel stopper 8, when pouring into the liquid medicine, extract silica gel stopper 8 and can pour into the liquid medicine to liquid medicine import 9 into, when not pouring into the liquid medicine, fill in silica gel stopper 8 into liquid medicine import 9 can, compared with the liquid medicine import of traditional rotary type and use more conveniently, connect more closely, anti-pollution effect is better, avoid inhaling in the fog process bacterium gets into atomizing cup 1, and when pumping into the liquid medicine, the pipeline of pump income liquid medicine is more convenient with the connection of liquid medicine import 9, connect closely, avoid taking off the waste of the liquid medicine that causes, therefore, the clothes hanger is strong in practicability;
the utility model provides a silica gel stopper 8 periphery still is provided with silica gel cover 6, and when silica gel stopper 8 was plugged in liquid medicine import 9, the cladding of silica gel cover 6 was outside liquid medicine import 9 for the leakproofness of liquid medicine import is better, and anti-pollution fungi-proofing effect is better, and the practicality is strong.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. The utility model provides a convenient to use's anti-pollution atomizing inhalation device, includes atomizing cup (1), its characterized in that, atomizing cup (1) upper end is connected with bowl cover (3), bowl cover (3) upper end integration is provided with inhales fog interface (4), it is provided with plastic ring (11) to inhale fog interface (4) one side, plastic ring (11) integration is connected with liquid medicine import (9), liquid medicine import (9) surface cover is equipped with rubber sleeve (10), rubber sleeve (10) integration is connected with elastic webbing (12) one end, the elastic webbing (12) other end is connected with plastic slab (5), plastic slab (5) lower extreme fixedly connected with silica gel stopper (8), silica gel stopper (8) stopper dress is in liquid medicine import (9).
2. The anti-pollution aerosol inhalation device of claim 1, wherein the plastic plate (5) is provided with a silicone sleeve (6) on the bottom end surface, the silicone sleeve (6) is disposed on the periphery of the silicone plug (8), a coating cavity (7) is disposed between the silicone sleeve (6) and the silicone plug (8), the silicone sleeve (6) is sleeved on the outer surface of the liquid medicine inlet (9), and the liquid medicine inlet (9) is disposed in the coating cavity (7).
3. A contamination-proof aerosol inhalation device with convenient use according to claim 2, wherein the aerosol cup (1), the cup cover (3), the aerosol inhalation port (4), the plastic ring (11), the liquid medicine inlet and the plastic plate (5) are all made of polypropylene plastic.
4. A contamination-preventive aerosol inhalation device according to claim 3, wherein the rubber sleeve (10) and the elastic band (12) are made of polyvinyl chloride rubber.
5. An anti-pollution atomizing inhalation device convenient to use according to claim 4, characterized in that the lower end of the cup cover (3) is integrally connected with a cover ring (2), and the cover ring (2) is sleeved on the outer surface of the atomizing cup (1) and is rotatably connected through threads.
