CN217525374U

CN217525374U - Multifunctional treatment plate

Info

Publication number: CN217525374U
Application number: CN202220649603.4U
Authority: CN
Inventors: 何婷婷; 刘瑛; 于洪燕; 杨熠均; 王凤江; 卿雨柔
Original assignee: Sixth Affiliated Hospital of Sun Yat Sen University
Current assignee: Sixth Affiliated Hospital of Sun Yat Sen University
Priority date: 2022-03-23
Filing date: 2022-03-23
Publication date: 2022-10-04
Anticipated expiration: 2032-03-23

Abstract

The utility model discloses a multifunctional treatment dish, including treatment dish body, it places the district, draws blood the test tube and places the district and sharp thing and place the district to be equipped with the medicine on the treatment dish body, sharp thing is placed the district, is drawn blood the test tube and is placed the district including setting up the T type standing groove on treatment dish body, it places the box to place in the T type standing groove, T type standing groove internal rotation is connected with and rotates the lid, it is equipped with first magnetic path to rotate to cover, be equipped with in the T type standing groove with first magnetic path position complex second magnetic path, first magnetic path offsets with the second magnetic path, it rotates the pressing mechanism that the lid was opened to be equipped with the drive on the treatment dish body. The utility model discloses can place blood vessel, sharp ware box and nursing medicine separately respectively, and then convenient to use and processing, and can take out placing the box, be convenient for carry out thorough clearance and disinfection to it.

Description

Multifunctional treatment plate

Technical Field

The utility model relates to the technical field of medical devices, especially, relate to a multifunctional treatment dish.

Background

Although the medical article of use can be placed to present treatment dish, can not better handle to the blood sample pipe of gathering and the syringe needle after the use, especially the syringe needle after the use, the condition that probably takes place to forget has the possibility of causing the injury to other people, and does not preserve properly and can cause unnecessary infection.

Therefore, we have designed a multifunctional therapeutic tray to solve the above problems.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the shortcoming that exists among the prior art, and the multi-functional treatment dish that proposes, it can place syringe needle and medicine after gathering blood vessel, use respectively alone, and then convenient to use and processing, simultaneously, presses the pressing block and can open the rotation lid, conveniently places the syringe needle after gathering blood vessel, using, and can take out the box of placing, the clearance of being convenient for.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a multifunctional treatment dish, includes treatment dish body, be equipped with the medicine on the treatment dish body and place the district, draw blood test tube and place the district and sharp thing and place the district, sharp thing is placed the district, is drawn blood test tube and is placed the district including setting up the T type standing groove on treatment dish body, it places the box in the T type standing groove to place, T type standing groove internal rotation is connected with and rotates the lid, it is equipped with first magnetic path to rotate to cover, be equipped with in the T type standing groove with first magnetic path position complex second magnetic path, first magnetic path offsets with the second magnetic path, be equipped with the drive on the treatment dish body and rotate the mechanism that presses that the lid was opened.

Preferably, the magnetic poles of the opposite surfaces of the first magnetic block and the second magnetic block are opposite.

Preferably, a torsion spring is arranged between the rotary connection part of the rotary cover and the treatment disc body.

Preferably, the pressing mechanism comprises an L-shaped groove which is arranged on the treatment disc body and communicated with the T-shaped placing groove, an L-shaped rod is rotationally connected in the L-shaped groove, the upper end of the L-shaped rod is abutted to the bottom of the rotating cover, a pressing block is slidably connected in the L-shaped groove, and the pressing block is connected with the L-shaped rod through a connecting rope.

Preferably, the rotation position of the rotation cover is disposed away from the medicine placing area.

Preferably, the medicine placing area is provided with a placing groove, and the placing groove is shaped like a rectangular groove and a circular groove.

Compared with the prior art, the utility model, its beneficial effect does:

medicines such as cotton swabs, alcohol, iodophors and the like can be placed in the medicine placing area, so that the medicine is convenient to take and use and is not easy to scatter; the sharp object placing area with the rotating cover and the blood sampling test tube placing area are arranged, so that a sharp instrument box can be accommodated in the sharp object placing area, the nursing standard is met, and in addition, the placing box for placing the blood sampling test tube is arranged in a grid shape, so that the sampling tube is convenient to limit; the utility model discloses can place blood vessel, sharp ware box and nursing medicine separately respectively, and then convenient to use and processing, and can take out placing the box, be convenient for carry out thorough clearance and disinfection to it.

Drawings

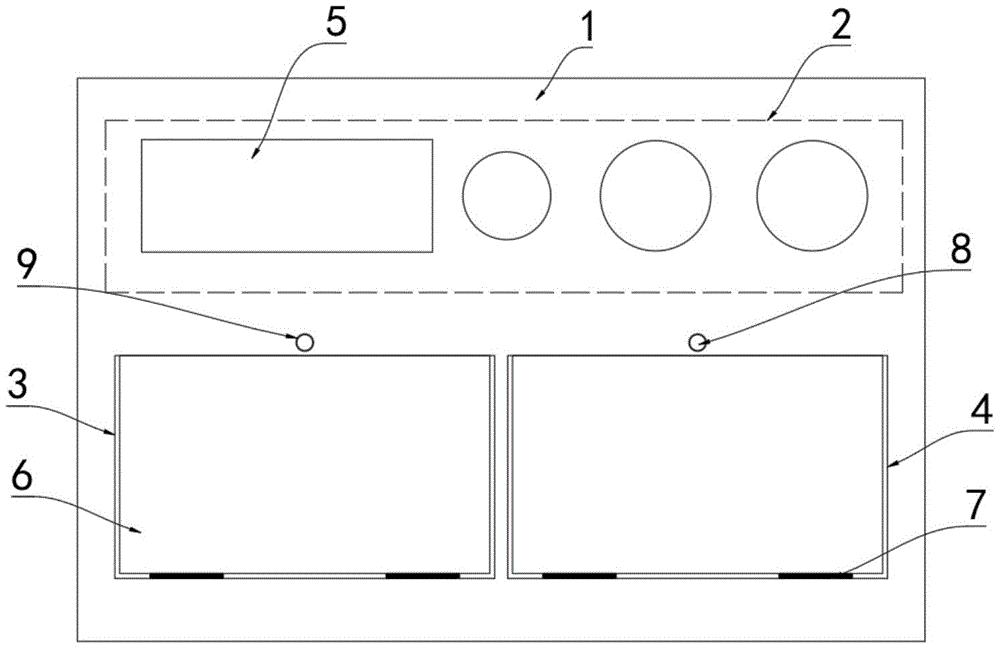

Fig. 1 is a schematic structural view of a multifunctional therapeutic tray provided by the present invention;

fig. 2 is a sectional view of a part of the structure of a multifunctional therapeutic tray provided by the present invention;

fig. 3 is an enlarged view of the structure at a in fig. 2.

In the figure: 1 treatment dish body, 2 medicine are placed the district, 3 are taken a blood test tube and are placed the district, 4 sharp thing are placed the district, 5 are placed the recess, 6 are rotated the lid, 7 torsional springs, 8 are pressed the piece, 9L type grooves, 10T type standing groove, 11 and are placed box, 12 first magnetic path, 13 second magnetic paths, 14L type pole.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-3, a multifunctional treatment tray comprises a treatment tray body 1, wherein a medicine placing area 2, a blood drawing test tube placing area 3 and a sharp object placing area 4 are arranged on the treatment tray body 1, a placing groove 5 is arranged on the medicine placing area 2, and the placing groove 5 is in a rectangular groove and a circular groove; the sharp object placing area 4 and the blood drawing test tube placing area 3 comprise T-shaped placing grooves 10 arranged on the treatment disc body 1, placing boxes 11 are placed in the T-shaped placing grooves 10, and the placing boxes 11 for placing the blood drawing test tubes are arranged in a grid shape; a rotating cover 6 is rotatably connected in the T-shaped placing groove 10, a torsion spring 7 is arranged between the rotating cover 6 and the rotating joint of the treatment plate body 1, the torsion spring 7 has torsion when the rotating cover 6 is covered, and the suction force of the first magnetic block 12 and the second magnetic block 13 is greater than the torsion of the torsion spring 7; the rotation department that rotates lid 6 keeps away from medicine and places district 2 settings, can not influence the medicine and place the use of district 2 parts.

The rotating cover 6 is provided with a first magnetic block 12, a second magnetic block 13 matched with the first magnetic block 12 in position is arranged in the T-shaped placing groove 10, the first magnetic block 12 is abutted against the second magnetic block 13, and the magnetic poles of the opposite surfaces of the first magnetic block 12 and the second magnetic block 13 are opposite in polarity.

The treatment disc body 1 is provided with a pressing mechanism for driving the rotating cover 6 to open, the pressing mechanism comprises an L-shaped groove 9,L which is arranged on the treatment disc body 1 and communicated with the T-shaped placing groove 10, an L-shaped rod 14 is rotationally connected in the L-shaped groove 5363 groove 9, the upper end of the L-shaped rod 14 is abutted against the bottom of the rotating cover 6, a pressing block 8 is slidably connected in the L-shaped groove 9, and the pressing block 8 is connected with the L-shaped rod 14 through a connecting rope.

When the utility model is used, the medicine placing area 2 can be used for placing medicines such as cotton swabs, alcohol, iodophors and the like, so that the medicine can be conveniently taken and used and is not easy to scatter;

the medical staff manually presses the pressing block 8, the pressing block 8 moves downwards to drive the L-shaped rod 14 to rotate, the L-shaped rod 14 rotates to jack up the rotating cover 6 upwards, so that the first magnetic block 12 is separated from the second magnetic block 13, the rotating cover 6 is opened under the action of the torsion spring 7, the sharp instrument box can be placed in the placing box 11 of the sharp object placing area 4, the blood sampling test tube is placed in the placing box 11 of the blood sampling test tube placing area 3, the rotating cover 6 is covered after the use is finished, and the first magnetic block 12 and the second magnetic block 13 attract each other at the moment, so that the rotating cover 6 can be fixed and is not easy to rotate;

after the use, the medical staff can open the rotating cover 6, the placing box 11 is taken out of the box, it can be thoroughly cleaned and disinfected.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a multifunctional treatment dish, includes treatment dish body (1), its characterized in that, be equipped with on treatment dish body (1) medicine and place district (2), draw blood test tube and place district (3) and sharp thing and place district (4), sharp thing is placed district (4), is drawn blood test tube and is placed district (3) including T type standing groove (10) of setting on treatment dish body (1), it places box (11) to place in T type standing groove (10), T type standing groove (10) internal rotation is connected with and rotates lid (6), be equipped with first magnetic path (12) on rotating lid (6), be equipped with in T type standing groove (10) with first magnetic path (12) position complex second magnetic path (13), first magnetic path (12) offset with second magnetic path (13), be equipped with the drive on treatment dish body (1) and rotate the pressing the mechanism that lid (6) were opened.

2. A multi-functional therapeutic disc as claimed in claim 1, wherein the opposite faces of the first magnetic block (12) and the second magnetic block (13) have opposite magnetic polarities.

3. The multifunctional therapeutic tray according to claim 1, characterized in that a torsion spring (7) is installed between the rotary connection of the rotary cover (6) and the therapeutic tray body (1).

4. The multifunctional treatment disc of claim 1, wherein the pressing mechanism comprises an L-shaped groove (9) which is arranged on the treatment disc body (1) and communicated with the T-shaped placing groove (10), an L-shaped rod (14) is rotationally connected in the L-shaped groove (9), the upper end of the L-shaped rod (14) is abutted against the bottom of the rotating cover (6), a pressing block (8) is slidably connected in the L-shaped groove (9), and the pressing block (8) is connected with the L-shaped rod (14) through a connecting rope.

5. A multi-functional treatment tray according to claim 1, characterized in that the rotation of the rotating cover (6) is arranged away from the drug placement area (2).

6. The multifunctional therapeutic tray according to claim 1, wherein the medicine placing area (2) is provided with a placing groove (5), and the placing groove (5) has a shape of a rectangular groove and a circular groove.
