Abstract
The utility model relates to the technical field of nondestructive drying of herbal pieces, in particular to a nondestructive drying device for producing herbal pieces, which comprises a drying box, wherein one side of the drying box is provided with a drying mechanism, the drying mechanism comprises an air blower and a heat exchange type hot blast stove positioned between the air blower and the drying box, an air outlet of the air blower is communicated with the heat exchange type hot blast stove through a ventilation pipe, the heat exchange type hot blast stove is communicated with the top end of the drying box through an air supply pipe, a plurality of rotating mechanisms are arranged inside the drying box through arranging the drying box, the drying mechanism is arranged on one side of the drying box, so that the drying effect can be achieved, when a motor is started, an output shaft of the motor drives a rotating shaft to rotate, so that a placing cylinder can rotate, the herbal pieces in the placing cylinder are dried more comprehensively, a plurality of fans are arranged on the top end of the inner wall of the drying box, so that hot air coming out from the air supply pipe can be blown to all corners inside the drying box, the drying effect of the traditional Chinese medicine decoction pieces is better.
Description
Technical Field
The utility model relates to a harmless drying technical field of herbal pieces-specifically is a harmless drying device for herbal pieces-production.
Background
The traditional Chinese medicine decoction pieces are one of three main pillars of the traditional Chinese medicine industry, are necessary traditional weapons for the clinical syndrome differentiation and treatment of the traditional Chinese medicine, are important raw materials of Chinese patent medicines, have unique processing theories and methods, do not reflect the profound intelligence of the old traditional Chinese medicine, along with the continuous improvement and maturity of the processing theories, have become the important means of clinical disease prevention and treatment of the traditional Chinese medicine at present, the traditional Chinese medicine decoction pieces need to be subjected to nondestructive drying in the production process, most drying devices in the market can not completely dry the traditional Chinese medicine decoction pieces at one time, the drying efficiency is low, most drying devices adopt electric heating tubes, the heating time is long, and therefore, the nondestructive drying device for the production of the traditional Chinese medicine decoction pieces is provided.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a harmless drying device for herbal pieces-production to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a nondestructive drying device for producing traditional Chinese medicine decoction pieces comprises a drying box, a drying mechanism is arranged on one side of the drying box, the drying mechanism comprises a blower and a heat exchange type hot blast stove positioned between the blower and a drying box, the air outlet of the blower is communicated with the heat exchange type hot blast stove through a ventilation pipe, the heat exchange type hot blast stove is communicated with the top end of the drying box through an air supply pipe, the drying oven is internally provided with a plurality of rotating mechanisms, each rotating mechanism comprises a placing component, each placing component comprises a placing cylinder, the top end of the placing cylinder is provided with a cylinder cover in threaded connection with the inner wall of the placing cylinder, the surface of one side of the placing cylinder is coaxially connected with a rotating shaft in rotating connection with the drying box, one end of the rotating shaft is coaxially connected with a motor for rotating the rotating shaft, the surface of one side of the drying box is provided with an exhaust hole, the drying cabinet bottom is equipped with the rectangular channel, be equipped with the slide with rectangular channel sliding connection in the rectangular channel.
Preferably, the bottom end of the drying box is provided with a plurality of supporting legs.
Preferably, a plurality of fans are arranged at the top end of the inner wall of the drying box.
Preferably, the surface of one side of the drying box is provided with a plurality of fixed connecting plates.
Preferably, a temperature controller is arranged in the drying box, and the temperature controller and the air blower are connected in series to the same control switch.
Preferably, the motors are connected in series to the same control switch.
Preferably, the parts of the ventilation pipe, the air blower and the heat exchange type hot blast stove in contact are provided with sealing rings, and the parts of the air supply pipe, the heat exchange type hot blast stove and the drying box in contact are provided with sealing rings.
Preferably, the surface of one side of the placing cylinder, which is far away from the rotating shaft, is rotatably connected with a fixed connecting column fixedly connected with the inner wall of the drying box.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a set up the drying cabinet, set up a plurality of slewing mechanism in the inside of drying cabinet, set up the drying mechanism on one side of drying cabinet to can reach dry effect, when the motor starts, the motor output shaft drives the pivot and rotates, thereby makes and places a section of thick bamboo and can rotate, and then places the dry more comprehensive of herbal pieces-for-chinese medicine in a section of thick bamboo;
2. the utility model discloses a set up a plurality of fan on drying cabinet inner wall top to can blow off the steam that comes out from the air feed pipe mouth of pipe to each corner of drying cabinet inside, make herbal pieces-'s drying effect better.
Drawings
Fig. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a partial sectional view of the first embodiment of the present invention;
fig. 3 is a sectional view of the drying box of the present invention;
FIG. 4 is a schematic view of the overall structure of the middle slide plate of the present invention;
fig. 5 is a schematic view of a partial structure of the present invention;
fig. 6 is a schematic view of the overall structure of the drying mechanism of the present invention;

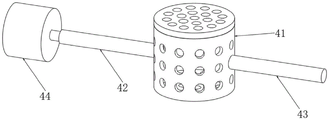

fig. 7 is a schematic view of the overall structure of the rotating mechanism of the present invention;
fig. 8 is a schematic view of the overall structure of the middle placement assembly of the present invention.
In the figure: a drying oven 1; fixing the connecting plate 2; a support leg 3; a rotating mechanism 4; a placement assembly 41; a placing cylinder 411; a cartridge cover 412; a rotating shaft 42; a fixed connecting column 43; a motor 44; a drying mechanism 5; a blower 51; a heat exchange type hot blast stove 52; a vent pipe 53; an air supply duct 54; a rectangular groove 6; an exhaust hole 7; a temperature controller 8; a slide plate 9; a fan 10.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and for simplicity of description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.
Example 1
Referring to fig. 1-8, the present invention provides a technical solution: a nondestructive drying device for producing traditional Chinese medicine decoction pieces comprises a drying box 1, one side of the drying box 1 is provided with a drying mechanism 5, the drying mechanism 5 comprises an air blower 51 and a heat exchange type hot blast stove 52 positioned between the air blower 51 and the drying box 1, an air outlet of the air blower 51 is communicated with the heat exchange type hot blast stove 52 through a ventilation pipe 53, the heat exchange type hot blast stove 52 is communicated with the top end of the drying box 1 through an air supply pipe 54, a plurality of rotating mechanisms 4 are arranged inside the drying box 1, each rotating mechanism 4 comprises a placing component 41, each placing component 41 comprises a placing cylinder 411, the top end of each placing cylinder 411 is provided with a cylinder cover 412 in threaded connection with the inner wall of the placing cylinder, one side surface of each placing cylinder 411 is coaxially connected with a rotating shaft 42 in rotating connection with the drying box 1, one end of each rotating shaft 42 is coaxially connected with a motor 44 for rotating the rotating shaft 42, one side surface of the drying box 1 is provided with an exhaust hole 7, the bottom of the drying box 1 is provided with a rectangular groove 6, the rectangular groove 6 is internally provided with a sliding plate 9 which is connected with the rectangular groove 6 in a sliding way.
In this embodiment, 1 bottom of drying cabinet is equipped with a plurality of supporting leg 3, can support whole drying cabinet 1.
Besides, the surface of one side of the drying box 1 is provided with a plurality of fixed connecting plates 2, and the surface of one side of the drying box 1 is provided with a plurality of fixed connecting plates 2 which can be used for fixing the motor 44.
Further, a temperature controller 8 is arranged inside the drying box 1, the temperature controller 8 and the blower 51 are connected in series to the same control switch, and when the temperature inside the drying box 1 is too high, the temperature controller 8 causes the circuit where the temperature controller 8 is located to be disconnected, so that the blower 51 stops working.
Specifically, the motors 44 are connected in series to a control switch, so that the output shafts of the motors 44 rotate simultaneously at the same speed and in the same direction when the control switch is turned on.
It is worth noting that the contact parts of the ventilation pipe 53, the air blower 51 and the heat exchange type hot blast stove 52 are provided with sealing rings, and the contact parts of the air supply pipe 54, the heat exchange type hot blast stove 52 and the drying box 1 are provided with sealing rings, so that the sealing performance of the whole device is improved, and air leakage is prevented.
It is worth to be noted that, the surface of one side of the placing cylinder 411 far away from the rotating shaft 42 is rotatably connected with the fixed connecting column 43 fixedly connected with the inner wall of the drying box 1, so that the placing cylinder 411 can be more stable in the rotating process.
In the specific use process of the embodiment, the sliding plate 9 is slid open, the cover 412 of the placing cylinder 411 is opened, the herbal pieces are placed in the placing cylinder, the cover 412 is closed, the sliding plate 9 slides on, the control switch of the motor 44 is turned on, the output shafts of the motors 44 rotate to drive the rotating shaft 42 to rotate, and further the placing cylinder 411 coaxially connected with the rotating shaft 42 is driven to rotate, so that the herbal pieces inside the placing cylinder 411 can be more comprehensively dried, the control switch of the motors 44 is turned on, simultaneously the control switch of the blower 51 is turned on, the heat exchange type hot blast stove 52 is started, the fans 10 are turned on, the blower 51 blows air into the heat exchange type hot blast stove 52 through the ventilation pipe 53, the air is changed into hot air through heat exchange in the heat exchange type hot blast stove 52 and then blown into the drying box 1 through the air supply pipe 54, the fans 10 rotate to blow the hot air to all corners in the drying box 1, therefore, the drying effect of the traditional Chinese medicine decoction pieces is better, the speed is higher, and when the temperature in the drying oven 1 is too high, the temperature controller 8 is switched off, so that the air blower 51 stops working, the traditional Chinese medicine decoction pieces are protected, and the effect of lossless drying is achieved.
Example 2
Referring to fig. 5, the difference between the present embodiment and embodiment 1 is: the top end of the inner wall of the drying box 1 is provided with a plurality of fans 10, and the fans 10 can blow hot air coming out from the pipe orifice of the air supply pipe 54 to all corners in the drying box 1, so that the drying of the Chinese herbal pieces is faster and the effect is better.
In the specific use process of the embodiment, when the hot air comes out from the air outlet of the air supply pipe 54, the hot air can be blown to all places in the drying oven 1 by the fan 10, so that the traditional Chinese medicine decoction pieces in the rotating placing cylinder 411 can be dried more quickly, and the drying is more comprehensive.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention, and that the present invention can have various changes and modifications without departing from the spirit and scope of the present invention, and these changes and modifications all fall into the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (8)
1. The utility model provides a harmless drying device for herbal pieces-production, includes drying cabinet (1), its characterized in that: the drying device is characterized in that a drying mechanism (5) is arranged on one side of the drying box (1), the drying mechanism (5) comprises an air blower (51) and a heat exchange type hot blast stove (52) positioned between the air blower (51) and the drying box (1), an air outlet of the air blower (51) is communicated with the heat exchange type hot blast stove (52) through a ventilation pipe (53), the heat exchange type hot blast stove (52) is communicated with the top end of the drying box (1) through an air supply pipe (54), a plurality of rotating mechanisms (4) are arranged inside the drying box (1), each rotating mechanism (4) comprises a placing assembly (41), each placing assembly (41) comprises a placing barrel (411), a barrel cover (412) in threaded connection with the inner wall of each placing barrel (411) is arranged on the top end of each placing barrel (411), a rotating shaft (42) in rotating connection with the drying box (1) is coaxially connected to one side surface of each placing barrel (411), and a motor (44) for rotating the rotating shaft (42) is coaxially connected to one end of each rotating shaft (42), the drying cabinet is characterized in that an exhaust hole (7) is formed in the surface of one side of the drying cabinet (1), a rectangular groove (6) is formed in the bottom of the drying cabinet (1), and a sliding plate (9) which is connected with the rectangular groove (6) in a sliding mode is arranged in the rectangular groove (6).
2. The non-destructive drying apparatus for herbal pieces-production as set forth in claim 1, wherein: the bottom end of the drying box (1) is provided with a plurality of supporting legs (3).
3. The non-destructive drying apparatus for herbal pieces-production as set forth in claim 1, wherein: the top end of the inner wall of the drying box (1) is provided with a plurality of fans (10).
4. The nondestructive drying device for the production of herbal pieces-for-chinese-medicinal according to claim 1, characterized in that: the drying cabinet (1) one side surface is equipped with a plurality of fixed even board (2).
5. The non-destructive drying apparatus for herbal pieces-production as set forth in claim 1, wherein: the drying cabinet (1) is internally provided with a temperature controller (8), and the temperature controller (8) and the air blower (51) are connected in series with the same control switch.
6. The non-destructive drying apparatus for herbal pieces-production as set forth in claim 1, wherein: a plurality of the motors (44) are connected in series with the same control switch.
7. The non-destructive drying apparatus for herbal pieces-production as set forth in claim 1, wherein: sealing rings are arranged at the contact positions of the ventilation pipe (53) and the air blower (51) and the heat exchange type hot blast stove (52), and sealing rings are arranged at the contact positions of the air supply pipe (54) and the heat exchange type hot blast stove (52) and the drying box (1).
8. The non-destructive drying apparatus for herbal pieces-production as set forth in claim 1, wherein: the surface of one side of the placing cylinder (411) far away from the rotating shaft (42) is rotatably connected with a fixed connecting column (43) fixedly connected with the inner wall of the drying box (1).
