Abstract
The utility model discloses an edible mushroom processing baking equipment, including make supporting mechanism, actuating mechanism, sterilamp, hold mechanism, circulation mechanism, storing within a definite time, window of taking a breath, chamber door that the device installation is more firm, supporting mechanism's inside is provided with actuating mechanism, the actuating mechanism below is provided with sterilamp, the sterilamp below is provided with hold the mechanism, the supporting mechanism below is provided with between the storing, supporting mechanism's top is provided with the window of taking a breath, supporting mechanism's front portion is provided with the chamber door. The utility model discloses a setting up the removal that actuating mechanism drove the shovel board, making the domestic fungus can receive to turn so that it is heated evenly by the in-process of baking, through setting up circulation mechanism, can take the heat vapor in the area that gives out after the domestic fungus is baked out to be taken out by the air exhauster, arrange to the baking box outside and heat the baking box after further heating in the hot bin again to the energy can be saved.
Description
Technical Field
The utility model belongs to the technical field of edible mushroom production and processing equipment technique and specifically relates to an edible mushroom processing and baking device.
Background
Edible fungi refer to large-scale fungi which can be eaten by human beings, are high-quality delicious foods which are high in protein, low in fat and rich in vitamins, mineral substances and dietary fibers, and are recommended by the United nations as ideal healthy foods in the 21 st century.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing an edible mushroom processing baking device to propose present baking device simple structure in solving above-mentioned background, can't stir edible mushroom when baking edible mushroom, so that can't make it bake thoroughly, thereby influence the effect of baking, in addition because present baking device can't collect the discharged heat behind the dehumidification of baking, the problem of unable energy saving.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides an edible mushroom processing baking device, includes that messenger's device installation is more firm supporting mechanism, actuating mechanism, sterilamp, holds mechanism, circulation mechanism, storing room, ventilation window, chamber door, blast pipe, one side of supporting mechanism is provided with the blast pipe, the inside of supporting mechanism is provided with actuating mechanism, the actuating mechanism below is provided with the sterilamp, the sterilamp below is provided with hold the mechanism, the supporting mechanism below is provided with between the storing, the top of supporting mechanism is provided with the ventilation window, the front portion of supporting mechanism is provided with the chamber door still includes the thermal circulation mechanism of cyclic utilization device self, circulation mechanism set up in the supporting mechanism is kept away from one side of blast pipe.
Preferably, the supporting mechanism comprises a shell, a supporting column, an anti-slip pad, a baking box and a workbench, wherein the shell is arranged above the workbench, the baking box is arranged inside the shell, the supporting column is arranged below the workbench, and the anti-slip pad is arranged below the supporting column.
Preferably, actuating mechanism includes motor, mount pad, pivot, threaded rod, gag lever post, first slider, connecting rod, mounting panel, shovel board, one side of supporting mechanism is provided with the mount pad, the mount pad top is provided with the motor, the output of motor is provided with the pivot, the tip of pivot is provided with the threaded rod, the threaded rod top is provided with the gag lever post, be provided with on the threaded rod first slider, first slider below is provided with the connecting rod, the lower extreme of connecting rod is provided with the mounting panel, the mounting panel below is provided with the shovel board.
Preferably, actuating mechanism includes gag lever post, second slider, connecting rod, mounting panel, shovel board, second slider, connecting block, cylinder, fixed plate, the gag lever post set up in inside the supporting mechanism, be provided with on the gag lever post the second slider, second slider below is provided with the connecting rod, the connecting rod below is provided with the mounting panel, the mounting panel below is provided with the shovel board, one side of connecting block is provided with the cylinder, the tip of cylinder is provided with the fixed plate.
Preferably, the containing mechanism comprises a containing plate, a heating plate, guide pillars, guide sleeves and hydraulic cylinders, the containing plate is arranged below the driving mechanism, the heating plate is arranged inside the containing plate, the hydraulic cylinders are arranged at the bottom of the containing plate, the guide sleeves are arranged at four corners of the bottom of the containing plate, and the guide pillars are arranged in the guide sleeves.
Preferably, circulation mechanism includes first gas-supply pipe, air exhauster, heated warehouses, heater strip, second gas-supply pipe, the air exhauster set up in one side of supporting mechanism, the upper end of air exhauster is provided with first gas-supply pipe, the air exhauster lower extreme is provided with the heated warehouses, be provided with in the heated warehouses the heater strip, the lower extreme of heated warehouses is provided with the second gas-supply pipe.
The utility model provides a technical scheme can include following beneficial effect:
1. the driving mechanism is arranged to drive the shovel plate to move, so that the edible fungi can be turned over in the baking process so as to be heated uniformly, and the uniform baking effect is ensured.
2. Through setting up circulation mechanism, can take out the steam of taking the heat that gives off after edible mushroom is baked by the air exhauster, arrange to the baking box outside and heat the baking box after further heating through the heating bunker to the energy can be saved.
Drawings
The accompanying drawings, which are incorporated in and constitute a part of this specification, illustrate embodiments consistent with the present application and together with the description, serve to explain the principles of the application.
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive exercise.

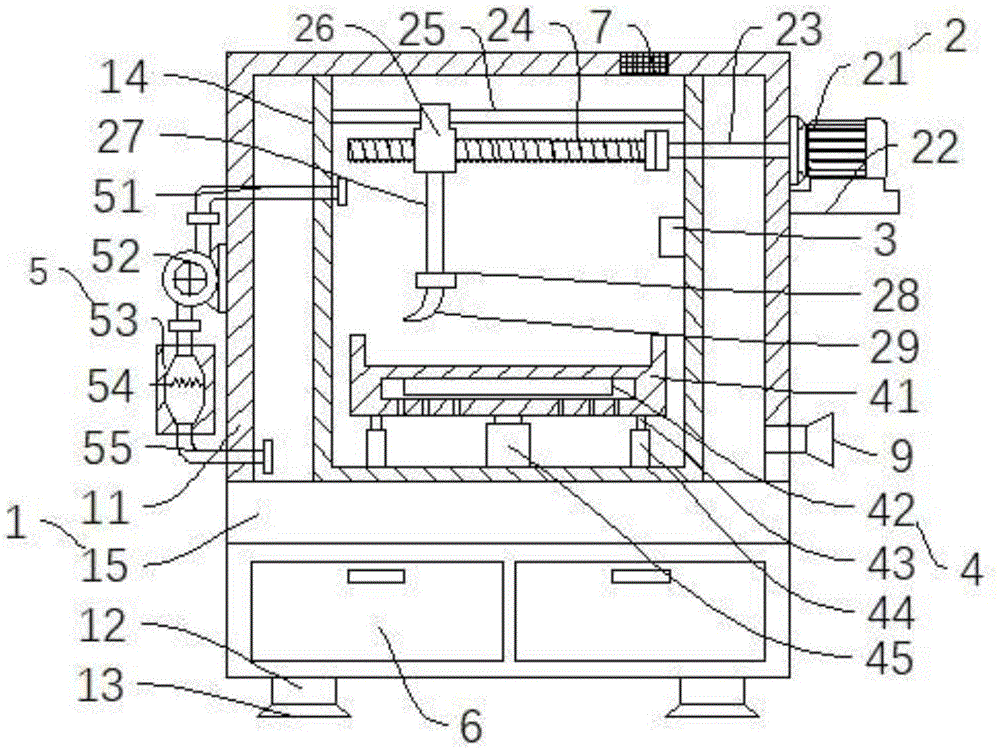

Fig. 1 is a schematic view of the internal structure of a first embodiment of the present invention;
fig. 2 is a front view of a first embodiment of the present invention;
fig. 3 is a right side view of the first embodiment of the present invention;
fig. 4 is a front view of a blade according to a first embodiment of the present invention;
fig. 5 is a schematic view of the internal structure of the second embodiment of the present invention.
In the figure: 1. a support mechanism; 11. a housing; 12. a pillar; 13. a non-slip mat; 14. baking box; 15. a work table; 2. a drive mechanism; 21. a motor; 22. a mounting seat; 23. a rotating shaft; 24. a threaded rod; 25. a limiting rod; 26. a first slider; 27. a connecting rod; 28. mounting a plate; 29. a shovel plate; 201. a second slider; 202. connecting blocks; 203. a cylinder; 204. a fixing plate; 3. an ultraviolet germicidal lamp; 4. a containing mechanism; 41. a holding plate; 42. heating plates; 43. a guide post; 44. a guide sleeve; 45. a hydraulic cylinder; 5. a circulating mechanism; 51. a first gas delivery pipe; 52. an exhaust fan; 53. a heating chamber; 54. heating wires; 55. a second gas delivery pipe; 6. a storage room; 7. a ventilation window; 8. a box door; 9. and (4) exhausting the gas.
Detailed Description
Hereinafter, embodiments will be described with reference to the drawings. The embodiments described below do not limit the scope of the invention described in the claims. Further, the entire contents of the configurations shown in the following embodiments are not limited to those necessary as a solution of the invention described in the claims.
Example 1
As shown in fig. 1, 2, 3 and 4, an edible mushroom processing and baking device comprises a supporting mechanism 1, a driving mechanism 2, an ultraviolet germicidal lamp 3, a containing mechanism 4, a circulating mechanism 5, a storage chamber 6, a ventilating window 7, a box door 8, an exhaust pipe 9 and a circulating mechanism 5 for recycling the heat of the device, wherein the supporting mechanism 1 comprises a shell 11, a pillar 12, an anti-slip pad 13, a baking box 14 and a workbench 15, the shell 11 is fixed above the workbench 15 through screws, the ventilating window 7 is arranged at the top of the shell 11, a dust screen is arranged inside the ventilating window 7 and used for preventing external dust from entering the baking box 14, the shell 11 is fixedly connected with the exhaust pipe 9 through screws, the baking box 14 is fixedly connected with the workbench 15 through screws, the baking box 14 is fixedly connected with the ultraviolet germicidal lamp 3 through screws, the box door 8 is hinged with the baking box 14, the storage room 6 is fixedly connected with the workbench 15 through screws, the storage room 6 is arranged for placing edible fungi to be processed or edible fungi which are processed, the support post 12 is fixedly connected with the storage room 6 through screws, the anti-skid pad 13 is connected with the support post 12 in an adhering manner, the anti-skid pad 13 is made of rubber, so that the device can be placed more stably, and meanwhile, the noise of the device I in operation is reduced, the driving mechanism 2 comprises a motor 21, a mounting seat 22, a rotating shaft 23, a threaded rod 24, a limiting rod 25, a first sliding block 26, a connecting rod 27, a mounting plate 28 and a shovel plate 29, the mounting seat 22 is fixedly connected with the shell 11 through screws, the motor 21 is fixed above the mounting seat 22 through screws, the output end of the motor 21 is provided with the rotating shaft 23, the rotating shaft 23 is connected with the threaded rod 24 through a coupler, the limiting rod 25 is fixedly connected with the baking box 14 through screws, and, the first sliding block 26 is connected with the limiting rod 25 in a sliding manner, the first sliding block 26 is used for guiding the movement of the first sliding block 26, the first sliding block 26 is fixedly connected with the connecting rod 27 through screws, the connecting rod 27 is fixedly connected with the mounting plate 28 through screws, the mounting plate 28 is fixedly connected with the shovel plate 29 through screws, the containing mechanism 4 comprises a containing plate 41, a heating plate 42, a guide pillar 43, a guide sleeve 44 and a hydraulic cylinder 45, the heating plate 42 is fixedly connected with the containing plate 41 through screws, heat dissipation holes are formed in the bottom of the heating plate 42 for keeping air pressure inside the containing plate 41 balanced, the containing plate 41 is fixedly connected with the hydraulic cylinder 45 through screws, the containing plate 41 is fixedly connected with the guide pillar 43 through screws, the guide pillar 43 is connected with the guide sleeve 44 in a sliding manner for keeping the containing plate 41 stable, and the circulating mechanism 5 comprises a first air pipe 51, an exhaust fan 52, a heating, The heating device comprises a heating wire 54 and a second air pipe 55, wherein the exhaust fan 52 is fixedly connected with the shell 11 through screws, the upper end of the exhaust fan 52 is communicated with the first air pipe 51, the lower end of the exhaust fan 52 is communicated with a heating bin 53, the heating wire 54 is fixedly arranged in the heating bin 53 through screws, and the lower end of the heating bin 53 is communicated with the second air pipe 55 for recycling self energy.
In the above structure: when the oven is used, firstly, the oven door 8 is opened, edible fungi to be baked are placed on the containing plate 41, then the hydraulic cylinder 45 is started to drive the containing plate 41 to move upwards until the shoveling plate 29 contacts the containing plate 41, the oven door 8 is closed, the heating plate 42 and the motor 21 are started simultaneously, the motor 21 drives the rotating shaft 23 and the threaded rod 24 to rotate, under the guiding action of the limiting rod 25, the sliding block drives the connecting rod 27 to move back and forth on the threaded rod 24, so that the shoveling plate 29 turns over and stirs the edible fungi to be uniformly heated, then the ultraviolet sterilizing lamp 3 is started to sterilize the environment in the baking oven 14, the exhaust fan 52 and the heating wire are started simultaneously, the exhaust fan 52 extracts water vapor in the baking oven 14, heats the water vapor through the heating wire 54 and then blows the water vapor into an interlayer between the shell 11 and the baking oven 14 through the second air conveying pipe 55, and heats the baking oven 14 so.
Example 2
As shown in fig. 5, the difference between embodiment 2 and embodiment 1 is that the motor 21, the mounting seat 22, the rotating shaft 23, the threaded rod 24, the limiting rod 25, the first slider 26, the connecting rod 27, the mounting plate 28, and the shovel plate 29 of embodiment 1 are replaced by the limiting rod 25, the second slider 201, the connecting rod 27, the mounting plate 28, the shovel plate 29, the second slider 201, the connecting block 202, the cylinder 203, and the fixing plate 204, when baking the edible fungi, the cylinder 203 is started to drive the connecting block 202 and the second slider 201 to move, and under the supporting and guiding effects of the limiting rod 25, the connecting block 202 drives the connecting rod 27 and the shovel plate 29 to simultaneously move to stir and turn the edible fungi, so that the edible fungi are uniformly heated, and the baking is ensured to be thorough.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
Claims (6)
1. The utility model provides an edible mushroom processing baking device, includes that the device installation is firm more supporting mechanism, actuating mechanism, sterilamp, holds mechanism, circulation mechanism, storing room, ventilation window, chamber door, blast pipe, one side of supporting mechanism is provided with the blast pipe, the inside of supporting mechanism is provided with actuating mechanism, the actuating mechanism below is provided with the sterilamp, the sterilamp below is provided with hold the mechanism, the supporting mechanism below is provided with between the storing, the top of supporting mechanism is provided with the ventilation window, the front portion of supporting mechanism is provided with the chamber door, its characterized in that: the circulating mechanism is arranged on one side of the supporting mechanism, which is far away from the exhaust pipe.
2. An edible fungus processing and baking apparatus according to claim 1, wherein: the supporting mechanism comprises a shell, a supporting column, an anti-slip pad, a baking box and a workbench, wherein the shell is arranged above the workbench, the baking box is arranged inside the shell, the supporting column is arranged below the workbench, and the anti-slip pad is arranged below the supporting column.
3. An edible fungus processing and baking apparatus according to claim 1, wherein: actuating mechanism includes motor, mount pad, pivot, threaded rod, gag lever post, first slider, connecting rod, mounting panel, shovel board, one side of supporting mechanism is provided with the mount pad, the mount pad top is provided with the motor, the output of motor is provided with the pivot, the tip of pivot is provided with the threaded rod, the threaded rod top is provided with the gag lever post, be provided with on the threaded rod first slider, first slider below is provided with the connecting rod, the lower extreme of connecting rod is provided with the mounting panel, the mounting panel below is provided with the shovel board.
4. An edible fungus processing and baking apparatus according to claim 1, wherein: actuating mechanism includes gag lever post, second slider, connecting rod, mounting panel, shovel board, second slider, connecting block, cylinder, fixed plate, the gag lever post set up in inside the supporting mechanism, be provided with on the gag lever post the second slider, second slider below is provided with the connecting rod, the connecting rod below is provided with the mounting panel, the mounting panel below is provided with the shovel board, one side of connecting block is provided with the cylinder, the tip of cylinder is provided with the fixed plate.
5. An edible fungus processing and baking apparatus according to claim 1, wherein: the containing mechanism comprises a containing plate, a heating plate, guide columns, guide sleeves and a hydraulic cylinder, wherein the containing plate is arranged below the driving mechanism, the heating plate is arranged inside the containing plate, the hydraulic cylinder is arranged at the bottom of the containing plate, the guide sleeves are arranged at four corners of the bottom of the containing plate, and the guide columns are arranged in the guide sleeves.
6. An edible fungus processing and baking apparatus according to claim 1, wherein: circulation mechanism includes first gas-supply pipe, air exhauster, heated warehouses, heater strip, second gas-supply pipe, the air exhauster set up in one side of supporting mechanism, the upper end of air exhauster is provided with first gas-supply pipe, the air exhauster lower extreme is provided with the heated warehouses, be provided with in the heated warehouses the heater strip, the lower extreme of heated warehouses is provided with the second gas-supply pipe.
