CN217265367U

CN217265367U - Sludge harmless treatment device

Info

Publication number: CN217265367U
Application number: CN202220025494.9U
Authority: CN
Inventors: 吴小强
Original assignee: Shenzhen Zhongxing Environmental Protection Technology Co ltd
Current assignee: Shenzhen Zhongxing Environmental Protection Technology Co ltd
Priority date: 2022-01-06
Filing date: 2022-01-06
Publication date: 2022-08-23
Anticipated expiration: 2032-01-06

Abstract

The utility model discloses a silt innocent treatment device relates to silt processing technology field, including handling the case, still include: the filter pressing plate is arranged above the inside of the treatment box, the mounting rod is arranged above the filter pressing plate, and the filter plate is arranged below the filter pressing plate; the filter pressing mechanism is arranged above the pressing wheel plate and comprises a rotating rod, one end of the rotating rod is rotatably connected with the pressing roller, one side of the bottom of the mounting rod is rotatably connected with a driving bevel gear, the mounting rods on the two sides of the driving bevel gear are rotatably connected with a driving wheel, the driving wheel is in transmission connection with the driving bevel gear, one side of the driving wheel is fixedly connected with a fixed shaft, one end of the fixed shaft is hinged with a transmission rod, and one side of the transmission rod is hinged with the rotating rod; the purification mechanism arranged below the filter pressing plate comprises a filter plate, a transmission case is fixedly connected to the filter plate, a transmission assembly is arranged in the transmission case, a driving column is arranged on the filter plate in a rotating mode, and guide plates are fixedly connected to the inner wall of the treatment case on two sides of the stirring rod.

Description

Sludge harmless treatment device

Technical Field

The utility model relates to a silt processing technology field specifically is a silt innocent treatment device.

Background

Along with the rapid development of Chinese urbanization, a large number of black and odorous rivers and lakes need to be treated urgently, the treatment of the black and odorous rivers and lakes is mainly carried out on sludge, and the river and lake sludge has the characteristics of high hydrophilicity, high water content, high organic matter content, low permeability, large volume, different degrees of pollutants and garbage impurities and the like, so that the treatment and disposal difficulty in engineering is large, secondary pollution is easy to occur, and therefore the river and lake sludge needs to be treated in a standard mode, and the river and lake sludge harmless treatment and disposal device is provided.

Traditional processing apparatus is when handling, generally all filters back with mud and discharges, handles comparatively roughly, and the tiny metallic impurity that contains in the silt can not thoroughly be handled, and the while can not be fine carries out disinfection treatment to silt, and the practicality is not high.

SUMMERY OF THE UTILITY MODEL

The utility model provides a silt innocent treatment device has solved the problem that goes out among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

the utility model provides a silt innocent treatment device, includes the processing case, still includes:

the filter pressing plate is arranged above the inside of the treatment box, the mounting rod is arranged above the filter pressing plate, and the filter plate is arranged below the filter pressing plate;

the filter pressing mechanism is arranged above the pressing wheel plate and comprises a rotating rod, one end of the rotating rod is rotatably connected with the pressing roller, one side of the bottom of the mounting rod is rotatably connected with a driving bevel gear, the mounting rods on the two sides of the driving bevel gear are rotatably connected with a driving wheel, the driving wheel is in transmission connection with the driving bevel gear, one side of the driving wheel is fixedly connected with a fixed shaft, one end of the fixed shaft is hinged with a transmission rod, and one side of the transmission rod is hinged with the rotating rod;

the purification mechanism comprises a filter plate, a transmission case is fixedly connected to the filter plate, a transmission assembly is arranged in the transmission case, a driving column is arranged on the filter plate in a rotating and penetrating mode, a piston cylinder is arranged at the bottom end of the driving column in a sliding sleeved mode, stirring rods are fixedly connected to the two sides of the piston cylinder, the transmission assembly drives the stirring rods on the piston cylinder to stir up and down, the stirring rods are fixedly connected to the driving column above the transmission case, and a guide plate is fixedly connected to the inner wall of the treatment case and located on the two sides of the stirring rods.

As a preferred technical scheme of the utility model, drive assembly includes linkage bevel gear, and the fixed cover of linkage bevel gear connects on the drive post, the drive box roof fixed connection locating piece of linkage bevel gear both sides, locating piece one side are rotated and are connected driven bevel gear.

As a preferred technical scheme of the utility model, driven bevel gear's pivot axial one side fixed connection cam, the filter bottom of cam below slides and runs through and set up the telescopic link, and the telescopic link is T shape structure, the elastic component is established to the telescopic link upper end cover, telescopic link bottom and piston cylinder movable contact.

As a preferred technical scheme of the utility model, the filter-pressing board is passed to drive post upper end, and top fixed connection transmission bevel gear, transmission bevel gear with drive bevel gear meshing transmission and be connected, the processing roof wall fixed connection shower nozzle of installation pole both sides.

As an optimal technical scheme of the utility model, installation pole one side fixed connection driving motor, the transmission is connected between driving motor's output shaft and the pivot of driving bevel gear.

The utility model discloses has following useful part: when in use, sludge to be treated is put into the treatment box through the feeding pipe, then the driving motor is started to drive the bevel gear to rotate, and further drive the driving wheel to rotate, the rotating rod is driven to swing under the action of the transmission rod on one side of the fixed shaft, under the action of the compression roller, the sludge passes through the filter plate, some large-particle impurities such as plastic metal and the like are filtered, the sludge is subjected to diversion treatment by the guide plate in the falling process and flows through the stirring rod, the sludge is stirred while being stirred, the adsorption and impurity removal of fine-particle metal are realized under the action of the stirring magnet, meanwhile, under the action of the spray pipe, the sludge is diluted, the sludge impurities after the stirring and impurity removal flow into the bottom of the treatment box through the filter plate, under the action of the linkage bevel gear and the driven bevel gear, the cam is driven to rotate, the telescopic rod is driven to move up and down under the action of the elastic piece, and then drive the puddler on the piston cylinder and reciprocate the stirring, mix silt and the purifying agent that adds, realize the purification stirring of silt, then discharge from the bin outlet, the device operation is used conveniently on the whole, and the practicality is high, and the purification treatment is more thorough, and the practicality is higher.

Drawings

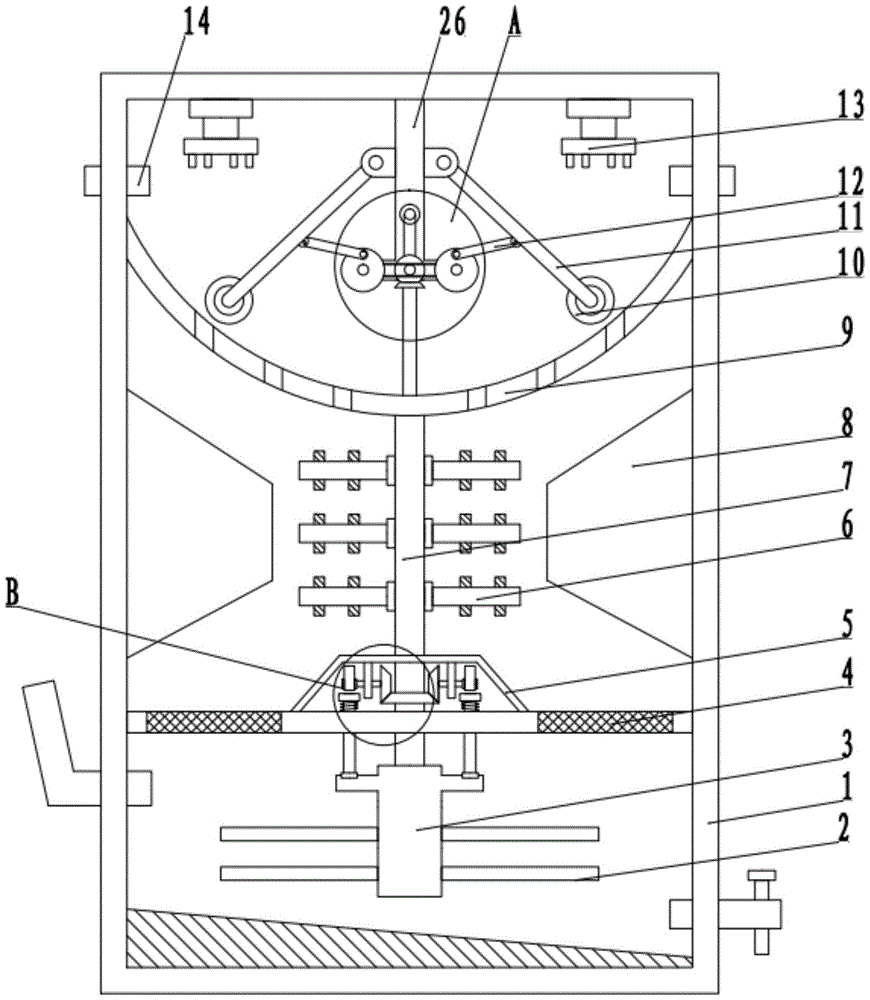

FIG. 1 is a schematic structural view of a main body of a sludge innocent treatment apparatus.

Fig. 2 is an enlarged schematic view of a in fig. 1.

Fig. 3 is an enlarged structural diagram of B in fig. 2.

FIG. 4 is a schematic view of a driving wheel in the sludge innocent treatment device.

In the figure: 1. a treatment tank; 2. a stirring rod; 3. a piston cylinder; 4. a filter plate; 5. a transmission case; 6. stirring blades; 7. a drive column; 8. a baffle; 9. pressing the filter plate; 10. a compression roller; 11. rotating the rod; 12. a transmission rod; 13. a spray head; 14. a feed pipe; 15. a drive motor; 16. a drive bevel gear; 17. a driving wheel; 18. a drive bevel gear; 19. linkage bevel gear; 20. a driven bevel gear; 21. positioning a block; 22. a cam; 23. a telescopic rod; 24. an elastic member; 25. a fixed shaft; 26. and (5) installing a rod.

Detailed Description

The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.

It should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc. indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of describing the present invention and simplifying the description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention.

Examples

Referring to fig. 1-4, a sludge innocent treatment device comprises a treatment tank 1, and further comprises:

the filter pressing plate 9 is fixedly arranged above the inside of the treatment box 1, the mounting rod 26 is arranged above the filter pressing plate 9, the top of the mounting rod 26 is fixedly connected with the top wall of the treatment box 1, the filter plate 4 is arranged below the filter pressing plate 9, and two sides of the filter plate 4 are fixedly connected with the inner wall of the treatment box 1;

the filter pressing mechanism is arranged above the pressure roller plate and comprises a rotating rod 11, one side of the rotating rod 11 is hinged with the side wall of an installation rod 26, one end of the rotating rod 11 is rotatably connected with a pressure roller 10, the pressure roller 10 is contacted with the pressure roller plate 9, one side of the bottom of the installation rod 26 is rotatably connected with a driving bevel gear 16, the installation rod 26 at two sides of the driving bevel gear 16 is rotatably connected with a driving wheel 17, the driving wheel 17 is in transmission connection with the driving bevel gear 16 through a belt, one side of the driving wheel 17 is fixedly connected with a fixed shaft 25, one end of the fixed shaft 25 is hinged with a transmission rod 12, and one side of the transmission rod 12 is hinged with the rotating rod 11;

set up in purification mechanism of filter-pressing board 9 below, including

filter

4, 4 both sides of filter and 1 inner wall fixed connection of processing case, fixed connection transmission case 5 is gone up to filter 4, sets up drive assembly in the transmission case 5, rotate on the filter 4 and run through and set up

drive post

7, and 7 bottom slip caps of drive post establish

piston cylinder

3, 3 both sides fixed connection puddler 2 of piston cylinder, drive assembly drives puddler 2 on the piston cylinder 3 and reciprocates the stirring, fixed connection stirring leaf 6 is gone up to the drive post 7 of 5 tops of transmission case, the 1 inner wall fixed connection guide plate 8 of processing case of stirring leaf 6 both sides.

The transmission assembly comprises a linkage bevel gear 19, the linkage bevel gear 19 is fixedly sleeved on the driving column 7, the top walls of the transmission boxes 5 at two sides of the linkage bevel gear 19 are fixedly connected with a positioning block 21, one side of the positioning block 21 is rotatably connected with a driven bevel gear 20, and the driven bevel gear 20 is in meshing transmission connection with the linkage bevel gear 19.

The axial one side fixed connection cam 22 of driven bevel gear 20's pivot, the filter 4 bottom of cam 22 below slides and runs through and sets up telescopic link 23, and telescopic link 23 is T shape structure, elastic component 24 is established to telescopic link 23 upper end cover, telescopic link 23 bottom and 3 swing joint of piston cylinder.

The upper end of the driving column 7 penetrates through the filter pressing plate 9, the top of the driving column is fixedly connected with a transmission bevel gear 18, the transmission bevel gear 18 is in meshed transmission connection with a driving bevel gear 16, the top walls of the treatment boxes 1 on two sides of the installation rod 26 are fixedly connected with the spray heads 13, one side of the installation rod 26 is fixedly connected with a driving motor 15, and the output shaft of the driving motor 15 is in transmission connection with the rotating shaft of the driving bevel gear 16 through a belt.

In the implementation process of the utility model, when in use, the sludge to be treated is put into the treatment box 1 through the feeding pipe 14, then the driving motor 15 is started to drive the bevel gear 16 to rotate, further the driving wheel 17 is driven to rotate, the rotating rod 11 is driven to swing under the action of the transmission rod 12 on one side of the fixed shaft 25, under the action of the compression roller 10, the filter pressing of the sludge is realized, the sludge passes through the filter plate 4, some large-particle impurities such as plastic metal are filtered, the sludge is subjected to the flow guide treatment by the flow guide plate 8 in the falling process, flows through the stirring rod 2, the sludge is stirred, the adsorption and impurity removal of the metal with fine particles are realized under the action of the magnet on stirring, simultaneously, under the action of the spraying pipe, the sludge is diluted, the sludge impurities after the stirring impurity removal flow into the bottom of the treatment box 1 through the filter plate 4, under the action of the linkage bevel gear 19 and the driven bevel gear 20, drive cam 22 and rotate, drive telescopic link 23 removal from top to bottom under the effect of elastic component 24, and then drive puddler 2 on the piston cylinder 3 and reciprocate the stirring, mix silt and the purifying agent that adds, realize the purification stirring of silt, then discharge from the bin outlet, the device operation is convenient on the whole, and the practicality is high, more thorough of purification treatment, the practicality is higher.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a silt innocent treatment device, includes the processing case, its characterized in that still includes:

the purification mechanism comprises a filter plate, a transmission case is fixedly connected to the filter plate, a transmission assembly is arranged in the transmission case, a driving column is arranged on the filter plate in a rotating and penetrating mode, a piston cylinder is arranged at the bottom end of the driving column in a sliding sleeved mode, stirring rods are fixedly connected to the two sides of the piston cylinder, the transmission assembly drives the stirring rods on the piston cylinder to stir up and down, stirring blades are fixedly connected to the driving column above the transmission case, and guide plates are fixedly connected to the inner wall of a treatment case on the two sides of the stirring blades.

2. The sludge innocent treatment device according to claim 1, wherein the transmission assembly comprises a linkage bevel gear, the linkage bevel gear is fixedly sleeved on the driving column, top walls of transmission boxes on two sides of the linkage bevel gear are fixedly connected with a positioning block, and one side of the positioning block is rotatably connected with a driven bevel gear.

3. The innocent treatment device for sludge according to claim 2, wherein the rotating shaft of the driven bevel gear is fixedly connected with a cam to one side, a telescopic rod is slidably arranged at the bottom of the filter plate below the cam in a penetrating manner, the telescopic rod is of a T-shaped structure, an elastic piece is sleeved at the upper end of the telescopic rod, and the bottom of the telescopic rod is movably contacted with the piston cylinder.

4. The innocent treatment device of sludge according to claim 3, wherein the upper end of the driving column penetrates through the filter pressing plate, the top of the driving column is fixedly connected with a transmission bevel gear, the transmission bevel gear is in meshing transmission connection with the driving bevel gear, and the top walls of the treatment tanks at two sides of the mounting rod are fixedly connected with the spray heads.

5. The harmless treatment device for the sludge as claimed in claim 4, wherein one side of the mounting rod is fixedly connected with a driving motor, and an output shaft of the driving motor is in transmission connection with a rotating shaft of the driving bevel gear.
