The utility model discloses a hand dry cleaning disinfection device for outpatient service nursing, which relates to the technical field of dry cleaning disinfection, and comprises a base and a cylindrical rod fixedly arranged on the base, wherein a lifting adjusting mechanism is arranged on the cylindrical rod, a disinfection mechanism is arranged on the lifting adjusting mechanism, the lifting adjusting mechanism comprises grooves respectively arranged at the top end and the bottom end of the cylindrical rod, gears are respectively and rotatably connected in the two grooves, the two gears are connected through chain transmission, and the side wall of the cylindrical rod is fixedly connected with a motor. And can not be completely sterilized.
Description
Technical Field
The utility model relates to a dry-cleaning disinfection technical field especially relates to a hand dry cleaning degassing unit is used in outpatient service nursing.
Background
Hygiene is a generic term for hand washing, hand sanitization and surgical hand sanitization. Hand hygiene is a measure taken mainly against the risk of cross-infection of medical personnel during work and is an important means for nosocomial infection control. Through the hand health, can effectual reduction hospital infect, can assist the better supervision hand health work of hospital sense personnel through feeling the accuse workshop.
In order to prevent virus infection, medical personnel at outpatient service department need carry out hand disinfection processing, and among the prior art, the general fixed mounting of disinfection mechanism can not carry out height control on the wall body, can not adapt to different height medical personnel, because highly mismatch, probably the hand is inconvenient inserts completely to disinfection mechanism in to the disinfection is not thorough.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the problem that the disinfection mechanism in the prior art can not be adjusted in height to cause inconvenient use, and providing a hand dry cleaning and disinfection device for outpatient service nursing.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a clinical care is with hand dry cleaning degassing unit, includes base and the cylinder pole of fixed mounting on the base, be provided with lifting adjusting mechanism on the cylinder pole, the last disinfection mechanism that is provided with of lifting adjusting mechanism, lifting adjusting mechanism is including seting up the recess in cylinder pole top and bottom respectively, two all rotate in the recess and be connected with the gear, two connect through chain drive between the gear, the lateral wall fixedly connected with motor of cylinder pole, the output of motor runs through cylinder pole and one of them recess in proper order and extends to the inside of one of them recess, the motor extends to the inside output of one of them recess and one of them gear fixed connection.
The above technical solution further comprises:
the disinfection mechanism includes the box of fixed connection in chain one side, the box is hollow structure, just one side of box has uncovered, the equal fixedly connected with limiting plate in top both sides of base.
The two limiting plates are provided with sliding grooves, and the box body is connected between the two sliding grooves in a sliding mode.
The interior roof fixedly connected with liquid reserve tank of box, the fixed intercommunication in bottom of liquid reserve tank has the connecting pipe, fixedly connected with valve on the connecting pipe.
The water leakage plate is fixedly connected between two sides of the interior of the box body, and the bottom of the box body is slidably connected with a drawer box which is mutually communicated with the water leakage plate.
The inside one side fixedly connected with inductor of box, inductor and valve electric connection, the bottom of base is rotated and is connected with the gyro wheel.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses in, realize carrying out lift adjustment to disinfection mechanism through lift adjustment mechanism, and then medical personnel can go to adjust according to the height of oneself, and the comfort when increasing the use is highly for fixing of the disinfection mechanism of having solved among the prior art, can not satisfy every medical personnel's height to medical personnel's experience is felt relatively poor, and can not disinfect totally clean problem.
2. The utility model discloses in, box sliding connection is between two spouts, and two spouts realize carrying on spacingly to the box, make it can the steady motion, realize the direction function, and place the hand in suitable position in the box between the medical personnel during disinfection, dry cleaning agent automatic output realizes disinfection cleaning function.
Drawings

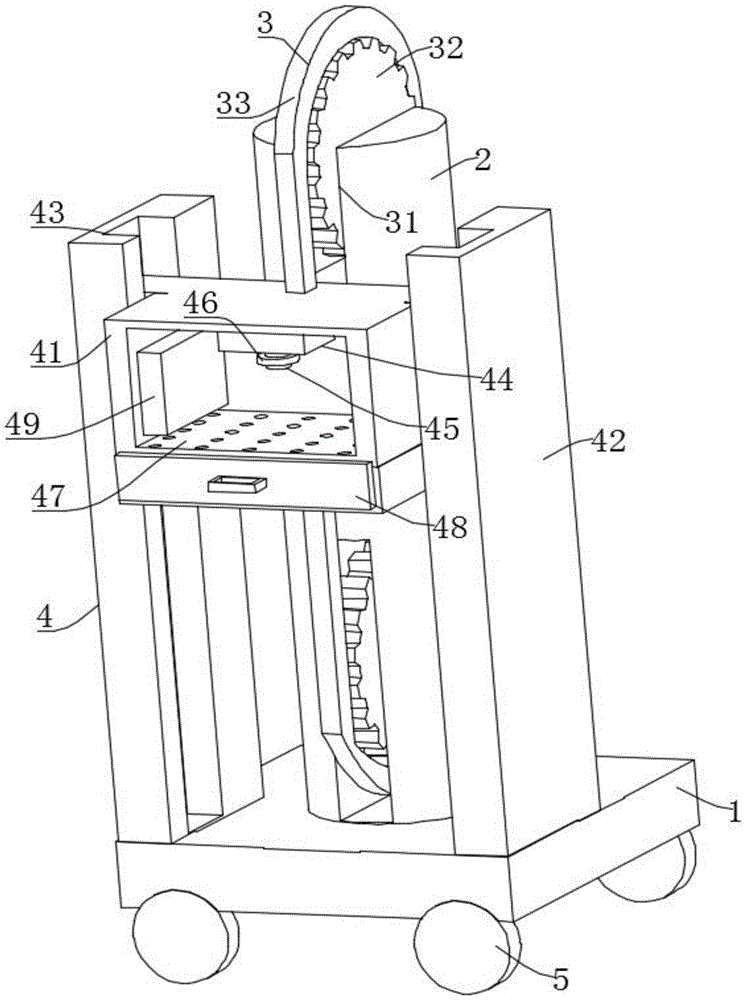

FIG. 1 is a schematic front view of a hand dry cleaning and disinfecting device for outpatient care according to the present invention;
FIG. 2 is a schematic side view of the hand dry cleaning and disinfecting device for outpatient nursing according to the present invention;
FIG. 3 is a schematic top view of the hand dry cleaning and disinfecting device for outpatient care according to the present invention;
fig. 4 is a schematic structural diagram of the drawer box according to the present invention.
In the figure: 1. a base; 2. a cylindrical rod; 3. a lifting adjusting mechanism; 31. a groove; 32. a gear; 33. a chain; 34. a motor; 4. a sterilizing mechanism; 41. a box body; 42. a limiting plate; 43. a chute; 44. a liquid storage tank; 45. a connecting pipe; 46. a valve; 47. a water leakage plate; 48. a drawer box; 49. an inductor; 5. and a roller.
Detailed Description
The technical solution of the present invention will be further explained with reference to the accompanying drawings and specific embodiments.
Example 1
As shown in figures 1-4, the utility model provides a hand dry cleaning disinfection device for outpatient service nursing, including base (1) and the cylinder pole (2) of fixed mounting on base (1), be provided with lifting adjusting mechanism (3) on cylinder pole (2), be provided with disinfection mechanism (4) on lifting adjusting mechanism (3), lifting adjusting mechanism (3) include respectively set up in the recess (31) of cylinder pole (2) top and bottom, both rotate in the recess (31) and be connected with gear (32), through chain (33) transmission connection between two gear (32), the lateral wall of cylinder pole (2) is fixedly connected with motor (34), the output of motor (34) runs through cylinder pole (2) and one of them recess (31) in proper order and extends to the inside of one of them recess (31), the output end of the motor (34) extending into one of the grooves (31) is fixedly connected with one of the gears (32);
in this embodiment, realize carrying out lifting control to disinfection mechanism 4 through lifting adjusting mechanism 3, and then medical personnel can go to adjust according to own height, increase the comfortable degree during the use, it is fixed to have solved disinfection mechanism 4's among the prior art highly, can not satisfy every medical personnel's height, so that medical personnel's experience is relatively poor, and can not disinfect totally clean problem, when carrying out the height control, starter motor 34, motor 34 can carry out just reverse rotation, motor 34 drives one of them gear 32 and rotates, gear 32 drives chain 33 and rotates, chain 33 drives another gear 32 and rotates, chain 33 drives box 41 up-and-down motion in the pivoted, and then drive disinfection mechanism 4 up-and-down motion, realize height adjustment, medical personnel can adjust to suitable height according to the height.
Example 2
As shown in fig. 1 and 4, based on embodiment 1, the sterilizing mechanism (4) includes a box body (41) fixedly connected to one side of a chain (33), the box body (41) is of a hollow structure, one side of the box body (41) is provided with an opening, and both sides of the top of the base (1) are fixedly connected with a limiting plate (42);
the two limiting plates (42) are respectively provided with a sliding chute (43), and the box body (41) is connected between the two sliding chutes (43) in a sliding manner;
a liquid storage tank (44) is fixedly connected to the inner top wall of the tank body (41), a connecting pipe (45) is fixedly communicated with the bottom of the liquid storage tank (44), and a valve (46) is fixedly connected to the connecting pipe (45);
a water leakage plate (47) is fixedly connected between two sides in the box body (41), and a drawer box (48) communicated with the water leakage plate (47) is connected to the bottom of the box body (41) in a sliding manner;
an inductor (49) is fixedly connected to one side inside the box body (41), the inductor (49) is electrically connected with the valve (46), and the bottom of the base (1) is rotatably connected with a roller (5);
in this embodiment, in the process of adjusting the height of the box body 41, the box body 41 is slidably connected between the two sliding grooves 43, and the two sliding grooves 43 limit the box body 41, so that the box body can stably move to realize a guiding function;
during disinfection, a medical worker places a hand in the box body 41 and enables the hand to be located under the connecting pipe 45, when the sensor 49 senses the hand of the medical worker, the sensor 49 transmits a signal to the valve 46, the valve 46 is opened, the dry cleaning agent in the liquid storage tank 44 flows out through the connecting pipe 45 and falls onto the hand of the medical worker, and the medical worker can realize disinfection and cleaning by rubbing;
the water leakage plate 47 is arranged, so that the dripping dry cleaning agent passes through the water leakage plate 47 and falls into the drawer box 48, and the drawer box 48 can be drawn out outwards, so that the collected dry cleaning agent can be poured out conveniently;
the setting up of gyro wheel 5 is convenient to remove whole device, and then the suitability is higher.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. A hand dry-cleaning disinfection device for outpatient nursing, which comprises a base (1) and a cylindrical rod (2) fixedly arranged on the base (1), it is characterized in that the cylindrical rod (2) is provided with a lifting adjusting mechanism (3), the lifting adjusting mechanism (3) is provided with a disinfecting mechanism (4), the lifting adjusting mechanism (3) comprises grooves (31) which are respectively arranged at the top end and the bottom end of the cylindrical rod (2), gears (32) are respectively connected in the two grooves (31) in a rotating way, the two gears (32) are in transmission connection through a chain (33), the side wall of the cylindrical rod (2) is fixedly connected with a motor (34), the output end of the motor (34) sequentially penetrates through the cylindrical rod (2) and one of the grooves (31) and extends into the inner part of one of the grooves (31), the output end of the motor (34) extending into one of the grooves (31) is fixedly connected with one of the gears (32).
2. The hand dry-cleaning disinfection device for outpatient care according to claim 1, wherein the disinfection mechanism (4) comprises a box body (41) fixedly connected to one side of the chain (33), the box body (41) is of a hollow structure, one side of the box body (41) is provided with an opening, and both sides of the top of the base (1) are fixedly connected with a limiting plate (42).
3. The hand dry-cleaning disinfection device for outpatient service according to claim 2, wherein the two limit plates (42) are provided with sliding grooves (43), and the box body (41) is slidably connected between the two sliding grooves (43).
4. The hand dry-cleaning disinfection device for outpatient nursing according to claim 3, wherein the inner top wall of the box body (41) is fixedly connected with a liquid storage tank (44), the bottom of the liquid storage tank (44) is fixedly communicated with a connecting pipe (45), and a valve (46) is fixedly connected on the connecting pipe (45).
5. The hand dry-cleaning disinfection apparatus for outpatient nursing according to claim 4, wherein a water leakage board (47) is fixedly connected between two sides of the inside of the box body (41), and a drawer box (48) which is mutually communicated with the water leakage board (47) is slidably connected to the bottom of the box body (41).
6. The hand dry cleaning and sterilizing device for the outpatient nursing according to claim 5, wherein a sensor (49) is fixedly connected to one side of the inside of the box body (41), the sensor (49) is electrically connected with the valve (46), and the bottom of the base (1) is rotatably connected with the roller (5).
