Abstract
The utility model discloses a high risk tumble risk patient induction system that gets off bed, install on the sick bed, including first installed part, second installed part and alarm device, the upper end of second installed part is equipped with the recess, the lower extreme of first installed part is equipped with the lug, lug and recess phase-match, be equipped with the spring between first installed part and the second installed part, alarm device includes first contact electrode piece, second contact electrode piece, audible alarm ware and alarm controller, the lower extreme at the lug is installed to first contact electrode piece, the tank bottom at the recess is installed to second contact electrode piece, first contact electrode piece and second contact electrode piece phase-match, first contact electrode piece and second contact electrode piece all pass through wire and alarm controller electric connection, audible alarm ware and alarm controller electric connection. The utility model provides a pair of high risk patient that tumbles induction system that gets off the bed, it can sense the action of getting off the bed of patient to in time report to the police and remind medical personnel or family members.
Description
Technical Field
The utility model belongs to medical treatment instrument field, concretely relates to high risk patient that tumbles induction system that gets off bed.
Background
At present, various hospitalized patients with serious or high falling risk can be continuously found in the process of hospital diagnosis and treatment, the part of the patients has certain mobility, the bed leaving rate during hospitalization is high, the falling situation is frequent, because medical staff are difficult to keep at the side of the patient bed all the time, a pager control switch corresponding to the patient bed is usually arranged on the wall close to the patient bed in the ward, so that the patients can call the medical staff to assist the bed leaving activity when leaving the bed, however, in the process of actual use, the patients rarely use the pager to call the medical staff to assist the bed leaving activity, the patients can leave the bed by themselves in most cases, when the patients leave the bed by themselves without accompanying people, the patients are easy to fall and hurt due to poor walking stability, the medical expenses are increased, and even the lives are seriously threatened, causing death.
SUMMERY OF THE UTILITY MODEL
For solving the technical prior art not enough, the utility model aims to provide a high risk patient that tumbles induction system that gets off bed.
In order to achieve the above purpose, the utility model provides a following technical scheme:
a high-risk falling risk patient bed falling induction device is installed on a sickbed and comprises a first installation part, a second installation part and an alarm device, wherein a groove is formed in the upper end of the second installation part, a lug is arranged at the lower end of the first installation part and matched with the groove, a spring is arranged between the first installation part and the second installation part and sleeved outside the lug, a supporting groove is formed in the upper end of the first installation part and used for being connected with bed legs of the sickbed, the alarm device comprises a first contact electrode plate, a second contact electrode plate, an audible alarm and an alarm controller, the first contact electrode plate is installed at the lower end of the lug, the second contact electrode plate is installed at the bottom of the groove and matched with the second contact electrode plate, and the first contact electrode plate and the second contact electrode plate are both electrically connected with the alarm controller through leads, the sound alarm is electrically connected with the alarm controller.
Preferably, alarm device includes display controller and warning lamp strip, warning lamp strip with display controller electric connection, display controller includes receiving antenna, alarm controller includes transmitting antenna, transmitting antenna with receiving antenna wireless connection.
Preferably, the alarm device comprises a main switch, and the main switch is electrically connected with the alarm controller through a lead.
Preferably, the main switch is installed at the lower end of the edge of the sickbed.
Preferably, the lower end of the second mounting part is provided with an anti-skid rubber pad.
The utility model discloses a high risk patient that tumbles induction system that gets off bed, its beneficial effect lies in, and it can sense whether the patient gets off the bed action by oneself to in time report to the police and remind medical personnel or family members to look after the patient gets off the bed, and reducible patient tumbles the risk of tumble injury, is favorable to protecting patient's safety.
Drawings
Fig. 1 is an installation diagram of a first embodiment of the present invention.

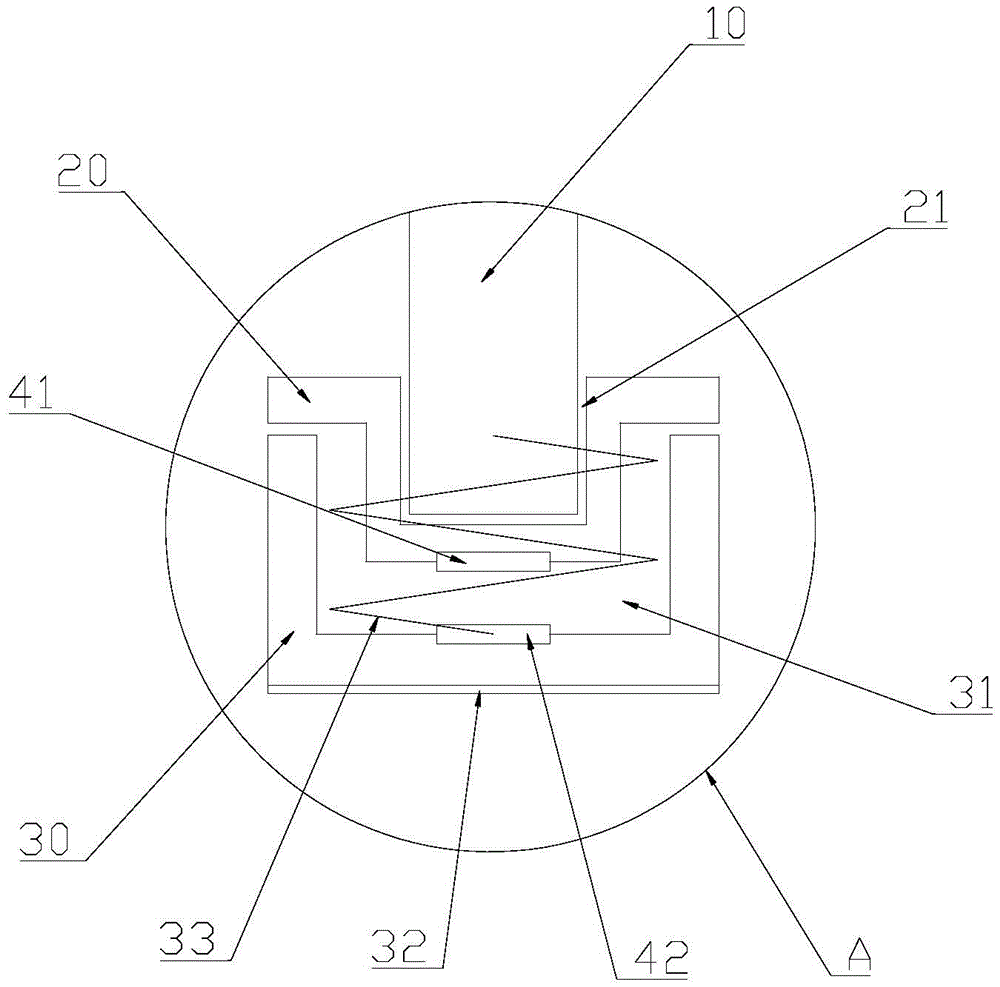

Fig. 2 is a schematic structural diagram of the first embodiment provided by the present invention.
Fig. 3 is a schematic block diagram of a first embodiment provided by the present invention.
Fig. 4 is a schematic block diagram of a second embodiment provided by the present invention.
The reference numerals include: 10. a hospital bed; 20. a first mounting member; 21. a support groove; 30. a second mount; 31. a groove; 32. an anti-skid rubber pad; 33. a spring; 40. an alarm controller; 41. a first contact electrode sheet; 42. a second contact electrode sheet; 43. a master switch; 44. an audible alarm; 45. a transmitting antenna; 50. A display controller; 51. a warning light bar; 52. and a receiving antenna.
Detailed Description
The utility model discloses a high risk patient that tumbles induction system that gets off bed combines preferred embodiment below, right the utility model discloses a detailed implementation does further description.
Referring to fig. 1-4 of the drawings, fig. 1 is an installation schematic diagram of a first embodiment provided by the present invention, fig. 2 is a structural schematic diagram of a first embodiment provided by the present invention, fig. 3 is a schematic block diagram of a first embodiment provided by the present invention, and fig. 4 is a schematic block diagram of a second embodiment provided by the present invention.
A first embodiment.
The embodiment provides a high-risk falling risk patient getting-off-bed sensing device, which is installed on a hospital bed 10 and comprises a first installation part 20, a second installation part 30 and an alarm device, wherein a groove 31 is formed in the upper end of the second installation part 30, a convex block is arranged at the lower end of the first installation part 20 and matched with the groove 31, a spring 33 is arranged between the first installation part 20 and the second installation part 30, the spring 33 is sleeved outside the convex block, a supporting groove 21 is formed in the upper end of the first installation part 20, the supporting groove 21 is used for being connected with a bed foot of the hospital bed 10, the alarm device comprises a first contact electrode plate 41, a second contact electrode plate 42, an audible alarm 44 and an alarm controller 40, the first contact electrode plate 41 is installed at the lower end of the convex block, the second contact electrode plate 42 is installed at the bottom of the groove 31, the first contact electrode plate 41 is matched with the second contact electrode plate 42, the first contact electrode plate 41 and the second contact electrode plate 42 are electrically connected to the alarm controller 40 through wires, and the sound alarm 44 is electrically connected to the alarm controller 40.
The alarm device comprises a main switch 43, and the main switch 43 is electrically connected with the alarm controller 40 through a lead. The main switch 43 is installed at the lower end of the edge of the hospital bed 10. The lower end of the second mounting member 30 is provided with a non-slip rubber pad 32.
The working principle is as follows: firstly, the high-risk fall risk patient getting-off sensing device is installed on the hospital bed 10, specifically, the bed legs of the hospital bed 10 are inserted into the supporting grooves 21 and fixed. The spring 33 is set according to the coefficient of the spring 33, when no person is on the hospital bed 10, the spring 33 can support the first mounting part 20 upwards, the first contact electrode plate 41 is not in contact with the second contact electrode plate 42, and the controller controls the sound alarm 44 to be powered on to make a sound, so that medical staff and family members can be reminded to look after patients. When a patient lies on the bed, the spring 33 is compressed downward due to the increased weight of the patient, the first mounting member 20 moves downward, the first contact electrode pad 41 and the second contact electrode pad 42 are in contact, and the controller controls the audible alarm 44 not to be sounded. Alternatively, when a light patient is present in the bed 10, the master switch 43 may be pressed, i.e. the alarm function is turned off. The anti-skid rubber pad 32 can increase the friction force and ensure that the sickbed 10 is more stable.
A second embodiment.
The embodiment provides a high-risk falling risk patient bed falling sensing device, which is mounted on a hospital bed 10 and comprises a first mounting part 20, a second mounting part 30 and an alarm device, wherein a groove 31 is formed in the upper end of the second mounting part 30, a convex block is formed in the lower end of the first mounting part 20 and matched with the groove 31, a spring 33 is arranged between the first mounting part 20 and the second mounting part 30, the spring 33 is sleeved outside the convex block, a support groove 21 is formed in the upper end of the first mounting part 20 and used for connecting bed legs of the hospital bed 10, the alarm device comprises a first contact electrode plate 41, a second contact electrode plate 42, an audible alarm 44 and an alarm controller 40, the first contact electrode plate 41 is mounted at the lower end of the convex block, the second contact electrode plate 42 is mounted at the bottom of the groove 31, the first contact electrode plate 41 is matched with the second contact electrode plate 42, the first contact electrode plate 41 and the second contact electrode plate 42 are electrically connected to the alarm controller 40 through wires, and the sound alarm 44 is electrically connected to the alarm controller 40.
Alarm device includes display controller 50 and warning lamp strip 51, warning lamp strip 51 with display controller 50 electric connection, display controller 50 includes receiving antenna 52, alarm controller 40 includes transmitting antenna 45, transmitting antenna 45 with receiving antenna 52 wireless connection.
The working principle is as follows: different from the above-mentioned first embodiment, this embodiment includes display controller 50 and warning light bar 51, display controller 50 and warning light bar 51 are installed in nurse's station, and when the patient left sick bed 10, display controller 50 received alarm controller 40's signal, control warning light bar 51 lights, can remind medical personnel to notice that there is the patient to leave sick bed 10, can avoid medical personnel to leave far away and not hear audible alarm 44's alarm sound, can in time look after the patient, ensure patient's safety.
It is worth mentioning, the utility model discloses technical characteristics such as alarm control ware and audible alarm that the patent application relates to should be regarded as prior art, and the concrete structure of these technical characteristics, theory of operation and the control mode that probably involves, spatial arrangement mode adopt in the field conventional selection can, should not be regarded as the utility model discloses a little place, the utility model discloses a do not further specifically expand the detailing.
It will be apparent to those skilled in the art that modifications and variations can be made in the above-described embodiments, or some features of the invention may be substituted or omitted, and any modification, substitution, or improvement made within the spirit and principle of the present invention shall fall within the protection scope of the present invention.
Claims (5)
1. The utility model provides a risk patient that high risk tumbles induction system that gets off bed, installs on the sick bed, its characterized in that: the medical bed comprises a first mounting part, a second mounting part and an alarm device, wherein a groove is formed in the upper end of the second mounting part, a convex block is arranged at the lower end of the first mounting part, the convex block is matched with the groove, a spring is arranged between the first mounting part and the second mounting part, the spring is sleeved outside the convex block, a supporting groove is formed in the upper end of the first mounting part and used for being connected with a bed leg of a hospital bed, the alarm device comprises a first contact electrode plate, a second contact electrode plate, an audible alarm and an alarm controller, the first contact electrode plate is arranged at the lower end of the convex block, the second contact electrode plate is arranged at the bottom of the groove, the first contact electrode plate is matched with the second contact electrode plate, and the first contact electrode plate and the second contact electrode plate are electrically connected with the alarm controller through wires, the sound alarm is electrically connected with the alarm controller.
2. The high risk fall risk patient bed exit sensing device of claim 1, wherein: alarm device includes display controller and warning lamp strip, warning lamp strip with display controller electric connection, display controller includes receiving antenna, alarm controller includes transmitting antenna, transmitting antenna with receiving antenna wireless connection.
3. The high risk fall risk patient bed exit sensing device of claim 1, wherein: the alarm device comprises a main switch, and the main switch is electrically connected with the alarm controller through a lead.
4. The high risk fall risk patient bed exit sensing device of claim 3, wherein: the main switch is arranged at the lower end of the edge of the sickbed.
5. The high risk fall risk patient bed exit sensing device of claim 1, wherein: and an anti-skid rubber pad is arranged at the lower end of the second mounting part.
