CN217185663U

CN217185663U - Wireless water boiling cup

Info

Publication number: CN217185663U
Application number: CN202220404745.4U
Authority: CN
Inventors: 梁雪强
Original assignee: Shaoguan Yixuan Construction Engineering Co ltd
Current assignee: Shaoguan Yixuan Construction Engineering Co ltd
Priority date: 2022-02-23
Filing date: 2022-02-23
Publication date: 2022-08-16
Anticipated expiration: 2032-02-23

Abstract

The utility model discloses a wireless water heating cup, which belongs to the technical field of water cups, and particularly relates to a wireless water heating cup, which comprises a cup body, wherein the upper end of the cup body is fixedly provided with a cup opening, the upper end thread of the cup opening is provided with a cup cover, the outer part of the cup body is fixedly provided with a cup shell, the lower side wall of the cup cover is contacted with the upper side wall of the cup shell, the outer part of the cup body is fixedly provided with an electric heating ring, the lower end of the inner part of the cup shell is fixedly provided with a lithium battery, the lower end of the electric heating ring is fixedly connected with the lithium battery, the lower end of the right side wall of the cup shell is fixedly provided with a charging opening, the front side wall of the cup shell is provided with a temperature display screen, the lower end of the temperature display screen is provided with a switch button, when hot water needs to be drunk in the travelling process, the electric heating ring is directly electrified through the lithium battery, so that the electric heating ring heats the drinking water in the inner part, convenient operation, can drink hot water at any time and any place, and is convenient to carry.

Description

Wireless water boiling cup

Technical Field

The utility model relates to a drinking cup technical field specifically is a wireless drinking cup that burns.

Background

With the improvement of living standard of people, tourism is more and more popularized, and more families choose to travel to relax mentally and physically after working and leisure, and drinking water is a basic problem in the process of tourism.

The drinking cup that uses at present can effectively keep warm in the short time after splendid attire water, but long-time back, the temperature descends, and the passenger drinks once more causes the health uncomfortable easily, consequently proposes a beaker and heats the drinking water at any time, but current beaker when using, must switch on the power supply carry out wired charging and just can heat, when the in-process of travelling in the field, hardly runs into the power and carries out wired charging, consequently proposes a wireless beaker.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a wireless boiling water cup to solve the present boiling water cup that proposes in the above-mentioned background art and can't carry out wireless boiling water, must just can use through connecting wire and switch-on, use very inconvenient problem in the in-process of outdoor tourism.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a wireless beaker, includes the cup, the fixed rim of a cup that is provided with in upper end of cup, the upper end screw thread of rim of a cup is provided with the bowl cover, the external fixation of cup is provided with the cup shell, the lower lateral wall of bowl cover with the last lateral wall contact of cup shell, the external fixation of cup is provided with the electric heating coil, the fixed lithium cell that is provided with of the inside lower extreme of cup shell, the lower extreme of electric heating coil with lithium cell fixed connection, the fixed mouth that charges that is provided with of right side wall lower extreme of cup shell, the preceding lateral wall of cup shell is provided with temperature display screen, temperature display screen's lower extreme is provided with shift knob.

Preferably, the inner wall of the cup shell is fixedly provided with a heat insulation layer.

Preferably, the charging port is electrically connected with the lithium battery through a connecting wire.

Preferably, the lower side wall of the cup shell is fixedly provided with a rubber anti-slip base.

Preferably, the cup shell and the cup cover are both made of aluminum alloy materials.

Compared with the prior art, the beneficial effects of the utility model are that:

through the inside at the cup shell setting lithium cell, when the in-process of tourism need drink hot water, directly switch on the electric heating coil through the lithium cell, make the electric heating coil exothermic and heat the drinking water of cup inside, convenient operation can drink hot water anytime and anywhere, conveniently carries.

Drawings

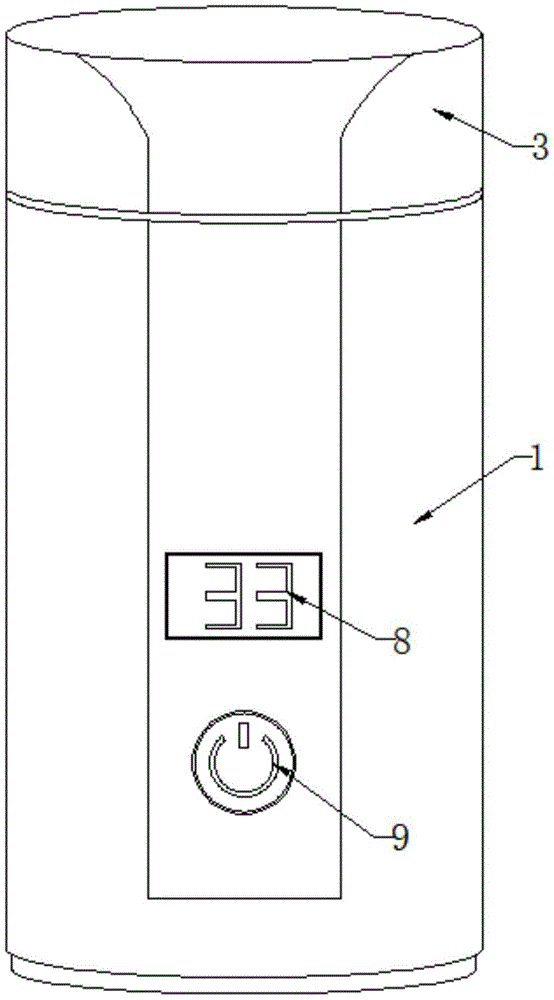

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is a schematic sectional structure view of fig. 1.

In the figure: 1 cup, 2 rim of a cup, 3 bowl covers, 4 cup shells, 5 electric heating coils, 6 lithium cells, 7 mouth, 8 temperature display screens, 9 shift knob, 10 heat preservation charge.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Example (b):

referring to fig. 1-2, the present invention provides a technical solution: the utility model provides a wireless beaker, which comprises a cup body 1, the fixed rim of a cup 2 that is provided with in upper end of cup 1, the upper end screw thread of rim of a cup 2 is provided with bowl cover 3, the external fixation of cup 1 is provided with cup shell 4, the lower lateral wall of bowl cover 3 contacts with the last lateral wall of cup shell 4, the external fixation of cup 1 is provided with electric heating coil 5, the fixed lithium cell 6 that is provided with of the lower extreme of cup shell 4 inside, the lower extreme and the lithium cell 6 fixed connection of electric heating coil 5, the fixed mouth 7 that charges that is provided with of the right side wall lower extreme of cup shell 4, the preceding lateral wall of cup shell 4 is provided with temperature display screen 8, temperature display screen 8's lower extreme is provided with shift knob 9.

The inner wall of the cup shell 4 is fixedly provided with a heat preservation layer 10, so that the heat preservation time of heated hot water can be prolonged.

The mouth 7 that charges passes through the connecting wire and lithium cell 6 electric connection, directly is full of lithium cell 6 electricity through the mouth 7 that charges before the travel, at the in-process of journey, if when needing to use the drinking cup, can realize wireless boiling water.

The lower side wall of the cup shell 4 is fixedly provided with a rubber anti-slip base, and in the using process, the friction force between the cup shell 4 and the placing table top is increased.

The cup shell 4 and the cup cover 3 are both made of aluminum alloy materials, so that the cup is not easy to damage and can increase heat preservation property.

The working principle is as follows: during the use, before the journey, be full of the electricity with lithium cell 6 through charging mouth 7, at the in-process of journey, when hot water is drunk to needs, directly start shift knob 9, control lithium cell 6 work, then heat the drinking water of 1 inside of cup through electric heating circle 5, easy operation, convenient to carry, the in-process of use can carry out wireless operation.

Having shown and described the basic principles and principal features of the invention and advantages thereof, it will be apparent to those skilled in the art that the invention is not limited to the details of the foregoing exemplary embodiments, but is capable of other specific forms without departing from the spirit or essential characteristics thereof; the present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein, and any reference signs in the claims are not intended to be construed as limiting the claim concerned.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A wireless water boiling cup comprises a cup body (1) and is characterized in that a cup opening (2) is fixedly arranged at the upper end of the cup body (1), a cup cover (3) is arranged at the upper end of the cup opening (2) in a threaded manner, a cup shell (4) is fixedly arranged outside the cup body (1), the lower side wall of the cup cover (3) is contacted with the upper side wall of the cup shell (4), an electric heating ring (5) is fixedly arranged outside the cup body (1), the lower end in the cup shell (4) is fixedly provided with a lithium battery (6), the lower end of the electric heating ring (5) is fixedly connected with the lithium battery (6), a charging port (7) is fixedly arranged at the lower end of the right side wall of the cup shell (4), the cup is characterized in that a temperature display screen (8) is arranged on the front side wall of the cup shell (4), and a switch button (9) is arranged at the lower end of the temperature display screen (8).

2. The wireless water boiling cup according to claim 1, wherein: and a heat-insulating layer (10) is fixedly arranged on the inner wall of the cup shell (4).

3. The wireless water boiling cup according to claim 1, wherein: the charging port (7) is electrically connected with the lithium battery (6) through a connecting line.

4. The wireless water boiling cup according to claim 1, wherein: the lower side wall of the cup shell (4) is fixedly provided with a rubber anti-slip base.

5. The wireless water boiling cup according to claim 1, wherein: the cup shell (4) and the cup cover (3) are both made of aluminum alloy materials.
