CN211748569U - Wireless portable heating thermos cup of intelligence - Google Patents
Wireless portable heating thermos cup of intelligence Download PDFInfo
- Publication number
- CN211748569U CN211748569U CN201922119235.3U CN201922119235U CN211748569U CN 211748569 U CN211748569 U CN 211748569U CN 201922119235 U CN201922119235 U CN 201922119235U CN 211748569 U CN211748569 U CN 211748569U
- Authority
- CN
- China
- Prior art keywords
- heating
- cup
- heating plate
- module
- heater
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Cookers (AREA)
Abstract
The utility model discloses a wireless portable heating thermos cup of intelligence, including cup, bottom of cup, heater, cup and heater fixed connection, the heater can be dismantled with the bottom of cup and be connected, the cup is equipped with the aqua storage body, the aqua storage body includes outer wall, inner bag, the inner bag is located the inside of outer wall, evacuation between inner bag and the outer wall, the heater includes metal heating plate, ceramic heating plate, the utility model discloses have the heat preservation heating function simultaneously, and support the USB power supply, just the utility model discloses be equipped with rechargeable battery, battery management circuit, carry out charge management to rechargeable battery through battery management circuit for when going out, make ceramic heating plate heat through the rechargeable battery power supply, consequently the utility model discloses support wireless heating, also can heat when going out to carry, application scope is wide.
Description
Technical Field
The utility model relates to a wireless portable heating thermos cup of intelligence.
Background
The existing vacuum cup only has a heat preservation function, is poor in heat preservation effect, cannot be wirelessly heated, is inconvenient to use, and cannot be heated at any time if water in the cup is cold when the cup is carried out, so that the existing vacuum cup is single in function.
SUMMERY OF THE UTILITY MODEL
The utility model aims at overcoming the not enough in the current product, provide a wireless portable heating thermos cup of intelligence.
In order to achieve the purpose, the utility model is realized by the following technical scheme:
the utility model provides a wireless portable heating thermos cup of intelligence, includes cup, bottom of cup, heater, cup and heater fixed connection, the heater can be dismantled with the bottom of cup and be connected, the cup is equipped with the aqua storage body, the aqua storage body includes outer wall, inner bag, the inner bag is located the inside of outer wall, evacuation between inner bag and the outer wall, the heater includes metal heating plate, ceramic heating plate, metal heating plate is equipped with first through-hole, ceramic heating plate is equipped with the second through-hole, metal heating plate fixes the bottom at the inner bag, metal heating plate is hugged closely to ceramic heating plate, the bottom of cup is equipped with heating control module, ceramic heating plate and heating control module electric connection, heating control module includes temperature sensor, controller, display screen, rechargeable battery, battery management circuit, USB power module, switch button, The temperature sensor sequentially penetrates through the first through hole and the second through hole to enable the temperature sensor to be tightly attached to the bottom of the inner container, the temperature sensor, the display screen, the battery management circuit, the USB power supply module, the switch key, the heating module and the USB charging and discharging module are electrically connected with the controller, and the battery management circuit is electrically connected with the rechargeable battery.
Preferably, the heating control module further comprises an electric quantity indicator light, and the electric quantity indicator light is electrically connected with the controller.
Preferably, the heating control module further comprises an under-voltage and over-current protection module, and the under-voltage and over-current protection module is electrically connected with the controller.
Preferably, the outer wall is made of 304 stainless steel.
Preferably, the inner container is made of 316 stainless steel.
Preferably, the display screen is provided with a key for switching the heating temperature and displaying the current temperature.
The utility model has the advantages as follows: the utility model discloses have the heating function that keeps warm simultaneously, and support the USB power supply, just the utility model discloses be equipped with rechargeable battery, battery management circuit, charge rechargeable battery through battery management circuit for when going out, make ceramic heating plate heat through the rechargeable battery power supply, consequently the utility model discloses support wireless heating, also can heat when going out to carry, application scope is wide.
Drawings

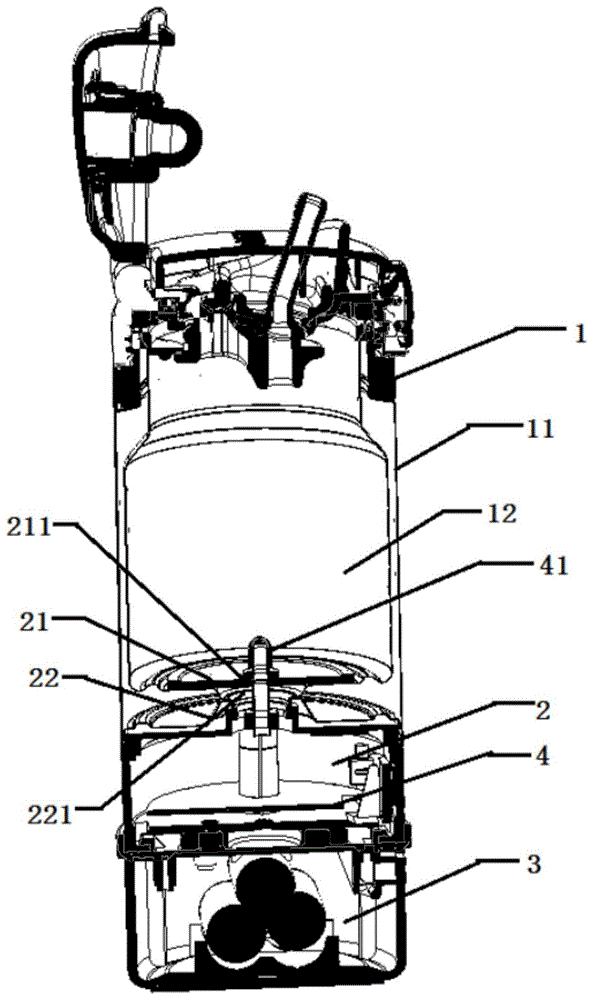

FIG. 1 is a schematic sectional view of the present invention;
fig. 2 is a schematic perspective view of the present invention;
fig. 3 is a module connection diagram of the present invention.
Detailed Description
The technical scheme of the utility model is further explained by combining the attached drawings of the specification:
as shown in fig. 1 to 3, an intelligent wireless portable heating vacuum cup comprises a cup body 1, a cup bottom 3 and a heater 2, the cup body 1 is fixedly connected with the heater 2, the heater 2 is detachably connected with the cup bottom 3, the cup body 1 is provided with a water storage body, the water storage body comprises an outer wall 11 and an inner container 12, the inner container 12 is located inside the outer wall 11, the inner container 12 and the outer wall 11 are vacuumized, the heater 2 comprises a metal heating plate 21 and a ceramic heating plate 22, the metal heating plate 21 is provided with a first through hole 211, the ceramic heating plate 22 is provided with a second through hole 221, the metal heating plate 21 is fixed at the bottom of the inner container 12, the ceramic heating plate 22 is tightly attached to the metal heating plate 21, the cup bottom 3 is provided with a heating control module 4, the ceramic heating plate 22 is electrically connected with the heating control module 4, the heating control module 4 comprises a temperature sensor 41 and a heater 2, The temperature sensor 41 sequentially penetrates through the first through hole 211 and the second through hole 221 to enable the temperature sensor 41 to be tightly attached to the bottom of the inner container 12, the temperature sensor 41, the display screen 42, the battery management circuit 46, the USB power supply module 49, the switch key 43, the heating module 51 and the USB charging and discharging module 50 are all electrically connected with the controller 44, and the battery management circuit 46 is electrically connected with the rechargeable battery 45.
As shown in fig. 3, the heating control module 4 further includes a power indicator 48, and the power indicator 48 is electrically connected to the controller 44. The heating control module 4 further includes an under-voltage and over-current protection module 47, and the under-voltage and over-current protection module 47 is electrically connected to the controller 44.
As shown in fig. 1 and 2, the outer wall 11 is made of 304 stainless steel. The inner container 12 is made of 316 stainless steel.
As shown in fig. 2, the display screen 42 is provided with a button for switching the heating temperature and displaying the current temperature. For example, the display screen 42 can be switched to 45 degrees, 65 degrees, 75 degrees, 85 degrees and 95 degrees, and when the temperature reaches the switching temperature, the ceramic heating plate 22 stops heating.
The heating principle is as follows: ceramic heating plate 22 and heating control module 4 electric connection, consequently heating control module 4 control ceramic heating plate 22 heats, then ceramic heating plate 22 passes the heat to metal heating plate, because metal heating plate 21 is fixed in the bottom of inner bag 12 for metal heating plate passes the heat to inner bag 12, thereby heats the water in the inner bag. The outer wall 11 is made of 304 stainless steel. The inner bag 12 adopts 316 stainless steel material, and evacuation between inner bag 12 and the outer wall 11, consequently the utility model discloses it is effectual to keep warm, is difficult to the heat dissipation.
The utility model discloses have the heating function that keeps warm simultaneously, and support the USB power supply, just the utility model discloses be equipped with rechargeable battery, battery management circuit, charge rechargeable battery through battery management circuit for when going out, make ceramic heating plate heat through the rechargeable battery power supply, consequently the utility model discloses support wireless heating, also can heat when going out to carry, application scope is wide.
It should be noted that the above list is only one specific embodiment of the present invention. Obviously, the present invention is not limited to the above embodiments, and many modifications can be made, and in short, all modifications that can be directly derived or suggested by the person skilled in the art from the disclosure of the present invention should be considered as the protection scope of the present invention.
Claims (6)
1. The utility model provides a wireless portable heating thermos cup of intelligence, its characterized in that, includes cup (1), bottom of cup (3), heater (2), cup (1) and heater (2) fixed connection, heater (2) can be dismantled with bottom of cup (3) and be connected, cup (1) is equipped with the water storage body, the water storage body includes outer wall (11), inner bag (12) are located the inside of outer wall (11), evacuation between inner bag (12) and outer wall (11), heater (2) include metal heating plate (21), ceramic heating plate (22), metal heating plate (21) are equipped with first through-hole (211), ceramic heating plate (22) are equipped with second through-hole (221), metal heating plate (21) are fixed in the bottom of inner bag (12), metal heating plate (21) are hugged closely to ceramic heating plate (22), the heating control module (4) is arranged at the cup bottom (3), the ceramic heating plate (22) is electrically connected with the heating control module (4), the heating control module (4) comprises a temperature sensor (41), a controller (44), a display screen (42), a rechargeable battery (45), a battery management circuit (46), a USB power supply module (49), a switch key (43), a heating module (51) and a USB charging and discharging module (50), the temperature sensor (41) is enabled to be tightly attached to the bottom of the inner container (12) after sequentially penetrating through a first through hole (211) and a second through hole (221), the temperature sensor (41), the display screen (42), the battery management circuit (46), the USB power supply module (49), the switch key (43), the heating module (51) and the USB charging and discharging module (50) are all electrically connected with the controller (44), the battery management circuit (46) is electrically connected with the rechargeable battery (45).
2. An intelligent wireless portable heated thermos cup according to claim 1 wherein the heating control module (4) further includes a power indicator (48), the power indicator (48) being electrically connected to the controller (44).
3. An intelligent wireless portable heating thermos cup according to claim 1, characterized in that the heating control module (4) further comprises an under-voltage and over-current protection module (47), the under-voltage and over-current protection module (47) being electrically connected with the controller (44).
4. An intelligent wireless portable heating thermos cup according to claim 1, characterized in that the outer wall (11) is made of 304 stainless steel.
5. An intelligent wireless portable heating thermos cup according to claim 1, characterized in that the inner container (12) is made of 316 stainless steel.
6. An intelligent wireless portable heating thermos cup according to claim 1, characterized in that the display screen (42) is provided with a button for switching the heating temperature and displaying the current temperature.
