The utility model provides a tool is got for on mould discharge machine fast. The base upper surface is equipped with the workstation, workstation and base sliding connection, and the workstation top is provided with the grip block, and the grip block cooperatees with the workstation and uses, be equipped with first gag lever post, push rod and second gag lever post, first gag lever post, second gag lever post in the workstation respectively with workstation fixed connection, and first gag lever post overlaps respectively with the second gag lever post surface and is equipped with first spring and second spring, first spring head and the tail both ends respectively with grip block, workstation fixed connection. The utility model discloses an add grip block and push rod to this device, make this device not only can be quick change the mould, can also carry out the centre gripping to the mould, make the mould can't freely remove to reduced the staff and need spent extra energy and go the position of control mould, through the aforesaid, the effectual flexibility that promotes this device, indirect staff's work efficiency that has promoted.
Description
Technical Field
The utility model relates to a tool technical field especially relates to a quick tool of getting of on mould discharge machine.
Background
The discharge machine is a processing method for processing materials by utilizing an electric corrosion phenomenon in pulse spark discharge between two electrodes (a tool electrode and a workpiece electrode) in a certain medium so as to enable the size, the shape and the surface quality of a part to meet preset requirements, the processing method is also called as a discharge machine for discharge processing or electroerosion processing, the discharge machine usually adopts a jig when processing a mould, but the existing jig cannot be quickly replaced, the flexibility of the jig is influenced, and the working efficiency of workers is reduced.
In view of the above problems, a jig for quickly replacing a mold discharge machine is provided, which is used for solving the problem that the proposed existing jig cannot be quickly replaced.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problem, the utility model provides a tool is traded fast on mould discharge machine.
The utility model provides a tool is got in exchange on mould discharge machine fast includes:
the upper surface of the base is provided with a workbench, the workbench is connected with the base in a sliding manner, the top of the workbench is provided with a clamping plate, and the clamping plate is matched with the workbench for use;
the first limiting rod, the push rod, the second limiting rod, the first limiting rod and the second limiting rod are respectively and fixedly connected with the workbench, the outer surfaces of the first limiting rod and the second limiting rod are respectively sleeved with a first spring and a second spring, and the head end and the tail end of the first spring are respectively and fixedly connected with the clamping plate and the workbench;
the push rod is matched with the clamping plate for use, a central pivot plate is arranged on the side face of the push rod and fixedly connected with the push rod, the central pivot plate is embedded with the second limiting rod, and the bottom of the central pivot plate is attached to the second spring.
Preferably, the side surface of the workbench is fixedly connected with a side plate, the front surface of the side plate is provided with a connecting plate, the connecting plate is fixedly connected with the side plate, and the side surface of the connecting plate is fixedly connected with a transverse plate.
Preferably, the upper surface of the transverse plate is provided with a moving block, and the bottom of the moving block is provided with a shaft cutter.
Preferably, the surface of the transverse plate is fixedly connected with a vertical plate, a motor is arranged on the side surface of the vertical plate, the motor is detachably connected with the transverse plate through a fixing bolt, and a transmission shaft is fixedly connected to an output shaft of the motor.
Preferably, a transmission rod is arranged in the motion block, the transmission rod is in threaded connection with the motion block, a transmission wheel is sleeved at one end of the transmission rod, the transmission wheel is fixedly connected with the transmission rod, and the transmission wheel is rotatably connected with the transmission shaft through a belt.
Preferably, a control rod is arranged in a placing groove formed in the side face of the clamping plate, the control rod is attached to the clamping plate, and the control rod is rotatably connected with the connecting rod through a fixing shaft.
Compared with the prior art, the utility model provides a tool is got on mould discharge machine fast has following beneficial effect:
the utility model provides a tool is got to quick trading on mould discharge machine has set up grip block and push rod through this device, makes the not only can be quick change the mould of this device, can also carry out the centre gripping to the mould, makes the unable free movement of mould to reduced the position that the staff need spend extra energy to remove the control mould, through the aforesaid, the effectual flexibility that promotes this device, the indirect work efficiency that has promoted the staff.
Drawings

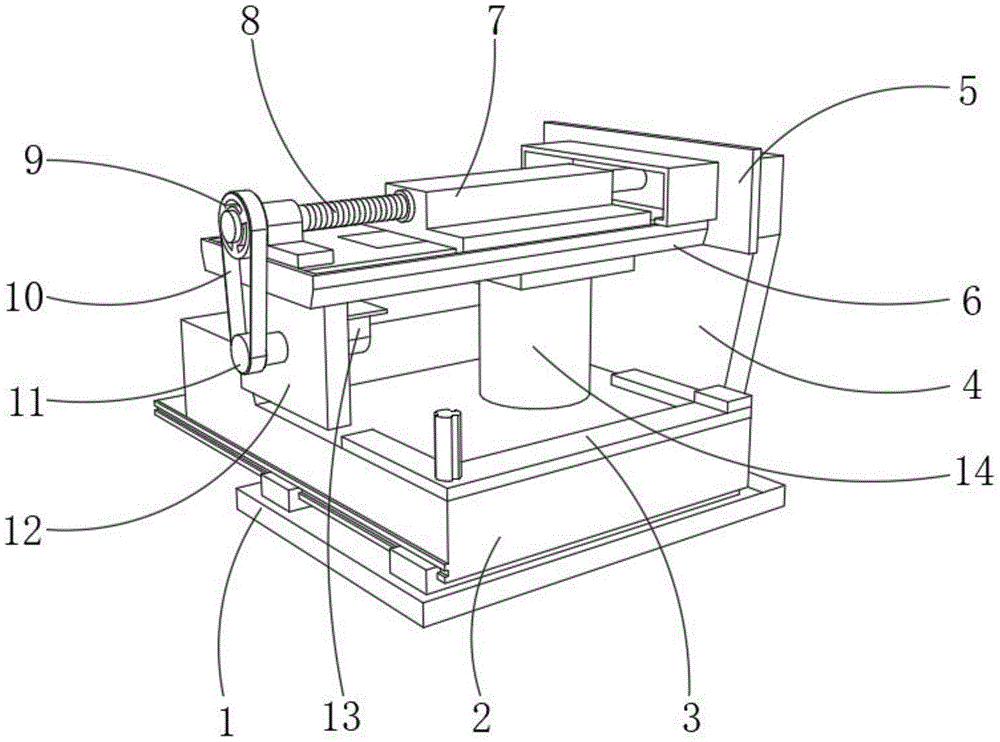

Fig. 1 is a schematic structural view of a quick tool changing device on a die discharging machine provided by the present invention;
fig. 2 is a schematic structural view of a control rod for quickly replacing a jig on a mold discharging machine provided by the present invention;
fig. 3 is another schematic structural diagram of the control rod for quickly replacing the jig on the mold discharging machine.
Reference numbers in the figures: 1. a base; 2. a work table; 3. a clamping plate; 4. a side plate; 5. a connecting plate; 6. a transverse plate; 7. a motion block; 8. a transmission rod; 9. a driving wheel; 10. a belt; 11. a drive shaft; 12. a vertical plate; 13. a motor; 14. a shaft cutter; 15. a first limit rod; 16. a first spring; 17. a push rod; 18. a central pivot plate; 19. a second limiting rod; 20. a second spring; 21. a control lever; 22. and (6) placing the groove.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and embodiments.
Please refer to fig. 1, fig. 2 and fig. 3, wherein fig. 1 is a schematic structural diagram of a quick tool change on a mold discharging machine according to the present invention; fig. 2 is a schematic structural view of a control rod for quickly replacing a jig on a mold discharging machine provided by the present invention; fig. 3 is another schematic structural diagram of the control rod for quickly replacing the jig on the mold discharging machine. The method comprises the following steps: base 1, workstation 2 and grip block 3.
In the specific implementation process, as shown in fig. 1, a workbench 2 is arranged on the upper surface of a base 1, the workbench 2 is slidably connected with the base 1, a clamping plate 3 is arranged on the top of the workbench 2, the clamping plate 3 is matched with the workbench 2 for use, the clamping plate 3 is used for clamping a mold to prevent the mold from moving freely on the workbench 2, a side plate 4 is fixedly connected to the side surface of the workbench 2, a connecting plate 5 is arranged on the front surface of the side plate 4, the connecting plate 5 is fixedly connected with the side plate 4, a transverse plate 6 is fixedly connected to the side surface of the connecting plate 5, a moving block 7 is arranged on the upper surface of the transverse plate 6, a shaft cutter 14 is arranged at the bottom of the moving block 7, the shaft cutter 14 is used for processing the mold, a vertical plate 12 is fixedly connected to the lower surface of the transverse plate 6, a motor 13 is arranged on the side surface of the vertical plate 12, the motor 13 is detachably connected with the transverse plate 6 through a fixing bolt, and a transmission shaft 11 is fixedly connected to the output shaft of the motor 13, a transmission rod 8 is arranged in the motion block 7, the transmission rod 8 is in threaded connection with the motion block 7, a transmission wheel 9 is sleeved at one end of the transmission rod 8, the transmission wheel 9 is fixedly connected with the transmission rod 8, the transmission wheel 9 is rotatably connected with a transmission shaft 11 through a belt 10, a worker only needs to start a motor 13 to enable the motor 13 to drive the transmission shaft 11 to rotate through an output shaft, at the moment, the transmission shaft 11 can drive the transmission wheel 9 to rotate through the belt 10, and finally the transmission rod 8 rotates and drives the motion block 7 and a shaft cutter 14 to move.
Referring to fig. 1, 2 and 3, a first limiting rod 15, a pushing rod 17 and a second limiting rod 19 are arranged in the worktable 2, the first limiting rod 15 and the second limiting rod 19 are respectively fixedly connected with the worktable 2, the outer surfaces of the first limiting rod 15 and the second limiting rod 19 are respectively sleeved with a first spring 16 and a second spring 20, the head and the tail ends of the first spring 16 are respectively fixedly connected with the clamping plate 3 and the worktable 2, the pushing rod 17 is matched with the clamping plate 3 for use, a pivot plate 18 is arranged on the side surface of the pushing rod 17, the pivot plate 18 is fixedly connected with the pushing rod 17, the pivot plate 18 is embedded with the second limiting rod 19, the bottom of the pivot plate 18 is attached to the second spring 20, the first limiting rod 15 and the second limiting rod 19 are used for limiting the movement positions of the clamping plate 3 and the pushing rod 17, so as to avoid the clamping plate 3 and the pushing rod 17 from deviating during the movement process, be equipped with control lever 21 in the standing groove 22 that the grip block 3 side was seted up, control lever 21 and grip block 3 are laminated mutually, and control lever 21 rotates through fixed axle and connecting rod to be connected, and control lever 21 is used for blocking grip block 3, makes grip block 3 can be tight carry out the centre gripping to the mould.
The utility model provides a theory of operation as follows: the staff only need place the mould in workstation 2 in the jiang, then push down the mould with grip block 3, at this moment, the staff alright in order to go into the standing groove 22 with control lever 21 card to make grip block 3 carry out tight centre gripping to the mould under the effort that receives first spring 16, otherwise, after the pivot pole did not receive the effort that control lever 21 gave, second spring 20 just can reset, thereby make push rod 17 promote the mould, thereby make the quick quilt of mould ejecting, thereby realize the function of trading fast.
The utility model discloses in motor 13, axle sword 14, circuit and the control that relates to be prior art, do not carry out too much repetition here.
The above only is the embodiment of the present invention, not limiting the scope of the present invention, all the equivalent structures or equivalent processes of the present invention are used in the specification and the attached drawings, or directly or indirectly applied to other related technical fields, and the same principle is included in the protection scope of the present invention.
Claims (6)
1. The utility model provides a tool is got fast on mould discharge machine which characterized in that includes:
the device comprises a base (1), wherein a workbench (2) is arranged on the upper surface of the base (1), the workbench (2) is connected with the base (1) in a sliding manner, a clamping plate (3) is arranged at the top of the workbench (2), and the clamping plate (3) is matched with the workbench (2) for use;
the clamping device comprises a workbench (2), wherein a first limiting rod (15), a push rod (17), a second limiting rod (19), the first limiting rod (15) and the second limiting rod (19) are arranged in the workbench (2) and are respectively fixedly connected with the workbench (2), a first spring (16) and a second spring (20) are respectively sleeved on the outer surfaces of the first limiting rod (15) and the second limiting rod (19), and the head end and the tail end of the first spring (16) are respectively fixedly connected with a clamping plate (3) and the workbench (2);
the push rod (17), the push rod (17) is used with the clamping plate (3) in a matched mode, a central pivot plate (18) is arranged on the side face of the push rod (17), the central pivot plate (18) is fixedly connected with the push rod (17), the central pivot plate (18) is embedded with a second limiting rod (19), and the bottom of the central pivot plate (18) is attached to a second spring (20).
2. The quick replacing jig on the die discharging machine according to claim 1, wherein a side plate (4) is fixedly connected to the side surface of the workbench (2), a connecting plate (5) is arranged on the front surface of the side plate (4), the connecting plate (5) is fixedly connected with the side plate (4), and a transverse plate (6) is fixedly connected to the side surface of the connecting plate (5).
3. The quick replacing jig on the die discharging machine as claimed in claim 2, wherein the transverse plate (6) is provided with a moving block (7) on the upper surface, and the bottom of the moving block (7) is provided with a shaft cutter (14).
4. The jig for quickly taking out the mold of the mold discharging machine as claimed in claim 2, wherein a vertical plate (12) is fixedly connected to the lower surface of the horizontal plate (6), a motor (13) is arranged on the side surface of the vertical plate (12), the motor (13) is detachably connected to the horizontal plate (6) through a fixing bolt, and a transmission shaft (11) is fixedly connected to an output shaft of the motor (13).
5. The quick replacing jig on the die discharging machine as claimed in claim 3, wherein a transmission rod (8) is arranged in the moving block (7), the transmission rod (8) is in threaded connection with the moving block (7), a transmission wheel (9) is sleeved at one end of the transmission rod (8), the transmission wheel (9) is fixedly connected with the transmission rod (8), and the transmission wheel (9) is rotatably connected with a transmission shaft (11) through a belt (10).
6. The jig for quickly taking out the mold discharging machine as claimed in claim 1, wherein a control rod (21) is arranged in a placing groove (22) formed in the side surface of the clamping plate (3), the control rod (21) is attached to the clamping plate (3), and the control rod (21) is rotatably connected with the connecting rod through a fixed shaft.
