CN217100757U - Sterilization device for food packaging

Info

Publication number: CN217100757U
Application number: CN202123076560.XU
Authority: CN
Inventors: 苏剑辉
Original assignee: Cook Technology Xiamen Co ltd
Current assignee: Cook Technology Xiamen Co ltd
Priority date: 2021-12-08
Filing date: 2021-12-08
Publication date: 2022-08-02
Anticipated expiration: 2031-12-08

Abstract

The utility model discloses a sterilization device for food packaging, comprising a box body, a sterilization box is installed on the top of the box body through bolts, an ultraviolet lamp is installed on the inner wall of the top of the box body through bolts, and the box body is close to the The front side is provided with a first conveyor belt that penetrates and extends to the inside of the box body, the inside of the box body is provided with a turning device, and the side of the box body close to the back is provided with a second conveyor belt that penetrates and extends to the inside of the box body . The sterilization device for food packaging is provided with an overturning device. The overturning device can sterilize the surface of the packaged food and sterilize the bottom of the food, thereby realizing multi-directional sterilization and sterilization. More thoroughly, through the set of ultraviolet lamps and sterilization boxes, through the high temperature sterilization of the sterilization box and the double sterilization of ultraviolet lamps, the packaged food can be completely sterilized to meet the requirements of qualified sterilization.

Description

Sterilization device for food packaging

Technical Field

The utility model relates to a sterilization technical field specifically is a sterilization apparatus for food package.

Background

Food sterilization is to take food raw materials and processed products as objects, and achieve the stabilization of food quality by sterilizing and degerming microorganisms which are main factors causing food deterioration, thereby effectively prolonging the quality guarantee period of food, reducing the survival number of harmful bacteria in the food, and avoiding human body (usually intestinal tract) infection caused by the intake of live bacteria or human poisoning caused by bacterial toxins generated in the food in advance.

However, the prior art has the following defects or problems:

1. in the packaged food, sterilization is usually required, but when the packaged food is sterilized, the conventional device can only sterilize the surface of the food at the same time, but the bottom of the food is not easy to sterilize, so that the sterilization effect cannot be achieved;

2. in the sterilization, ultraviolet rays are generally used for sterilizing foods, but people are easy to damage the health of human bodies under the irradiation of ultraviolet rays for a long time, and only ultraviolet lamps are used for sterilization, so that the sterilization mode is single.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a sterilization apparatus for food package to the weak point of prior art to the problem that proposes in the solution background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a sterilization apparatus for food package, includes the box, bolt installation sterilization case is passed through at the top of box, ultraviolet lamp is installed through the bolt to the top inner wall of box, the box is close to front one side and is provided with the first conveyer belt that runs through and extend to the box inside, the inside of box is provided with turning device, one side that the box is close to the back is provided with the second conveyer belt that runs through and extend to the box inside.

As the utility model discloses a preferred technical scheme, turning device includes driving motor, first pivot, connecting rod, first fly leaf, slip post, second fly leaf, turns over board, cylinder, second fixed plate, round roller, third fixed plate, activity post, second pivot, the second fixed plate has two, and welds respectively on the both sides inner wall of box, the top of second fixed plate is seted up flutedly.

As the utility model discloses a preferred technical scheme, the one end of first pivot is passed through the shaft coupling and is connected with driving motor's output, driving motor's one end welding is kept away from to first pivot has one of them belt pulley, the one end of second pivot is connected with one side inner wall rotation of box, the other end welding of second pivot has the second pulley, first belt pulley passes through the drive belt with the second pulley and is connected.

As the utility model discloses a preferred technical scheme, the one end welding of connecting rod is on the drive belt, the other end of connecting rod is rotated with one side of activity post and is connected, the other end of activity post and one side welding of first fly leaf, the activity post is L shape.

As the utility model discloses a preferred technical scheme, one side sliding connection of movable post is kept away from to slip post and first fly leaf, one side top of second fly leaf is articulated with the one end of slip post, the cylinder is articulated with one side bottom that the slip post was kept away from to the second fly leaf, the cylinder is rotated with one side of turning over the board and is connected.

As the utility model discloses a preferred technical scheme, the round roller has four, and evenly welds respectively in the both sides of turning over the board, the through-hole has been seted up to the third fixed plate, the activity post is located the through-hole that the third fixed plate was seted up and slides, the bottom welding of third fixed plate has first fixed plate, the bottom of first fixed plate and the bottom inner wall welding of box.

As the utility model discloses an optimized technical scheme, the quantity and the electric welding piece phase-match of leg, leg and electric welding piece electric connection, the quantity and the welding groove phase-match of leg.

Compared with the prior art, the utility model provides a sterilization apparatus for food package possesses following beneficial effect:

1. according to the sterilization device for food packaging, the turnover device is arranged, the packaged food can be sterilized on the surface through the turnover device, and meanwhile, the bottom of the food can be sterilized, so that multi-directional sterilization is realized, and the sterilization is more thorough;

2. this sterilizing equipment for food package through the ultraviolet lamp and the sterilization case that set up, under the high temperature sterilization of sterilization case and ultraviolet lamp's dual sterilization, can be thorough sterilize the packaged food, reach the qualified demand of sterilization.

Drawings

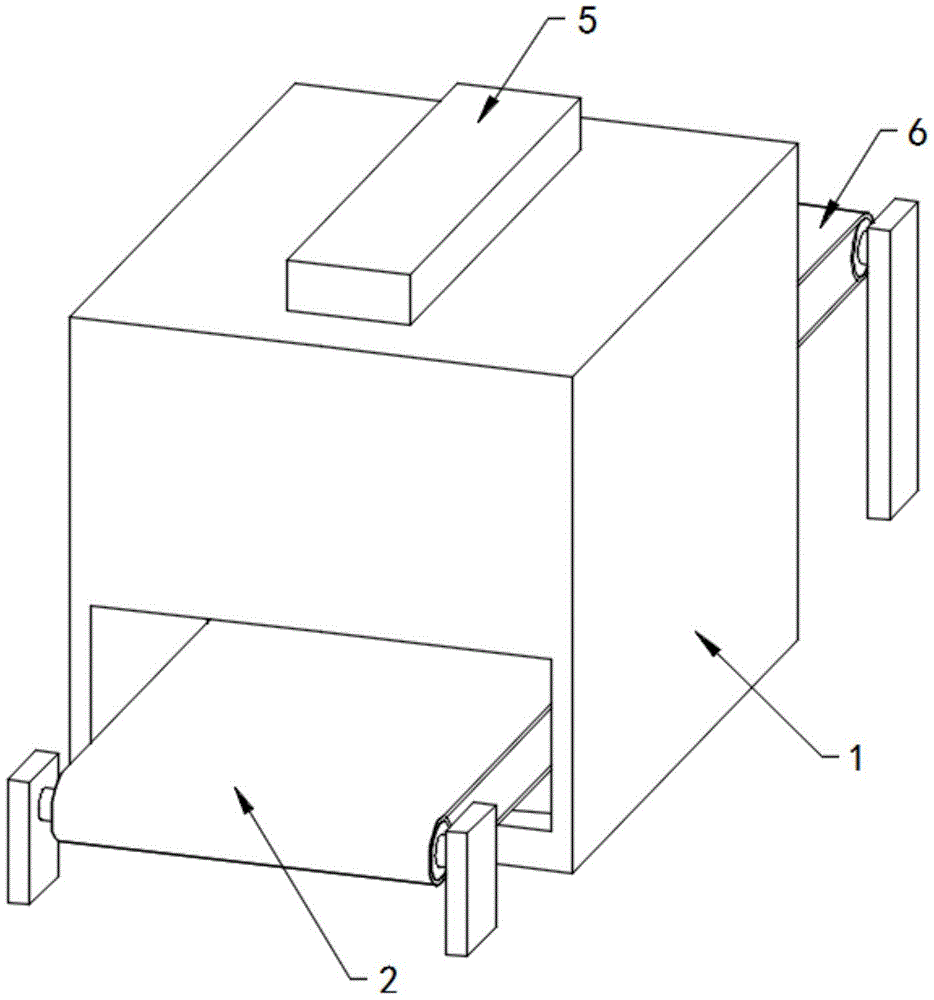

FIG. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic view of a partial structure of the present invention;

FIG. 3 is a schematic structural view of the turning device of the present invention;

fig. 4 is the structural schematic diagram of the working principle of the turnover device of the present invention.

Reference numerals: 1. a box body; 2. a first conveyor belt; 3. a turning device; 4. an ultraviolet lamp; 5. A sterilization box; 6. a second conveyor belt; 7. a first fixing plate; 301. a drive motor; 302. a first rotating shaft; 303. a connecting rod; 304. a first movable plate; 305. a sliding post; 306. a second movable plate; 307. turning over a plate; 308. a cylinder; 309. a second fixing plate; 310. a round roller; 311. a third fixing plate; 312. a second rotating shaft.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, in the present embodiment: the utility model provides a sterilization apparatus for food package, including box 1, bolt installation sterilization case 5 is passed through at the top of box 1, ultraviolet lamp 4 is installed through the bolt to the top inner wall of box 1, box 1 is close to positive one side and is provided with the first conveyer belt 2 that runs through and extend to box 1 inside, the inside of box 1 is provided with turning device 3, box 1 is close to one side at the back and is provided with the second conveyer belt 6 that runs through and extend to box 1 inside, ultraviolet lamp 4 and sterilization case 5 through the setting, under the high temperature sterilization of sterilization case 5 and the double sterilization of ultraviolet lamp 4, can be thorough sterilize the packaged food, reach the qualified demand of sterilization.

In this embodiment, the turnover device 3 includes a driving motor 301, a first rotating shaft 302, a connecting rod 303, a first movable plate 304, a sliding column 305, a second movable plate 306, a turning plate 307, a cylinder 308, a second fixed plate 309, a circular roller 310, a third fixed plate 311, a movable column 312, and a second rotating shaft 313, two second fixed plates 309 are respectively welded on the inner walls of two sides of the box 1, a groove is formed on the top of the second fixed plate 309, one end of the first rotating shaft 302 is connected with the output end of the driving motor 301 through a coupler, one end of the first rotating shaft 302 away from the driving motor 301 is welded with one pulley, one end of the second rotating shaft 313 is rotatably connected with the inner wall of one side of the box 1, the other end of the second rotating shaft 313 is welded with a second pulley, the first pulley is connected with the second pulley through a transmission belt, one end of the connecting rod 303 is welded on the transmission belt, the other end of the connecting rod 303 is rotatably connected with one side of the movable column 312, the other end of the movable column 312 is welded with one side of the first movable plate 304, the movable column 312 is L-shaped, the sliding column 305 is connected with one side of the first movable plate 304 far away from the movable column 312 in a sliding manner, one side of the movable plate 304 near the sliding column 305 is provided with a sliding groove, a sliding block is placed in the sliding groove, one end of the sliding block is welded with one end of the sliding column 305, the cross section of the sliding groove is T-shaped, the top of one side of the second movable plate 306 is hinged with one end of the sliding column 305, the cylinder 308 is hinged with the bottom of one side of the second movable plate 306 far away from the sliding column 305, the cylinder 308 is rotationally connected with one side of the turning plate 307, four circular rollers 310 are uniformly welded on two sides of the turning plate 307 respectively, the third fixed plate 311 is provided with a through hole, the movable column 312 is positioned in the through hole arranged in the third fixed plate 311 in a sliding manner, the bottom of the third fixed plate 311 is welded with the first fixed plate 7, the bottom of the first fixed plate 7 is welded with the inner wall of the bottom of the box body 1, through setting up 3 devices of upset, can make package food carry out surface sterilization again through turning device 3 in, can also disinfect to the bottom of food, realized diversified sterilization, the sterilization is more thorough.

The utility model discloses a theory of operation and use flow: the food package sterilization device for food package comprises a second conveyor belt 6, food packages to be sterilized can be placed on the second conveyor belt 6, the food packages on the second conveyor belt 6 can fall onto a turning plate 307 through the conveying of the second conveyor belt 6, a driving motor 301 can be started at the moment, the output end of the driving motor 301 can rotate at the moment, the output end of the driving motor 301 rotates to further drive a first belt pulley to rotate, a second belt pulley is welded on a second rotating shaft 313, the first belt pulley and the second belt pulley are connected through a transmission belt, so that the transmission belt can be driven to rotate when the first belt pulley rotates, a connecting rod 303 is welded on the transmission belt, the connecting rod 303 can be driven to rotate when the transmission belt rotates, the connecting rod 303 rotates to drive a movable column 312 to move, the movable column 312 moves to further drive a first movable plate 304 to move, when the first movable plate 304 moves, the sliding column 305 can slide in the sliding groove formed in the first movable plate 304, so that the second movable plate 306 can be driven to move, the turning plate 307 can be driven to move by the cylinder 308 when the second movable plate 306 moves, when the turning plate 307 moves continuously, the circular roller 310 moves to one end of the groove formed in the top of the second fixed plate 309, the turning plate 307 can tilt under the continuous movement of the second movable plate 306, so that the food package on the turning plate 307 can be turned over, at the moment, the food in the package can be sterilized again after being turned over under the sterilization of the sterilization box 5 and the ultraviolet lamp 4, the food in the package can be sterilized completely, and the sterilized food can fall onto the first conveyor belt 2 and can be conveyed out through the first conveyor belt 2.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. A sterilization device for food packaging, comprising a box (1), characterized in that: a sterilization box (5) is installed on the top of the box (1) by bolts, and the top of the box (1) is An ultraviolet lamp (4) is installed on the inner wall through bolts, and a first conveyor belt (2) is arranged on the side of the box body (1) close to the front, which runs through and extends to the inside of the box body (1). An overturning device (3) is provided inside, the side of the box body (1) close to the back is provided with a second conveyor belt (6) that runs through and extends to the inside of the box body (1), and the overturning device (3) includes a drive Motor (301), first shaft (302), connecting rod (303), first movable plate (304), sliding column (305), second movable plate (306), flap (307), cylinder (308) , the second fixed plate (309), the round roller (310), the third fixed plate (311), the movable column (312), the second rotating shaft (313), the second fixed plate (309) has two, and Welded on the inner walls of the box (1) on both sides respectively, the top of the second fixing plate (309) is provided with a groove, and one end of the first rotating shaft (302) is connected to the drive motor (301) through a coupling The output end of the connecting rod (303) is welded on the transmission belt, and the other end of the connecting rod (303) is rotatably connected with one side of the movable column (312), and the other end of the movable column (312) One end is welded to one side of the first movable plate (304), the sliding column (305) is slidably connected to the side of the first movable plate (304) away from the movable column (312), and the second movable plate (306) The top of one side is hinged with one end of the sliding column (305). 307) to turn the connection on one side.

2. The sterilizing device for food packaging according to claim 1, characterized in that: a first pulley is welded to the end of the first rotating shaft (302) away from the driving motor (301), and the second rotating shaft ( One end of 313) is rotatably connected to one side inner wall of the box (1), the other end of the second shaft (313) is welded with a second pulley, and the first pulley and the second pulley are connected by a transmission belt.

3 . The sterilizing device for food packaging according to claim 1 , wherein the movable column ( 312 ) is L-shaped. 4 .

4. The sterilizing device for food packaging according to claim 1, characterized in that: there are four said round rollers (310), and they are uniformly welded on both sides of the turning plate (307) respectively, The three fixing plates (311) are provided with through holes, the movable column (312) slides in the through holes opened by the third fixing plate (311), and the bottom of the third fixing plate (311) is welded with the first fixing plate (311). A plate (7), the bottom of the first fixing plate (7) is welded with the bottom inner wall of the box body (1).
