Abstract

The utility model provides a high-speed wire rod production system, which relates to the technical field of steel rolling equipment. A first driving device on the module, the first driving device is used to drive the corresponding finishing rolling module; a diameter reducing unit, the diameter reducing unit includes at least one group of reducing modules and is arranged on the reducing modules The second driving device, the second driving device is used to drive the corresponding reducing module; the sizing unit, the sizing unit includes at least one group of sizing modules and a first sizing module arranged on the sizing module. Three driving devices, the third driving device is used to drive the corresponding sizing unit. The utility model can more flexibly adjust the rolling speed of the finishing rolling unit, the reducing unit and the sizing unit, and improves the rolling quality of the high-speed wire rod.

Description

High-speed wire rod production system

technical field

The utility model relates to the technical field of rolling equipment, in particular to a high-speed wire rod production system.

Background technique

Finishing rolling mills and reducing and sizing mills are the main equipment for producing high-speed wire rods. At present, the finishing mills and reducing and sizing mills generally use centralized transmission for rolling high-speed wire rods. When the finishing mill adopts centralized transmission, in order to ensure the rolling accuracy, it is necessary to control the speed between the finishing mills. Due to the centralized transmission of the finishing mills, there is a fixed speed ratio between the finishing mills, it is difficult to independently adjust the speed ratio between the finishing mills, and the use flexibility is lacking.

When the reducing and sizing unit adopts centralized transmission, in order to adjust the speed ratio between the reducing and sizing units, it is necessary to set a shifting device on the reducing and sizing unit. Since the reducing and sizing unit is generally composed of two reducing machines and two sizing machines, in order to better adjust the speed of each reducing machine and sizing machine, a complex shifting control structure needs to be set in the shifting equipment. The production cost of the shifting device is greatly increased.

Utility model content

In order to overcome the above-mentioned defects of the prior art, the technical problem to be solved by the embodiments of the present invention is to provide a high-speed wire rod production system, which can more flexibly adjust the rolling speed of the finishing rolling mill, the reducing mill and the sizing mill , to improve the rolling quality of the wire rod.

The above purpose of the present utility model can be achieved by adopting the following technical solutions. The present utility model provides a high-speed wire rod production system, comprising: sequentially arranged:

A finishing rolling unit, the finishing rolling unit includes a plurality of groups of finishing rolling modules arranged in an array and a first driving device arranged on each of the finishing rolling modules, and the first driving device is used to drive the corresponding finishing rolling module ;

A diameter reduction unit, the diameter reduction unit includes at least one group of diameter reduction modules and a second drive device disposed on the diameter reduction modules, and the second drive device is used to drive the corresponding diameter reduction modules;

A sizing unit, the sizing unit includes at least one group of sizing modules and a third driving device arranged on the sizing module, and the third driving device is used to drive the corresponding sizing module.

In a preferred embodiment of the present invention, the finishing rolling module includes two finishing rolling mills arranged at the top of each other, the first driving device includes a first motor and a first transmission, and the two finishing rolling mills pass through each other. The first transmission is coupled to the first electric machine for synchronous movement.

In a preferred embodiment of the present invention, the diameter reducing module includes two diameter reducing machines arranged on top of each other, each of the diameter reducing machines is provided with the second driving device, and the second driving device It includes a second motor and a second transmission, and the second motor is connected to the corresponding reducer through the second transmission.

In a preferred embodiment of the present invention, the sizing module includes two sizing machines, the third driving device includes a third motor and a third transmission, and the two sizing machines pass through the A third transmission is coupled to the third electric machine for synchronized movement.

In a preferred embodiment of the present invention, the high-speed wire rod production system further comprises a first water cooler arranged at the outlet of the finishing rolling unit and a second water cooler arranged at the outlet of the sizing unit.

In a preferred embodiment of the present invention, the first water cooler includes at least one first water-penetrating cooling water tank arranged at the outlet of the finishing mill, and the second water cooler includes at least one water cooling tank arranged at the outlet of the finishing mill. The second water-penetrating cooling water tank at the outlet of the sizing unit.

In a preferred embodiment of the present invention, the high-speed wire rod production system further includes a coiling device, and the coiling device is disposed at the outlet of the second water cooler for winding the high-speed wire rod.

In a preferred embodiment of the present invention, the coiling device includes a laying head disposed at the outlet of the second water cooler.

In a preferred embodiment of the present invention, the high-speed wire rod production system further includes an air cooling device, and the air cooling device is disposed at the outlet of the coiling device.

In a preferred embodiment of the present invention, the air-cooling device includes an air-cooling conveying line disposed at the outlet of the coiling device.

The technical scheme of the present utility model has the following significant beneficial effects:

In the present application, a first driving device is provided on the finishing rolling module, and the rolling speed of each finishing rolling module can be independently controlled by the first driving device, which increases the adjustment flexibility of the finishing rolling line, and makes the finishing rolling in the finishing rolling line. Various speed ratios can be formed between modules, which improves the control accuracy of the rolling speed of the finishing mill; and a second driving device is provided on the reducing mill, and the rolling speed of the reducing module can be independently controlled by the second driving device. , the adjustment flexibility of the reducing unit is increased, and the control accuracy of the rolling speed by the reducing unit is improved; and a third driving device is arranged on the sizing unit, and the rolling of the sizing module can be controlled by the third driving device. It increases the adjustment flexibility of the sizing module and improves the control accuracy of the sizing unit on the rolling speed; the high-speed wire rod production system described in this application can be flexibly, Accurately adjust the rolling speed to meet the production needs of different wire rods;

Further, the finishing mill in the present application includes two finishing mills arranged at the top crossing, and the two finishing mills arranged at the top crossing are driven by the same first driving device, so that the two finishing mills can move synchronously to improve the rolling quality. , preventing the rolling speed difference between the two finishing mills and affecting the rolling quality; and each finishing rolling module is equipped with a first driving device, so that the operator can independently adjust the rolling of each finishing rolling module. The speed is convenient to control the rolling elongation between the finishing rolling modules to meet the production needs of different wire rods, so as to obtain better wire rod rolling quality;

When producing large-scale high-speed wire rods, the high-speed wire rod can be controlled to pass through any finishing rolling module to reduce the deformation amount of the high-speed wire rod. The unemptied finishing rolling module can independently adjust the rolling speed to meet the rolling speed and extension requirements of the wire rod. . When the high-speed wire rod passes part of the finishing rolling modules, since each finishing rolling module is provided with a first driving device, the passing finishing rolling modules can be independently closed in advance without adjusting the rolling speed, which can save production. Preparation time, improve work efficiency, this advantage is not available with centralized transmission;

In the present application, the reducing module includes two reducing machines arranged at the top crossing. The two reducing machines arranged at the top crossing are respectively driven by the second driving device, and the rolling speed of each reducing machine can be independently adjusted by the second driving device. , which increases the adjustment flexibility between the reducers, makes the adjustment of the rolling speed between the reducers more convenient, simplifies the structure of the shifting equipment used for the reducers, and reduces the production cost; the sizing module in this application includes: Two sizing machines are driven by the same third drive device, so that the two sizing machines can move synchronously, thereby improving the running stability of the sizing machine, so that the sizing module can better control the rolling Accuracy to improve the rolling quality of the wire rod; the rolling speed of the two reducing machines 211 can be adjusted independently through the two second driving devices 22, and the rolling speed between the two sizing machines 311 can be adjusted through the third driving device. Therefore, the user can flexibly adjust the rolling speed of the two reducing machines 211 and the two sizing machines 311 according to the rolling needs, so as to meet the needs of different rolling processes.

Description of drawings

In order to illustrate the technical solutions in the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments. Obviously, the drawings in the following description are only some implementations of the present invention. For example, for those of ordinary skill in the art, other drawings can also be obtained based on these drawings without any creative effort.

The drawings described herein are for explanatory purposes only and are not intended to limit the scope of the present disclosure in any way. In addition, the shapes and proportions of the components in the figures are only schematic and are used to help the understanding of the present invention, and do not specifically limit the shapes and proportions of the components of the present invention. Under the teaching of the present invention, those skilled in the art can select various possible shapes and proportions according to specific conditions to implement the present invention.

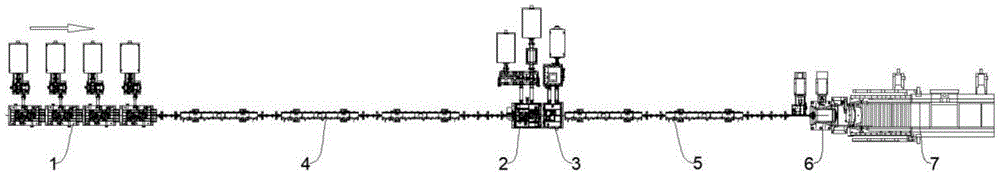

Fig. 1 is a kind of structural representation of described high-speed wire rod production system;

Fig. 2 is the installation structure schematic diagram of described finishing mill;

3 is a schematic diagram of the installation structure of the first water cooler;

Fig. 4 is the installation structure schematic diagram of described diameter reducing unit;

Fig. 5 is the installation structure schematic diagram of described sizing unit;

6 is a schematic diagram of the installation structure of the second water cooler;

FIG. 7 is a schematic diagram of the installation structure of the coiling device and the air cooling device.

Reference numerals for the above drawings:

1. Finishing rolling unit; 11. Finishing rolling module; 111. Finishing rolling mill; 12. The first drive device; 121, The first motor; 122, The first transmission;

2. Diameter reducing unit; 21. Diameter reducing module; 211, Diameter reducing machine; 22, Second driving device; 221, Second motor; 222, Second transmission;

3. Sizing unit; 31. Sizing module; 311, Sizing machine; 32, Third drive device; 321, Third motor; 322, Third transmission;

4. The first water cooler; 41. The first water cooling water tank;

5. The second water cooler; 51. The second water cooling water tank;

6. Coiling device; 61. Spinning machine;

7. Air-cooled device; 71. Air-cooled conveyor line.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

When the finishing mill, reducing mill and sizing mill adopt centralized transmission, the finishing mill, reducing mill and sizing mill are limited by the centralized transmission structure, and it is difficult to independently adjust the operation of each finishing mill, reducing mill and sizing mill. The rolling speed lacks the flexibility of adjustment, and it is difficult to meet the needs of different wire rods for different rolling speeds. However, when the finishing mill, reducing machine and sizing machine are all independently adjusted, on the one hand, the number of driving devices is increased, and the investment cost is increased; There will be a speed error in the process, and when there are multiple rolling mills, the speed error will gradually superimpose and act on the wire rod, which is not conducive to controlling the production quality of the wire rod. The present application provides a high-speed wire rod production system, which is mainly used to solve the problem of rolling speed control of a rolling mill.

Please refer to FIG. 1 to FIG. 7 , an embodiment of the present application provides a high-speed wire rod production system, including: a finishing rolling unit 1 arranged in sequence, the finishing rolling unit 1 includes a plurality of groups of finishing rolling modules 11 arranged in a row and a first driving device 12 disposed on each of the finishing rolling modules 11, the first driving device 12 is used to drive the corresponding finishing rolling module 11; the diameter reducing unit 2, the diameter reducing unit 2 includes at least A set of reducing modules 21 and a second driving device 22 arranged on the reducing module 21, the second driving device 22 is used to drive the corresponding reducing modules 21; the sizing unit 3, the The sizing unit 3 includes at least one set of sizing modules 31 and a third driving device 32 disposed on the sizing module 31 , and the third driving device 32 is used to drive the corresponding sizing module 31 .

On the whole, when the high-speed wire rod production system described in this application is used, the finishing rolling operation of the high-speed wire rod is carried out by the finishing rolling unit 1, the diameter reduction operation of the high-speed wire rod is performed by the diameter reducing unit 2, and finally the high-speed wire rod is subjected to the diameter reduction operation by the sizing unit 3. Carry out sizing operation. The high-speed wire rod can be processed into the desired shape and size by the finishing rolling unit 1, the reducing unit 2 and the sizing unit 3. Specifically, four sets of finishing rolling modules 11 can be set in the finishing rolling unit 1, a set of reducing modules 21 can be set in the reducing set 2, and a set of sizing modules 31 can be set in the sizing set 3 . Of course, the designer can also adjust the number of finishing rolling modules 1 , reducing modules 21 and sizing modules 31 as required, which is only an example here, and other setting methods are not limited.

Since the high-speed wire rod will be deformed between each unit, the rolling speed of the high-speed wire rod by each unit is different. In order to obtain better rolling quality of high-speed wire rods, it is necessary to adjust the rolling speed of each unit to make the rolling speed of each unit more matched to increase the rolling quality of high-speed wire rods. The designer can adjust the rolling speed of each unit according to the rolling process, which is not limited here.

Specifically, please refer to FIG. 1 to FIG. 7 , the high-speed wire rod production system may include: a finishing rolling unit 1 ; a diameter reducing unit 2 ; and a sizing unit 3 .

In this embodiment, since the high-speed wire rod will be deformed and elongated during the finishing rolling process, in order to better roll the high-speed wire rod, each finishing rolling module needs to be controlled by the first driving device 12 provided on the finishing rolling module 11 11, so that the rolling speed of the four groups of finishing rolling modules 11 can be matched with the production requirements of high-speed wire rods.

Wherein, when the high-speed wire rod is rolled, it will be extended to increase the line speed, so that the rolling speed of the finishing rolling module 11 needs to be gradually increased accordingly. The designer can pre-store the mathematical relationship between the elongation during the high-speed wire rod rolling and the rolling speed required by the finishing rolling module 11 . When rolling the high-speed wire rod, the operator can control the rolling speed of the finishing rolling module 11 through the first driving device 12 according to the aforementioned mathematical relationship. Of course, the designer can also adopt other corresponding relationships to determine the rolling speed of the finishing rolling module 11 , which is not limited here.

In this embodiment, referring to FIG. 1 and FIG. 2 , the finishing rolling module 11 includes two finishing rolling mills 111 arranged on top of each other, and the first driving device 12 includes a first motor 121 and a first transmission 122 . The finishing mills 111 are connected to the first motor 121 through the first transmission 122 for synchronous movement.

By using the first driving device 12 to drive the two finishing mills 111 synchronously, the rolling speed error between the two finishing mills 111 can also be eliminated, so that the finishing mills 111 can roll high-speed wire rods more stably and accurately. When in use, the rolling speed of the corresponding finishing rolling mill 111 can be controlled by the first driving device 12, so as to increase the flexibility of the rolling speed adjustment of the finishing rolling module 11, so that a variety of different rolling mills can be formed between the finishing rolling modules 11. The ratio of rolling speed is convenient to match the elongation of the high-speed wire rod with the rolling speed of the finishing mill 111, thereby improving the rolling quality.

Among them, the production of high-speed wire rods with different diameters has different requirements on the number of finishing rolling modules 11 used. For example, when producing small-sized wire rods, four sets of finishing rolling modules 11 need to be used to roll high-speed wire rods to reduce the diameter of the high-speed wire rods. When producing large-scale wire rods, all 4 groups of finishing rolling modules 11 are not required to roll high-speed wire rods, and the high-speed wire rods can be controlled to pass through any finishing rolling module 11 to reduce the deformation amount of high-speed wire rods. The finishing rolling module 11 can independently adjust the rolling speed to meet the wire rolling speed and elongation requirements. When the high-speed wire rod passes part of the finishing rolling modules 11, since each finishing rolling module 11 is provided with the first driving device 12, the passing finishing rolling modules 11 can be independently closed in advance without adjusting the rolling speed. This can save production preparation time and improve work efficiency, an advantage that is not available with centralized transmission.

In this embodiment, referring to FIG. 4 , the diameter reducing module 21 includes two diameter reducing machines 211 arranged on top of each other. Each of the diameter reducing machines 211 is provided with the second driving device 22 . The second driving device 22 includes a second motor 221 and a second transmission 222 . The second motor 221 is connected to the corresponding reducer 211 through the second transmission 222 . By using the second driving device 22 to drive the two reducers 211 independently, the flexibility of the adjustment of the reducers 211 is increased.

When in use, the rolling speeds of the two reducing machines 211 can be independently adjusted through the two second driving devices 22 , so as to realize flexible adjustment of the rolling elongation between the two reducing machines 211 . And the elongation can be adjusted by replacing the roller rings on the reducer 211 or adjusting the hole pattern between the roller rings, so as to handle wires of different diameters. By independently arranging the second drive device 22 on the reducer 211, the rolling speed of each reducer 211 can be independently adjusted by the second drive device 22, so that the speed ratio between the two reducers 211 is relatively high. The large adjustment range can meet the rolling speed required for the extension change after the wire is rolled.

In this embodiment, referring to FIG. 5 , the sizing module 31 includes two sizing machines 311 , the third driving device 32 includes a third motor 321 and a third transmission 322 , and the two sizing machines 311 Both are connected to the third motor 321 through the third transmission 322 for synchronous movement. By using the third drive device 32, the two sizing machines 311 can be driven synchronously, and the difference in rolling speed between the two sizing machines 311 can be eliminated.

When in use, a single, small and fixed rolling elongation can be set between the two sizing machines 311, so that there is a small elongation fluctuation between the two sizing machines 311, which increases the sizing machine 311. Running stability, and improve the rolling precision of high-speed wire rod. Of course, the designer can also adjust the rolling elongation between the two sizing machines 311 according to the rolling requirements, which is not limited here.

The rolling speed of the two reducing machines 211 can be adjusted independently through the two second driving devices 22, and the rolling speed between the two sizing machines 311 can be adjusted through the third driving device 32, so that the user can adjust the rolling speed according to the rolling speed. The rolling speed between the two reducing machines 211 and the two sizing machines 311 needs to be flexibly adjusted to meet the needs of different rolling processes.

In this embodiment, referring to FIGS. 3 and 6 , the high-speed wire rod production system further includes a first water cooler 4 arranged at the outlet of the finishing rolling unit 1 and a first water cooler 4 arranged at the outlet of the sizing unit 3 Two water coolers 5. Through the first water cooler 4 provided at the outlet of the finishing mill 1 and the second water cooler 5 provided at the outlet of the sizing mill 3, the rolled high-speed wire rod can be water-cooled, thereby improving the mechanical properties of the high-speed wire rod.

Further, the first water cooler 4 includes at least one first water cooling water tank 41 arranged at the outlet of the finishing rolling unit 1 , and the second water cooler 5 includes at least one water cooling water tank 41 arranged at the sizing unit 3 . The outlet of the second through water cooling water tank 51. Specifically, three first water-penetrating cooling water tanks 41 arranged in a row can be continuously provided at the outlet of the finishing rolling unit 1, and the high-speed wire rod can be cooled sequentially through the three first water-penetrating cooling water tanks 41; The outlet is continuously provided with two second water-penetrating cooling water tanks 51 arranged in a row, and the high-speed wire rod is cooled sequentially through the two second water-penetrating cooling water tanks 51 after being formed. Of course, the designer can adjust the structure and quantity of the water cooler according to the needs of use, which is not limited here.

In this embodiment, referring to FIG. 7 , the high-speed wire rod production system further includes a coiling device 6 , and the coiling device 6 is disposed at the outlet of the second water cooler 5 for coiling the high-speed wire rod. Specifically, the coiling device 6 includes a spinning head 61 disposed at the outlet of the second water cooler 5 . The formed high-speed wire rod can be laid into a coil through the spinning machine 61, so that the high-speed wire rod can be formed into a coil shape, which is convenient for later transportation. Of course, the designer can also choose other coiling equipment. Here, the spinning machine 61 is taken as an example, and other equipments are not limited.

In this embodiment, referring to FIG. 7 , the high-speed wire rod production system further includes an air cooling device 7 , and the air cooling device 7 is arranged at the outlet of the coiling device 6 . The high-speed wire can be air-cooled by the air-cooling device 7, which is beneficial to improve the mechanical properties of the high-speed wire.

Specifically, the air-cooling device 7 includes an air-cooling conveying line 71 disposed at the outlet of the coiling device 6 . The air-cooled conveying line 71 can complete the secondary cooling process in the process of conveying the high-speed wire, and also plays a role in saving cooling time. Of course, the designer can also choose other air-cooled equipment. Here, the air-cooled conveying line 71 is taken as an example, and other air-cooled equipment is not limited.

When the high-speed wire rod production system described in the present application is used, the high-speed wire rods to be processed are successively passed through the finishing rolling unit 1 for finishing rolling operation, and then successively passed through the three first water cooling water tanks 41 for water-cooling treatment, and then passed through the reducing unit 2 for water cooling treatment. The diameter reduction operation, and then enter the sizing unit 3 to carry out the sizing and forming operation. The formed high-speed wire rod passes through the two second water cooling water tanks 51 again for water cooling treatment, and then enters the laying machine 61 to form a coil shape, and finally enters the air The cold conveyor is air-cooled and output to form high-speed wire products.

All articles and references disclosed, including patent applications and publications, are hereby incorporated by reference for all purposes. The term "consisting essentially of" describing a combination shall include the identified element, ingredient, component or step as well as other elements, components, components or steps that do not materially affect the essential novel characteristics of the combination. Use of the terms "comprising" or "comprising" to describe combinations of elements, ingredients, components or steps herein also contemplates embodiments consisting essentially of those elements, ingredients, components or steps. By use of the term "may" herein, it is intended to indicate that "may" include any described attributes that are optional. A plurality of elements, ingredients, parts or steps can be provided by a single integrated element, ingredient, part or step. Alternatively, a single integrated element, component, component or step may be divided into separate multiple elements, components, components or steps. The disclosure of "a" or "an" used to describe an element, ingredient, part or step is not intended to exclude other elements, ingredients, parts or steps.

The various embodiments in this specification are described in a progressive manner, and each embodiment focuses on the differences from other embodiments, and the same and similar parts between the various embodiments may be referred to each other. The above-mentioned embodiments are only to illustrate the technical concept and characteristics of the present invention, and the purpose thereof is to enable those who are familiar with the technology to understand the content of the present invention and implement accordingly, and cannot limit the protection scope of the present invention with this. All equivalent changes or modifications made according to the spirit of the present invention shall be included within the protection scope of the present invention.

Claims (10)

1. a high-speed wire rod production system, is characterized in that, comprises: set successively: A finishing rolling unit, the finishing rolling unit includes a plurality of groups of finishing rolling modules arranged in an array and a first driving device arranged on each of the finishing rolling modules, and the first driving device is used to drive the corresponding finishing rolling module ; A diameter reduction unit, the diameter reduction unit includes at least one group of diameter reduction modules and a second drive device disposed on the diameter reduction modules, and the second drive device is used to drive the corresponding diameter reduction modules; A sizing unit, the sizing unit includes at least one group of sizing modules and a third driving device arranged on the sizing module, and the third driving device is used to drive the corresponding sizing module. 2 . The high-speed wire rod production system according to claim 1 , wherein the finishing rolling module comprises two finishing rolling mills arranged on top of each other, the first driving device comprises a first motor and a first transmission, and the two The finishing mills are all connected to the first motor for synchronous movement through the first transmission. 3. The high-speed wire rod production system according to claim 2, wherein the diameter reducing module comprises two diameter reducing machines arranged on top of each other, and each of the diameter reducing machines is provided with the second driving device, The second driving device includes a second motor and a second transmission, and the second motor is connected to the corresponding reducer through the second transmission. 4. The high-speed wire rod production system according to claim 3, wherein the sizing module comprises two sizing machines, the third driving device comprises a third motor and a third transmission, and the two sizing machines The diameter machines are connected with the third motor through the third transmission for synchronous movement. 5 . The high-speed wire rod production system according to claim 4 , wherein the high-speed wire rod production system further comprises a first water cooler arranged at the outlet of the finishing rolling unit and an outlet of the sizing unit. 6 . the second water cooler. 6. The high-speed wire rod production system according to claim 5, wherein the first water cooler comprises at least one first water-penetrating cooling water tank arranged at the outlet of the finishing mill, and the second water cooler At least one second water-penetrating cooling water tank is provided at the outlet of the sizing unit. 7. The high-speed wire rod production system according to claim 5, wherein the high-speed wire rod production system further comprises a coiling device, and the coiling device is arranged at the outlet of the second water cooler for coiling high-speed wire. 8. The high-speed wire rod production system according to claim 7, wherein the coiling device comprises a laying head disposed at the outlet of the second water cooler. 9 . The high-speed wire rod production system according to claim 7 , wherein the high-speed wire rod production system further comprises an air cooling device, and the air cooling device is arranged at the outlet of the coiling device. 10 . 10 . The high-speed wire rod production system according to claim 9 , wherein the air-cooling device comprises an air-cooling conveying line disposed at the outlet of the coiling device. 11 .
