CN217064867U

CN217064867U - Water and soil conservation plant side slope irrigation equipment

Info

Publication number: CN217064867U
Application number: CN202122754895.6U
Authority: CN
Inventors: 杨周; 牛建辉
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-11-11
Filing date: 2021-11-11
Publication date: 2022-07-29
Anticipated expiration: 2031-11-11

Abstract

The utility model relates to the technical field of soil and water conservation, in particular to a soil and water conservation plant side slope irrigation device, comprising a side slope body, a fixing rod 1 is installed on the top of the side slope body, and a connecting rod is hinged on the top of the fixing rod 1. A stirring box is installed at the top of the connecting rod, a hollow rotating rod is installed inside the stirring box, a stirring rod is installed on the surface of the hollow rotating rod, and a stirring support rod is installed at one end of the stirring rod. In the utility model, after the hollow rotating rod is driven to rotate by the stirring driving motor, the stirring rod is driven by the hollow rotating rod to stir the water and the nutrients to mix evenly, so as to improve the stirring efficiency. Secondly, the stirred water is pumped by the micro water pump to the atomization spray through the water suction port. The head is spraying and irrigating, and then the micro water pump is driven to rotate synchronously through the hollow rotating rod. The micro water pump will drive the atomizing spray head to rotate and spray, so that the irrigation area is uniform, which is convenient for the rapid growth of grass seedlings, accelerates the construction of plant slopes, and prevents soil erosion. .

Description

Water and soil conservation plant side slope irrigation equipment

Technical Field

The utility model relates to a soil and water conservation technical field specifically is a soil and water conservation plant side slope irrigation equipment.

Background

Soil and water conservation is the work of preventing soil and water loss, protecting, improving and reasonably utilizing soil and water resources and establishing a good ecological environment. The water and soil conservation is achieved through multiple means, for example, measures such as cement irrigation or grass planting on the side slope can be taken, water and soil loss can be prevented, meanwhile, disasters such as debris flow can be prevented from occurring on the side slope, and an important safety protection effect is achieved. When the plant side slope is planted with grass, the grass seedlings can be planted with roots on the side slope better, sufficient water sources need to be irrigated when the grass seedlings are planted, and nutrient solution for grass seedling growth is added.

Generally when irrigating with nutrient solution and water stirring intensive mixing in advance through the manual work, the absorption growth that the grass seedling of being convenient for can be better, it is great because the irrigation water yield more consumes physical power when leading to stirring mixed nutrient solution, it is lower to cause stirring efficiency, and the stirring is not enough even, simultaneously when irrigating, irrigate through the water pipe, it is inhomogeneous to cause to spray, and the water waste, partial grass seedling does not receive the irrigation simultaneously, grow slowly, influence the plant side slope and build, consequently need to design a soil and water conservation plant side slope irrigation equipment urgently.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a soil and water conservation plant side slope irrigation equipment, generally when irrigating through the manual work with nutrient solution and water stirring intensive mixing that proposes in solving above-mentioned background art, the grass seedling of being convenient for can better absorption growth, it is great because the irrigation water yield is more to consume physical power when leading to stirring mixed nutrient solution, it is lower to cause stirring efficiency, and the stirring is not enough even, simultaneously when irrigating, irrigate through the water pipe, cause and spray inhomogeneously, and the water waste, partial grass seedling does not receive the irrigation simultaneously, grow slowly, influence the problem that the plant side slope was built.

In order to achieve the above object, the utility model provides a following technical scheme: a water and soil conservation plant side slope irrigation device comprises a side slope body, wherein a first fixing rod is installed at the top end of the side slope body, a connecting rod is hinged to the top end of the first fixing rod, a stirring box is installed at the top end of the connecting rod, a hollow rotating rod is installed inside the stirring box, a stirring rod is installed on the surface of the hollow rotating rod, and a stirring support rod is installed at one end of the stirring rod;

the water sucking mouth is installed to hollow dwang in the inside one end of agitator tank, hollow dwang in stirring driving motor is installed to the outside one end of agitator tank, the sprue is installed to the agitator tank top, micro-water pump is installed to hollow dwang bottom, micro-water pump installs the bottom and connects the raceway, connect the raceway bottom and install the atomizing sprinkler head, the slide rail is installed to connecting rod left side bottom, the slider is installed to the slide rail bottom, the slider below is provided with elevating system.

Preferably, a T-shaped groove is formed in one side, facing the surface of the sliding rail, of the sliding block, and one side of the sliding rail is embedded in the T-shaped groove in the surface of the sliding block.

Preferably, dead lever two is installed in side slope body left side, the screwed pipe is installed on two tops of dead lever, two internally mounted of dead lever have the threaded rod, conical gear one is installed to the threaded rod bottom, servo motor is installed in two outsides of dead lever, servo motor output shaft in conical gear two is installed to two inside one ends of dead lever, just the inside thread groove of having seted up of screwed pipe, the inside thread groove of screwed pipe with threaded connection between the screwed pipe surface.

Preferably, a left side of the conical gear is meshed with the top sides of the conical gear, and the left side of the conical gear and the top sides of the conical gear are in a rotating structure.

Preferably, the threaded pipe is slidably disposed inside the second fixing rod.

Preferably, the bottom end of the sliding block is hinged with the top end of the threaded pipe.

Compared with the prior art, the beneficial effects of the utility model are that:

1. after the hollow rotating rod is driven to rotate by the stirring driving motor, the stirring rod is driven by the hollow rotating rod to stir water and uniformly mix nutrition, the stirring efficiency is improved, then the micro water pump extracts the stirred water to the atomizing sprinkler head through the water suction port to spray and irrigate, then the micro water pump is driven to rotate synchronously through the hollow rotating rod, the micro water pump can drive the atomizing sprinkler head to rotate and spray, the irrigation area is uniform, the grass seedlings can grow rapidly, the establishment of plant side slopes is accelerated, and the water and soil loss is prevented.

Drawings

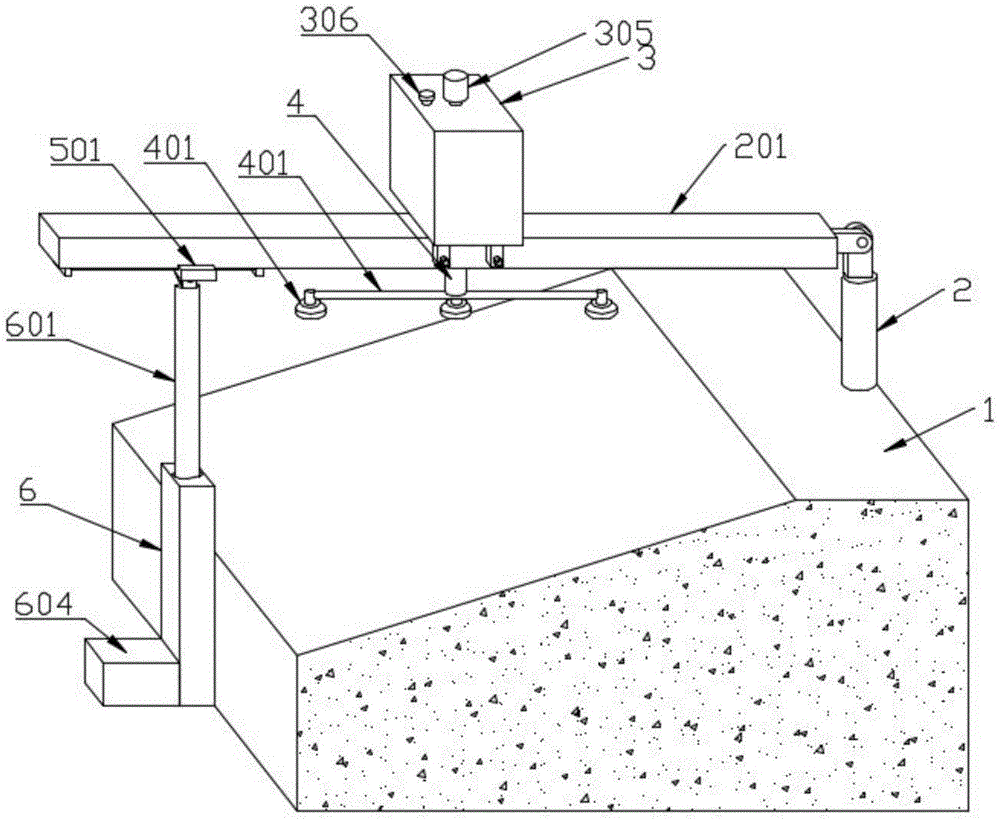

Fig. 1 is a three-dimensional schematic diagram of the structure of the present invention;

FIG. 2 is a schematic sectional view of the front view of the structure of the present invention;

fig. 3 is an enlarged schematic view of a portion of the structure at a in fig. 2 according to the present invention;

fig. 4 is the three-dimensional schematic diagram of the structure of the hollow rotating rod and the stirring rod of the utility model.

In the figure: 1. a side slope body; 2. fixing a rod I; 201. a connecting rod; 3. a stirring box; 301. a hollow rotating rod; 302. a stirring rod; 303. stirring the supporting rod; 304. a water suction port; 305. a stirring driving motor; 306. a material injection port; 4. a micro water pump; 401. connecting a water delivery pipe; 402. an atomizing spray head; 5. a slide rail; 501. a slider; 6. a second fixing rod; 601. a threaded pipe; 602. a threaded rod; 603. a first conical gear; 604. a servo motor; 605. and a second bevel gear.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides an embodiment:

a water and soil conservation plant side slope irrigation device comprises a side slope body 1, wherein a first fixing rod 2 is installed at the top end of the side slope body 1, a connecting rod 201 is hinged to the top end of the first fixing rod 2, a stirring box 3 is installed at the top end of the connecting rod 201, a hollow rotating rod 301 is installed inside the stirring box 3, a stirring rod 302 is installed on the surface of the hollow rotating rod 301, and a stirring support rod 303 is installed at one end of the stirring rod 302;

a water suction port 304 is installed at one end of the hollow rotating rod 301 inside the stirring box 3, a stirring driving motor 305 is installed at one end of the hollow rotating rod 301 outside the stirring box 3, a filling port 306 is installed at the top end of the stirring box 3, a micro water pump 4 is installed at the bottom end of the hollow rotating rod 301, a connecting water pipe 401 is installed at the bottom end of the micro water pump 4, an atomizing sprinkler 402 is installed at the bottom end of the connecting water pipe 401, a sliding rail 5 is installed at the bottom end of the left side of the connecting rod 201, a sliding block 501 is installed at the bottom end of the sliding rail 5, and a lifting mechanism is arranged below the sliding block 501.

Furthermore, a T-shaped groove is formed in one side of the slide block 501 facing the surface of the slide rail 5, and one side of the slide rail 5 is embedded in the T-shaped groove in the surface of the slide block 501.

Further, a second fixing rod 6 is installed on the left side of the slope body 1, a threaded pipe 601 is installed at the top end of the second fixing rod 6, a threaded rod 602 is installed inside the second fixing rod 6, a first bevel gear 603 is installed at the bottom end of the threaded rod 602, a servo motor 604 is installed on the outer side of the second fixing rod 6, a second bevel gear 605 is installed at one end, inside the second fixing rod 6, of an output shaft of the servo motor 604, a threaded groove is formed inside the threaded pipe 601, and the threaded groove inside the threaded pipe 601 is in threaded connection with the surface of the threaded rod 602.

Furthermore, the left side of the first bevel gear 603 is meshed with the top side of the second bevel gear 605, and the left side of the first bevel gear 603 and the top side of the second bevel gear 605 are in a rotating structure.

Further, the threaded pipe 601 is slidably disposed inside the second fixing rod 6.

Further, the bottom end of the sliding block 501 is hinged with the top end of the threaded pipe 601.

The working principle is as follows: when the device is used by a worker, firstly, the device is externally connected with a power supply, thereby providing electric power support for the device, when in use, water and nutrient solution are injected into the stirring box 3 from the injection port 306, then the stirring driving motor 305 operates to drive the hollow rotating rod 301 to rotate, the stirring rod 302 is driven by the hollow rotating rod 301 to rotate to stir the solution, so that the water and the nutrient solution are uniformly mixed, and the micro water pump 4 pumps the mixed water through the water suction port 304 to spray and irrigate from the bottom end of the atomizing sprinkler head 402, the micro water pump 4 is synchronously driven by the hollow rotating rod 301 to rotate, then the atomizing sprinkler head 402 is driven by the micro water pump 4 to rotate and irrigate at the same time, the irrigation area is increased, so that the grass seedlings grow uniformly, then the conical gear two 605 is driven to rotate by the servo motor 604, the conical gear one 603 meshed with the conical gear two 605 is driven to rotate, and then the threaded rod 602 is driven to rotate, the threaded rod 602 drives the threaded pipe 601 to be adjusted in a lifting mode, so that the threaded pipe 601 can drag the sliding block 501 to slide left and right on the sliding rail 5, the one end of the sliding block 203 is driven to rotate to adjust the inclination angle, the irrigation angle can be adjusted according to the slope inclination, and the water quantity of each part of land irrigation is better.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. A soil and water conservation plant slope irrigation device, comprising a side slope body (1), characterized in that: a fixed rod one (2) is installed on the top of the side slope body (1), and the fixed rod one (2) A connecting rod (201) is hinged at the top, a stirring box (3) is installed on the top of the connecting rod (201), a hollow rotating rod (301) is installed inside the stirring box (3), and the hollow rotating rod (301) A stirring rod (302) is installed on the surface, and a stirring support rod (303) is installed at one end of the stirring rod (302);

A water suction port (304) is installed at one end of the hollow rotating rod (301) inside the mixing box (3), and a stirring drive is installed at one end of the hollow rotating rod (301) outside the mixing box (3). A motor (305), a material injection port (306) is installed at the top of the stirring box (3), a micro water pump (4) is installed at the bottom end of the hollow rotating rod (301), and the bottom end of the micro water pump (4) is installed There is a connecting water delivery pipe (401), an atomizing sprinkler head (402) is installed at the bottom end of the connecting water delivery pipe (401), and a slide rail (5) is installed at the bottom end of the left side of the connecting rod (201). A slider (501) is installed at the bottom end of the rail (5), and a lifting mechanism is arranged below the slider (501).

2. A soil and water conservation plant slope irrigation device according to claim 1, wherein the slider (501) is provided with a T-shaped groove on one side of the slider (501) facing the surface of the slide rail (5). One side of the sliding rail (5) is embedded in the T-shaped groove on the surface of the sliding block (501).

3. A soil and water conservation plant slope irrigation device according to claim 1, characterized in that: two fixing rods (6) are installed on the left side of the side slope body (1), and the second fixing rods (6) A threaded pipe (601) is installed at the top, a threaded rod (602) is installed inside the second fixing rod (6), a bevel gear 1 (603) is installed at the bottom end of the threaded rod (602), and the second fixing rod (603) is installed. (6) A servo motor (604) is installed on the outside, and a bevel gear two (605) is installed at one end of the output shaft of the servo motor (604) inside the second fixing rod (6), and the threaded pipe (601) ) is internally provided with a threaded groove, and the internal threaded groove of the threaded pipe (601) and the surface of the threaded rod (602) are threadedly connected.

4. A soil and water conservation plant slope irrigation device according to claim 3, characterized in that: the left side of the first bevel gear (603) meshes with the top side of the second bevel gear (605), and The left side of the first bevel gear (603) and the top side of the second bevel gear (605) are in a rotating structure.

5 . The soil and water conservation plant slope irrigation device according to claim 3 , wherein the threaded pipe ( 601 ) is slidably arranged inside the second fixing rod ( 6 ). 6 .

6. The soil and water conservation plant slope irrigation device according to claim 3, wherein the bottom end of the slider (501) and the top end of the threaded pipe (601) are hingedly connected.
