Abstract
The utility model discloses a mixing device of a high-efficiency glue-pouring machine, which comprises a stirring tank and a tank cover arranged on the stirring tank, wherein the bottom in the tank cover is rotatably connected with a stirring shaft, the side wall of the stirring shaft is fixedly connected with a plurality of stirring blades, a cleaning mechanism for cleaning the stirring blades is arranged in the stirring tank, the cleaning mechanism comprises an annular plate which is connected to the inner wall of the tank cover in a sliding manner, and the inner wall of the annular plate is fixedly connected with a first annular pipe through a plurality of first mounting pieces. The automatic cleaning device is provided with the liftable annular plate, the glue on the inner wall of the stirring tank can be scraped off in the moving process of the annular plate, so that the aim of cleaning the tank wall can be fulfilled, and the first spray head, the second spray head, the first annular pipe and the second annular pipe are arranged, so that the glue on the stirring blade and the stirring shaft can be blown away and cleaned, the stirring blade and the stirring shaft can be automatically cleaned, the device does not need to be disassembled, and the practicability of the device is improved.
Description
Technical Field
The utility model relates to the technical field of glue-pouring machines, in particular to a mixing device of a high-efficiency glue-pouring machine.
Background
The glue-pouring machine, also called as a glue-dispensing machine, is an automatic machine which is specially used for controlling fluid and dripping, coating and encapsulating liquid on the surface of a product or in the product.
The current glue-pouring machine is behind the encapsulating, often adhesion glue on (mixing) shaft and the stirring vane in the mixing arrangement, because glue has viscidity, lead to (mixing) shaft and stirring vane to be convenient for clear up, and mixing arrangement sets up inside the device, difficult dismantlement, thereby cause (mixing) shaft and stirring vane to wash the difficulty, the mixing arrangement who does not wash clean is when using next time, the problem of leaking glue, glue dripping appears more easily, so, need design a high-efficient glue-pouring machine's mixing arrangement to solve above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the defects in the prior art and provides a mixing device of a high-efficiency glue-pouring machine.
In order to achieve the purpose, the utility model adopts the following technical scheme:
the utility model provides a mixing arrangement of high-efficient glue-pouring machine, includes agitator tank and the cover of setting on the agitator tank, the bottom rotates in the cover and is connected with the (mixing) shaft, a plurality of stirring vane of (mixing) shaft lateral wall fixedly connected with, be equipped with the clearance mechanism that is used for clearing up stirring vane in the agitator tank, clearance mechanism includes the annular slab of sliding connection at the cover inner wall, the annular slab inner wall is through the first toroidal tube of a plurality of first installed part fixedly connected with, the annular slab inner wall is through a plurality of second installed part fixedly connected with second toroidal tube, the equidistant intercommunication of first toroidal tube lateral wall is equipped with a plurality of first shower nozzles, the equidistant intercommunication of second toroidal tube lateral wall is equipped with a plurality of second shower nozzles, be equipped with the actuating mechanism who is used for driving the annular slab to remove on the cover.
Preferably, the driving mechanism comprises a reciprocating lead screw penetrating through the upper end of the tank cover, the reciprocating lead screw is rotatably connected with the tank cover, the lower end of the reciprocating lead screw penetrates through the lower end of the annular plate, a second motor is fixedly connected to the upper end of the tank cover, a rotating shaft is fixedly connected with an output shaft of the second motor, the rotating shaft and the reciprocating lead screw are coaxially and fixedly connected with belt pulleys, and the two belt pulleys are connected through belt transmission.
Preferably, two fixed cylinders are symmetrically arranged at the upper end of the tank cover in a penetrating manner, an air inlet pipe is arranged at the upper end of the fixed cylinder on the left side in a penetrating manner, and the lower end of the air inlet pipe is communicated with the second annular pipe.
Preferably, be located the right side the fixed cylinder upper end is run through and is equipped with the inlet tube, inlet tube lower extreme and first ring pipe intercommunication, cover upper end fixedly connected with water pump, the one end that first ring pipe was kept away from to the inlet tube communicates with the play water end of water pump.
Preferably, the bottom fixedly connected with montant in the agitator tank, the montant upper end runs through the annular plate upper end.
Preferably, a water outlet pipe communicated with the interior of the stirring tank is arranged on the stirring tank, a valve is arranged on the water outlet pipe, a first motor is fixedly connected to the upper end of the tank cover, and an output shaft of the first motor is fixedly connected to the upper end of the stirring shaft.
The utility model has the following beneficial effects:
1. the device is provided with a driving mechanism, a second motor is started, an output shaft of the second motor drives a rotating shaft to rotate, the rotating shaft drives a reciprocating lead screw to rotate through belt transmission, an annular plate reciprocates up and down, and the annular plate can scrape glue on the inner wall of the stirring tank in the downward movement process, so that the aim of cleaning the tank wall can be fulfilled;
2. this device has set up clearance mechanism, in the air got into the second ring pipe through the intake pipe, the air in the second ring pipe is finally followed the second shower nozzle blowout, the cleaning solution gets into in the first ring pipe finally by first shower nozzle blowout, the air can blow away stirring vane and the epaxial glue of stirring, the spun cleaning solution can be washd stirring vane and (mixing) shaft and has been done automatic clearance stirring vane and (mixing) shaft, need not dismantle equipment to the practicality of device has been improved.
Drawings

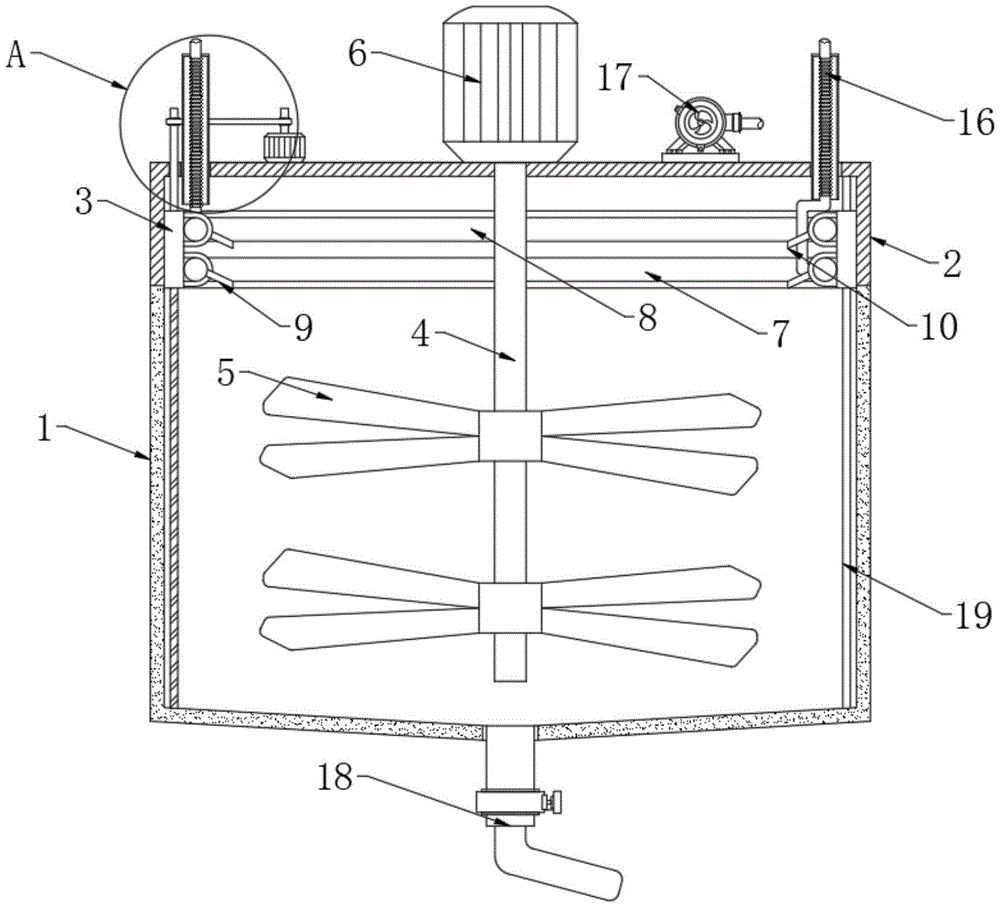

Fig. 1 is a schematic structural diagram of a mixing device of an efficient glue-pouring machine according to the present invention;
FIG. 2 is an enlarged view of the structure at A in FIG. 1;
fig. 3 is an assembly view of an annular plate and a second annular pipe of the mixing device of the high-efficiency glue-pouring machine provided by the utility model.
In the figure: 1 agitator tank, 2 cover, 3 annular plate, 4 (mixing) shafts, 5 stirring vane, 6 first motor, 7 first annular pipe, 8 second annular pipe, 9 first shower nozzle, 10 second shower nozzle, 11 reciprocal lead screws, 12 second motor, 13 fixed cylinder, 14 intake pipe, 15 axis of rotation, 16 inlet tubes, 17 water pump, 18 outlet pipes, 19 montants.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, are merely for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
Referring to fig. 1-3, the mixing device of the high-efficiency glue-pouring machine comprises a stirring tank 1 and a tank cover 2 arranged on the stirring tank 1, wherein a stirring shaft 4 is rotatably connected to the bottom in the tank cover 2, a plurality of stirring blades 5 are fixedly connected to the side wall of the stirring shaft 4, a water outlet pipe 18 communicated with the inside of the stirring tank 1 is arranged on the stirring tank 1, a valve is arranged on the water outlet pipe 18, a first motor 6 is fixedly connected to the upper end of the tank cover 2, and an output shaft of the first motor 6 is fixedly connected to the upper end of the stirring shaft 4.
Be equipped with the clearance mechanism that is used for clearing up stirring vane 5 in agitator tank 1, clearance mechanism includes the annular slab 3 of sliding connection at 2 inner walls of cover, 3 inner walls of annular slab are through the first ring pipes 7 of a plurality of first installed part fixedly connected with, 3 inner walls of annular slab are through a plurality of second installed part fixedly connected with second ring pipes 8, 7 equidistant intercommunications of first ring pipe lateral wall are equipped with a plurality of first shower nozzles 9, 8 equidistant intercommunications of second ring pipe lateral wall are equipped with a plurality of second shower nozzles 10.
Be equipped with the actuating mechanism who is used for driving the removal of annular plate 3 on the cover 2, actuating mechanism is including running through the reciprocal lead screw 11 that sets up in cover 2 upper end, reciprocal lead screw 11 rotates with cover 2 to be connected, reciprocal lead screw 11 lower extreme runs through annular plate 3 lower extreme, 2 upper end fixedly connected with second motor 12 of cover, the output shaft fixedly connected with axis of rotation 15 of second motor 12, equal coaxial fixedly connected with band pulley on axis of rotation 15 and the reciprocal lead screw 11, two band pulleys pass through belt transmission and connect.
According to the utility model, two fixed cylinders 13 are symmetrically arranged at the upper end of the tank cover 2 in a penetrating manner, an air inlet pipe 14 is arranged at the upper end of the fixed cylinder 13 positioned on the left side in a penetrating manner, the lower end of the air inlet pipe 14 is communicated with the second annular pipe 8, one end of the air inlet pipe 14, which is far away from the second annular pipe 8, is communicated with external air pumping equipment, the external air pumping equipment comprises an air blower and the like, the second nozzle 10 is one of high-pressure touch nozzles, and high-pressure air is pumped into the second annular pipe 8 by the external air pumping equipment.
In the utility model, a water inlet pipe 16 penetrates through the upper end of the fixed cylinder 13 positioned on the right side, the lower end of the water inlet pipe 16 is communicated with the first annular pipe 7, a water pump 17 is fixedly connected to the upper end of the tank cover 2, one end of the water inlet pipe 16, which is far away from the first annular pipe 7, is communicated with the water outlet end of the water pump 17, the water inlet end of the water pump 17 is communicated with external cleaning solution storage equipment through a pipeline, and the air inlet pipe 14 and the water inlet pipe 16 are partially corrugated pipes.
According to the utility model, the bottom in the stirring tank 1 is fixedly connected with the vertical rod 19, the upper end of the vertical rod 19 penetrates through the upper end of the annular plate 3, and the vertical rod 19 limits the annular plate 3, so that the annular plate 3 cannot rotate when the reciprocating screw rod 11 rotates, and the annular plate 3 can only vertically move.
When the glue cleaning device is used, the first motor 6 is started, the output shaft of the first motor 6 drives the stirring shaft 4 to rotate, the stirring shaft 4 drives the stirring blade 5 to rotate, the mixing and stirring of glue are realized, after the stirring is finished, the valve on the water outlet pipe 18 is opened to discharge the glue, the second motor 12 is started, the output shaft of the second motor 12 drives the rotating shaft 15 to rotate, the rotating shaft 15 drives the reciprocating screw rod 11 to rotate through belt transmission, the annular plate 3 starts to reciprocate up and down under the limit of the vertical rod 19, the glue on the inner wall of the stirring tank 1 can be scraped in the downward movement process of the annular plate 3, and therefore the purpose of cleaning the tank wall can be achieved;
when the second motor 12 is started, the external air pumping equipment is opened, air enters the second annular pipe 8 through the air inlet pipe 14, the air in the second annular pipe 8 is finally sprayed out from the second spray head 10, and the sprayed air can blow away glue on the stirring blades 5 and the stirring shaft 4, so that the purpose of automatically cleaning the stirring blades 5 and the stirring shaft 4 is achieved, the equipment does not need to be disassembled, and the practicability of the device is improved;
close outside pump gas equipment after a period, open water pump 17, water pump 17 sends into first ring pipe 7 through inlet tube 16 with the cleaning solution in the outside cleaning solution storage facilities in, the cleaning solution in the first ring pipe 7 is finally by first shower nozzle 9 blowout, spun cleaning solution can wash stirring vane 5 and (mixing) shaft 4, mixing shaft 4 continues to rotate, can be through stirring vane 5 and (mixing) shaft 4 cleaning performance, sewage is from outlet pipe 18 blowout.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered as the technical solutions and practical concepts of the present invention within the technical scope of the present invention.
Claims (6)
1. The mixing device of the high-efficiency glue-pouring machine comprises a stirring tank (1) and a tank cover (2) arranged on the stirring tank (1), and is characterized in that a stirring shaft (4) is rotatably connected to the bottom of the tank cover (2), a plurality of stirring blades (5) are fixedly connected to the side wall of the stirring shaft (4), a cleaning mechanism used for cleaning the stirring blades (5) is arranged in the stirring tank (1), the cleaning mechanism comprises a ring-shaped plate (3) which is slidably connected to the inner wall of the tank cover (2), the inner wall of the ring-shaped plate (3) is fixedly connected with a first ring-shaped pipe (7) through a plurality of first mounting pieces, the inner wall of the ring-shaped plate (3) is fixedly connected with a second ring-shaped pipe (8) through a plurality of second mounting pieces, a plurality of first spray nozzles (9) are communicated with the side wall of the first ring-shaped pipe (7) at equal intervals, a plurality of second spray nozzles (10) are communicated with the side wall of the second ring-shaped pipe (8) at equal intervals, and a driving mechanism for driving the annular plate (3) to move is arranged on the tank cover (2).
2. The mixing device of a high-efficiency glue-pouring machine according to claim 1, characterized in that the driving mechanism comprises a reciprocating screw rod (11) penetrating through the upper end of the tank cover (2), the reciprocating screw rod (11) is rotatably connected with the tank cover (2), the lower end of the reciprocating screw rod (11) penetrates through the lower end of the annular plate (3), the upper end of the tank cover (2) is fixedly connected with a second motor (12), the output shaft of the second motor (12) is fixedly connected with a rotating shaft (15), the rotating shaft (15) and the reciprocating screw rod (11) are coaxially and fixedly connected with belt wheels, and the two belt wheels are connected through a belt transmission.
3. The mixing device of the high-efficiency glue-pouring machine is characterized in that two fixed cylinders (13) are symmetrically arranged at the upper end of the tank cover (2) in a penetrating manner, an air inlet pipe (14) is arranged at the upper end of the fixed cylinder (13) on the left side in a penetrating manner, and the lower ends of the air inlet pipes (14) are communicated with the second annular pipe (8).
4. The mixing device of the high-efficiency glue-pouring machine is characterized in that a water inlet pipe (16) penetrates through the upper end of the fixed cylinder (13) on the right side, the lower end of the water inlet pipe (16) is communicated with the first annular pipe (7), a water pump (17) is fixedly connected to the upper end of the tank cover (2), and one end, far away from the first annular pipe (7), of the water inlet pipe (16) is communicated with the water outlet end of the water pump (17).
5. The mixing device of the high-efficiency glue-pouring machine is characterized in that a vertical rod (19) is fixedly connected to the bottom in the stirring tank (1), and the upper end of the vertical rod (19) penetrates through the upper end of the annular plate (3).
6. The mixing device of a high-efficiency glue-pouring machine according to claim 1, characterized in that the stirring tank (1) is provided with a water outlet pipe (18) communicated with the inside thereof, the water outlet pipe (18) is provided with a valve, the upper end of the tank cover (2) is fixedly connected with a first motor (6), and an output shaft of the first motor (6) is fixedly connected with the upper end of the stirring shaft (4).
