CN217014400U

CN217014400U - Fixing device is wrapped to scrotum postoperative

Info

Publication number: CN217014400U
Application number: CN202220232920.6U
Authority: CN
Inventors: 吴建辉; 张敬敏; 边茸; 孟祥炯; 方祺
Original assignee: Tianjin First Central Hospital
Current assignee: Tianjin First Central Hospital
Priority date: 2022-01-28
Filing date: 2022-01-28
Publication date: 2022-07-22
Anticipated expiration: 2032-01-28

Abstract

The utility model relates to a scrotum postoperative binding and fixing device, which comprises a scrotum support and a fixing part for fixing the scrotum support on a body; the scrotum support is connected with the fixing part; the scrotum support is provided with a through hole; the fixing part comprises a fixing belt and a connecting belt, and the fixing belt is respectively arranged at the first end and the second end of the scrotum support; the scrotum support is connected with the fixing belt through a connecting belt; the scrotum is lifted by the scrotum support in such a way, the penis penetrates out of the through hole to be exposed, and the fixing belt and the connecting belt are fixed on the body of a patient, so that the fixing function can be well played, the scrotum is attached to the human body, the cost is low, and the use is convenient.

Description

Fixing device is wrapped to scrotum postoperative

Technical Field

The utility model belongs to the technical field of medical instruments, and particularly relates to a scrotum postoperative binding and fixing device.

Background

The scrotum operation is a common operation in clinic, and a scrotum incision or a wound surface of the operation needs to be bound and fixed by dressing after the operation. The clinical method is generally to place the fixing part at the wound surface position of scrotum operation and then to press and fix the fixing part by an adhesive plaster. However, the scrotum has the characteristics of no subcutaneous fat on the skin, a plurality of plica, sweat glands and sebaceous glands, and the wound surface of the scrotum after operation is easy to seep, slip and edema, so the conventional binding and fixing method cannot well achieve the effects of drying, fixing and preventing edema; the problems of wound exposure, infection and the like are easily caused, and the over-tight adhesive plaster is pasted and fixed, so that the free movement and urination of a patient are influenced, and skin allergy and injury are easily caused. Therefore, a dressing fixing device which can fully fix the scrotum, does not damage the skin around the scrotum and does not hinder activities such as urination and the like is needed.

The utility model provides a scrotum postoperative binding and fixing device, which aims to solve the problems of scrotum after the current clinical binding and fixing operation.

SUMMERY OF THE UTILITY MODEL

In order to overcome the problems in the background art, the utility model provides a scrotum postoperative bandaging fixing device.

A scrotum postoperative binding and fixing device comprises a scrotum support and a fixing part for fixing the scrotum support on a body; the scrotum support is connected with the fixing part; the scrotum support is provided with a through hole; the fixing part comprises a fixing belt and a connecting belt, and the fixing belt is respectively arranged at the first end and the second end of the scrotum support; the scrotum support is connected with the fixing belt through a connecting belt; the scrotum is lifted by utilizing the scrotum support in the mode, the penis penetrates out of the through hole to be exposed, the fixing belt and the connecting belt are fixed on the body of a patient, the fixing function can be well achieved, the scrotum is attached to the human body, the cost is low, and the use is convenient.

Furthermore, the shape of scrotum support is laminated with the shape of scrotum mutually, guarantees the comfort level.

Furthermore, the through hole is an oval hole and is positioned at the central position of the scrotum support close to the edge of the upper end, so that the penis is exposed, and the physiological requirements are met.

Further, the distance between the circle center of the through hole and the bottom edge of the scrotum support is 8-12cm, preferably 10 cm; the arrangement can fully expose the penis so as to facilitate observation and indwelling of the catheter. The diameter of the through hole is 3.8-4.5cm, and the numerical range refers to systematic analysis and comparative study of the length and the perimeter of the penis of the adult at home and abroad.

Furthermore, the hole edge of the through hole is provided with an elastic band, and the hole edge is provided with the elastic band, so that the comfort of the penis is guaranteed, and the scrotum can be well prevented from being exposed.

Further, the length from the first end to the second end of the scrotum support gradually becomes wider, the width of the first end of the scrotum support is 4-6cm, the width of the second end of the scrotum support is 13-17cm, and the length of the side edge of the scrotum support is 16-20 cm; the arrangement of the numerical range can effectively ensure the fixation of the scrotum and avoid the exposure of the scrotum. Preferably, the width of the first end of the scrotum support is 5cm, the width of the second end of the scrotum support is 15cm, and the length of the side edge of the scrotum support is 18 cm. The data is similar to European and American men underwear M code. The scrotum support is made of elastic fabric, the size of the scrotum support is consistent with the description, and the postoperative pressure dressing needs the narrowed design so as to be better fixed and pressed. For patients with special body types, the size of the scrotum postoperative binding and fixing device is divided into S, M, L, XL, XXL and XXXL according to the European and American code of common male underwear, the waistline is strictly cut according to the standard code, and the area of the scrotum support is smaller than the area of the triangular region of the penis of the standard code underwear. When the patient specifically selects, the scrotum postoperative binding and fixing device with the proper size is selected according to the selected underwear code of the patient at ordinary times.

Further, the scrotum holder is provided with an openable bonding part which is communicated with the through hole; when the scrotum condition needs to be observed temporarily, the bonding part is opened, and the bonding part is closed in time after the observation is finished, so that the clinical operation is facilitated.

Further, the fixed band is including setting up the belly fixed band that holds in the palm first end at the scrotum and setting up the waist fixed band that holds in the palm the second end at the scrotum, belly fixed band and waist fixed band swing joint. The abdomen fixing belt and the waist fixing belt are arranged in an elastic adjustable type for different patients to use; or the abdomen fixing belt and the waist fixing belt are arranged in a length adjustable type so as to meet the requirements of different clinical patients.

Furthermore, the abdomen fixing belt and the waist fixing belt both have elasticity and air permeability, and are more fit with the human body.

Furthermore, belly fixed band holds in the palm an organic whole with the scrotum and is connected, perhaps sets up a protecting band before belly fixed band and scrotum hold in the palm, and the protecting band plays and protects the effect of lower abdomen. The protective belt has elasticity, and the protective belt also can be for length fine setting, satisfies different size patients' user demand.

Furthermore, the connecting band is a hip restraint band, and two ends of the hip restraint band are respectively connected with the scrotum support and the waist fixing band. The hip restraint belt has elasticity.

Further, the hip restraint belts are strip belts symmetrically arranged on two sides of the scrotum support; the arrangement is convenient to fix, has good air permeability, does not obstruct excrement, and is convenient for observing the changes of wounds and other skin of the buttocks after the operation. Or the hip restraint strap is an integrated protective cloth and is suitable for patients with weak bodies.

Furthermore, the buttock restraint strap and the scrotum support are integrally connected, so that the buttock restraint belt is convenient to wear.

Or the hip restraint strap is movably connected with the scrotum support, the scrotum support can be conveniently and independently replaced in the connection mode, and waste is avoided. Specifically, a first connecting groove for containing the hip restraint belt is formed in the second end of the scrotum support, the free end of the hip restraint belt extends into and out of the first connecting groove, and then the free end of the hip restraint belt is turned back to the hip restraint belt to be fixed.

Furthermore, the hip restraint strap and the waist fixing strap are integrally connected, so that the comfort of a patient is effectively guaranteed, the tensile strength can be guaranteed, and the hip restraint strap is not easy to loosen.

Or the hip restraint belt is movably connected with the waist fixing belt, the specific connection mode is various, and can be the same as the connection mode of the hip restraint belt and the scrotum support, namely, the waist fixing belt is provided with a second connecting groove for accommodating the hip restraint belt, and the free end of the hip restraint belt extends into and out of the second connecting groove and then turns back to the hip restraint belt for fixing; the length of second connecting groove is greater than the width of the hip restraint strap, and the hip restraint strap can move in the second connecting groove to meet the requirements of patients with different body types. When the hip restraint strap is movably connected with the waist fixing strap, the joint is made of soft cloth materials, so that the pain caused by pulling and pressurizing is avoided.

Furthermore, the fixing band is provided with a fixing part for fixing the catheter, so that a patient who needs to fix the catheter can be satisfied while wearing the scrotum holder, and the operation is convenient.

Further, the fixing piece comprises a mouth-shaped fixing block arranged on the abdomen fixing belt and/or the waist fixing belt and a through groove arranged on the abdomen fixing belt and/or the waist fixing belt; one side of the mouth-shaped fixed block is positioned in the through groove and moves relative to the through groove; the fixing piece with the adjustable position can be adjusted according to the requirements of medical workers, and is convenient to operate. The mouth-shaped fixing block is made of soft materials, so that the skin of a patient is prevented from being crushed.

Or the fixing piece comprises a square fixing block arranged at the first end and/or the second end of the abdomen fixing belt and/or the waist fixing belt, and an accommodating cavity which is arranged at the first end and/or the second end of the abdomen fixing belt and/or the waist fixing belt and is used for accommodating the square fixing block; the square fixing block is connected with the bottom of the accommodating cavity through a connecting block with adjustable length; during the use, pull out square fixed block from holding the intracavity, with the pipeline fix square fixed block surface can, when need not fixed pipeline, put back square fixed block and hold intracavity portion. The square fixing block is made of soft materials, and the skin of a patient is prevented from being crushed.

Furthermore, the outside of mouth shape fixed block or square fixed block sets up the recess that is used for placing catheter or other pipelines to and be used for the fixed subsides of fixed pipeline, in order to guarantee to the fixed stability of pipeline. Preferably, the number of the grooves is two, and the number of the fixing pastes arranged in a single groove is two.

Further, the scrotum support and the hip restraint belt are made of elastic breathable cotton fabric.

The utility model has the beneficial effects that: can fully fix scrotum, does not affect urination or keep a urinary catheter, and can be freely used in a toilet. The abdomen fixing belt and the waist fixing belt are integrally connected, so that the effects of ensuring fixing strength and facilitating wearing are achieved; the waist elasticity is conveniently adjusted through swing joint's belly fixed band and waist fixed band, and the buttock restraint area of elasticity can be fine play the fixed action, again not too tight, ventilative light, the human body of laminating is convenient for postoperative observation wound and other skin changes of buttock. The design is simple, the wearing is convenient, and a plurality of people do not need to turn over the patient; low cost and convenient use.

Drawings

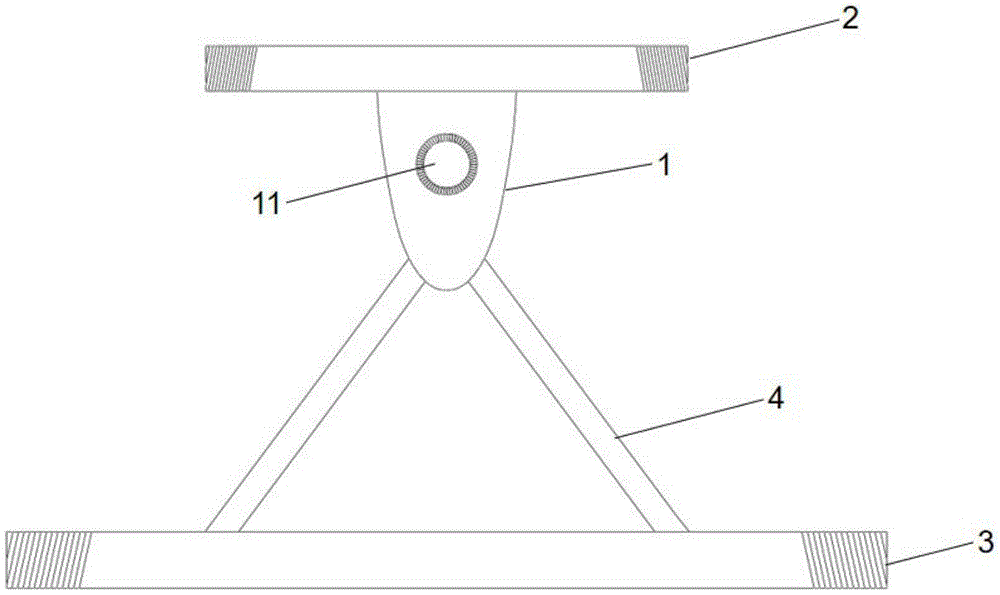

FIG. 1 is a front perspective view of the abdomen fixing band, scrotum holder, hip restraint band and waist fixing band of the present invention integrally connected in this order;

FIG. 2 is a front perspective view of the present invention in which a protection belt is provided between the abdomen fixing belt and the scrotum support (the buttocks restraint belt is provided as an integrated type protection cloth);

FIG. 3 is a front perspective view of the hip restraint belt of the present invention with both ends thereof movably connected to the scrotum holder and the waist securing strap;

FIG. 4 is a front perspective view of the present invention with fasteners;

FIG. 5 is a partially enlarged view of the fixing block of the present invention;

FIG. 6 is an enlarged perspective view of one end of the abdomen fixing band or the waist fixing band provided with a square fixing block according to the present invention;

FIG. 7 is an enlarged view of the lip-shaped fixing block of the present invention;

in the figure, 1, a scrotum support; 11. a through hole; 12. an adhesive portion; 13. connecting a first connecting groove; 2. abdominal fixing belts; 21. a protective band; 3. waist fixing belts; 31. connecting groove two; 32. a mouth-shaped fixed block; 33. a through groove; 34. a square fixed block; 35. an accommodating chamber; 36. a groove; 37. fixing and sticking; 4. a hip restraint strap.

Detailed Description

The technical solutions in the embodiments of the present invention are clearly and completely described below by specific embodiments, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, rather than all embodiments, and other advantages and effects of the present invention can be easily understood by those skilled in the art from the disclosure of the present specification. The present invention can be implemented or applied by other different specific embodiments, and the features in the following embodiments and examples can be combined with each other without conflict, and all other embodiments obtained by a person of ordinary skill in the art without making creative efforts based on the embodiments in the present invention shall fall within the protection scope of the present invention.

Example 1

Referring to fig. 1-4, the present embodiment includes an scrotum holder 1 and a fixing part for fixing the scrotum holder 1 on a body; the scrotum support 1 is connected with the fixing part; the scrotum support 1 is provided with a through hole 11; the fixing part comprises a fixing belt and a connecting belt, and the fixing belt is respectively arranged at the first end and the second end of the scrotum support 1; the scrotum support 1 is connected with the fixing belt through a connecting belt; the scrotum is lifted by the scrotum support 1 in such a way, the penis penetrates out of the through hole 11 to be exposed, and the fixing band and the connecting band are fixed on the body of a patient, so that the fixing effect can be well achieved, the scrotum is attached to the human body, the cost is low, and the use is convenient.

Example 2

Referring to fig. 1 to 4, the present embodiment specifically sets the specific technical features of the scrotum support 1 on the basis of embodiment 1: the shape of the scrotum support 1 is fit with the shape of the scrotum, so that the comfort level is ensured. The through hole 11 is an elliptical hole, and the through hole 11 is positioned at the central position of the scrotum holder 1 close to the upper end edge, so that the penis is exposed and the physiological requirements are met. The distance from the center of the through hole 11 to the bottom edge of the scrotum holder 1 is 8-12cm, preferably 10 cm; the arrangement can fully expose the penis so as to facilitate observation and indwelling of the catheter. The diameter of the through hole 11 is 3.8-4.5cm, and the numerical range refers to the systematic analysis and comparative study of the length and the circumference of the adult penis at home and abroad. The hole edge of the through hole 11 is provided with an elastic band, and the arrangement of the hole edge on the elastic band not only ensures the comfort of the penis, but also can well prevent the scrotum from being exposed. The length from the first end to the second end of the scrotum support 1 is gradually widened, the width of the first end of the scrotum support 1 is 4-6cm, the width of the second end of the scrotum support 1 is 13-17cm, and the length of the side edge of the scrotum support 1 is 16-20 cm; the arrangement of the numerical range can effectively ensure the fixation of the scrotum and avoid the exposure of the scrotum. Preferably, the width of the first end of the scrotum support 1 is 5cm, the width of the second end of the scrotum support 1 is 15cm, and the length of the side edge of the scrotum support 1 is 18 cm. This data is similar to the M code of European and American men's underwear. The scrotum support 1 is made of elastic fabric, the size of the scrotum support 1 is consistent with the above description, and the postoperative pressure dressing needs such a narrowed design for better fixation and compression. For patients with special body types, the size of the scrotum postoperative binding and fixing device is divided into S, M, L, XL, XXL and XXXL according to the European and American code of common male underwear, the waistline is strictly cut according to the standard code, and the area of the scrotum holder 1 is smaller than the area of the triangular region of the scrotum stem of the standard code underwear. When the patient specifically selects, the scrotum postoperative binding and fixing device with the proper size is selected according to the underwear code selected by the patient at ordinary times.

The scrotum holder 1 is provided with an openable bonding part 12, and the bonding part 12 is communicated with the through hole 11; when the scrotum condition needs to be observed temporarily, the bonding part 12 is opened, and the bonding part 12 is closed in time after the observation is finished, so that the clinical operation is convenient.

Example 3

Referring to fig. 1 to 4, in this embodiment, specific settings are made on the fastening strap and the connection relationship between the fastening strap and the scrotum support 1 based on embodiment 1 or 2: the fixed band is including setting up abdominal fixing belt 2 and the waist fixed band 3 that sets up at 1 second end of scrotum support in 1 first end of scrotum support, abdominal fixing belt 2 and 3 swing joint of waist fixed band. The abdomen fixing belt 2 and the waist fixing belt 3 are arranged to be elastic and adjustable, so as to be used by different patients; or the abdomen fixing belt 2 and the waist fixing belt 3 are set to be of adjustable length so as to meet the requirements of different clinical patients. The abdomen fixing belt 2 and the waist fixing belt 3 can be connected in various ways, not only in the way described in the embodiment, but also in other ways which are convenient to detach; in this embodiment, the both ends of abdomen fixed band 2 and waist fixed band 3 set up the nylon adhesive tape respectively, link together abdomen fixed band 2 and waist fixed band 3 through the nylon adhesive tape, and adjust the girth that abdomen fixed band 2 and waist fixed band 3 enclose into the circle according to the patient's demand, adjustment waist elasticity, application scope is wider. The abdomen fixing belt 2 and the waist fixing belt 3 both have elasticity and air permeability, and are more fit to the human body.

The abdomen fixing belt 2 and the scrotum support 1 are integrally connected, or a protecting belt 21 is arranged before the abdomen fixing belt 2 and the scrotum support 1, and the protecting belt 21 plays a role in protecting the lower abdomen. The protective belt 21 has elasticity, and the length of the protective belt 21 can be adjusted finely, so that the use requirements of patients with different body types can be met.

The connecting belt is a hip restraint belt 4, and two ends of the hip restraint belt 4 are respectively connected with the scrotum support 1 and the waist fixing belt. The hip restraint belt 4 is elastic. The hip restraint belts 4 are strip belts symmetrically arranged at two sides of the scrotum support 1; the arrangement is convenient to fix, has good air permeability, does not obstruct excrement, and is convenient for observing the changes of wounds and other skin of the buttocks after the operation. Alternatively, the hip restraint belt 4 is provided as an integrated protective cloth for a patient with a weak body.

The hip restraint strap 4 is integrally connected with the scrotum support 1, and the wearing is convenient in this way. Or the hip restraint belt 4 is movably connected with the scrotum support 1, the scrotum support 1 can be conveniently and independently replaced by the connection mode, and waste is avoided. Specifically, a first connecting groove 13 for accommodating the hip restraint belt 4 is arranged at the second end of the scrotum holder 1, and the free end of the hip restraint belt 4 extends into and out of the first connecting groove 13 and then turns back to the hip restraint belt 4 for fixing.

The hip restraint belt 4 is integrally connected with the waist fixing belt 3. Or, the hip restraint belt 4 is movably connected with the waist fixing belt 3, the specific connection mode is various, and can be the same as the connection mode of the hip restraint belt 4 and the scrotum holder 1, namely, the waist fixing belt is provided with a second connection groove 31 for accommodating the hip restraint belt 4, the free end of the hip restraint belt 4 extends into and out of the second connection groove 31, and then the hip restraint belt 4 is turned over to be fixed; the length of the second connecting groove 31 is larger than the width of the hip restraint band 4, so that the hip restraint band 4 can move in the second connecting groove 31, and the requirements of patients with different body types are met. When the hip restraint belt 4 is movably connected with the waist fixing belt 3, the joint is made of soft cloth materials, so that the pain caused by pulling and pressurizing is avoided; the mode of integrative connection has both effectively guaranteed patient's travelling comfort, also can guarantee tensile strength, is difficult to the pine to fall.

Example 4

Referring to fig. 4 to 7, the following technical features are added to the embodiments 1, 2 or 3 in this embodiment: the fixing band is provided with a fixing part for fixing the catheter, so that a patient who needs to fix the catheter can be satisfied while wearing the scrotum holder 1, and the operation is convenient.

The fixing piece comprises a mouth-shaped fixing block 32 arranged on the abdomen fixing belt 2 and/or the waist fixing belt 3 and a through groove 33 arranged on the abdomen fixing belt 2 and/or the waist fixing belt 3; one side of the mouth-shaped fixed block 32 is positioned in the through groove 33 and moves relative to the through groove 33; the fixing piece with the adjustable position can be adjusted according to the requirements of medical workers, and is convenient to operate. The mouth-shaped fixing block 32 is made of soft materials, so that the skin of a patient is prevented from being crushed. Or, the fixing member comprises a square fixing block 34 arranged at the first end and/or the second end of the abdomen fixing belt 2 and/or the waist fixing belt 3, and an accommodating cavity 35 arranged at the first end and/or the second end of the abdomen fixing belt 2 and/or the waist fixing belt 3 and used for accommodating the square fixing block 34; the square fixing block 34 is connected with the bottom of the accommodating cavity 35 through a connecting block with adjustable length; during the use, pull out square fixed block 34 in holding chamber 35 certainly, with the pipeline fix in square fixed block 34 surface can, when need not fixed pipeline, put back square fixed block 34 and hold inside the chamber 35. The square fixing block 34 is made of soft materials, so that the skin of a patient is prevented from being crushed.

A groove 36 for placing a catheter or other pipelines and a fixing paste 37 for fixing the pipelines are arranged on the outer side of the mouth-shaped fixing block 32 or the square fixing block 34 so as to ensure the stability of the pipeline fixing. Preferably, there are two recesses 36, and there are two fixing patches 37 provided for a single recess 36.

When in use, the waist fixing belt 3 is firstly unfolded and placed on the bed surface of the waist of a patient, the scrotum support 1 and the buttock belt 4 are pulled to the abdomen from the space between the two legs, the scrotum 1 is supported by the bag, and the buttock belt 4 is straightened, so that the penis is exposed from the through hole. Finally, the abdomen fixing belt and the waist fixing belt are fastened.

The above description of the embodiments is only intended for the understanding of the present invention. It should be noted that modifications can be made to the utility model without departing from the principle of the utility model, which will fall within the scope of the appended claims.

Claims

1. A scrotum postoperative binding and fixing device comprises a scrotum support and a fixing part for fixing the scrotum support on a body, and is characterized in that the scrotum support is connected with the fixing part; the scrotum support is provided with a through hole; the fixing part comprises a fixing belt and a connecting belt, and the fixing belt is respectively arranged at the first end and the second end of the scrotum support; the scrotum support is connected with the fixing belt through a connecting belt.

2. The scrotum postoperative dressing fixing device of claim 1, wherein the through hole is an elliptical hole, and the through hole is located at the center of the scrotum holder near the upper end edge.

3. The scrotum postoperative dressing fixing device of claim 1, wherein the distance from the center of the through hole to the bottom edge of the scrotum holder is 8-12cm, and the diameter of the through hole is 3.8-4.5 cm.

4. The scrotum postoperative dressing fixing device of claim 1, wherein the length of the scrotum holder from the first end to the second end is gradually widened, the width of the first end of the scrotum holder is 4-6cm, the width of the second end of the scrotum holder is 13-17cm, and the length of the side edge of the scrotum holder is 16-20 cm.

5. The scrotal postoperative dressing fixing device of claim 1, wherein the scrotum holder is provided with an openable adhesive portion, the adhesive portion communicating with the through-hole.

6. The scrotum postoperative bandaging fixing device according to any one of claims 1 to 5, wherein the connecting band is a hip restraining band, and both ends of the hip restraining band are respectively connected with the scrotum holder and the waist fixing band.

7. The scrotum postoperative binding and fixing device according to any one of claims 1-5, wherein the fixing band comprises an abdominal fixing band disposed at a first end of the scrotum holder and a waist fixing band disposed at a second end of the scrotum holder, the abdominal fixing band and the waist fixing band are movably connected.

8. The scrotum postoperative bandaging fixing device according to claim 7, wherein the connecting band is a hip restraining band, and both ends of the hip restraining band are respectively connected with the scrotum holder and the waist fixing band; the hip restraint strap is a strip strap symmetrically arranged on two sides of the scrotum support.

9. The scrotal postoperative dressing fixing device according to claim 1, wherein a fixing member for fixing the urinary catheter is provided at the fixing band.

10. The scrotum postoperative dressing fixing device of claim 7, wherein the scrotum holder and the hip restraint band are made of an elastic breathable cotton fabric.
