CN216966380U

CN216966380U - A adjustable turret type milling machine for blade production

Info

Publication number: CN216966380U
Application number: CN202220038085.2U
Authority: CN
Inventors: 李湘杰
Original assignee: Zhuzhou Guangsheng Carbide Co ltd
Current assignee: Zhuzhou Guangsheng Carbide Co ltd
Priority date: 2022-01-09
Filing date: 2022-01-09
Publication date: 2022-07-15
Anticipated expiration: 2032-01-09

Abstract

The utility model relates to the technical field of blade production, in particular to an adjustable turret type milling machine for blade production. The technical scheme comprises the following steps: the adjustable shelf, collect box and base, the top fixed mounting of base has the support column, and the both sides of support column all fixed mounting have the traveller, and slidable mounting has the adjustable shelf between the traveller, and the top fixed mounting of adjustable shelf has the motor, and the front end fixed mounting of support column has spacing, and the inboard slidable mounting of spacing has the workstation, and the top slidable mounting of workstation has the sliding seat, and the inboard of sliding seat has the clamp plate through screw knob movable mounting. According to the utility model, the limiting frame is matched with the workbench, so that the workbench can be conveniently far away from a drilling area, the loading and unloading operation is convenient, and the collection hopper, the collection box and the storage box are matched with each other, so that scraps generated in processing can fall into the storage box for storage, are convenient to take out and clean, and the convenience is improved.

Description

A adjustable turret type milling machine for blade production

Technical Field

The utility model relates to the technical field of blade production, in particular to an adjustable turret type milling machine for blade production.

Background

The turret type milling machine is generally a vertical turret type milling machine, and is a machine tool which mainly uses a milling cutter to process various surfaces of a workpiece, can process planes and grooves, and can also process various curved surfaces, gears and the like, and in the production and processing process of blades, drilling operation is usually required on the blades, so that an adjustable turret type milling machine for blade production is required.

Through retrieval, patent publication No. CN212599154U discloses an adjustable turret type milling machine, which comprises a base, a machine body, a milling cutter unit, a clamping unit and an adjusting unit, wherein the machine body is fixed on the base, the milling cutter unit is used for processing a workpiece, the clamping unit comprises two groups of clamping blocks, and the adjusting unit is used for adjusting the distance between the two groups of clamping blocks; the adjusting unit comprises two groups of adjusting screws, the two groups of adjusting screws and the two groups of clamping blocks respectively correspond to each other, a horizontal through hole is formed in the base, one side of each group of adjusting screws is located in the through hole, and the other side of each group of adjusting screws extends out of the through hole and is rotatably connected with the through hole; the screw threads on the two groups of adjusting screws are opposite in rotating direction; two sets of grip blocks are threaded connection respectively on two sets of adjusting screw, and the upper surface of base is equipped with the horizontally spout, grip block sliding connection in the spout.

The existing adjustable turret type milling machine for blade production has the defects that:

1. the adjustable turret type milling machine produced by the prior blade has no better protection structure, and the workbench and the machine body of the common milling machine are fixed and not detachable, so that a human body needs to extend into the machine body for operation in the processes of feeding and discharging, safety accidents are easy to occur, and the safety during operation is reduced;

2. an adjustable turret type milling machine for blade production does not have a good collecting structure, most milling machines can generate more metal chips to scatter on a workbench and the ground when drilling is carried out on the blade, and more troubles are brought to cleaning work.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide an adjustable turret type milling machine for blade production, which aims to solve the problems in the background technology.

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides an adjustable turret type milling machine for blade production, includes adjustable shelf, collects box and base, the top fixed mounting of base has the support column, the equal fixed mounting in both sides of support column has the traveller, slidable mounting has the adjustable shelf between the traveller, the top fixed mounting of adjustable shelf has the motor, the front end fixed mounting of support column has spacing, the inboard slidable mounting of spacing has the workstation, the top slidable mounting of workstation has the sliding seat, the inboard of sliding seat has the clamp plate through screw knob movable mounting, the front end fixed mounting of base has the collection box, the top fixed mounting of collecting the box has the collection fill that corresponds with the workstation.

Utilize the traveller can make things convenient for the adjustable shelf to reciprocate, can conveniently carry out drilling operation, pull out the workstation and keep away from the drilling region, can make the operation personnel can be comparatively safe place the material on the workstation, convenient operation is swift, can conveniently drive the clamp plate through rotating the screw knob according to the size control interval of material through the sliding movable seat, conveniently push down fixedly the both ends of material, prevent to take place the condition that drops.

Preferably, the top of the sliding column is fixedly provided with a connecting frame, and the sliding column and the movable frame are slidably arranged through a sliding sleeve seat. The connecting frame can improve the structural strength of the sliding column, the movable frame is not easy to shake in the up-and-down moving process, and the movable frame can conveniently slide along the sliding column through the sliding sleeve seat.

Preferably, the movable frame and the support column are movably mounted through a hydraulic telescopic column, and the output end of the motor is fixedly provided with a drill bit corresponding to the workbench. Through the flexible activity of the flexible post of hydraulic pressure, can conveniently drive the adjustable shelf and reciprocate, can drive the drill bit through the motor and rotate.

Preferably, the limiting frame and the supporting column are fixedly installed through a supporting frame, and the limiting frame and the workbench are installed in a sliding mode through a movable groove. The limiting frame can be conveniently supported through the supporting frame, stability is improved, and the second handle is used for driving the workbench to slide along the movable groove.

Preferably, the workbench is provided with a through hole corresponding to the collecting hopper, and the front end of the workbench is fixedly provided with a second handle. The through holes can be utilized to enable metal debris generated by drilling to fall into the collecting hopper for collection.

Preferably, the storage box is movably mounted inside the collection box, and a first handle extending out of the collection box is fixedly mounted at the front end of the storage box. Make the piece can fall into in the storing box, take out the storing box from collecting the box through using the first in command, can make that the operation personnel can be comparatively convenient carry out recovery processing to the piece of collecting, the effectual convenience that has improved.

Compared with the prior art, the utility model has the beneficial effects that:

1. through being provided with the mutually supporting between spacing and the workstation, can be comparatively convenient through pulling the workstation, make the workstation keep away from the drilling region, can make the operation personnel can be comparatively convenient carry out the material loading and unload the operation, the effectual security that improves when operating, convenient and practical.

2. Through being provided with the collection fill, collect mutually supporting between box and the storing box, can make the workstation add the metal piece that produces man-hour can be comparatively convenient collect through collecting the fill, make the piece can fall into to collect the storing box in the box and store, make things convenient for the operation personnel to take out the storing box and clear up, the effectual convenience that has improved.

Drawings

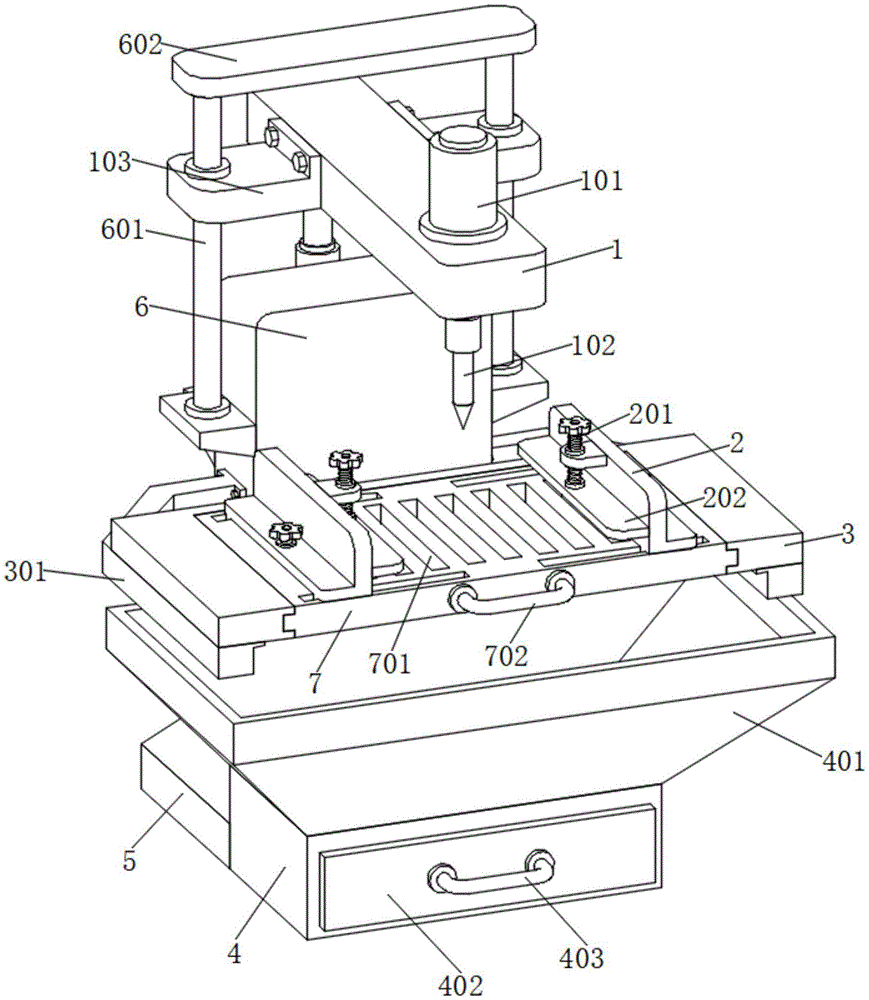

FIG. 1 is a front perspective front view of the present invention;

FIG. 2 is a schematic side view of the present invention;

FIG. 3 is a partial structural view of a worktable according to the present invention;

fig. 4 is a schematic view of a partial structure of the spacing frame of the present invention.

In the figure: 1. a movable frame; 101. a motor; 102. a drill bit; 103. a sliding sleeve seat; 2. a movable seat; 201. a threaded knob; 202. pressing a plate; 3. a limiting frame; 301. a support frame; 302. a movable groove; 4. a collection box; 401. a collecting hopper; 402. a storage box; 403. a first handle; 5. a base; 6. a support pillar; 601. a traveler; 602. a connecting frame; 603. a hydraulic telescopic column; 7. a work table; 701. a through hole; 702. a second handle.

Detailed Description

The technical solution of the present invention is further explained with reference to the accompanying drawings and specific embodiments.

Example one

As shown in fig. 1-4, the adjustable turret type milling machine for blade production provided by the utility model comprises a movable frame 1, a collection box 4 and a base 5, wherein a support column 6 is fixedly installed at the top of the base 5, sliding columns 601 are fixedly installed at both sides of the support column 6, the movable frame 1 is slidably installed between the sliding columns 601, a motor 101 is fixedly installed at the top of the movable frame 1, a limiting frame 3 is fixedly installed at the front end of the support column 6, a workbench 7 is slidably installed at the inner side of the limiting frame 3, a movable seat 2 is slidably installed at the top of the workbench 7, a pressing plate 202 is movably installed at the inner side of the movable seat 2 through a threaded knob 201, the collection box 4 is fixedly installed at the front end of the base 5, a collection bucket 401 corresponding to the workbench 7 is fixedly installed at the top of the collection box 4, a through hole 701 corresponding to the collection bucket 401 is arranged on the workbench 7, and a second handle 702 is fixedly installed at the front end of the workbench 7, the limiting frame 3 and the workbench 7 are slidably mounted through the movable groove 302, the storage box 402 is movably mounted inside the collection box 4, a first handle 403 extending out of the collection box 4 is fixedly mounted at the front end of the storage box 402, and the drill 102 corresponding to the workbench 7 is fixedly mounted at the output end of the motor 101.

The working principle of the adjustable turret type milling machine for blade production based on the embodiment 1 is as follows: the drill bit 102 is driven to rotate by the motor 101, the sliding column 601 can be used for facilitating the up-and-down movement of the movable frame 1, the drilling operation can be conveniently performed, the second handle 702 is used for driving the workbench 7 to slide along the movable groove 302, the workbench 7 can be conveniently pulled out to be far away from a drilling area, an operator can safely place materials on the workbench 7, the operation is convenient and quick, the distance can be conveniently adjusted according to the size of the materials by sliding the movable seat 2, the pressing plate 202 can be conveniently driven to move up and down by rotating the threaded knob 201, two ends of the materials can be conveniently pressed and fixed, the falling-off condition is prevented, in the drilling process, metal scraps generated by drilling can be dropped into the collecting hopper 401 by the through hole 701 for collection, the scraps can fall into the storage box 402, the storage box 402 can be taken out of the collection box 4 by using the first handle 403, can make the operation personnel can be comparatively convenient carry out recovery processing to the piece of collecting, the effectual convenience that has improved.

Example two

As shown in fig. 1 to 4, compared with the first embodiment, the adjustable turret-type milling machine for blade production according to the present invention further includes: the top of traveller 601 is fixed with link 602, and through sliding sleeve seat 103 slidable mounting between traveller 601 and the adjustable shelf 1, through hydraulic telescoping post 603 movable mounting between adjustable shelf 1 and the support column 6, through support frame 301 fixed mounting between spacing 3 and the support column 6.

In this embodiment, can improve the structural strength of traveller 601 through link 602, make adjustable shelf 1 reciprocate the process with difficult the emergence and rock, can conveniently make adjustable shelf 1 slide along traveller 601 through sliding sleeve seat 103, through the flexible activity of the flexible post 603 of hydraulic pressure, can conveniently drive adjustable shelf 1 and reciprocate, can conveniently support spacing 3 through support frame 301, improved stability.

The above embodiments are merely some preferred embodiments of the present invention, and those skilled in the art can make various alternative modifications and combinations of the above embodiments based on the technical solution of the present invention and the related teaching of the above embodiments.

Claims

1. The utility model provides an adjustable turret type milling machine for blade production, includes adjustable shelf (1), collects box (4) and base (5), its characterized in that: the top fixed mounting of base (5) has support column (6), the both sides of support column (6) are all fixed mounting have traveller (601), slidable mounting has adjustable shelf (1) between traveller (601), the top fixed mounting of adjustable shelf (1) has motor (101), the front end fixed mounting of support column (6) has spacing (3), the inboard slidable mounting of spacing (3) has workstation (7), the top slidable mounting of workstation (7) has adjustable seat (2), the inboard of adjustable seat (2) has clamp plate (202) through screw knob (201) movable mounting, the front end fixed mounting of base (5) has collection box (4), the top fixed mounting of collecting box (4) has collection fill (401) that correspond with workstation (7).

2. An adjustable turret milling machine for insert production according to claim 1, wherein: the top of the sliding column (601) is fixedly provided with a connecting frame (602), and the sliding column (601) and the movable frame (1) are slidably arranged through a sliding sleeve seat (103).

3. An adjustable turret milling machine for insert production according to claim 1, wherein: the drill bit is characterized in that the movable frame (1) and the support column (6) are movably mounted through a hydraulic telescopic column (603), and the drill bit (102) corresponding to the workbench (7) is fixedly mounted at the output end of the motor (101).

4. An adjustable turret milling machine for insert production according to claim 1, wherein: the limiting frame (3) and the supporting column (6) are fixedly installed through a supporting frame (301), and the limiting frame (3) and the workbench (7) are installed in a sliding mode through a movable groove (302).

5. An adjustable turret milling machine for insert production according to claim 1, wherein: the working table (7) is provided with a through hole (701) corresponding to the collecting hopper (401), and the front end of the working table (7) is fixedly provided with a second handle (702).

6. An adjustable turret milling machine for insert production according to claim 1, wherein: the storage box (402) is movably mounted inside the collection box (4), and a first handle (403) extending out of the collection box (4) is fixedly mounted at the front end of the storage box (402).
