CN216965497U

CN216965497U - Novel artificial leather rolling device

Info

Publication number: CN216965497U
Application number: CN202220087642.XU
Authority: CN
Inventors: 张炳林
Original assignee: Jinhua Litai Leather Decoration Co ltd
Current assignee: Jinhua Litai Leather Decoration Co ltd
Priority date: 2022-01-11
Filing date: 2022-01-11
Publication date: 2022-07-15
Anticipated expiration: 2032-01-11

Abstract

The utility model discloses a novel artificial leather winding device which comprises a bottom plate, wherein a winding device and a conveying device are installed on the top surface of the bottom plate, a through hole is formed in the bottom plate in a penetrating mode, two mounting frames are fixedly connected to the conveying device, an elastic cleaning piece is arranged between the two mounting frames, a knocking mechanism is arranged on one of the mounting frames, a dust collection mechanism is arranged on the bottom plate, and a transmission mechanism is further arranged on the bottom plate. The device does not need to manually use a spray gun to remove dust on the surface of the leather, reduces the labor intensity of workers, improves the dust removal efficiency, does not need to additionally arrange a power source to drive the cam and the rotating roller to rotate, reduces the operation cost of the device, and is beneficial to popularization and promotion of the device.

Description

Novel artificial leather rolling device

Technical Field

The utility model relates to the technical field of leather production, in particular to a novel artificial leather winding device.

Background

Because leather has many advantages such as waterproof, wear-resisting, ageing-resistant, receive people's favor more and more, consequently, the production volume of leather rises year by year in recent years, and leather needs to use leather coiling mechanism to carry out the coiling to the leather of production in process of production to the going on of leather follow-up process, storage and transportation.

But the existing leather winding device in the current market still has the following defects: when carrying out the rolling operation to the leather, can be because workshop environment is relatively poor and at leather surface adhesion dust impurity, and influence the use of leather, current common leather dust removal mode is that the staff removes dust to the leather surface with the gas spray gun, leads to staff intensity of labour great, and dust removal effect is also poor in the sense of one's mind simultaneously, so, need design a novel artificial leather coiling mechanism and solve above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the defects in the prior art and provides a novel artificial leather rolling device.

In order to achieve the purpose, the utility model adopts the following technical scheme:

the utility model provides a novel artificial leather coiling mechanism, includes the bottom plate, coiling mechanism and conveyor are installed to the top surface of bottom plate, run through on the bottom plate and seted up and run through the mouth, two last two mounting brackets of fixedly connected with of conveyor, two be provided with elasticity cleaning member, one of them between the mounting bracket be provided with on the mounting bracket and beat the mechanism, be provided with dust absorption mechanism on the bottom plate, still be provided with drive mechanism on the bottom plate.

As a preferred technical scheme, the elastic cleaning piece comprises four sliding rods, two sliding blocks, four springs, a rotating roller and soft bristles, the four sliding rods are in a group in pairs and are respectively and fixedly connected to two mounting frames, the two sliding blocks are respectively sleeved on the two sliding rods in the same group in a sliding mode, one ends of the four springs are respectively connected with the side faces of the two mounting frames, the other ends of the four springs are respectively connected with the top faces of the two sliding blocks, the rotating roller is rotatably assembled between the two sliding blocks, and the soft bristles are bonded on the rotating roller.

As a preferable technical solution of the present invention, the striking mechanism includes a cam and an axle, the axle passes through the mounting bracket and is rotatably connected to the mounting bracket, the cam is fixedly connected to one end of the axle, and the cam is located right above the through hole.

As a preferred technical scheme of the present invention, the dust collection mechanism includes a dust collector, two dust collection covers and two filter screens, the dust collector is mounted on the bottom plate, the two dust collection covers are respectively and fixedly connected to the two mounting frames, and the two filter screens are respectively and fixedly connected to inner surfaces of the two dust collection covers.

As a preferred technical scheme of the present invention, the transmission mechanism includes a first synchronous belt and a second synchronous belt, one end of the first synchronous belt is sleeved on an output shaft of a power source in the winding device, the other end of the first synchronous belt is sleeved on a wheel shaft, one end of the second synchronous belt is sleeved on the wheel shaft, and the other end of the second synchronous belt is sleeved on a roll shaft of the rotating roll.

As a preferable technical scheme of the utility model, the inner rings of the first synchronous belt and the second synchronous belt are both provided with anti-skid grains.

The utility model has the following beneficial effects:

1. by arranging the elastic cleaning piece, the beating mechanism, the dust collection mechanism and the transmission mechanism, under the combined cooperation action of the elastic cleaning piece, the beating mechanism, the dust collection mechanism and the transmission mechanism, dust can be absorbed by the dust collector through the two dust collection covers, so that the dust on the artificial leather is cleaned, the surface of the leather is not required to be cleaned manually by using a spray gun, the labor intensity of workers is reduced, and the dust collection efficiency is improved;

2. through setting up drive mechanism, under drive mechanism's effect, the device need not to set up in addition power supply drive cam and changes the roller and rotate, has reduced the running cost of device, does benefit to the popularization and the popularization of device.

Drawings

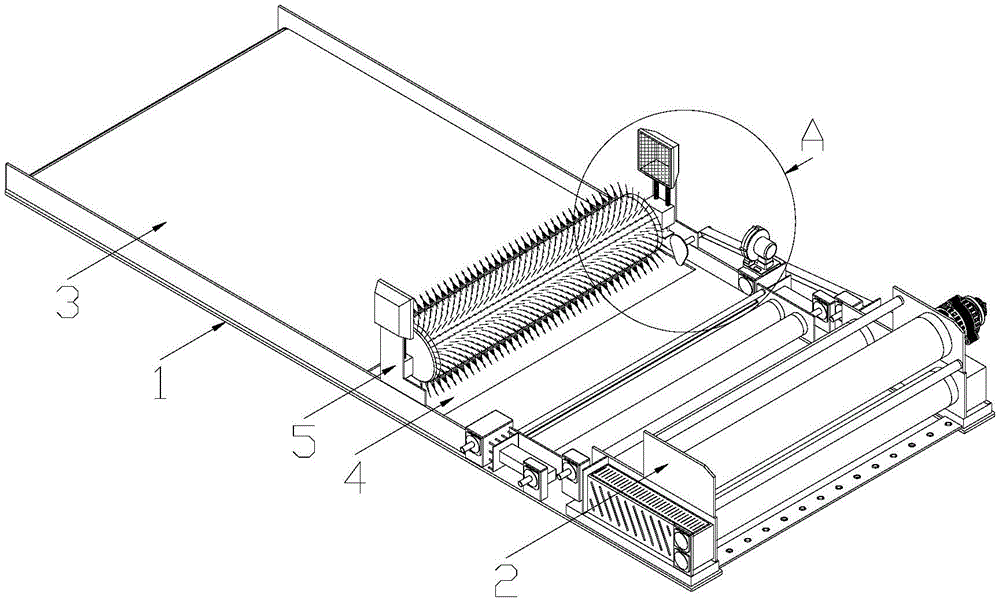

FIG. 1 is a schematic structural view of a novel artificial leather rolling device provided by the utility model;

fig. 2 is an enlarged view of a structure at a position a of the novel artificial leather rolling device provided by the utility model.

In the figure: the device comprises a base plate 1, a winding device 2, a conveying device 3, a through hole 4, a mounting frame 5, an elastic cleaning piece 6, a sliding rod 61, a sliding block 62, a spring 63, a rotating roller 64, soft bristles 65, a beating mechanism 7, a cam 71, a wheel shaft 72, a dust suction mechanism 8, a dust collector 81, a dust suction cover 82, a filter screen 83, a transmission mechanism 9, a synchronous belt I91 and a synchronous belt II 92.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.

Referring to fig. 1-2, a novel artificial leather coiling mechanism, comprising a base plate 1, coiling mechanism 2 and conveyor 3 are installed to the top surface of bottom plate 1, coiling mechanism 2 is comparatively ripe prior art with conveyor 3's concrete structure and theory of operation, not shown in the figure, do not do too much to describe here yet, run through on bottom plate 1 and seted up through-hole 4, through setting up through-hole 4, the artificial leather of being convenient for takes place the shake, two mounting bracket 5 of fixedly connected with on conveyor 3, be provided with elasticity cleaning member 6 between two mounting bracket 5, be provided with on one of them mounting bracket 5 and beat mechanism 7, be provided with dust absorption mechanism 8 on bottom plate 1, still be provided with drive mechanism 9 on bottom plate 1.

Referring to fig. 1-2, the elastic cleaning member 6 includes four sliding rods 61, two sliding blocks 62, four springs 63, a rotating roller 64 and soft bristles 65, two of the four sliding rods 61 are in a group and are respectively and fixedly connected to the two mounting frames 5, the two sliding blocks 62 are respectively slidably sleeved on the two sliding rods 61 in the same group, the sliding rods 61 guide the sliding blocks 62, one ends of the four springs 63 are respectively connected with the side surfaces of the two mounting frames 5, the other ends of the four springs 63 are respectively connected with the top surfaces of the two sliding blocks 62, the springs 63 are arranged, so that the soft bristles 65 at the outer edge of the rotating roller 64 can be always attached to the artificial leather, the cleaning effect on dust on the artificial leather can be ensured, the rotating roller 64 is rotatably assembled between the two sliding blocks 62, and the soft bristles 65 are attached to the rotating roller 64.

Referring to fig. 1-2, the striking mechanism 7 includes a cam 71 and a shaft 72, the shaft 72 passes through the mounting frame 5 and is rotatably connected to the mounting frame 5, the cam 71 is fixedly connected to one end of the shaft 72, and the cam 71 is located right above the through opening 4, so that the cam 71 can strike the artificial leather.

Referring to fig. 1-2, the dust suction mechanism 8 includes a dust collector 81, two dust hoods 82 and two filter screens 83, the dust collector 81 is installed on the bottom plate 1, the two dust hoods 82 are respectively and fixedly connected to the two mounting frames 5, the two filter screens 83 are respectively and fixedly connected to inner surfaces of the two dust hoods 82, and an air path connection manner between the dust collector 81 and the two dust hoods 82 is not an innovative part of the present technical solution, and is not shown in the drawings, and is not described herein in detail.

Referring to fig. 1-2, the transmission mechanism 9 includes a first synchronous belt 91 and a second synchronous belt 92, one end of the first synchronous belt 91 is sleeved on an output shaft of a power source in the winding device 2, the other end of the first synchronous belt 91 is sleeved on the wheel shaft 72, one end of the second synchronous belt 92 is sleeved on the wheel shaft 72, the other end of the second synchronous belt 92 is sleeved on a roller shaft of the rotating roller 64, and by arranging the transmission mechanism 9, the device does not need to additionally arrange a power source to drive the cam 71 to rotate with the rotating roller 64, so that the operation cost of the device is reduced.

Referring to fig. 1-2, the inner rings of the first synchronous belt 91 and the second synchronous belt 92 are provided with anti-slip threads, so that the transmission effect of the transmission mechanism 9 can be ensured.

The specific working principle of the utility model is as follows:

when the artificial leather is rolled, the conveying device 3 on the base plate 1 can convey the artificial leather and is matched with the rolling device 2 to roll the artificial leather, in the rolling process, the power source of the rolling device 2 can drive the wheel shaft 72 to rotate through the synchronous belt one 91 when running, the wheel shaft 72 can drive the roller shaft of the rotating roller 64 to rotate when rotating, and further drive the rotating roller 64 to rotate, the wheel shaft 72 can drive the cam 71 to rotate when rotating, so that the cam 71 can continuously knock the artificial leather, the artificial leather can continuously shake, and further dust on the artificial leather can be separated from the artificial leather, meanwhile, the roller shaft can drive the rotating roller 64 to rotate when rotating, the soft bristles 65 at the outer edge of the rotating roller 64 can brush the dust on the artificial leather, thus, under the matching action of the rotating roller 64 and the cam 71, the dust can be absorbed by the dust collector 81 through the two dust suction hoods 82, thereby cleaning the dust on the artificial leather.

It is worth mentioning that under the elastic force of the four springs 63, the two sliders 62 always tend to move downwards, so that the soft bristles 65 at the outer edge of the roller 64 can always be attached to the artificial leather in the continuous vibration process of the artificial leather, and the cleaning effect on dust on the artificial leather can be ensured.

The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.

Claims

1. The utility model provides a novel artificial leather coiling mechanism, a serial communication port, including bottom plate (1), coiling mechanism (2) and conveyor (3) are installed to the top surface of bottom plate (1), run through on bottom plate (1) and seted up and run through mouth (4), two mounting bracket (5) of fixedly connected with on conveyor (3), two be provided with elasticity cleaning member (6) between mounting bracket (5), one of them be provided with on mounting bracket (5) and beat mechanism (7), be provided with dust absorption mechanism (8) on bottom plate (1), still be provided with drive mechanism (9) on bottom plate (1).

2. A novel artificial leather winding device as claimed in claim 1, wherein the elastic cleaning member (6) comprises four sliding rods (61), two sliding blocks (62), four springs (63), a rotating roller (64) and soft bristles (65), wherein the four sliding rods (61) are grouped in pairs and are respectively and fixedly connected to the two mounting frames (5), the two sliding blocks (62) are respectively sleeved on the two sliding rods (61) in the same group in a sliding manner, one ends of the four springs (63) are respectively connected with the side surfaces of the two mounting frames (5), the other ends of the four springs (63) are respectively connected with the top surfaces of the two sliding blocks (62), the rotating roller (64) is rotatably assembled between the two sliding blocks (62), and the soft bristles (65) are bonded on the rotating roller (64).

3. The novel artificial leather rolling device according to claim 1, wherein the beating mechanism (7) comprises a cam (71) and a wheel shaft (72), the wheel shaft (72) penetrates through the mounting frame (5) and is rotatably connected with the mounting frame (5), the cam (71) is fixedly connected to one end of the wheel shaft (72), and the cam (71) is located right above the through opening (4).

4. The novel artificial leather winding device is characterized in that the dust collection mechanism (8) comprises a dust collector (81), two dust collection covers (82) and two filter screens (83), the dust collector (81) is mounted on the bottom plate (1), the two dust collection covers (82) are respectively and fixedly connected to the two mounting frames (5), and the two filter screens (83) are respectively and fixedly connected to the inner faces of the two dust collection covers (82).

5. The novel artificial leather winding device as claimed in claim 3, wherein the transmission mechanism (9) comprises a first synchronous belt (91) and a second synchronous belt (92), one end of the first synchronous belt (91) is sleeved on an output shaft of the power source in the winding device (2), the other end of the first synchronous belt (91) is sleeved on the wheel shaft (72), one end of the second synchronous belt (92) is sleeved on the wheel shaft (72), and the other end of the second synchronous belt (92) is sleeved on a roller shaft of the rotating roller (64).

6. The novel artificial leather rolling device as claimed in claim 5, wherein the inner rings of the first synchronous belt (91) and the second synchronous belt (92) are provided with anti-slip threads.
