Abstract
本实用新型公开了一种面料加工用面料表面除尘装置，包括壳体，所述壳体一侧设有传动机构，所述传动机构一侧设有清洁机构；所述清洁机构包括排风架，所述排风架一侧固定有滤网，所述滤网顶部抵触有推板，所述推板顶部一侧通过轴承转动连接有推杆，所述推杆一侧通过轴承转动连接有连接柱，所述连接柱一端通过轴承转动连接有L型连杆，所述传动机构包括转轴，所述转轴一侧分别固定有第一锥型齿和第四皮带轮，通过敲击带敲打振动面料去除表面的灰尘和毛絮，除尘棍粘掉面料表面顽固的灰尘和毛絮，通过敲击振动和除尘棍双重作用下，用于去除面料表面的灰尘和毛絮，使得面料表面清洁的更干净，提高了面料在做成衣服后的合格率。
The utility model discloses a fabric surface dust removal device for fabric processing, which comprises a casing, a transmission mechanism is arranged on one side of the casing, and a cleaning mechanism is arranged at one side of the transmission mechanism; A filter screen is fixed on one side of the exhaust rack, the top of the filter screen is in contact with a push plate, one side of the top of the push plate is connected with a push rod through a bearing, and one side of the push rod is connected with a connecting column through a bearing. One end of the connecting column is rotatably connected with an L-shaped connecting rod through a bearing. The transmission mechanism includes a rotating shaft. One side of the rotating shaft is respectively fixed with a first conical tooth and a fourth pulley. The dust and lint on the surface of the fabric are removed by the dust-removing stick, which is used to remove the dust and lint on the surface of the fabric under the double action of percussion and vibration and the dust-removing stick, making the surface of the fabric cleaner and improving. The qualified rate of fabrics after being made into clothes.
Description
Technical Field
The utility model relates to the technical field of fabric dust removing devices, in particular to a fabric surface dust removing device for fabric processing.
Background
The fabric is a material for making clothes, is one of three elements of clothes, can explain the style and the characteristics of the clothes, directly controls the expression effects of the color and the shape of the clothes, in the world of clothes, the fabric of the clothes is various in every day, but on the whole, the high-quality and high-grade fabric has the characteristics of comfortable wearing, sweat absorption, air permeability, stiff and smooth suspension, noble vision, soft touch and the like, before the existing fabric is made into clothes, the dust and the lint on the surface of the fabric need to be removed, most of the dust and the lint are stuck to the surface of the fabric through a dust removing roller, the dust and the lint on the surface of the fabric are removed by a dust removing roller alone, and the dust and the lint on the surface of the fabric cannot be completely removed, the qualification rate of the fabric made into clothes is low, and therefore the fabric surface dust removal device for fabric processing is provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a fabric surface dust removal device for fabric processing, which aims to solve the problem that the qualification rate of fabric made into clothes is low due to the fact that dust and lint on the surface of the fabric cannot be completely removed in the background technology.
In order to achieve the purpose, the utility model provides the following technical scheme: a fabric surface dust removal device for fabric processing comprises a shell, wherein a transmission mechanism is arranged on one side of the shell, and a cleaning mechanism is arranged on one side of the transmission mechanism;
the cleaning mechanism comprises an exhaust frame, a filter screen is fixed on one side of the exhaust frame, a push plate is abutted to the top of the filter screen, one side of the top of the push plate is rotatably connected with a push rod through a bearing, one side of the push rod is rotatably connected with a connecting column through a bearing, and one end of the connecting column is rotatably connected with an L-shaped connecting rod through a bearing;
the transmission mechanism comprises a rotating shaft, wherein a first conical tooth and a fourth belt pulley are fixed on one side of the rotating shaft respectively, a second conical tooth is meshed with the first conical tooth, one side of the second conical tooth is fixed on one side of the L-shaped connecting rod, and a third belt pulley is fixed on one side, away from the first conical tooth, of the rotating shaft.
As further preferable in the present technical solution: the outer side of the rotating shaft is fixed with a knocking roller, and a plurality of knocking belts are bonded on the outer side of the knocking roller.
As further preferable in the present technical solution: the motor is arranged on one side of the shell, a first belt pulley is fixed at the output shaft end of the motor, and the first belt pulley is connected with a third belt pulley through a belt.
As further preferable in the present technical solution: the dust removing device is characterized in that a transmission roller and a dust removing rod are rotatably connected between the inner walls of the shell through bearings respectively, a second belt pulley penetrates through the shell and is fixed to one side of the dust removing rod, and the second belt pulley is connected with a fourth belt pulley through a belt.
As further preferable in the present technical solution: the exhaust frame is internally provided with an exhaust fan, the top of the exhaust frame is fixed with two slide rails, and the slide rail grooves are connected with slide columns fixed on one side of the push plate in a sliding manner.
As further preferable in the present technical solution: the dust removing device is characterized in that a recycling box is movably inserted into one side of the shell, a scraper abutting against one side of the dust removing rod is fixed to the top of the recycling box, and a dust storage groove body is arranged on the lower side of the filter screen.
Compared with the prior art, the utility model has the beneficial effects that:
the utility model provides a, rotate through the motor and drive the knock roller respectively, remove dust rod and push pedal simultaneous movement, the power consumption of the device has been reduced, the power consumption expense has been reduced, and the push pedal is incessant to the clearance that circulates of filter screen surface, make the dust and the batting on filter screen surface drop inside the storage dirt cell body, increased the filter screen and got life, collect dust and batting in unison, avoid the manual cleanness of workman to sweep, the operating time of the workman has been saved, the work efficiency of the workman has been improved.
Second, beat the vibration surface fabric through knocking the area and get rid of surperficial dust and batting to use the dust removal rod to glue the stubborn dust in surface fabric surface and batting, under knocking vibration and dust removal rod dual function, be used for getting rid of surperficial dust of surface fabric and batting, make surface fabric clean cleaner, improved the qualification rate of surface fabric after making the clothes.
Drawings

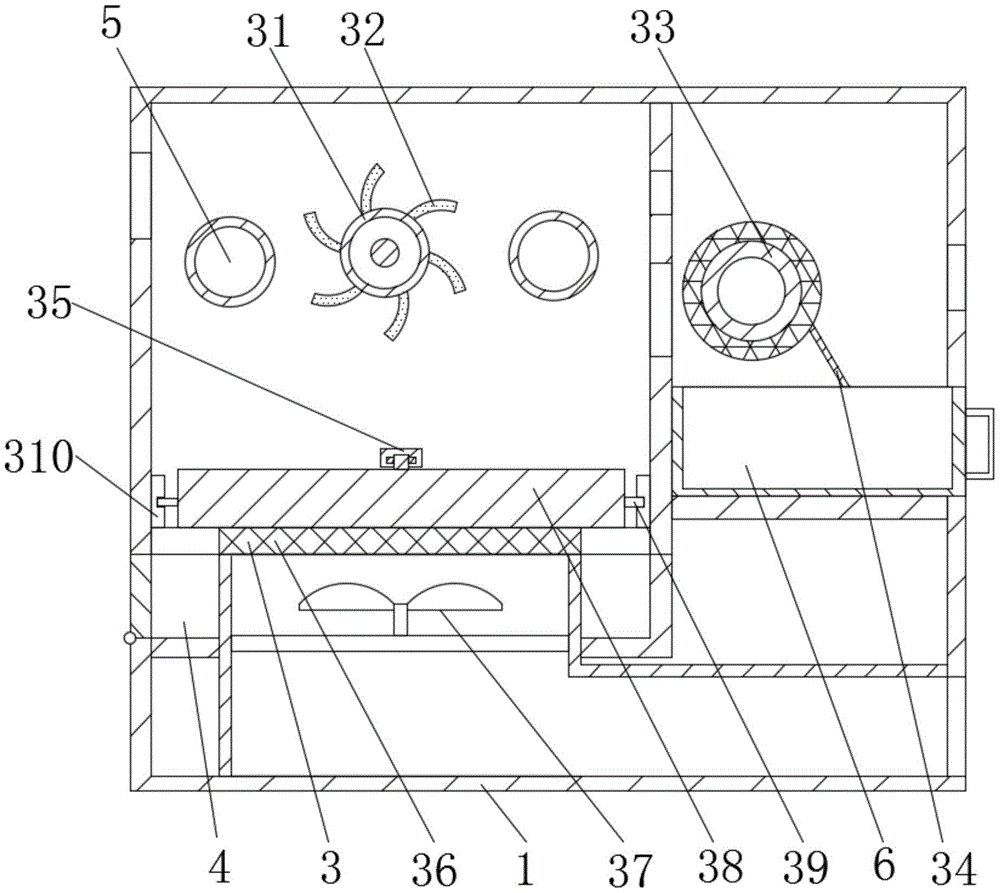

FIG. 1 is a schematic sectional front view of the present invention;
FIG. 2 is a left side sectional structural schematic view of the present invention;
FIG. 3 is a schematic view of a fourth pulley connection of the present invention;
fig. 4 is a schematic perspective view of the push plate of the present invention.
In the figure: 1. a housing; 2. a transmission mechanism; 21. a motor; 22. a first pulley; 23. a second pulley; 24. a third belt pulley; 25. a first tapered tooth; 26. a rotating shaft; 27. a fourth belt pulley; 28. second tapered teeth; 3. a cleaning mechanism; 31. knocking rollers; 32. knocking the belt; 33. a dust removing stick; 34. a squeegee; 35. a push rod; 36. filtering with a screen; 37. an exhaust fan; 38. pushing the plate; 39. a traveler; 310. a slide rail; 311. an L-shaped connecting rod; 312. connecting columns; 313. an air exhaust frame; 4. a dust storage tank body; 5. a driving roller; 6. and (6) a recycling bin.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be obtained by a person skilled in the art without making any creative effort based on the embodiments in the present invention, belong to the protection scope of the present invention.
Examples
Referring to fig. 1-4, the present invention provides a technical solution: a fabric surface dust removing device for fabric processing comprises a shell 1, wherein a transmission mechanism 2 is arranged on one side of the shell 1, and a cleaning mechanism 3 is arranged on one side of the transmission mechanism 2;
the transmission mechanism 2 comprises a rotating shaft 26, a first conical tooth 25 and a fourth belt pulley 27 are respectively fixed on one side of the rotating shaft 26, a second conical tooth 28 is connected to the first conical tooth 25 in a meshed manner, one side of the second conical tooth 28 is fixed on one side of an L-shaped connecting rod 311, a third belt pulley 24 is fixed on one side of the rotating shaft 26 far away from the first conical tooth 25, a knocking roller 31 is fixed on the outer side of the rotating shaft 26, a plurality of knocking belts 32 are bonded on the outer side of the knocking roller 31, a motor 21 is arranged on one side of the shell 1, a first belt pulley 22 is fixed on the output shaft end of the motor 21, the first belt pulley 22 is connected with the third belt pulley 24 through a belt, the knocking belts 32 are used for knocking the vibrating fabric to remove dust and lint on the surface, a dust and lint on the surface are removed through a dust removing stick 33, the dust and lint on the surface of the fabric are removed through double actions of knocking vibration and the dust removing stick 33, so that the surface of the fabric is cleaner and cleaner, the qualification rate of the fabric after being made into clothes is improved.
The cleaning mechanism 3 comprises an exhaust frame 313, a filter screen 36 is fixed on one side of the exhaust frame 313, a push plate 38 is abutted on the top of the filter screen 36, a push rod 35 is rotatably connected on one side of the top of the push plate 38 through a bearing, a connecting column 312 is rotatably connected on one side of the push rod 35 through a bearing, an L-shaped connecting rod 311 is rotatably connected on one end of the connecting column 312 through a bearing, a driving roller 5 and a dust removing stick 33 are respectively rotatably connected between the inner walls of the shell 1 through bearings, a second belt pulley 23 is fixed on one side of the dust removing stick 33 through the shell 1, the second belt pulley 23 is connected with a fourth belt pulley 27 through a belt, an exhaust fan 37 is arranged inside the exhaust frame 313, two sliding rails 310 are fixed on the top of the exhaust frame 313, sliding columns 39 fixed on one side of the push plate 38 are slidably connected in rail grooves of the sliding rails 310, a recovery box 6 is movably inserted on one side of the shell 1, a scraper 34 abutted on one side of the top of the dust removing stick 33 is fixed on the top of the recovery box 6, filter screen 36 downside is equipped with storage dirt cell body 4, rotate through motor 21 and drive the knock roller 31 respectively, dust removal rod 33 and push pedal 38 simultaneous movement, the power consumption of the device has been reduced, the power consumption expense has been reduced, and push pedal 38 is incessant to filter screen 36 surface circulation clearance, make the dust and the batting on filter screen 36 surface drop inside storage dirt cell body 4, filter screen 36 has been increased and has been used a long service life, collect dust and batting in unison, avoid the manual clean of workman to clean, the operating time of workman has been saved, the work efficiency of the workman has been improved.
The working principle is as follows: during the use, the workman puts into the surface fabric that will remove dust from the left pan feeding mouth of casing 1, the surface fabric contacts the area 32 that strikes on striking roller 31 surface under the drive of driving roller 5, and strike area 32 and can clean the dust and the batting on surface of the surface fabric and drop inside casing 1, and under exhaust fan 37's effect, dust and batting can drop inside filter screen 36 and dust storage tank body 4, when the batting on surface of the surface fabric is not beaten the area 32 and vibrates, the surface fabric is when beating the stick 33 that removes dust, the stick 33 that removes dust is the sticky silica gel layer of surface parcel, the silica gel layer can be with batting from the surface fabric surface and glue, through beating vibration and the stick 33 that removes dust and the dust on surface of the surface fabric and batting, make the surface of the surface fabric cleaner, the qualification rate of surface fabric after making the clothes has been improved.
When the motor 21 rotates, the knocking roller 31, the dust removing roller 33 and the pushing plate 38 are respectively driven to move, at this time, the power of the motor 21 drives the third belt pulley 24 through the first belt pulley 22, and drives the rotating shaft 26 fixed on one side of the third belt pulley 24 to rotate, the rotating shaft 26 drives the knocking roller 31 to rotate, the fourth belt pulley 27 fixed on one side of the rotating shaft 26 drives the second belt pulley 23 to rotate through a belt, and drives the knocking roller 31 fixed on one side of the second belt pulley 23 to rotate simultaneously, and the first tapered teeth 25 fixed on one side of the rotating shaft 26 drives the second tapered teeth 28 to rotate, and drives the L-shaped connecting rod 311 to rotate, one side of the bottom of the L-shaped connecting rod 311 pushes the push rod 35 and the pushing plate 38 to continuously and circularly clean the surface of the filter screen 36, so that dust and lint on the surface of the filter screen 36 fall into the dust storage tank 4, thereby prolonging the service life of the filter screen 36 and uniformly collecting dust and lint, the manual cleaning of workers is avoided, the working time of the workers is saved, and the working efficiency of the workers is improved.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a surface fabric surface dust collector for surface fabric processing, includes casing (1), its characterized in that: a transmission mechanism (2) is arranged on one side of the shell (1), and a cleaning mechanism (3) is arranged on one side of the transmission mechanism (2);
the cleaning mechanism (3) comprises an air exhaust frame (313), a filter screen (36) is fixed on one side of the air exhaust frame (313), a push plate (38) is abutted to the top of the filter screen (36), a push rod (35) is rotatably connected to one side of the top of the push plate (38) through a bearing, a connecting column (312) is rotatably connected to one side of the push rod (35) through a bearing, and one end of the connecting column (312) is rotatably connected with an L-shaped connecting rod (311) through a bearing;
drive mechanism (2) are including pivot (26), pivot (26) one side is fixed with first tapered tooth (25) and fourth belt pulley (27) respectively, first tapered tooth (25) meshing is connected with second tapered tooth (28), one side of second tapered tooth (28) is fixed in one side of L type connecting rod (311), first tapered tooth (25) one side is kept away from in pivot (26) is fixed with third belt pulley (24).
2. A fabric surface dedusting apparatus as claimed in claim 1, wherein: the outer side of the rotating shaft (26) is fixedly provided with a knocking roller (31), and the outer side of the knocking roller (31) is bonded with a plurality of knocking belts (32).
3. A fabric surface dedusting apparatus as claimed in claim 1, wherein: the novel belt conveyor is characterized in that a motor (21) is arranged on one side of the shell (1), a first belt pulley (22) is fixed to an output shaft end of the motor (21), and the first belt pulley (22) is connected with a third belt pulley (24) through a belt.
4. A fabric surface dedusting apparatus as claimed in claim 1, wherein: the dust removing device is characterized in that a transmission roller (5) and a dust removing roller (33) are rotatably connected between the inner walls of the shell (1) through bearings respectively, a second belt pulley (23) penetrates through the shell (1) and is fixed to one side of the dust removing roller (33), and the second belt pulley (23) is connected with a fourth belt pulley (27) through a belt.
5. A fabric surface dedusting apparatus as claimed in claim 4, wherein: exhaust fan (37) are arranged inside the exhaust frame (313), two sliding rails (310) are fixed at the top of the exhaust frame (313), and sliding columns (39) fixed on one side of the push plate (38) are connected to the rail grooves of the sliding rails (310) in a sliding mode.
6. A fabric surface dedusting apparatus as claimed in claim 1, wherein: the dust collector is characterized in that a recovery box (6) is movably inserted into one side of the shell (1), a scraper (34) which is abutted to one side of the dust removing stick (33) is fixed to the top of the recovery box (6), and a dust storage groove body (4) is arranged on the lower side of the filter screen (36).
