Abstract
The utility model discloses a protective housing for comprehensive wiring system, including protective housing, cooling structure, dampproofing structure and shock attenuation protective structure, protective housing is leading flank open-ended cavity structure, protective housing leading flank articulates and is equipped with the guard gate, the internal baffle that is equipped with of protective housing, the internal chamber of placing is equipped with cooling chamber and cable in protective housing, cooling chamber and cable are placed the chamber and are located the baffle both sides, be equipped with thermovent one on the baffle, protective housing is located cooling chamber one end and is equipped with thermovent two, cooling structure locates the cooling intracavity, dampproofing structure locates the cable and places the chamber diapire, shock attenuation protective structure locates the cable and places the intracavity. The utility model relates to a comprehensive wiring equipment field specifically provides a rational in infrastructure, simple, has good heat dissipation dehumidification function, can cushion the protective housing for the comprehensive wiring system of cable protection to external sudden impact force simultaneously.
Description
Technical Field
The utility model relates to a comprehensive wiring equipment field specifically is a protective housing for comprehensive wiring system.
Background
The comprehensive wiring system is in a modularized combination mode, voice, data, images and part of control signal systems are unified, and the comprehensive wiring system is integrated in a standard wiring system through unified planning design, and a comprehensive wiring system protective box with a good heat dissipation function is very important for stable work of the wiring system, because various cables are accumulated to generate large amount of heat during working, the protective box lacking ventilation and cooling directly influences the operation stability of the system, meanwhile, moisture resistance in autumn and winter is very necessary, particularly in humid areas in south, moisture in the protective box is easy to damage the comprehensive wiring system if not timely treated, in the prior art, when the protective box for the comprehensive wiring system suddenly impacts from the outside, the inside of the protective box lacks protection on the cables.
SUMMERY OF THE UTILITY MODEL
To the above situation, for remedying above-mentioned current defect, the utility model provides a rational in infrastructure, simple has good heat dissipation dehumidification function, can cushion the comprehensive wiring system who protects the cable to external sudden impact force simultaneously and use the guard box.
The utility model provides a following technical scheme: the utility model provides a protection box for comprehensive wiring system, including protection box, cooling structure, dampproofing structure and shock attenuation protective structure, protection box is leading flank open-ended cavity structure, the articulated guard gate that is equipped with of protection box leading flank, the internal baffle that is equipped with of protection box, the internal chamber of placing of cooling chamber and cable that is equipped with of protection box, the chamber is located the baffle both sides in cooling chamber and cable placing chamber, be equipped with thermovent one on the baffle, protection box is located cooling chamber one end and is equipped with thermovent two, cooling structure locates the cooling intracavity, dampproofing structure locates the cable and places the chamber diapire, shock attenuation protective structure locates the cable and places the intracavity.
In order to enable the protection box to have good cooling effect, the cooling structure comprises a driving motor, a motor protection shell, a driving bevel gear, a driven bevel gear, a driving screw rod, a driving thread block, a guide block and a dustproof sealing plate, wherein the motor protection shell is arranged on the top wall in the cooling cavity, the driving motor is arranged in the motor protection shell, the driving bevel gear is arranged on a power output shaft of the driving motor, the bottom end of the driving screw rod is rotatably arranged on the bottom wall in the cooling cavity, the upper end of the driving screw rod penetrates through the motor protection shell and is rotatably arranged in the motor protection shell, the driven bevel gear is arranged at one end of the driving screw rod in the motor protection shell, the driving bevel gear is meshed with the driven bevel gear, the driving thread block is arranged on the driving screw rod through threaded connection, two groups of the guide blocks are arranged, and the two groups of the guide blocks are arranged on the inner side wall of the cooling cavity and are arranged on two sides of a heat dissipation port, the dustproof sealing plate is arranged on the driving thread block and slides in the guide groove, the driving thread block and the dustproof sealing plate are provided with two groups, and one group of dustproof sealing plate is provided with a cooling fan.
In order to make the guard box have good dampproofing effect, dampproofing structure includes supporting component, dampproofing bottom plate, dehumidification lamp and dehumidification fan, the intracavity diapire is placed to the supporting component locating cable, the supporting component is equipped with the multiunit, dampproofing bottom plate is located on the multiunit supporting component, the intracavity diapire is placed to the dehumidification fan locating cable, the intracavity roof is placed to the dehumidification lamp locating cable.
The supporting assembly comprises a supporting sleeve, a supporting limiting plate, a supporting spring and a supporting sliding column, the supporting sleeve is arranged on the cable to place the bottom wall in the cavity, the supporting spring is arranged in the supporting sleeve, the supporting limiting plate is arranged in the supporting sleeve in a sliding mode, the two ends of the supporting spring are arranged on the bottom wall in the supporting sleeve and the supporting limiting plate, the lower end of the supporting sliding column is arranged on the supporting limiting plate, and the upper end of the supporting sliding column penetrates through the supporting sleeve and is connected with a damp-proof bottom plate.
In order to protect the protective box from external sudden impact, the interior of the protective box can be protected corresponding to cables, the shock absorption protection structure comprises a cable placing plate, a guide post, a first shock absorption spring and a second shock absorption spring, the side wall of the partition plate is provided with a shock absorption cavity, the guide post is arranged on the top wall and the bottom wall in the shock absorption cavity, one end of the cable placing plate is provided with a boss, the boss is arranged in the shock absorption cavity and slides on the guide post, the first shock absorption spring and the second shock absorption spring are both sleeved on the guide post, two ends of the shock absorption spring are arranged at the bottom of the shock absorption cavity and the bottom of the cable placing plate, two ends of the shock absorption spring are arranged at the top of the shock absorption cavity and the top of the cable placing plate, the shock absorption cavities are provided with two groups, the shock absorption cavities of the second group are arranged on the side wall of the cable placing cavity and correspond to the shock absorption cavities of the first group, and the guide post, the first shock absorption spring and the second shock absorption spring are provided with two groups, the shock absorption protection structure is provided with a plurality of groups.
Furthermore, a dustproof net is arranged on the second heat dissipation opening.
Further, the bottom of the cable placing cavity is provided with a temperature and humidity sensor, the protective door is provided with a display screen, and the display screen is electrically connected with the temperature and humidity sensor.
Furthermore, the bottom of the protective box body is provided with a supporting foot pad.
Adopt above-mentioned structure the utility model discloses the beneficial effect who gains as follows: the utility model provides a protective housing for comprehensive wiring system, which has good cooling effect through a cooling structure, and can efficiently dissipate heat through a second heat dissipation opening when the temperature is higher, and meanwhile, the protective housing can be dustproof and moistureproof in daily life; the protection box has good moisture-proof effect through the moisture-proof structure; when the protection box is suddenly impacted by the outside through the damping protection structure, the cable can be protected inside the protection box.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

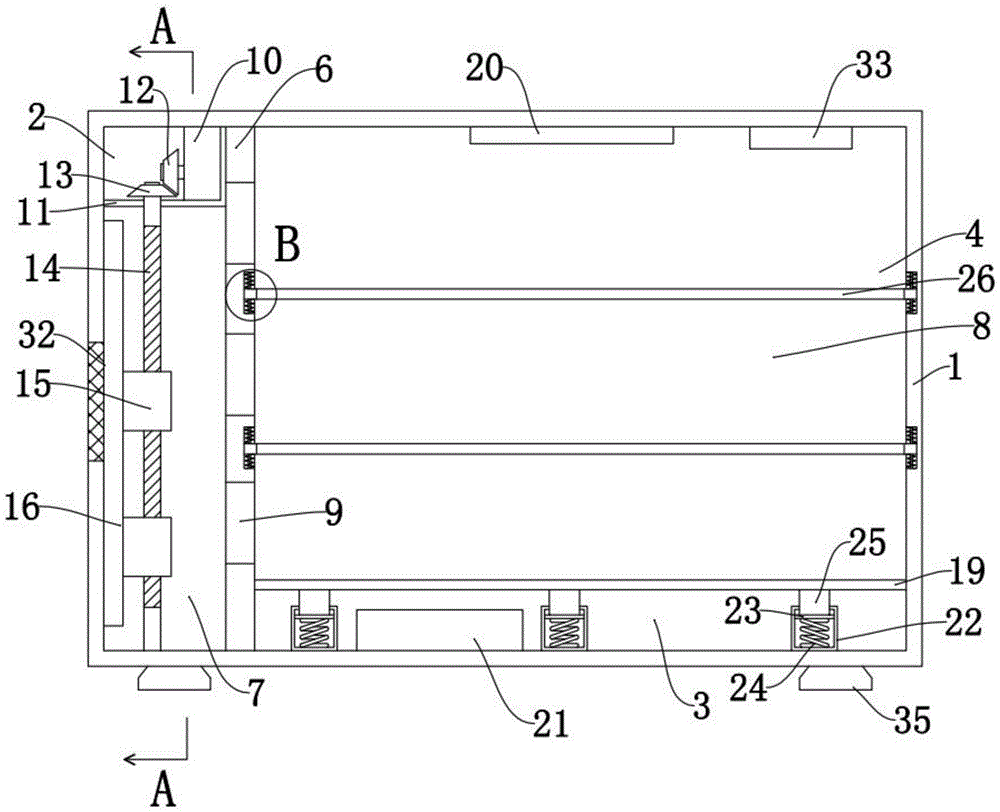

fig. 1 is a schematic view of an overall structure of a protective box for an integrated wiring system according to the present invention;
fig. 2 is a schematic perspective structural view of a protective box for an integrated wiring system according to the present invention;
FIG. 3 is a schematic sectional view A-A of FIG. 2;
fig. 4 is an enlarged schematic view of a part B of fig. 2.
The device comprises a protective box body 1, a protective box body 2, a cooling structure 3, a moisture-proof structure 4, a damping protective structure 5, a protective door 6, a partition plate 7, a cooling cavity 8, a cable placing cavity 9, a first heat dissipation opening 10, a driving motor 11, a motor protective shell 12, a driving bevel gear 13, a driven bevel gear 14, a driving screw rod 15, a driving thread block 16, a guide block 17, a dustproof sealing plate 18, a cooling fan 19, a moisture-proof bottom plate 20, a dehumidifying lamp 21, a dehumidifying fan 22, a supporting sleeve 23, a supporting limiting plate 24, a supporting spring 25, a supporting sliding column 26, a cable placing plate 27, a guide column 28, a damping spring I, 29, a damping spring II, 30, a damping cavity 31, a boss 32, a dustproof net 33, a temperature and humidity sensor 34, a display screen 35 and a supporting pad foot.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments; based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.
It should be noted that the terms "front," "back," "left," "right," "upper" and "lower" used in the following description refer to directions in the drawings, and the terms "inner" and "outer" refer to directions toward and away from, respectively, the geometric center of a particular component.
As shown in fig. 1-4, the technical scheme adopted by the utility model is as follows: the utility model provides a protective housing for integrated wiring system, including protective housing 1, cooling structure 2, dampproofing structure 3 and shock attenuation protective structure 4, protective housing 1 is leading flank open-ended cavity structure, the articulated guard gate 5 that is equipped with of protective housing 1 leading flank, be equipped with baffle 6 in the protective housing 1, it places chamber 8 to be equipped with cooling chamber 7 and cable in the protective housing 1, cooling chamber 7 and cable are placed chamber 8 and are located 6 both sides of baffle, be equipped with thermovent one 9 on the baffle 6, protective housing 1 is located 7 one end in cooling chamber and is equipped with thermovent two, cooling structure 2 is located in cooling chamber 7, dampproofing structure 3 is located the cable and is placed 8 diapalls in the chamber, shock attenuation protective structure 4 is located the cable and is placed the intracavity 8.
As shown in fig. 2 and fig. 3, the cooling structure 2 comprises a driving motor 10, a motor protecting shell 11, a driving bevel gear 12, a driven bevel gear 13, a driving screw 14, a driving screw block 15, a guide block 16 and a dustproof sealing plate 17, wherein the motor protecting shell 11 is arranged on the top wall of the cooling cavity 7, the driving motor 10 is arranged in the motor protecting shell 11, the driving bevel gear 12 is arranged on the power output shaft of the driving motor 10, the bottom end of the driving screw 14 is rotatably arranged on the bottom wall of the cooling cavity 7, the upper end of the driving screw 14 penetrates through the motor protecting shell 11 and is rotatably arranged in the motor protecting shell 11, the driven bevel gear 13 is arranged at one end of the driving screw 14 in the motor protecting shell 11, the driving bevel gear 12 is meshed with the driven bevel gear 13, the driving screw block 15 is arranged on the driving screw 14 through threaded connection, two sets of guide blocks 16 are arranged, the two sets of guide blocks 16 are arranged on the inner side wall of the cooling cavity 7 and are arranged at two sides of the heat dissipation opening, the guide block 16 is provided with a guide groove, the dustproof sealing plate 17 is arranged on the driving thread block 15 and slides in the guide groove, the driving thread block 15 and the dustproof sealing plate 17 are provided with two groups, and the dustproof sealing plate 17 is provided with a radiating fan 18.
As shown in fig. 2, moisture-proof structure 3 includes supporting component, dampproofing bottom plate 19, dehumidification lamp 20 and dehumidification fan 21, and the supporting component is located the cable and is placed chamber 8 interior diapire, and the supporting component is equipped with the multiunit, and dampproofing bottom plate 19 is located on the multiunit supporting component, and dehumidification fan 21 locates the cable and places chamber 8 interior diapire, and dehumidification lamp 20 locates the cable and places chamber 8 interior roof.
As shown in fig. 2, the support assembly includes a support sleeve 22, a support limit plate 23, a support spring 24 and a support sliding column 25, the support sleeve 22 is arranged on the bottom wall of the cable placing cavity 8, the support spring 24 is arranged in the support sleeve 22, the support limit plate 23 is arranged in the support sleeve 22 in a sliding manner, two ends of the support spring 24 are arranged on the bottom wall of the support sleeve 22 and the support limit plate 23, the lower end of the support sliding column 25 is arranged on the support limit plate 23, and the upper end of the support sliding column 25 penetrates through the support sleeve 22 and is connected with the moisture-proof bottom plate 19.
As shown in fig. 2 and 4, the shock absorbing and protecting structure 4 includes a cable laying plate 26 and a guide post 27, damping spring 28 and damping spring two 29, 6 lateral walls of baffle are equipped with damping chamber 30, guide post 27 is located on roof and the diapire in damping chamber 30, the cable is placed board 26 one end and is equipped with boss 31, boss 31 is located in damping chamber 30 and slides on guide post 27, damping spring 28 and damping spring two 29 all overlap and locate on guide post 27, damping chamber 30 bottom and cable are placed to damping spring 28 both ends, damping chamber 30 top and cable are placed the board 26 bottom, damping chamber 30 top are located to damping chamber 30 both ends of damping spring two 29, damping chamber 30 is equipped with two sets ofly, second group damping chamber 30 is located the cable and is placed 8 lateral walls of chamber and correspond the setting with first group damping chamber 30 position, guide post 27, damping spring 28 and damping spring two 29 all are equipped with two sets ofly, shock attenuation protective structure 4 is equipped with the multiunit.
As shown in fig. 1, a dust screen 32 is disposed on the second heat dissipation opening.
As shown in fig. 1, a temperature and humidity sensor 33 is arranged at the bottom of the cable placing cavity 8, a display screen 34 is arranged on the protective door 5, and the display screen 34 is electrically connected with the temperature and humidity sensor 33.
As shown in fig. 1, the bottom of the protective casing 1 is provided with a support foot 35.
When the device is used specifically, in an initial unused state, a group of dustproof sealing plates 17 without the cooling fan 18 are used for sealing the second cooling hole, the moistureproof bottom plate 19 is used for cushioning cables at the bottom of the protective box body 1 to be moistureproof, the dehumidification capacity in the protective box body 1 is greatly improved under the cooperation of the dehumidification lamp 20 and the dehumidification fan 21, meanwhile, the supporting component is matched with the damping and protection structure 4 to protect the internal cables when being impacted, specifically, when being impacted by the outside, the moistureproof bottom plate 19 transmits impact force to the supporting sliding column 25, the supporting sliding column 25 enables the supporting spring 24 to be pressed to absorb external force, when the damping and protection structure 4 is impacted by external force, the cable placing plate 26 directly transmits the force to the first damping spring 28 and the second damping spring 29, the cable placing plate 26 slides up and down on the guide column 27 to prevent the cables from being damaged by sudden impact or loosening joints, and protects the cables to a certain degree, when the display screen 34 shows that the internal environment temperature of the protection box body 1 is higher than the use requirement, the driving motor 10 is started, the driving motor 10 drives the driving bevel gear 12 to rotate, the driving bevel gear 12 drives the driven bevel gear 13 to rotate, the driven bevel gear 13 drives the driving screw 14 to rotate, the driving screw 14 drives the two groups of driving thread blocks 15 to rotate and further drives the two groups of dustproof sealing plates 17 to move, one group of dustproof sealing plates 17 move upwards, the other group of dustproof sealing plates 17 with the cooling fan 18 seals the second heat dissipation opening, the cooling fan 18 is started to blow out the internal high temperature of the protection box body 1 at the same time, so that the protection box with the comprehensive wiring system has a good heat dissipation and dehumidification function, and meanwhile, the external sudden impact force can be buffered to protect the cable.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. The utility model provides a protective housing for integrated wiring system which characterized in that: including protection box, cooling structure, dampproofing structure and shock attenuation protective structure, protection box is leading flank open-ended cavity structure, the articulated guard gate that is equipped with of protection box leading flank, be equipped with the baffle in the protection box, the chamber is placed to internal cooling chamber and the cable that is equipped with of protection box, cooling chamber and cable are placed the chamber and are located the baffle both sides, be equipped with thermovent one on the baffle, protection box is located cooling chamber one end and is equipped with thermovent two, cooling structure locates the cooling intracavity, dampproofing structure locates the cable and places the chamber diapire, shock attenuation protective structure locates the cable and places the intracavity.
2. The protective box for the integrated wiring system according to claim 1, wherein: the cooling structure comprises a driving motor, a motor protective shell, a driving bevel gear, a driven bevel gear, a driving screw, a driving thread block, a guide block and a dustproof sealing plate, wherein the motor protective shell is arranged on the top wall in the cooling cavity, the driving motor is arranged in the motor protective shell, the driving bevel gear is arranged on a power output shaft of the driving motor, the bottom end of the driving screw is rotatably arranged on the bottom wall in the cooling cavity, the upper end of the driving screw penetrates through the motor protective shell and is rotatably arranged in the motor protective shell, the driven bevel gear is arranged at one end of the driving screw in the motor protective shell, the driving bevel gear is meshed with the driven bevel gear, the driving thread block is arranged on the driving screw through threaded connection, the guide block is provided with two groups, the guide blocks are arranged on the inner side wall of the cooling cavity and are positioned at two sides of a heat dissipation port, a guide groove is arranged on the guide block, and the dustproof sealing plate is arranged on the driving thread block and slides in the guide groove, the drive screw block and the dustproof sealing plate are provided with two groups, and one group of dustproof sealing plate is provided with a cooling fan.
3. The protective box for the integrated wiring system according to claim 1, wherein: dampproofing structure includes supporting component, dampproofing bottom plate, dehumidification lamp and dehumidification fan, the supporting component is located the cable and is placed the intracavity diapire, the supporting component is equipped with the multiunit, dampproofing bottom plate is located on the multiunit supporting component, the dehumidification fan is located the cable and is placed the intracavity diapire, the dehumidification lamp is located the cable and is placed the intracavity roof.
4. The protective box for the integrated wiring system according to claim 3, wherein: the supporting assembly comprises a supporting sleeve, a supporting limiting plate, a supporting spring and a supporting sliding column, the supporting sleeve is arranged on the cable to place the bottom wall of the cavity, the supporting spring is arranged in the supporting sleeve, the supporting limiting plate is arranged in the supporting sleeve in a sliding mode, the two ends of the supporting spring are arranged on the bottom wall of the supporting sleeve and the supporting limiting plate, the lower end of the supporting sliding column is arranged on the supporting limiting plate, and the upper end of the supporting sliding column penetrates through the supporting sleeve to be connected with the damp-proof bottom plate.
5. The protective box for the integrated wiring system according to claim 1, wherein: the shock absorption protection structure comprises a cable placing plate, a guide post, a first shock absorption spring and a second shock absorption spring, a shock absorption cavity is formed in the side wall of the partition plate, the guide post is arranged on the top wall and the bottom wall of the shock absorption cavity, one end of the cable placing plate is provided with a boss, the boss is arranged in the shock absorption cavity and slides on the guide post, the first shock absorption spring and the second shock absorption spring are sleeved on the guide post, the bottom of the shock absorption cavity is arranged at two ends of the first shock absorption spring, the bottom of the cable placing plate is arranged at two ends of the shock absorption spring, the top of the shock absorption cavity and the top of the cable placing plate are arranged at two ends of the shock absorption spring, the shock absorption cavity is provided with two groups, the second shock absorption cavity is arranged on the cable placing cavity side wall and corresponds to the first group of shock absorption cavity, the guide post, the first shock absorption spring and the second shock absorption spring are provided with multiple groups, and the shock absorption protection structure is provided with multiple groups.
6. The protective box for the integrated wiring system according to claim 1, wherein: and a dustproof net is arranged on the second heat dissipation opening.
7. The protective box for the integrated wiring system according to claim 1, wherein: the cable is placed the chamber bottom and is equipped with temperature and humidity sensor, be equipped with the display screen on the guard gate, display screen and temperature and humidity sensor electric connection.
8. The protective box for the integrated wiring system according to claim 1, wherein: the bottom of the protective box body is provided with a supporting foot pad.
