Energy-saving roofing peripheral equipment for green building

Technical Field

The utility model relates to a architectural equipment technical field specifically is an energy-conserving roofing peripheral hardware of green building.

Background

The solar cell is also called as a solar chip or a photovoltaic cell, and is a photoelectric semiconductor slice which directly generates electricity by utilizing sunlight, a single solar cell cannot be directly used as a power supply, a plurality of single solar cells are required to be connected in series, in parallel and tightly packaged into a module as the power supply, and the solar panel is an assembly part formed by assembling a plurality of solar cells, is a core part in a solar power generation system and is also the most important part in the solar power generation system, and the solar panel is more and more popularized along with the development of green energy.

The roofing peripheral hardware needs to set up solar panel according to the national regulation, but there is the weak point in current device, according to the difference of daylighting between the different houses, needs to adjust solar panel's angle, and the adjustment mode of current device is mostly gone on through the reinforcing bar of welding different length, and is inconvenient to current device receives birds easily and influences, and the bird can leave spot etc. on it, so needs a green building energy-saving roofing peripheral hardware. Therefore, a green building energy-saving roof peripheral is provided to solve the problems.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an energy-conserving roofing peripheral hardware of green building to the regulation that proposes in solving above-mentioned background art is inconvenient, receives the problem that birds influenced.

In order to achieve the above purpose, the utility model provides a following technical scheme: a green building energy-saving roofing peripheral comprises a solar panel body, wherein the bottom end of the solar panel body is hinged with an adjusting mechanism, the adjusting mechanism comprises a first connecting rod, the bottom end of the solar panel body is hinged with the first connecting rod, a fixing plate is fixed at the bottom end of the first connecting rod, a bolt is inserted into the fixing plate, the bottom end of the solar panel body is hinged with a second connecting rod, a third connecting rod is hinged at the bottom end of the second connecting rod, a fourth connecting rod is hinged at the inner side of the second connecting rod, a fifth connecting rod is inserted into the bottom end of the fourth connecting rod, a first fixing block is fixed on the surface of the fifth connecting rod, a sixth connecting rod is inserted into the fifth connecting rod, a second fixing block is sleeved on the surface of the sixth connecting rod, and a rubber block is fixed at one side of the second fixing block, which is close to the fifth connecting rod, the bird repelling device is characterized in that bird repelling mechanisms are fixed on two sides of the solar panel body and comprise third fixing blocks, the third fixing blocks are fixed on two sides of the solar panel body, and fourth fixing blocks are fixed on the top ends of the third fixing blocks.

Preferably, a sliding groove matched with a fifth connecting rod is formed in the third connecting rod, and the fifth connecting rod is inserted into the third connecting rod.

Preferably, the surface of the sixth connecting rod is provided with threads, a threaded hole matched with the sixth connecting rod is formed in the fifth connecting rod, and the sixth connecting rod is inserted in the fifth connecting rod.

Preferably, the sixth connecting rods are provided with two groups, and the sixth connecting rods on two sides are inserted into two sides of the fifth connecting rod.

Preferably, the third fixed block is an inclined structure, and the third fixed block is fixed on two sides of the solar panel body.

Preferably, the color of the fourth fixed block is red, and the fourth fixed block is fixed at the top end of the third fixed block.

Compared with the prior art, the beneficial effects of the utility model are that:

(1) the device is provided with a first connecting rod and a fixing plate, and is matched with a bolt and a second connecting rod, so that the angle of the device can be adjusted, the applicability of the device is stronger, the solar panel body is rotated, the angle of the solar panel body is adjusted, then the sixth connecting rod is rotated, the adjusted angle is fixed, a user can adjust the device, and the working efficiency of the device is improved;

(2) the device is provided with third fixed block and fourth fixed block, makes the device can dispel birds, prevents that birds from leaving the spot on the device, causes the influence to the device, dispels birds warning through the fourth fixed block, prevents that birds from influencing the device, has improved the work efficiency of device.

Description of the drawings:

in order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

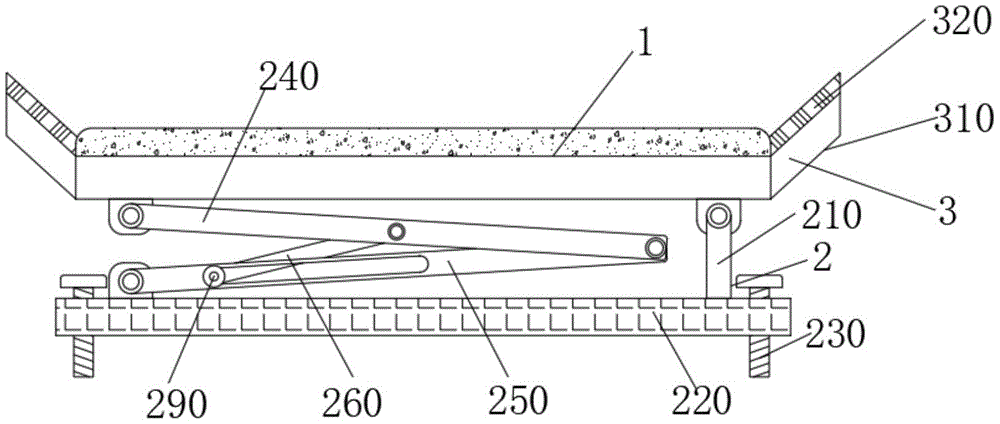

FIG. 1 is a schematic front view of the structure of the present invention;

FIG. 2 is a schematic sectional view of the front view of the structure of the present invention;

FIG. 3 is a schematic side view of a fourth connecting rod according to the present invention;

fig. 4 is a schematic front sectional view of the structure of the present invention during operation.

In the figure: 1. a solar panel body; 2. an adjustment mechanism; 210. a first connecting rod; 220. a fixing plate; 230. a bolt; 240. a second connecting rod; 250. a third connecting rod; 260. a fourth connecting rod; 270. a fifth connecting rod; 280. a first fixed block; 290. a sixth connecting rod; 2100. a second fixed block; 2110. a rubber block; 3. a bird repelling mechanism; 310. a third fixed block; 320. and a fourth fixed block.

The specific implementation mode is as follows:

the technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides an embodiment: the energy-saving roofing peripheral for the green building comprises a solar panel body 1, an adjusting mechanism 2 is hinged to the bottom end of the solar panel body 1, the adjusting mechanism 2 comprises a first connecting rod 210, the bottom end of the solar panel body 1 is hinged to the first connecting rod 210, a fixing plate 220 is fixed to the bottom end of the first connecting rod 210, a bolt 230 is inserted into the fixing plate 220, a second connecting rod 240 is hinged to the bottom end of the solar panel body 1, a third connecting rod 250 is hinged to the bottom end of the second connecting rod 240, a fourth connecting rod 260 is hinged to the inner side of the second connecting rod 240, a fifth connecting rod 270 is inserted into the bottom end of the fourth connecting rod 260, a first fixing block 280 is fixed to the surface of the fifth connecting rod 270, a sixth connecting rod 290 is inserted into the inner part of the fifth connecting rod 270, a second fixing block 2100 is sleeved on the surface of the sixth connecting rod 290, a rubber block 2110 is fixed to one side, which is close to the fifth connecting rod 270, of the second fixing block 2100, the bird repelling mechanism 3 is fixed on two sides of the solar panel body 1, the bird repelling mechanism 3 comprises a third fixing block 310, the third fixing block 310 is fixed on two sides of the solar panel body 1, and a fourth fixing block 320 is fixed on the top end of the third fixing block 310;

further, the inside of the third connecting rod 250 is provided with a sliding groove matched with the fifth connecting rod 270, the fifth connecting rod 270 is inserted into the third connecting rod 250, the surface of the sixth connecting rod 290 is provided with threads, the inside of the fifth connecting rod 270 is provided with threaded holes matched with the sixth connecting rod 290, the sixth connecting rod 290 is inserted into the fifth connecting rod 270, the sixth connecting rod 290 is provided with two groups, the sixth connecting rods 290 on two sides are inserted into two sides of the fifth connecting rod 270, the fifth connecting rod 270 can slide in the third connecting rod 250 to adjust the rotation angle of the solar panel body 1, the sixth connecting rod 290 is rotated to make the rubber block 2110 contact with the third connecting rod 250, the position of the fifth connecting rod 270 can be fixed, the rotation angle of the solar panel body 1 is fixed, and the adjustability of the device is improved.

Further, the third fixed block 310 is an inclined structure, the third fixed block 310 is fixed on two sides of the solar panel body 1, the fourth fixed block 320 is red in color, the fourth fixed block 320 is fixed on the top end of the third fixed block 310, the red color of the fourth fixed block 320 can warn birds, and the inclined structure enables the birds to be dispersed more conveniently.

The working principle is as follows: the device during operation, pulling solar panel body 1, the angle of adjustment solar panel body 1, second connecting rod 240 takes place to rotate, fourth connecting rod 260 also takes place to rotate, after 1 angular adjustment of solar panel body, rotate sixth connecting rod 290, make block rubber 2110 take place to remove, contradict with third connecting rod 250, make the turned angle of fourth connecting rod 260 fix, make solar panel body 1's turned angle fix, adjust solar panel body 1's angle, fourth fixed block 320 plays warning dispelling effect to birds, does above the utility model discloses a whole theory of operation.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. The utility model provides an energy-conserving roofing peripheral hardware of green building, includes solar panel body (1), its characterized in that: the bottom of the solar panel body (1) is hinged with an adjusting mechanism (2), the adjusting mechanism (2) comprises a first connecting rod (210), the bottom of the solar panel body (1) is hinged with the first connecting rod (210), a fixing plate (220) is fixed at the bottom of the first connecting rod (210), a bolt (230) is inserted into the fixing plate (220), a second connecting rod (240) is hinged at the bottom of the solar panel body (1), a third connecting rod (250) is hinged at the bottom of the second connecting rod (240), a fourth connecting rod (260) is hinged at the inner side of the second connecting rod (240), a fifth connecting rod (270) is inserted into the bottom of the fourth connecting rod (260), a first fixing block (280) is fixed on the surface of the fifth connecting rod (270), and a sixth connecting rod (290) is inserted into the fifth connecting rod (270), the fixed surface of sixth connecting rod (290) has cup jointed second fixed block (2100), one side that second fixed block (2100) is close to fifth connecting rod (270) is fixed with rubber block (2110), the both sides of solar panel body (1) are fixed with drives bird mechanism (3), it includes third fixed block (310) to drive bird mechanism (3), the both sides of solar panel body (1) are fixed with third fixed block (310), and the top of third fixed block (310) is fixed with fourth fixed block (320).

2. The environment-friendly building energy-saving roofing peripheral equipment according to claim 1, characterized in that: the inside of third connecting rod (250) is provided with the spout with fifth connecting rod (270) looks adaptation, fifth connecting rod (270) are inserted and are established in the inside of third connecting rod (250).

3. The environment-friendly building energy-saving roofing peripheral equipment according to claim 1, characterized in that: the surface of the sixth connecting rod (290) is provided with threads, a threaded hole matched with the sixth connecting rod (290) is formed in the fifth connecting rod (270), and the sixth connecting rod (290) is inserted in the fifth connecting rod (270).

4. The environment-friendly building energy-saving roofing peripheral equipment according to claim 1, characterized in that: the sixth connecting rods (290) are provided with two groups, and the sixth connecting rods (290) on two sides are inserted into two sides of the fifth connecting rod (270).

5. The environment-friendly building energy-saving roofing peripheral equipment according to claim 1, characterized in that: the third fixing block (310) is of an inclined structure, and the third fixing block (310) is fixed on two sides of the solar panel body (1).

6. The environment-friendly building energy-saving roofing peripheral equipment according to claim 1, characterized in that: the color of the fourth fixed block (320) is red, and the fourth fixed block (320) is fixed at the top end of the third fixed block (310).
