Abstract
本实用新型公开了一种LED电源控制器，属于电源控制器技术领域，其技术要点是：包括散热组件，安装在箱体的内侧；减震组件，开设在箱体的内侧；防护组件，连接在减震组件和箱体之间。通过将电源控制器本体放置在箱体内，当电源控制器本体在使用过程中产生热量时，通过开启散热组件，散热组件可以将电源控制器本体在工作过程中产生的热量排出箱体。当散热组件在工作过程时产生震动时，减震组件可以对散热组件进行减震，防止了散热组件在工作时产生的震动会对电源控制器本体造成干扰，减震组件对散热组件进行减震时，防护组件可以对减震组件进行再次缓冲，有效的提高了对散热组件的减震效果，进而提高了电源控制器本体在使用过程中的稳定性。
The utility model discloses an LED power supply controller, which belongs to the technical field of power supply controllers. between the shock assembly and the case. By placing the power supply controller body in the box, when the power supply controller body generates heat during use, by turning on the heat dissipation component, the heat dissipation component can discharge the heat generated by the power supply controller body during the working process out of the box body. When the heat dissipation component vibrates during the working process, the shock absorption component can dampen the heat dissipation component, preventing the vibration generated by the heat dissipation component during operation from interfering with the power controller body, and the shock absorption component damps the heat dissipation component. When the protection component is used, the shock absorbing component can be buffered again, which effectively improves the shock absorbing effect on the heat dissipation component, thereby improving the stability of the power controller body during use.
Description
Technical Field
The utility model relates to the technical field of power supply controllers, in particular to an LED power supply controller.
Background
Currently, with the widespread application of LED technology, switching power supply type LED drivers show strong development potential. With the development of LED technology, the brightness and efficiency of LEDs are continuously improved. Daily household LED illumination is continuously developed and gradually becomes the mainstream of energy conservation, emission reduction and green illumination.
The LED lamp comprises a LED lamp shell, a side cover is arranged on the outer surface of one side of the LED lamp shell, a side cover is arranged on the outer surface of the other side of the LED lamp shell, an LED lamp tube is arranged in the middle of the LED lamp shell, and the LED power supply controller is provided with a conduit, a conduit groove, a sliding plate and a fixing buckle, so that people can maintain and detect the LED lamp tube in the future, and secondly, the LED power supply controller enables the structure of the LED lamp shell to be more stable, the LED lamp shell is convenient for people to use, and better use prospect is brought.
However, after the LED power supply controller generates heat in the using process, the LED power supply controller needs to be cooled, but the vibration generated by the cooling device during operation easily affects the stability of the LED power supply controller, and is difficult to be popularized and applied.
SUMMERY OF THE UTILITY MODEL
In view of the defects in the prior art, an embodiment of the present invention provides an LED power controller to solve the above problems in the background art.
In order to achieve the purpose, the utility model provides the following technical scheme:
an LED power supply controller comprising:
the power supply controller comprises a box body, wherein a power supply controller body is arranged in the box body;
the heat dissipation assembly is arranged on the inner side of the box body and used for dissipating heat of the power supply controller body;
one end of the damping component is arranged on the inner side of the box body, and the other end of the damping component is connected to the side face of the power supply controller body and is used for damping the power supply controller body so as to damp the power supply controller body;
and the protection component is connected between the damping component and the box body and used for buffering and protecting the damping component.
Compared with the prior art, the embodiment of the utility model has the following beneficial effects:
the heat dissipation assembly is arranged on the inner side of the box body and used for dissipating heat of the power supply controller body; one end of the damping component is arranged on the inner side of the box body, and the other end of the damping component is connected to the side face of the power supply controller body and is used for damping the power supply controller body so as to damp the power supply controller body; and the protection component is connected between the damping component and the box body and used for buffering and protecting the damping component. Through placing the power supply controller body in the box, when the power supply controller body produced heat in the use, through opening radiator unit, radiator unit can discharge the box with the heat that the power supply controller body produced in the course of the work, has realized the heat dissipation to the power supply controller body. When radiator unit produced vibrations when the working process, damper can carry out the shock attenuation to radiator unit, has prevented that radiator unit can cause the interference to the electrical source controller body at the vibrations that the during operation produced, damper unit when carrying out the shock attenuation to radiator unit, protection component can cushion damper unit once more to effectual improvement to radiator unit's shock attenuation effect, and then improved the stability of electrical source controller body in the use.
To more clearly illustrate the structural features and effects of the present invention, the present invention will be described in detail below with reference to the accompanying drawings and specific embodiments.
Drawings

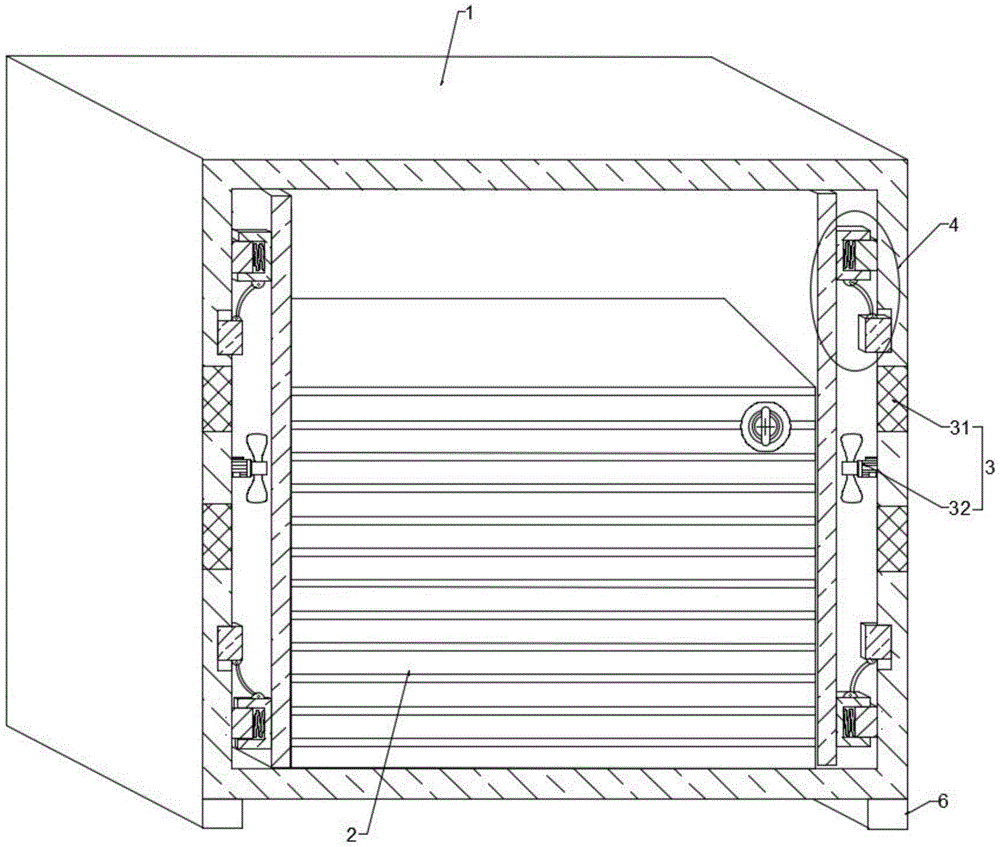

Fig. 1 is a schematic diagram of an overall structure of an LED power controller according to an embodiment of the present invention.
Fig. 2 is a schematic structural view of a shock-absorbing assembly provided in an embodiment of the present invention.
Fig. 3 is a schematic structural diagram of a slide bar provided in an embodiment of the present invention.
Reference numerals: the device comprises a box body 1, a power supply controller body 2, a heat dissipation assembly 3, a filter screen 31, a fan 32, a shock absorption assembly 4, a sliding rod 41, a sleeve 42, a spring 43, a protection plate 44, a protection assembly 5, a sliding groove 51, an elastic part 52, a connecting part 53 and a supporting part 6.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention is described in further detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the utility model and are not intended to limit the utility model.
Specific implementations of the present invention are described in detail below with reference to specific embodiments.
Referring to fig. 1 to 3, an LED power controller includes:
the power supply controller comprises a box body 1, wherein a power supply controller body 2 is arranged in the box body 1;
the heat dissipation assembly 3 is arranged on the inner side of the box body 1 and used for dissipating heat of the power controller body 2;
one end of the shock absorption component 4 is arranged on the inner side of the box body 1, and the other end of the shock absorption component is connected to the side face of the power controller body 2 and is used for absorbing shock of the power controller body 2 and further absorbing shock of the power controller body 2;
and the protection component 5 is connected between the shock absorption component 4 and the box body 1 and used for buffering and protecting the shock absorption component 4.
In the embodiment of the utility model, the power controller body 2 is placed in the box body 1, when the power controller body 2 generates heat in the using process, the heat dissipation component 3 is opened, and the heat dissipation component 3 can discharge the heat generated by the power controller body 2 in the working process out of the box body 1, so that the heat dissipation of the power controller body 2 is realized. When radiator unit 3 produced vibrations when the working process, damper unit 4 can carry out the shock attenuation to radiator unit 3, has prevented that radiator unit 3 from can causing the interference to power supply controller body 2 at the vibrations that the during operation produced, when damper unit 4 carries out the shock attenuation to radiator unit 3, protection component 5 can cushion damper unit 4 once more to effectual improvement is to radiator unit 3's shock attenuation effect, and then has improved the stability of power supply controller body 2 in the use.
In one embodiment of the present invention, as shown in fig. 1 and 2, the heat dissipation assembly 3 includes:
a fan 32 installed inside the case 1;
and the filter screen 31 is arranged on the side surface of the box body 1 and used for exhausting the power controller body 2 under the action of the fan 32.
In the present embodiment, the fan 32 is installed inside the cabinet 1; the filter screen 31 is installed on the side surface of the box body 1 and used for exhausting air to the power controller body 2 under the action of the fan 32.
Through placing power supply controller body 2 in box 1, when power supply controller body 2 produced heat in the use, through opening fan 32, fan 32 can pass through filter screen 31 discharge box 1 with the heat that power supply controller body 2 produced in the use, has realized the heat dissipation to power supply controller body 2, filter screen 31 can prevent dust to box 1, prevents that external dust from getting into the inside of box 1.
In one embodiment of the present invention, as shown in fig. 1 and 2, the shock absorbing assembly 4 includes:
a slide bar 41 connected to the inner side of the case 1;
a sleeve 42 slidably connected in the slide rod 41 and connected to an end of the slide rod 41 through a spring 43;
and a shielding plate 44 connected to a side of the sleeve 42.
In the present embodiment, the slide bar 41 is connected to the inner side of the box body 1; the sleeve 42 is connected in the sliding rod 41 in a sliding manner and is connected to the end part of the sliding rod 41 through a spring 43; the guard plate 44 is attached to the side of the sleeve 42.
When installing power supply controller body 2, through outwards pushing power supply controller body 2, place power supply controller body 2 between guard plate 44, spring 43 can carry out the shock attenuation to power supply controller body 2 through sleeve 42 and guard plate 44 this moment, can effectual improvement to power supply controller body 2's shock attenuation effect, prevent that radiator unit 3 from producing vibrations at the during operation and causing the influence to power supply controller body 2, improved the stability to power supply controller body 2.
In one embodiment of the present invention, as shown in fig. 1 and 2, the shielding assembly 5 includes:
a chute 51 provided inside the case 1;
and an elastic member 52 slidably connected in the sliding groove 51 and connected to a side surface of the sleeve 42 through a connecting member 53.
In the present embodiment, the sliding groove 51 is opened inside the box body 1; the elastic member 52 is slidably connected in the sliding groove 51 and is connected to the side of the sleeve 42 through a connecting member 53.
When the sleeve 42 slides on the sliding rod 41, the sleeve 42 can extrude the elastic member 52 through the connecting member 53, so that the elastic member 52 can perform damping and buffering on the protection plate 44 again through the connecting member 53 and the sleeve 42, the protection function of the damping assembly 4 can be achieved, and the stability of the power supply controller body 2 is improved. The elastic member 52 may be replaced with an elastic rubber or a spring to facilitate the buffering of the sleeve 42 and the protection plate 44.
In one embodiment of the present invention, as shown in fig. 1 and 2, a support 6 is installed at the bottom of the case 1.
In this embodiment, the bottom of the box 1 is provided with a support member 6, and the support member 6 may be a support block or a support plate, so as to support the box 1.
The working principle of the utility model is as follows: through placing power supply controller body 2 in box 1, when power supply controller body 2 produced heat in the use, through opening fan 32, fan 32 can pass through filter screen 31 discharge box 1 with the heat that power supply controller body 2 produced in the use, has realized the heat dissipation to power supply controller body 2, filter screen 31 can prevent dust to box 1, prevents that external dust from getting into the inside of box 1.
When installing power supply controller body 2, through outwards pushing power supply controller body 2, place power supply controller body 2 between guard plate 44, spring 43 can carry out the shock attenuation to power supply controller body 2 through sleeve 42 and guard plate 44 this moment, can effectual improvement to power supply controller body 2's shock attenuation effect, prevent that radiator unit 3 from producing vibrations at the during operation and causing the influence to power supply controller body 2, improved the stability to power supply controller body 2.
When the sleeve 42 slides on the sliding rod 41, the sleeve 42 can extrude the elastic member 52 through the connecting member 53, so that the elastic member 52 can perform damping and buffering on the protection plate 44 again through the connecting member 53 and the sleeve 42, the protection function of the damping assembly 4 can be achieved, and the stability of the power supply controller body 2 is improved.
In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; may be mechanically connected, may be electrically connected or may be in communication with each other; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the utility model, and any modifications, equivalents and improvements made within the spirit and principle of the present invention are intended to be included within the scope of the present invention.
Claims (5)
1. An LED power supply controller, comprising:
the power supply controller comprises a box body, wherein a power supply controller body is arranged in the box body;
the heat dissipation assembly is arranged on the inner side of the box body and used for dissipating heat of the power supply controller body;
one end of the damping component is arranged on the inner side of the box body, and the other end of the damping component is connected to the side face of the power supply controller body and is used for damping the power supply controller body so as to damp the power supply controller body;
and the protection component is connected between the damping component and the box body and used for buffering and protecting the damping component.
2. The LED power supply controller of claim 1, wherein the heat sink assembly comprises:
the fan is arranged inside the box body;
and the filter screen is arranged on the side surface of the box body and used for exhausting the power supply controller body under the action of the fan.
3. The LED power supply controller of claim 2, wherein the shock absorbing assembly comprises:
the sliding rod is connected to the inner side of the box body;
the sleeve is connected in the sliding rod in a sliding manner and is connected to the end part of the sliding rod through a spring;
and the protection plate is connected to the side surface of the sleeve.
4. The LED power supply controller of claim 3, wherein said protective assembly comprises:
the sliding chute is arranged on the inner side of the box body;
the elastic piece is connected in the sliding groove in a sliding mode and is connected to the side face of the sleeve through the connecting piece.
5. The LED power supply controller of claim 1, wherein a support is mounted to a bottom of the housing.
