CN214944982U

CN214944982U - A high-efficiency screw air compressor with heat dissipation and shock absorption

Info

Publication number: CN214944982U
Application number: CN202121277382.4U
Authority: CN
Inventors: 周建刚; 周建国
Original assignee: Shenzhen Keles Compression Machinery Co ltd
Current assignee: Shenzhen Keles Compression Machinery Co ltd
Priority date: 2021-06-08
Filing date: 2021-06-08
Publication date: 2021-11-30
Anticipated expiration: 2031-06-08

Abstract

A high-efficiency screw air compressor with heat dissipation and shock absorption, comprising a chassis, a casing, a mesh plate, an air compressor body, a heat dissipation component and a shock absorption component; Nozzle, pipeline three and refrigeration part; damping component includes mounting plate, sliding sleeve, frame, sliding rod and spring one; in the utility model, a heat dissipation component is provided, the water tank and refrigeration part are used to cool the air, and the air is reused The air compressor body is cooled to enhance the heat dissipation effect; the center of gravity of the device is lowered through the water tank, the stability of the device is enhanced, and the amplitude of vibration is reduced; shock absorption components are installed, and spring one is used to absorb shock, slow down vibration, and avoid vibration damage The parts of the air compressor reduce the service life of the air compressor.

Description

Heat dissipation and shock absorption efficient screw air compressor

Technical Field

The utility model relates to a screw compressor machine technical field especially relates to a heat dissipation absorbing high-efficient screw compressor machine.

Background

The screw air compressor is used for compressing air and provides power for systems such as factory production lines and engineering machinery. Compared with the traditional piston type air compressor, the screw air compressor has the characteristics of high energy efficiency, compact structure, low noise and the like, and tends to gradually replace the piston type air compressor in various fields in recent years. The existing screw rod air compressor has some defects in the using process, for example, the damping and heat dissipation effects of the existing air compressor are poor, the service life of the device is damaged, and the working efficiency is influenced.

SUMMERY OF THE UTILITY MODEL

Objects of the invention

For solving the technical problem who exists among the background art, the utility model provides a radiating and absorbing high-efficient screw compressor machine sets up radiator unit and damper assembly, strengthens heat dissipation and shock attenuation effect, increase of service life.

(II) technical scheme

In order to solve the problems, the utility model provides a heat-dissipation and shock-absorption high-efficiency screw air compressor, which comprises a chassis, a shell, a mesh plate, an air compressor body, a heat dissipation assembly and a shock absorption assembly; a damping component is arranged above the chassis; the heat dissipation assembly is arranged on the shock absorption assembly, and the upper end of the heat dissipation assembly is provided with the shell; the upper end of the shell is not closed, and a mesh plate is arranged inside the shell; the air compressor body is arranged at the upper end of the mesh plate; the heat dissipation assembly comprises a water tank, a first fan, a first pipeline, a second fan, a second pipeline, a spray head, a third pipeline and a refrigerating piece; the water tank is arranged below the shell, and the upper end of the water tank is provided with a first fan; the air outlet end of the fan I is communicated with the pipeline I; one end of the first pipeline, which is far away from the first fan, extends into the water tank and is close to the bottom surface of the water tank; the air inlet end of the fan II is communicated with the water tank, and the air outlet end of the fan II is communicated with the pipeline II; one end of the second pipeline, which is far away from the second fan, extends into the shell and is positioned on the outer side of the air compressor body; the spray head is arranged on the second pipeline and is communicated with the second pipeline; one end of the pipeline III is communicated with the shell and is positioned below the mesh plate, and the other end of the pipeline III is communicated with the water tank; the refrigerating piece is arranged inside the water tank; the damping assembly comprises a mounting plate, a sliding sleeve, a rack, a sliding rod and a first spring; the mounting plate is connected with the side wall of the water tank; the frame is arranged at the upper end of the chassis; the sliding rod is vertically arranged on the rack; the sliding sleeve is sleeved on the sliding rod; the springs are sleeved on the sliding rod, two groups of springs are arranged, the springs are respectively positioned on the upper side and the lower side of the sliding sleeve, and one end, far away from the sliding sleeve, of each spring is in contact with the rack; the sliding sleeve is connected with the mounting plate.

Preferably, a horizontal pipe is horizontally arranged in the water tank; the transverse pipe is communicated with the first pipeline, and a plurality of groups of holes are formed in the side wall of the transverse pipe; and a valve is arranged on the first pipeline.

Preferably, a sliding groove is vertically arranged on the frame; the mounting plate is provided with a sliding block; the sliding block is arranged inside the sliding chute, and a rubber pad is arranged at one end close to the bottom surface of the sliding chute; the rubber pad contacts with the bottom surface of the sliding chute.

Preferably, a sleeve is sleeved outside the air inlet end of the first fan; a first filter screen is arranged inside one end, far away from the first fan, of the sleeve.

Preferably, the lower end of the water tank is vertically provided with a second spring; a telescopic rod is sleeved on the outer side of the second spring; the second spring and the lower end of the telescopic rod are connected with the chassis.

Preferably, the rack is provided with a controller; the air compressor body, the first fan, the second fan and the refrigerating piece are in signal connection with the controller.

Preferably, the upper end of the bottom surface of the shell is provided with an inclined plate; the inclined plate is positioned below the mesh plate, and the lower end of the inclined plate is close to the third pipeline.

Preferably, the frame is provided with a reinforcing rib plate; the other end of the reinforced rib plate is connected with the chassis; the four corners of the lower end of the chassis are provided with universal wheels.

The above technical scheme of the utility model has following profitable technological effect:

in the utility model, the water-saving device is provided with a water-saving valve,

1. the air compressor is provided with the heat dissipation assembly, the water tank and the refrigerating piece are used for cooling air, and then the air compressor body is dissipated heat by using the air, so that the heat dissipation effect is enhanced; and the gravity center of the device is lowered through the water tank, the stability of the device is enhanced, and the vibration amplitude is reduced.

2. The shock absorption assembly is arranged, the first spring is utilized to absorb shock, shock is reduced, parts of the air compressor are prevented from being damaged by shock, and the service life of the air compressor is shortened.

Drawings

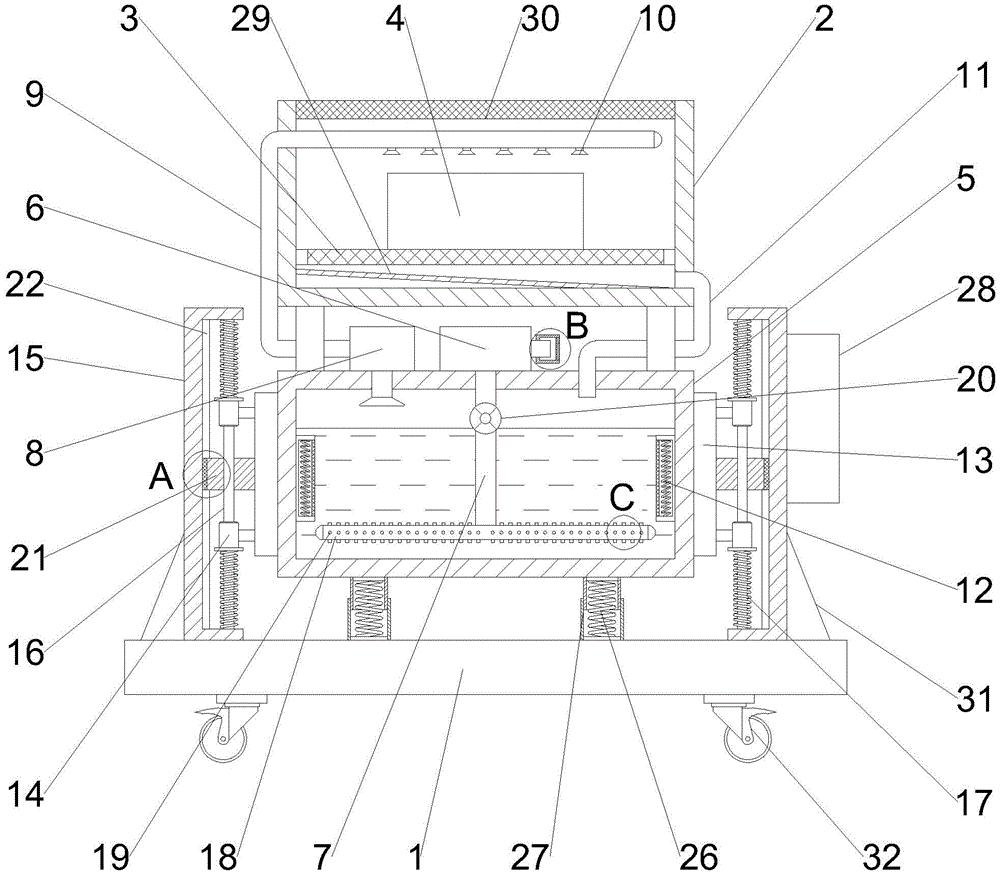

Fig. 1 is the utility model provides a shock-absorbing high-efficient screw compressor's of heat dissipation structure schematic diagram.

Fig. 2 is the utility model provides a local enlarger of A department among the shock-absorbing high-efficient screw compressor machine dispels the heat.

Fig. 3 is the utility model provides a local enlarger of B department among the shock-absorbing high-efficient screw compressor machine dispels the heat.

Fig. 4 is the utility model provides a local enlarger of C department among the shock-absorbing high-efficient screw compressor machine dispels the heat.

Reference numerals: 1. a chassis; 2. a housing; 3. a mesh plate; 4. an air compressor body; 5. a water tank; 6. a first fan; 7. a first pipeline; 8. a second fan; 9. a second pipeline; 10. a spray head; 11. a third pipeline; 12. a refrigeration member; 13. mounting a plate; 14. a sliding sleeve; 15. a frame; 16. a slide bar; 17. a first spring; 18. a transverse tube; 19. an aperture; 20. a valve; 21. a slider; 22. a chute; 23. a rubber pad; 24. a sleeve; 25. a first filter screen; 26. a second spring; 27. a telescopic rod; 28. a controller; 29. a sloping plate; 30. a second filter screen; 31. a reinforcing rib plate; 32. a universal wheel.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention will be described in detail with reference to the accompanying drawings. It should be understood that the description is intended to be illustrative only and is not intended to limit the scope of the present invention. Moreover, in the following description, descriptions of well-known structures and techniques are omitted so as to not unnecessarily obscure the concepts of the present invention.

As shown in fig. 1-4, the utility model provides a heat-dissipating and shock-absorbing efficient screw air compressor, which comprises a chassis 1, a shell 2, a mesh plate 3, an air compressor body 4, a heat-dissipating component and a shock-absorbing component; a damping component is arranged above the chassis 1; the heat dissipation assembly is arranged on the shock absorption assembly, and the upper end of the heat dissipation assembly is provided with the shell 2; the upper end of the shell 2 is not closed, and a mesh plate 3 is arranged in the shell; the air compressor body 4 is arranged at the upper end of the mesh plate 3; the heat dissipation assembly comprises a water tank 5, a first fan 6, a first pipeline 7, a second fan 8, a second pipeline 9, a spray head 10, a third pipeline 11 and a refrigerating piece 12; the water tank 5 is arranged below the shell 2, and the upper end of the water tank is provided with a first fan 6; the air outlet end of the fan I6 is communicated with a pipeline I7; one end of the first pipeline 7, which is far away from the first fan 6, extends into the water tank 5 and is close to the bottom surface of the water tank 5; the air inlet end of the second fan 8 is communicated with the water tank 5, and the air outlet end of the second fan is communicated with the second pipeline 9; one end of the second pipeline 9, which is far away from the second fan 8, extends into the shell 2 and is positioned on the outer side of the air compressor body 4; the spray head 10 is arranged on the second pipeline 9 and is communicated with the second pipeline 9; one end of the pipeline III 11 is communicated with the shell 2 and is positioned below the mesh plate 3, and the other end of the pipeline III is communicated with the water tank 5; the refrigeration element 12 is arranged inside the water tank 5; the damping assembly comprises a mounting plate 13, a sliding sleeve 14, a rack 15, a sliding rod 16 and a first spring 17; the mounting plate 13 is connected with the side wall of the water tank 5; the frame 15 is arranged at the upper end of the chassis 1; the sliding rod 16 is vertically arranged on the frame 15; the sliding sleeve 14 is sleeved on the sliding rod 16; the first springs 17 are sleeved on the sliding rod 16, are arranged in two groups and are respectively positioned on the upper side and the lower side of the sliding sleeve 14, and one end, far away from the sliding sleeve 14, of each group is in contact with the rack 15; the sliding sleeve 14 is connected to the mounting plate 13.

In an alternative embodiment, a transverse tube 18 is horizontally arranged inside the water tank 5; the transverse pipe 18 is communicated with the first pipeline 7, and a plurality of groups of holes 19 are formed in the side wall; the first pipeline 7 is provided with a valve 20.

In an alternative embodiment, the frame 15 is provided with a chute 22 vertically; the mounting plate 13 is provided with a slide block 21; the sliding block 21 is arranged inside the sliding chute 22, and one end of the sliding block close to the bottom surface of the sliding chute 22 is provided with a rubber pad 23; the rubber pad 23 is in contact with the bottom surface of the chute 22.

In an alternative embodiment, a sleeve 24 is sleeved outside the air inlet end of the fan I6; and a filter screen I25 is arranged inside one end of the sleeve 24, which is far away from the fan I6.

In an optional embodiment, a second spring 26 is vertically arranged at the lower end of the water tank 5; the outer side of the second spring 26 is sleeved with a telescopic rod 27; the lower ends of the second spring 26 and the telescopic rod 27 are connected with the chassis 1.

In an alternative embodiment, the frame 15 is provided with a controller 28; the air compressor body 4, the first fan 6, the second fan 8 and the refrigerating element 12 are in signal connection with the controller 28.

In an alternative embodiment, the upper end of the bottom surface of the housing 2 is provided with a sloping plate 29; the inclined plate 29 is positioned below the mesh plate 3, and the lower end of the inclined plate is close to the third pipeline 11.

In an alternative embodiment, the frame 15 is provided with reinforcing ribs 31; the other end of the reinforcing rib plate 31 is connected with the chassis 1; universal wheels 32 are arranged at four corners of the lower end of the chassis 1.

In the utility model, the working principle of the device is that the first fan 6 sucks air into the water tank 5, the refrigerating part 12 cools water in the water tank 5, the air is sucked into the shell 2 by the second fan 8 after being cooled by water, and is sprayed to the air compressor body 4 from the spray head 10 to cool the air compressor body 4, when water vapor in the air in the shell 2 is excessively condensed, water drops are formed, and the water drops fall onto the inclined plate 29 from the mesh plate 3 and return to the water tank 5 through the third pipeline 11; the water tank 5 reduces the gravity center of the device, the stability of the device is enhanced, the first spring 17 absorbs impact, vibration is reduced, and the air compressor body 4 is damped.

It is to be understood that the above-described embodiments of the present invention are merely illustrative of or explaining the principles of the invention and are not to be construed as limiting the invention. Therefore, any modification, equivalent replacement, improvement and the like made without departing from the spirit and scope of the present invention should be included in the protection scope of the present invention. Further, it is intended that the appended claims cover all such variations and modifications as fall within the scope and boundaries of the appended claims or the equivalents of such scope and boundaries.

Claims

1. A high-efficiency screw air compressor with heat dissipation and shock absorption, characterized in that it comprises a chassis (1), a casing (2), a mesh plate (3), an air compressor body (4), a heat dissipation assembly and a shock absorption assembly ; A damping component is arranged above the chassis (1); the heat dissipation component is arranged on the damping component, and the upper end thereof is provided with a casing (2); the upper end of the casing (2) is not closed, and a mesh plate (3) is arranged inside; (4) arranged on the upper end of the mesh plate (3);

The heat dissipation assembly includes a water tank (5), a first fan (6), a first pipe (7), a second fan (8), a second pipe (9), a nozzle (10), a third pipe (11) and a refrigeration part (12); the water tank (5) It is arranged below the casing (2), and the upper end is provided with a fan one (6); the outlet end of the fan one (6) is connected to the pipe one (7); the one end of the pipe one (7) away from the fan one (6) extends into the Inside the water tank (5), close to the bottom surface of the water tank (5); the air inlet end of the fan two (8) is connected to the water tank (5), and the air outlet end is connected to the pipe two (9); the end of the pipe two (9) away from the fan two (8) The nozzle (10) is arranged on the second pipe (9) and communicates with the second pipe (9); one end of the third pipe (11) is connected to the outer casing (2). ), located below the mesh plate (3), and the other end is connected to the water tank (5); the refrigeration element (12) is arranged inside the water tank (5);

The damping assembly includes a mounting plate (13), a sliding sleeve (14), a frame (15), a sliding rod (16) and a spring one (17); the mounting plate (13) is connected to the side wall of the water tank (5); The frame (15) is arranged on the upper end of the chassis (1); the sliding rod (16) is vertically arranged on the frame (15); the sliding sleeve (14) is sleeved on the sliding rod (16); the spring one (17) is sleeved It is arranged on the sliding rod (16), and two groups are arranged, which are respectively located on the upper and lower sides of the sliding sleeve (14), and the end away from the sliding sleeve (14) is in contact with the frame (15); the sliding sleeve (14) and the Mounting plate (13) is attached.

2. The high-efficiency screw air compressor with heat dissipation and shock absorption according to claim 1, wherein a horizontal pipe (18) is arranged inside the water tank (5); Several groups of holes (19) are arranged on the side wall; a valve (20) is arranged on the first pipe (7).

3. The high-efficiency screw air compressor with heat dissipation and shock absorption according to claim 1, wherein a chute (22) is vertically arranged on the frame (15); a slider (21) is arranged on the mounting plate (13) The slider (21) is arranged inside the chute (22), and a rubber pad (23) is provided at one end of the bottom surface of the chute (22); the rubber pad (23) is in contact with the bottom surface of the chute (22).

4. The high-efficiency screw air compressor with heat dissipation and shock absorption according to claim 1, wherein a sleeve (24) is sleeved on the outside of the air inlet end of the fan one (6); the sleeve (24) is far away from the fan one (6). One end of (6) is provided with a filter screen one (25).

5. The high-efficiency screw air compressor with heat dissipation and shock absorption according to claim 1, wherein the lower end of the water tank (5) is vertically arranged with a second spring (26); the outer side of the second spring (26) is sleeved with a telescopic rod (27); the lower ends of the second spring (26) and the telescopic rod (27) are connected to the chassis (1).

6. The high-efficiency screw air compressor with heat dissipation and shock absorption according to claim 1, wherein a controller (28) is provided on the frame (15); the air compressor body (4), the fan one (6), The second fan (8) and the refrigerating element (12) are all signal-connected with the controller (28).

7. The high-efficiency screw air compressor with heat dissipation and shock absorption according to claim 1, characterized in that, a sloping plate (29) is arranged on the upper end of the bottom surface of the casing (2); Below, the lower end is near pipe three (11).

8. The high-efficiency screw air compressor with heat dissipation and shock absorption according to claim 1, wherein a reinforcing rib (31) is arranged on the frame (15); the other end of the reinforcing rib (31) is connected to the chassis (1) The four corners of the lower end of the chassis (1) are provided with universal wheels (32).
