CN216738892U - Quick drying device is used in printing and dyeing of textile fabric - Google Patents
Quick drying device is used in printing and dyeing of textile fabric Download PDFInfo
- Publication number
- CN216738892U CN216738892U CN202121998032.7U CN202121998032U CN216738892U CN 216738892 U CN216738892 U CN 216738892U CN 202121998032 U CN202121998032 U CN 202121998032U CN 216738892 U CN216738892 U CN 216738892U
- Authority
- CN
- China
- Prior art keywords
- drying
- drying device
- support frame
- fixedly connected
- air
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Treatment Of Fiber Materials (AREA)
Abstract
The utility model relates to the technical field of textile cloth production equipment, and discloses a quick drying device for textile cloth printing and dyeing, which comprises a support frame, wherein the upper surface of the support frame is fixedly connected with a drying box, the right side of the upper surface of the drying box is provided with a drying device, the left side of the inner top side wall of the support frame is fixedly connected with a collecting box, and the left side inside the drying box is respectively provided with a first compression wheel and a second compression wheel. This quick drying device is used in textile fabric printing and dyeing carries out compression dehydration to the cloth through first compression wheel and the cooperation of second compression wheel, and the abundant moisture of getting rid of in the cloth effectively avoids the water droplet to cause the device to rust, has improved the life of device, further improves drying efficiency, carries out quick air-dry to the dehydration back cloth through air-drying the spout, further gets rid of remaining moisture, can be better carry out omnidirectional stoving, improves the air-dry effect to the cloth.
Description
Technical Field
The utility model relates to the technical field of textile cloth production equipment, in particular to a quick drying device for printing and dyeing textile cloth.
Background
Weaving cloth need wash after dyeing, need dry by drying process to weaving cloth after having washed, the wind gap that will weave cloth transport the electric fan heater usually air-dries, perhaps will weave cloth through carrying out the evaporation to dryness between the heating plate, because weaving cloth has washed the back, its cloth inside can be full of a large amount of moisture, directly take place to spatter through electric fan heater machine or hot plate and drip easily, influence drying device's life-span easily during long-term operation, and drying efficiency is comparatively low moreover.
For example, a drying device for textile cloth for textile use, chinese patent application No. 201920435202.7, is basically described as follows: including quick-witted case, dewatering mechanism and stoving mechanism, quick-witted case is square box form, and the inside middle part welding of quick-witted case has the baffle of perpendicular setting, and quick-witted incasement portion cavity divide into dehydration chamber and stoving chamber through the baffle, dewatering mechanism is including dehydration deflector roll, dehydration inflator, air duct adapter and high-pressure positive blower, and this weaving is dried with textile fabric drying device uses the heating pipe to dry after dehydrating through dehydration inflator, but this stoving mode can only dry the one side of cloth, and the stoving effect of another side is relatively poor, can not be better carry out omnidirectional stoving, is unfavorable for drying efficiency's improvement.
Therefore, the inventor provides a quick drying device for printing and dyeing textile fabrics, which takes full experience of design development and actual manufacturing in the related industry for years, researches and improves the existing structure and defects.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Aiming at the defects of the prior art, the utility model provides a quick drying device for printing and dyeing textile fabrics, which solves the problems in the background technology.
(II) technical scheme
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a textile fabric dyes printing and dyeing uses quick drying device, includes the support frame, the last fixed surface of support frame is connected with the stoving case, the right side of stoving case upper surface is provided with drying device, the left side fixedly connected with collecting box of the lateral wall of top in the support frame, the left side of the incasement portion of drying is provided with first compression wheel and second compression wheel respectively, the back of first compression wheel and second compression wheel is fixedly connected with first gear and second gear respectively, first gear and second gear meshing, the left side fixedly connected with driving motor at the stoving case back, the inside of stoving case is provided with the stabilizer wheel, the last fixed surface of support frame is connected with the air-blower, the input intercommunication of air-blower has the cover that induced drafts, the output intercommunication of air-blower has the tuber pipe, the inboard of tuber pipe is provided with air-dries the spout, the right side of support frame upper surface and the equal fixedly connected with first mount in the right side of the lateral wall of the incasement top of stoving case The inner side of the first fixing frame is provided with a heating pipe, the output end of the drying device is communicated with an exhaust pipe, and the bottom of the exhaust pipe is provided with a drying nozzle.
Drying device includes the heating cabinet, the inner bottom lateral wall fixedly connected with second mount of heating cabinet, the top of second mount is provided with the heating tube, the upper surface intercommunication of heating cabinet has out the fan housing, go out the interior bottom fixedly connected with third mount of fan housing, the last fixed surface of third mount is connected with the rotation motor, the output fixedly connected with rotation fan of rotation motor.
Preferably, the left side of the upper surface of the support frame is provided with a water seepage strip, and the length of the water seepage strip is six hundred and fifty millimeters.
Preferably, the outer surface of the stabilizing rotating wheel is provided with an anti-skid layer, and anti-skid grains are uniformly arranged on the outer surface of the anti-skid layer.
Preferably, the number of the heating pipes is twelve, and heating threads are uniformly arranged on the outer surfaces of the twelve groups of heating pipes.
Preferably, the support frame and the drying box are both made of cast iron, and the outer surfaces of the support frame and the drying box are uniformly provided with antirust coatings.
Preferably, the outer side surface of the heating box is provided with a plurality of groups of air inlet through holes, and the aperture of each air inlet through hole is two millimeters.
(III) advantageous effects
Compared with the prior art, the utility model provides a quick drying device for printing and dyeing textile fabrics, which has the following beneficial effects:
1. this quick drying device is used in textile fabric printing and dyeing carries out compression dehydration to the cloth through first compression wheel and the cooperation of second compression wheel, and the abundant moisture of getting rid of in the cloth effectively avoids the water droplet to cause the device to rust, has improved the life of device, further improves drying efficiency, carries out quick air-dry to the dehydration back cloth through air-drying the spout, further gets rid of remaining moisture, can be better carry out omnidirectional stoving, improves the air-dry effect to the cloth.
2. This quick drying device is used in textile fabric printing and dyeing carries out omnidirectional heating stoving through heating pipe and stoving spout to the cloth, has better stoving effect, fully gets rid of the moisture in the cloth, further improves drying efficiency.
Drawings

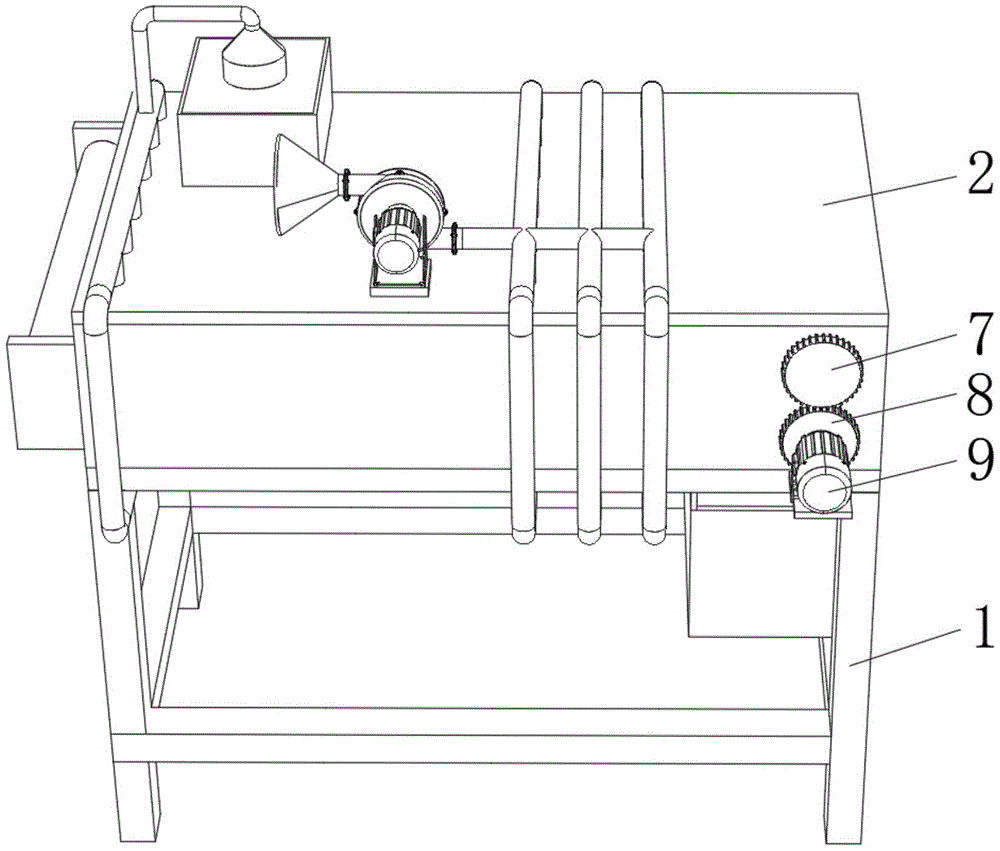

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic cross-sectional view of the present invention;
fig. 3 is a schematic structural view of the drying apparatus of the present invention.
In the figure: 1. a support frame; 2. a drying box; 3. a drying device; 301. a heating box; 302. a second fixing frame; 303. a heat generating tube; 304. an air outlet cover; 305. a third fixing frame; 306. rotating the motor; 307. Rotating the fan; 4. a collection box; 5. a first compression wheel; 6. a second compression wheel; 7. a first gear; 8. A second gear; 9. a drive motor; 10. stabilizing the rotating wheel; 11. a blower; 12. an air suction hood; 13. an air outlet pipe; 14. air-drying the spout; 15. a first fixing frame; 16. heating a tube; 17. an exhaust duct; 18. and (5) drying the spout.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a fast drying device for textile fabric printing and dyeing comprises a support frame 1, a drying box 2 is fixedly connected to the upper surface of the support frame 1, a drying device 3 is arranged on the right side of the upper surface of the drying box 2, a collecting box 4 is fixedly connected to the left side of the inner top side wall of the support frame 1, a first compression wheel 5 and a second compression wheel 6 are respectively arranged on the left side inside the drying box 2, the fabric is compressed and dehydrated through the cooperation of the first compression wheel 5 and the second compression wheel 6, moisture in the fabric is fully removed, rusting of the device caused by water drops is effectively avoided, the service life of the device is prolonged, the drying efficiency is further improved, a first gear 7 and a second gear 8 are respectively and fixedly connected to the back surfaces of the first compression wheel 5 and the second compression wheel 6, the first gear 7 is meshed with the second gear 8, a driving motor 9 is fixedly connected to the left side of the back surface of the drying box 2, the specific model number of the driving motor 9 is 5IK120GN-C, the inside of the drying box 2 is provided with a stabilizing rotating wheel 10, the upper surface of the support frame 1 is fixedly connected with an air blower 11, the specific model of the air blower 11 is DF180, the input end of the air blower 11 is communicated with an air suction cover 12, the output end of the air blower 11 is communicated with an air outlet pipe 13, the inner side of the air outlet pipe 13 is provided with an air drying nozzle 14, the dehydrated cloth is quickly dried through the air drying nozzle 14, the residual moisture is further removed, the cloth can be better dried in all directions, the air drying effect on the cloth is improved, the inner sides of the first fixing frame 15 are fixedly connected on the right side of the upper surface of the support frame 1 and the right side of the inner top side wall of the drying box 2, the output end of the drying device 3 is communicated with an exhaust pipe 17, the bottom of the exhaust pipe 17 is provided with a drying nozzle 18, the cloth is subjected to all-directional heating and drying through the heating pipe 16 and the drying nozzle 18, and has better drying effect, the moisture in the cloth is fully removed, and the drying efficiency is further improved.
The drying device 3 comprises a heating box 301, a second fixing frame 302 is fixedly connected to the inner bottom side wall of the heating box 301, a heating pipe 303 is arranged at the top of the second fixing frame 302, an air outlet cover 304 is communicated with the upper surface of the heating box 301, a third fixing frame 305 is fixedly connected to the inner bottom of the air outlet cover 304, a rotating motor 306 is fixedly connected to the upper surface of the third fixing frame 305, the specific model of the rotating motor 306 is 5IK120GN-C, and a rotating fan 307 is fixedly connected to the output end of the rotating motor 306.
In order to facilitate water collection, the left side of the upper surface of the support frame 1 is provided with the water seepage strip, the length of the water seepage strip is six hundred and fifty millimeters, and the water collection is facilitated by the water seepage strip on the left side of the upper surface of the support frame 1.
In order to improve the anti-skid effect, the outer surface of the stabilizing runner 10 is provided with the anti-skid layer, the outer surface of the anti-skid layer is uniformly provided with anti-skid grains, and the anti-skid grains on the outer surface of the stabilizing runner 10 increase the friction force and improve the anti-skid effect.
In the utility model, in order to improve the drying effect, the number of the heating pipes 16 is twelve, heating threads are uniformly arranged on the outer surfaces of the twelve groups of heating pipes 16, and the heating threads on the outer surfaces of the twelve groups of heating pipes 16 are matched with each other, so that the drying effect is improved.
In order to prolong the service life of the drying box, the support frame 1 and the drying box 2 are both made of cast iron, the outer surfaces of the support frame 1 and the drying box 2 are uniformly provided with antirust coatings, the antirust coatings on the outer surfaces of the support frame 1 and the drying box 2 are prevented from being corroded, and the service life is prolonged.
In order to improve the air inlet effect, a plurality of groups of air inlet through holes are formed in the outer side surface of the heating box 301, the aperture of each air inlet through hole is two millimeters, and the air inlet effect is improved through the air inlet through holes in the outer side surface of the heating box 301.
The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.
When the device is used, cloth is placed on the inner sides of a first compression wheel 5 and a second compression wheel 6, a driving motor 9 is controlled to be started, the output end of the driving motor 9 drives a second gear 8 to rotate, the second gear 8 rotates to drive a first gear 7 to rotate, the first gear 7 and the second gear 8 simultaneously drive the first compression wheel 5 and the second compression wheel 6 to rotate to compress and dehydrate the cloth, extruded water falls into a collection box 4, the dehydrated cloth enters a stabilizing rotating wheel 10, a blower 11 is controlled to be started, the blower 11 sprays sucked air through an air drying nozzle 14 to dry and dehydrate the cloth, then the cloth is heated and dried through a heating pipe 16, a rotating motor 306 is controlled to be started, the output end of the rotating motor 306 drives a rotating fan 307 to rotate, the rotating fan 307 sprays heated hot air through a drying nozzle 18 to heat and dry the cloth in an omnibearing manner, all operations are completed.
To sum up, this quick drying device is used in textile fabric printing and dyeing compresses the dehydration through the cooperation of first compression wheel 5 and second compression wheel 6 to the cloth, and the abundant moisture of getting rid of in the cloth effectively avoids the water droplet to cause the device to rust, has improved the life of device, further improves drying efficiency, carries out quick air-dry to the dehydration back cloth through air-drying spout 14, further gets rid of remaining moisture, can be better carry out omnidirectional stoving, improves the air-dry effect to the cloth.
This quick drying device is used in textile fabric printing and dyeing carries out omnidirectional heating stoving through heating pipe 16 and stoving spout 18 to the cloth, has better stoving effect, fully gets rid of the moisture in the cloth, further improves drying efficiency.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a textile fabric is quick drying device for printing and dyeing, includes support frame (1), its characterized in that: the drying device is characterized in that a drying box (2) is fixedly connected to the upper surface of a support frame (1), a drying device (3) is arranged on the right side of the upper surface of the drying box (2), a collecting box (4) is fixedly connected to the left side of the inner top side wall of the support frame (1), a first compression wheel (5) and a second compression wheel (6) are respectively arranged on the left side of the inner portion of the drying box (2), a first gear (7) and a second gear (8) are respectively and fixedly connected to the back surfaces of the first compression wheel (5) and the second compression wheel (6), the first gear (7) is meshed with the second gear (8), a driving motor (9) is fixedly connected to the left side of the back surface of the drying box (2), a stable rotating wheel (10) is arranged in the drying box (2), an air blower (11) is fixedly connected to the upper surface of the support frame (1), and an input end of the air blower (11) is communicated with an air suction hood (12), the output end of the air blower (11) is communicated with an air outlet pipe (13), an air drying nozzle (14) is arranged on the inner side of the air outlet pipe (13), the right side of the upper surface of the support frame (1) and the right side of the inner top side wall of the drying box (2) are fixedly connected with a first fixing frame (15), a heating pipe (16) is arranged on the inner side of the first fixing frame (15), the output end of the drying device (3) is communicated with an exhaust pipe (17), and a drying nozzle (18) is arranged at the bottom of the exhaust pipe (17);
drying device (3) are including heating cabinet (301), inner bottom lateral wall fixedly connected with second mount (302) of heating cabinet (301), the top of second mount (302) is provided with heating tube (303), the upper surface intercommunication of heating cabinet (301) has air-out cover (304), air-out cover (304) interior bottom fixedly connected with third mount (305), the last fixed surface of third mount (305) is connected with rotates motor (306), the output fixedly connected with who rotates motor (306) rotates fan (307).
2. The quick drying device for printing and dyeing of textile fabrics according to claim 1, characterized in that: the left side of the upper surface of the support frame (1) is provided with a water seepage strip, and the length of the water seepage strip is six hundred fifty millimeters.
3. The quick drying device for printing and dyeing of textile fabrics according to claim 1, characterized in that: the outer surface of the stabilizing rotating wheel (10) is provided with an anti-skid layer, and anti-skid grains are uniformly arranged on the outer surface of the anti-skid layer.
4. The quick drying device for printing and dyeing of textile fabrics according to claim 1, characterized in that: the number of the heating pipes (16) is twelve, and heating threads are uniformly arranged on the outer surfaces of the twelve groups of heating pipes (16).
5. The quick drying device for printing and dyeing of textile fabrics according to claim 1, characterized in that: the material of support frame (1) and stoving case (2) is cast iron, and the surface of support frame (1) and stoving case (2) evenly is provided with anti rust coating.
6. The quick drying device for printing and dyeing of textile fabrics according to claim 1, characterized in that: a plurality of groups of air inlet through holes are formed in the outer side surface of the heating box (301), and the aperture of each air inlet through hole is two millimeters.
