Abstract

The utility model discloses a sample storage box for medical testing, comprising a box body, two grooves are formed on the inner wall of the box, two sliding plates are slidably connected to the inner walls of the two grooves, and the upper and lower ends of the sliding plates pass through A plurality of first springs are elastically connected with the inner wall of the groove, a sample storage frame is fixedly connected to the side walls of the two sliding plates that are close to each other, and a plurality of partitions are fixedly connected to the bottom of the sample storage frame. The sample storage frame is equally divided into a plurality of placement chambers, and the inner walls on both sides of the placement chamber are fixedly connected with a plurality of second springs. In the utility model, a slide plate, a first spring, a second spring and a splint are arranged, and the splint clamps the test tube under the action of the second spring to ensure its stability, avoid the collision between the test tube and the inner wall of the sample storage frame, and ensure its storage safety. At the same time, when the box body is transported, the first spring and the second spring can buffer the vibration of the box body at this time, so as to further ensure the storage stability of the test tube.

Description

A kind of sample storage box for medical testing

technical field

The utility model relates to the technical field of medical equipment, in particular to a sample storage box for medical testing.

Background technique

In the medical field, medical staff need to draw and test the blood of patients. At this time, a storage box is required to store the blood. At present, the blood is placed in a test tube and then placed in a storage box, so as to protect the blood, Classification and carrying functions.

The current storage box cannot limit the position of the test tube during use, and cannot guarantee that the test tube will not collide inside the storage box, which makes the storage safety of the test tube low. It is inconvenient to take it from the inside of the body.

Utility model content

The purpose of the utility model is to propose a sample storage box for medical testing in order to solve the shortcomings existing in the prior art.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A sample storage box for medical testing, comprising a box body, the inner wall of the box is provided with two grooves, the inner walls of the two grooves are slidably connected with two sliding plates, and the upper and lower ends of the sliding plates pass through a plurality of first springs It is elastically connected with the inner wall of the groove, the side walls of the two sliding plates that are close to each other are fixedly connected with a sample storage frame, and the bottom of the sample storage frame is fixedly connected with a plurality of baffles, and a plurality of the baffles are used to store the sample inside the frame, etc. It is divided into a plurality of placement chambers, the inner walls on both sides of the placement chamber are fixedly connected with a plurality of second springs, and one end of the plurality of second springs away from the inner wall of the placement chamber is fixedly connected with a splint, and the placement chamber is provided with a test tube, The side wall of the test tube is fitted with the side wall of the splint, and a support mechanism for supporting the test tube is provided in the placing chamber.

Preferably, the support mechanism comprises a vertical rod slidably connected to the bottom of the placement chamber, an arc-shaped plate is fixedly connected to the upper end of the vertical rod, and the upper surface of the arc-shaped plate is in contact with the lower surface of the test tube.

Preferably, a drive mechanism for driving the vertical rod to slide is provided in the box, the drive mechanism includes a lead screw rotatably connected to the inner wall of the box, and a plurality of sliding blocks are threadedly connected to the side wall of the lead screw, and a plurality of all The side wall of the sliding block is slidably connected with the inner wall of the box, and the side wall of the sliding block is rotatably connected with the side wall of the vertical rod through a connecting rod.

Preferably, one end of the lead screw penetrates the side wall of the box body and is fixedly connected with a handwheel.

Preferably, a rubber pad is glued to the side wall of the splint, and the rubber pad is provided with anti-skid lines.

Preferably, a box cover is rotatably connected to the upper end of the box body, and the side wall of the box cover is connected to the upper end of the box body through bolts.

The utility model has the following beneficial effects:

1. By setting the slide plate, the first spring, the second spring and the splint, the splint clamps the test tube under the action of the second spring to ensure its stability, avoid the collision between the test tube and the inner wall of the sample storage frame, and ensure its storage safety. When the box body is transported, the first spring and the second spring can buffer the vibration of the box body at this time, so as to further ensure the storage stability of the test tube.

2. By setting the drive mechanism, the vertical rod and the arc-shaped plate, the forward rotation of the lead screw makes the plurality of sliding blocks slide in the direction away from the handwheel, and then the plurality of sliding blocks drive the plurality of vertical rods to slide upward through the plurality of connecting rods. Further, the plurality of arc-shaped plates are driven to move, so as to push out the plurality of test tubes located in the plurality of placement chambers, so as to facilitate the taking of them, the operation is simple, and the practicability is strong.

Description of drawings

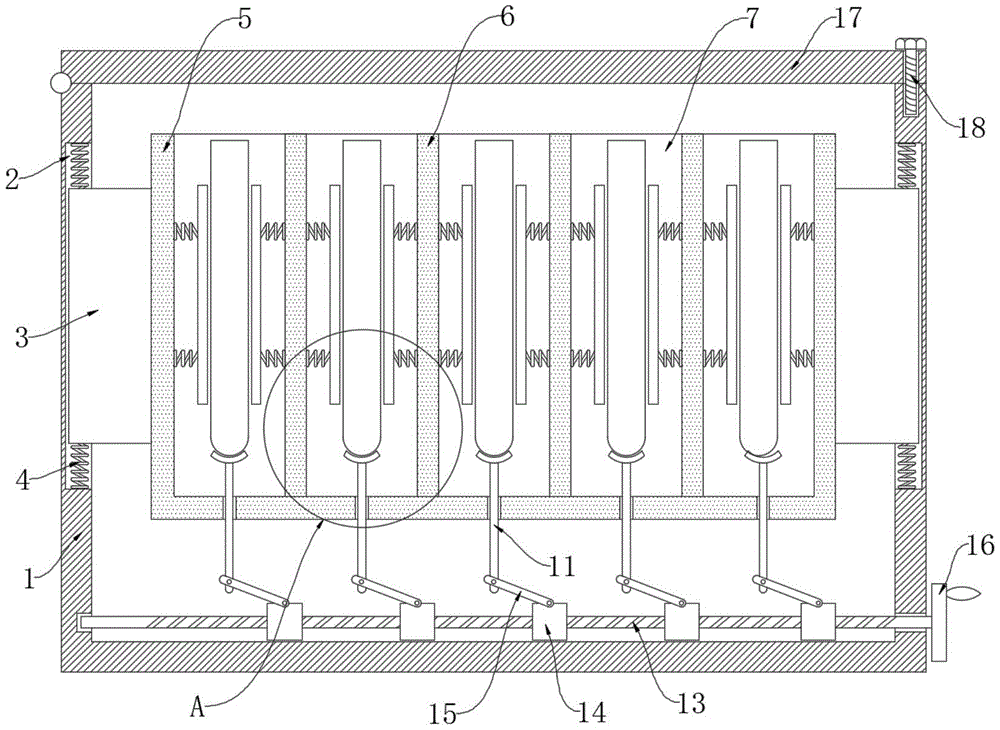

Fig. 1 is the structural representation of a kind of medical detection sample storage box proposed by the utility model;

FIG. 2 is an enlarged schematic view of the structure at A in FIG. 1 .

In the picture: 1 box, 2 grooves, 3 slides, 4 first springs, 5 sample storage boxes, 6 partitions, 7 placement chambers, 8 second springs, 9 splints, 10 test tubes, 11 vertical rods, 12 arcs Plate, 13 lead screws, 14 sliders, 15 connecting rods, 16 handwheels, 17 box covers, 18 bolts.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inside", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation , are constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention.

1-2, a sample storage box for medical testing, including a box body 1, the inner wall of the box body 1 is provided with two grooves 2, the inner walls of the two grooves 2 are slidably connected with two sliding plates 3, the upper and lower ends of the sliding plates 3 A plurality of first springs 4 are elastically connected with the inner wall of the groove 2, and the side walls of the two slide plates 3 are fixedly connected to each other with a sample storage frame 5, and the bottom of the sample storage frame 5 is fixedly connected with a plurality of partitions 6. 6. The sample storage frame 5 is equally divided into a plurality of placement chambers 7, the inner walls on both sides of the placement chamber 7 are fixedly connected with a plurality of second springs 8, and one end of the plurality of second springs 8 away from the inner wall of the placement chamber 7 is fixedly connected with a splint 9. There is a test tube 10 in the placing chamber 7, the side wall of the test tube 10 is fitted with the side wall of the splint 9, the side wall of the splint 9 is glued with a rubber pad, and the side wall of the rubber pad is provided with anti-skid lines.

The placement chamber 7 is provided with a support mechanism for supporting the test tube 10. The support mechanism includes a vertical rod 11 slidably connected to the bottom of the placement chamber 7. The upper end of the vertical rod 11 is fixedly connected with an arc-shaped plate 12, and the upper surface of the arc-shaped plate 12 is connected to the test tube 10. Bottom surface fit.

The box body 1 is provided with a driving mechanism for driving the vertical rod 11 to slide. The driving mechanism includes a lead screw 13 rotatably connected to the inner wall of the box body 1 . The wall is slidably connected to the inner wall of the box body 1 , the side wall of the slider 14 is rotatably connected to the side wall of the vertical rod 11 through the connecting rod 15 , one end of the lead screw 13 penetrates the side wall of the box body 1 and is fixedly connected with a handwheel 16 .

A box cover 17 is rotatably connected to the upper end of the box body 1 , and the side wall of the box cover 17 is connected to the upper end of the box body 1 through bolts 18 , so that the box body 1 can be opened and closed conveniently.

In the present invention, the bolt 18 is rotated, and then the box cover 17 is rotated upwards to open the box body 1. After the test tube 10 contains blood, the test tube 10 is placed between the two splints 9 in the placement chamber 7 at this time. Then, the two clamping plates 9 clamp the test tube 10 under the action of the plurality of second springs 8 to ensure the safety of its preservation, and then turn the box cover 17 downward, and then close the box body 1 under the action of the bolts 18. When the box body 1 is being transported, the first spring 4 and the second spring 8 can buffer the vibration of the box body 1, and further ensure the storage safety of the test tube 10;

When multiple test tubes 10 located in multiple placement chambers 7 need to be taken out, the hand wheel 16 is rotated in the forward direction, thereby driving the lead screw 13 to rotate in the forward direction, and then the plurality of sliders 14 slide in the direction away from the hand wheel 16 , and then the plurality of sliders 14 drive the plurality of vertical rods 11 to slide upward through the plurality of connecting rods 15, thereby driving the plurality of arc-shaped plates 12 to move upward, so as to push out the plurality of test tubes 10 located in the plurality of placement chambers 7, So that it is easy to take.

The above descriptions are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. A sample storage box for medical testing, comprising a box body (1), wherein the inner wall of the box body (1) is provided with two grooves (2), and the inner walls of the two grooves (2) are provided with two grooves (2). Two sliding plates (3) are slidably connected, the upper and lower ends of the sliding plates (3) are elastically connected with the inner wall of the groove (2) through a plurality of first springs (4), and the side walls of the two sliding plates (3) are close to each other. A sample storage frame (5) is fixedly connected, and a plurality of partitions (6) are fixedly connected at the bottom of the sample storage frame (5), and the plurality of partitions (6) divide the sample storage frame (5) into equal parts. A plurality of placement chambers (7), the inner walls on both sides of the placement chamber (7) are fixedly connected with a plurality of second springs (8), and the plurality of second springs (8) are away from one end of the inner wall of the placement chamber (7) A splint (9) is fixedly connected, a test tube (10) is arranged in the placement chamber (7), the side wall of the test tube (10) is fitted with the side wall of the splint (9), and the placement chamber (7) is provided with a test tube (10). There is a support mechanism for supporting the test tube (10). 2. A sample storage box for medical testing according to claim 1, wherein the support mechanism comprises a vertical rod (11) slidably connected to the bottom of the placing chamber (7), and the vertical rod (11) The upper end is fixedly connected with an arc-shaped plate (12), and the upper surface of the arc-shaped plate (12) is fitted with the lower surface of the test tube (10). 3. A sample storage box for medical testing according to claim 2, characterized in that, a drive mechanism for driving the vertical rod (11) to slide is provided in the box body (1), and the drive mechanism comprises a rotational connection On the lead screw (13) on the inner wall of the box body (1), a plurality of sliders (14) are threadedly connected to the side wall of the lead screw (13), and the side walls of the plurality of sliders (14) are connected to the box body (1). ) The inner wall is slidably connected, and the side wall of the slider (14) is rotatably connected with the side wall of the vertical rod (11) through the connecting rod (15). 4 . The sample storage box for medical testing according to claim 3 , wherein one end of the lead screw ( 13 ) penetrates the side wall of the box body ( 1 ) and is fixedly connected with a hand wheel ( 16 ). 5 . 5 . The sample storage box for medical testing according to claim 1 , wherein a rubber pad is glued to the side wall of the splint ( 9 ), and the rubber pad is provided with an anti-skid pattern on the side wall. 6 . 6 . The sample storage box for medical testing according to claim 1 , wherein the upper end of the box body ( 1 ) is rotatably connected with a box cover ( 17 ), and the side wall of the box cover ( 17 ) is connected with bolts. 7 . (18) is connected to the upper end of the box body (1).
