CN216683756U

CN216683756U - Printing screen plate reuse's belt cleaning device

Info

Publication number: CN216683756U
Application number: CN202220001218.9U
Authority: CN
Inventors: 杨建民
Original assignee: Yuwei Xinxiang Textile Co ltd
Current assignee: Yuwei Xinxiang Textile Co ltd
Priority date: 2022-01-04
Filing date: 2022-01-04
Publication date: 2022-06-07
Anticipated expiration: 2032-01-04

Abstract

The utility model discloses a cleaning device for recycling a printing screen plate, which comprises a water collecting tank, wherein the left side and the right side of the top of the water collecting tank are connected with side plates, the upper ends of the two side plates are jointly connected with a top seat, the left side and the right side of the top seat are connected with bearing seats, a transmission shaft is rotatably connected between the two bearing seats, two ends of the transmission shaft are connected with a circular turntable, the middle part of the outer wall of the transmission shaft is connected with a bevel gear ring, the top of the top seat is connected with a driving motor, the power output end of the driving motor is connected with a bevel gear, the bottom of the top seat is connected with an H-shaped pipe, the lower end of the longitudinal part of the H-shaped pipe is provided with a spray head, the transverse part of the H-shaped pipe is communicated with a drainage pipe, and one end of the drainage pipe, which extends into the water collecting tank, is provided with a pump body; the screen printing plate cleaning machine is reasonable in structural design, can be used for fixing and clamping a printing screen plate, can be used for cleaning the two sides of the screen plate simultaneously, improves the working efficiency, can be used for effectively cleaning the printing screen plate, can be used for recycling purified water flow, is more energy-saving and environment-friendly, and is convenient and practical.

Description

Printing screen plate reuse's belt cleaning device

Technical Field

The utility model relates to the technical field of relevant equipment of a printing screen plate, in particular to a cleaning device for recycling the printing screen plate.

Background

The printing machine is an important device in textile printing and dyeing machinery, and when the printing machine works, dyeing paste often remains on a printing screen plate, so that the printing screen plate needs to be cleaned to ensure the printing and dyeing quality. In the prior art, manual operation is mostly carried out by adopting high-pressure spray gun water washing, the working environment is severe, manual turnover is needed, the working efficiency is low, and therefore, the cleaning device for repeatedly utilizing the printing screen is provided.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a cleaning device for recycling a printing screen plate, which aims to overcome the technical problems in the prior art.

In order to achieve the technical purpose and achieve the technical effect, the utility model provides the following technical scheme:

the utility model provides a printing otter board reuse's belt cleaning device, includes the water catch bowl, the top left and right sides of water catch bowl is connected with the curb plate, two the upper end of curb plate is connected with the footstock jointly, the top left and right sides of footstock is connected with the bearing frame, two it is connected with the transmission shaft to rotate between the bearing frame, the both ends of transmission shaft are connected with the carousel, the outer wall middle part of transmission shaft is connected with the bevel gear, driving motor is connected at the top of footstock, driving motor's power take off end is connected with bevel gear, bevel gear meshing connects the bevel gear, the bottom of footstock is connected with the H venturi tube, the shower nozzle is installed to the vertical portion lower extreme of H venturi tube, the horizontal portion intercommunication of H venturi tube has the drainage tube, the pump body is installed to the one end that the drainage tube stretched into the water catch bowl.

Preferably, in a printing otter board reuse's belt cleaning device, the inner wall front portion of water catch bowl is connected with supports the rib, the top of supporting the rib is connected with preceding clamp splice, the top rear side of water catch bowl is connected with the extension board, the top of extension board is connected with electric putter, electric putter's front side expansion end is connected with back clamp splice.

Preferably, in the cleaning device for recycling the printing screen plate, a slide way is formed in the side plate, an I-shaped block is connected to the slide way in a sliding mode, pin shafts are connected to the outer walls of the I-shaped block and the circular turntable respectively, a traction rod is hinged between the pin shafts, two cleaning mechanisms are installed at one ends, close to each other, of the I-shaped blocks, and the cleaning mechanisms are located on the left side and the right side of the front clamping block.

Preferably, among a printing otter board reuse's belt cleaning device, wiper mechanism includes the outer sleeve, the one end that the outer sleeve is close to the I-shaped piece inlays and is equipped with the electro-magnet, the one end that the I-shaped piece was kept away from to the outer sleeve is pegged graft and is had the movable rod, the one end that the movable rod stretched into the outer sleeve inner chamber is connected with the dog, be connected with reset spring between dog and the outer sleeve inner wall, the movable rod stretches out the one end of outer sleeve and installs the brush, the embedded permanent magnetism piece that is equipped with of dog, the permanent magnetism piece is the same with the magnetic pole that the electro-magnet is close to one side.

Preferably, among the belt cleaning device of a stamp otter board reuse, the filter screen is installed on the inner chamber upper portion of water catch bowl, the active carbon filtering layer is installed to the inner chamber lower part of water catch bowl, filter screen and active carbon filtering layer parallel arrangement, the pump body is located the active carbon filtering layer below.

Preferably, in a printing otter board reuse's belt cleaning device, the right part the outer wall of curb plate is connected with the PLC controller, PLC controller electric connection driving motor, the pump body, electric putter and electro-magnet.

The utility model has the beneficial effects that:

the cleaning mechanism can synchronously lift along with the I-shaped block by utilizing the matching of the driving motor, the bevel gear ring, the transmission shaft, the circular turntable, the slideway, the draw bar and the I-shaped block, can effectively clean the printing screen plate, can filter and purify waste water generated by cleaning, can recycle purified water flow, is more energy-saving and environment-friendly, and is convenient and practical.

Drawings

In order to more clearly illustrate the technical solution of the present invention, the drawings used in the description of the embodiments are briefly introduced below, and it is obvious that the drawings in the description below are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings without creative efforts.

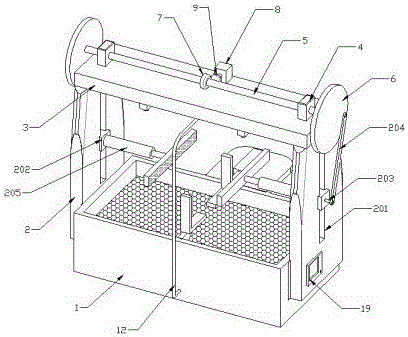

FIG. 1 is a first general structural diagram of the present invention;

FIG. 2 is a second overall view of the present invention;

FIG. 3 is a schematic view showing the internal structure of the water collecting tank according to the present invention;

FIG. 4 is a schematic view of the cleaning mechanism of the present invention.

In the figure: 1. a water collection tank; 2. a side plate; 3. a top seat; 4. a bearing seat; 5. a drive shaft; 6. a circular turntable; 7. a bevel gear ring; 8. a drive motor; 9. a bevel gear; 10. an H-shaped pipe; 11. a spray head; 12. a drainage tube; 13. a pump body; 14. a support rib; 15. a front clamping block; 16. a stretching plate; 17. an electric push rod; 18. a rear clamping block; 19. a PLC controller; 101. filtering with a screen; 102. an active carbon filter layer; 201. a slideway; 202. an I-shaped block; 203. a pin shaft; 204. a draw bar; 205. a cleaning mechanism; 2051. an outer sleeve; 2052. an electromagnet; 2053. a movable rod; 2054. a stopper; 2055. a return spring; 2056. a brush; 2057. and a permanent magnet.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Please refer to fig. 1-4, the present embodiment is a cleaning apparatus for recycling a printing screen plate, which includes a water collecting tank 1, wherein the left and right sides of the top of the water collecting tank 1 are connected with side plates 2, the upper ends of the two side plates 2 are connected with a top base 3, the left and right sides of the top base 3 are connected with bearing bases 4, a transmission shaft 5 is rotatably connected between the two bearing bases 4, two ends of the transmission shaft 5 are connected with a circular rotating disc 6, the middle part of the outer wall of the transmission shaft 5 is connected with a bevel gear 7, the top of the top base 3 is connected with a driving motor 8, the power output end of the driving motor 8 is connected with a bevel gear 9, the bevel gear 9 is meshed with the bevel gear 7, the bottom of the top base 3 is connected with an H-shaped pipe 10, the lower end of the longitudinal part of the H-shaped pipe 10 is provided with a spray head 11, the transverse part of the H-shaped pipe 10 is communicated with a drainage pipe 12, and one end of the drainage pipe 12 extending into the water collecting tank 1 is provided with a pump body 13.

The front part of the inner wall of the water collecting tank 1 is connected with a supporting rib 14, the top of the supporting rib 14 is connected with a front clamping block 15, the rear side of the top of the water collecting tank 1 is connected with an extension plate 16, the top of the extension plate 16 is connected with an electric push rod 17, and the movable end of the front side of the electric push rod 17 is connected with a rear clamping block 18.

The side plate 2 is provided with a slideway 201, an I-shaped block 202 is slidably connected in the slideway 201, the I-shaped block 202 and the outer wall of the round rotating disc 6 are both connected with a pin shaft 203, a traction rod 204 is hinged between the two pin shafts 203, the two I-shaped blocks 202 are both provided with a cleaning mechanism 205 at the ends close to each other, and the cleaning mechanisms 205 are positioned at the left side and the right side of the front clamping block 15.

The cleaning mechanism 205 comprises an outer sleeve 2051, an electromagnet 2052 is embedded in one end, close to the I-shaped block 202, of the outer sleeve 2051, a movable rod 2053 is inserted into one end, far away from the I-shaped block 202, of the outer sleeve 2051, a stop 2054 is connected to one end, extending into an inner cavity of the outer sleeve 2051, of the movable rod 2053, a reset spring 2055 is connected between the stop 2054 and the inner wall of the outer sleeve 2051, a brush 2056 is installed at one end, extending out of the outer sleeve 2051, of the movable rod 2053, a permanent magnet 2057 is embedded in the stop 2054, and the magnetic poles of the permanent magnet 2057 and one side, close to the electromagnet 2052, are the same.

Filter screen 101 is installed on the inner chamber upper portion of water catch bowl 1, and activated carbon filter layer 102 is installed to the inner chamber lower part of water catch bowl 1, and filter screen 101 and activated carbon filter layer 102 parallel arrangement, pump body 13 are located activated carbon filter layer 102 below, are convenient for carry out purification treatment to rivers.

The outer wall of right part curb plate 2 is connected with PLC controller 19, and PLC controller 19 electric connection driving motor 8, the pump body 13, electric putter 17 and electro-magnet 2052, the control assembly operation of being convenient for.

The specific implementation mode of the utility model is as follows:

when the device is used, the device is externally connected with a power supply, the water collecting tank 1 is arranged on a plane, cleaning water flow is stored in the water collecting tank 1, a printing screen plate to be cleaned is arranged on a front clamping block 15, a rear clamping block 18 is driven to move forwards through an electric push rod 17, the printing screen plate can be fixedly clamped, the water flow is pumped into a drainage tube 12 through a pump body 13, then a spray head 11 at the bottom of an H-shaped tube 10 is utilized to be sent out, a left group of spray heads 11 and a right group of spray heads 11 respectively lean towards two sides of the printing screen plate and can be cleaned on two sides simultaneously, an electromagnet 2052 is electrified during work, the electromagnet 2052 and a permanent magnet 2057 are in like polarity repulsion, a movable rod 2053 can extend out along an outer sleeve 2051, a reset spring 2055 is shortened in length, a brush 2056 is close to the surface attached with the printing screen plate, a bevel gear 9 is driven to rotate by a driving motor 8, the bevel gear 9 is meshed with a transmission bevel gear ring 7, a transmission shaft 5 rotates on a bearing seat 4, and a circular rotating disc 6 rotates along with the outer sleeve 2051, utilize slide 201 to carry out spacing direction for draw bar 204 drives the vertical lift of I-shaped piece 202 after the activity, wiper mechanism 205 is along with the synchronous lift of I-shaped piece 202, can effectively clear up the printing otter board, and the waste water of production is remitted into water catch bowl 1 again in, utilizes filter screen 101 to carry out prefiltering, further purifies through active carbon filter layer 102, makes the rivers after water catch bowl 1 bottom purifies can reuse, and is more energy-concerving and environment-protective, convenient and practical.

In the description herein, references to the description of "one embodiment," "an example," "a specific example" or the like are intended to mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the utility model. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the utility model disclosed above are intended to be illustrative only. The preferred embodiments are not intended to be exhaustive or to limit the utility model to the precise forms disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the utility model and the practical application, to thereby enable others skilled in the art to best utilize the utility model. The utility model is limited only by the claims and their full scope and equivalents.

Claims

1. The utility model provides a printing otter board reuse's belt cleaning device, includes water catch bowl (1), its characterized in that: the left side and the right side of the top of the water collecting tank (1) are connected with side plates (2), the upper ends of the two side plates (2) are jointly connected with a top seat (3), the left side and the right side of the top seat (3) are connected with bearing seats (4), a transmission shaft (5) is rotatably connected between the two bearing seats (4), two ends of the transmission shaft (5) are connected with a circular turntable (6), the middle part of the outer wall of the transmission shaft (5) is connected with a bevel gear ring (7), the top of the top seat (3) is connected with a driving motor (8), the power output end of the driving motor (8) is connected with a bevel gear (9), the bevel gear (9) is meshed with the bevel gear ring (7), the bottom of the top seat (3) is connected with an H-shaped pipe (10), a spray nozzle (11) is installed at the lower end of the longitudinal part of the H-shaped pipe (10), and a drainage pipe (12) is communicated with the transverse part of the H-shaped pipe (10), and a pump body (13) is installed at one end of the drainage tube (12) extending into the water collecting tank (1).

2. The washing apparatus for recycling a printing screen according to claim 1, wherein: the inner wall front portion of water catch bowl (1) is connected with supports rib (14), the top of supporting rib (14) is connected with preceding clamp splice (15), the top rear side of water catch bowl (1) is connected with extension board (16), the top of extension board (16) is connected with electric putter (17), the front side expansion end of electric putter (17) is connected with back clamp splice (18).

3. The washing apparatus for recycling a printing screen according to claim 2, wherein: the improved cleaning machine is characterized in that a slide way (201) is formed in the side plate (2), an I-shaped block (202) is connected to the slide way (201) in a sliding mode, a pin shaft (203) is connected to the outer wall of the I-shaped block (202) and the outer wall of the round rotating disc (6), a traction rod (204) is hinged between the pin shaft (203), a cleaning mechanism (205) is installed at one end, close to the I-shaped block (202), of the I-shaped block, and the cleaning mechanism (205) is located on the left side and the right side of the front clamping block (15).

4. A cleaning apparatus for recycling a printing screen according to claim 3, wherein: cleaning mechanism (205) includes outer sleeve (2051), the one end that outer sleeve (2051) is close to I-shaped piece (202) inlays and is equipped with electro-magnet (2052), the one end that I-shaped piece (202) were kept away from in outer sleeve (2051) is pegged graft and is had movable rod (2053), the one end that movable rod (2053) stretched into outer sleeve (2051) inner chamber is connected with dog (2054), be connected with reset spring (2055) between dog (2054) and outer sleeve (2051) inner wall, brush (2056) are installed to the one end that movable rod (2053) stretched out outer sleeve (2051), dog (2054) are embedded to be equipped with permanent magnetism piece (2057), permanent magnetism piece (2057) are the same with the magnetic pole that electro-magnet (2052) are close to one side.

5. The washing apparatus for recycling a printing screen according to claim 1, wherein: filter screen (101) are installed on the inner chamber upper portion of water catch bowl (1), activated carbon filter layer (102) are installed to the inner chamber lower part of water catch bowl (1), filter screen (101) and activated carbon filter layer (102) parallel arrangement, pump body (13) are located activated carbon filter layer (102) below.

6. The washing apparatus for recycling a printing screen according to claim 4, wherein: the right part the outer wall of curb plate (2) is connected with PLC controller (19), PLC controller (19) electric connection driving motor (8), the pump body (13), electric putter (17) and electro-magnet (2052).
