Abstract

The utility model provides an intelligent control cabinet with passive heat dissipation function, which comprises a supporting mechanism, wherein the supporting mechanism comprises a base which is fixedly supported with the ground, a cabinet body is fixedly arranged at the top of the base, a balance plate is fixedly arranged at the top of the cabinet body, a heat dissipation mechanism is fixedly arranged in the cabinet body, the heat dissipation mechanism comprises ventilation openings which are arranged at two sides of the cabinet body, copper ventilation pipelines are fixedly arranged in the ventilation openings, bolts are inserted and connected to one sides of the copper ventilation pipelines, nuts are sleeved at the back parts of the bolts, and a fixing frame is arranged on the front surface of each bolt, and the intelligent control cabinet has the beneficial effects that: through copper air pipe and the mount that is equipped with, facilitate the use, when the component circular telegram that the internal portion of cabinet set up sent the heat, the heat utilization conducts to copper air pipe in through the mount, and copper air pipe realizes the cooling down through outside natural wind heat conduction effect down, takes the radiating purpose of passive, lowers the temperature to copper air pipe through outside wind, realizes rapid cooling's effect.

Description

Intelligent switch board with passive heat dissipation function
Technical Field
The utility model belongs to the technical field of control cabinets, and particularly relates to an intelligent control cabinet with a passive heat dissipation function.
Background
The control cabinet is formed by assembling switch equipment, measuring instruments, protective electrical appliances and auxiliary equipment in a closed or semi-closed metal cabinet or on a screen according to the electrical wiring requirements, and the arrangement of the control cabinet meets the requirements of normal operation of an electric power system, is convenient to overhaul and does not endanger the safety of people and surrounding equipment. In normal operation, the circuit can be switched on or off by means of a manual or automatic switch. When the fault or abnormal operation occurs, the circuit is cut off or an alarm is given by the aid of the protective electric appliance. The measuring instrument can display various parameters in operation, and can also adjust certain electrical parameters to prompt or send signals for deviation from normal working state. The system is commonly used in various distribution and transformation substations, and the control cabinets comprise a plurality of types, including an electrical control cabinet, a frequency conversion control cabinet, a low-voltage control cabinet, a high-voltage control cabinet, a water pump control cabinet, a power supply control cabinet, an explosion-proof control cabinet, an elevator control cabinet, a PLC control cabinet, a fire control cabinet, a brick machine control cabinet and the like.
The passive heat dissipation function singleness of current switch board, and radiating efficiency is low, long-time use probably leads to the component damage in the switch board, leads to unable normal work, if the summer of high temperature is used, the temperature is hot, and internal component probably opens circuit and the outer insulated wire of circuit melts, takes place the electric leakage, causes the influence to user's safety, dispels the heat untimely when using moreover, leads to the data in the system to lose, still need debug very trouble to the system again.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide an intelligent control cabinet with a passive heat dissipation function, and aims to solve the problem of low efficiency in the prior art.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides an intelligent switch board with passive heat dissipation function, includes supporting mechanism, supporting mechanism includes and supports fixed base with ground, the top fixed mounting of base has the cabinet body, the top fixed mounting of the cabinet body has the balance plate, the fixed heat dissipation mechanism that is equipped with in inside of the cabinet body, heat dissipation mechanism is including seting up the vent in cabinet body both sides, a plurality of the inside fixed mounting of vent has copper air pipe, a plurality of one side interlude of copper air pipe is connected with the bolt, the back cover of bolt is equipped with the nut, the mount is installed in the front of bolt.
In order to ensure the stability of the cabinet door in the opening process, as a preferable mode of the utility model, a buckling plate is fixedly installed at one side corner of the cabinet body, and a first iron nail is inserted and connected to the side wall of the first buckling plate.
In order to enable the cabinet door to be opened and closed more smoothly and smoothly, as a preferable choice of the utility model, a sliding rod is movably arranged on the front surface of the symmetrical first buckling plate, a second buckling plate is fixedly arranged on one side of the sliding rod, and the back part of the second buckling plate is connected with symmetrical second iron nails in an inserting way.
In order to enable a user to accurately hold the door handle when the door handle is used, it is preferable that a cabinet door is fixedly mounted on the front surfaces of the two second snap-in plates, and the door handle is fixedly mounted on the surface of the cabinet door.
In order to enable a user to conveniently control the electrification of each electric device, as a preferable mode of the utility model, the controller is embedded in the middle of the surface of the cabinet door, and a plurality of control buttons are installed at the bottom of the controller.
In order to prevent moisture generated from the outside from entering the cabinet and damaging elements in the cabinet body, it is preferable that a waterproof door is fixedly installed inside the cabinet door.
Compared with the prior art, the utility model has the beneficial effects that:
1) the copper ventilating duct and the fixing frame are arranged, so that the use is convenient, when elements arranged in the cabinet body are electrified to generate heat, the heat is transmitted into the copper ventilating duct through the fixing frame, the copper ventilating duct is cooled under the action of external natural wind heat conduction, the passive heat dissipation purpose is achieved, the copper ventilating duct is cooled through external wind, and the effect of rapid cooling is achieved;
2) through the controller that is equipped with, make things convenient for the user of service when using, control controller reaches the control to external device, through the door handle that is equipped with, make things convenient for the user of service to hold the door handle when using, open the cabinet door and carry out the installation operation of interior accessory, through the waterproof door that is equipped with, combine waterproof gap structure when meeting with under the too big condition of outside moisture, can prevent in outside rainwater or moisture enters into the switch board, prevent to cause the cabinet inner structure to cause the damage.
Drawings
The accompanying drawings, which are included to provide a further understanding of the utility model and are incorporated in and constitute a part of this specification, illustrate embodiments of the utility model and together with the description serve to explain the principles of the utility model and not to limit the utility model. In the drawings:

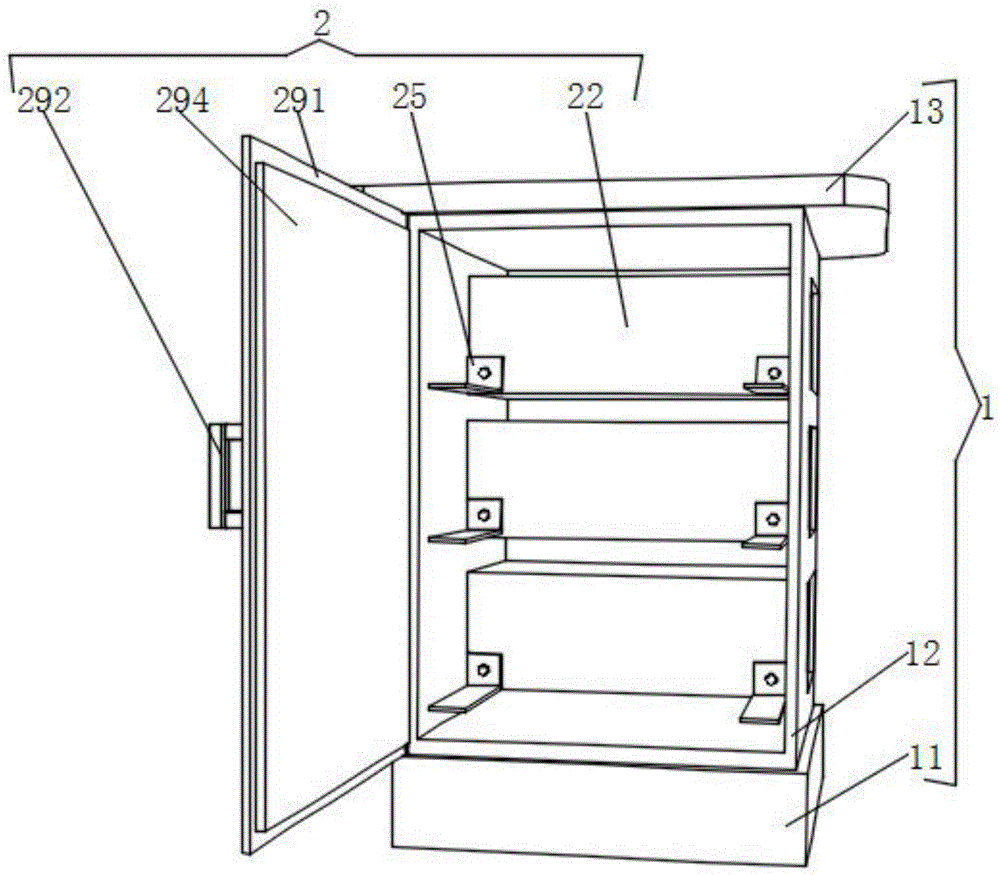

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic side view of the present invention;
FIG. 3 is an enlarged schematic view of the bolt of the present invention;
fig. 4 is an enlarged schematic structural view of the buckle of the present invention.
In the figure: 1. a support mechanism; 11. a base; 12. a cabinet body; 13. a balance plate; 2. a heat dissipation mechanism; 21. a vent; 22. a ventilation duct made of copper; 23. a bolt; 24. a nut; 25. a fixed mount; 26. a first buckle plate; 27. a first iron nail; 28. a second buckle plate; 29. a second iron nail; 291. a cabinet door; 292. a door handle; 293. a controller; 294. a waterproof door.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides the following technical solutions: the utility model provides an intelligent switch board with passive heat dissipation function, including supporting mechanism 1, supporting mechanism 1 includes and supports fixed base 11 with ground, the top fixed mounting of base 11 has cabinet body 12, the top fixed mounting of cabinet body 12 has balance plate 13, the fixed heat dissipation mechanism 2 that is equipped with in inside of cabinet body 12, heat dissipation mechanism 2 is including seting up the vent 21 in cabinet body 12 both sides, the inside fixed mounting of a plurality of vent 21 has copper air pipe 22, one side interlude of a plurality of copper air pipe 22 is connected with bolt 23, the back cover of bolt 23 is equipped with nut 24, mount 25 is installed in the front of bolt 23.
In this embodiment: a first buckle plate 26 is fixedly installed at a corner of one side of the cabinet body 12, and a first iron nail 27 is inserted and connected to a side wall of the first buckle plate 26.
Through the first iron nail 27 and the first buckle plate 26 that are equipped with, make things convenient for first iron nail 27 to realize the screw thread installation between the first buckle plate 26.
In this embodiment: a sliding rod is movably mounted on the front surface of the symmetrical first buckling plate 26, a second buckling plate 28 is fixedly mounted on one side of the sliding rod, and a symmetrical second iron nail 29 is inserted and connected to the back of the second buckling plate 28.
Through the first buckle plate 26, the second buckle plate 28 and the sliding rod which are arranged, the first buckle plate 26 and the second buckle plate 28 are convenient to connect, and the sliding rod is combined, so that each buckle plate can slide along the outer wall of the rod body and achieve the fastening purpose.
In this embodiment: a cabinet door 291 is fixedly mounted on the front surfaces of the two second latch plates 28, and a door handle 292 is fixedly mounted on the surface of the cabinet door 291.
Through the door handle 292 that is equipped with, make things convenient for the user to hold door handle 292, prevent to skid to light opens cabinet door 291.
In this embodiment: the surface middle part of cabinet door 291 is inlayed and is had controller 293, and a plurality of control button are installed to the bottom of controller 293.
Through the controller 293 that is equipped with, make things convenient for the user of service to the consumer circular telegram control in the switch board.
In this embodiment: a waterproof door 294 is fixedly installed inside the cabinet door 291.
By providing a watertight door 294, it is convenient to prevent water from entering the cabinet 12 during use, causing damage to the components.
The working principle is as follows: the user firstly opens the cabinet door 291 and the waterproof door 294 through the door handle 292, then places the accessories to be installed on the plurality of fixing frames 25, then connects the accessories with the controller 293 and the control buttons, after the user finishes assembling, the user closes the cabinet door 291 through holding the door handle 292, then powers on the internal devices through the controller 293 and the control buttons on the cabinet door 291, checks whether the internal devices can be normally started through the detection structure, if the internal devices cannot be normally started, checks whether the accessories in the cabinet 12 are connected with the controller 293 and the control buttons on the cabinet door 291, if the internal devices are normally started, the user debugs the accessories in the cabinet 12 through the controller 293 to the optimal state, when the accessories in the cabinet 12 are normally started and stably run for a period of time, the accessories emit hot air, at the moment, when the temperature in the cabinet is higher, at the moment, the heat can be conducted to the position of the copper ventilation pipeline 22 through the fixing frame 25, and then the copper ventilation pipeline 22 achieves the self automatic cooling effect through external natural wind power, compared with the traditional control cabinet, the cooling efficiency can be greatly improved, the temperature of the accessories in the cabinet body 12 is greatly reduced, the passive cooling effect is achieved, and when the equipment is required to be maintained after the use is finished, the door handle 292 is used for opening the cabinet door 291, checking accessories in the cabinet 12, disconnecting the accessories in the cabinet 12 from the controller 293, taking out the accessories in the cabinet 12, maintaining the taken-out accessories by a user, loading the accessories into the cabinet 12 after the maintenance is finished, connecting the accessories in the cabinet 12 with the controller 293 on the cabinet door 291, closing the cabinet door 291, judging whether the power-on test can normally run or not, and closing the power supply through the controller 293 after the checking is finished.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that changes may be made in the embodiments and/or equivalents thereof without departing from the spirit and scope of the utility model. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims (6)

1. The utility model provides an intelligent switch board with passive heat dissipation function, includes supporting mechanism (1), its characterized in that, supporting mechanism (1) include support fixed base (11) with ground, the top fixed mounting of base (11) has the cabinet body (12), the top fixed mounting of the cabinet body (12) has balance plate (13), the fixed heat dissipation mechanism (2) that are equipped with in inside of the cabinet body (12), heat dissipation mechanism (2) are including seting up vent (21) in the cabinet body (12) both sides, a plurality of the inside fixed mounting of vent (21) has copper air pipe (22), a plurality of one side of copper air pipe (22) alternates and is connected with bolt (23), the back cover of bolt (23) is equipped with nut (24), mount (25) are installed in the front of bolt (23).
2. The intelligent control cabinet with the passive heat dissipation function as claimed in claim 1, wherein: a first buckling plate (26) is fixedly mounted at one side corner of the cabinet body (12), and first iron nails (27) are inserted and connected to the side wall of the first buckling plate (26).
3. The intelligent control cabinet with the passive heat dissipation function of claim 2, wherein: the front of the first symmetrical buckling plate (26) is movably provided with a sliding rod, one side of the sliding rod is fixedly provided with a second buckling plate (28), and the back of the second buckling plate (28) is connected with a second symmetrical iron nail (29) in a penetrating manner.
4. An intelligent control cabinet with passive heat dissipation function as claimed in claim 3, wherein: and a cabinet door (291) is fixedly mounted on the front surfaces of the two second buckling plates (28), and a door handle (292) is fixedly mounted on the surface of the cabinet door (291).
5. The intelligent control cabinet with the passive heat dissipation function according to claim 4, wherein: the middle part of the surface of the cabinet door (291) is embedded with a controller (293), and the bottom of the controller (293) is provided with a plurality of control buttons.
6. The intelligent control cabinet with the passive heat dissipation function according to claim 5, wherein: and a waterproof door (294) is fixedly arranged in the cabinet door (291).
