CN216665200U

CN216665200U - 10KV hoisting type same-tower double-circuit insulated folding cross arm

Info

Publication number: CN216665200U
Application number: CN202123457028.2U
Authority: CN
Inventors: 张松林; 丁文骏; 冯煌羽
Original assignee: Taizhou Datong Electric Machinery Co ltd
Current assignee: Taizhou Datong Electric Machinery Co ltd
Priority date: 2021-12-30
Filing date: 2021-12-30
Publication date: 2022-06-03
Anticipated expiration: 2031-12-30

Abstract

The utility model discloses a 10KV hoisting type double-circuit insulation folding cross arm on the same tower, which belongs to the technical field of electric appliances, and solves the problem of inconvenient operation in the process of cable support and cross arm replacement. The center of the vertical rod is fixedly connected to the lower end of the vertical rod. The vertical rod is provided with a row of equidistant fixing holes. The upper folding joint is sleeved on the vertical rod and is fixedly assembled with the corresponding fixing hole. The two ends of the upper folding joint are respectively connected by a folding structure. The upper left cross-arm, the upper right cross-arm, the two ends of the lower folded joint are connected to the lower left cross-arm and the lower right cross-arm respectively through the folding structure, the upper left cross-arm and the lower left cross-arm are supported and connected by the left auxiliary boom, and the upper The right cross-arm and the lower right cross-arm are supported and connected by the right auxiliary boom, and several wire brackets are also sleeved and fixed on the upper left cross-arm, the lower left cross-arm, the upper right cross-arm, and the lower right cross-arm, so as to achieve the convenience of operation. , saves time and effort, can be folded and stored, and is easy to carry.

Description

10KV hoisting type same-tower double-circuit insulated folding cross arm

Technical Field

The utility model relates to the field of electric appliances, in particular to a 10KV hoisting type same-tower double-circuit insulation folding cross arm.

Background

High voltage line generally refers to a transmission line carrying voltages above 10 kV. High pressures are generally free of 1000V, as specified in GB/T2900.50-2008, definition 2.1. The voltage grades of the high-voltage transmission lines in China are generally divided into: 35kV, 110kV, 220kV, 330kV, 500kV, 750kV and the like. In to urban power network, 10KV high voltage transmission lines overhauls the in-process, can change some old cross arms, need demolish original cross arm among the change process, perhaps stretcher, need fix the talented good operation temporarily with the cable this moment, consequently need provide a new instrument to the maintenance operation mode of above-mentioned cable.

At present, when operating personnel is to cable run construction operation, it is very hard to because different regions have different requirements to the interval of cable, this has brought great work burden for the operating personnel, and current instrument and cross arm occupation space are great, and transportation and carry are also very inconvenient.

SUMMERY OF THE UTILITY MODEL

The utility model aims to overcome the defects in the prior art, at least solves the technical problems in the related technology to a certain extent, and provides a 10KV hoisting type same-tower double-circuit insulated folding cross arm which has the advantages of meeting the supporting requirements of cables in the same tower and double circuits, being adjustable in space and convenient to operate and transport.

In order to solve the technical problems, the technical scheme of the utility model is as follows: a10 KV hoisting type same-tower double-circuit insulated folding cross arm comprises a lower folding joint, an upper folding joint, a vertical rod, an upper left cross arm, a lower left cross arm, an upper right cross arm, a lower right cross arm, a wire bracket, a left auxiliary suspension rod and a right auxiliary suspension rod;

the lower extreme of the central fixed connection montant of folding joint down, be provided with the fixed orifices of one row of equidistance on the montant, go up folding joint cup joint on the montant and with the fixed orifices fixed mounting that corresponds, go up folding joint's both ends and pass through left cross arm in the connection of beta structure respectively, go up right cross arm, left cross arm under the both ends of folding joint are connected through beta structure respectively, lower right cross arm, go up left cross arm, support through left supplementary jib on the lower left cross arm and connect, go up right cross arm, right cross arm supports through right supplementary jib down and connects down, at last left cross arm, lower left cross arm, go up right cross arm, still cup joint fixed a plurality of wire support on the lower right cross arm.

Preferably, the folding structure is two mounting holes and is used for wearing to establish the fixing bolt in the mounting hole, the cross section of going up left cross arm, lower left cross arm, going up right cross arm, lower right cross arm is long waist type structure.

Preferably, the left auxiliary hanging rod and the right auxiliary hanging rod respectively comprise a female rod and a male rod, the female rod is sleeved on the male rod and is telescopically adjusted in length, a locking bolt is arranged at the end part of the female rod, and the locking bolt is used for tightness adjustment of the fixed position of the male rod.

Preferably, the upper ends of the left auxiliary hanging rod and the right auxiliary hanging rod are both provided with hanging rings.

Preferably, the wire support comprises a clamp seat, a cable seat and a lock catch door, the cable seat is located above the clamp seat and is provided with an opening for placing a cable, and one end of the lock catch door is rotatably connected to the opening of the cable seat and is used for opening, closing and fixing the opening through rotation.

Preferably, the latching door is provided with a handle portion extending outward and having a handle hole.

Compared with the background technology, the technical effects of the utility model are mainly reflected in the following aspects:

1. firstly, an upper folding joint is sleeved on and fixed on a vertical rod, the fixed position is selectively fixed according to uniformly distributed fixing holes, so that the distance between the upper folding joint and a lower folding joint is adjustable, the heights of an upper left cross arm, an upper right cross arm, a lower left cross arm and a lower right cross arm are adjustable, the upper left cross arm and the lower left cross arm are further supported and fixed by virtue of a left auxiliary lifting rod, the structural firmness and the stability are improved, a wire bracket is sleeved on the upper left cross arm on the left side, and two wire brackets are sleeved on the lower left cross arm, so that the wire brackets can be adjusted in position along the cross arms in the horizontal distance;

2. when the folding storage box is not used, the fixing bolts are disassembled to realize folding storage, so that the occupied space is reduced, and convenience is provided for transportation, carrying and carrying;

3. when the lifting ring is used, the lifting ring is used for traction, and convenience can be further brought to installation and operation.

Drawings

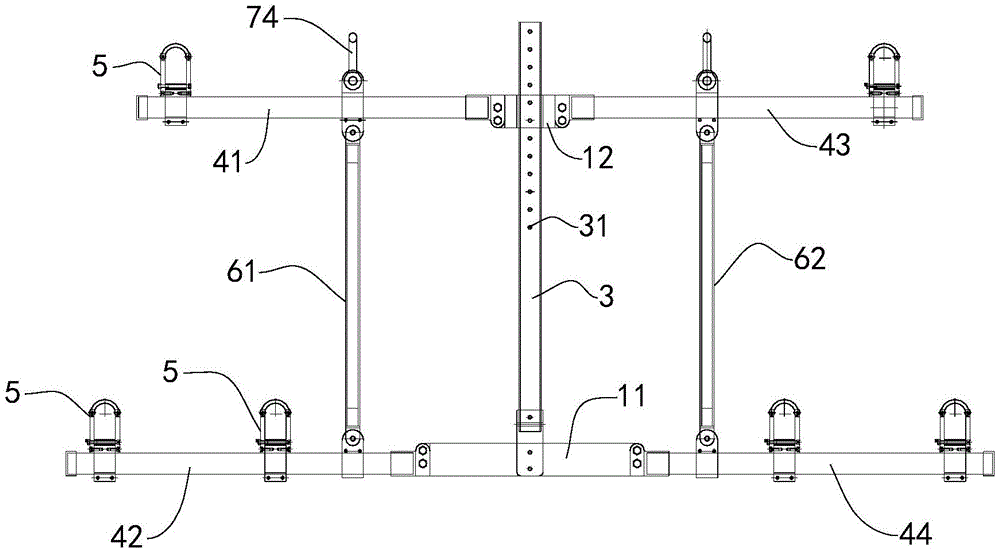

FIG. 1 is a schematic view showing an expanded state in the embodiment;

FIG. 2 is a schematic view of a half-storage state in the embodiment;

FIG. 3 is a schematic structural view of a left auxiliary boom in the embodiment;

FIG. 4 is a side view of the upper folding joint structure;

FIG. 5 is a top view of the upper folding joint;

FIG. 6 is another schematic view of the lead frame;

fig. 7 is a structural schematic diagram of the cross section of the upper left cross arm.

Reference numerals: 11. a lower folding joint; 12. an upper folding joint; 21. fixing the bolt; 22. mounting holes; 3. a vertical rod; 31. a fixing hole; 41. an upper left cross arm; 42. a lower left cross arm; 43. an upper right cross arm; 44. a lower right cross arm; 5. a wire holder; 51. a clamp seat; 52. a cable base; 53. locking the door; 531. a handle portion; 532. a handle aperture; 54. an opening; 61. a left auxiliary boom; 62. a right auxiliary boom; 71. a female rod; 72. a sub-rod; 73. locking the bolt; 74. a lifting ring.

Detailed Description

The following detailed description of the present invention is provided to facilitate the understanding and appreciation of the technical aspects of the present invention in connection with the accompanying drawings.

Example (b):

a10 KV hoisting type common-tower double-circuit insulated folding cross arm is shown in a figure 1 and a figure 2 and comprises a lower folding joint 11, an upper folding joint 12, a vertical rod 3, an upper left cross arm 41, a lower left cross arm 42, an upper right cross arm 43, a lower right cross arm 44, a wire support 5, a left auxiliary suspension rod 61 and a right auxiliary suspension rod 62. The structure that lower folding joint 11 and last folding joint 12 are similar, and the size is different, and in this scheme, last folding joint 12 is "T" shape structure, and the centre supplies montant 3 to cut into to fixed through bolt and montant 3, the cross section of montant 3 is circular, is circular hollow tube. The center of the lower folding joint 11 is fixedly connected with the lower end of the vertical rod 3. The vertical rod 3 is provided with a row of equidistant fixing holes 31. The upper folding joint 12 is sleeved on the vertical rod 3 and fixedly assembled with the corresponding fixing hole 31. Thus, the distance between the upper folding joint 12 and the lower folding joint 11 can be adjusted according to the position of the selected fixing hole 31.

Two ends of the upper folding joint 12 are respectively connected with an upper left cross arm 41 and an upper right cross arm 43 through folding structures, and two ends of the lower folding joint 11 are respectively connected with a lower left cross arm 42 and a lower right cross arm 44 through folding structures. As shown in fig. 4 and 5, the folding structure includes two mounting holes 22 and a fixing bolt 21 inserted into the mounting hole 22. The upper folding joint 12 has slots at both ends, which can be fitted with the ends of the cross arm, and then the folding joint and the cross arm are fixed by two fixing bolts 21, and when folding is required, one fixing bolt 21 can be removed, while the other fixing bolt 21 rotates as a rotating shaft, thereby realizing folding as shown in fig. 2.

Meanwhile, as can be seen in fig. 7, the cross section of the upper left cross arm 41, the lower left cross arm 42, the upper right cross arm 43 and the lower right cross arm 44 is a long waist type structure. It can be seen from this structure that when the wire holder 5 and the member fixed to the cross arm are assembled, the rotation in the circumferential direction is not easily caused, the assembly is firm and the reliability is greatly improved.

In addition to the above configuration, in order to further improve the structural reliability, as shown in fig. 1 and 3, the upper left cross arm 41 and the lower left cross arm 42 are supported and connected by a left auxiliary boom 61, and the upper right cross arm 43 and the lower right cross arm 44 are supported and connected by a right auxiliary boom 62.

For the auxiliary suspension rods, the left auxiliary suspension rod 61 and the right auxiliary suspension rod 62 both comprise a female rod 71 and a male rod 72, the female rod 71 is sleeved on the male rod 72 and is adjusted in length in a telescopic mode, a locking bolt 73 is arranged at the end portion of the female rod 71, and the locking bolt 73 is used for adjusting the fixed position of the male rod 72 in a loosening mode. During operation, the locking bolt 73 can be loosened, so that the female rod 71 and the sub-rod 72 can be telescopically adjusted in length, and then the locking bolt 73 is fastened, so that the female rod 71 and the sub-rod 72 are fixed, and a cross arm is supported.

The upper ends of both the left auxiliary boom 61 and the right auxiliary boom 62 are provided with a hanging ring 74. Therefore, the structure can be hoisted through the crane, and the operation burden of engineering personnel is reduced.

A plurality of wire holders 5 are also fixed to the upper left cross arm 41, the lower left cross arm 42, the upper right cross arm 43, and the lower right cross arm 44 in a sleeved manner. Referring to fig. 1 and 6, fig. 1 shows one configuration of the wire holder 5.

Specifically, on the basis of fig. 1, a preferred structure as shown in fig. 6 can be designed, specifically as follows: the wire support 5 comprises a clamp seat 51, a cable seat 52 and a lock door 53, wherein the cable seat 52 is positioned above the clamp seat 51 and is provided with an opening 54 for placing a cable, and one end of the lock door 53 is rotatably connected to the position of the opening 54 of the cable seat 52 and is used for opening and closing and fixing the opening 54 through rotation. The clamp seat 51 is used for fixing on the cross arm. The cable may be placed in the cable seat 52 and then the latch door 53 may be snapped into place to secure the cable. The locker door 53 is provided with a handle part 531, and the handle part 531 extends outward and has a handle hole 532. Therefore, the remote operation of the toggle handle portion 531 can be realized by using a bamboo pole or a tool, so that the opening and closing operation of the latch door 53 can be realized, and the operation is safer and more convenient.

On the whole, can realize the three cable on the left, the fixed of the three cable on the right, be with tower double-circuit promptly. The scheme is suitable for a 10KV same-tower double-circuit steel pipe tower, the distance between the upper and lower-layer cross arms is 700-1200mm, and the position of the wire support 5 is adjustable.

The above are only typical examples of the present invention, and besides, the present invention may have other embodiments, and all the technical solutions formed by equivalent substitutions or equivalent changes are within the scope of the present invention as claimed.

Claims

1. A10 KV hoisting type same-tower double-circuit insulation folding cross arm is characterized in that: comprises a lower folding joint (11), an upper folding joint (12), a vertical rod (3), an upper left cross arm (41), a lower left cross arm (42), an upper right cross arm (43), a lower right cross arm (44), a wire support (5), a left auxiliary suspension rod (61) and a right auxiliary suspension rod (62);

the center of the lower folding joint (11) is fixedly connected with the lower end of the vertical rod (3), a row of equidistant fixing holes (31) are arranged on the vertical rod (3), the upper folding joint (12) is sleeved on the vertical rod (3) and is fixedly assembled with the corresponding fixing holes (31), two ends of the upper folding joint (12) are respectively connected with an upper left cross arm (41) and an upper right cross arm (43) through a folding structure, two ends of the lower folding joint (11) are respectively connected with a lower left cross arm (42) and a lower right cross arm (44) through a folding structure, the upper left cross arm (41) and the lower left cross arm (42) are supported and connected through a left auxiliary suspender (61), the upper right cross arm (43) and the lower right cross arm (44) are supported and connected through a right auxiliary suspender (62), a plurality of lead supports (5) are also fixedly sleeved on the upper left cross arm (41), the lower left cross arm (42), the upper right cross arm (43) and the lower right cross arm (44).

2. The 10KV hoisting type common-tower double-circuit insulating folding cross arm as claimed in claim 1, which is characterized in that: the folding structure comprises two mounting holes (22) and fixing bolts (21) penetrating through the mounting holes (22), and the cross sections of the upper left cross arm (41), the lower left cross arm (42), the upper right cross arm (43) and the lower right cross arm (44) are long-waist-shaped structures.

3. The 10KV hoisting type same-tower double-circuit insulation folding cross arm as claimed in claim 1, which is characterized in that: left side auxiliary boom (61) and right auxiliary boom (62) all include female pole (71) and sub-pole (72), and female pole (71) cup joint on sub-pole (72) and flexible regulation length, the tip of female pole (71) is provided with locking bolt (73), locking bolt (73) are used for the tight regulation the fixed position of sub-pole (72).

4. The 10KV hoisting type same-tower double-circuit insulation folding cross arm as claimed in claim 3, which is characterized in that: the upper ends of the left auxiliary hanging rod (61) and the right auxiliary hanging rod (62) are provided with hanging rings (74).

5. The 10KV hoisting type common-tower double-circuit insulating folding cross arm as claimed in claim 1, which is characterized in that: the wire support (5) comprises a clamp seat (51), a cable seat (52) and a lock catch door (53), wherein the cable seat (52) is located above the clamp seat (51) and is provided with an opening (54) for placing a cable, one end of the lock catch door (53) is rotatably connected to the position of the opening (54) of the cable seat (52) and is used for opening, closing and fixing the opening (54) through rotation.

6. The 10KV hoisting type common-tower double-circuit insulating folding cross arm as claimed in claim 5, which is characterized in that: the lock catch door (53) is provided with a handle part (531), and the handle part (531) extends outwards and is provided with a handle hole (532).
