Abstract

The utility model discloses a pen disinfection, cleaning and drying device which comprises a box body, wherein a disinfection component is arranged at the upper end in the box body; a taking mechanism is arranged on the bottom end face of the box body; the taking mechanism comprises a movable plate, a third connecting rod is connected to the movable plate, a rotating disc is connected to the third connecting rod, a third connecting shaft is connected to the rotating disc, a second bevel gear is sleeved on the third connecting shaft, a second connecting shaft is arranged on the bottom end face inside the box body, a first bevel gear is sleeved on the second connecting shaft and meshed with the second bevel gear, and a power assembly is connected to the second connecting shaft. This device is with the disinfection of writing pen and the integration setting of taking, and the writing pen is after the disinfection, leaves the device in, takes out the use through taking the mechanism according to medical staff, patient and patient family members' demand, and puts into the device again after having used up and carry out disinfection processing to avoided the cross infection that the pen disinfection untimely caused.

Description

Sterilizing, cleaning and drying device for writing pen

Technical Field

The utility model relates to the technical field of cleaning and disinfection, in particular to a disinfecting, cleaning and drying device for a writing pen.

Background

The writing pen is a common office supply, in clinical work, medical staff can repeatedly use the writing pen to fill in the illness state of a patient, and the patient and family members can sign the illness state of the patient with the writing pen to leave a file for the clinical work. With the progress of the times and the improvement of the health consciousness of people, people pay more and more attention to the protection of disinfection and isolation and the like, and writing pens in hospital clinic are contacted and used by many people every day as frequently-used articles, so that the writing pens are subjected to high-frequency surface disinfection to reduce cross infection. Although a few hospitals and institutions can perform intermittent disinfection, due to the fact that patients are too many to see a doctor and the using amount of writing pens is large, due to the fact that workers work busy and the fact that disinfection prevention and control are deficient, the writing pens are not disinfected timely, and meanwhile, due to the fact that the writing pens are not provided with special disinfection taking devices, the disinfection devices and the taking devices are placed separately, disinfection and taking are inconvenient, and disinfection effects are affected; and such a sterilization manner and the frequency of sterilization cannot be performed without fail. As such, there is a need for a device that combines sterilization and use into one unit.

SUMMERY OF THE UTILITY MODEL

The utility model mainly aims to provide a writing pen disinfecting, cleaning and drying device, which solves the problem that the disinfection and the taking of writing pens in the prior art cannot be combined together.

In order to achieve the purpose, the utility model adopts the technical scheme that: a writing pen disinfecting, cleaning and drying device comprises a box body, wherein an inclination plate is arranged on the inner side wall of the box body close to the lower part of the box body, two supporting plates are arranged on the upper end face of the inclination plate, a disinfecting assembly is arranged at the upper end of each supporting plate, a pen leaking groove is formed in the bottom end face of the disinfecting assembly, and a switch assembly is movably arranged in the pen leaking groove; a taking mechanism is arranged between the bottom end face of the box body and the bottom end face of the inclination plate; the taking mechanism comprises a movable plate, a through mounting groove is arranged on the side wall in the box body, the moving plate is arranged in the mounting groove in a sliding manner, one end of a third connecting rod is movably connected to the end surface of the inner side of the moving plate, the other end of the third connecting rod is rotatably connected with a rotating disc, one end surface of one side of the rotating disc is connected with a third connecting shaft, a supporting table is arranged on the bottom end face in the box body and positioned on the third connecting shaft, the supporting table is rotatably connected with the third connecting shaft, a second bevel gear is sleeved on the third connecting shaft, a boss is arranged on the bottom end surface in the box body, a second connecting shaft is rotatably connected to the boss, a first bevel gear is sleeved on one end, close to the second bevel gear, of the second connecting shaft, the first bevel gear is meshed with the second bevel gear, and the other end of the second connecting shaft is connected with a power assembly.

Further, the power assembly comprises a motor, and an output shaft of the motor is connected with the other end of the second connecting shaft; the motor is characterized in that a mounting seat is arranged on the bottom end face of the box body corresponding to the motor, and the motor is mounted on the upper end face of the mounting seat.

Furthermore, a gap exists between the end face of one end of the movable plate on the inclined plate and the side wall inside the box body, the width of the gap is the width of one writing pen, and a placing groove is formed in the upper end face of the movable plate and corresponds to the width of the writing pen.

Further, the disinfection subassembly is including placing the board, be located on the box inner wall the upper end position of backup pad is provided with the connection boss, rotate on a side terminal surface of connection boss and connect a side of placing the board, be located on the box inner wall the position on connection boss upper portion is provided with the mounting bracket, install the liquid feed pump in the mounting bracket, the liquid outlet of liquid feed pump is connected with coupling hose's one end, be connected with a plurality of shower nozzles on coupling hose's the other end, the shower nozzle install in on a side terminal surface of mounting bracket, and can spray the antiseptic solution in place on the up end of board, the inlet of liquid feed pump is connected with the liquid reserve tank, the liquid reserve tank install in the mounting bracket, the liquid reserve tank is used for storing the antiseptic solution.

Further, the switch module includes the rotor plate, the rotor plate is close to a side end face of box inner wall with leak a relative inside wall rotation connection in the inslot, be provided with on the rotor plate bottom face and connect the platform, it is provided with the fourth round pin post on the terminal surface that is close to the inboard to connect the bench, rotate the one end that is connected with the second connecting rod on the fourth round pin post, the inside wall of box with be provided with lifting mechanism between the outside end face of backup pad, the other end of second connecting rod rotates and is connected with lifting mechanism, be connected with the upper end of spring two on the terminal surface of second connecting rod, the lower extreme of spring two connect in on the backup pad inner wall.

Further, the lifting mechanism comprises a first connecting shaft, and the first connecting shaft is rotatably arranged between the two support plates; the opposite ends of the two supporting plates are respectively provided with a mounting hole at the lower end of the connecting boss, the two mounting holes are internally and jointly penetrated by the first connecting shaft, the position of the front end surface of the box body corresponding to the mounting hole is provided with a through hole, the end close to one end of the through hole of the first connecting shaft passes through the through hole and extends to the outside of the box body, the positions of the first connecting shaft at the outer side ends of the supporting plates are respectively sleeved with a connecting plate, the outer side end surface of the connecting plate is provided with a first pin column, the first pin column is rotatably connected with one end of a first connecting rod, the other end of the first connecting rod is movably connected with an arc-shaped plate, the position of the outer side end surface of the arc-shaped plate at the lower end is provided with a second pin column, and the second pin column is rotatably connected with the other end of the first connecting rod, the outer end face of the arc plate is provided with a through hole, a first connecting column is arranged between the outer end face of the supporting plate and the inner wall of the box body and corresponds to the through hole, the arc plate is sleeved on the first connecting column, and the upper end of the arc plate is in contact with the bottom end face of the placing plate.

Furthermore, the position of the arc-shaped plate close to the end head of the lower end is connected with the upper end of a first spring, and the lower end of the first spring is connected with the position, close to the lower part, on the front end face of the supporting plate.

Furthermore, the end of the first connecting shaft, which is located on the end face of the outer side of the box body, is sleeved with a rotary table, the position, which is located on the end face of the outer side of the rotary table, of the first connecting shaft is connected with a fixing piece, and the first connecting shaft is located between the rotary table and the box body and is sleeved with a shaft sleeve.

Furthermore, a rotating handle is fixedly arranged on the end face of the outer side of the rotating disc.

Compared with the prior art, the utility model has the following beneficial effects:

1. this device is provided with on the inside bottom face of box and takes the mechanism, it has used a set of bevel gear group to transmit the power of motor to the third connecting axle to take the mechanism, make the third connecting axle rotate, the third connecting axle drives the rolling disc and rotates, then the rolling disc rotation drives the horizontal reciprocating motion of movable plate, the writing pen in the standing groove on the movable plate is pulled out the box outside, the mechanism is taken to the device only carries a writing pen at every turn, this device is to disinfect and take and use the integration setting, writing pen is after the disinfection, leave in the device, medical staff, patient and patient's family members can take as required, put into the box again after using and disinfect and dry, make writing pen's convenience, and can dozens taking writing pen disinfect, thereby avoided the pen disinfection untimely cross infection that causes often.

2. The device is characterized in that the upper part of the box body is provided with a disinfection component which can spray and disinfect the writing pens on the placing plate; simultaneously, lower extreme at placing the board is provided with lifting mechanism, lifting mechanism is under the rotation of connecting plate, drive first connecting rod and remove, first connecting rod drives the arc and rotates round first connecting post, the upper end of arc can the lifting place the board and lift the connection boss and rotate, can make the rotor plate of leaking a inslot rotate simultaneously, thereby make the writing pen of placing on the board drop in the cavity that inclination board and two backup pads are constituteed through leaking a groove, then carry out the box through the mechanism of taking out. The device sets up slewing mechanism through manual rotation box body outward for under the condition of not opening the case lid, can make the writing pen deposit to taking in the cavity, increased sterile effect, avoid the writing pen infectious bacteria who has disinfected.

Drawings

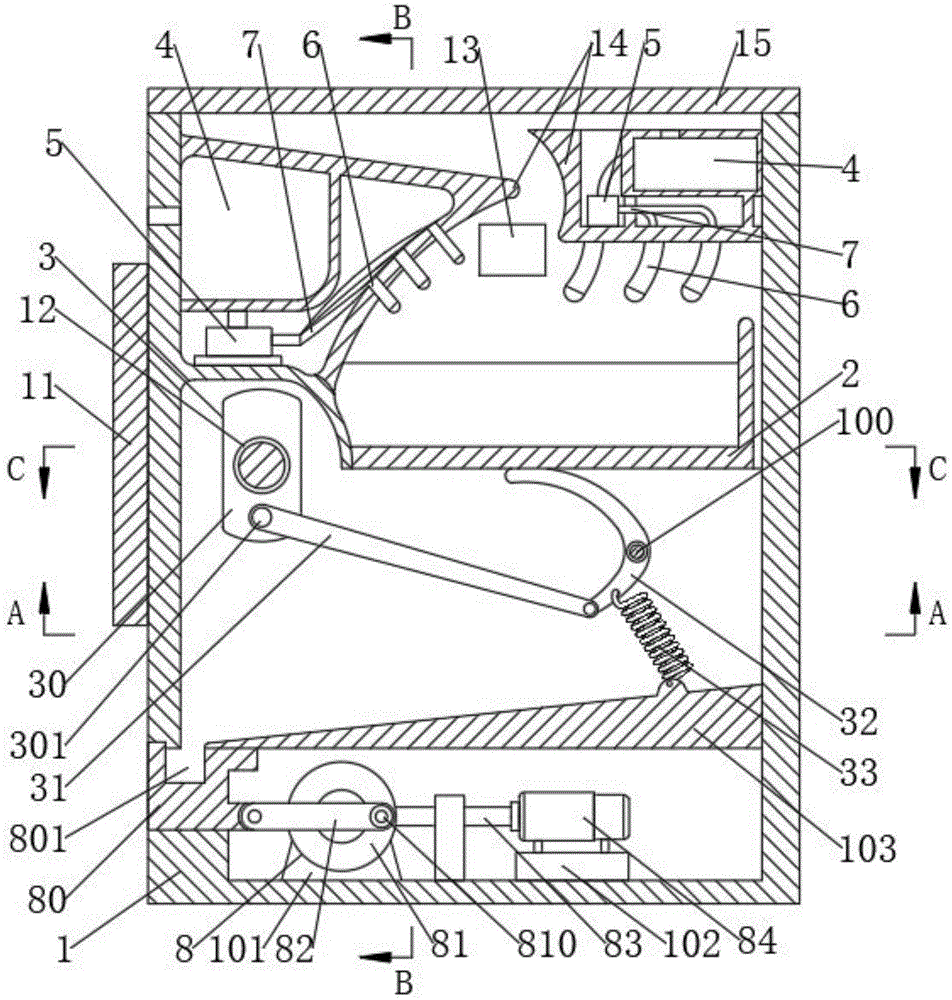

FIG. 1 is a sectional view of a front view of a pen disinfecting, cleaning and drying apparatus;

FIG. 2 is a partial sectional view of a front view of a pen disinfecting, cleaning and drying device

FIG. 3 is a cross-sectional view taken along line A-A of FIG. 1;

FIG. 4 is a cross-sectional view taken along line B-B of FIG. 1;

fig. 5 is a cross-sectional view taken at C-C in fig. 1.

In the figure: 1. a box body; 100. a first connecting column; 101. a support table; 102. a mounting seat; 103. a slope plate; 104. a support plate; 105. a protruding platform; 2. placing the plate; 20. a pen leaking groove; 21. a third connecting column; 22. a baffle plate; 3. a lifting mechanism; 30. a connecting plate; 301. a first pin; 31. a first link; 32. an arc-shaped plate; 320. a second pin; 33. a first spring; 34. a first connecting shaft; 35. a turntable; 350. rotating the handle; 36. a fixing member; 37. a shaft sleeve; 4. a liquid storage tank; 5. a liquid supply pump; 6. a spray head; 7. a connecting hose; 8. a taking mechanism; 80. moving the plate; 800. a fourth connecting column; 801. a placement groove; 81. rotating the disc; 810. a third pin; 82. a third link; 83. a second connecting shaft; 84. a motor; 85. a first bevel gear; 86. a second bevel gear; 87. a third connecting shaft; 9. a rotating plate; 90. a connecting table; 900. a fourth pin; 10. a second link; 11. a control panel; 12. a limiting member; 13. a dryer; 14. a mounting frame; 15. a box cover; 16. and a second spring.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1, the embodiment discloses a pen disinfection, cleaning and drying device, which comprises a box body 1, wherein a box cover 15 is rotatably arranged on the upper end surface of the box body 1, a magnet is arranged on the end surface of the joint of the box cover 15 and the left end of the box body 1, and the box cover 15 and the box body 1 are fixed by the principle that the opposite poles of the magnet attract each other. An inclination plate 103 is arranged in the box body 1 at a position close to the bottom, the inclination surface of the inclination plate 103 faces upwards, and a space is formed between the left end surface of the inclination plate 103 and the inner side wall of the box body 1, wherein the space is the width of a writing pen; be provided with on the bottom face of box 1 and take mechanism 8, take mechanism 8 and be used for taking the pen of disinfecting in the box 1.

Referring to fig. 1 and 4, a through mounting groove is formed in the left end face of the case 1, the moving plate 80 is slidably mounted in the mounting groove, a placing groove 801 is formed in the upper end face of the moving plate 80, the width of the placing groove 801 is the same as the gap between the slope plate 103 and the case 1, and the placing groove is located below the gap, so that writing pens on the slope plate 103 respectively slide into the placing groove 801 one by one through the gap between the writing pens and the inner side wall of the case 1, and then are conveyed out of the case 1 through the moving plate 80 for medical staff, patients and family members to use.

Referring to fig. 1 and 4, two protruding platforms are arranged on the right end face of the moving plate 80, a fourth connecting column 800 is arranged on the opposite end face of the two protruding platforms, the left end of a third connecting rod 82 is rotatably connected to the fourth connecting column 800, pin holes are formed in the left end and the right end of the front end face of the third connecting rod 82, the fourth connecting column 800 penetrates through the pin hole in the left end of the third connecting rod 82, so that the third connecting rod 82 can rotate around the fourth connecting column 800, the right end of the third connecting rod 82 is rotatably connected to a rotating disc 81, a third pin 810 is arranged on the outer end face of the rotating disc 81, and the third pin 810 is installed in the pin hole formed in the right end of the third connecting rod 82; two supporting platforms 101 are longitudinally arranged on the bottom end face of the box body 1, through first bearing holes are formed in the opposite end faces of the two supporting platforms 101, bearings are respectively arranged in the two bearing holes, third connecting shafts 87 jointly penetrate through the inner rings of the two bearings, rotating discs 81 are respectively sleeved at the end heads of the two ends of the third connecting shafts 87, bevel gear two 86 are sleeved on the third connecting shafts 87, the bevel gear two 86 are located between the two supporting platforms 101, meanwhile, limiting pieces 12 are respectively arranged at the front end faces and the rear end faces of the bevel gear two 86 on the third connecting shafts 87, and the limiting pieces 12 limit the bevel gear two 86 to longitudinally move on the third connecting shafts 87.

Referring to fig. 1 and 4, a boss is transversely arranged on a bottom end face of the box body 1, the boss is provided with a through second bearing hole, a second connecting shaft 83 penetrates through the second bearing hole, a first bevel gear 85 is sleeved at a position of a left end head of the second connecting shaft 83, the first bevel gear 85 can be meshed with a second bevel gear 86, a limiting member 12 is arranged at a position, located on a left side end face of the first bevel gear 85, of the second connecting shaft 83, and the first bevel gear 85 is prevented from being separated from the second connecting shaft 83. The right end of the second connecting shaft 83 is connected with a power assembly, and the power assembly provides power for the moving of the moving plate 80 in the taking mechanism 8.

Referring to fig. 1, the power assembly adopted in this embodiment includes a motor 84, and an output shaft of the motor 84 is fixedly connected to a right end of a second connecting shaft 83; an installation seat 102 is arranged at the lower end of the dotting machine on the end surface of the box body 1, and the upper end surface of the installation seat 102 is contacted with the bottom end of the motor 84. The motor 84 can drive the second connecting shaft 83 to rotate, the second connecting shaft 83 transmits power to the rotating disc 81, and the rotating disc 81 drives the moving plate 80 to move transversely through rotation, so that the writing pen is conveyed by the device.

Preferably, set up the perforating hole on the right-hand member face of box 1, the right-hand member end of second connecting axle 83 passes this perforating hole, extends to the outside end of box 1, and the position cover that second connecting axle 83 right-hand member end is located the outside end of box 1 is equipped with the disc, is provided with the handle on the right-hand member face of disc, and medical staff passes through manual rotation handle for take the mechanism 8 and rotate, this structure can alleviate device weight, makes medical staff be convenient for remove the device.

Referring to fig. 2, 4 and 5, two support plates 104 are longitudinally arranged on the slope plate 103 in the case body 1, the space with a certain depth on the slope plate 103 in the case body 1 is divided into three chambers by the two support plates 104, the chamber between the two support plates 104 is used for storing sterilized writing pens, and the upper ends of the support plates 104 are provided with a sterilizing assembly. The disinfection subassembly is including placing board 2, the bottom face of placing board 2 and the up end contact of backup pad 104, the position that both ends face is located the left end around placing board 2 is provided with third spliced pole 21, the position that the corresponding board 2 left end face of placing on the 1 inner wall of box is provided with the connection boss, the spread groove that link up about the right-hand member face of connection boss sets up, be provided with the connecting hole on the relative terminal surface of spread groove, third spliced pole 21 is installed in the link hole, make and place board 2 and can rotate round connecting the boss.

Referring to fig. 5, a circle of baffles 22 are arranged on the upper end surface of the placing plate 2, and the distance between two baffles 22 close to the front end and the rear end is slightly wider than the height of the writing pen by 3-4 mm, so that the writing pen can be conveniently placed, and the writing pen is prevented from moving back and forth on the placing plate 2 to affect the disinfection of the device on the writing pen.

Referring to fig. 2, the position that is located the upper portion of connecting the boss on the inside left and right sides terminal surface of box 1 is provided with mounting bracket 14, and the inside fixed position who laminates in box 1 inner wall of mounting bracket 14 has liquid reserve tank 4, and liquid reserve tank 4 is used for splendid attire antiseptic solution, the disinfection alcohol that antiseptic solution adopted in this embodiment. A liquid inlet is arranged on the upper end surface of the liquid storage tank 4, a liquid outlet is arranged on the lower end surface of the liquid storage tank 4, one end of a connecting hose 7 is connected on the liquid outlet, the other end of the connecting hose 7 is connected with a liquid supply pump 5, the liquid supply pump 5 is arranged at the lower end of the liquid storage tank 4, the liquid outlet of the liquid supply pump 5 is also connected with the connecting hose 7, the other end of the connecting hose 7 is connected with a spray head 6, a part of the spray head 6 is arranged on the right end surface of the mounting rack 14, the mounting frame 14 is arranged at the left end inside the box body 1, the other part of the spray head 6 is arranged on the bottom end surface of the mounting frame 14, the mounting rack 14 is positioned at the right side in the box body 1, the spray head 6 is supplied with disinfectant through the liquid supply pump 5, then the writing pens arranged on the placing plate 2 are disinfected, the front end surface and the rear end surface inside the box body 1 are provided with a drier 13, the drying device 13 in this embodiment is a miniature hair dryer for drying the sterilized and cleaned writing pen.

Referring to fig. 2 and 3, a pen leaking groove 20 is disposed on the upper end surface of the placing plate 2 near the left end, a rotating plate 9 is movably arranged and rotated in the pen leaking groove 20, the left end surface of the rotating plate 9 is connected with the left end surface of the pen leaking groove 20 through a hinge, so that the rotating plate 9 can rotate at a certain angle, two connecting platforms 90 are disposed on the lower end surface of the rotating plate 9 near the right end, a fourth pin 900 is disposed on the outer end surface of each of the two connecting platforms 90, one end of a second connecting rod 10 is rotatably connected to the fourth pin 900, a lifting mechanism 3 is disposed between the inner wall of the box body 1 and the outer wall of the supporting plate 104 opposite to each other, the other end of the second connecting rod 10 is rotatably connected to the lifting mechanism 3, the front end surface of the second connecting rod 10 is connected to the upper end of a second spring 16, the lower end of the second spring 16 is connected to the inner wall of the similar supporting plate 104, when the placing plate 2 rotates upwards, the lifting mechanism 3 rotates clockwise to drive the rotating plate 9 to rotate downwards, so that the writing pen falls from the pen leaking groove 20 to a position between the two supporting plates 104.

Referring to fig. 1 and 3, the lifting mechanism 3 includes a first connecting shaft 34, and the first connecting shaft 34 is rotatably disposed between two support plates 104; the opposite ends of the two supporting plates 104 are respectively provided with a mounting hole at the lower end of the connecting boss, a first connecting shaft 34 is jointly penetrated in the two mounting holes, a through hole is arranged at the position corresponding to the mounting hole on the front end surface of the box body 1, the end head of the front end surface of the first connecting shaft 34 penetrates through the through hole and extends to the outside of the box body 1, the rotating angle of the first connecting shaft 34 in the mounting hole is less than 120 degrees, two protruding platforms 105 are arranged at the position corresponding to the second connecting rod 10 on the first connecting shaft 34, the protruding platforms 105 are rotatably connected with the other end connected with the second connecting rod 10, two connecting plates 30 are sleeved on the first connecting shaft 34, one connecting plate 30 is arranged between the inner wall of the rear end of the box body 1 and the adjacent supporting plate 104, a limiting piece 12 is arranged at the rear end of the first connecting shaft 34, and the connecting plate 30 at the rear end of the first connecting shaft 34 is prevented from being separated from the first connecting shaft 34, in this embodiment, the limiting member 12 is a snap spring for a shaft, and of course, the limiting member 12 may also be a cotter pin, a split washer, or the like. Another connecting plate 30 is sleeved on the first connecting shaft 34 and located between the inner wall of the front end of the box body 1 and the adjacent supporting plate 104, meanwhile, limiting members 12 are arranged at positions of the first connecting shaft 34 located at the inner end face and the outer end face of the connecting plate 30 to limit the connecting plate 30 to longitudinally move on the first connecting shaft 34, in this embodiment, the limiting members 12 are shaft-used snap springs, and of course, the limiting members 12 may also be split pins, split check rings, and the like. The front end of the first connecting shaft 34 is provided with a rotating mechanism for rotating the first connecting shaft 34 conveniently. Be provided with first round pin post 301 on the outer terminal surface of connecting plate 30, first round pin post 301 rotates the one end that is connected with first connecting rod 31, it is connected with arc 32 to rotate on the other end of first connecting rod 31, the position that is close to the lower extreme end on the outside terminal surface of arc 32 sets up second round pin post 320, rotate the other end of connecting first connecting rod 31 on second round pin post 320, be provided with the through-hole on the outside terminal surface of arc 32, it is provided with first connecting post 100 to correspond the diameter of through-hole between the outside terminal surface of backup pad 104 and the inner wall of box 1, and first connecting post 100 sets up and is located right-hand member end central point department in backup pad 104, first connecting post 100 is installed in the through-hole, make arc 32 can rotate certain angle round first connecting post 100, arc 32 upper end and the bottom face contact who places board 2. When first connecting axle 34 clockwise turning, can drive first connecting rod 31 and remove to drive arc 32 and rotate, make the upper end of arc 32 raise, thereby the right-hand member end of board 2 is placed in the lifting, make and place board 2 slope, simultaneously, first connecting axle 34 also can drive rotor plate 9 and rotate, make the writing pen drop on inclination 103 from leaking a groove 20, then carry out outside box 1 through taking mechanism 8.

Optimally, the position of the arc plate 32 close to the lower end is connected with the upper end of a first spring 33, the lower end of the first spring 33 is connected with the inclined plate 103, the first spring 33 can enable the first connecting shaft 34 to automatically rotate to the initial position, and meanwhile, the first connecting shaft 34 can be prevented from rotating at a larger angle to damage the device.

Preferably, the rotating mechanism includes a rotating disc 35 sleeved on the front end of the first connecting shaft 34, a fixing member 36 is disposed on the first connecting shaft 34 in front of the rotating disc 35, the fixing member 36 is used for fixing the position of the rotating disc 35 to prevent the rotating disc 35 from separating from the first connecting shaft 34, in this embodiment, the fixing member 36 is a fixing nut, and of course, the fixing member 36 may also be a split washer or the like. Be provided with axle sleeve 37 between the lateral wall of carousel 35 and box 1, axle sleeve 37 can avoid the direct outside terminal surface contact with box 1 of carousel 35, increases the life of carousel 35, is provided with rotation handle 350 on the preceding terminal surface of carousel 35, the first connecting shaft 34 of the light rotation of medical staff of being convenient for, easy operation is convenient.

The use process of the device is as follows: firstly, placing the box body 1 on a platform, then opening the box cover 15, sliding a writing pen onto the placing plate 2 through the mounting frame 14, covering the box cover 15, starting the liquid supply pump 5 to enable the spray head 6 to spray disinfectant, disinfecting the writing pen on the placing plate 2, after the disinfection is finished, closing the liquid supply pump 5, then starting the dryer 13 to dry the writing pen on the placing plate 2, closing the dryer 13, finally holding the rotating handle 350 by medical staff, clockwise rotating the rotating disc 35, driving the first connecting shaft 34 to clockwise rotate by the rotating disc 35, driving the first connecting shaft 31 to move leftwards when the first connecting shaft 34 drives the second connecting shaft 10 to move leftwards, enabling the arc-shaped plate 32 to rotate leftwards, and enabling the upper end of the arc-shaped plate 32 to rotate clockwise during the rotating process, the right-hand member of board 2 is placed in the jack-up for place the slope of board 2, also make the right-hand member of rotor plate 9 break away from hourglass a groove 20 simultaneously, then will place on the board 2 writing pen through leak a groove 20 and drop to have a slope board 103 and two backup pads 104 to constitute the cavity in, when writing pen is whole to drop, loosen and rotate handle 350, the arc 32 can resume the normal position under the pulling force effect of spring 33, place board 2 simultaneously and also can resume initial position. Then according to the requirements of medical staff, patients and family members of the patients, the motor 84 is started, the motor 84 drives the second connecting shaft 83 to rotate, the second connecting shaft 83 transmits power to the third connecting shaft 87 through the meshing of the first bevel gear 85 and the second bevel gear 86, so that the third connecting shaft 87 rotates, the third connecting shaft 87 drives the rotating disc 81 to rotate, the rotating disc 81 changes the rotating motion into the transverse reciprocating motion of the third connecting rod 82, the third connecting rod 82 drives the moving plate 80 to transversely reciprocate, the writing pen slides into the placing groove 801 on the upper end surface of the moving plate 80 through the gap between the left end surface of the inclined plate 103 and the inner wall of the box body 1, then, the writing pen is conveyed out of the box body 1 by the transverse movement of the moving plate 80 and is supplied to a patient, family members of the patient and medical staff for use, and after the writing pen is used up, the box cover 15 is opened and is put into the box body 1 again for disinfection treatment.

The device combines the taking and the disinfection of the writing pens into a whole, the writing pens are stored in the box body 1 after being disinfected, medical staff, patients and family members of the patients can take the writing pens as required, and the writing pens are disinfected and dried in the box body 1 again after being used, so that the writing pens can be taken conveniently, and dozens of writing pens can be disinfected, thereby avoiding the cross infection caused by untimely disinfection of the writing pens; meanwhile, the pen can be placed in a required place according to working requirements, is flexible and convenient to use, and also promotes the staff to use and effectively sterilize the writing pen according to the specification.

Preferably, the device can also be provided with a control panel 11 on the left end face of the box body 1, the control panel 11 is connected with the motor 84 in the taking mechanism 8 in the box body 1, the dryer 13 arranged at the upper part in the box body 1 and the liquid supply pump 5 in the disinfection component, and the control panel 11 can control the motor 84 in the taking mechanism 8 to start and stop so as to control the taking of the writing pen; the liquid supply pump 5 can be controlled in sequence to sterilize the writing pens, the dryer 13 is controlled to dry the sterilized writing pens, and the structure and the installation of the control panel 11 belong to the prior art mastered by technicians in the industry and are not stated herein.

Furthermore, the control panel 11 can be used for sequentially setting the disinfection time of the writing pen and the drying time of the writing pen, so that automatic control is realized, medical staff does not need to watch the device in the disinfection and drying processes of the writing pen, and human resources are liberated.

The intelligent control process using the control panel 11 may be: firstly, setting disinfection time and drying time on a control panel 11 in sequence; when the writing pen drying device is used, an operator starts the liquid supply pump 5 on the control panel 11 to enable the spray head 6 to spray disinfectant to sterilize writing pens on the placing plate 2, the control panel 11 can automatically close the liquid supply pump 5 after the disinfection is finished, then the dryer 13 is automatically started to dry the writing pens on the placing plate 2, the drying time can be preset, and when the drying time is up, the dryer 13 stops working; when taking the writing pen, the motor 84 in the taking mechanism 8 is controlled to rotate on the control panel 11, then the moving plate 80 is made to push out the mounting groove on the box body 1, the writing pen is conveyed out of the box body 1, then the writing pen in the placing groove 801 on the moving plate 80 is taken out, the motor 84 is controlled to rotate on the control panel 11 again, and the moving plate 80 is made to return to the mounting groove arranged on the box body 1.

It should be noted that, in this document, relational terms such as first and second, and the like are used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims (9)

1. The device for disinfecting, cleaning and drying the writing pens is characterized by comprising a box body (1), wherein an inclination plate (103) is arranged on the inner side wall of the box body (1) close to the lower part of the box body, two support plates (104) are arranged on the upper end surface of the inclination plate (103), a disinfecting assembly is arranged at the upper end of each support plate (104), a pen leaking groove (20) is arranged on the bottom end surface of the disinfecting assembly, and a switch assembly is movably arranged in the pen leaking groove (20); a taking mechanism (8) is arranged between the bottom end surface of the box body (1) and the bottom end surface of the inclined plate (103); the taking mechanism (8) comprises a moving plate (80), a through mounting groove is formed in the side wall inside the box body (1), the moving plate (80) is slidably mounted in the mounting groove, one end of a third connecting rod (82) is movably connected to the inner side end face of the moving plate (80), the other end of the third connecting rod (82) is rotatably connected with a rotating disc (81), a third connecting shaft (87) is connected to one side end face of the rotating disc (81), a supporting table (101) is arranged at the position, located on the third connecting shaft (87), on the bottom end face inside the box body (1), the supporting table (101) is rotatably connected with the third connecting shaft (87), a second bevel gear (86) is sleeved on the third connecting shaft (87), a boss is arranged on the bottom end face inside the box body (1), and a second connecting shaft (83) is rotatably connected to the boss, one end, close to the second bevel gear (86), of the second connecting shaft (83) is sleeved with a first bevel gear (85), the first bevel gear (85) is meshed with the second bevel gear (86), and the other end of the second connecting shaft (83) is connected with a power assembly.

2. The device for disinfecting, cleaning and drying the writing pen as claimed in claim 1, wherein the power assembly comprises a motor (84), an output shaft of the motor (84) is connected with the other end of the second connecting shaft (83); the motor-driven power distribution box is characterized in that a mounting seat (102) is arranged on the bottom end face of the box body (1) corresponding to the position of the motor (84), and the motor (84) is mounted on the upper end face of the mounting seat (102).

3. The device for disinfecting, cleaning and drying the writing pens as claimed in claim 1, wherein a gap exists between the end surface of the inclined plate (103) at one end of the moving plate (80) and the inner side wall of the box body (1), and a placing groove (801) is formed in the upper end surface of the moving plate (80) corresponding to the width of the writing pen.

4. The device for disinfecting, cleaning and drying the writing pens according to claim 1, wherein the disinfecting assembly comprises a placing plate (2), a connecting boss is arranged on the inner wall of the case body (1) and located at the upper end of the supporting plate (104), one side end face of the connecting boss is rotatably connected with one side end of the placing plate (2), a mounting frame (14) is arranged on the inner wall of the case body (1) and located at the upper part of the connecting boss, a liquid supply pump (5) is installed in the mounting frame (14), one end of a connecting hose (7) is connected with a liquid outlet of the liquid supply pump (5), a plurality of spray heads (6) are connected with the other end of the connecting hose (7), the spray heads (6) are installed on one side end face of the mounting frame (14) and can spray disinfectant on the upper end face of the placing plate (2), the inlet of feed pump (5) is connected with liquid reserve tank (4), liquid reserve tank (4) install in mounting bracket (14), liquid reserve tank (4) are used for storing the antiseptic solution.

5. The sterilizing, cleaning and drying device for the writing pens according to claim 4, wherein the switch assembly comprises a rotating plate (9), one side end surface of the rotating plate (9) close to the inner wall of the box body (1) is rotatably connected with the opposite inner side wall in the pen leaking groove (20), a connecting table (90) is arranged on the bottom end surface of the rotating plate (9), a fourth pin column (900) is arranged on the end surface of the connecting table (90) close to the inner side, one end of a second connecting rod (10) is rotatably connected to the fourth pin column (900), a lifting mechanism (3) is arranged between the inner side wall of the box body (1) and the outer side end surface of the supporting plate (104), the other end of the second connecting rod (10) is rotatably connected with the lifting mechanism (3), and the upper end of a second spring (16) is connected to the end surface of the second connecting rod (10), the lower end of the second spring (16) is connected to the inner wall of the support plate 104.

6. A pen disinfection, cleaning and drying device as claimed in claim 5, wherein said lifting mechanism (3) comprises a first connecting shaft (34), said first connecting shaft (34) being rotatably disposed between two said supporting plates (104); mounting holes are respectively formed in the positions, located at the lower end of the connecting boss, of the opposite ends of the two support plates (104), the two mounting holes are penetrated through the first connecting shaft (34) together, a through hole is formed in the position, corresponding to the mounting hole, of the front end face of the box body (1), the end, close to one end of the through hole, of the first connecting shaft (34) penetrates through the through hole and extends to the outside of the box body (1), connecting plates (30) are respectively sleeved at the positions, located at the outer side ends of the support plates (104), of the first connecting shaft (34), first pin columns (301) are arranged on the end faces of the outer sides of the connecting plates (30), the first pin columns (301) are rotatably connected with one ends of first connecting rods (31), the other ends of the first connecting rods (31) are movably connected with arc-shaped plates (32), and second pin columns (320) are arranged at the positions, located at the lower ends, of the outer side end faces of the arc-shaped plates (32), the second pin column (320) is connected with the end head at the other end of the first connecting rod (31) in a rotating mode, a through hole is formed in the end face of the outer side of the arc-shaped plate (32), a first connecting column (100) is arranged between the end face of the outer side of the supporting plate (104) and the inner wall of the box body (1) in a position corresponding to the through hole, the arc-shaped plate (32) is sleeved on the first connecting column (100), and the end head at the upper end of the arc-shaped plate (32) is in contact with the bottom end face of the placing plate (2).

7. The sterilizing, cleaning and drying device for the writing pens as claimed in claim 6, wherein the upper end of the first spring (33) is connected to the position of the arc-shaped plate (32) close to the lower end, and the lower end of the first spring (33) is connected to the position of the front end surface of the supporting plate (104) close to the lower part.

8. The sterilizing, cleaning and drying device for the writing pens according to claim 6, wherein a rotating disc (35) is sleeved on the end of the first connecting shaft (34) located on the outer side end face of the box body (1), a fixing member (36) is connected to the position of the first connecting shaft (34) located on the outer side end face of the rotating disc (35), and a shaft sleeve (37) is sleeved between the rotating disc (35) and the box body (1) of the first connecting shaft (34).

9. The device for disinfecting, cleaning and drying a writing pen according to claim 8, wherein a rotating handle (350) is fixedly arranged on the outer end face of the rotating disc (35).
