ICU bed patient uses wears patient clothing that takes off of convenience

Technical Field

The utility model relates to the technical field of medical care products, in particular to a patient clothing convenient to put on and take off for ICU bedridden patients.

Background

Patients treated in intensive care units (ICU units) are mostly bedridden, and have many drainage catheters with different functions on their bodies and a plurality of monitoring lead lines for monitoring the patients in real time. If necessary, cardioversion, hemodialysis, hemoperfusion, etc. may be performed.

However, practice shows that the prior ICU patient clothing has the following problems in use: firstly, the patient is inconvenient to put on and take off, and the ICU patient is in a bedridden state, and the traditional patient gown in the upper and lower clothes type is used, so that the putting on and taking off operation is complicated, time and labor are wasted, and the patient is easily disturbed greatly; secondly, the coat button needs to be frequently unfastened when the electrocardiogram monitoring lead and the drainage tube are connected, the ICU is complicated to live in the patient, and the privacy of the patient cannot be well protected.

SUMMERY OF THE UTILITY MODEL

The utility model discloses a solve present ICU patient clothing and wear to take off inconvenient, be unfavorable for privacy protection's problem, provide a patient clothing that ICU bed patient used conveniently wears to take off.

The utility model discloses an adopt following technical scheme to realize:

a patient gown convenient to put on and take off for ICU bedridden patients comprises a gown body which is arranged downwards and is long to a knee joint part, a square neckline is formed in the neck part of the front part of the gown body, a front opening which is cut from the middle part of the square neckline to the waist part of the gown body is formed in the upper part of the front part of the gown body, and a plurality of clothes buttons which are distributed up and down are arranged on the front opening; the two sides of the front opening are respectively provided with a strip-shaped monitoring line through hole which is arranged in the front of the robe body and is obliquely arranged, and the high sides of the two strip-shaped monitoring line through holes are respectively arranged at one side adjacent to the front opening; strip pipeline through holes which are opened in the front of the robe body and are vertically arranged are formed in the left lower part of the strip monitoring line through hole on the left side and the right lower part of the strip monitoring line through hole on the right side; the waist part of the front part of the robe body is provided with a plastic buckle; the back part of the robe body is in a semi-open shape, and an upper connecting belt which is flush with the shoulder and a lower connecting belt which is positioned at the waist are fixed on one side of the open part of the robe body; a connecting cloth ring right and left opposite to the upper connecting belt is fixed on the other side of the opening part; sleeves are integrally arranged on the left side and the right side of the robe body, and two strip-shaped side openings which are communicated with the cuffs of the sleeves and are opposite up and down are formed in one side of each sleeve, which is far away from the robe body.

Further, the sleeves are five-part sleeves; strip-shaped temperature measuring holes which are located at armpit positions and are longitudinally arranged are arranged between the robe body and the sleeves located on the left side.

Furthermore, the robe body, the upper connecting belt, the lower connecting belt, the connecting cloth rings and the sleeves are all made of washing cotton.

Further, the lower connecting belt and the plastic buckle are distributed in different sides.

Further, the number of the clothes buttons is three; the front side and the rear side of the front opening are both provided with connecting cloth pieces, and the clothes button is sewed on the connecting cloth piece positioned on the rear side and passes through a connecting hole formed in the front side connecting cloth piece.

The utility model has the advantages of reasonable design reliably, realized ICU patient clothing fast, convenient wearing to take off, the function is various moreover, makes things convenient for passing of pipelines such as electrocardio guardianship wire, drainage tube, can be to pipeline connection state real-time supervision, conveniently tie up blood pressure sleeve area and observe the vein route, simultaneously the utility model discloses the main part adopts an organic whole formula to cut, has reduced the manufacturing degree of difficulty and manufacturing cost, and is further, and the surface fabric is soft, and thermal insulation performance is good, has travelling comfort and the warmth retention when having increased and wearing, has that the gas permeability is good, sexual valence relative altitude, advantage that the practicality is strong, is applicable to ICU bed patient.

Drawings

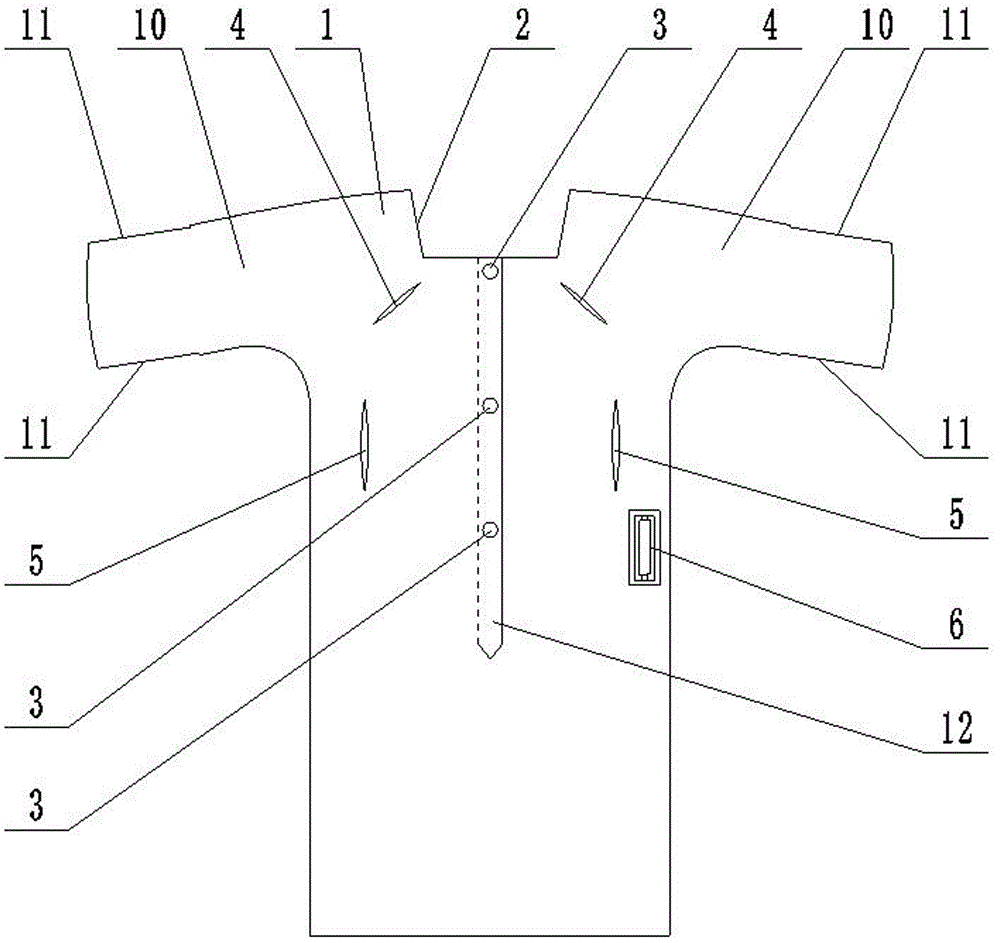

Fig. 1 is a schematic structural diagram of the present invention;

fig. 2 is a schematic structural view of the back part of the body of the middle gown of the present invention.

In the figure, 1-a gown body, 2-a square neckline, 3-a clothes button, 4-a strip-shaped monitoring line through hole, 5-a strip-shaped pipeline through hole, 6-a plastic buckle, 7-an upper connecting belt, 8-a lower connecting belt, 9-a connecting cloth ring, 10-a coat sleeve, 11-a strip-shaped side opening and 12-a connecting cloth sheet.

Detailed Description

A patient clothing convenient for ICU bedridden patient to put on and take off is shown in figure 1 and figure 2; the upper part of the front part of the robe body 1 is provided with a front opening which is cut from the middle part of the square neckline 2 to the waist part of the robe body 1, and the front opening is provided with a plurality of clothes buttons 3 which are distributed up and down; the two sides of the front opening are respectively provided with a strip-shaped monitoring line through hole 4 which is arranged in the front of the robe body 1 and is obliquely arranged, and the high sides of the two strip-shaped monitoring line through holes 4 are respectively arranged on one side adjacent to the front opening; strip pipeline through holes 5 which are opened in the front of the robe body 1 and are vertically arranged are formed in the left lower part of the strip monitoring line through hole 4 positioned on the left side and the right lower part of the strip monitoring line through hole 4 positioned on the right side; the waist part of the front part of the robe body 1 is provided with a plastic buckle 6; the back part of the robe body 1 is in a semi-open shape, and one side of the open part is fixed with an upper connecting belt 7 which is flush with the shoulder and a lower connecting belt 8 which is positioned at the waist; a connecting cloth ring 9 right opposite to the upper connecting belt 7 is fixed on the other side of the opening part; sleeves 10 are uniformly arranged on the left side and the right side of the robe body 1, and two strip-shaped side openings 11 which are communicated with the cuffs and are opposite up and down are formed in one side of each sleeve 10, which is far away from the robe body 1.

When a patient lies down to wear the gown, firstly, the front part of the gown body 1 covers the patient, then two sleeves 10 are worn on the two arms of the patient, then the patient is lifted properly from one side, the back part of the gown body 1 covers the back of the patient, the lower connecting belt 8 is pulled out, the lower connecting belt 8 is connected with the plastic buckle 6, meanwhile, the upper connecting belt 7 is placed on one side, the lower connecting belt 8 is placed above the gown body 1, the neatness is increased, and therefore the patient lies down to wear the gown. When a patient wears the patient in a sitting mode, the front part of the gown body 1 covers the patient, then the two sleeves 10 are worn on the two arms of the patient, the back part of the gown body 1 covers the back of the patient, the upper connecting belt 7 penetrates through the connecting cloth ring 9 and is knotted to prevent the gown body 1 from slipping off the shoulders and prevent the shoulders from catching cold, and meanwhile the lower connecting belt 8 is wound around the back of the waist and is connected with the plastic buckle 6 and tied to the side face, so that the patient wears the patient gown in a sitting mode, and the patient gown is worn quickly and conveniently. When the patient gown needs to be taken off, the connection between the upper connecting belt 7 and the lower connecting belt 8 is released, and the patient gown can be taken off by pulling up the sleeves 7 by hands. The utility model discloses wear to take off the in-process and avoided the process that patient stands up, overcome current ICU patient clothing and worn to take off inconvenient problem.

When a patient wears the patient clothes and needs to be rescued in case of emergency, the clothes button 3 is unfastened, and the heart is rescued through the front opening. After the rescue is completed, the monitoring wires such as the electrocardiogram monitoring wires can penetrate through the bar-shaped monitoring wire through holes 4, so that the purpose of physical sign monitoring is realized, the connecting pipelines such as the drainage pipeline can penetrate through the bar-shaped pipeline through holes 5, the purpose of auxiliary treatment is realized, the problem that the monitoring wires and the connecting pipelines are in disorder is avoided, and the burden of nursing staff is reduced. The pipeline arranged at the neck of the patient penetrates into the sleeves 10 through the strip-shaped side openings 11, and the connection and treatment states, such as the tracheotomy state, the internal jugular vein condition and the like, are observed in real time through the square neckline 2; meanwhile, the structural design of the strip-shaped side opening 11 is convenient for binding the blood pressure cuff and observing the vein access. The back front of a garment of gown body 1 is half open form, and half surrounds the structure, when making things convenient for wearing to take off of this patient clothing, has protected patient's privacy, makes things convenient for the nursing operation. The plastic buckle 10 realizes the connection of the lower connecting belt 8, and is made of plastic materials, so that the use of metal attachments is avoided, and further accidents of patients during rescue are avoided.

As shown in figures 1 and 2; the sleeves 10 are five-part sleeves; a strip-shaped temperature measuring hole which is positioned at the armpit part and is longitudinally arranged is arranged between the robe body 1 and the sleeves 10 positioned at the left side.

The sleeve 10 is designed as a middle sleeve, so that a nursing worker can conveniently tie a blood pressure cuff to prevent mechanical pressure injury, and the structural design is convenient for observing and placing an upper limb vein catheterization; the structural design of the strip-shaped temperature measuring hole is convenient for measuring the body temperature of the patient.

The robe body 1, the upper connecting belt 7, the lower connecting belt 8, the connecting cloth rings 9 and the sleeves 10 are all made of washing cotton.

The washing cotton has the advantages of soft fabric, good air permeability, good heat insulation performance and high cost performance, increases the comfort and the heat insulation performance of the patient clothes when the patient clothes are worn, avoids the frequent operation of covering the quilt on the patient, and lightens the burden of nursing staff.

As shown in figures 1 and 2; the lower connecting belt 8 and the plastic buckle 6 are distributed in different sides.

This structural design makes lower connecting band 8 wind the half circle can be connected with plastics day buckle 6, has realized the fixed after this patient's size clothes is worn, has increased the convenience when this patient's size clothes is worn.

As shown in figure 1; the number of the buttons 3 is three; the front side and the rear side of the front opening are both provided with connecting cloth pieces 12, and the clothes button 3 is sewed on the connecting cloth piece 12 positioned on the rear side and passes through a connecting hole formed on the connecting cloth piece 12 on the front side.

The quantity of buttons 3 is reasonable in design, and the problems that the rescue speed is influenced too much and the distance is too small and too large are avoided.

In a specific implementation process, the square neckline 2 is a low neckline. The width of the open part of the back part of the robe body 1 is larger than that of the square neckline 2. The bar-shaped monitoring line perforation 4 is arranged at the lower side of the clavicle part. The strip-shaped pipeline through hole 5 is arranged at the position of a rib. The plastic buckle 6 is arranged at the position close to the separation line of the front part and the back part of the robe body 1. The width of the upper connecting band 7 and the lower connecting band 8 is suitable during production, so that the skin of a patient is prevented from being damaged due to too thin, too wide and not attractive, and the use is inconvenient. One side of the strip-shaped side opening 11 is fixedly sewed with a clothes button I, and the other side of the strip-shaped side opening 11 is provided with a connecting hole I so as to realize the opening and closing of the strip-shaped side opening 11.

Claims

1. The utility model provides a patient clothing that ICU bed patient used that conveniently wears to take off which characterized in that: the waist-protecting coat comprises a coat body (1) with a lower hem extending to a knee joint part, wherein a square neckline (2) is formed in the neck part of a front part of the coat body (1), a front opening cut from the middle part of the square neckline (2) to the waist part of the coat body (1) is formed in the upper part of the front part of the coat body (1), and a plurality of clothes buttons (3) distributed up and down are arranged on the front opening; the two sides of the front opening are respectively provided with a strip-shaped monitoring line through hole (4) which is arranged in the front of the robe body (1) and is obliquely arranged, and the high sides of the two strip-shaped monitoring line through holes (4) are respectively arranged on one side adjacent to the front opening; strip pipeline through holes (5) which are opened in the front of the robe body (1) and are vertically arranged are respectively arranged at the left lower part of the strip monitoring line through hole (4) at the left side and the right lower part of the strip monitoring line through hole (4) at the right side; the front waist part of the robe body (1) is provided with a plastic buckle (6); the back part of the robe body (1) is in a semi-open shape, and one side of the open part is fixed with an upper connecting belt (7) which is flush with the shoulder and a lower connecting belt (8) which is positioned at the waist; a connecting cloth ring (9) right opposite to the upper connecting belt (7) is fixed on the other side of the opening part; sleeves (10) are integrally arranged on the left side and the right side of the robe body (1), and two strip-shaped side openings (11) which are communicated with the cuffs of the sleeves and are opposite up and down are formed in one side, far away from the robe body (1), of each sleeve (10).

2. The patient gown of claim 1 for ICU bedridden patients that is convenient to don and doff, comprising: the sleeves (10) are five-part sleeves; a strip-shaped temperature measuring hole which is positioned at the armpit part and is longitudinally arranged is arranged between the robe body (1) and the sleeves (10) positioned at the left side.

3. The patient gown of claim 1 for ICU bedridden patients that is convenient to don and doff, comprising: the robe body (1), the upper connecting belt (7), the lower connecting belt (8), the connecting cloth rings (9) and the sleeves (10) are all made of washing cotton.

4. The patient gown of claim 1 for ICU bedridden patients that is convenient to don and doff, comprising: the lower connecting belt (8) and the plastic buckle (6) are distributed in different sides.

5. The patient gown of claim 1 for ICU bedridden patients that is convenient to don and doff, comprising: the number of the buttons (3) is three; the front side and the rear side of the front opening are both provided with connecting cloth pieces (12), and the clothes button (3) is sewed on the connecting cloth pieces (12) positioned on the rear side and passes through a connecting hole formed in the connecting cloth pieces (12) on the front side.
