Abstract

The utility model discloses an integrally formed steel ring sleeve which comprises a braid main body, wherein the braid main body comprises an upper layer and a lower layer which are integrally woven by warps and wefts, a supporting layer formed by yarns is formed between the upper layer and the lower layer, the upper layer, the supporting layer and the lower layer jointly form the steel ring sleeve for underwear, the supporting layer is woven by covering yarns and is connected with the upper layer and the lower layer, so that the supporting layer, the upper layer and the lower layer form an integrated structure which is mutually connected and is formed at one time. The underwear steel ring sleeve uses the wrapping yarn as a supporting layer, has certain stiffness and camber, and has good supporting effect on the chest; the curvature and stiffness of the bra cup can be adjusted according to the size of the bra cup and the actual wearing requirement, when the bra cup is used for manufacturing underwear, a steel ring is not needed for shaping, the underwear is well shaped, breasts can not be squeezed when the bra cup is worn, the bra cup is comfortable and attractive, the production efficiency is improved, and the production cost is reduced.

Description

Integrated into one piece's steel ring cover and underwear

Technical Field

The utility model relates to the technical field of underwear, in particular to an integrally formed steel ring sleeve and an underwear prepared by adopting the steel ring sleeve.

Background

With the development of the garment market, the woven tape has become an essential auxiliary material for underwear. The steel ring sleeved underwear is also the first choice of many modern women, and the main functions are supporting and stabilizing, fixing the position of the chest, assisting in improving the chest line, and preventing the chest from drooping, expanding and relaxing. However, steel ring underwear also causes many troubles to women, such as skin damage and negative effects on the body caused by blood not flowing.

The long-time wearing of the steel ring underwear can cause skin red swelling and mastalgia, and the body can be injured due to the friction and pinching of the steel ring inside the steel ring underwear when the body moves. If the underwear is worn for a long time, the steel ring in the underwear can be exposed after multiple times of rubbing and washing, and the skin is easily scratched. And skin inflammation, which is caused by allergic reaction to nickel and other metals in the steel ring and skin contact. Meanwhile, when wearing the steel ring underwear, the axillary lymph nodes are easily pressed, so that the lymph flow is blocked, the blood circulation is also influenced, and more serious breast diseases such as breast cancer of modern women occur. Therefore, reducing the pressure of the steel ring on the mammary gland is an important measure for preventing the mammary gland diseases. However, most steel ring-sleeved undergarments on the market contain steel rings.

For example, the utility model CN202819663U discloses a built-in steel ring cover bust mold cup. The novel fabric edge sewing die comprises a first material layer and a second material layer, wherein a steel ring sleeve is embedded between the first material layer and the second material layer, an opening is formed in the steel ring sleeve, a steel ring can be placed into the die cup in the later production stage, and therefore a manufacturer can conveniently sew laces or fillers. Because arrange in between the first bed of material second bed of material in the steel ring cover, it is safe comfortable more than traditional external sewing steel ring cover, non-deformable pilling, skin of laminating more. The utility model CN105249550A discloses an underwear steel ring cover and a method for preparing underwear. Comprises a hollow sleeve body made of cloth. The hollow sleeve body is provided with a hollow part for accommodating a steel ring to be installed. Further comprising: a core wire is inserted in the hollow part, and the core wire and the hollow sleeve body slide relatively. The design solves the problem of resistance when the steel ring is inserted into the flat steel ring sleeve, so that wrinkles, holes and the phenomenon that the steel ring sleeve is tightened can be left on the surface of the steel ring sleeve when the steel ring is inserted into the steel ring sleeve in the underwear manufacturing process. The comfortable feeling of the women wearing the underwear is improved while the product is more attractive.

The prior art improves the wearing comfort of the steel ring underwear to a certain extent, but the prior art contains the steel ring to carry out secondary fixation on the underwear cup, and the problem of oppression of the steel ring on the mammary gland is not fundamentally solved. Although various kinds of steel ring-free underwear such as attached underwear and traceless underwear which are popular in the market improve the wearing comfort, the shaping performance is poor, the supporting effect on the chest is weak, and the effect of supporting the chest cannot be achieved.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the technical problem of providing an integrally formed steel ring sleeve which is formed in one step, does not need to be secondarily shaped by using a steel ring and is good in underwear forming.

In order to solve the technical problems, the utility model adopts the following technical scheme:

the utility model provides an integrated into one piece's steel ring cover, includes the meshbelt main part, the meshbelt main part includes upper strata and lower floor that body spare includes weaved through yarn longitude and latitude an organic whole, is formed with the supporting layer that constitutes by the yarn between upper strata and the lower floor, and upper strata, supporting layer and lower floor constitute the steel ring cover that the underwear was used jointly.

As a further scheme, the upper layer and the lower layer are integrally woven into an integral structure through warp yarns and weft yarns.

As a further aspect, the support layer is woven using a covering yarn and is connected with the upper layer and the lower layer, so that the support layer, the upper layer, and the lower layer are formed as an integral structure connected with each other and formed at one time.

As a further scheme, the width of the supporting layer accounts for 30% -80% of the bandwidth of the ribbon main body.

As a further scheme, gap areas are respectively arranged between the support layer and the upper layer and between the support layer and the lower layer.

As a further aspect, the support layer is provided at a central region of the webbing body.

As a further scheme, the covering yarn comprises a core layer and an outer layer covering yarn, wherein the core layer is spandex and oak root or elastic textile yarns except the spandex and the oak root.

As a further scheme, the core layer of the covering yarn has the diameter of 280D-840D.

As a further scheme, the outer layer of the covering yarn is nylon or terylene.

As a further scheme, the main body of the mesh belt is an elastic mesh belt.

An undergarment comprising a steel ring sleeve as described above.

The utility model adopts the covering yarn as the supporting layer, can adjust the radian and the stiffness of the steel ring sleeve according to the actual requirements of ready-made clothes, and when the covering yarn is used for manufacturing underwear, the underwear can be well formed without secondary shaping by using the steel ring, namely, the steel ring does not need to be arranged inside the steel ring sleeve, thereby having good supporting and fixing effects on the chest. Because no steel ring is arranged inside, the problems of skin scratch and breast disease caused by pressing the mammary gland are avoided. And through the wrapping yarn, the steel ring sleeve has good radian and stiffness, when the steel ring sleeve is used for manufacturing underwear, the shaping of the underwear, the supporting and fixing effects on the chest are better, the negative influence of the steel ring underwear on a wearer is reduced, and the wearing comfort and safety of the underwear are ensured.

Drawings

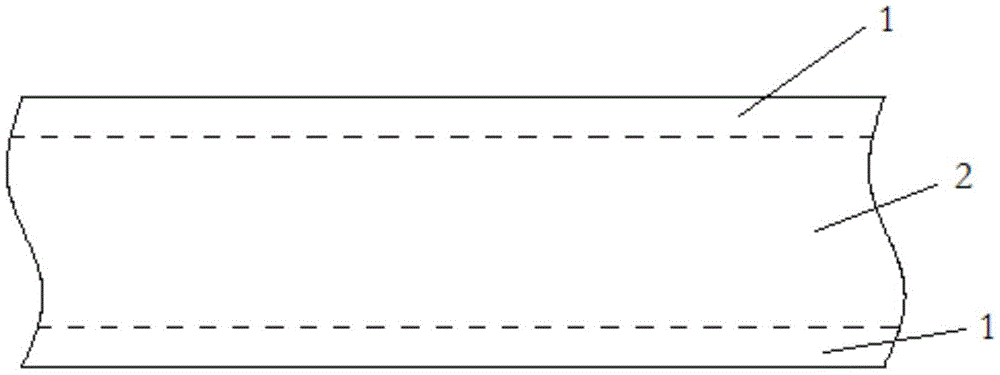

FIG. 1 is a schematic top view of the present invention;

FIG. 2 is a schematic view of the cross-sectional structure of the weft of the present invention;

FIG. 3 is a schematic drawing of a palm fiber threading operation in the weaving process of the present invention;

fig. 4 is a schematic view of an organization structure of the present invention.

Detailed Description

For further understanding of the features and technical means of the present invention, as well as the specific objects and functions attained by the present invention, the present invention will be described in further detail with reference to the accompanying drawings and detailed description.

It should be noted that the above-mentioned directional definitions, such as the terms for describing the orientation of left, right, up, down, etc., are all described based on the drawings, and are not intended to limit the contents.

As shown in the attached drawings 1 and 2, the utility model provides an integrally formed steel ring sleeve, which comprises a braid main body, wherein the braid main body comprises an upper layer 1 and a lower layer 3 which are integrally woven by warps and wefts of yarns, a supporting layer 2 formed by the yarns is formed between the upper layer 1 and the lower layer 3, and the upper layer 1, the supporting layer 2 and the lower layer 3 jointly form the steel ring sleeve for underwear. The inner part of the steel ring sleeve is directly shaped once without additionally embedding a steel ring.

The supporting layer is woven by adopting covering yarns and is connected with the upper layer and the lower layer, so that the supporting layer, the upper layer and the lower layer are formed into an integrated structure which is connected with each other and is formed in one step. After the structure is formed, an integral steel ring sleeve is formed and is directly applied to underwear cups to play a role in supporting. The radian and stiffness of the steel ring sleeve can be adjusted according to the actual requirements of ready-made clothes by utilizing certain hardness characteristics of the wrapping yarn, and when the wrapping yarn is used for manufacturing underwear, the underwear can be well molded without secondary shaping by utilizing the steel ring, so that the bra has good supporting and fixing effects on the chest.

The width of the supporting layer accounts for 30% -80% of the bandwidth of the main body of the woven tape, and when the width is larger, a better stiffening effect can be achieved according to requirements. Experiments prove that only when the interval range is set in the interval range, the supporting layer can play a corresponding supporting role without a built-in steel ring. If the width of the supporting layer accounts for less than 30% of the main body of the woven belt, the supporting layer is difficult to be used in underwear and cannot play a corresponding stiffness, and if the width of the supporting layer exceeds 80%, the comfort is poor, large friction is caused to skin, and the comfort is poor.

And gap areas are respectively arranged between the supporting layer and the upper layer and between the supporting layer and the lower layer. And the supporting layer is arranged in the central area of the braid main body, so that the supporting layer is equal to the interval area between the upper layer and the lower layer, the integral structure is more attractive, and the weaving forming is facilitated. The gap region is defined in the longitudinal direction of the webbing body, i.e., the warp direction. When the whole is woven, the covering yarns of the supporting layer can be connected with the upper layer and the lower layer, and the whole stability is ensured.

In addition, the covering yarn comprises a core layer and an outer layer, wherein the core layer is made of spandex, oak root or other elastic textile yarns, so that the supporting layer is ensured to have certain elasticity.

The core layer of the covering yarn has the diameter of 280D or more and N or less than 840D, and the outer layer of the covering yarn is made of nylon or terylene.

The meshbelt main part is the elasticity meshbelt for whole has elasticity, can promote the travelling comfort.

According to the utility model, the supporting layer in the mesh belt main body is connected with the upper layer and the lower layer by the covering yarns to form an integrated structure, and the integrated structure is directly formed at one time without arranging the steel ring in the steel ring sleeve, so that the problems that the skin is scratched by the exposed steel ring and the mammary gland is pressed by the steel ring in the wearing process of the traditional underwear with the steel ring to cause mammary gland diseases can be avoided.

The following description is given with the aid of a specific preparation example.

For the specific manufacture of the ribbon of the utility model, the manufacturing equipment involved is mainly a shuttleless ribbon loom. Manufacturing by adopting a velvet machine:

1. preparation of root wrapping

560D spandex yarn and 70/24/1SD nylon are used for double wrapping, the core layer is 560D spandex, and the inner and outer layer wrapping yarns are both 70/24/1SD nylon, thus forming a root wrapping yarn N5601/24.

Double-wrapping 280D spandex filaments and 70/24/1SD nylon, wherein the core layer is 280D spandex, and the inner and outer layer wrapping yarns are 70/24/1SD nylon to form a root wrapping yarn N2801/37.

2. Preparation of warping:

and winding the warp used by the woven tape on a warp beam in a classified manner to prepare before weaving. The warp has body frame spandex covering yarn N2801/3736; the supporting layer wraps yarns N5601/2414; elastic nylon 40/12/2 SD 298 strips; all warps are subjected to warping to prepare a coiled material.

3. Chuanzuo (Chinese palm seed and palm leaf)

All the warps are passed through the palm fiber holes according to the order of the warps arranged on the palm fiber passing chart shown in figure 3. (the numbers "1, 2, 3 …" in the small grid of figure 3 represent the number of the palm frame; the numbers "speak1 &2 &3 & …" in the arrow grid represent the order of the yarn entering the reed)

4. Production density

The density of the fabric of this example was 19.6 stitches/cm.

5. Width sum reed

In this example, the width of the finished product is 10mm, the specification of the reed is 12.5 (i.e., 12.5 grids per inch), and the total number of 16 grids, and the warp yarns are threaded into each grid of the reed according to the reed-threading sequence of the palm drawing shown in fig. 3.

6. Weft thread

The weft yarn of the embodiment is 70/24/1SD Nylon.

7. Law of tissue structure motion

FIG. 4 is a structural diagram of the weave of the present embodiment, which is a chain weave according to the illustration, wherein the 1 st, 2 nd, 3 rd and 4 th frames are covering yarn structures of the supporting layer, the weave structure is one-over-one-under-one, and the upper layer L1 and the lower layer L3 are connected, and the connecting yarns are not cut apart to form the supporting layer when the woven tape is discharged from the weaving machine; the 11 th, 13 th, 15 th and 17 th frames are in a band surface structure, and yarns mainly move up and down; the 12 th, 14 th, 16 th and 18 th frames are of a bottom structure, and yarns mainly go seven next to one above.

8. Weft insertion beating-up

The weft yarn 70/24/1SD Nylon passes through the weft yarn conveyor and passes through the weft yarn hook hole, the weft yarn hook drives the weft yarn to cross the opening, the latch needle collects the weft yarn, the reed swings back and forth, and the weft yarn passing through the opening is compacted to form the woven belt.

9. The rubber roller rotates to form the braid, and the manufacturing density of each braid section is adjusted through the manufacturing density adjusting driving device.

Although the present invention has been described in detail with reference to the embodiments, it will be apparent to those skilled in the art that modifications, equivalents, improvements, and the like can be made in the technical solutions of the foregoing embodiments or in some of the technical features of the foregoing embodiments, but those modifications, equivalents, improvements, and the like are all within the spirit and principle of the present invention.

Claims (10)

1. The utility model provides an integrated into one piece's steel ring cover, includes the meshbelt main part, its characterized in that, the meshbelt main part includes upper strata and lower floor that body spare includes weaved through yarn longitude and latitude an organic whole, is formed with the supporting layer that comprises the yarn between upper strata and the lower floor, and upper strata, supporting layer and lower floor constitute the steel ring cover that the underwear was used jointly.

2. An integrally formed steel ring sheath according to claim 1, wherein the upper and lower layers are integrally woven together as a unitary structure by warp and weft yarns.

3. A unitarily formed steel snare according to claim 2, wherein the support layer is braided with a wrap yarn and connected with the upper and lower layers such that the support layer, upper and lower layers are formed as a unitary structure connected to each other and formed in one piece.

4. An integrally formed steel ring web according to claim 3, wherein the width of the support layer is 30-80% of the width of the main body of the ribbon.

5. An integrally formed steel snare according to claim 4, wherein the support layer has a gap region between the support layer and each of the upper and lower layers.

6. An integrally formed steel ring sheath according to claim 5, wherein the cover yarn includes a core layer and an outer layer of cover yarn, the core layer being spandex, oak root, or an elastic textile yarn other than spandex, oak root.

7. A unitarily formed steel snare according to claim 6, wherein the core diameter of the cover yarn is between 280D and 840D.

8. A unitarily formed steel snare according to claim 7, wherein an outer layer of the cover yarn is nylon or dacron.

9. A unitarily formed steel snare according to claim 8, wherein the webbing body is an elastic webbing.

10. An undergarment comprising a underwire cover according to any of claims 1-9.
