Abstract
The utility model discloses a tool clamp for machining a hole of an end cover of a motor, which comprises a working box and a limiting mechanism, wherein a fixed block is fixedly connected to the inner wall of the working box, the upper end surface of the fixed block is fixedly connected with a working table, and a cavity is formed in the working table. According to the utility model, the first threaded rod can be driven to rotate through the matching arrangement of the speed reducing motor, the worm and the worm wheel, the first threaded rod can drive the vertical rod to move relatively through the first threaded sleeve, the vertical rod can drive the clamping plate to move and clamp the motor end cover body through the matching arrangement of the push block and the push rod, the motor end cover body is prevented from moving left and right, the size of the clamp can be adjusted according to the size of the motor end cover body, and further the practicability of the clamp is improved; through the cooperation setting of second threaded rod, second thread bush and connecting block, can drive the dead lever and support on the motor end cover body, prevent that the motor end cover body from reciprocating, the reinforcing is to the fixed effect of motor end cover body.
Description
Technical Field
The utility model relates to the technical field of motor end covers, in particular to a tool clamp for machining a motor end cover hole.
Background
The jig is a device for fixing a processing object to occupy a correct position for receiving construction or inspection in a machine manufacturing process, and is also called a jig. In a broad sense, any device used to quickly, conveniently and safely mount a workpiece at any stage in a process may be referred to as a jig.
The motor end cover needs to be clamped by the clamp in the production and punching process, the motor end covers of different models are different in size, but the size of the existing clamp is fixed, the size of the clamp cannot be adjusted according to the motor end covers of different sizes, and the practicability of the clamp is further reduced.
In order to solve the problems, a tooling clamp for machining a hole of a motor end cover is provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims to overcome the defects that in the prior art, the motor end covers need to be clamped by clamps in the production and punching process of the motor end covers, the sizes of the motor end covers of different models are different, but the sizes of the existing clamps are fixed, and the sizes of the clamps cannot be adjusted according to the motor end covers of different sizes, so that the practicability of the clamps is reduced, and the tool clamp for machining the holes of the motor end covers is provided.
In order to achieve the purpose, the utility model adopts the following technical scheme:
a tooling fixture for machining holes of motor end covers comprises a working box and a limiting mechanism, wherein a fixed block is fixedly connected to the inner wall of the working box, a workbench is fixedly connected to the upper end face of the fixed block, a cavity is formed in the workbench, a groove is formed in the upper end face of the fixed block, a speed reducing motor is fixedly connected to the groove, the output end of the speed reducing motor penetrates through the lower end face of the workbench and is fixedly connected with a worm, the upper end of the worm is rotatably connected to the inner wall of the cavity, a worm wheel is meshed and connected to the worm, a first threaded rod is horizontally and fixedly inserted into the center of the worm wheel, two sections of opposite threads are arranged on the first threaded rod, two first threaded sleeves are symmetrically meshed and connected to the first threaded rod, a vertical rod is fixedly connected to the upper end of each first threaded sleeve, two sliding holes are symmetrically formed in the upper end face of the workbench, every the upper end of montant all runs through slide opening and fixedly connected with ejector pad, two the equal fixedly connected with horizontal pole in the relative one side of ejector pad, every the equal fixedly connected with splint of the other end of horizontal pole, the up end of workstation is provided with the motor end cover body.
Preferably, stop gear includes two L type connecting rods, every the equal fixed connection of L type connecting rod is on the up end of ejector pad, every the straight section of thick bamboo of the equal fixedly connected with of the other end of L type connecting rod, every all rotate on the inner wall of a straight section of thick bamboo and be connected with the second threaded rod, every all mesh on the second threaded rod and be connected with the second thread bush, two the equal fixedly connected with connecting block in one side that the second thread bush is relative, two the through-hole has all been seted up to one side that the straight section of thick bamboo is relative, two the one end that the connecting block is relative all runs through-hole and fixedly connected with dead lever, every the lower extreme of dead lever all supports on the up end of motor end cover body.
Preferably, the upper end of the second threaded rod penetrates through the upper end face of the straight cylinder and is fixedly connected with a grab handle, each second threaded rod is rotatably connected to the inner wall of the straight cylinder, and each connecting block is slidably connected to the through hole.
Preferably, fixedly connected with electric telescopic handle on the inner wall of work box, electric telescopic handle's flexible end fixedly connected with driving motor, driving motor's output fixedly connected with drill bit, the processing groove has been seted up to the up end of workstation.
Preferably, both ends all rotate about first threaded rod and connect on the inner wall of work box, two the equal sliding connection of montant is in the slide opening, two one side that the splint is relative all supports on the lateral wall of motor end cover body.
Preferably, a box door is arranged on the side wall of the working box, and a handle is fixedly connected to the side wall of the box door.
Compared with the prior art, the utility model has the beneficial effects that:
the first threaded rod can be driven to rotate through the matched arrangement of the speed reducing motor, the worm and the worm wheel, the first threaded rod can drive the vertical rod to move relatively through the first threaded sleeve, the vertical rod can drive the clamping plate to move and clamp the motor end cover body through the matched arrangement of the push block and the push rod, the motor end cover body is prevented from moving left and right, the size of the clamp can be adjusted according to the size of the motor end cover body, and the practicability of the clamp is further improved; through the cooperation setting of second threaded rod, second thread bush and connecting block, can drive the dead lever and support on motor end cover body, prevent that motor end cover body from reciprocating, the reinforcing is to the fixed effect of motor end cover body.
Drawings
Fig. 1 is a schematic front perspective view of a tooling fixture for machining a motor end cover hole according to the present invention;

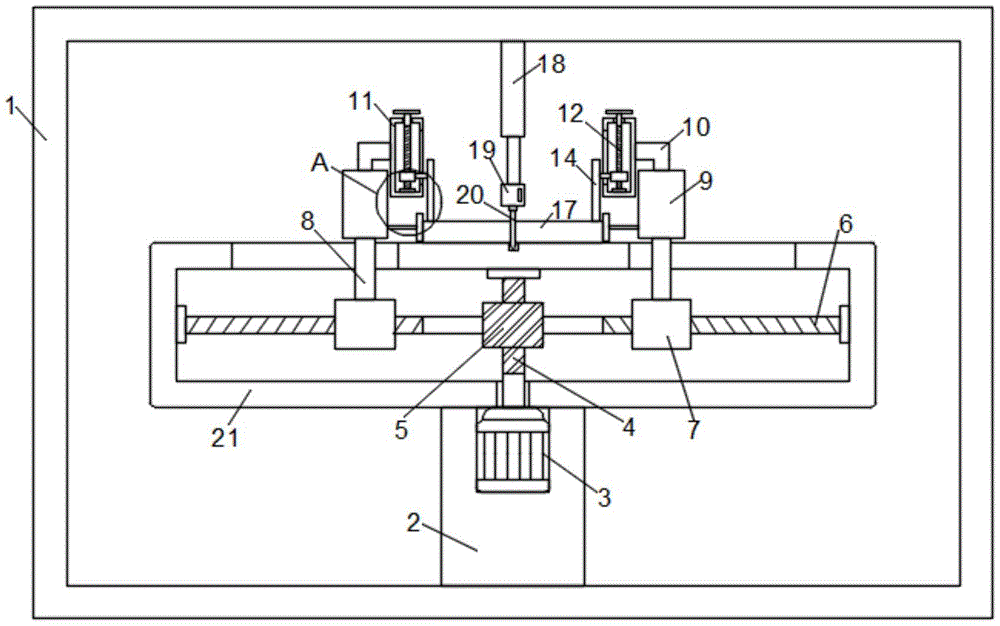

fig. 2 is a schematic front sectional structural view of a tooling fixture for machining a hole of a motor end cover according to the present invention;
fig. 3 is an enlarged schematic structural diagram of a point a in fig. 2 according to the present invention.
In the figure: 1 work box, 2 fixed blocks, 3 gear motor, 4 worms, 5 worm wheels, 6 first threaded rods, 7 first thread bushings, 8 vertical rods, 9 push blocks, 10L-shaped connecting rods, 11 straight cylinders, 12 second threaded rods, 13 second thread bushings, 14 fixed rods, 15 cross rods, 16 clamping plates, 17 motor end cover bodies, 18 electric telescopic rods, 19 driving motors, 20 drill bits and 21 work tables.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, are merely for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
Referring to fig. 1-3, a tooling fixture for processing holes of a motor end cover comprises a working box 1 and a limiting mechanism, wherein a fixed block 2 is fixedly connected to the inner wall of the working box 1, a working table 21 is fixedly connected to the upper end surface of the fixed block 2, a cavity is formed in the working table 21, a groove is formed in the upper end surface of the fixed block 2, a speed reducing motor 3 is fixedly connected to the groove, the output end of the speed reducing motor 3 penetrates through the lower end surface of the working table 21 and is fixedly connected with a worm 4, the upper end of the worm 4 is rotatably connected to the inner wall of the cavity, a worm wheel 5 is engaged and connected to the worm 4, a first threaded rod 6 is horizontally and fixedly inserted into the center of the worm wheel 5, two sections of opposite threads are arranged on the first threaded rod 6, two first threaded sleeves 7 are symmetrically engaged and connected to the first threaded rod 6, a vertical rod 8 is fixedly connected to the upper end of each first threaded sleeve 7, and two sliding holes are symmetrically formed in the upper end surface of the working table 21, the upper end of every montant 8 all runs through slide opening and fixedly connected with ejector pad 9, the equal fixedly connected with horizontal pole 15 in one side that two ejector pads 9 are relative, the equal fixedly connected with splint 16 of the other end of every horizontal pole 15, the up end of workstation 21 is provided with motor end cover body 17, through gear motor 3, worm 4 and worm wheel 5's cooperation setting, can drive first threaded rod 6 and rotate, first threaded rod 6 can drive montant 8 relative movement through first thread bush 7, montant 8 can pass through the cooperation setting of ejector pad 9 and push rod 15, can drive splint 16 and remove and carry out the centre gripping to motor end cover body 17, prevent that motor end cover body 17 from removing and controlling, and can be according to motor end cover body 17's size adjustment anchor clamps, and then improve the practicality of anchor clamps.
Wherein, the limiting mechanism comprises two L-shaped connecting rods 10, each L-shaped connecting rod 10 is fixedly connected on the upper end surface of the pushing block 9, the other end of each L-shaped connecting rod 10 is fixedly connected with a straight cylinder 11, the inner wall of each straight cylinder 11 is rotatably connected with a second threaded rod 12, each second threaded rod 12 is engaged and connected with a second threaded sleeve 13, one opposite side of each second threaded sleeve 13 is fixedly connected with a connecting block, one opposite side of each straight cylinder 11 is provided with a through hole, one opposite end of each connecting block penetrates through the through hole and is fixedly connected with a fixing rod 14, the lower end of each fixing rod 14 is supported on the upper end surface of the motor end cover body 17 and is arranged by the matching of the second threaded rod 12, the second threaded sleeves 13 and the connecting blocks, the fixing rod 14 can be driven to abut against the motor end cover body 17, so that the motor end cover body 17 is prevented from moving up and down.
Wherein, the upper end of two second threaded rods 12 all runs through the up end and the fixedly connected with grab handle of straight section of thick bamboo 11, and every second threaded rod 12 all rotates to be connected in the inner wall of straight section of thick bamboo 11, and the equal sliding connection of every connecting block is in the through-hole, and second threaded rod 12 can drive second thread bush 13 and remove.
Wherein, fixedly connected with electric telescopic handle 18 on the inner wall of work box 1, electric telescopic handle 18's flexible end fixedly connected with driving motor 19, driving motor 19's output fixedly connected with drill bit 20, the processing groove has been seted up to the up end of workstation 21, and electric telescopic handle 18 can drive driving motor 19 and remove.
Wherein, both ends all rotate about first threaded rod 6 and connect on the inner wall of work box 1, and two equal sliding connection of montant 8 are in the slide opening, and two splint 16 relative one side all support on the lateral wall of motor end cover body 17, and splint 16 can carry out the centre gripping to motor end cover body 17.
Wherein, the lateral wall of the working box 1 is provided with a box door, the lateral wall of the box door is fixedly connected with a handle, and the handle is convenient for opening the box door.
When the motor end cover body 17 is used, the motor end cover body 17 is placed on the workbench 21, the speed reduction motor 3 is started, the output end of the speed reduction motor drives the worm 4 to rotate, the worm 4 drives the first threaded rod 6 to rotate through the worm wheel 5, the first threaded rod 6 drives the two first threaded sleeves 7 to move relatively, the first threaded sleeves 7 drive the push block 9 to move through the vertical rod 8, the push block 9 drives the clamp plate 16 to abut against the motor end cover body 17 through the cross rod 15 to clamp the motor end cover body 17, and the motor end cover body 17 is prevented from moving left and right; holding the grab handle and rotating, the grab handle can drive the second threaded rod 12 to rotate, the second threaded rod 12 can move downwards through the second threaded sleeve 13, the second threaded sleeve 13 drives the fixing rod 14 to move downwards through the connecting block, so that the fixing rod 14 is abutted against the motor end cover body 17 to fix the motor end cover body 17 and prevent the motor end cover body 17 from moving up and down; starting the electric telescopic rod 18, driving the drill bit 20 to abut against the motor end cover body 17 through the driving motor 19 at the telescopic end of the electric telescopic rod, starting the driving motor 19, and driving the drill bit 20 to rotate at the output end of the electric telescopic rod, so that the motor end cover body 17 is punched; the first threaded rod 6 can be driven to rotate through the matched arrangement of the speed reducing motor 3, the worm 4 and the worm wheel 5, the first threaded rod 6 can drive the vertical rod 8 to move relatively through the first threaded sleeve 7, the vertical rod 8 can drive the clamping plate 16 to move and clamp the motor end cover body 17 through the matched arrangement of the push block 9 and the push rod 15, the motor end cover body 17 is prevented from moving left and right, the size of the clamp can be adjusted according to the size of the motor end cover body 17, and further the practicability of the clamp is improved; through the cooperation setting of second threaded rod 12, second thread bush 13 and connecting block, can drive dead lever 14 and support on motor end cover body 17, prevent that motor end cover body 17 from reciprocating, the reinforcing is to the fixed effect of motor end cover body 17.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.
Claims (6)
1. The utility model provides a frock clamp of motor end cover spot facing work usefulness, includes work box (1) and stop gear, its characterized in that, fixedly connected with fixed block (2) on the inner wall of work box (1), up end fixedly connected with workstation (21) of fixed block (2), it has the cavity to open in workstation (21), the up end of fixed block (2) is seted up flutedly, fixedly connected with gear motor (3) in the recess, the output of gear motor (3) runs through the lower terminal surface of workstation (21) and fixedly connected with worm (4), the upper end of worm (4) is rotated and is connected on the inner wall of cavity, meshing is connected with worm wheel (5) on worm (4), the center department level of worm wheel (5) is fixed to be interspersed and is had first threaded rod (6), be provided with two sections opposite screw thread on first threaded rod (6), symmetrical meshing is connected with two first thread bushings (7), every on first threaded rod (6) the equal fixedly connected with montant (8) in upper end of first thread bushing (7), two sliding holes have been seted up to the up end symmetry of workstation (21), every sliding hole and fixedly connected with ejector pad (9), two are all run through to the upper end of montant (8) the equal fixedly connected with horizontal pole (15) in one side that ejector pad (9) is relative, every the equal fixedly connected with splint (16) of the other end of horizontal pole (15), the up end of workstation (21) is provided with motor end cover body (17).
2. The tooling clamp for machining the hole of the motor end cover of claim 1, wherein the tooling clamp comprises a base, stop gear includes two L type connecting rods (10), every equal fixed connection of L type connecting rod (10) is on the up end of ejector pad (9), every the straight section of thick bamboo (11) of the equal fixedly connected with of the other end of L type connecting rod (10), every all rotate on the inner wall of straight section of thick bamboo (11) and be connected with second threaded rod (12), every equal meshing is connected with second thread bush (13), two on second threaded rod (12) the equal fixedly connected with connecting block in one side that second thread bush (13) is relative, two the through-hole has all been seted up to one side that straight section of thick bamboo (11) is relative, two the one end that the connecting block is relative all runs through-hole and fixedly connected with dead lever (14), every the lower extreme of dead lever (14) all supports on the up end of motor end cover body (17).
3. A tooling clamp for machining holes of motor end caps according to claim 2, wherein the upper ends of the two second threaded rods (12) penetrate through the upper end surface of the straight cylinder (11) and are fixedly connected with a grab handle, each second threaded rod (12) is rotatably connected in the inner wall of the straight cylinder (11), and each connecting block is slidably connected in the through hole.
4. The tool clamp for machining the hole of the motor end cover is characterized in that an electric telescopic rod (18) is fixedly connected to the inner wall of the working box (1), a driving motor (19) is fixedly connected to the telescopic end of the electric telescopic rod (18), a drill bit (20) is fixedly connected to the output end of the driving motor (19), and a machining groove is formed in the upper end face of the working table (21).
5. A tooling clamp for machining holes of motor end caps according to claim 1, wherein the left end and the right end of the first threaded rod (6) are rotatably connected to the inner wall of the working box (1), the two vertical rods (8) are slidably connected to the sliding holes, and the opposite sides of the two clamping plates (16) are abutted to the side wall of the motor end cap body (17).
6. The tooling clamp for machining the hole of the motor end cover is characterized in that a box door is arranged on the side wall of the working box (1), and a handle is fixedly connected to the side wall of the box door.
