Abstract
The utility model discloses an adjustable bracket is used in cable laying turn, include: the first mounting support frame is used for being connected with the ground support; the second mounting support frame is fixedly connected with the first mounting support frame; the cable laying guide frame is arranged by connecting a plurality of pulley blocks in series, each pulley block comprises a pulley mounting seat and a pulley, a structure used for being connected in series is arranged on each pulley mounting seat, installation angles can be adjusted between the pulley mounting seats, the pulleys are mounted on the pulley mounting seats and connected in series, the pulleys form a cable laying guide rail, one end of the cable laying guide frame is connected with the first installation support frame, and the other end of the cable laying guide frame is connected with the second installation support frame. A single cable laying turns and can satisfy the turn of laying of most specification cables with adjustable support, improves cable laying's quality and efficiency.
Description
Technical Field
The utility model relates to a cable laying equipment technical field especially relates to a cable laying turns and uses adjustable support.
Background
In the cable construction laying process, a specific support is often required to be arranged at some corner wells to ensure that cables are safely turned to the underground from the ground, only a single fixed cable laying turning support is arranged on the market at present, the laying radius can not be adjusted, the turning of cables with specific diameters can only be met, and the turning of cables with various specifications can not be met.
Traditional cable laying turns support adopts the welded type fixed bolster, and the support exists with whole form in the use promptly, and the quality is heavier, and is bulky, and is comparatively inconvenient in transport and transportation, and can't be applicable to the turn of multiple diameter cable and lay, also can't be applicable to laying of cable under a plurality of scenes.
SUMMERY OF THE UTILITY MODEL
The utility model discloses aim at solving one of the technical problem that exists among the prior art at least. Therefore, the utility model provides an adjustable support is used in cable laying turn can improve cable laying's quality and efficiency.
According to the utility model discloses an adjustable support is used in cable laying turn, include:
the first mounting support frame is used for being connected with a ground support;
the second mounting support frame is fixedly connected with the first mounting support frame;
the cable laying guide frame is arranged by connecting a plurality of pulley blocks in series, each pulley block comprises a pulley mounting seat and a pulley, a structure used for being connected in series is arranged on each pulley mounting seat, installation angles can be adjusted between the pulley mounting seats, the pulleys are mounted on the pulley mounting seats and connected in series, the pulleys form a cable laying guide rail, one end of the cable laying guide frame is connected with the first installation support frame, and the other end of the cable laying guide frame is connected with the second installation support frame.
According to the utility model discloses cable laying turns uses adjustable support has following beneficial effect at least: the cable laying guide frame is formed by connecting a plurality of pulley blocks in series, the cable laying guide rail formed by pulleys can be changed by adjusting the mounting angle between adjacent pulley mounting seats, the purpose of adjusting the turning radius of the cable laying guide rail is achieved, after the turning radius of the cable laying guide frame is adjusted, the two ends of the cable laying guide frame are connected and fixed with the first mounting support frame and the second mounting support frame, the turning radius of the cable laying guide rail is fixed, and the corresponding cable laying scene is met.
According to the utility model discloses a some embodiments, the bottom both ends of pulley mount pad are equipped with the hinge hole, and the round pin axle passes the hinge hole is with adjacent two pulley mount pad is articulated together, be equipped with the locating hole on the pulley mount pad, the both ends and the adjacent two of connecting plate on the pulley mount pad the locating hole is connected, with the restriction the pulley mount pad rotates.
According to some embodiments of the utility model, first erection bracing frame includes at least a set of first installation steel pipe and first support go-between, be equipped with mounting structure on the first installation steel pipe to be used for fixed mounting subaerial, the one end of cable laying guide passes through first support go-between with first installation steel pipe is connected, first support go-between can be followed the mounted position is adjusted to first installation steel pipe.
According to some embodiments of the utility model, first support go-between includes first connection face and first connection ring portion, be equipped with first connecting hole on the first connection face, first connecting hole and first on the pulley mount pad the hinge hole is relative to through round pin axle fixed connection, first connection ring portion slip suit is in on the first installation steel pipe, be equipped with first mounting hole in the first connection ring portion, first installation steel pipe correspondence is equipped with a plurality of first regulation holes, first mounting hole can with one of them first regulation hole is relative to through round pin axle fixed connection.
According to some embodiments of the utility model, the second erection bracing frame includes at least a set of second installation steel pipe, second support go-between and steel pipe seat, the vertical setting of second installation steel pipe, the lower extreme of second installation steel pipe passes through the steel pipe seat with first installation steel pipe is connected, the other end of cable laying guide passes through the second support go-between with second installation steel pipe is connected, the second supports the go-between and can follow second installation steel pipe adjusts mounted position.
According to some embodiments of the utility model, the second supports the go-between and includes that the face is connected to the second and second connection ring portion, be equipped with the second connecting hole on the second connection plate face, the second connecting hole with pulley mounting is last the hinge hole is relative to through round pin axle fixed connection, second connection ring portion slip suit is in on the second installation steel pipe, be equipped with the second mounting hole on the second connection ring portion, second installation steel pipe correspondence is equipped with a plurality of second regulation holes, the second mounting hole can with one of them the second regulation hole is relative to through round pin axle fixed connection.
According to some embodiments of the utility model, the steel-pipe seat is equipped with first connection jack and second connection jack, the fixed cartridge of one end of first installation steel pipe is in the first connection jack, the fixed cartridge of lower extreme of second installation steel pipe is in the second connection jack.
According to the utility model discloses a some embodiments still include the bracing subassembly, the bracing subassembly sets up cable laying guide frame, first installation steel pipe and in the interval that second installation steel pipe encloses, the bracing subassembly is equipped with the diagonal brace, the support length can be adjusted to the diagonal brace, the one end of diagonal brace with first installation steel pipe is connected, the other end with second installation steel pipe is connected.
According to the utility model discloses a some embodiments still include at least two sets of side brace subassemblies, the side brace subassembly is equipped with the side brace, and is two sets of the side brace subassembly sets up the both sides of second installation steel pipe, the one end of side brace with second installation steel pipe is connected, and the other end can be connected with ground support.
According to the utility model discloses a some embodiments, the side vaulting pole is the telescopic link, can carry out length adjustment.
Additional aspects and advantages of the invention will be set forth in part in the description which follows and, in part, will be obvious from the description, or may be learned by practice of the invention.
Drawings
The above and/or additional aspects and advantages of the present invention will become apparent and readily appreciated from the following description of the embodiments, taken in conjunction with the accompanying drawings of which:

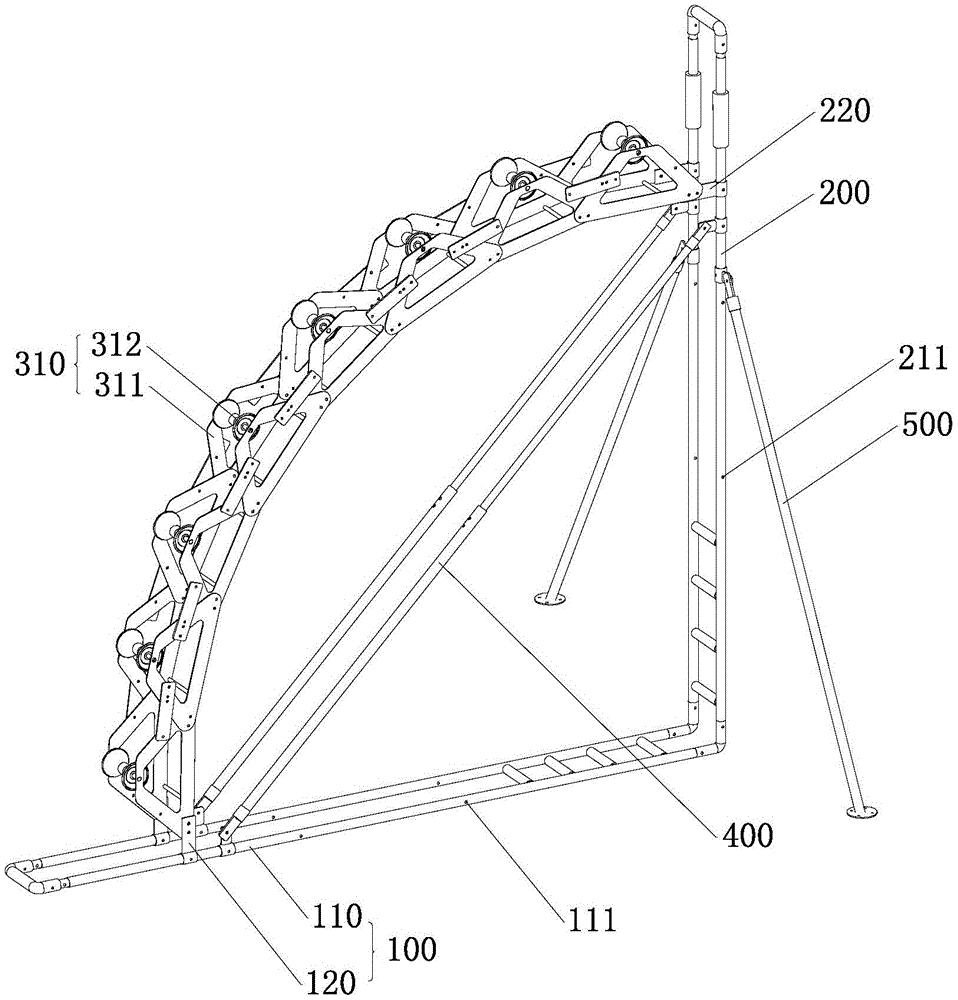

fig. 1 is a perspective view of an adjustable bracket for turning during cable laying according to an embodiment of the present invention;
fig. 2 is a front view of an adjustable bracket for turning during cable laying according to an embodiment of the present invention;
fig. 3 is a left side view of the adjustable bracket for turning during cable laying according to the embodiment of the present invention;
fig. 4 is a top view of an adjustable bracket for turning during cable laying according to an embodiment of the present invention;
FIG. 5 is an enlarged view of portion A of FIG. 2;
fig. 6 is a first schematic view of a state of the adjustable bracket for turning during cable laying according to the embodiment of the present invention;
fig. 7 is a schematic view of a state of the adjustable bracket for turning in cable laying according to the embodiment of the present invention;
fig. 8 is a schematic view of the adjustable bracket for cable laying turning according to the embodiment of the present invention laying a cable on the ground;
fig. 9 is the utility model discloses an adjustable support for cable laying turns in the schematic diagram of tunnel cabling.
Reference numerals:
100. a first mounting support frame; 110. a first installation steel pipe; 111. a first adjustment aperture; 120. a first support connection ring;
200. a second mounting support; 210. secondly, installing a steel pipe; 211. a second adjustment aperture; 220. a second support connection ring; 230. a steel pipe seat;
300. a cable laying guide frame; 310. a pulley block; 311. a pulley mounting seat; 3111. a hinge hole; 312. a pulley; 320. a connecting plate;
400. a diagonal bracing assembly; 500. a side support assembly.
Detailed Description
Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present invention, and should not be construed as limiting the present invention.
In the description of the present invention, it should be understood that the orientation or positional relationship indicated with respect to the orientation description, such as up, down, front, rear, left, right, etc., is based on the orientation or positional relationship shown in the drawings, and is only for convenience of description and simplification of description, and does not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention.
In the description of the present invention, a plurality of means are one or more, a plurality of means are two or more, and the terms greater than, less than, exceeding, etc. are understood as not including the number, and the terms greater than, less than, within, etc. are understood as including the number. If the first and second are described for the purpose of distinguishing technical features, they are not to be understood as indicating or implying relative importance or implicitly indicating the number of technical features indicated or implicitly indicating the precedence of the technical features indicated.
In the description of the present invention, unless there is an explicit limitation, the words such as setting, installation, connection, etc. should be understood in a broad sense, and those skilled in the art can reasonably determine the specific meanings of the above words in combination with the specific contents of the technical solution.
In addition, the technical solutions between the embodiments of the present invention can be combined with each other, but it is necessary to be able to be realized by a person having ordinary skill in the art as a basis, and when the technical solutions are contradictory or cannot be realized, the combination of such technical solutions should be considered to be absent, and is not within the protection scope of the present invention.
As shown in fig. 1 to 5, according to the utility model discloses an adjustable support is used in cable laying turn, include:
a first mounting bracket 100 for supporting connection to the ground;
the second mounting support frame 200 is fixedly connected with the first mounting support frame 100;
cable laying guide frame 300 is established ties by a plurality of assembly pulley 310 and sets up, assembly pulley 310 includes pulley mount pad 311 and pulley 312, is equipped with the structure that is used for establishing ties on the pulley mount pad 311 for can adjustable installation angle's series connection be in the same place between the pulley mount pad 311, pulley mount pad 311 is on pulley mount pad 311, pulley 312 after establishing ties constitutes cable laying guide rail, cable laying guide frame 300's one end is connected with first erection bracing frame 100, the other end is connected with second erection bracing frame 200.
Referring to fig. 2, 6 and 7, the cable laying guide frame 300 is formed by connecting a plurality of pulley blocks 310 in series, and the radius of the cable laying guide rail formed by the pulleys 312 can be changed by adjusting the installation angle between the adjacent pulley installation seats 311, so as to adjust the turning radius of the cable laying guide rail, after the turning radius of the cable laying guide frame 300 is adjusted, the two ends of the cable laying guide frame 300 are fixedly connected with the first installation support frame 100 and the second installation support frame 200, so as to fix the turning radius of the cable laying guide rail, thereby satisfying the corresponding cable laying scene.
Since the positions of both ends of the cable laying guide 300 are different due to the difference in the overall shape of the cable laying guide 300 having different turning radii, both ends of the cable laying guide 300 need to be connected to the first and second mounting brackets 100 and 200, respectively, after the turning radii of the cable laying guide 300 are adjusted.
In one embodiment, as shown in fig. 8 and 9, during cable laying at the surface, the cable is pulled from the cable drum and dragged along the cable laying guide rail to guide the cable into the tunnel well. And after entering the well, the cable is guided towards the tunnel by a second adjustable support for cable laying and turning. The turning radius of the adjustable bracket for turning the cable laying can be adjusted, so that the adjustable bracket for turning the cable laying can be suitable for various application scenes.
In some embodiments of the present invention, the bottom ends of the pulley mounting seat 311 are provided with hinge holes 3111, the pin shaft passes through the hinge holes 3111 to hinge the two adjacent pulley mounting seats 311 together, the pulley mounting seat 311 is provided with positioning holes, and the two ends of the connecting plate 320 are connected with the positioning holes on the two adjacent pulley mounting seats 311 to limit the rotation of the pulley mounting seat 311.
Specifically, the pulley mounting seat 311 includes two mounting panels, the two mounting panels are disposed oppositely, and two ends of the pulley 312 are rotatably mounted on the two mounting panels respectively. And both ends of the bottom of the mounting panel are provided with hinge holes for hinge connection.
In some embodiments of the present invention, the first installation support frame 100 includes at least one set of the first installation steel pipe 110 and the first support connection ring 120, the first installation steel pipe 110 is provided with an installation structure thereon for being fixedly installed on the ground, one end of the cable laying guide frame 300 is connected with the first installation steel pipe 110 through the first support connection ring 120, and the first support connection ring 120 can adjust the installation position along the first installation steel pipe 110. The installation structure is specifically a reserved installation hole, and the first installation steel pipe 110 is fixedly installed on the ground through the installation screw penetrating through the reserved installation hole.
After the turning radius of the cable laying guide 300 is adjusted, one end of the cable laying guide 300 is connected to the first installation steel pipe 110 through the first support coupling ring 120. Since the first support coupling ring 120 can adjust the installation position along the first installation steel pipe 110, it is possible to couple with the first installation steel pipe 110 through the first support coupling ring 120 regardless of the turning radius of the cable routing guide 300.
In the present embodiment, two sets of the first installation steel pipes 110 and the first support connection rings 120 are included, and the number of the first installation steel pipes 110 and the first support connection rings 120 may be adjusted according to the specific structure of the cable routing guide frame 300.
In the utility model discloses a further embodiment, first support coupling ring 120 includes first connection face and first connection ring portion, be equipped with first connecting hole on the first connection face, first connecting hole is relative with hinge hole 3111 on the first pulley mount 311, and connect through round pin axle fixed connection, first connection ring portion slip suit is on first installation steel pipe 110, be equipped with first mounting hole on the first connection ring portion, first installation steel pipe 110 corresponds and is equipped with a plurality of first regulation holes 111, first mounting hole can be relative with one of them first regulation hole 111, and connect through round pin axle fixed connection.
Specifically, the first support connection ring 120 includes a first connection plate surface and a first connection ring portion, and the first connection ring portion can be sleeved on the first installation steel pipe 110 and can slide on the first installation steel pipe 110. After the turning radius of the cable installation guide frame 300 is determined, the first support coupling ring 120 slides to a corresponding position so that the first installation hole can be opposite to one of the first adjustment holes 111, and is fixedly connected by a pin shaft to fixedly install the first support coupling ring 120 on the first installation steel pipe 110. The first connecting plate surface is opposite to the hinge hole 3111 of the first pulley mounting seat 311 through the first connecting hole and is fixedly connected through the pin shaft, so that the cable laying guide frame 300 is fixedly connected with the first connecting plate surface.
In some embodiments of the present invention, the second installation support frame 200 includes at least one set of second installation steel pipe 210, a second support connection ring 220 and a steel pipe seat 230, the second installation steel pipe 210 is vertically disposed, the lower end of the second installation steel pipe 210 is connected to the first installation steel pipe 110 through the steel pipe seat 230, the other end of the cable laying guide frame 300 is connected to the second installation steel pipe 210 through the second support connection ring 220, and the second support connection ring 220 can adjust the installation position along the second installation steel pipe 210.
The second installation steel pipe 210 is vertically arranged, and the lower end of the second installation steel pipe 210 is connected with the first installation steel pipe 110 through the steel pipe seat 230, so that the first installation steel pipe 110 and the second installation steel pipe 210 are assembled into a whole. The first installation steel pipe 110 is fixedly installed on the ground, and an included angle between the first installation steel pipe 110 and the second installation steel pipe 210 is a 90-degree structure. Of course, the angle between the first installation steel pipe 110 and the second installation steel pipe 210 may not be 90 °, so that the turning radius adjustment range of the cable routing guide frame 300 is wider, but the lateral force received by the second installation steel pipe 210 is larger, and the strength requirement of the second installation steel pipe 210 is higher.
Similarly, after the turning radius of the cable laying guide 300 is adjusted, the other end of the cable laying guide 300 is connected to the second installation steel pipe 210 through the second support coupling ring 220. Since the second support coupling ring 220 can adjust the installation position along the second installation steel pipe 210, it is possible to connect with the second installation steel pipe 210 through the second support coupling ring 220 regardless of the turning radius of the cable routing guide 300.
In some embodiments of the present invention, the second support connection ring 220 includes a second connection plate surface and a second connection ring portion, the second connection plate surface is provided with a second connection hole, the second connection hole is opposite to the hinge hole 3111 on the last pulley mounting seat 311, and is connected through a pin fixed joint, the second connection ring portion is slidably sleeved on the second installation steel pipe 210, the second connection ring portion is provided with a second installation hole, the second installation steel pipe 210 is correspondingly provided with a plurality of second adjustment holes, the second installation hole can be opposite to one of the second adjustment holes, and is connected through the pin fixed joint.
Specifically, the second support connection ring 220 includes a second connection plate surface and a second connection ring portion, and the second connection ring portion can be sleeved on the second installation steel pipe 210 and can slide on the second installation steel pipe 210. After the turning radius of the cable laying guide frame 300 is determined, the second support connection ring 220 slides to a corresponding position so that the second installation hole can be opposite to one of the second adjustment holes 211, and is fixedly connected by a pin shaft to fixedly install the second support connection ring 220 on the second installation steel pipe 210. The second connecting plate is opposite to the hinge hole 3111 of the first pulley mounting seat 311 through the second connecting hole and is fixedly connected through the pin shaft, so that the cable laying guide frame 300 is fixedly connected with the second connecting plate.
As shown in fig. 2, 6 and 7, in a specific embodiment, the turning radius of the cable laying guide 300 can be adjusted in three gears, specifically: 3600mm, 2600mm and 1600 mm. Correspondingly, the first installation steel pipe 110 is provided with three first adjustment holes 111, and the second installation steel pipe 210 is provided with three second adjustment holes 211.
When the cable laying guide frame 300 is adjusted to the corresponding shift position, the first support coupling ring 120 slides to be fixedly coupled to the corresponding first adjustment hole 111. The second support coupling ring 220 is slid to be fixedly coupled with the corresponding second adjustment hole 211.
The adjustable support for cable laying turning can adjust the radius (3600mm, 2600mm and 1600mm) of the support according to actual conditions on site, all parts of the support are assembled into a whole, the assembly between the pulley block and the pulley block can be assembled in advance, the whole support is assembled after being transported to the site, and all parts of the support are light in weight, detachable and convenient to carry and transport.
Through previous investigation, the weight of a bracket with a turning radius of about 1600mm in the market is about 250kg, and therefore, the weight of the bracket with the turning radius of about 3600mm is estimated to be close to 500 kg. The utility model discloses the biggest concatenation radius (3600mm) support gross mass is 400kg, can dismantle into a plurality of modules, and it is convenient to assemble, can realize a plurality of turning radius's concatenation, and every assembly pulley quality is 25kg, and the quality is lighter, is convenient for carry and transportation.
In some embodiments of the present invention, the steel pipe holder 230 is provided with a first connection jack and a second connection jack, the fixed cartridge of one end of the first installation steel pipe 110 is in the first connection jack, and the fixed cartridge of the lower end of the second installation steel pipe 210 is in the second connection jack.
The steel pipe holder 230 is L-shaped, and is fixed by a pin after the first installation steel pipe 110 is inserted into the first connection hole. The lower end of the second installation steel pipe 210 is also fixed by a pin after being inserted into the second connection insertion hole.
In some embodiments of the utility model, still include bracing subassembly 400, bracing subassembly 400 sets up in the interval that cable laying guide frame 300, first installation steel pipe 110 and second installation steel pipe 210 enclose, and bracing subassembly 400 is equipped with the diagonal brace, and the diagonal brace can adjust support length, and the one end and the first installation steel pipe 110 of diagonal brace are connected, and the other end is connected with second installation steel pipe 210.
Through setting up bracing subassembly 400, prevent first installation steel pipe 110 and second installation steel pipe 210 atress deformation, improve the stability of device. The diagonal brace is sleeved by two steel pipes with different diameters, and the length of the diagonal brace can be adjusted according to the turning radius.
In some embodiments of the utility model, still include at least two sets of side brace subassemblies 500, two sets of side brace subassemblies set up in the both sides of second installation steel pipe, and side brace subassembly 500 is equipped with the side stay, and the one end and the second installation steel pipe 210 of side stay are connected, and the other end passes through expansion screw to be connected with ground support.
Through setting up side brace subassembly 500, side brace subassembly 500 can be two sets of or more than two sets of, and side brace subassembly 500 bracing can prevent that the too big condition that appears turning on one's side of support atress in the both sides of second installation steel pipe.
In a further embodiment of the present invention, the side stay is a telescopic rod, and the length adjustment can be performed. The length adjustment is convenient to be carried out according to a specific application field. Specifically, the side stay bar is sleeved together by two steel pipes with different diameters, the overall length can be adjusted through stretching, and the length is fixed through the pin shaft.
To sum up, the utility model discloses support radius is adjustable, simple structure, and the quality is slim and graceful, can eliminate the shortcoming that cable laid turn support function singleness, transportation difficulty on the existing market, through the assembly between each part, realizes the turn and lays radial adjustment, has improved transportation and efficiency of construction.
In the description herein, references to the description of the term "one embodiment," "some embodiments," "an illustrative embodiment," "an example," "a specific example" or "some examples" or the like mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
While embodiments of the present invention have been shown and described, it will be understood by those of ordinary skill in the art that: various changes, modifications, substitutions and alterations can be made to the embodiments without departing from the principles and spirit of the invention, the scope of which is defined by the claims and their equivalents.
Claims (10)
1. The utility model provides a cable laying turns uses adjustable support which characterized in that includes:
the first mounting support frame is used for being connected with a ground support;
the second mounting support frame is fixedly connected with the first mounting support frame;
cable laying guide frame establishes ties by a plurality of assembly pulleys and sets up, the assembly pulley includes pulley mount pad and pulley, be equipped with the structure that is used for establishing ties on the pulley mount pad, make can adjustable installation angle's series connection be in the same place between the pulley mount pad, the pulley is installed on the pulley mount pad, after establishing ties the pulley constitutes cable laying guide rail, cable laying guide frame's one end with first erection bracing frame is connected, the other end with second erection bracing frame connects.
2. The adjustable bracket for cable laying turning according to claim 1, characterized in that: hinge holes are formed in two ends of the bottom of each pulley mounting seat, a pin shaft penetrates through the hinge holes to hinge two adjacent pulley mounting seats together, positioning holes are formed in the pulley mounting seats, and two ends of a connecting plate are connected with the positioning holes in the two adjacent pulley mounting seats to limit the pulley mounting seats to rotate.
3. The adjustable bracket for cable laying turning according to claim 2, characterized in that: first erection bracing frame includes at least a set of first installation steel pipe and first support go-between, be equipped with mounting structure on the first installation steel pipe to be used for fixed mounting subaerial, the one end of cable laying guide frame is passed through first support go-between with first installation steel pipe is connected, first support go-between can be followed the mounted position is adjusted to first installation steel pipe.
4. The adjustable bracket for cable laying turning of claim 3, characterized in that: first support go-between includes first connection face and first connection ring portion, be equipped with first connecting hole on the first connection face, first connecting hole and first on the pulley mount pad the hinge hole is relative to through round pin axle fixed connection, first connection ring portion slip suit is in on the first installation steel pipe, be equipped with first mounting hole in the first connection ring portion, first installation steel pipe correspondence is equipped with a plurality of first regulation holes, first mounting hole can with one of them first regulation hole is relative to through round pin axle fixed connection.
5. The adjustable bracket for cable laying turning according to claim 3, characterized in that: the second installation support frame comprises at least one group of second installation steel pipes, a second support connecting ring and a steel pipe seat, the second installation steel pipes are vertically arranged, the lower ends of the second installation steel pipes are connected with the first installation steel pipes through the steel pipe seat, the other ends of the cable laying guide frames are connected with the second installation steel pipes through the second support connecting ring, and the installation positions of the second installation steel pipes can be adjusted through the second support connecting ring.
6. The adjustable bracket for cable laying turning according to claim 5, characterized in that: the second supports the go-between and includes that the second connects face and second to connect ring portion, be equipped with the second connecting hole on the second connecting plate face, the second connecting hole with pulley mounting is last the hinge hole is relative to through round pin axle fixed connection, second connection ring portion slip suit is in on the second installation steel pipe, be equipped with the second mounting hole on the second connection ring portion, second installation steel pipe correspondence is equipped with a plurality of second regulation holes, the second mounting hole can with one of them the second regulation hole is relative to through round pin axle fixed connection.
7. The adjustable bracket for cable laying turning according to claim 5, characterized in that: the steel pipe seat is provided with a first connecting jack and a second connecting jack, one end of the first installation steel pipe is fixedly inserted into the first connecting jack, and the lower end of the second installation steel pipe is fixedly inserted into the second connecting jack.
8. The adjustable bracket for cable laying turning according to claim 5, characterized in that: the cable laying guide frame is arranged in a region surrounded by the cable laying guide frame, the first installation steel pipe and the second installation steel pipe, the inclined strut assembly is provided with an inclined strut, the support length of the inclined strut can be adjusted, one end of the inclined strut is connected with the first installation steel pipe, and the other end of the inclined strut is connected with the second installation steel pipe.
9. The adjustable bracket for cable laying turning according to claim 5, characterized in that: the steel pipe support is characterized by further comprising at least two sets of side support assemblies, wherein the side support assemblies are arranged on two sides of the second installation steel pipe and are provided with side support rods, one ends of the side support rods are connected with the second installation steel pipe, and the other ends of the side support rods can be connected with a ground support.
10. The adjustable bracket for cable laying turning according to claim 9, characterized in that: the side stay bar is a telescopic bar and can be adjusted in length.
