Abstract
The utility model provides a multifunctional lifting machine for rice production, which relates to the technical field of lifting machines and comprises a threaded bottom plate and a lower gear, wherein a bottom box is arranged on the top side of the threaded bottom plate, a side table is arranged on the side of the top end of the bottom box, a motor assembled by bolts is arranged above the side table, a fixed block is arranged on the outer side of the motor, and the lower gear in rotary connection is arranged at one end of the motor; the utility model discloses mainly be the brush that utilizes incessant upset, brush excessive rice upset, keep in, moreover because under the drive of utilizing a motor, do not need unnecessary motor, thereby the operating efficiency of equipment has been promoted, and user's manufacturing cost has been reduced, thereby brush the brush of incessant upset and reach overload-proof effect behind the rice, compare with prior art, at the in-process of transportation rice, can not cause the rice to splash, the extravagant effect of product has also been reduced.
Description
Technical Field
The utility model relates to a lifting machine technical field especially relates to a multi-functional lifting machine for rice production.
Background
The bucket elevator is a continuous conveying machine for vertically lifting materials by utilizing a series of hoppers uniformly and fixedly connected to an endless traction member, and the bucket elevator is divided into three types, namely a loop chain, a plate chain and a belt, for vertically or nearly vertically conveying bulk materials upwards by utilizing a series of hoppers fixedly connected to a traction chain or a rubber belt.
Present bucket elevator on the market is in the use, when promoting the rice, explodes easily, when causing the ejection of compact easily like this, can be because excessive rice, the rice splashes when having caused the unloading, causes extravagant rice like this easily, therefore leads to the user to receive certain loss scheduling problem easily, consequently, the utility model provides a multi-functional lifting machine for rice production is in order to solve the problem that exists among the prior art.
SUMMERY OF THE UTILITY MODEL
To the above problem, the utility model provides a multi-functional lifting machine for rice production, this multi-functional lifting machine for rice production is mainly the brush that utilizes incessant upset, brush excessive rice upset down, keep in, and owing to be under the drive that utilizes a motor, do not need unnecessary motor, thereby the operating efficiency of equipment has been promoted, and user's manufacturing cost has been reduced, thereby at the brush of incessant upset, reach overload-proof effect after brushing the rice, compare with prior art, at the in-process of transportation rice, can not cause the rice to splash, the extravagant effect of product has also been reduced.
For realizing the purpose of the utility model, the utility model discloses a following technical scheme realizes: a multifunctional lifting machine for rice production comprises a threaded bottom plate and a lower gear, wherein a bottom box is arranged on the top side of the threaded bottom plate, a side table is arranged on the side of the top end of the bottom box, a motor assembled by bolts is arranged above the side table, a fixed block is arranged on the outer side of the motor, and the lower gear in rotary connection is arranged at one end of the motor;
the lower gear includes gear, dwang, second roller pole, jack seat and brush, the top of lower gear is provided with the last gear that the meshing is connected, just one side of going up the gear is provided with the dwang, the outside swivelling joint of dwang has the second roller pole, just the outside of second roller pole is provided with the jack seat, just the outside of jack seat is provided with the brush.
The improved structure of the double-cavity top box is characterized in that the bottom box comprises a feeding port, a cleaning door plate, double-cavity supports, a top box and a discharging port, the feeding port is formed in one side of the bottom edge of the bottom box, the cleaning door plate is arranged on the other side of the bottom edge of the bottom box, the double-cavity supports are arranged above the bottom box in two groups, the top box is arranged above the double-cavity supports, the top box is arranged above the top box, and the discharging port is formed in one side of the top box.
The improved structure is characterized in that the feeding port, the bottom box, the double-hollow support, the top box and the discharging port sequentially form a communicated structure, and the bottom box and the top box are distributed in parallel.
The improved structure is characterized in that the motor comprises a first belt pulley, a transmission belt, a second belt pulley, a first roller rod and a transmission belt, the first belt pulley is arranged on one side of the motor and drives the second belt pulley through the transmission belt, the first roller rod is arranged on one side of the second belt pulley, and the transmission belt is connected to the outer side of the first roller rod in a rolling mode.
The improved structure is characterized in that the fixed block comprises a movable strip and a bucket body, the inner side of the fixed block is provided with the movable strip, and the side of the movable strip is provided with the bucket body.
The improved structure is characterized in that the upper gear and the rotating rod are symmetrically distributed about the central axis of the second roller rod, the inserting hole seat and the hairbrush are perpendicular to each other, and the inserting hole seat is distributed on the outer side of the second roller rod at equal angles.
The utility model has the advantages that:
the utility model discloses mainly be the brush that utilizes incessant upset, brush excessive rice upset, keep in, owing to be under the drive that utilizes a motor, do not need unnecessary motor moreover to promote the operating efficiency of equipment, reduced user's manufacturing cost moreover, thereby at the brush of incessant upset, reach the effect of anti-overload after brushing the rice, compare with prior art, at the in-process of transporting the rice, can not cause the rice to splash, also reduced the extravagant effect of product.
Drawings

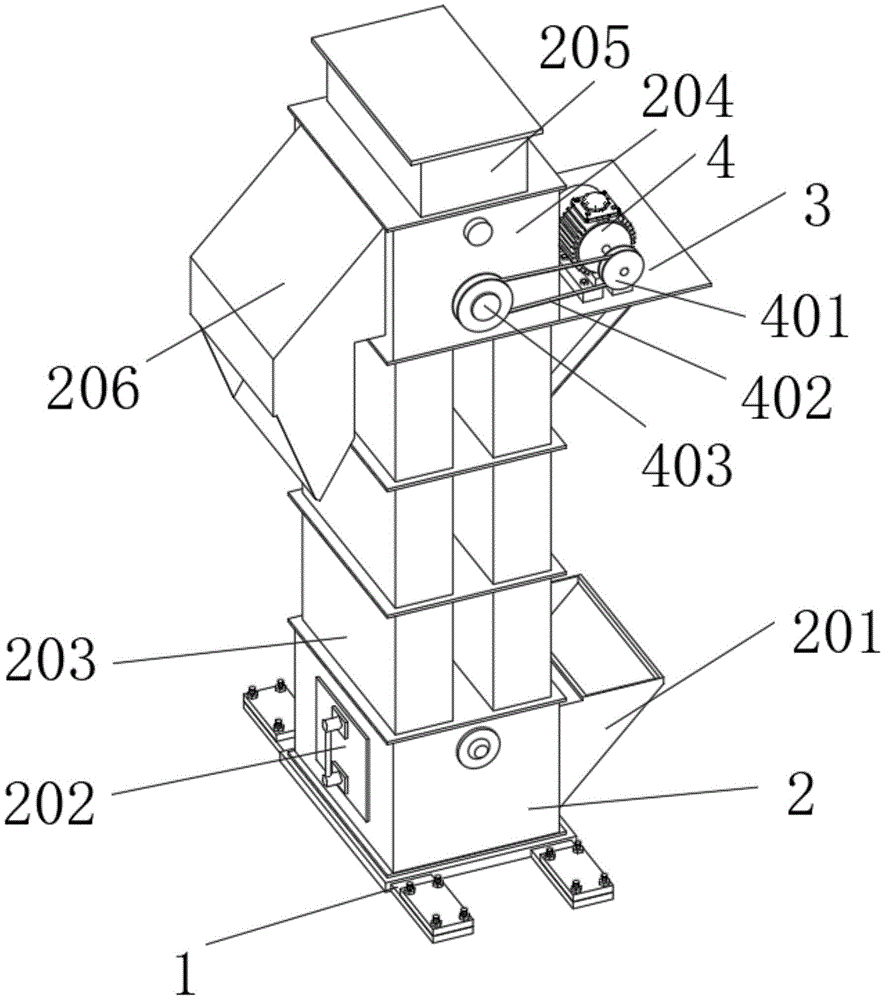

Fig. 1 is a schematic perspective view of the present invention;
FIG. 2 is a schematic side view of the three-dimensional structure of the present invention;
FIG. 3 is a schematic sectional perspective view of the present invention;
FIG. 4 is a schematic view of the three-dimensional structure of the fixed block and the movable strip of the present invention;
fig. 5 is a schematic view of the three-dimensional structure of the second roller rod and the socket of the present invention.
Wherein: 1. a threaded bottom plate; 2. a bottom box; 201. a feeding port; 202. cleaning the door plate; 203. a double-hollow bracket; 204. a top box; 205. setting a set-top box; 206. a discharge port; 3. a side table; 4. an electric motor; 401. a first pulley; 402. a drive belt; 403. a second pulley; 404. a first roll bar; 405. a conveyor belt; 5. a fixed block; 501. a movable bar; 502. a bucket body; 6. a lower gear; 601. an upper gear; 602. rotating the rod; 603. a second roll bar; 604. a jack seat; 605. a brush.
Detailed Description
In order to deepen the understanding of the present invention, the following embodiments will be combined to make the present invention do further details, and the present embodiment is only used for explaining the present invention, and does not constitute the limitation of the protection scope of the present invention.
As shown in fig. 1, 2, 3, 4 and 5, the present embodiment provides a multifunctional elevator for rice production, which comprises a threaded bottom plate 1 and a lower gear 6, wherein a bottom box 2 is arranged on the top side of the threaded bottom plate 1, a side table 3 is arranged on the top end side of the bottom box 2, a motor 4 assembled by bolts is arranged above the side table 3, a fixed block 5 is arranged on the outer side of the motor 4, and one end of the motor 4 is provided with the lower gear 6 which is rotatably connected;
the lower gear 6 comprises an upper gear 601, a rotating rod 602, a second roller 603, a socket 604 and a brush 605, the upper gear 601 is meshed and connected with the lower gear 6, the rotating rod 602 is arranged on one side of the upper gear 601, the second roller 603 is rotatably connected to the outer side of the rotating rod 602, the socket 604 is arranged on the outer side of the second roller 603, and the brush 605 is arranged on the outer side of the socket 604.
The bottom box 2 comprises a feeding port 201, a cleaning door plate 202, double-empty supports 203, a top box 204, a set top box 205 and a discharging port 206, the feeding port 201 is arranged on one side of the bottom edge of the bottom box 2, the cleaning door plate 202 is arranged on the other side of the bottom edge of the bottom box 2, two sets of double-empty supports 203 are arranged above the bottom box 2, the top box 204 is arranged above the double-empty supports 203, the set top box 205 is arranged above the top box 204, the discharging port 206 is arranged on one side of the top box 204, the feeding port 201 can be arranged on one side of the bottom box 2 for placing rice therein, the cleaning door plate 202 can be arranged on the other side of the bottom box 2 for opening and cleaning after the equipment finishes working, the two sets of double-empty supports 203 can be arranged above the bottom box 2 for transporting products smoothly, the top box 204 can be arranged above the double-empty supports 203, the top box 204 can be matched with the set top box 205 to play a role of containing components, a discharge port 206 may be provided at one side of the top box 204 to facilitate the blanking of the apparatus.
The motor 4 comprises a first belt pulley 401, a transmission belt 402, a second belt pulley 403, a first roller rod 404 and a transmission belt 405, the first belt pulley 401 is arranged on one side of the motor 4, the first belt pulley 401 drives the second belt pulley 403 through the transmission belt 402, the first roller rod 404 is arranged on one side of the second belt pulley 403, the transmission belt 405 is connected to the outer side of the first roller rod 404 in a rolling mode, the motor 4 can output power to drive the first belt pulley 401, the first belt pulley 401 can transmit the power to the second belt pulley 403 through the transmission belt 402, and the second belt pulley 403 can utilize the first roller rod 404 to uninterruptedly drive the transmission belt 405 to carry out uninterrupted transmission operation.
Fixed block 5 is including activity strip 501 and bucket body 502, and the interior limit side of fixed block 5 is provided with activity strip 501, and the avris of activity strip 501 is provided with bucket body 502, and activity strip 501 can be fixed well to fixed block 5, and activity strip 501 can the swing joint bucket body 502 make bucket body 502 can fill up the rice, transports.
Go up gear 601 and dwang 602 central axis symmetric distribution about second roller 603, mutually perpendicular between jack seat 604 and the brush 605, the equal angular distribution in the outside of second roller 603 of jack seat 604, lower gear 6 can mesh transmission upper gear 601, make upper gear 601 can drive dwang 602 and rotate, dwang 602 can drive the operation of second roller 603, the jack seat 604 has been set up in the outside of second roller 603, make jack seat 604 can install brush 605 and uninterruptedly rotate the incessant interception with the excessive rice of bucket body 502 down, the effect of placing the overload has been played.
The working principle of the multifunctional hoister for rice production is as follows: as shown in fig. 1-5, firstly, a user can use the upper side of the threaded bottom plate 1 to set the bottom box 2, one side of the bottom box 2 can be provided with a feeding port 201 for placing rice therein, the other side of the bottom box 2 can be provided with a cleaning door plate 202 for cleaning after the equipment is finished, two sets of double-hollow brackets 203 can be arranged above the bottom box 2 for transporting the product smoothly, the top box 204 can be arranged above the double-hollow brackets 203, the top box 204 can be matched with the top box 205 to play a role of a holding component, the discharge port 206 can be arranged on one side of the top box 204 for facilitating the equipment to discharge, the side table 3 can be arranged on the other side of the top box 204 for supporting the motor 4, the motor 4 can output power to drive the first belt pulley 401, the first belt pulley 401 can use the transmission belt 402 to transmit power to the second belt pulley 403, second belt pulley 403 can utilize first roller pole 404 incessant drive conveyer belt 405 to carry out incessant transmission operation, the outside of conveyer belt 405 sets up fixed block 5, movable strip 501 can be fixed to fixed block 5, movable strip 501 can swing joint the bucket body 502 and make the bucket body 502 can fill up the rice, transport, can set up lower gear 6 in the one end of first roller pole 404, lower gear 6 can mesh transmission upper gear 601, make upper gear 601 can drive dwang 602 and rotate, dwang 602 can drive the operation of second roller pole 603, the outside of second roller pole 603 sets up socket 604, make socket 604 can install brush 605 with the bucket body 502 excessive rice incessant rotation down, the incessant interception has played the effect of placing the overload, therefore, accomplish a series of works.
The foregoing illustrates and describes the principles, general features, and advantages of the present invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (6)
1. The utility model provides a multi-functional lifting machine for rice production, includes screw thread bottom plate (1) and lower gear (6), its characterized in that: a bottom box (2) is arranged on the top side of the threaded bottom plate (1), a side table (3) is arranged on the side of the top end of the bottom box (2), a motor (4) assembled by bolts is arranged above the side table (3), a fixed block (5) is arranged on the outer side of the motor (4), and a lower gear (6) in rotary connection is arranged at one end of the motor (4);
lower gear (6) are including last gear (601), dwang (602), second roller pole (603), jack seat (604) and brush (605), the top of lower gear (6) is provided with last gear (601) that the meshing is connected, just one side of going up gear (601) is provided with dwang (602), the outside swivelling joint of dwang (602) has second roller pole (603), just the outside of second roller pole (603) is provided with jack seat (604), just the outside of jack seat (604) is provided with brush (605).
2. The multifunctional lifter for rice production as claimed in claim 1, wherein: the bottom box (2) comprises a feeding port (201), a cleaning door plate (202), a double-hollow support (203), a top box (204), a set top box (205) and a discharge port (206), wherein the feeding port (201) is arranged on one side of the bottom box (2), the cleaning door plate (202) is arranged on the other side of the bottom box (2), the double-hollow support (203) is arranged on the two sides of the top side of the bottom box (2), the top box (204) is arranged on the top of the double-hollow support (203), the set top box (205) is arranged on the top of the top box (204), and the discharge port (206) is arranged on one side of the top box (204).
3. The multifunctional lifter for rice production as claimed in claim 2, wherein: pan feeding mouth (201), under casing (2), two empty support (203), top case (204) and discharge gate (206) form the intercommunication form structure in proper order, parallel distribution between under casing (2) and top case (204).
4. The multifunctional lifter for rice production as claimed in claim 1, wherein: the motor (4) comprises a first belt pulley (401), a transmission belt (402), a second belt pulley (403), a first roller rod (404) and a transmission belt (405), wherein the first belt pulley (401) is arranged on one side of the motor (4), the first belt pulley (401) drives the second belt pulley (403) through the transmission belt (402), the first roller rod (404) is arranged on one side of the second belt pulley (403), and the transmission belt (405) is connected to the outer side of the first roller rod (404) in a rolling mode.
5. The multifunctional lifter for rice production as claimed in claim 1, wherein: fixed block (5) are including activity strip (501) and bucket body (502), the interior limit side of fixed block (5) is provided with activity strip (501), just the avris of activity strip (501) is provided with bucket body (502).
6. The multifunctional lifter for rice production as claimed in claim 1, wherein: the upper gear (601) and the rotating rod (602) are symmetrically distributed about the central axis of the second roller rod (603), the jack seats (604) and the brushes (605) are perpendicular to each other, and the jack seats (604) are distributed on the outer side of the second roller rod (603) at equal angles.
