CN216397692U - Punching device for spring production - Google Patents

Abstract

The utility model discloses a punching device for spring production, which comprises a base and a guide post, wherein an installation block is arranged at the rear end of the base, an object taking assembly comprises a rotating shaft, a support post, a sliding block, a long rod, a fixing bolt and a sucking disc, the support post is connected above the rotating shaft, the long rod is arranged on the inner side of the sliding block, the sucking disc is arranged below the long rod, the guide post is arranged on the outer side above the base, and a second transverse plate is arranged above the guide post. This die-cut device of spring production usefulness adsorbs the machined part through the sucking disc, and the one end that the rethread reverse operation will have the sucking disc is rolled out, thereby take off the machined part, the guide post leads to first diaphragm, prevent to push down the in-process and appear inclining, it is not good to make machined part quality, thereby avoid unnecessary raw materials loss, it is fixed to fasten the threaded rod through the nut, then the machined part is dragged by tension, avoid the machined part to be in the bending state, thereby be convenient for carry out subsequent processing to the machined part.

Description

Punching device for spring production

Technical Field

The utility model relates to the technical field of spring production, in particular to a punching device for spring production.

Background

Punching is a metal production process, in which a metal workpiece is removed from a main metal strip or sheet in a punching process, the removed material is a new metal workpiece or blank, and a punching device is required to process the metal workpiece or blank in a spring production process, so that the punching device is widely applied to the field of spring manufacturing.

The existing punching device is used for solving the problems that a machined part is generally taken manually and directly, accidents occur easily, and the safety use of operators is not facilitated, so that the punching device for spring production is provided.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a punching device for producing a spring, which solves the problems in the prior art.

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a die-cut device of spring production usefulness, includes base and guide post, the rear end of base is provided with the installation piece, and the top of installation piece is provided with gets the thing subassembly, it includes pivot, pillar, slider, stock, gim peg and sucking disc to get the thing subassembly, the top of pivot is connected with the pillar, and the top of pillar is provided with the slider, the inboard of slider is provided with the stock, and the top of slider runs through there is the gim peg, the sucking disc is installed to the below of stock, and the thickness of stock is greater than the thickness of sucking disc, the guide post sets up in the top outside of base, and the middle part of guide post is provided with first diaphragm, the top of guide post is provided with the second diaphragm, and the inside of second diaphragm runs through there is the telescopic link.

Preferably, a push plate is arranged below the telescopic rod, and the push plate is overlapped with the central axis of the telescopic rod.

Preferably, the right end of the base is provided with a controller, and an air pipe is arranged above the controller.

Preferably, a lower die is arranged on the inner side of the upper portion of the base, an upper die is arranged below the first transverse plate, and the lower die and the central axis of the upper die coincide with each other.

Preferably, the front end of the base is provided with a cabinet door, and the right end of the cabinet door is provided with a handle.

Preferably, the inside of base is provided with the machined part, and the front end of machined part is provided with the stretch-draw subassembly, the stretch-draw subassembly includes connecting rod, fixed block, electro-magnet and electronic box, and the top of connecting rod is provided with the fixed block, the inboard of fixed block is provided with the electro-magnet, and the front end of fixed block is provided with the electronic box.

Preferably, the rear end of the machined part is provided with a threaded rod, the rear end of the threaded rod is provided with a nut, and the rear end of the nut is provided with a circular ring.

The utility model provides a punching device for spring production, which has the following beneficial effects: adsorb the machined part through the sucking disc, the one end that the rethread reverse operation will have the sucking disc is rolled out, thereby take off the machined part, avoid operating personnel directly to take the machined part, the guide post leads to first diaphragm, prevent to push down the in-process and appear the slope, it is not good to make machined part quality, thereby avoid unnecessary raw materials loss, it is fixed to fasten the threaded rod through the nut, then the machined part is dragged by tension, avoid the machined part to be in the bending state, thereby be convenient for carry out subsequent processing to the machined part.

1. According to the utility model, through the arrangement of the rotating shaft, the supporting column, the sliding block, the long rod, the fixing bolt, the sucker and the machined part, an operator firstly moves the long rod to a proper position through the sliding block, fixes the long rod through the fixing bolt, then rotates one end of the long rod with the sucker to the position right above the machined part through the rotating shaft and the supporting column, adsorbs the machined part through the sucker, and then rotates out one end with the sucker through reverse operation, so that the machined part is taken down, the operator is prevented from directly taking the machined part, and the safety of the use of the device is facilitated.

2. According to the utility model, through the arrangement of the second transverse plate, the telescopic rod, the push plate, the controller, the lower die and the upper die, the controller conveys gas into the telescopic rod through the gas pipe, the telescopic rod drives the push plate to press downwards under the gas pressure so as to drive the first transverse plate to press downwards, the upper die presses downwards along with the first transverse plate, the upper die and the lower die are clamped to form a product, and the guide column guides the first transverse plate while pressing downwards, so that the phenomenon that the first transverse plate is inclined in the pressing process is prevented, the quality of a machined part is poor, and unnecessary raw material loss is avoided.

3. According to the utility model, through the arrangement of the connecting rod, the fixing block, the electromagnet, the electric box, the threaded rod, the nut and the ring, an operator penetrates a workpiece into the fixing block, the electromagnet is enabled to work through the electric box, the electromagnet adsorbs the workpiece, then the ring rotates, the threaded rod moves towards the rear end, the threaded rod is fastened and fixed through the nut, then the workpiece is pulled by tension, the workpiece is prevented from being in a bending state, and the subsequent processing of the workpiece is facilitated.

Drawings

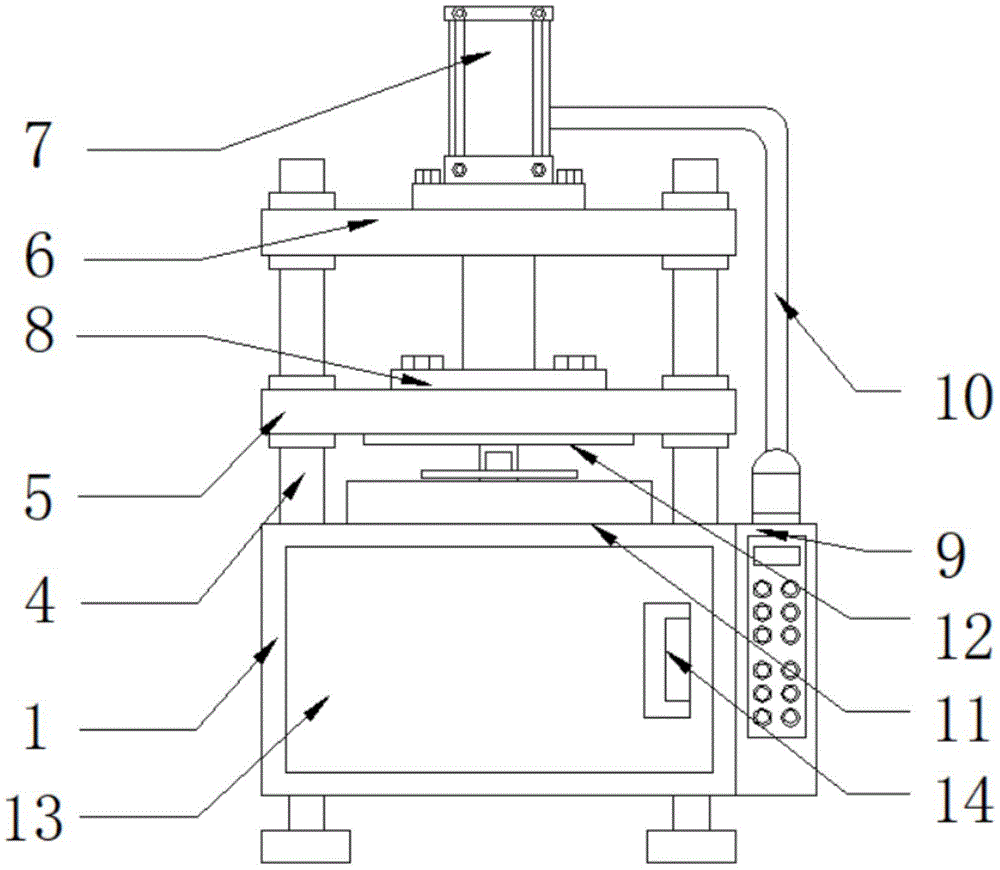

FIG. 1 is a schematic front view of a punching apparatus for producing a spring according to the present invention;

FIG. 2 is a schematic side view, partially in section, of a die-cutting apparatus for spring production according to the present invention;

fig. 3 is a schematic perspective view of a fetching assembly of the punching device for producing a spring according to the present invention.

In the figure: 1. a base; 2. mounting blocks; 3. a fetching component; 301. a rotating shaft; 302. a pillar; 303. a slider; 304. a long rod; 305. a fixing bolt; 306. a suction cup; 4. a guide post; 5. a first transverse plate; 6. a second transverse plate; 7. a telescopic rod; 8. pushing the plate; 9. a controller; 10. an air tube; 11. a lower die; 12. an upper die; 13. a cabinet door; 14. a handle; 15. processing a workpiece; 16. a tensioning assembly; 1601. a connecting rod; 1602. a fixed block; 1603. an electromagnet; 1604. an electric box; 17. a threaded rod; 18. a nut; 19. a circular ring.

Detailed Description

As shown in fig. 1 and 3, a punching device for spring production comprises a base 1 and a guide post 4, wherein a mounting block 2 is arranged at the rear end of the base 1, a fetching component 3 is arranged above the mounting block 2, the fetching component 3 comprises a rotating shaft 301, a support 302, a slider 303, a long rod 304, a fixing bolt 305 and a suction cup 306, the support 302 is connected above the rotating shaft 301, the slider 303 is arranged above the support 302, the long rod 304 is arranged inside the slider 303, the fixing bolt 305 penetrates through the upper part of the slider 303, the suction cup 306 is arranged below the long rod 304, the thickness of the long rod 304 is larger than that of the suction cup 306, an operator firstly moves the long rod 304 to a proper position through the slider 303, fixes the long rod 304 through the fixing bolt 305, rotates one end of the long rod 304 with the suction cup 306 to the position right above a workpiece 15 through the rotating shaft 301 and the support 302, and sucks the workpiece 15 through the suction cup 306, the one end that will have sucking disc 306 through reverse operation again is rolled out to take off machined part 15, avoid operating personnel directly to take machined part 15, be favorable to the security of device use, guide post 4 sets up in the top outside of base 1, and the middle part of guide post 4 is provided with first diaphragm 5, and the top of guide post 4 is provided with second diaphragm 6, and the inside of second diaphragm 6 runs through there is telescopic link 7.

As shown in fig. 1-3, a push plate 8 is disposed below the telescopic rod 7, the push plate 8 coincides with the central axis of the telescopic rod 7, a controller 9 is disposed at the right end of the base 1, an air pipe 10 is disposed above the controller 9, a lower mold 11 is disposed inside the upper side of the base 1, an upper mold 12 is disposed below the first transverse plate 5, the lower mold 11 coincides with the central axis of the upper mold 12, the controller 9 conveys air into the telescopic rod 7 through the air pipe 10, the telescopic rod 7 is driven by the air pressure to push the push plate 8 down, so as to drive the first transverse plate 5 to push down, the upper mold 12 pushes down along with the first transverse plate 5, so that the upper mold 12 and the lower mold 11 are engaged to form a product, while pushing down, the guide column 4 guides the first transverse plate 5, thereby preventing the occurrence of tilting during the pushing down process, and making the quality of the workpiece 15 poor, thereby avoiding unnecessary raw material loss, a cabinet door 13 is arranged at the front end of the base 1, a handle 14 is arranged at the right end of the cabinet door 13, a workpiece 15 is arranged in the base 1, a tensioning assembly 16 is arranged at the front end of the workpiece 15, the tensioning assembly 16 comprises a connecting rod 1601, a fixing block 1602, an electromagnet 1603 and an electric box 1604, the fixing block 1602 is arranged above the connecting rod 1601, the electromagnet 1603 is arranged on the inner side of the fixing block 1602, the electric box 1604 is arranged at the front end of the fixing block 1602, a threaded rod 17 is arranged at the rear end of the workpiece 15, a nut 18 is arranged at the rear end of the threaded rod 17, a ring 19 is arranged at the rear end of the nut 18, the workpiece 15 is inserted into the fixing block 1602 by an operator, the electromagnet 1603 is operated by the electric box 1604, the electromagnet 1603 adsorbs the workpiece 15, the threaded rod 17 is rotated by the ring 19, the threaded rod 17 is moved to the rear end, and the threaded rod 17 is fastened and fixed by the nut 18, and then the workpiece 15 is pulled by tension, so that the workpiece 15 is prevented from being in a bent state, and the subsequent processing of the workpiece 15 is facilitated.

In conclusion, when the punching device for spring production is used, firstly, the supporting legs support the device, raw materials are put into the lower die 11, the controller 9 conveys gas into the telescopic rods 7 through the gas pipes 10, then the upper telescopic rods 7 of the second transverse plates 6 are stressed to extend to further drive the push plates 8 to move downwards, the first transverse plates 5 move downwards along with the push plates 8, meanwhile, the guide posts 4 guide the first transverse plates 5 to move downwards to prevent deviation in the moving downwards process and further damage products, the first transverse plates 5 press downwards and further press downwards the upper die 12, the lower die 11 on the base 1 is clamped with the upper die 12 to form products, at the moment, an operator can move the long rods 304 on the mounting block 2 to be right above the workpieces 15 through the rotating shafts 301 and the supporting posts 302, adsorb the workpieces 15 through the suckers 306, then take out the workpieces 15 through reverse operation, and avoid directly taking the workpieces 15 manually, prevent accident, the machined part 15 takes out the back, the operator opens cabinet door 13 through handle 14, wear to establish in fixed block 1602 with machined part 15 again, make electro-magnet 1603 work through electronic box 1604, and then electro-magnet 1603 adsorbs machined part 15, rethread ring 19 rotates, and then make threaded rod 17 remove to the rear end, rethread nut 18 fastens threaded rod 17 fixedly, then machined part 15 is dragged by tension, avoid machined part 15 to be in crooked state, thereby be convenient for carry out subsequent processing to machined part 15, this is exactly the theory of operation of the die-cut device of this spring production usefulness.

Claims (7)

1. The utility model provides a die-cut device of spring production usefulness, includes base (1) and guide post (4), its characterized in that, the rear end of base (1) is provided with installation piece (2), and the top of installation piece (2) is provided with gets thing subassembly (3), it includes pivot (301), pillar (302), slider (303), stock (304), gim peg (305) and sucking disc (306) to get thing subassembly (3), the top of pivot (301) is connected with pillar (302), and the top of pillar (302) is provided with slider (303), the inboard of slider (303) is provided with stock (304), and runs through gim peg (305) above slider (303), sucking disc (306) are installed to the below of stock (304), and the thickness of stock (304) is greater than the thickness of sucking disc (306), guide post (4) set up in the top outside of base (1), and the middle part of guide post (4) is provided with first diaphragm (5), the top of guide post (4) is provided with second diaphragm (6), and the inside of second diaphragm (6) runs through has telescopic link (7).

2. The punching device for producing the spring as claimed in claim 1, wherein a push plate (8) is arranged below the telescopic rod (7), and the push plate (8) is coincided with the central axis of the telescopic rod (7).

3. The blanking device for producing the springs as claimed in claim 1, wherein the controller (9) is arranged at the right end of the base (1), and the air pipe (10) is arranged above the controller (9).

4. The punching device for producing the spring is characterized in that a lower die (11) is arranged on the upper inner side of the base (1), an upper die (12) is arranged below the first transverse plate (5), and the central axis of the lower die (11) is coincident with the central axis of the upper die (12).

5. The punching device for producing the springs as claimed in claim 1, characterized in that the front end of the base (1) is provided with a cabinet door (13), and the right end of the cabinet door (13) is provided with a handle (14).

6. The punching device for producing the spring according to claim 1, characterized in that a workpiece (15) is arranged inside the base (1), a tensioning assembly (16) is arranged at the front end of the workpiece (15), the tensioning assembly (16) comprises a connecting rod (1601), a fixing block (1602), an electromagnet (1603) and an electric box (1604), the fixing block (1602) is arranged above the connecting rod (1601), the electromagnet (1603) is arranged on the inner side of the fixing block (1602), and the electric box (1604) is arranged at the front end of the fixing block (1602).

7. The blanking device for producing springs as claimed in claim 6, characterized in that the rear end of the workpiece (15) is provided with a threaded rod (17), the rear end of the threaded rod (17) is provided with a nut (18), and the rear end of the nut (18) is provided with a ring (19).
