Abstract
本实用新型公开一种纸箱快速封箱装置，包括封箱台、纸箱快速封装装置、夹持输送机构、升降机构、封箱板、纸箱合盖机构和胶带封箱机构，封箱台两侧固定设有纸箱快速封装装置，两侧纸箱快速封装装置上对称设有第一伸缩杆，第一伸缩杆伸缩端固定设有输送带，输送带上设有压力传感器，纸箱快速封装装置中间上方设有升降机构，封箱台上方设有封箱板，封箱板下方一侧设有纸箱合盖机构，封箱板下方另一侧设有胶带封箱机构；本实用新型通过第一伸缩杆伸缩带动输送带移动实现对不同规格的纸箱进行封箱，通过第二伸缩杆和第三伸缩杆依次伸出实现纸箱合盖自动化，节约人力，通过驱动电机带动螺纹杆转动使封箱板自动升降，实现对不同高度的纸箱进行封箱。
The utility model discloses a fast carton sealing device, which comprises a carton sealing table, a fast carton packaging device, a clamping conveying mechanism, a lifting mechanism, a carton sealing plate, a carton lid closing mechanism and an adhesive tape sealing mechanism. There is a carton quick packaging device, a first telescopic rod is symmetrically arranged on the two sides of the carton quick packaging device, the telescopic end of the first telescopic rod is fixed with a conveyor belt, a pressure sensor is installed on the conveyor belt, and the middle of the carton quick packaging device is provided with The lifting mechanism has a box sealing plate above the box sealing table, a carton lid closing mechanism on one side below the box sealing plate, and a tape sealing mechanism on the other side below the box sealing plate; the utility model is driven by the first telescopic rod. The conveyor belt moves to seal cartons of different specifications. The second telescopic rod and the third telescopic rod are extended in turn to realize the automatic closing of the carton cover, saving manpower. The driving motor drives the threaded rod to rotate to make the sealing plate automatically rise and fall. Seal cartons of different heights.
Description
Technical Field
The utility model relates to the technical field of automatic carton sealing equipment, in particular to a quick carton sealing device.
Background
The carton is a main material for commodity transportation and packaging, has light weight and low price, can be produced in various sizes in a large scale, has small storage space before use, and is widely applied to the packaging and transportation of finished products;
the conventional carton sealing machine can only package cartons of the same type during packaging, cannot adjust the cartons of different specifications in time, and needs to manually close the cover before feeding, so that the labor cost is increased.
SUMMERY OF THE UTILITY MODEL
In order to solve the problems, the utility model aims to provide a quick carton sealing device, the quick carton sealing device realizes the sealing of cartons with different specifications by driving a conveying belt to move through the expansion of a first telescopic rod, realizes the automation of carton cover closing through the sequential extension of a second telescopic rod and a third telescopic rod, saves manpower, and realizes the sealing of cartons with different heights by driving a threaded rod to rotate through a driving motor to enable a sealing plate to automatically lift.
In order to realize the purpose of the utility model, the utility model is realized by the following technical scheme: the utility model provides a quick box sealing device of carton, includes joint sealing platform, quick packaging hardware of carton, centre gripping conveying mechanism, elevating system, joint sealing board, carton close and cover mechanism and sticky tape joint sealing mechanism, the fixed quick packaging hardware of carton that is equipped with in joint sealing platform both sides, centre gripping conveying mechanism includes first telescopic link, conveyer belt and pressure sensor, both sides the last symmetry of the quick packaging hardware of carton is equipped with first telescopic link, the fixed conveyer belt that is equipped with of first telescopic link flexible end, be equipped with pressure sensor on the conveyer belt, the middle top of the quick packaging hardware of carton is equipped with elevating system, joint sealing bench top is equipped with the joint sealing board, joint sealing board below one side is equipped with the carton and closes and cover mechanism, joint sealing board below opposite side is equipped with sticky tape joint sealing mechanism.
The further improvement lies in that: elevating system includes crane, threaded rod, threaded sleeve and driving motor, be equipped with the crane on the quick packaging hardware of carton, be equipped with the threaded rod in the crane, the threaded rod overcoat is equipped with threaded sleeve, threaded sleeve and joint sealing board fixed connection.
The further improvement lies in that: the carton closing mechanism comprises a second telescopic rod, a rear closing cover plate, a third telescopic rod, a side closing cover plate and a front closing cover plate, wherein the second telescopic rod penetrates through one side of the carton closing plate, the rear closing cover plate is fixedly arranged at the telescopic end of the second telescopic rod, the third telescopic rod is symmetrically arranged at one side of the carton closing plate, the side closing cover plate is fixedly arranged at the telescopic end of the third telescopic rod, and the front closing cover plate is fixedly arranged below the middle of the carton closing plate.
The further improvement lies in that: the adhesive tape box sealing mechanism comprises an adhesive tape frame, an adhesive tape cutting bin, a first guide wheel, a second guide wheel, a spring and a telescopic cutting knife, the adhesive tape frame is fixedly arranged on the other side below the box sealing plate, the adhesive tape cutting bin is fixedly connected and arranged below the adhesive tape frame, the first guide wheel is fixedly arranged on one side outside the adhesive tape cutting bin, the second guide wheel is symmetrically arranged in the adhesive tape cutting bin, the spring is arranged above the second guide wheel and elastically connected with the adhesive tape cutting bin, and the telescopic cutting knife is arranged in the middle of the adhesive tape cutting bin.
The further improvement lies in that: the second telescopic links are symmetrically inclined towards the middle, the conveying belt is driven by a motor, and driving rollers are connected in the box sealing table at intervals through bearings.
The utility model has the beneficial effects that: according to the carton sealing machine, the first telescopic rod stretches to drive the conveying belt to move so as to seal cartons with different specifications, the second telescopic rod and the third telescopic rod stretch out in sequence so as to realize automation of carton cover closing, manpower is saved, and the driving motor drives the threaded rod to rotate so as to enable the carton sealing plate to automatically lift and lower, so that the cartons with different heights are sealed.
Drawings

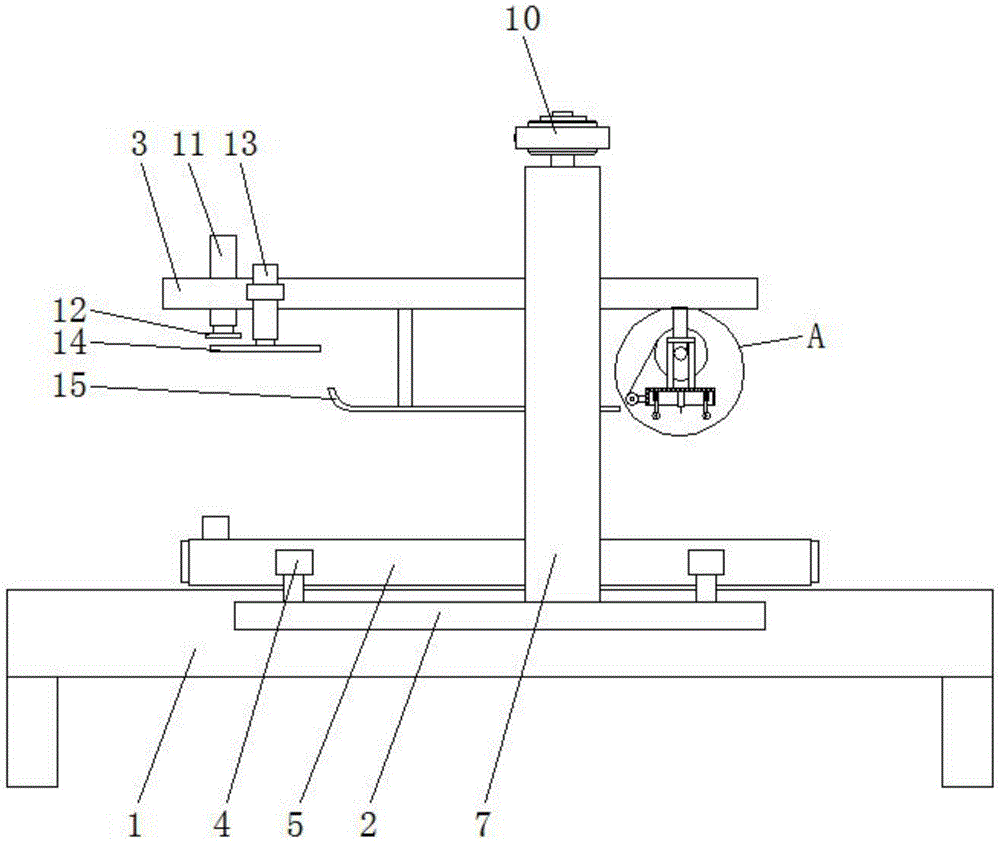

FIG. 1 is a front view of embodiment 1 of the present invention;
FIG. 2 is a top view of the box sealing station of the present invention;
FIG. 3 is an enlarged schematic view of the utility model at A;
FIG. 4 is a top view of the box sealing plate of the present invention;
FIG. 5 is a three-dimensional schematic view of a joint sealing plate of the present invention;
fig. 6 is a front view of embodiment 2 of the present invention.
Wherein: 1. a box sealing table; 2. a support plate; 3. a box sealing plate; 4. a first telescopic rod; 5. a conveyor belt; 6. a pressure sensor; 7. a lifting frame; 8. a threaded rod; 9. a threaded sleeve; 10. a drive motor; 11. a second telescopic rod; 12. closing the cover plate; 13. a third telescopic rod; 14. closing the cover plate laterally; 15. a front closing cover plate; 16. a tape dispenser; 17. a rubber belt cutting bin; 18. a first guide wheel; 19. a second guide wheel; 20. a spring; 21. a telescopic cutting knife; 22. a driving roller; 23. a fan; 24. a universal wheel.
Detailed Description
In order to further understand the present invention, the following detailed description will be made with reference to the following examples, which are only used for explaining the present invention and are not to be construed as limiting the scope of the present invention.
Example 1:
according to the drawings of fig. 1, 2, 3, 4 and 5, the embodiment provides a carton fast sealing device, which comprises a sealing table 1, a carton fast sealing device, a clamping and conveying mechanism, a lifting mechanism, a sealing plate 3, a carton cover closing mechanism and a tape sealing mechanism, wherein the carton fast sealing device is fixedly arranged at two sides of the sealing table 1, the clamping and conveying mechanism comprises a first telescopic rod 4, a conveying belt 5 and a pressure sensor 6, the carton fast sealing device at two sides is symmetrically provided with the first telescopic rod 4, the conveying belt 5 is fixedly arranged at the telescopic end of the first telescopic rod 4, the conveying belt 5 is provided with the pressure sensor 6, the lifting mechanism is arranged above the middle of the carton fast sealing device, the sealing plate 3 is arranged above the sealing table 1, the carton cover closing mechanism is arranged at one side below the sealing plate 3, the tape sealing mechanism is arranged at the other side below the sealing plate 3, the first telescopic rod 4 can drive the conveying belt 5 to move to realize automatic sealing of cartons with different specifications, the problem of need readjustment when faced the carton of different specifications is solved.
Elevating system includes crane 7, threaded rod 8, threaded sleeve 9 and driving motor 10, is equipped with crane 7 on the quick packaging hardware of carton, is equipped with threaded rod 8 in the crane 7, and 8 overcoat of threaded rod are equipped with threaded sleeve 9, and threaded sleeve 9 and joint sealing board 3 fixed connection drive threaded rod 8 through driving motor 10 and rotate and make 3 automatic rising of joint sealing board, realize carrying out the joint sealing to the carton of co-altitude.
Carton closes and covers mechanism includes second telescopic link 11, the back closes apron 12, third telescopic link 13, the side closes apron 14 and preceding apron 15 that closes, 3 one sides of joint sealing board are run through and are equipped with second telescopic link 11, 11 flexible ends of second telescopic link are fixed to be equipped with the back and close apron 12, 3 lateral symmetry of joint sealing board is equipped with third telescopic link 13, the flexible end of third telescopic link 13 is fixed to be equipped with the side and closes apron 14, the fixed apron 15 that closes before being equipped with in the middle below of 3 joint sealing boards, stretch out in proper order through second telescopic link 11 and third telescopic link 13 and realize the carton and close and cover automation, the lower problem of manual work lid efficiency of closing has been solved.
The adhesive tape carton sealing mechanism comprises an adhesive tape rack 16, an adhesive tape carton cutting bin 17, a first guide wheel 18, a second guide wheel 19, a spring 20 and a telescopic cutting knife 21, the adhesive tape rack 16 is fixedly arranged on the other side below the carton sealing plate 3, the adhesive tape carton cutting bin 17 is fixedly connected to the lower side of the adhesive tape rack 16, the first guide wheel 18 is fixedly arranged on one side outside the adhesive tape carton cutting bin 17, the second guide wheel 19 is symmetrically arranged in the adhesive tape carton cutting bin 17, the spring 20 is arranged above the second guide wheel 19 and elastically connected with the adhesive tape carton cutting bin 17, the telescopic cutting knife 21 is arranged in the middle of the adhesive tape carton cutting bin 17, the adhesive tape carton sealing mechanism stretches out the adhesive tape to be automatically cut off through the telescopic cutting knife 21, and carton sealing automation is realized.
The 11 symmetry of second telescopic link is to middle slope, and conveyer belt 5 is by motor drive, and interval bearing connection is equipped with driving roller 22 in joint sealing platform 1, moves along with the carton through driving roller 22 and rotates, makes the carton more convenient at joint sealing bench transmission joint sealing.
Example 2:
according to the fig. 6, the embodiment provides a quick carton sealing device, a fan 23 is arranged on one side of the sealing plate 3, the universal wheels 24 are arranged at the bottom of the sealing table 1, and the fan 23 blows air to the carton to blow away dust on the carton, so that the problem that the dust on the carton can influence the firmness of tape sealing is solved.
This quick box sealing device of carton, when the joint sealing platform was put to the carton, the conveyer belt starts to rotate, and first telescopic link stretches out and stops after pressure sensor contact carton, and the second telescopic link stretches out to push down lid behind the carton, and the third telescopic link symmetry stretches out to push down the carton side cap, closes the apron before the carton moves forward and pushes down the protecgulum, and the sticky tape is pulled out from first leading wheel, seals the subsides to the carton under the guide of second leading wheel, seals the flexible cutting off cutter after the subsides are accomplished and stretches out and cut off the sticky tape.
The foregoing illustrates and describes the principles, general features, and advantages of the present invention. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are described in the specification and illustrated only to illustrate the principle of the present invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the present invention, which fall within the scope of the utility model as claimed. The scope of the utility model is defined by the appended claims and equivalents thereof.
Claims (5)
1. The utility model provides a quick box sealing device of carton which characterized in that: comprises a carton sealing table (1), a carton fast packaging device, a clamping and conveying mechanism, a lifting mechanism, a carton sealing plate (3), a carton cover closing mechanism and a rubber belt carton sealing mechanism, the carton fast packaging device is fixedly arranged on two sides of the carton sealing platform (1), the clamping and conveying mechanism comprises a first telescopic rod (4), a conveying belt (5) and a pressure sensor (6), the first telescopic rods (4) are symmetrically arranged on the carton fast packaging device on the two sides, a conveying belt (5) is fixedly arranged at the telescopic end of the first telescopic rod (4), a pressure sensor (6) is arranged on the conveying belt (5), a lifting mechanism is arranged above the middle of the carton fast packaging device, a carton sealing plate (3) is arranged above the carton sealing platform (1), a carton cover closing mechanism is arranged on one side below the box sealing plate (3), and an adhesive tape box sealing mechanism is arranged on the other side below the box sealing plate (3).
2. The carton quick sealing device according to claim 1, characterized in that: elevating system includes crane (7), threaded rod (8), threaded sleeve (9) and driving motor (10), be equipped with crane (7) on the quick packaging hardware of carton, be equipped with threaded rod (8) in crane (7), threaded rod (8) overcoat is equipped with threaded sleeve (9), threaded sleeve (9) and box board (3) fixed connection.
3. The carton quick sealing device according to claim 1, characterized in that: the carton lid closing mechanism comprises a second telescopic rod (11), a rear closing cover plate (12), a third telescopic rod (13), a side closing cover plate (14) and a front closing cover plate (15), wherein the second telescopic rod (11) penetrates through one side of the carton sealing plate (3), the rear closing cover plate (12) is fixedly arranged at the telescopic end of the second telescopic rod (11), the third telescopic rod (13) is symmetrically arranged at one side of the carton sealing plate (3), the side closing cover plate (14) is fixedly arranged at the telescopic end of the third telescopic rod (13), and the front closing cover plate (15) is fixedly arranged below the middle of the carton sealing plate (3).
4. The carton quick sealing device according to claim 1, characterized in that: the adhesive tape box sealing mechanism comprises an adhesive tape frame (16), an adhesive tape cutting bin (17), a first guide wheel (18), a second guide wheel (19), a spring (20) and a telescopic cutting knife (21), the adhesive tape frame (16) is fixedly arranged on the other side of the lower portion of a box sealing plate (3), the adhesive tape cutting bin (17) is fixedly connected to the lower portion of the adhesive tape frame (16), the first guide wheel (18) is fixedly arranged on one outer side of the adhesive tape cutting bin (17), the second guide wheel (19) is symmetrically arranged in the adhesive tape cutting bin (17), the spring (20) is arranged above the second guide wheel (19) and elastically connected with the adhesive tape cutting bin (17), and the telescopic cutting knife (21) is arranged in the middle of the adhesive tape cutting bin (17).
5. The carton quick sealing device according to claim 3, characterized in that: the second telescopic link (11) is symmetrical to the middle and inclines, the conveyer belt (5) is driven by a motor, and the box sealing table (1) is internally provided with a driving roller (22) in a connection mode at intervals of bearings.
