Abstract
The utility model discloses a cutting device for machining a conductive reinforcing sheet, which comprises a workbench, a material table, an installation seat, a lifting type cutting structure, a feeding structure, a positioning structure and a receiving structure, wherein a plurality of supporting legs are arranged at the bottom of the workbench, a through blanking port is formed in the upper end surface of the workbench, the material table is installed on the upper end surface of the workbench, one side of the material table is flush with the blanking port, a material groove extending to one side is formed in the upper end surface of the material table, a strip-shaped reinforcing sheet material is placed in the material groove, and the installation seat is L-shaped. When the material-cutting machine is used for cutting, the position of the reinforcing sheet material does not need to be adjusted manually and continuously, the cutting work is convenient and continuous, time and labor are saved, the working efficiency is greatly improved, the cut material is conveniently and quickly collected, the overall working efficiency is further improved, and the practicability is high.
Description
Technical Field
The utility model relates to the field of cutting equipment, in particular to a cutting device for machining a conductive reinforcing sheet.
Background
Cutting equipment, as the name implies to be the mechanical equipment who cuts segmentation processing to the material, cutting equipment's range of application is very extensive, in the production and processing process of electrically conductive reinforcement piece, also need use cutting device to come to carry out segmentation cutting processing to the reinforcement piece material of rectangular shape.
However, the conventional cutting device for the conductive reinforcing sheet has the following disadvantages:
1. the reinforcing piece material that is not convenient for in succession carries out quick segmentation cutting to handle, and the position of the continuous adjustment reinforcing piece material of mostly needs the manual work to carry out multistage formula cutting to it and handle, waste time and energy, efficiency is lower.
2. The reinforcing piece material after the cutting is not convenient for carrying out quick concentrated material receiving treatment, and further the whole working efficiency is reduced.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a cutting device for processing a conductive reinforcing sheet, and the cutting device is used for solving the problems that the traditional cutting device for the conductive reinforcing sheet is inconvenient to continuously and rapidly perform segmented cutting treatment on reinforcing sheet materials, most of the traditional cutting device for the conductive reinforcing sheet needs to manually and continuously adjust the positions of the reinforcing sheet materials, so that the traditional cutting device for the conductive reinforcing sheet is subjected to multi-segment cutting treatment, time and labor are wasted, the efficiency is low, rapid centralized material receiving treatment on the cut reinforcing sheet materials is inconvenient, and the overall working efficiency is further reduced.
In order to achieve the purpose, the utility model provides the following technical scheme: a cutting device for processing an electric conduction reinforcing sheet comprises a workbench, a material table, a mounting seat, a lifting type cutting structure, a feeding structure, a positioning structure and a receiving structure, wherein a plurality of supporting legs are arranged at the bottom of the workbench, a through blanking port is formed in the upper end surface of the workbench, the material table is mounted at the upper end surface of the workbench, one side of the material table is flush with the blanking port, a material groove extending to one side is formed in the upper end surface of the material table, a strip-shaped reinforcing sheet material is placed in the material groove, the mounting seat is L-shaped, the mounting seat is fixedly mounted at the upper end surface of the workbench, the lifting type cutting structure is mounted below an L-shaped turning surface of the mounting seat, the feeding structure is mounted at the upper end surface of the material table, and the position of the feeding structure is matched with the position of the material groove, the positioning structure is arranged at the feeding structure, the receiving structure is arranged at the bottom of the workbench, and the position of the receiving structure is matched with that of the blanking port.
Preferably, over-and-under type cutting structure includes pneumatic cylinder, first mounting bracket, motor and cutter, pneumatic cylinder fixed mounting is in the L type turn face bottom department of mount pad, the top of first mounting bracket and the flexible end fixed connection of pneumatic cylinder, motor fixed mounting is in the inside of first mounting bracket, the output fixed connection of cutter and motor.
Preferably, the pay-off structure includes cylinder and push pedal, cylinder fixed mounting is close to in its one side edge in the upper end surface department of material platform, one side of push pedal and the flexible end fixed connection of cylinder, just the push pedal is arranged in the material groove, the bottom and the laminating of material groove of push pedal.
Preferably, the front side, the rear side and the bottom of the material groove are subjected to smoothing treatment.
Preferably, location structure is including deciding board, clamp plate and fastening knob, decide one side department of board fixed mounting in the push pedal, the clamp plate is installed in the bottom department of deciding the board through a plurality of telescopic links, threaded connection is passed through to the one end of fastening knob and the board is decided, just the fastening knob passes through the top department rotation of bearing and clamp plate and is connected, the size of clamp plate and the inside dimension phase-match in material groove.
Preferably, receive the material structure and include the second mounting bracket and receive the workbin, second mounting bracket fixed mounting is in the bottom department of workstation, receive the workbin activity and be located the inside of second mounting bracket, the front department of receiving the workbin is provided with the handle.
The utility model provides a cutting device for processing a conductive reinforcing sheet, which has the following beneficial effects:
(1) according to the utility model, the material platform, the feeding structure and the positioning structure are arranged, so that when the material is cut, the material platform can be placed in the material groove, then the fastening knob is rotated to drive the pressing plate to move downwards to press the material, and then the air cylinder is started to extend stage by stage, so that the material is pushed stage by stage continuously, the working cutter is driven to move up and down by stage expansion and contraction of the upper hydraulic cylinder, the material can be cut continuously, the position of the material does not need to be adjusted manually for cutting continuously, time and labor are saved, and the working efficiency is greatly improved.
(2) According to the material receiving structure, when the cutting operation is carried out, cut materials can naturally fall into the material receiving box through the blanking port to be subjected to concentrated material receiving, so that the materials can be rapidly transferred and processed in the follow-up process, and the overall working efficiency is further improved.
Drawings

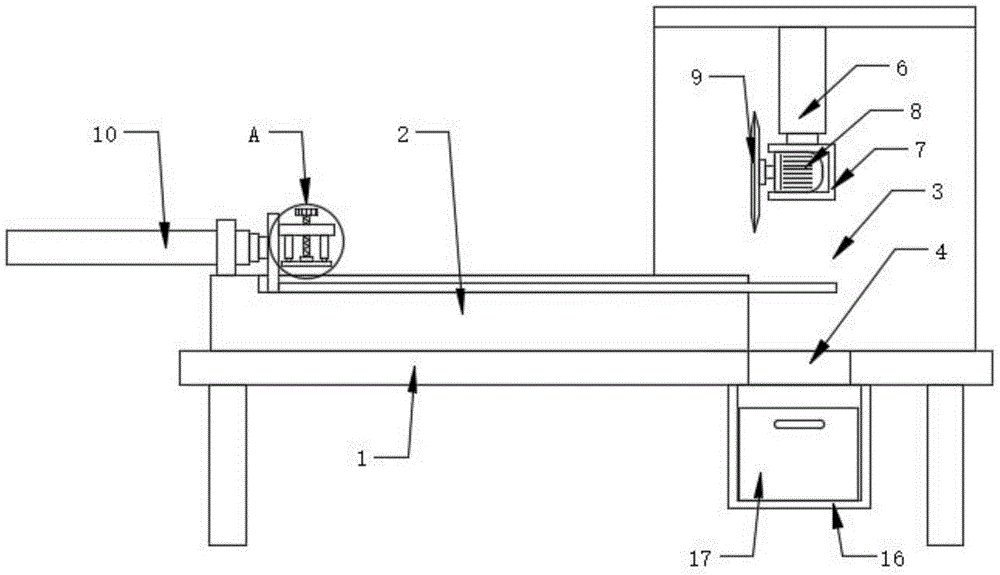

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic top view of the material table of the present invention;
FIG. 3 is a schematic view of the receiving box of the present invention;
fig. 4 is an enlarged schematic view of a point a in fig. 1.
In the figure: 1. a work table; 2. a material table; 3. a mounting seat; 4. a blanking port; 5. a material groove; 6. a hydraulic cylinder; 7. a first mounting bracket; 8. a motor; 9. a cutter; 10. a cylinder; 11. pushing the plate; 12. fixing a plate; 13. pressing a plate; 14. fastening a knob; 15. a telescopic rod; 16. a second mounting bracket; 17. and a material receiving box.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
As shown in fig. 1 to 4, the present invention provides a technical solution: a cutting device for processing a conductive reinforcing sheet comprises a workbench 1, a material table 2, a mounting seat 3, a lifting type cutting structure, a feeding structure, a positioning structure and a receiving structure, wherein a plurality of supporting legs are arranged at the bottom of the workbench 1, a through blanking port 4 is formed in the upper end surface of the workbench 1, the material table 2 is installed at the upper end surface of the workbench 1, one side of the material table 2 is flush with the blanking port 4, a material groove 5 extending to one side is formed in the upper end surface of the material table 2, a strip-shaped reinforcing sheet material is placed in the material groove 5, the mounting seat 3 is L-shaped, the mounting seat 3 is fixedly installed at the upper end surface of the workbench 1, the lifting type cutting structure is installed at the lower part of the L-shaped turning surface of the mounting seat 3, the feeding structure is installed at the upper end surface of the material table 2, the position of the feeding structure is matched with that of the material groove 5, the positioning structure is installed at the feeding structure, the receiving structure is installed at the bottom of the workbench 1, and the position of the receiving structure is matched with that of the blanking port 4.
The lifting type cutting structure comprises a hydraulic cylinder 6, a first mounting frame 7, a motor 8 and a cutter 9, wherein the hydraulic cylinder 6 is fixedly mounted at the bottom of the L-shaped turning surface of the mounting seat 3, the top of the first mounting frame 7 is fixedly connected with the telescopic end of the hydraulic cylinder 6, the motor 8 is fixedly mounted in the first mounting frame 7, and the cutter 9 is fixedly connected with the output end of the motor 8, so that the hydraulic cylinder 6 can be started to extend to drive the motor 8 and the cutter 9 to move downwards when cutting is performed, and the cutter 9 is driven to rotate by the motor 8 when the motor 8 operates, so that the material can be cut when the cutter moves downwards;
the feeding structure comprises an air cylinder 10 and a push plate 11, the air cylinder 10 is fixedly installed on the upper end surface of the material table 2 and close to the edge of one side of the upper end surface, one side of the push plate 11 is fixedly connected with the telescopic end of the air cylinder 10, the push plate 11 is located in the material groove 5, and the bottom of the push plate 11 is attached to the material groove 5, so that when cutting is carried out, the air cylinder 10 can be started to extend in stages, the push plate 11 is driven to move in stages, the materials are driven to move in stages, cutting processing is conveniently and continuously carried out, and position adjustment processing of the materials is not required to be carried out manually and continuously;
the front side, the rear side and the bottom of the material groove 5 are subjected to smoothing treatment, so that the friction force between the reinforcing sheet material and the material groove 5 is reduced, and the reinforcing sheet material can move in the material groove 5 conveniently;
the positioning structure comprises a fixed plate 12, a pressing plate 13 and a fastening knob 14, wherein the fixed plate 12 is fixedly arranged at one side of the pushing plate 11, the pressing plate 13 is arranged at the bottom of the fixed plate 12 through a plurality of telescopic rods 15, one end of the fastening knob 14 penetrates through the fixed plate 12 through threaded connection, the fastening knob 14 is rotatably connected with the top of the pressing plate 13 through a bearing, and the size of the pressing plate 13 is matched with the inner size of the material groove 5, so that when the material is cut, a reinforcing sheet material can be placed in the material groove 5 firstly, then the fastening knob 14 is rotated to drive the pressing plate 13 to move downwards until the pressing plate 13 is abutted against the reinforcing sheet material, and the reinforcing sheet material can be positioned;
the material receiving structure comprises a second mounting frame 16 and a material receiving box 17, the second mounting frame 16 is fixedly mounted at the bottom of the workbench 1, the material receiving box 17 is movably located in the second mounting frame 16, and a handle is arranged at the front of the material receiving box 17, so that when the reinforcing sheet material is cut, the cut reinforcing sheet material can directly fall into the material receiving box 17 through the material dropping opening 4, centralized collection is completed, manual material receiving is not needed, the material receiving structure is convenient to transfer to the next processing procedure for processing, and the overall working efficiency is further improved;
it will be appreciated that the hydraulic cylinder 6 and the air cylinder 10 are externally connected with a control switch and a programmable control program terminal, respectively.
The working principle is as follows: when the material cutting operation is carried out, the reinforcing sheet material can be firstly placed in the material groove 5, then the fastening knob 14 is rotated to drive the pressing plate 13 to move downwards until the pressing plate 13 is abutted to the reinforcing sheet material, so that the reinforcing sheet material can be positioned, at the moment, the air cylinder 10 and the hydraulic cylinder 6 are started, the air cylinder 10 is extended in working stages, so that the pushing plate 11 is driven to move in stages, the material is driven to move in stages in the material groove 5, the cutting operation can be carried out continuously and conveniently, the position of the material is not required to be adjusted continuously by manpower, meanwhile, the hydraulic cylinder 6 is extended in stages, the motor 8 and the cutter 9 are driven to lift, the cutter 9 is driven to rotate by the motor 8, the material can be cut when moving downwards, the position of the reinforcing sheet material is not required to be adjusted continuously by manpower, the time and the labor are saved, and the working efficiency of the cutting operation is greatly improved, and when carrying out the cutting work of reinforcement piece material, the reinforcement piece material after being cut off can directly fall to receiving the material case 17 through blanking mouth 4 in, accomplishes concentrated collection, need not artifical the receipts material, and be convenient for follow-up quick transfer to next manufacturing procedure department and process, further improvement holistic work efficiency.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a cutting device is used in processing of electrically conductive reinforcement piece, includes workstation (1), material platform (2), mount pad (3), over-and-under type cutting structure, pay-off structure, location structure and receives the material structure, its characterized in that: the bottom of the workbench (1) is provided with a plurality of supporting legs, the upper end surface of the workbench (1) is provided with a through blanking port (4), the material platform (2) is installed at the upper end surface of the workbench (1), one side of the material platform (2) is flush with the blanking port (4), the upper end surface of the material platform (2) is provided with a material groove (5) extending to one side, a strip-shaped reinforcing sheet material is placed in the material groove (5), the mounting seat (3) is L-shaped, the mounting seat (3) is fixedly installed at the upper end surface of the workbench (1), the lifting cutting structure is installed at the lower part of the L-shaped turning surface of the mounting seat (3), the feeding structure is installed at the upper end surface of the material platform (2), and the position of the feeding structure is matched with the position of the material groove (5), the positioning structure is arranged at the feeding structure, the receiving structure is arranged at the bottom of the workbench (1), and the position of the receiving structure is matched with that of the blanking port (4).
2. The cutting device for machining the conductive reinforcing sheet as claimed in claim 1, wherein: over-and-under type cutting structure includes pneumatic cylinder (6), first mounting bracket (7), motor (8) and cutter (9), pneumatic cylinder (6) fixed mounting is in the L type turn face bottom department of mount pad (3), the top of first mounting bracket (7) and the flexible end fixed connection of pneumatic cylinder (6), motor (8) fixed mounting is in the inside of first mounting bracket (7), the output fixed connection of cutter (9) and motor (8).
3. The cutting device for machining the conductive reinforcing sheet as claimed in claim 1, wherein: the feeding structure comprises a cylinder (10) and a push plate (11), wherein the cylinder (10) is fixedly installed at the upper end surface of the material platform (2) and close to one side edge of the upper end surface, one side of the push plate (11) is fixedly connected with the telescopic end of the cylinder (10), the push plate (11) is located in the material groove (5), and the bottom of the push plate (11) is attached to the material groove (5).
4. The cutting device for machining the conductive reinforcing sheet as claimed in claim 1, wherein: the front side, the rear side and the bottom of the material groove (5) are subjected to smoothing treatment.
5. The cutting device for machining the conductive reinforcing sheet as claimed in claim 1, wherein: the positioning structure comprises a fixed plate (12), a pressing plate (13) and a fastening knob (14), wherein the fixed plate (12) is fixedly arranged at one side of a pushing plate (11), the pressing plate (13) is arranged at the bottom of the fixed plate (12) through a plurality of telescopic rods (15), one end of the fastening knob (14) penetrates through the fixed plate (12) through threaded connection, the fastening knob (14) is rotatably connected with the top of the pressing plate (13) through a bearing, and the size of the pressing plate (13) is matched with the inner size of a material groove (5).
6. The cutting device for machining the conductive reinforcing sheet as claimed in claim 1, wherein: receive the material structure and include second mounting bracket (16) and receipts workbin (17), second mounting bracket (16) fixed mounting is in the bottom department of workstation (1), receive workbin (17) activity and be located the inside of second mounting bracket (16), the front department of receiving workbin (17) is provided with the handle.
