Abstract
The utility model relates to the technical field of edge grinding machines and discloses a stone rock plate edge grinding machine which comprises a support column, wherein a workbench is fixedly installed on the top surface of the support column, a sliding mechanism is installed on the front surface of the workbench, an extension rod is installed on one side of the workbench, an adjusting mechanism is installed on the top surface of the workbench, a rotating roller is installed on the front surface of the adjusting mechanism, a cutting blade is installed at one end of the rotating roller, a cutting motor is installed on the back surface of the adjusting mechanism, a grinding belt is arranged in front of the adjusting mechanism, a conveying belt is arranged below the grinding belt, one end of the conveying belt is fixedly connected with a rotating rod, and one end of the rotating rod is fixedly connected with a support bearing. This stone and rock plate edging machine when the surface of stone and rock plate need be slotted the cutting, then open the cutting motor and drive the rotation kun and rotate, the rotation kun then drives the cutting piece and rotates, the cutting piece contacts the surface of stone and rock plate and cuts, overall structure makes this edging machine not only have the function of polishing but also possess the function of cutting.
Description
Technical Field
The utility model relates to the technical field of edge grinding machines, in particular to an edge grinding machine for stone and rock plates.
Background
The stone is used as a building material, the appearance of the stone is different from the traditional rough surface along with the development of a processing technology, the smooth surface of the polished stone shows natural grains of the stone, and the stone is more and more popular in the building industry, so that the demand of the stone is continuously increased. The stone material, like the granite, marble etc., need just can demonstrate its aesthetic feeling as building material after polishing, current stone material rock plate edging machine only possesses the function of polishing, and do not have the function of cutting, still need reuse cutting means to process when making the stone material surface need crack, this is unfavorable for improving production efficiency, the rock plate can constantly move on the conveyer belt at the in-process of polishing simultaneously, current stone material rock plate edging machine does not possess the mechanism of supplementary rock plate motion, make the rock plate polish the resistance of in-process removal and need the manual work to hold up the rock plate and polish for this reason we need propose the improvement.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Aiming at the defects of the prior art, the utility model provides the stone and rock plate edge grinding machine which is provided with the cutting blade, so that the stone and rock plate edge grinding machine not only has the grinding function but also has the cutting function, and meanwhile, the pulley is arranged, so that the running resistance of stone can be reduced, and the technical problem is solved.
(II) technical scheme
In order to achieve the purpose, the utility model provides the following technical scheme: a stone rock plate edge grinding machine comprises a support column, wherein a workbench is fixedly installed on the top surface of the support column, a sliding mechanism is installed on the front surface of the workbench, an extension rod is installed on one side of the workbench, an adjusting mechanism is installed on the top surface of the workbench, a rotating roller is installed on the front surface of the adjusting mechanism, a cutting blade is installed at one end of the rotating roller, a cutting motor is installed on the back surface of the adjusting mechanism, a grinding belt is arranged right in front of the adjusting mechanism, one end of the grinding belt is fixedly connected with a universal shaft, one end of the universal shaft is fixedly connected with a driving motor, a conveying belt is arranged right below the grinding belt, one end of the conveying belt is fixedly connected with a rotating rod, and one end of the rotating rod is fixedly connected with a support bearing;
the sliding mechanism comprises side plates, a rotating shaft and pulleys, wherein the side plates are arranged on the front surface and the back surface of the sliding mechanism, the rotating shaft is movably arranged on the back surface of the side plates, and the pulleys are arranged on the shaft surface of the rotating shaft;
the adjusting mechanism comprises a supporting cylinder, a sliding block, a connecting rod, a screw rod, a first bevel gear, a second bevel gear, a transmission rod, a rotating wheel and a connecting plate, the two ends of the adjusting mechanism are provided with the supporting cylinder, the sliding block is arranged inside the supporting cylinder, the connecting rod is arranged on the front surface of the sliding block, the screw rod is arranged at the center of the sliding block, the first bevel gear is arranged at the top of the screw rod, the second bevel gear is arranged on one side of the first bevel gear, the transmission rod is arranged on the end surface of the second bevel gear, the rotating wheel is arranged at one end of the transmission rod, and the connecting plate is arranged on the side surface of the supporting cylinder.
Preferably, a cutting motor is mounted on the back of the connecting plate, and one end of the cutting motor is fixedly connected with the rotating roller.
Through the technical scheme, the through-hole has been seted up in the front of connecting plate, rotation kun one end is pegged graft and is linked to each other with the cutting motor is fixed in the through-hole, the cutting piece is in the one side of the belt of the area of polishing, after the stone material rock slab was placed on the belt of conveyer belt, the conveyer belt drove the stone material rock slab and moves towards the area of polishing, the area of polishing is polished the stone material rock slab, when needing to crack the cutting to the surface of stone material rock slab, then need open the cutting motor and drive rotation kun rotation, rotation kun then drives the cutting piece and rotates, the cutting piece contacts the surface of stone material rock slab and cuts, overall structure makes this edging machine not only have the function of polishing still possess the function of cutting.
Preferably, the extension rod is provided with two, and the top surface installation slide mechanism of extension rod, curb plate fixed mounting is in the front of workstation, the pulley sets up a plurality ofly.
Through above-mentioned technical scheme, when carrying out the edging to the stone material rock plate and handling, need place the surface at the conveyer belt with the stone material rock plate, drive the stone material rock plate by the conveyer belt and move towards the area of polishing, but because some stone material rock plate materials are very long and narrow, make the conveyer belt inconvenient in the transport, installation slide mechanism can place the surface at the conveyer belt with the one end of stone material rock plate, the surface at slide mechanism is placed to the other end, the other end of stone material rock plate can slide on the pulley when making the conveyer belt move, overall structure has reduced the resistance when stone material rock plate moves.
Preferably, the first bevel gear is meshed with the second bevel gear, the sliding block is in threaded connection with the screw rod, and one end of the connecting rod is fixedly connected to the back of the polishing belt.
Through above-mentioned technical scheme, when carrying out the edging to the stone material rock plate and handling, need place the surface at the conveyer belt with the stone material rock plate, drive the stone material rock plate by the conveyer belt and move towards the area of polishing, but because some stone material rock plate materials are very long and narrow, make the conveyer belt inconvenient in the transport, installation slide mechanism can place the surface at the conveyer belt with the one end of stone material rock plate, the surface at slide mechanism is placed to the other end, the other end of stone material rock plate can slide on the pulley when making the conveyer belt move, overall structure has reduced the resistance when stone material rock plate moves.
Preferably, the grinding belt and the conveyer belt are provided with saw teeth on the axial surfaces of the rotating wheels and the inner side of the belt.
Through above-mentioned technical scheme, the both ends installation runner of polishing area and conveyer belt drives the belt and rotates, sets up the sawtooth in runner and belt inboard for intermeshing between runner and the belt, thereby can prevent effectively that the belt from rotating the in-process and skidding.
Compared with the prior art, the utility model provides an edge grinding machine for stone and rock plates, which has the following beneficial effects:
1. this stone and rock plate edge grinding machine, through the front installation slide mechanism at the workstation, at the side-mounting extension rod of workstation, slide mechanism is also installed to the extension rod top surface, when placing stone and rock plate one end on the conveyer belt top surface, the other end of stone and rock plate can be placed on slide mechanism's pulley, when the conveyer belt drove the stone and rock plate and move towards the band of polishing, the other end of stone and rock plate can slide on the pulley, overall structure has reduced the resistance of stone and rock plate when moving for the workman needn't hand stone and rock plate polish.
2. This stone rock plate edging machine, through the cutting piece of installation in one side of the band of polishing, the cutting piece is connected and is rotated the kun, rotates the kun and connects the cutting motor, when needs crack the cutting to the surface of stone rock plate, then opens the cutting motor and drive and rotate the kun rotation, rotates the kun and then drives the cutting piece rotation, and the cutting piece contacts the surface of stone rock plate and cuts, and overall structure makes this edging machine not only have the function of polishing but also possess the function of cutting.
Drawings
FIG. 1 is a front perspective view of the present invention;
FIG. 2 is a perspective view of the back of the structure of the present invention;

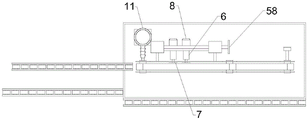

FIG. 3 is a schematic top view of the structure of the present invention;
FIG. 4 is a schematic front cross-sectional view of a structural adjustment mechanism of the present invention;
FIG. 5 is a top view of a partial schematic view of the sliding mechanism of the present invention.
Wherein: 1. a support pillar; 2. a work table; 3. a sliding mechanism; 4. an extension pole; 5. an adjustment mechanism; 6. rotating the roller; 7. cutting the slices; 8. cutting the motor; 9. polishing the belt; 10. a cardan shaft; 11. a drive motor; 12. a conveyor belt; 13. a rotating rod; 14. a support bearing; 31. a side plate; 32. a rotating shaft; 33. a pulley; 51. a support cylinder; 52. a slider; 53. a connecting rod; 54. a screw rod; 55. a first bevel gear; 56. a second bevel gear; 57. a transmission rod; 58. a rotating wheel; 59. a connecting plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-5, an edge grinding machine for stone and rock plates comprises a support column 1, a worktable 2 is fixedly installed on the top surface of the support column 1, a sliding mechanism 3 is installed on the front surface of the worktable 2, an extension rod 4 is installed on one side of the worktable 2, an adjusting mechanism 5 is installed on the top surface of the worktable 2, a rotating roller 6 is installed on the front surface of the adjusting mechanism 5, a cutting blade 7 is installed at one end of the rotating roller 6, a cutting motor 8 is installed on the back surface of the adjusting mechanism 5, a grinding belt 9 is arranged in front of the adjusting mechanism 5, one end of the grinding belt 9 is fixedly connected with a universal shaft 10, one end of the universal shaft 10 is fixedly connected with a driving motor 11, a conveying belt 12 is arranged below the grinding belt 9, one end of the conveying belt 12 is fixedly connected with a rotating rod 13, and one end of the rotating rod 13 is fixedly connected with a support bearing 14;
the sliding mechanism 3 comprises a side plate 31, a rotating shaft 32 and a pulley 33, the side plate 31 is arranged on the front surface and the back surface of the sliding mechanism 3, the rotating shaft 32 is movably arranged on the back surface of the side plate 31, and the pulley 33 is arranged on the axial surface of the rotating shaft 32;
the adjusting mechanism 5 comprises a supporting cylinder 51, a sliding block 52, a connecting rod 53, a screw rod 54, a first bevel gear 55, a second bevel gear 56, a transmission rod 57, a rotating wheel 58 and a connecting plate 59, the supporting cylinder 51 is installed at two ends of the adjusting mechanism 5, the sliding block 52 is installed inside the supporting cylinder 51, the connecting rod 53 is installed on the front face of the sliding block 52, the screw rod 54 is installed at the center of the sliding block 52, the first bevel gear 55 is installed at the top of the screw rod 54, the second bevel gear 56 is arranged on one side of the first bevel gear 55, the transmission rod 57 is installed on the end face of the second bevel gear 56, the rotating wheel 58 is installed at one end of the transmission rod 57, and the connecting plate 59 is installed on the side face of the supporting cylinder 51.
Specifically, the cutting motor 8 is mounted on the back of the connecting plate 59, and one end of the cutting motor 8 is fixedly connected with the rotating roller 6. The advantage is, the through-hole has been seted up in the front of connecting plate 59, rotate the one end of kun 6 and peg graft in the through-hole and cutting motor 8 is fixed continuous, cutting piece 7 is in one side of the belt of polishing area 9 belt, after the stone material rock slab was placed on the belt of conveyer belt 12, conveyer belt 12 drove the stone material rock slab and moves towards polishing area 9, polishing area 9 polishes the stone material rock slab, if need crack the cutting to the surface of stone material rock slab when cutting, then need open cutting motor 8 and drive rotation kun 6 and rotate, rotation kun 6 then drives cutting piece 7 and rotates, cutting piece 7 contacts the surface of stone material rock slab and cuts, overall structure makes this edging machine not only have the function of polishing but also possesses the function of cutting.
Specifically, two extension rods 4 are provided, the sliding mechanism 3 is installed on the top surface of each extension rod 4, the side plate 31 is fixedly installed on the front surface of the workbench 2, and a plurality of pulleys 33 are provided. The advantage is, when carrying out the edging to the stone material rock plate and handling, need place the surface at conveyer belt 12 with the stone material rock plate, drive the stone material rock plate by conveyer belt 12 and move towards the belt 9 that polishes, but because some stone material rock plate materials are very long and narrow, make conveyer belt 12 inconvenient in the transport, installation slide mechanism 3 can place the one end of stone material rock plate on the surface of conveyer belt 12, the other end is placed on slide mechanism 3's surface, the other end of stone material rock plate can slide on pulley 33 when making conveyer belt 12 move, overall structure has reduced the resistance of stone material rock plate when operation.
Specifically, the first bevel gear 55 is engaged with the second bevel gear 56, the slider 52 is in threaded connection with the lead screw 54, and one end of the connecting rod 53 is fixedly connected to the back of the polishing belt 9. The advantage is, the stone material rock plate has different thickness, when edging the stone material rock plate of different thickness and handling, need adjust the clearance between burnishing band 9 and the conveyer belt 12, make transfer line 57 rotate through rotating runner 58, transfer line 57 drives second bevel gear 56 and rotates, second bevel gear 56 drives first bevel gear 55 and rotates, first bevel gear 55 then drives lead screw 54 and rotates, lead screw 54 drives slider 52 up-and-down motion, slider 52 then drives the up-and-down motion of burnishing band 9, thereby the clearance between adjustment and the conveyer belt 12, make this edging machine satisfy the stone material rock plate to different thickness carry out edging or cutting.
Specifically, the surfaces of the grinding belt 9 and the conveyer belt 12 are provided with saw teeth on the inner sides of the rotating wheel shaft and the belt. The advantage is, the both ends installation runner of polishing area 9 and conveyer belt 12 drives the belt and rotates, sets up the sawtooth at runner and belt inboard for intermeshing between runner and the belt, thereby can prevent effectively that the belt from rotating the in-process and skidding.
When the stone rock plate cutting machine is used, firstly, the driving motor 11 is started to drive the grinding belt 9 and the conveying belt 12 to rotate, one end, needing to be ground, of a stone rock plate is placed on the conveying belt 12, the other end of the stone rock plate is placed on the sliding mechanism 3, the conveying belt 12 drives the stone rock plate to move towards the grinding belt 9, meanwhile, the other end of the stone rock plate slides on the pulley 33, the grinding belt 9 grinds the stone rock plate, if the surface of the stone rock plate needs to be slotted and cut, the cutting motor 8 needs to be started to drive the rotating roller 6 to rotate, the rotating roller 6 drives the cutting blade 7 to rotate, and the cutting blade 7 is in contact with the surface of the stone rock plate to cut.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a stone and rock plate edging machine, includes support column (1), its characterized in that: a workbench (2) is fixedly arranged on the top surface of the supporting column (1), a sliding mechanism (3) is arranged on the front surface of the workbench (2), an extension rod (4) is arranged on one side of the workbench (2), an adjusting mechanism (5) is arranged on the top surface of the workbench (2), a rotating roller (6) is arranged on the front surface of the adjusting mechanism (5), a cutting sheet (7) is arranged at one end of the rotating roller (6), a cutting motor (8) is arranged on the back surface of the adjusting mechanism (5), a polishing belt (9) is arranged right in front of the adjusting mechanism (5), one end of the grinding belt (9) is fixedly connected with a universal shaft (10), one end of the universal shaft (10) is fixedly connected with a driving motor (11), a conveying belt (12) is arranged right below the grinding belt (9), one end of the conveying belt (12) is fixedly connected with a rotating rod (13), and one end of the rotating rod (13) is fixedly connected with a supporting bearing (14);
the sliding mechanism (3) comprises side plates (31), a rotating shaft (32) and pulleys (33), the side plates (31) are mounted on the front surface and the back surface of the sliding mechanism (3), the rotating shaft (32) is movably mounted on the back surface of each side plate (31), and the pulleys (33) are mounted on the shaft surface of each rotating shaft (32);
adjusting mechanism (5) are including a support section of thick bamboo (51), slider (52), connecting rod (53), lead screw (54), first bevel (55), second bevel (56), transfer line (57), runner (58) and connecting plate (59), adjusting mechanism (5) both ends installation support section of thick bamboo (51), support section of thick bamboo (51) internally mounted slider (52), slider (52) front installation connecting rod (53), slider (52) center installation lead screw (54), first bevel (55) of lead screw (54) top installation, first bevel (55) one side sets up second bevel (56), installation transfer line (57) on second bevel (56) terminal surface, transfer line (57) one end installation runner (58), support section of thick bamboo (51) side installation connecting plate (59).
2. The edge grinding machine for stone and rock slabs according to claim 1, characterized in that: and a cutting motor (8) is arranged on the back surface of the connecting plate (59), and one end of the cutting motor (8) is fixedly connected with the rotating roller (6).
3. The edge grinding machine for stone and rock slabs according to claim 1, characterized in that: extension rod (4) are provided with two, and the top surface installation slide mechanism (3) of extension rod (4), curb plate (31) fixed mounting is in the front of workstation (2), pulley (33) set up a plurality ofly.
4. The edge grinding machine for stone and rock slabs according to claim 1, characterized in that: the first bevel gear (55) is meshed with the second bevel gear (56), the sliding block (52) is in threaded connection with the screw rod (54), and one end of the connecting rod (53) is fixedly connected to the back of the grinding belt (9).
5. The edge grinding machine for stone and rock slabs according to claim 1, characterized in that: the grinding belt (9) and the conveyer belt (12) are provided with saw teeth on the rotating wheel axial surface and the inner side of the belt.
